This is the Kubota Workshop Manual for the W5019 and W5021 walk-behind mowers, a 190-page PDF that covers the full run of variants, including the W5019-P, W5019-T, W5021-PC, W5021-HT, W5021-SC, and their C and E suffix versions. All are powered by Kubota GH150V series engines.Written for technicians, it opens with detailed engine and mower specifications, then explains the machine mechanism: the automatic pressure relieving system, the carburetor, the sub PTO shaft, the power train, the mower blade clutch, and the wiring diagram. A supplement adds dimensions and the flywheel brake mechanism.Use it to diagnose starting and running faults, service the blade clutch and transmission, set the correct torque values and clearances during reassembly, and trace electrical problems. The document has a text layer, so you can search model numbers and spec names directly in the PDF.
What's Inside This Kubota W5019–W5021 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Workshop Manual | 1-2 | Manuel D'Atelier, Werkstattanleitung, W5019, W5021 |
| Record of Revisions | 3-8 | Record of Revisions Table (Last Digit of the Code No., Issue Month, Main Revised Point and Corrective Measures, Reference Page), Avant-Propos (Mécanismes, Démontage Et Entretien) |
| Specifications | 9-22 | Engine Specifications, Engine Model Variations, Walk Behind Mower Specifications, Walk Behind Mower Model Variations |
| Mechanism | 23-36 | Engine (Automatic Pressure Relieving Mechanism, Carburetor, Sub PTO Shaft), Transmission (Power Train), Mower Blade Clutch, Wiring Diagram |
| Supplement | 169-190 | Dimensions, M. Mechanism (Flywheel Brake) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

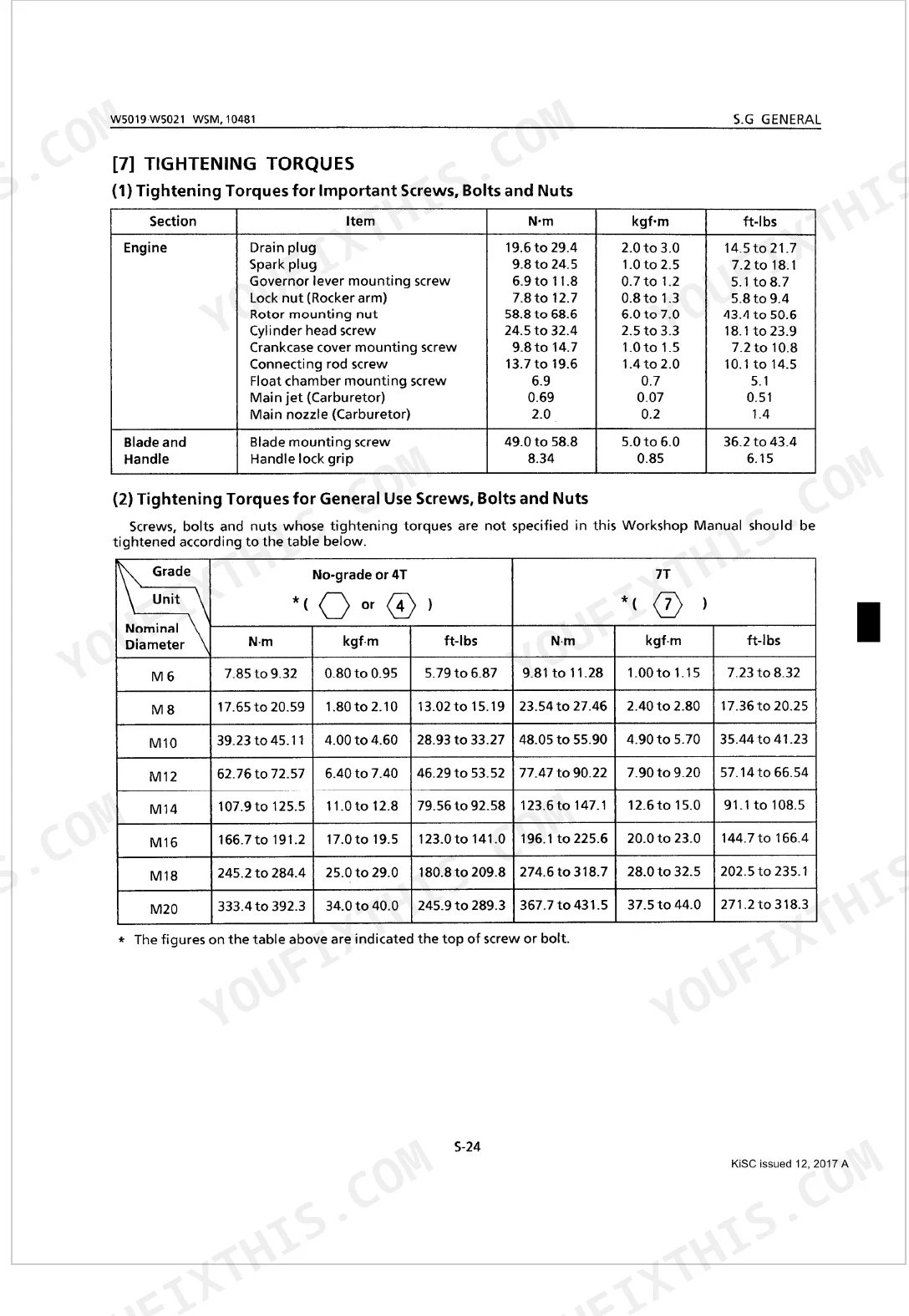

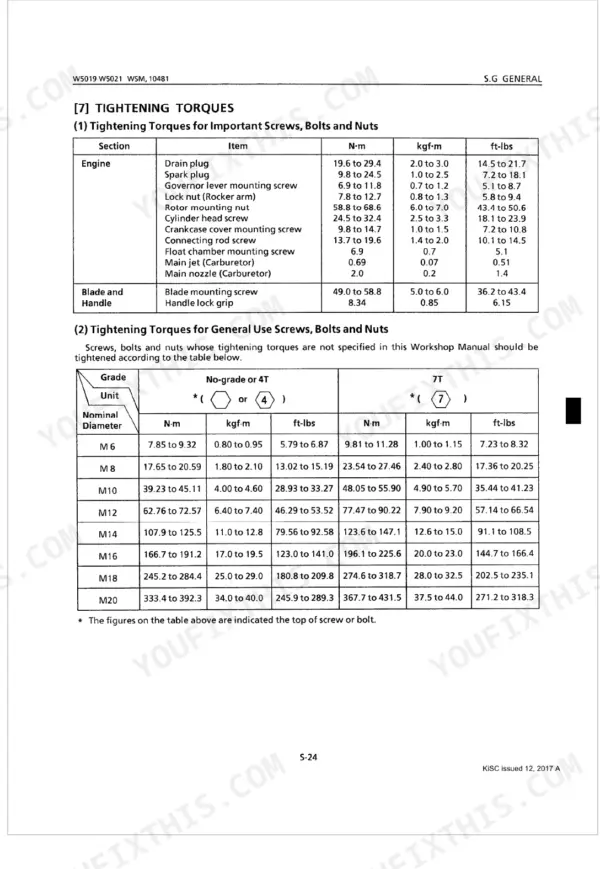

| Engine Drain Plug Tightening Torque | 19.6 to 29.4 N-m (2.0 to 3.0 kgf·m, 14.5 to 21.7 ft-lbs) | p. 60 |
| Spark Plug Tightening Torque | 9.8 to 24.5 N-m (1.0 to 2.5 kgf·m, 7.2 to 18.1 ft-lbs) | p. 60 |
| Rotor Mounting Nut Tightening Torque | 58.8 to 68.6 N-m (6.0 to 7.0 kgf·m, 43.4 to 50.6 ft-lbs) | p. 60 |
| Cylinder Head Screw Tightening Torque | 24.5 to 32.4 N-m (2.5 to 3.3 kgf·m, 18.1 to 23.9 ft-lbs) | p. 60 |
| Connecting Rod Screw Tightening Torque | 13.7 to 19.6 N-m (1.4 to 2.0 kgf·m, 10.1 to 14.5 ft-lbs) | p. 60 |
| Blade Mounting Screw Tightening Torque | 49.0 to 58.8 N-m (5.0 to 6.0 kgf·m, 36.2 to 43.4 ft-lbs) | p. 60 |

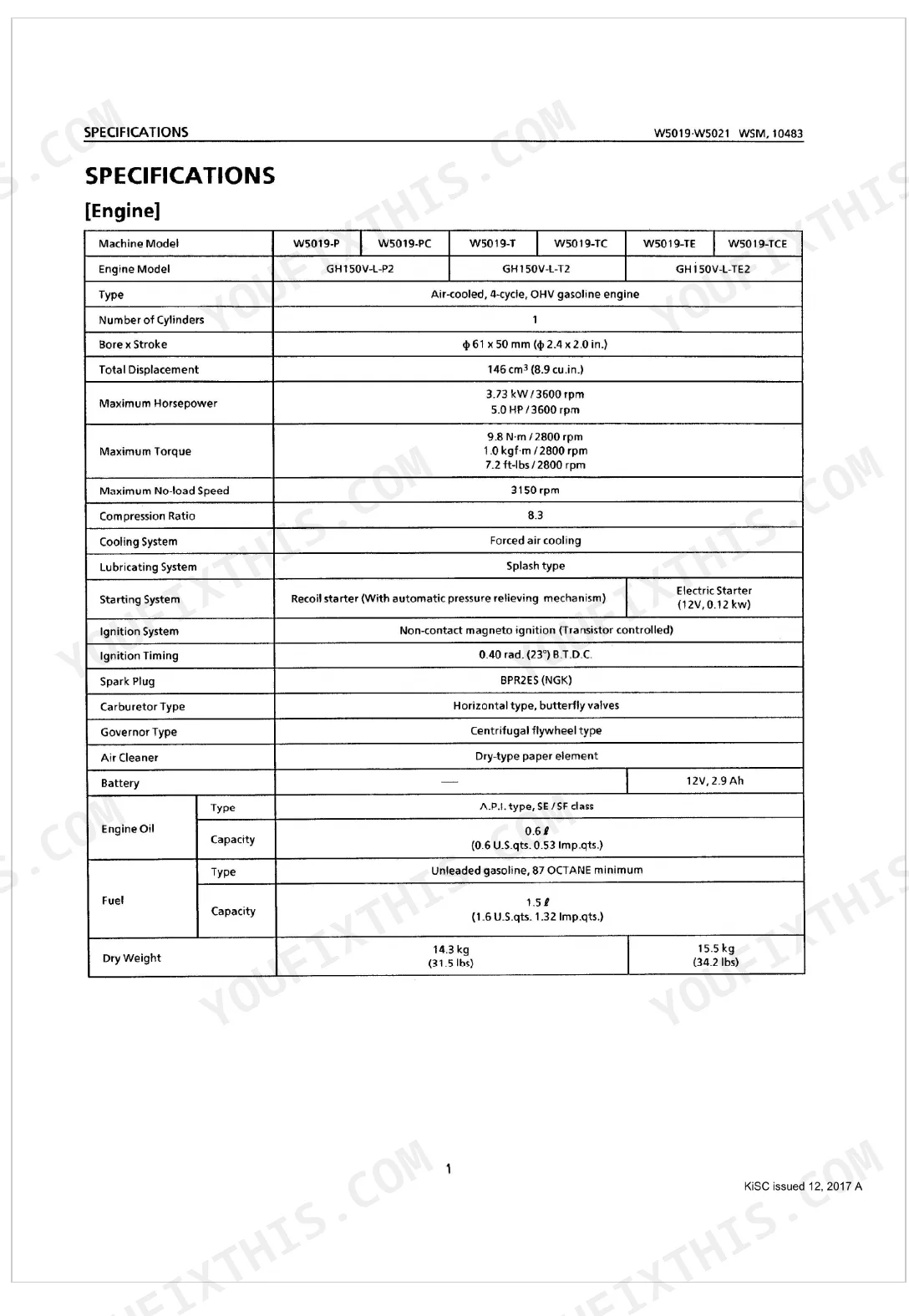

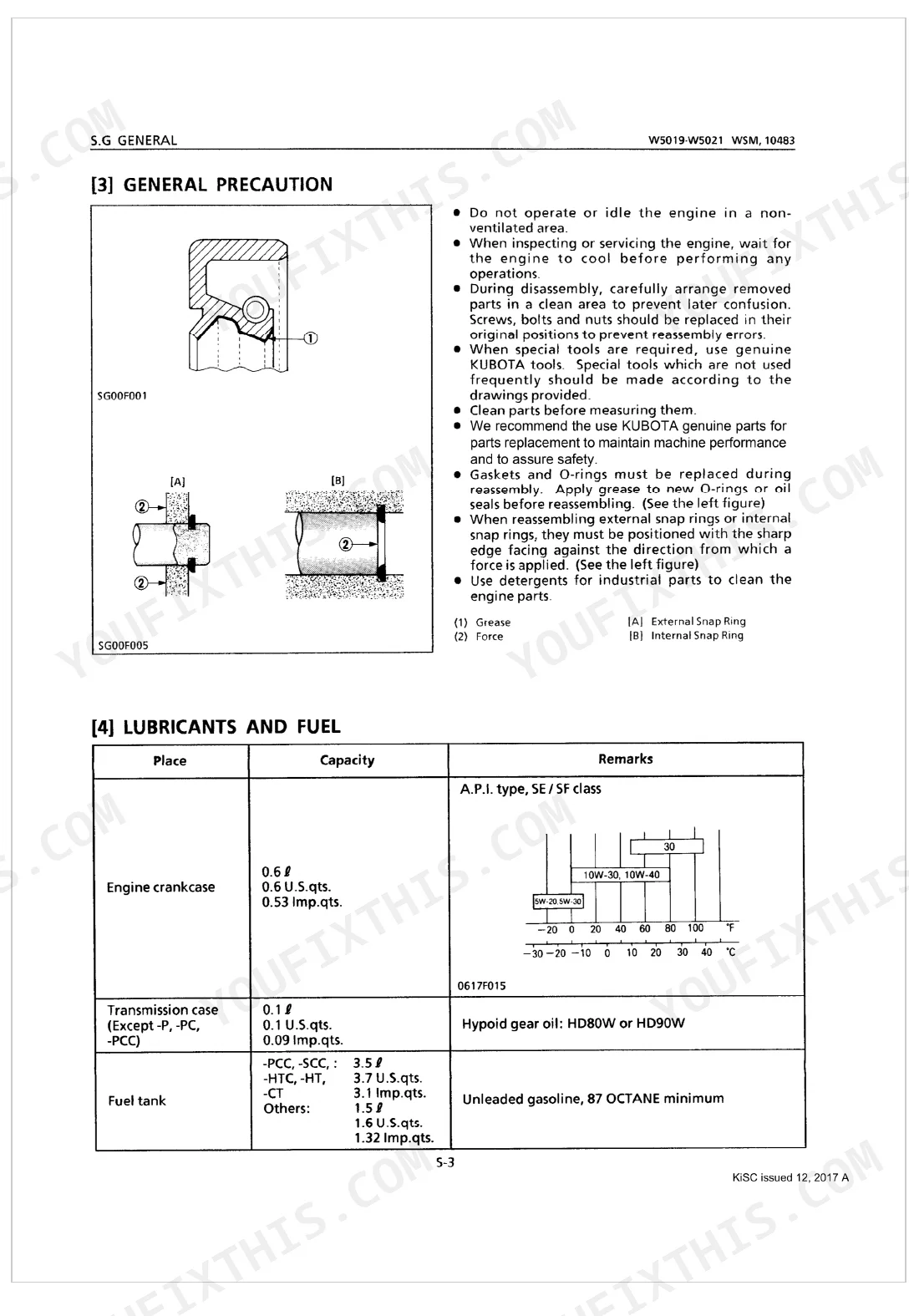

| Engine Oil Capacity | 0.6 l (0.6 U.S.qts. 0.53 Imp.qts.) | p. 9 |
| Engine Oil Change Interval | First month or initial 20 hours, then every 6 months or 100 hours | p. 63 |
| W5019-P, W5019-PC, W5019-T, W5019-TC, W5019-TE, W5019-TCE | ||
| Fuel Capacity | 1.5 l (1.6 U.S.qts. 1.32 Imp.qts.) | p. 9 |
| Transmission Oil Capacity | 0.1 l (0.1 U.S.qts., 0.09 Imp.qts.) | p. 11 |
| W5021-PC, W5021-PCC, W5021-TC, SC, W5021-HT, CT, W5021-SCC, HTC | ||
| Fuel Capacity | 3.5 l (3.7 U.S.qts. 3.08 Imp.qts.) | p. 10 |
| W5021-PC, W5021-PCC, W5021-T, W5021-TE, W5021-SCE, TCE | ||
| Transmission Oil Capacity | 0.1 l (0.1 U.S.qts., 0.09 Imp.qts.) | p. 12 |
Kubota W5019–W5021 Series Common Problems This Manual Covers

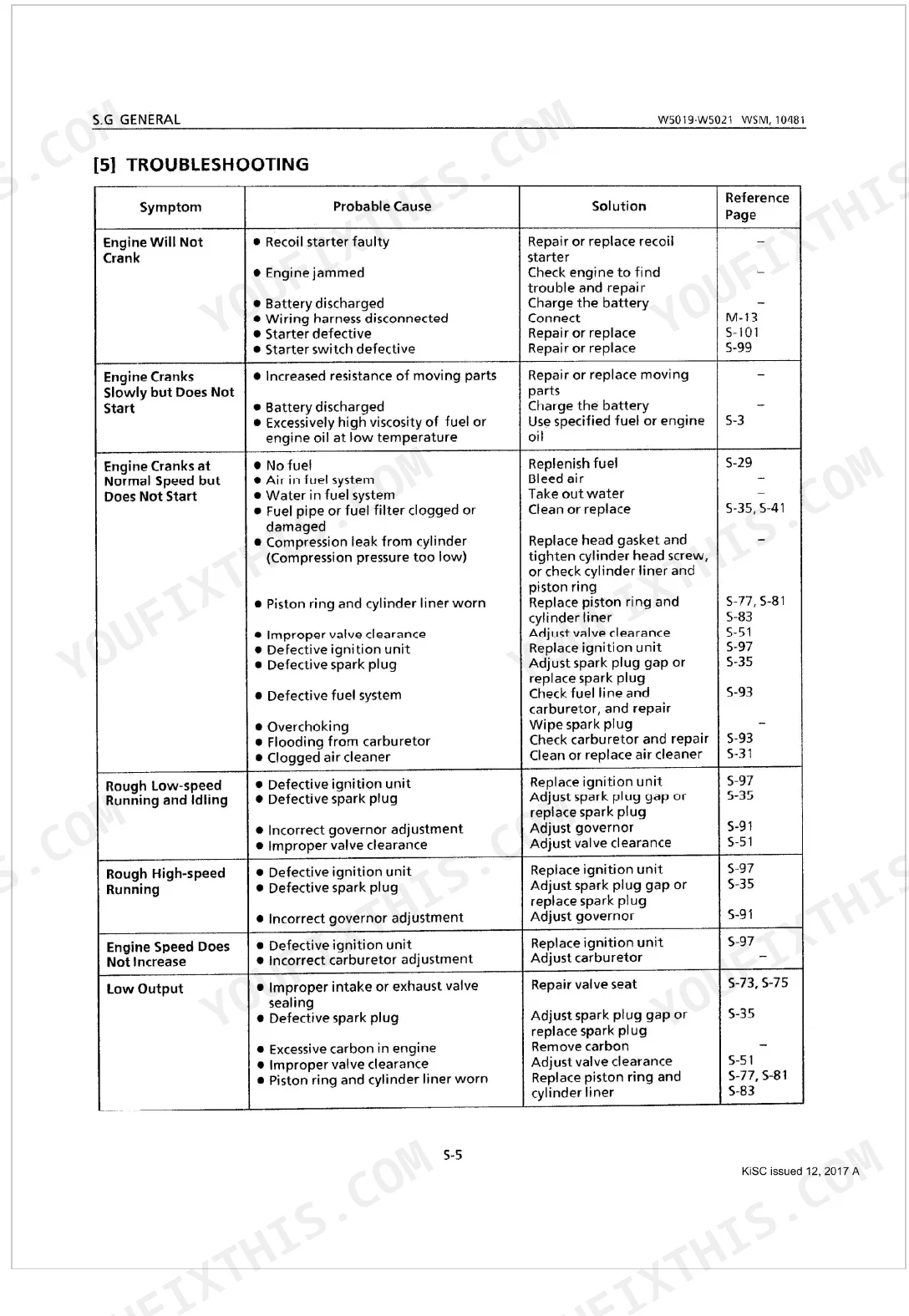

Blade clutch slips or will not engage
On self-propelled walk-behind mowers the blade clutch takes heavy wear, and a slipping or non-engaging clutch is a frequent fault. The mechanism section describes the mower blade clutch and its spring so you can check free length and condition.
Manual Section: Mechanism p. 23Rough running or hard starting

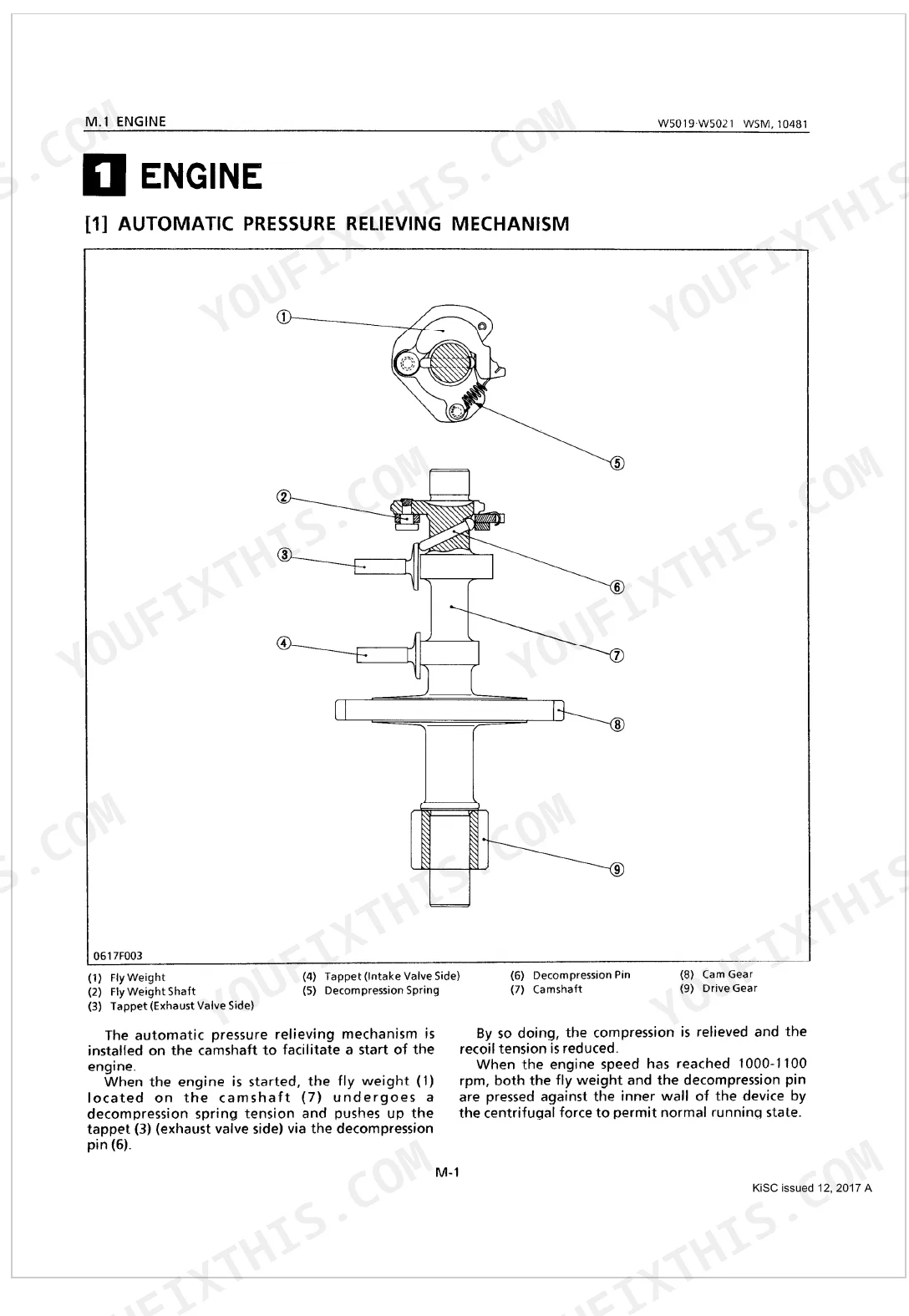

Fuel varnish and a dirty carburetor cause surging, stalling, and hard starts on these small engines. The mechanism section covers the carburetor and the automatic pressure relieving system that affects cranking.
Manual Section: Mechanism p. 23Mower will not self-propel
Loss of drive on a self-propelled unit usually points to the power train or transmission. The mechanism section explains the transmission power train so you can isolate the failed component before teardown.
Manual Section: Mechanism p. 23No spark or electrical fault
A no-start with good fuel often traces to the ignition or charging circuit. The wiring diagram in the mechanism section lets you follow the harness and check the charging coil resistance.
Manual Section: Mechanism p. 23Blade does not stop quickly
The flywheel brake must stop the blade within the required time once the operator releases the control. The supplement documents the flywheel brake mechanism for inspection and adjustment.
Manual Section: Supplement p. 169Incorrect specifications on reassembly
Wrong valve clearance, spark plug gap, or blade cutting width will hurt performance after a rebuild. The specifications section lists engine and mower figures for each W5019 and W5021 variant.
Manual Section: Specifications p. 9Frequently Asked Questions
Which models and engines does this manual cover?
It covers the Kubota W5019 and W5021 walk-behind mowers and their many suffix variants such as the W5019-T, W5021-PC, and W5021-HT, all fitted with Kubota GH150V series engines.
Does it list the engine oil capacity?
Yes. The specifications section gives an engine oil capacity of 0.6 liters, along with the compression ratio, spark plug gap, and valve clearance. p. 9
What cutting widths are covered?
The specifications section lists a 470 mm cutting width for the W5019 models and a 530 mm cutting width for the W5021 models. p. 11
