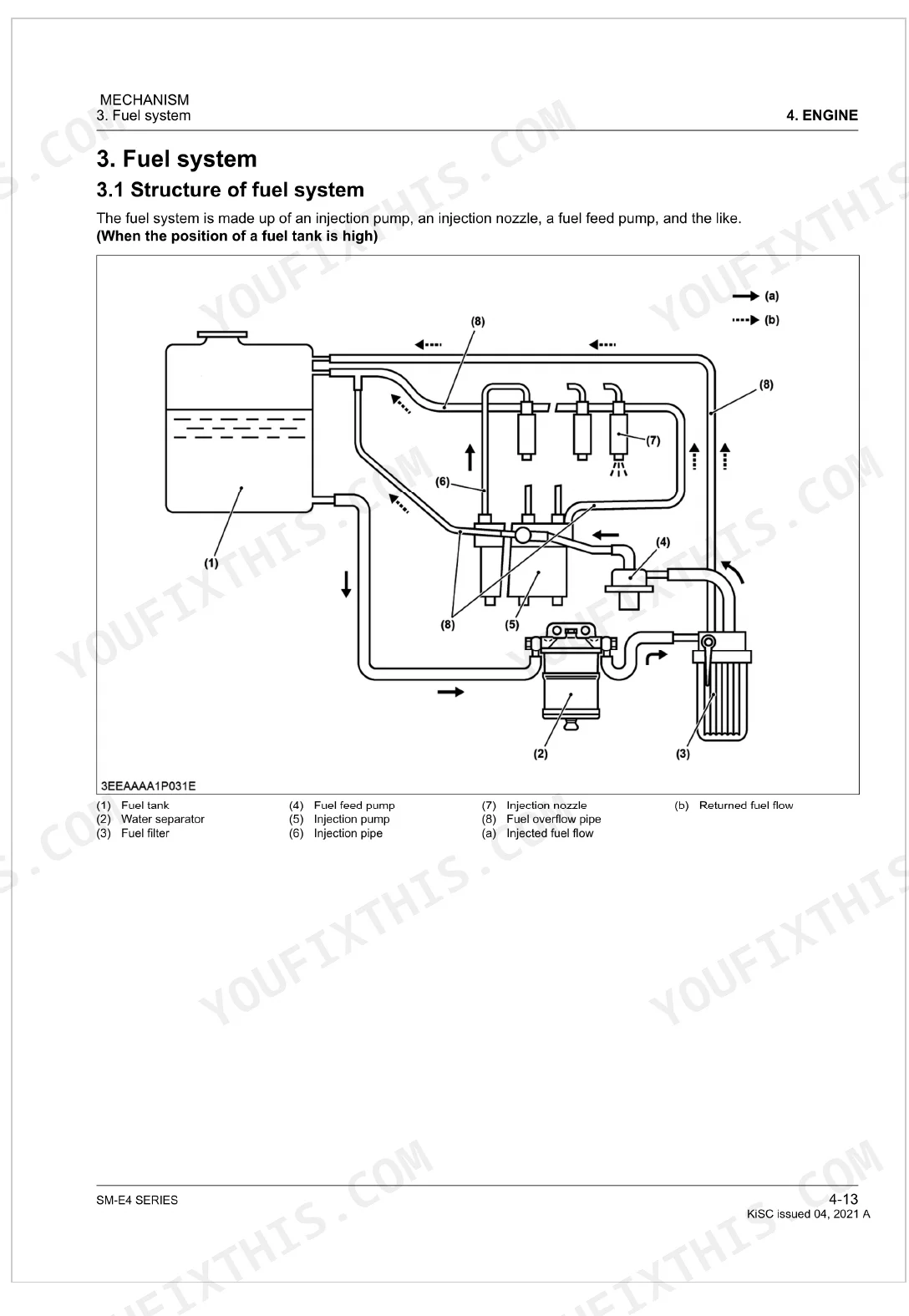

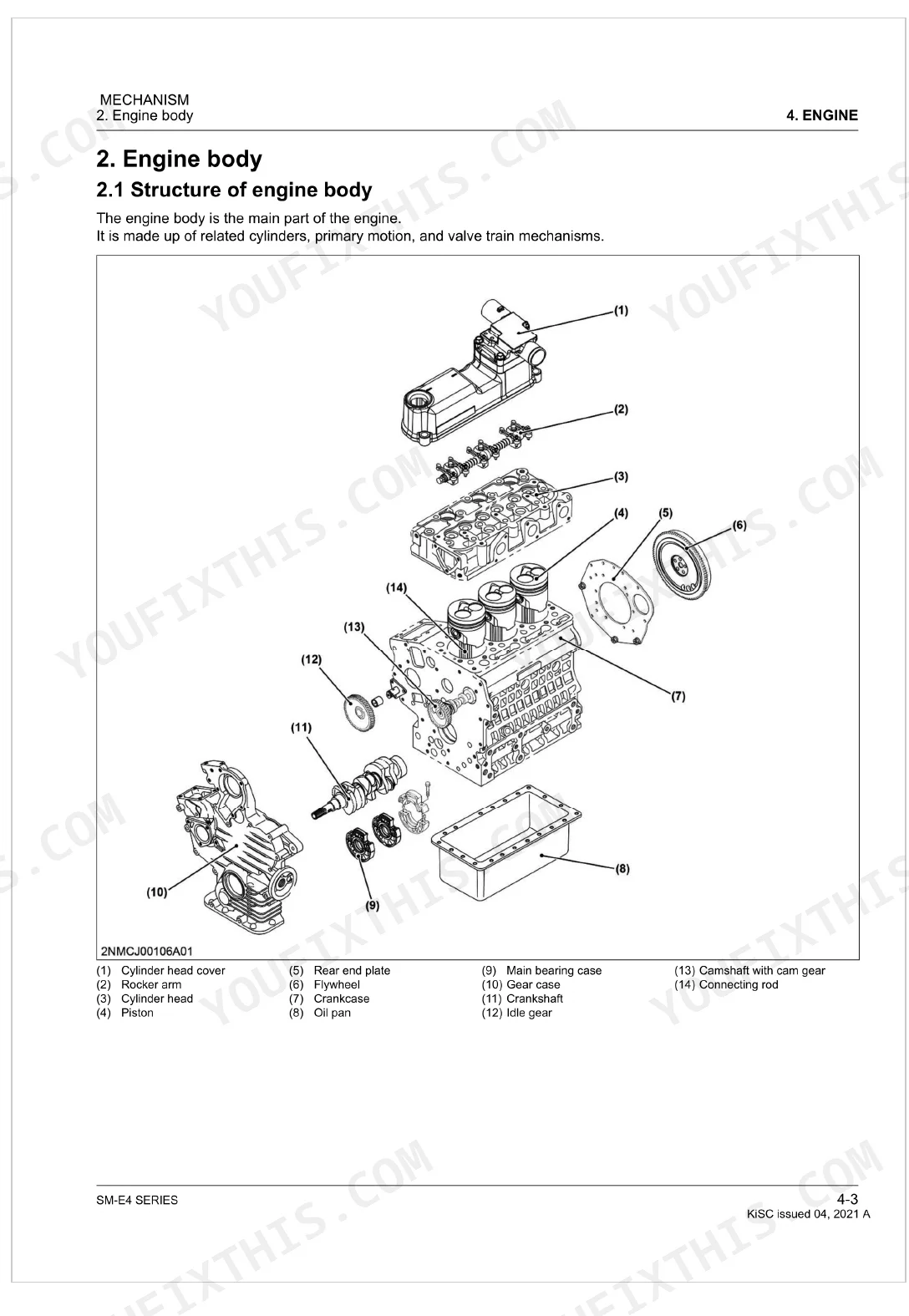

Rebuilding a Z482-E4, Z602-E4, D722-E4, D782-E4, or D902-E4 to factory spec takes real numbers, and this Kubota SM-E4 Series Workshop Manual hands them over across 254 pages. Roughly 100 pages walk through exploded views of every engine body component, backed by system diagrams for the E-TVCS combustion chamber and fuel system flow. Troubleshooting charts, torque tables, calibration steps, and 7 pages of clearance specs cover the details that decide whether a repair holds: the Z482-E4's 23.5:1 compression ratio, its 2.1 L fill for the 101 mm oil pan, the 17.7 to 20.6 N·m on M8 fasteners. With the machine down, one sourced answer beats three half-matched ones. Section bookmarks drop you onto the right page the second you open the file, whether that's on a phone, tablet, or shop laptop.
What's Inside This Kubota SM-E4 Series Manual

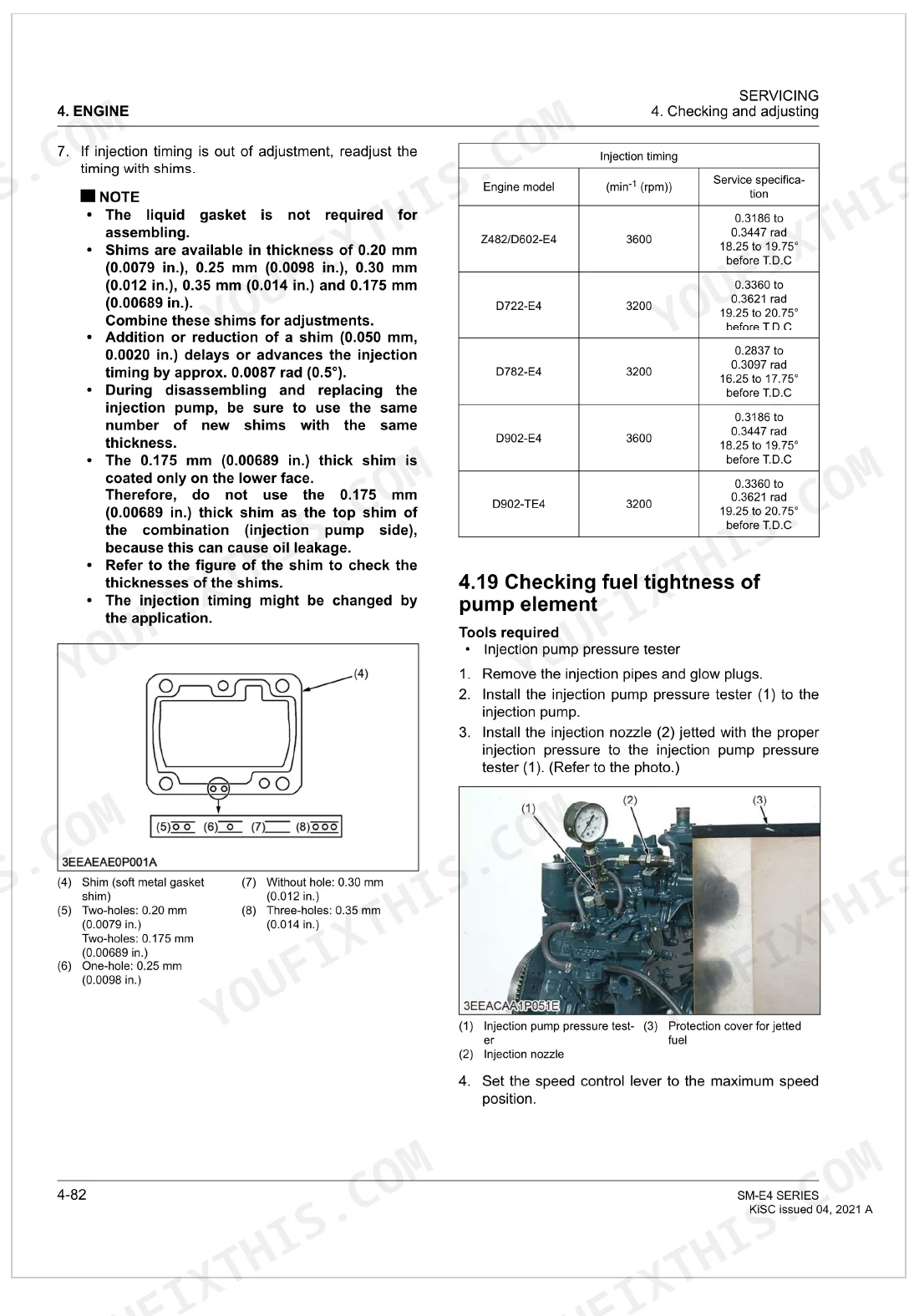

| System | Pages | Key Topics |
|---|---|---|
| Safety | 15-19 | Working Precautions, Preparing for Emergencies, Working Cautions, Starting Machine Safely, Preventing Fires, Preventing Acid Burns, Avoiding High Pressure Fluid |
| General | 20-54 | Special Tools (Diesel Engine Compression Tester, Compression Tester Adapter H, Oil Pressure Tester, Injection Pump Pressure Tester, Valve Guide Replacing Tool, Bushing Replacing Tools, Flywheel Stopper, Crankshaft Bearing 1 Replacing Tool) |
| Maintenance | 55-85 | Maintenance Check List |
| Engine | 86-254 | Mechanism (Feature Of Combustion, Structure Of E-Tvcs, Flow Of Combustion, Control Of Combustion) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

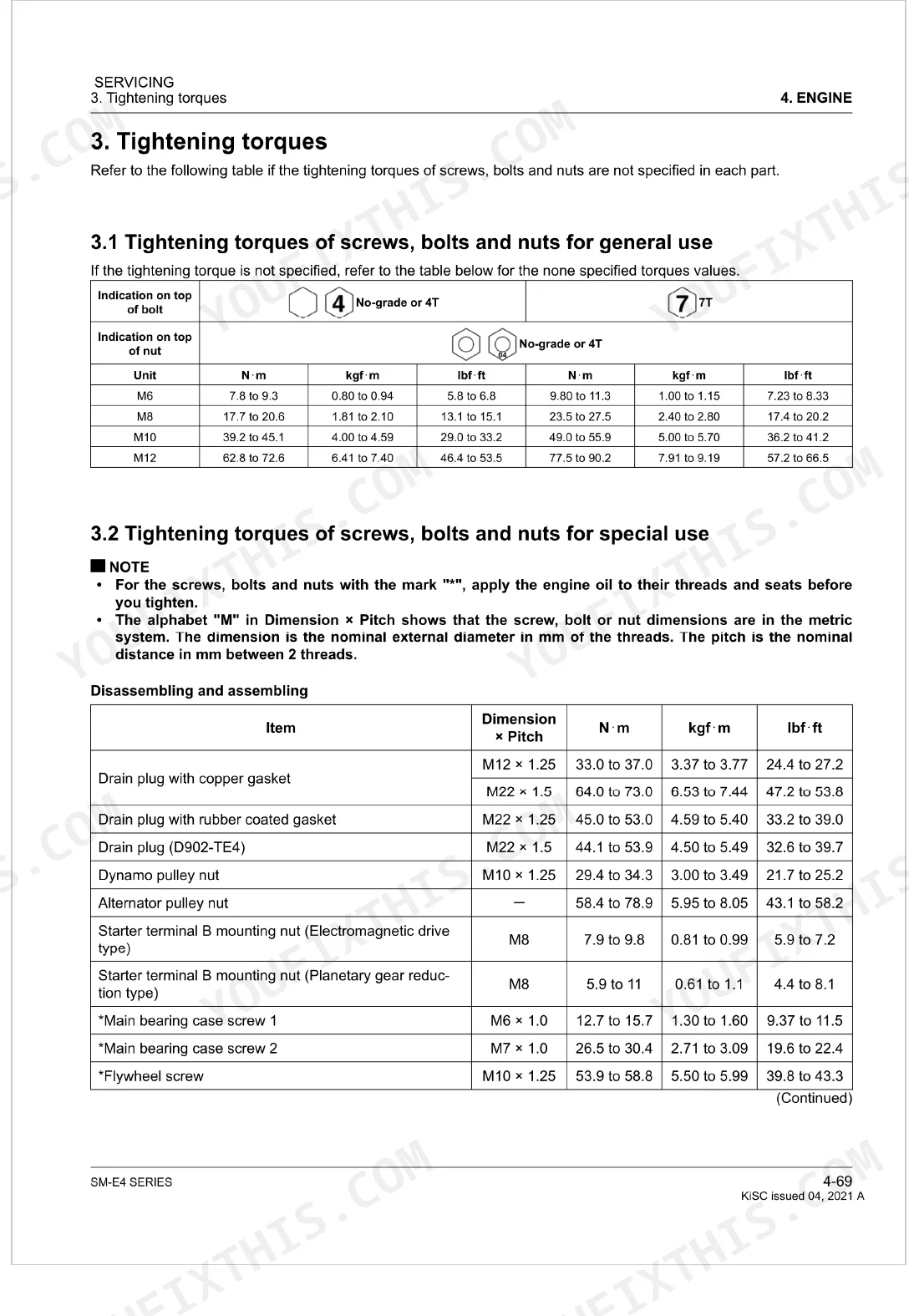

| Tightening torque M6 (No-grade or 4T) | 7.8 to 9.3 N·m, 0.80 to 0.94 kgf·m, 5.8 to 6.8 lbf·ft | p. 155 |
| Tightening torque M8 (No-grade or 4T) | 17.7 to 20.6 N·m, 1.81 to 2.10 kgf·m, 13.1 to 15.1 lbf·ft | p. 155 |

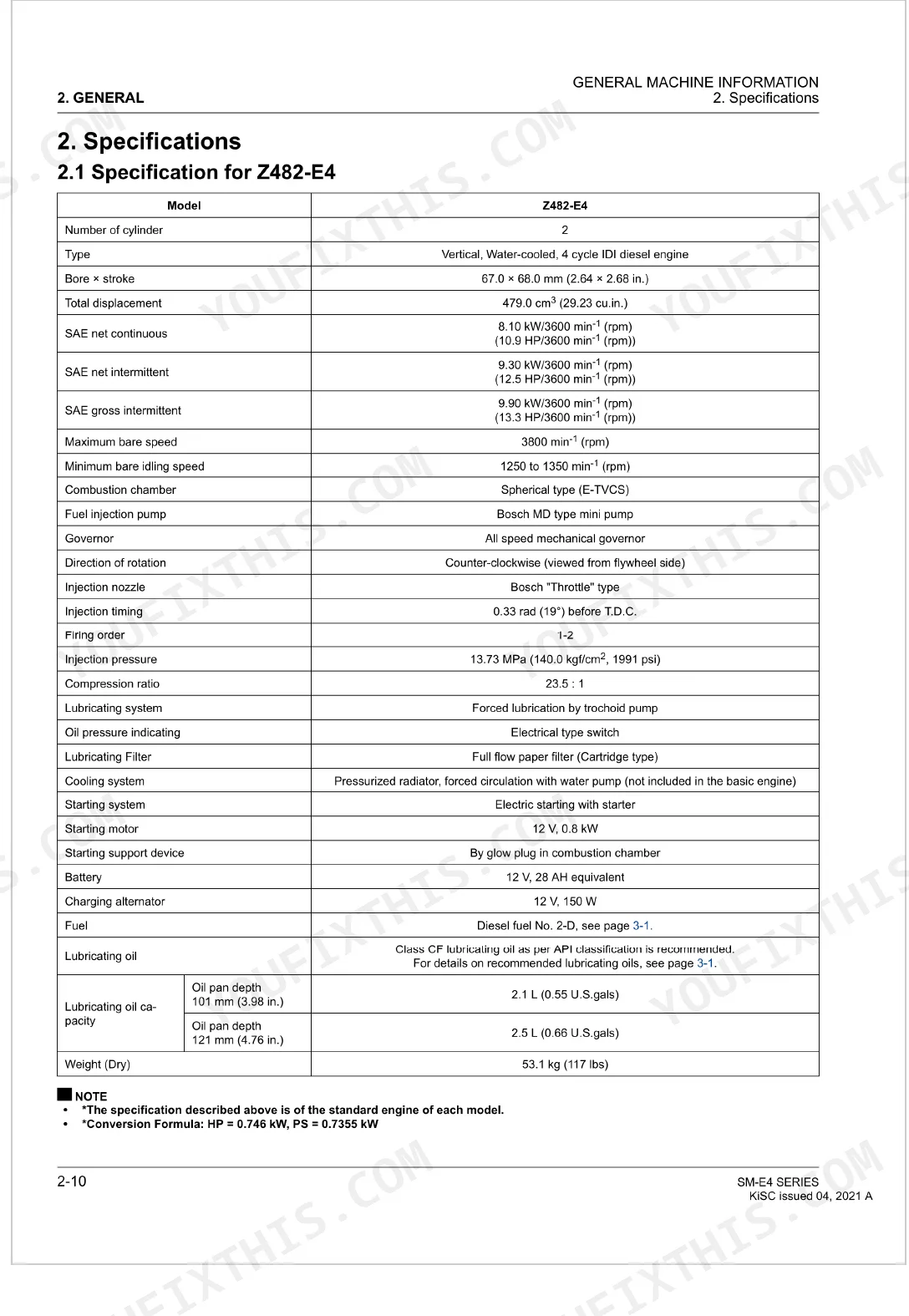

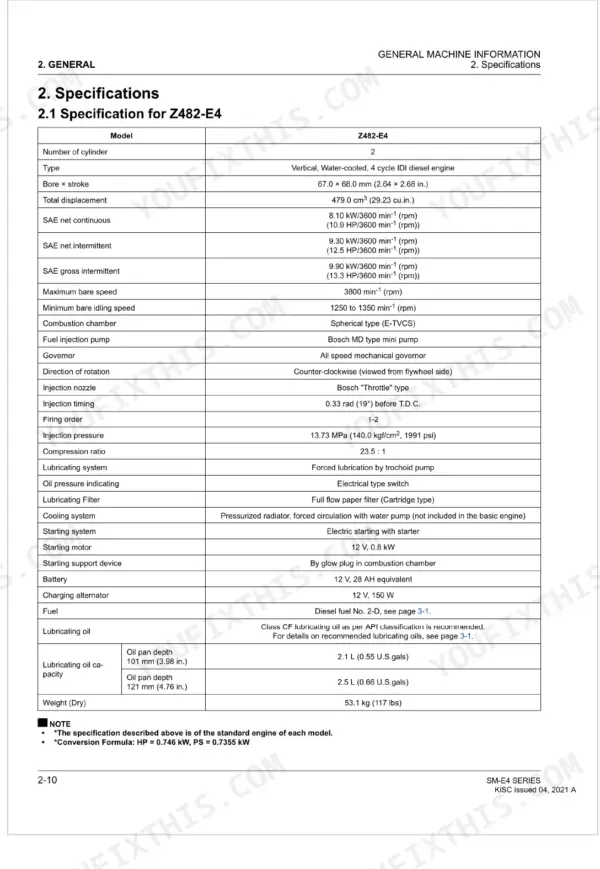

| Engine Oil Capacity (Z482-E4, 101 mm pan depth) | 2.1 L | p. 30 |
| Engine Oil Capacity (D902-TE4) | 3.7 L | p. 35 |
| Compression Ratio (Z482-E4) | 23.5: 1 | p. 30 |
| Fuel Injection Pressure (Z482-E4) | 13.73 MPa | p. 30 |
| Valve Clearance (Cold) | 0.145 to 0.185 mm | p. 77 |
| Radiator Capacity | 2.0 L | p. 131 |
| Fan Belt Tension (Adjusting) | 200 to 300 N | p. 152 |
| Crankshaft Screw Tightening Torque (M12 x 1.5) | 117.7 to 127.5 N·m | p. 156 |
| Glow Plug Resistance | Approx. 1.1 Ω | p. 153 |
| Thermostat Valve Opening Temperature | 69.5 to 72.5 °C | p. 152 |
Kubota SM-E4 Series Common Problems This Manual Covers
Engine cranks at normal speed but won't fire when the ambient temperature drops. p. 153
Test the glow plug system with a multimeter across the terminals. Each plug should read about 1.1 Ω, the value listed on page 153; replace any that come back open or high-resistance. Then confirm the battery holds at least 12 V through the pre-heat cycle.
Manual Section: Engine TroubleshootingTemperature gauge spikes into the red zone under load and coolant boils over from the overflow tube. p. 152
Inspect the cooling system end to end. Set fan belt tension on page 152 to 200 to 300 N, then drain and refill the radiator with 2.0 L of fresh coolant mix. Clear the fins of debris and check the water pump for bearing noise.
Manual Section: Engine TroubleshootingIdle runs rough and the engine goes soft on power when a hydraulic implement loads it down. p. 77
Adjust the valve clearance per page 77, setting both intake and exhaust to 0.145 to 0.185 mm with the engine cold. Turn the crankshaft by hand to top dead center on each cylinder before you measure, and lock the nuts down firmly so the gap doesn't drift in service.
Manual Section: Engine TroubleshootingThick white or blue smoke pours from the exhaust pipe during startup and keeps coming while the engine runs. p. 148
Measure cylinder head flatness with a precision straightedge and feeler gauge to rule out a blown head gasket. If warpage tops the 0.05 mm/500 mm service limit on page 148, resurface or replace the head. Check the piston rings and valve guides for wear while you're in there.
Manual Section: Engine TroubleshootingFrequently Asked Questions
What are the recommended service intervals?
A maintenance check list lays out the intervals. Engine oil level gets checked daily; the oil filter cartridge (101 mm oil pan depth) is replaced first at 50 hours; valve clearance is checked every 800 hours; and the radiator coolant (L.L.C.) gets swapped every 2 years.
What fluids and capacities does this machine require?
For the Z482-E4, lubricating oil capacity is 2.1 L (0.55 U.S.gals) at a 101 mm oil pan depth, or 2.5 L (0.66 U.S.gals) at 121 mm; the recommended fuel is Diesel fuel No. 2-D. The D902-TE4 holds 3.7 L (0.98 U.S.gals, 0.81 Imp.gals) and calls for Class CF, CF-4, CG-4, CH-4 or CI-4 oil with ultra low sulfur fuel.

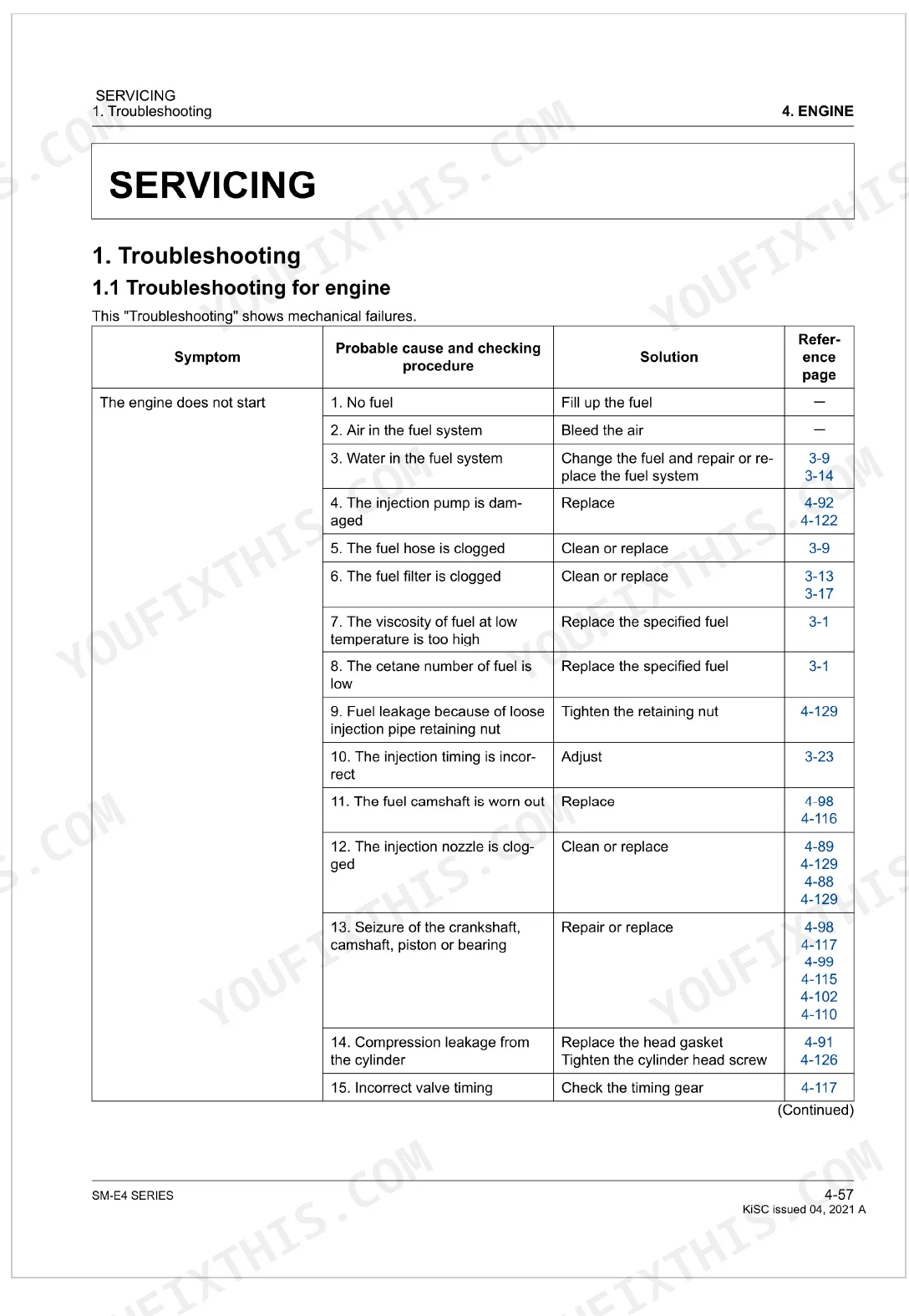

How to troubleshoot engine won't start?

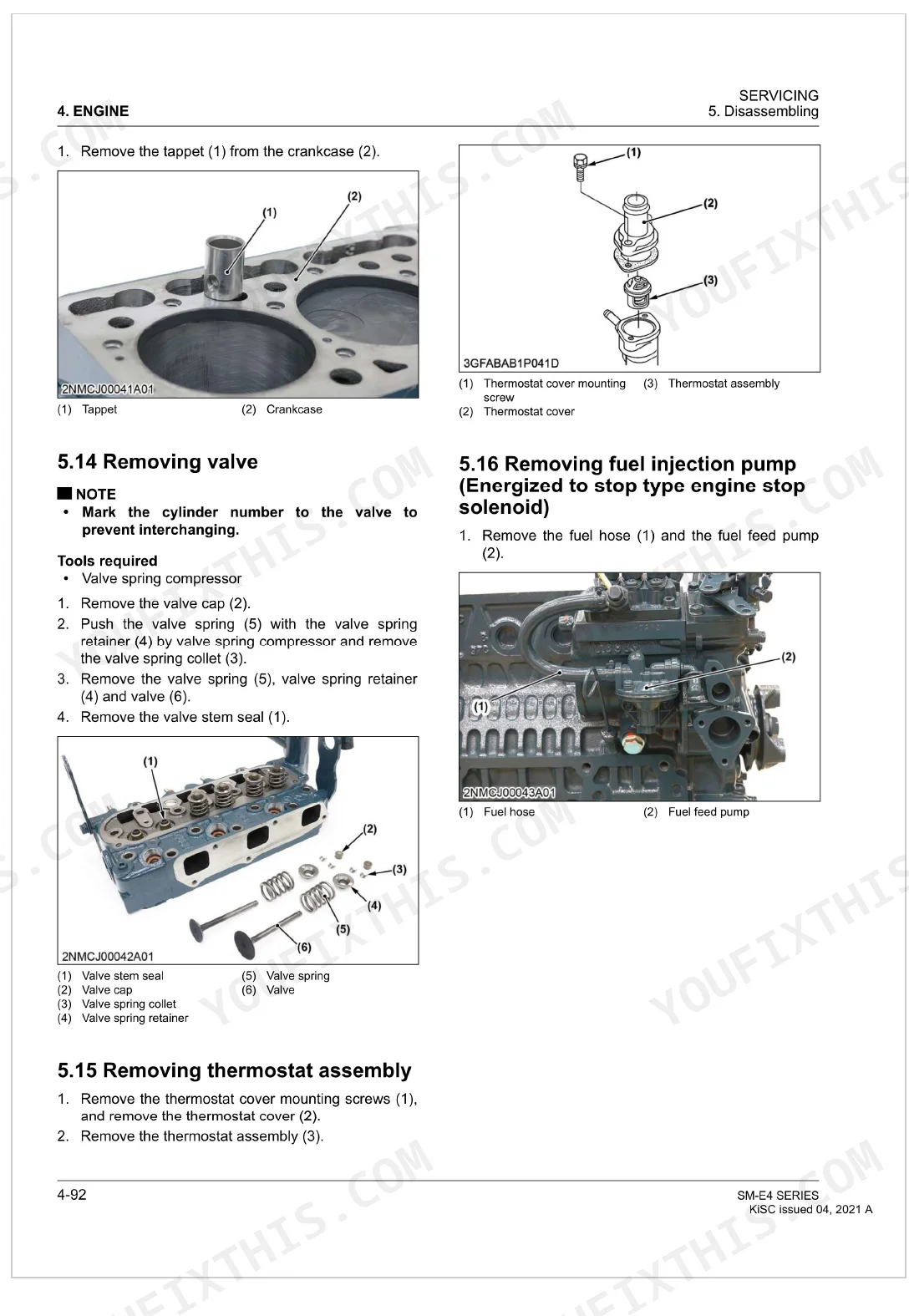

When the engine won't start, the usual culprits are no fuel (fill the tank), air in the fuel system (bleed it, page 3-9), or a damaged injection pump (replace it, page 4-92). A clogged fuel hose or filter, or fuel with the wrong viscosity or cetane number, can also be to blame.
What torque specifications are listed?
Torque figures are listed by component. As a general default, M6 bolts take 7.8 to 9.3 N·m (0.80 to 0.94 kgf·m, 5.8 to 6.8 lbf·ft). Named parts include the crankshaft screw (M12 x 1.5) at 117.7 to 127.5 N·m, the glow plug (M8 x 1.0) at 7.84 to 14.7 N·m, and the injection nozzle holder (M20 x 1.5) at 49.0 to 68.6 N·m.
What are the common electrical problems?
If the starter won't turn over, the troubleshooting section points to a discharged battery (charge or replace, page 4-76), a damaged starter (repair or replace, page 4-78), or a failed key switch (replace it). A bad wiring connection can also stop the starter from operating.
How quickly can I access this Kubota SM-E4 Series manual after buying?
Download is instant. The full 254-page searchable Workshop Manual is yours the moment payment clears, ready to open on a laptop, tablet, or phone right at the workbench.
Can I print this Kubota SM-E4 Series manual?
Print whatever you need, a single page, a full chapter, or the whole book. The file ships unlocked with no print restrictions.
Document Quality
This is a native digital PDF, allowing you to search and copy all text, which appears crisp and easy to read throughout. The document features a mix of high-quality raster images for diagrams, illustrations, and photos, with all labels clearly readable. Pages are clean and free of scan artifacts, stains, or skewing, ensuring a clear viewing experience. You will find a few blank filler pages that only contain page numbers.
