This Kubota Shop Manual covers the V3300DI-B and V3300DI-TB diesel engines, the naturally aspirated and turbocharged versions of Kubota's four cylinder 3318 cm³ unit built between 1999 and 2009. It is the factory workshop document, 126 pages, with a searchable text layer.Inside you get full specifications, performance curves, and dimensions, followed by mechanism descriptions of the engine body, lubricating, cooling, fuel, turbocharger, and intake systems. The servicing chapters give checking and adjusting steps, tightening torques, and factory allowable limits for the engine body, starter, alternator, cooling, fuel, and turbocharger.With it you can set valve clearance, check compression, torque the connecting rods and crankshaft correctly, and rebuild the top end to Kubota tolerances. It suits owners, independent mechanics, and rebuilders working on these engines in tractors, mowers, and industrial equipment.
What's Inside This Kubota V3300DI-B, V3300DI-TB Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Instructions | 3-5 | Safety First, Danger, Warning, Caution, Important, Note, Before Servicing and Repairing, Safety Starting |

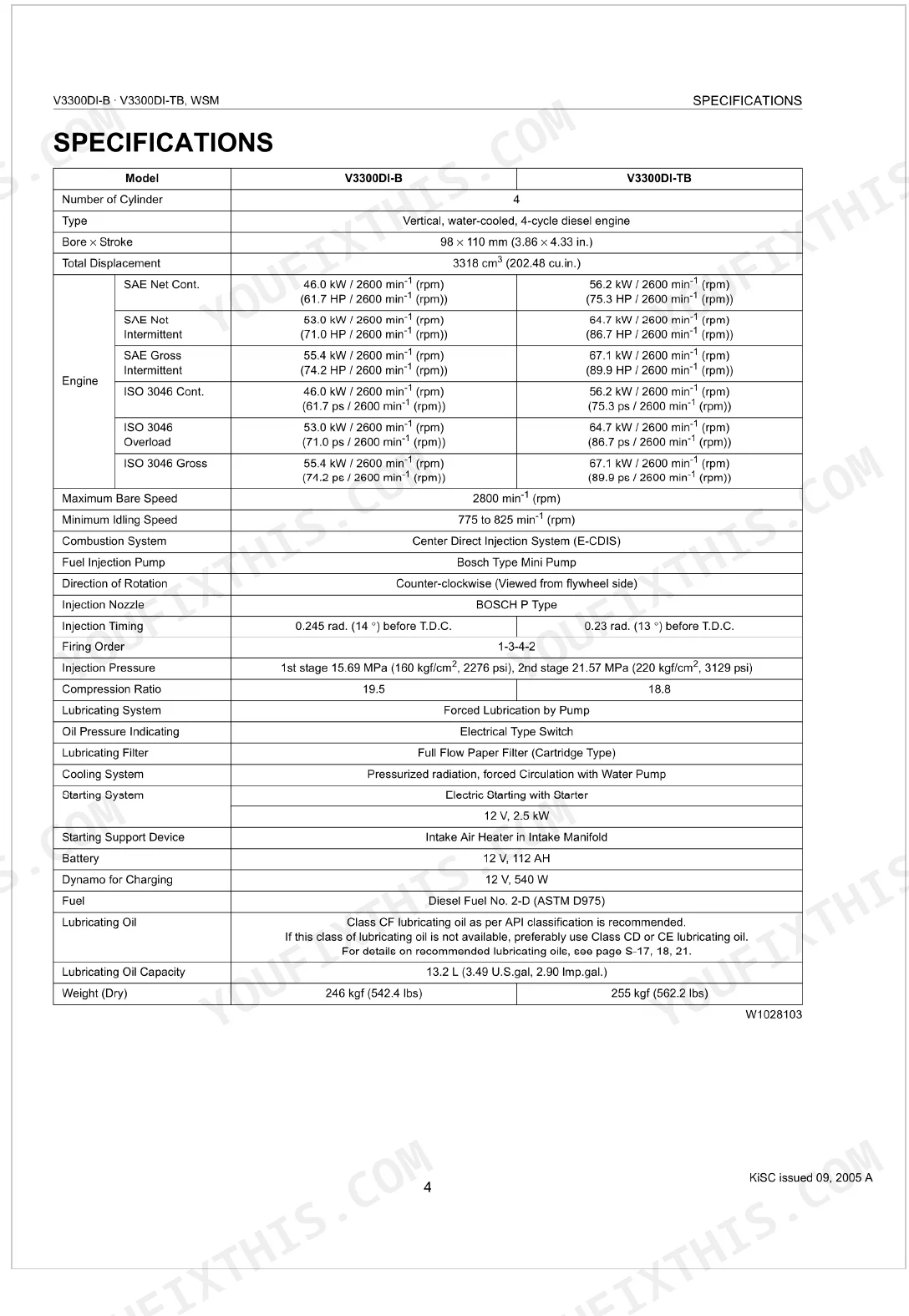

| Specifications | 6 | Model, Number of Cylinder, Type, Bore X Stroke, Total Displacement, Sae Net Cont, Sae Net Intermittent, Sae Gross Intermittent |
| Performance Curves | 7-8 | V3300DI-B Performance Curve, Sae J1345, Iso-3046, 2534, V3300DI-Tb Performance Curve, Sae J1349 |
| Dimensions | 9-10 | Unit: Mm, V3300DI-B Dimensions, V3300DI-Tb Dimensions |

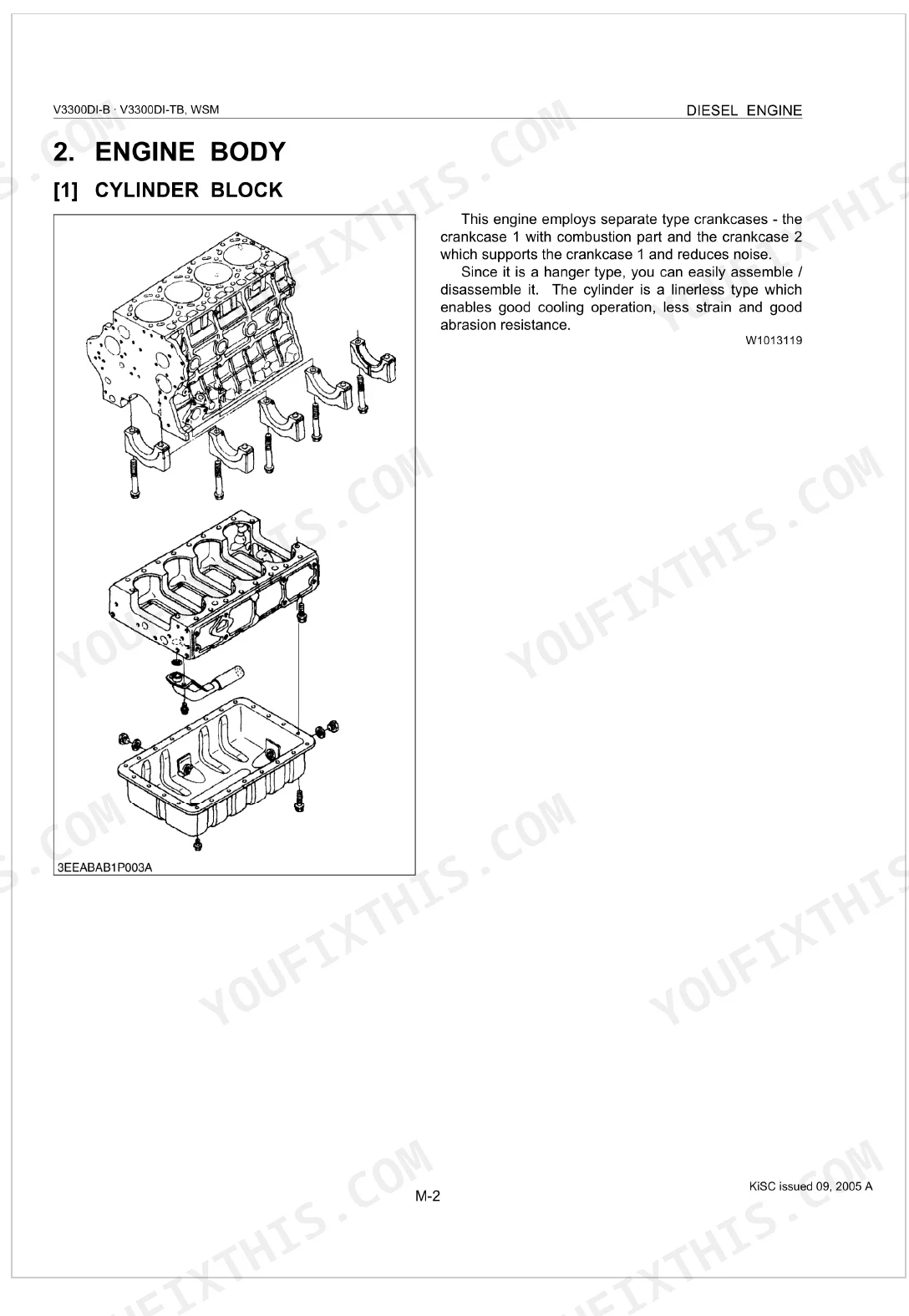

| Mechanism | 11-24 | Feature, Engine Body, Lubricating System, Cooling System, Fuel System, Turbocharger System, Intake System |

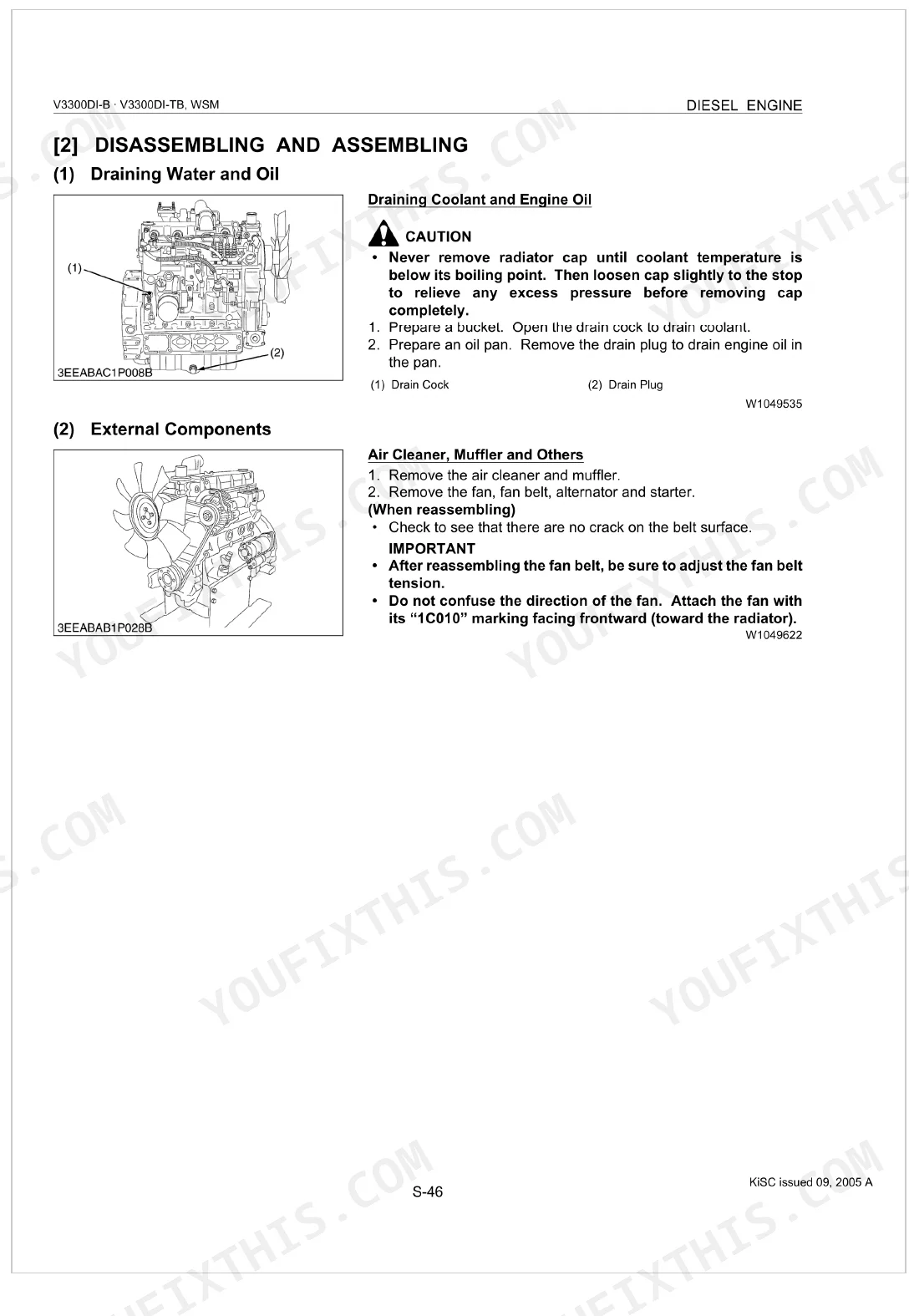

| Servicing - Engine Body | 70-109 | Draining Water and Oil, External Components, Cylinder Head and Valves, Gear Case, Piston and Connecting Rod, Flywheel and Crankshaft, Cylinder Head, Timing Gear and Camshaft |

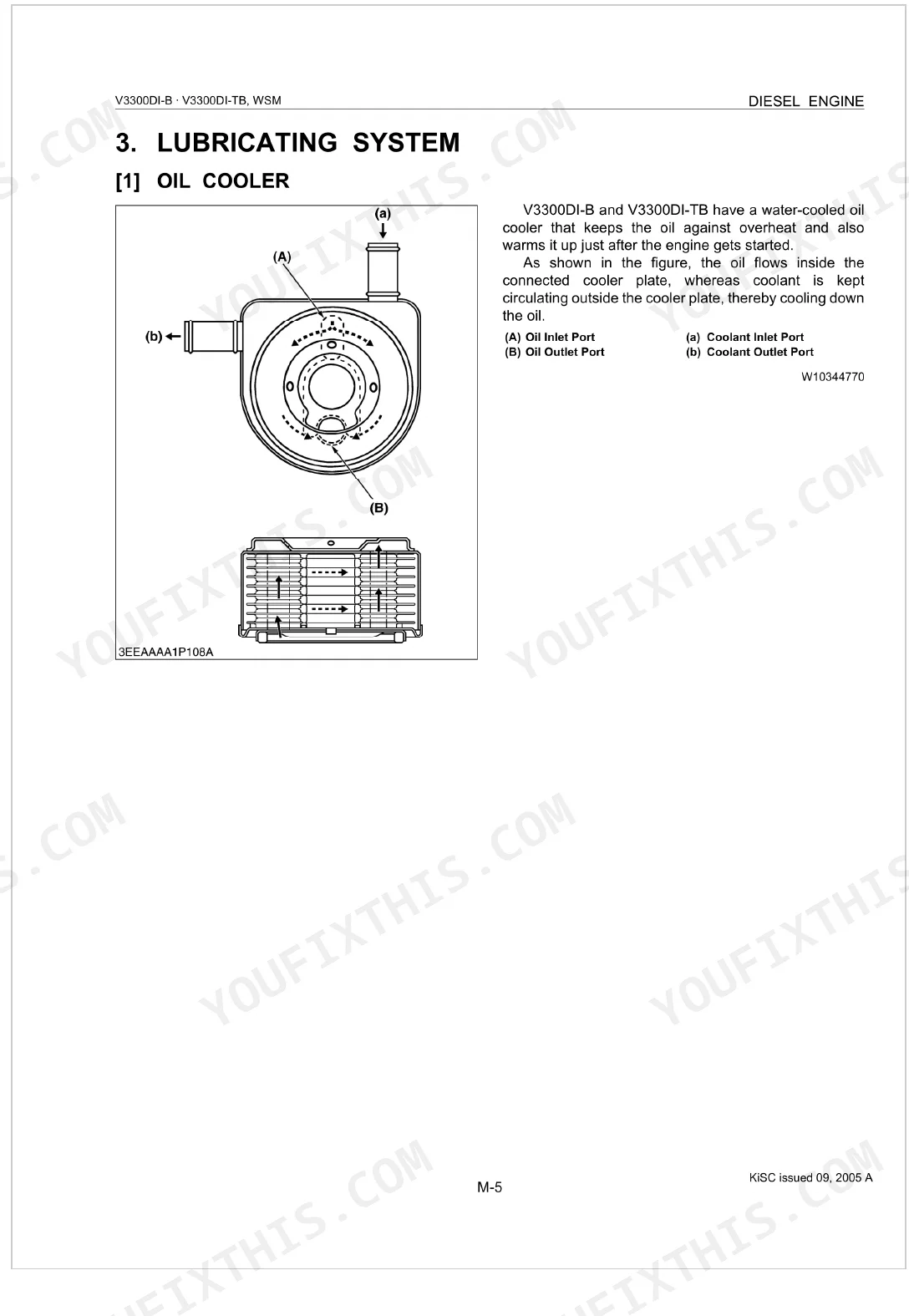

| Servicing - Lubricating System | 110 | Starter, Alternator |
| Servicing - Cooling System | 111-113 | Starter, Alternator |
| Servicing - Fuel System | 114 | Starter, Alternator |
| Servicing - Electrical System | 115-122 | Checking (Intake Air Heater, Starter), Disassembling and Assembling (Intake Air Heater, Starter, Alternator), Servicing (Starter |
| Servicing - Turbocharger System | 123-126 | Starter, Alternator |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Lubricating Oil Capacity | 13.2 L (3.49 U.S.gal) | p. 47 |
| Cooling System Capacity | 12 L (3.17 U.S.gal, 2.64 Imp.gal) | p. 6 |
| Fuel Type | Diesel Fuel No. 2-D (ASTM D975) | p. 6 |
| Battery | 12 V, 112 AH | p. 6 |
| Dynamo for Charging | 12 V, 540 W | p. 6 |
| Cylinder head cover screw tightening torque | 6.9 to 11.3 N·m (0.7 to 1.15 kgf·m, 5.1 to 8.32 ft-lbs) | p. 70 |
| Connecting rod screw tightening torque | 78.5 to 83.4 N·m (8.0 to 8.5 kgf·m, 57.9 to 61.5 ft-lbs) | p. 90 |
| Flywheel screw tightening torque | 98.1 to 107.9 N·m (10.0 to 11.0 kgf·m, 72.3 to 79.6 ft-lbs) | p. 92 |
| Crankshaft screw tightening torque | 255.0 to 274.6 N·m (26.0 to 28.0 kgf·m, 188.1 to 202.5 ft-lbs) | p. 87 |
| Rocker arm bracket screw tightening torque | 49.0 to 55.9 N·m (5.0 to 5.7 kgf·m, 36.2 to 41.2 ft-lbs) | p. 74 |
| Nozzle holder clamp nut tightening torque | 17.7 to 20.6 N·m (1.8 to 2.1 kgf·m, 13.0 to 15.2 ft-lbs) | p. 70 |

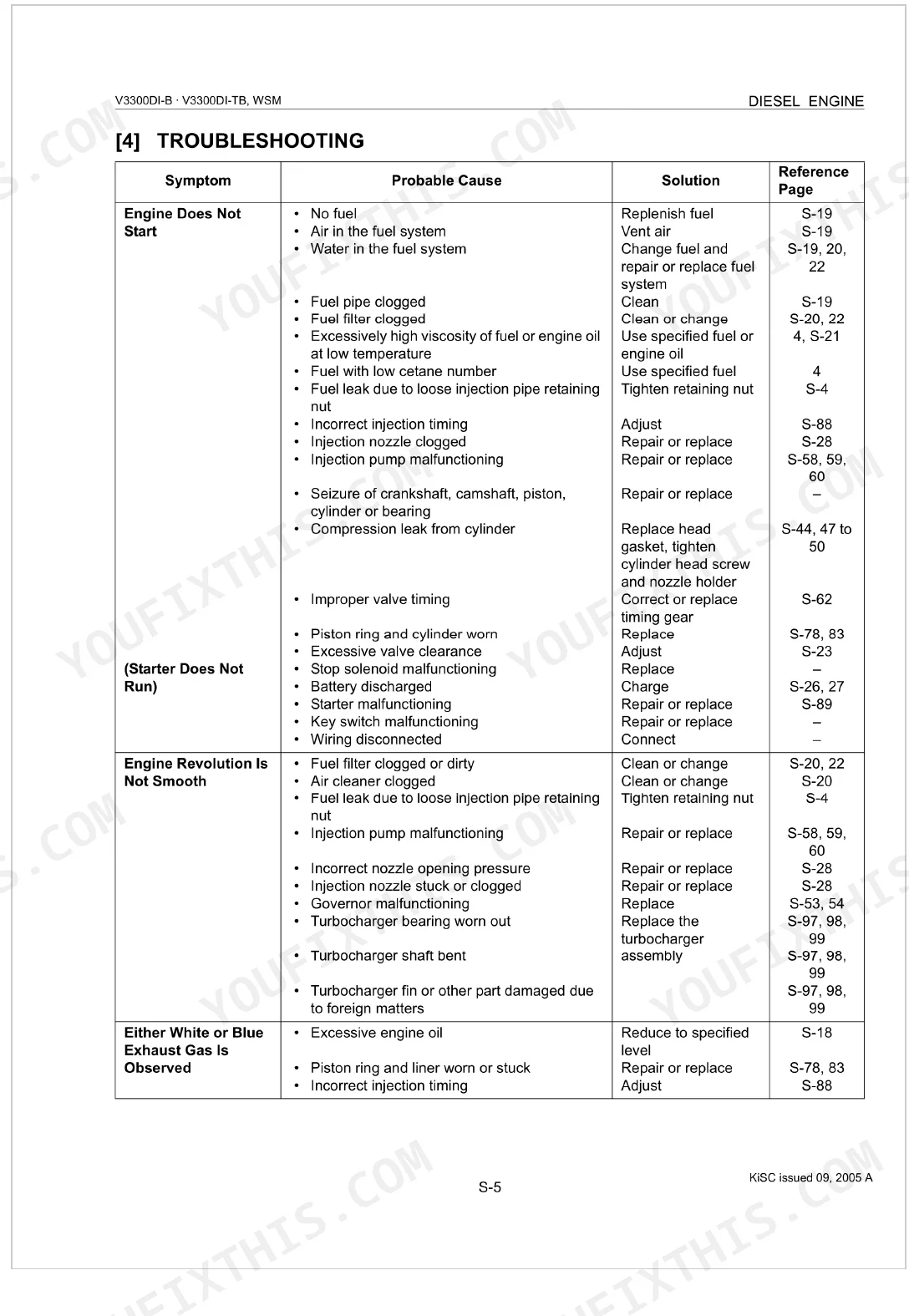

Kubota V3300DI-B, V3300DI-TB Common Problems This Manual Covers
Hard starting in cold weather
The intake air heater and starter can weaken over time, causing long cranking or a no-start when temperatures drop. The Electrical System servicing chapter covers checking, disassembly, and testing of both components.
Manual Section: Servicing - Electrical System p. 115Low engine oil pressure
A worn oil pump or a stuck relief valve can drop oil pressure below the 49 kPa idle figure and trip the oil switch. The Lubricating System servicing section walks through the checks.
Manual Section: Servicing - Lubricating System p. 110Engine overheating
Scale buildup, a tired water pump, or a faulty thermostat can push coolant temperature up under load. The Cooling System servicing section covers inspection and correction.
Manual Section: Servicing - Cooling System p. 111Turbocharger boost loss
On the V3300DI-TB, worn turbo bearings or oil feed problems show up as reduced power and smoke. The Turbocharger System servicing chapter covers checking and correction.
Manual Section: Servicing - Turbocharger System p. 123Rough running or excess smoke
Injection nozzle wear or incorrect injection pressure leads to rough idle and smoke. The Fuel System servicing section covers the related checks and adjustments.
Manual Section: Servicing - Fuel System p. 114Compression loss and blow-by
Worn valves, valve seats, or piston rings reduce compression and cause blow-by on high-hour engines. The Engine Body servicing chapter gives the checking, adjusting, and rebuild limits.
Manual Section: Servicing - Engine Body p. 70Frequently Asked Questions
Which engines does this manual cover?
It covers the Kubota V3300DI-B and V3300DI-TB, the naturally aspirated and turbocharged four cylinder diesels. Both share the 3318 cm³ displacement, and the Specifications section lists the differing power ratings.
Are engine tightening torques included?
Yes. The Engine Body servicing chapter lists factory tightening torques, including the connecting rod and crankshaft screws, alongside the checking and adjusting procedures. p. 70
Does it show how to service the turbocharger?
Yes. The Turbocharger System servicing chapter covers checking and correction of the turbo on the V3300DI-TB variant. p. 123
Will this help me diagnose a no-start?
Yes. The Electrical System servicing chapter covers the intake air heater, starter, and alternator, with checks, disassembly, and testing to trace a no-start. p. 115
Do I get instant access to this Kubota V3300DI-B Shop Manual?
This is a 126-page searchable PDF, ready to download the moment checkout clears. Open it on a laptop, tablet, or phone and take it straight to the shop floor.
Am I able to print pages from this Kubota V3300DI-B manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
