Tearing down your 2003-2005 industrial engine requires this 281-page Yanmar 4TNE92-NMH, 4TNE98-NMH service manual pdf (OEM #0B2991-U0001), which covers every factory rebuild procedure for the 4TNE92-NMH family and 4TNE92-NMHA variant. Inside, you get complete wiring diagrams for the starter and alternator, step-by-step fuel injection pump teardowns, and extensive troubleshooting charts to track down running faults. Open to the engine section for precise valve clearance adjustments and page after page of special torque tables. Swap the fuel/water separator every 500 hours, and make sure to lock those M11 cylinder head bolts down to exactly 76.0 - 83.3 ft lbs during reassembly. Wasted hours in the shop drain your profit. Grab this bookmarked PDF, jump straight to the right spec, and get your machine running again.
What's Inside This Yanmar 4TNE92-NMH, 4TNE92-NMHA, 4TNE98-NMH Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 6-7 | - |
| Yanmar Warranties | 8-15 | Yanmar Limited Warranty (What Is Covered by This Warranty?, How Long Is the Warranty Period?, What the Engine Owner Must Do, To Locate an Authorized Yanmar Industrial Engine Dealer or Distributor, What Yanmar Will Do, What Is Not Covered by This Warranty?, Warranty Limitations, Warranty Modifications, Questions, Customer Registration) |
| Safety | 16-29 | - |

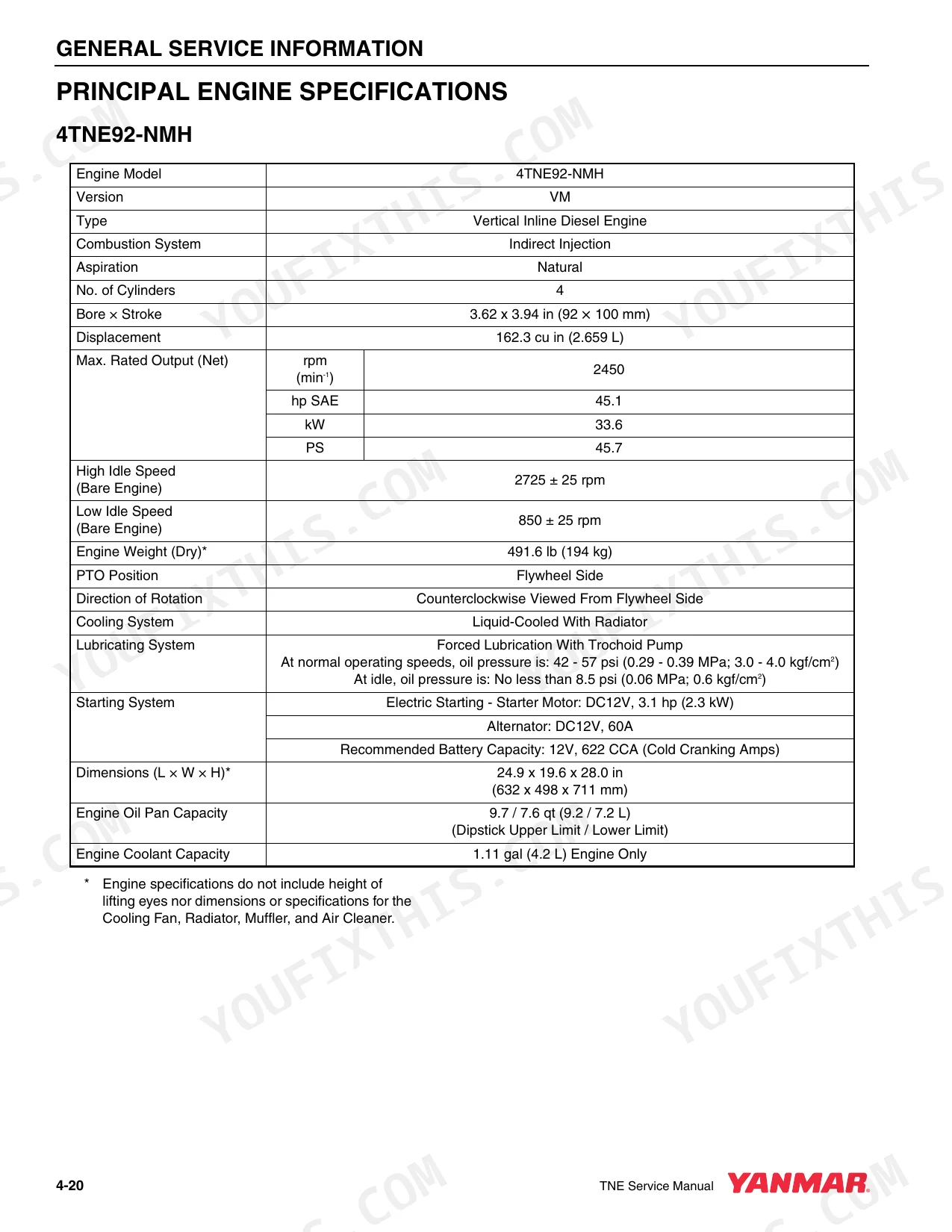

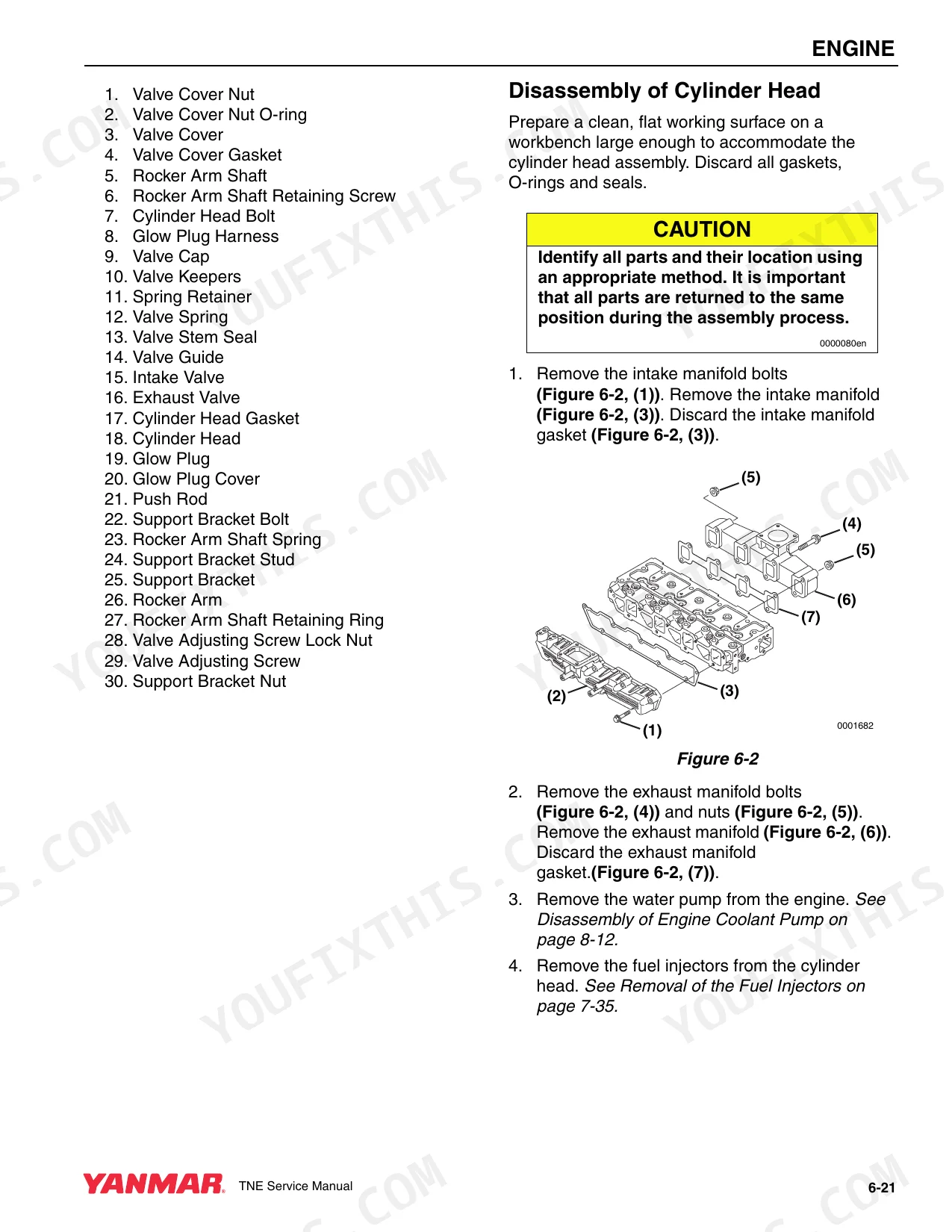

| General Service Information | 30-57 | Component Identification, Location of Labels, Epa / Arb Emission Control Regulations - Usa Only, Emission Control Labels, The 97/68/EC Directive Certified Engines, Engine Family |
| Periodic Maintenance | 58-93 | Precautions, Standard Torque Chart, Periodic Maintenance Schedule, Periodic Maintenance Procedures |
| Engine | 94-147 | Engine Service Information, Engine Special Torque Chart, Special Service Tools, Measuring Instruments, Removal of Engine, Measuring and Adjusting Valve Clearance |

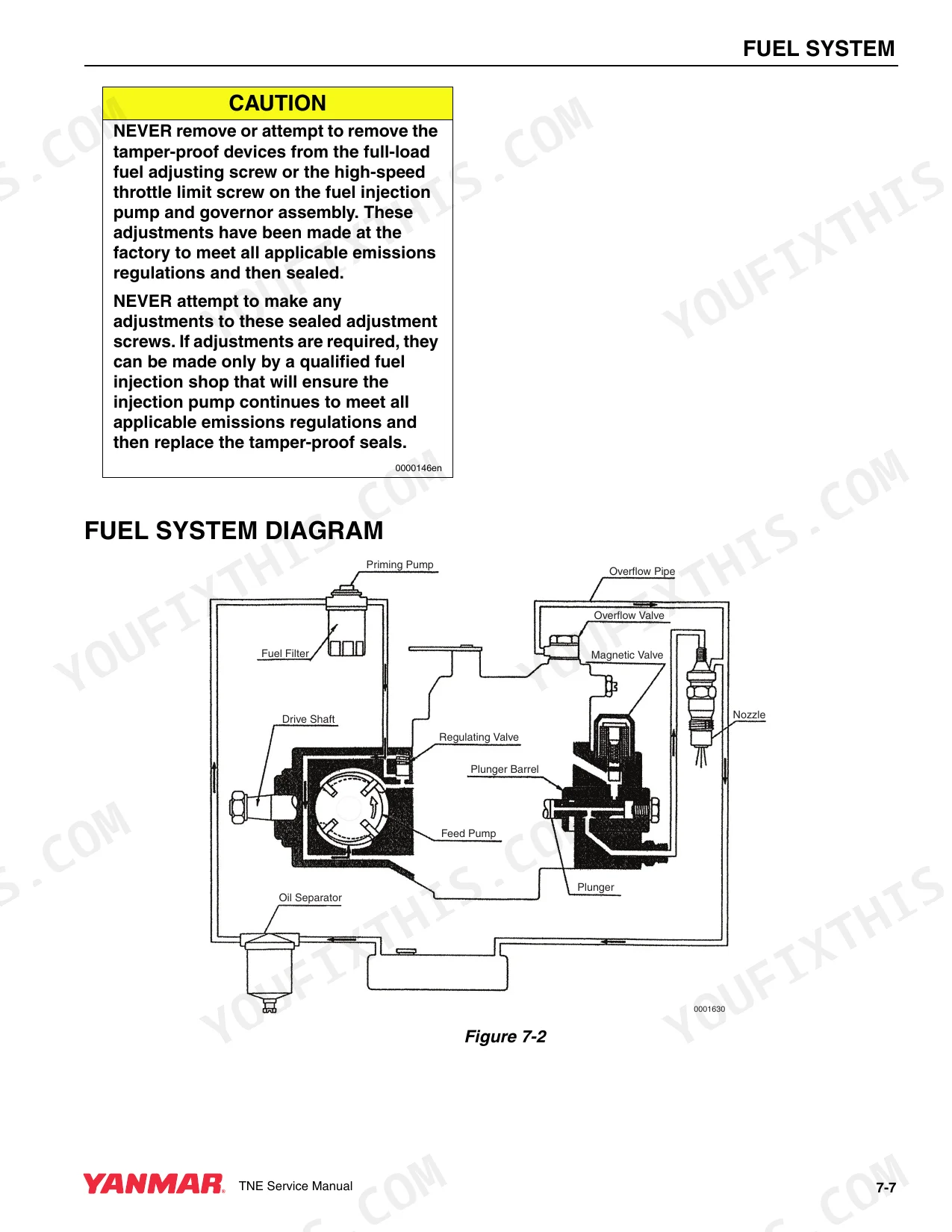

| Fuel System | 148-187 | Fuel System Special Torque Chart, Measuring Instruments, Fuel System Components, Fuel System Diagram, Structure and Operation of Fuel Injection Pump, Plunger Operation |
| Cooling System | 188-205 | Measuring Instruments, Cooling System Diagram, Engine Coolant Pump Components, Before You Begin Servicing, Engine Coolant System Check, Disassembly of Engine Coolant Pump |
| Lubrication System | 206-217 | Oil Pump Service Information, Lubrication System Diagram, Checking Engine Oil Pressure |
| Starter Motor | 218-237 | Starter Motor Service Information, Starter Motor Troubleshooting, Starter Motor Precautions, Starter Motor Servicing |
| Alternator | 238-263 | Alternator Service Information, Alternator Troubleshooting, Alternator Precautions, Alternator Components, Alternator Servicing |
| Electric Wiring | 264 | Electric Wiring Precautions, Electrical Wire Resistance, Battery Cable Resistance, Electrical Wire Sizes - Voltage Drop, Conversion of Awg to European Standards |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

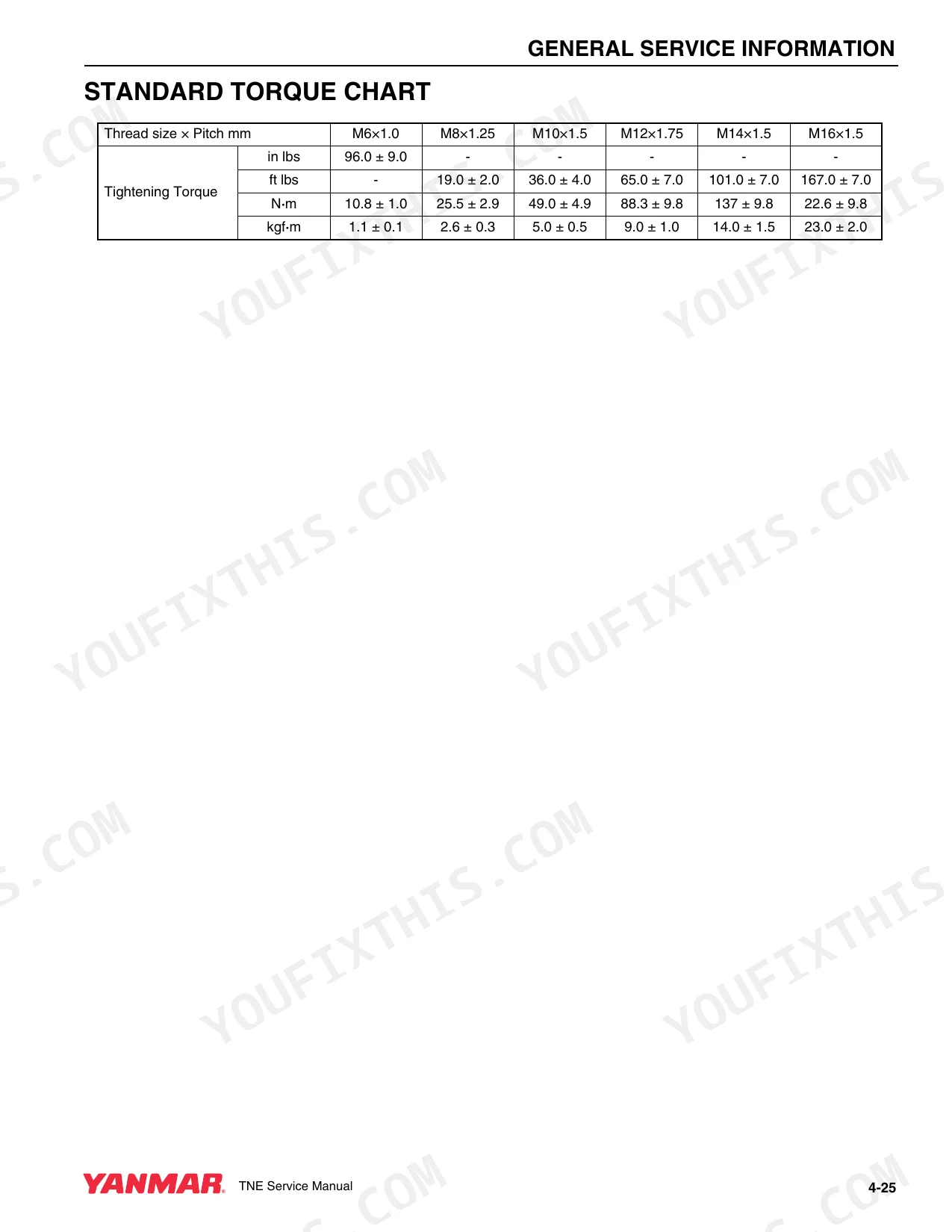

| Cylinder Head Bolts (M11 x 1.25 mm) | 76.0 - 83.3 ft lbs (103.1 - 112.9 N·m, 10.5 - 11.5 kgf·m) | p. 105 |
| Connecting Rod Bolts (M10 x 1.0 mm) | 39.8 - 43.4 ft lbs (53.9 - 58.8 N·m, 5.5 - 6.0 kgf·m) | p. 105 |
| Fuel Filter / Water Separator Replacement Interval | Every 500 hours or every 6 months | p. 75 |
| Fuel Filter / Water Separator Retaining Ring Torque | 11-15 ft lbs (15-20 N•m, 1.5-2.0 kgf•m) | p. 87 |
| Engine Oil Filter Replacement Interval | Every 250 hours or every 3 months | p. 75 |
| Engine Oil Filter Installation Torque | additional 3/4 of a turn using the filter wrench | p. 84 |
| Air Cleaner Element Cleaning/Replacement Interval | Every 250 hours or every 6 weeks (clean), Every 2000 hours or every 1 year (replace), 1000 hours or as needed in dirty/dusty environments (replace) | p. 75 |
| Maximum Air Intake Restriction | 0.90 psi (6.23 kPa; 635 mm Aq) or less | p. 72 |
| Fuel Filter / Water Separator Drain Interval | Daily | p. 75 |
| Fuel Filter / Water Separator Cleaning Interval | Every 500 hours or every 6 months | p. 75 |
| Thermostat Valve Opening Temperature | 160°F (71°C) | p. 52 |
| Thermostat Full Opening Lift Temperature | 0.32 in (8 mm) or Above 185°F (85°C) | p. 52 |

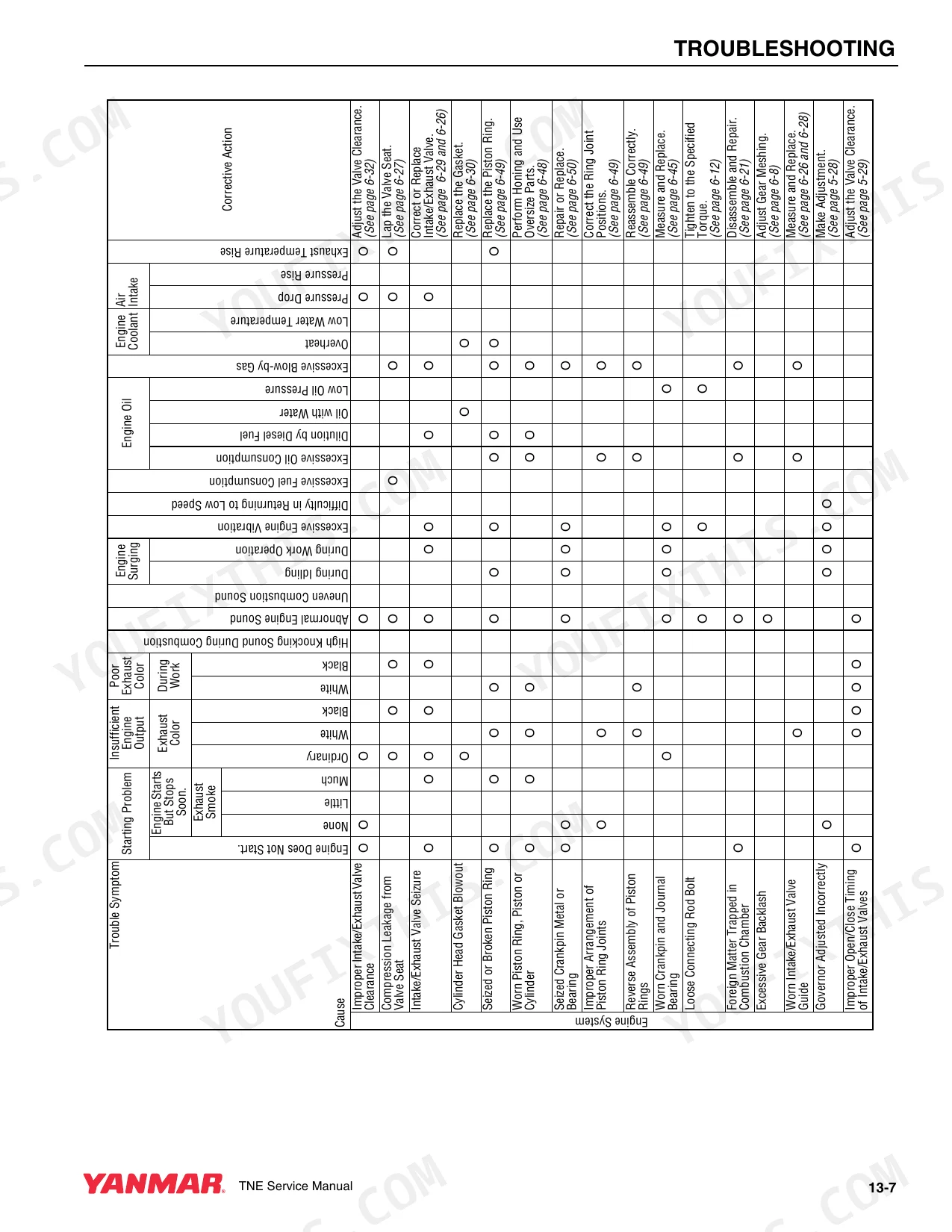

Yanmar 4TNE92-NMH, 4TNE92-NMHA, 4TNE98-NMH Common Problems This Manual Covers
Yanmar 4TNE92-NMH hard starting and needing repeated cranking after sitting in cold weather p. 52

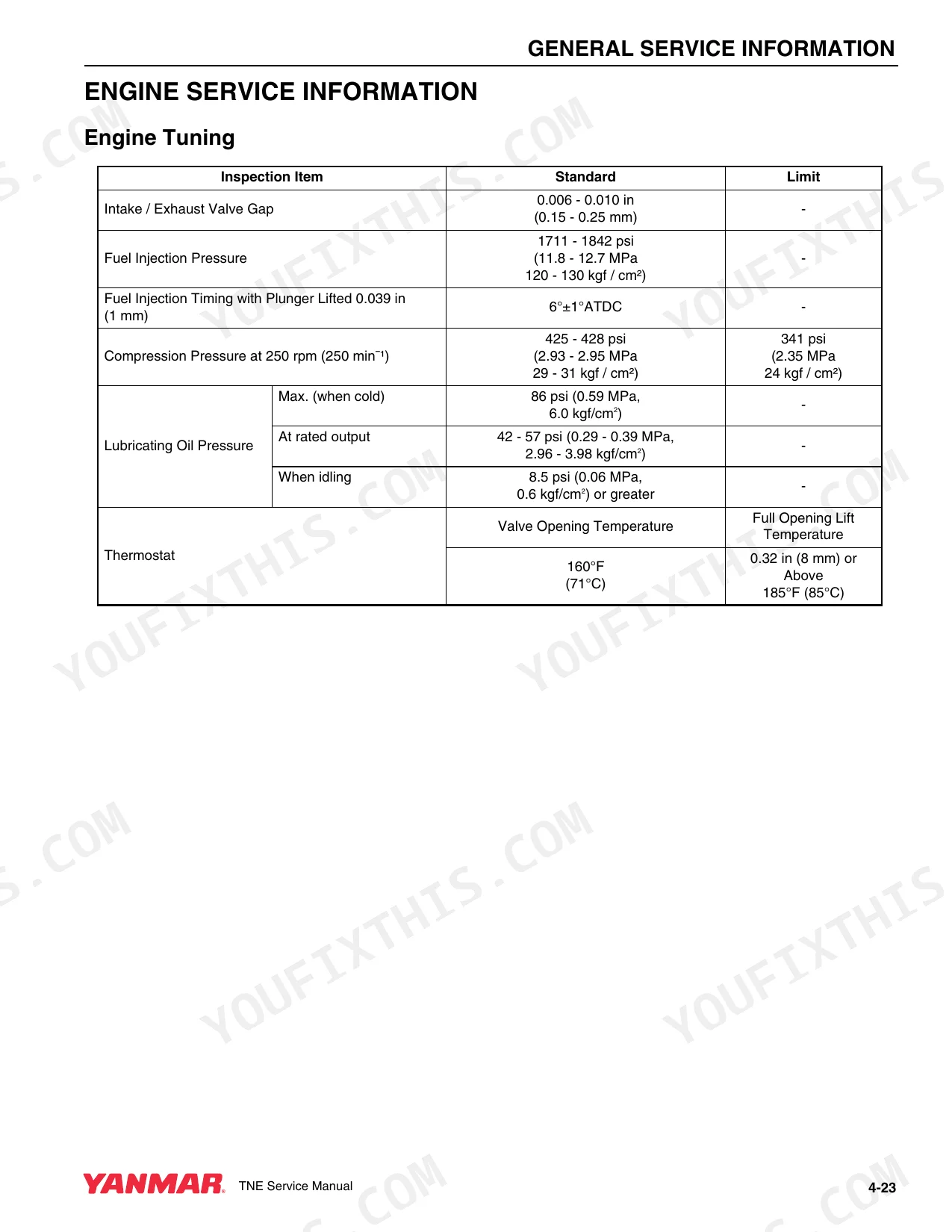

Test the cylinder compression pressure as described on page 52. Verify the gauge reads between 425 and 428 psi at 250 rpm. If compression is good, inspect the starter motor output to ensure it reaches the minimum 4100 rpm under no-load conditions.
Manual Section: General Service InformationFrequent temperature rise in enclosed industrial installations combined with sudden coolant loss p. 201
Inspect the radiator cap operating pressure range as detailed on page 201. Connect a pressure tester and verify the cap holds between 10.8 and 14.8 psi before releasing. Replace the cap if it fails this test. Check the system holds the full 1.11 gal (4.2 L) coolant capacity.
Manual Section: Cooling System CheckPower loss under heavy load, accompanied by engine hunting and a very rough idle p. 183
Remove and test the fuel injectors as outlined on page 183 to confirm the spraying start pressure reaches 1711 to 1914 PSI. Use a 0.1 mm shim to adjust pressure by 174 to 319 PSI if needed. Reinstall the injectors and torque them to 29.4 ft-lbs.
Manual Section: Fuel Injector ServicingLow oil pressure warning light flashing during operation or loud excessive valvetrain noise p. 84
Drain the crankcase and replace the oil filter using the procedure on page 84. Apply a light coat of oil to the gasket, seat the filter, and tighten an additional 3/4 of a turn using a filter wrench. Refill the crankcase to the 9.7 qt (9.2 L) capacity.
Manual Section: Periodic MaintenanceFrequently Asked Questions

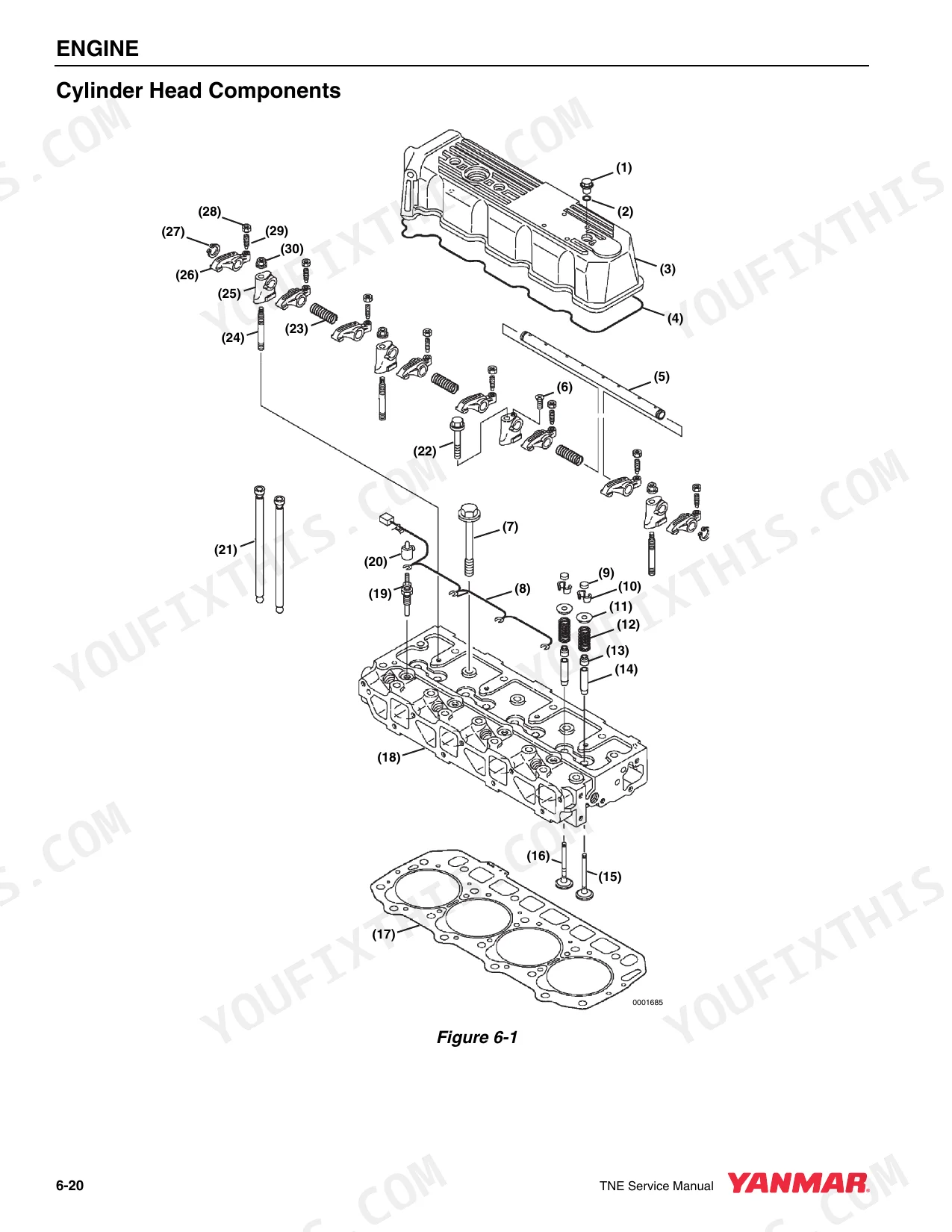

What are the torque specifications for the cylinder head on a YANMAR 4TNE98-NMH engine?
For the 4TNE98-NMH engine, the cylinder head bolts (M11 x 1.25 mm) should be tightened to 76.0 - 83.3 ft lbs (103.1 - 112.9 N·m, 10.5 - 11.5 kgf·m). This torque is applied with lubricating oil on the thread portion and seat surface, following the sequence shown in Figure 6-30 on page 123.
What are the replacement specifications for the fuel filter on Yanmar TNE series engines?
The fuel filter should be replaced every 6 months or 500 hours of operation, whichever comes first. The applicable part number for the main fuel filter (Figure 5-14, (2)) is 129901-55850, and for the in-line fuel filter (Figure 5-15, (7)) is 129901-55860, for all 4TNE92-NMH, 4TNE92-NMHA, and 4TNE98-NMH models.
What is the typical engine oil capacity for the Yanmar TNE series engines?
The typical engine oil capacity for 4TNE92-NMH, 4TNE92-NMHA, and 4TNE98-NMH engines is 9.7 / 7.6 qt (9.2 / 7.2 L) for the dipstick upper limit / lower limit. This capacity is associated with a “Deep Standard” oil pan, and actual capacity may vary depending on the optional oil pan used.
What is the standard intake/exhaust valve gap for the Yanmar TNE series engines?
The standard intake/exhaust valve gap for the Yanmar TNE series engines is 0.006 - 0.010 in (0.15 - 0.25 mm). This measurement should be taken and adjusted while the engine is cold.
How quickly can I access this manual?
This is a 281-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this Yanmar TNE-series Service Manual printable?
Yes — the PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Can I find wiring schematics in this Yanmar 4TNE92-NMH, 4TNE92-NMHA?
Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the Yanmar 4TNE92-NMH, 4TNE92-NMHA, and 4TNE98-NMH.
