A TNE that cranks strong but fires late is asking about compression, valve lash, or injection, and guessing wrong costs a weekend of parts. This Yanmar service manual (publication M9961-02E050, 422 pages, PDF download) settles it: measure compression pressure, check injector pop pressure and spray pattern, then read the results against factory service data.
Coverage runs across the TNE and TNV industrial diesel families built from 1995 to 2008, from the two cylinder 2TNE68 through the 3TNE and 4TNE range, including the turbocharged 3TNE84T and 4TNE84T, with service data extending to TNV models such as the 3TNV82A, 4TNV94L and 4TNV106.
Once the block is on the stand, you will live in the measuring procedures chapter: wear limits and corrective action for the cylinder head, pistons and rings, connecting rods, crankshaft and camshaft, backed by full disassembly and reassembly steps and exploded views. Thirty bookmarks take you from symptom to spec in a couple of clicks.
What's Inside This Yanmar TNE series, TNV series Manual
| System | Pages | Key Topics |
|---|---|---|

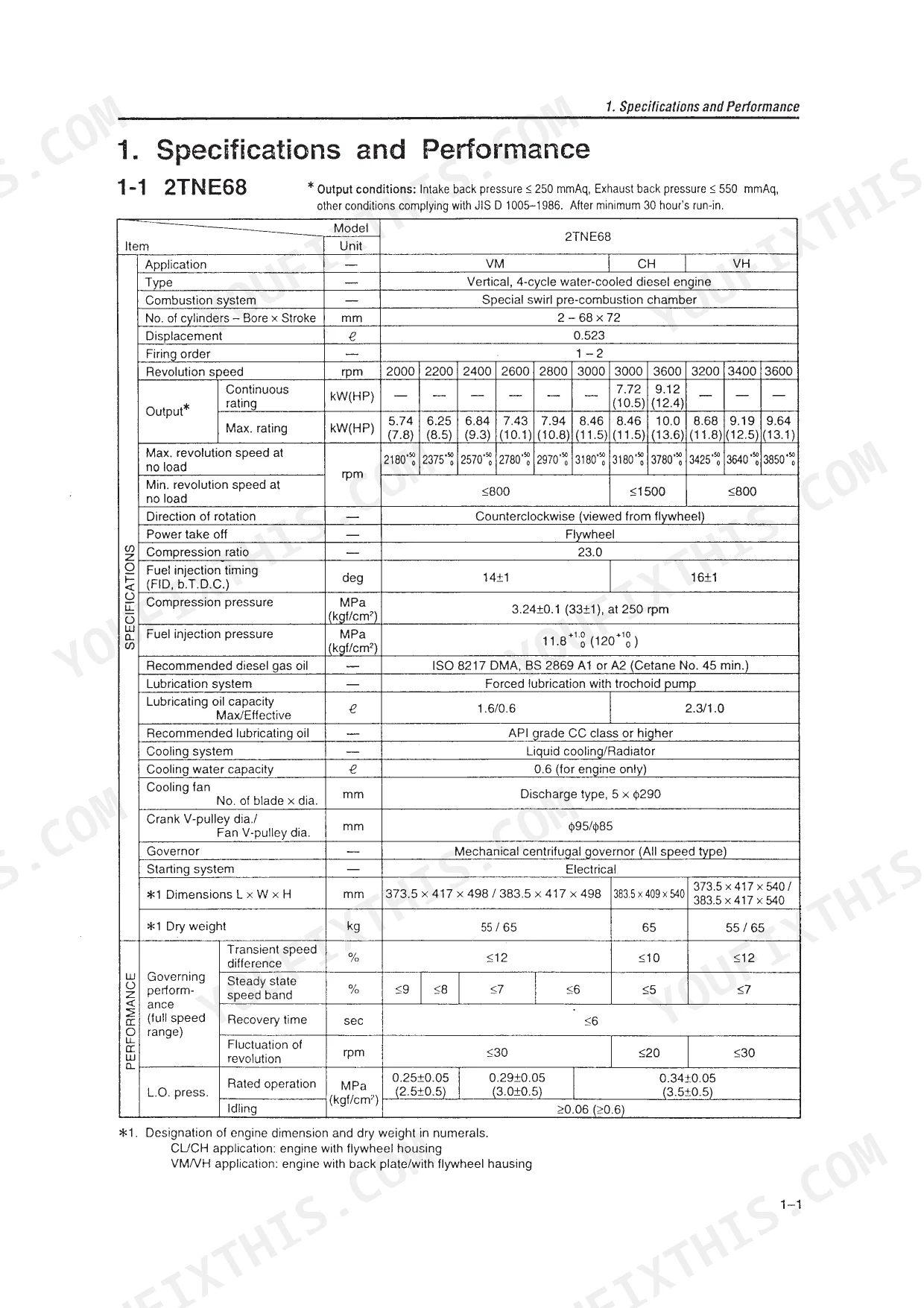

| Specifications and Performance | 7-19 | 2Tne68, 3Tne68, 3Tne74, 3Tne78A, 3Tne82A, 3Tne82, 3Tne84, 3Tne88 |

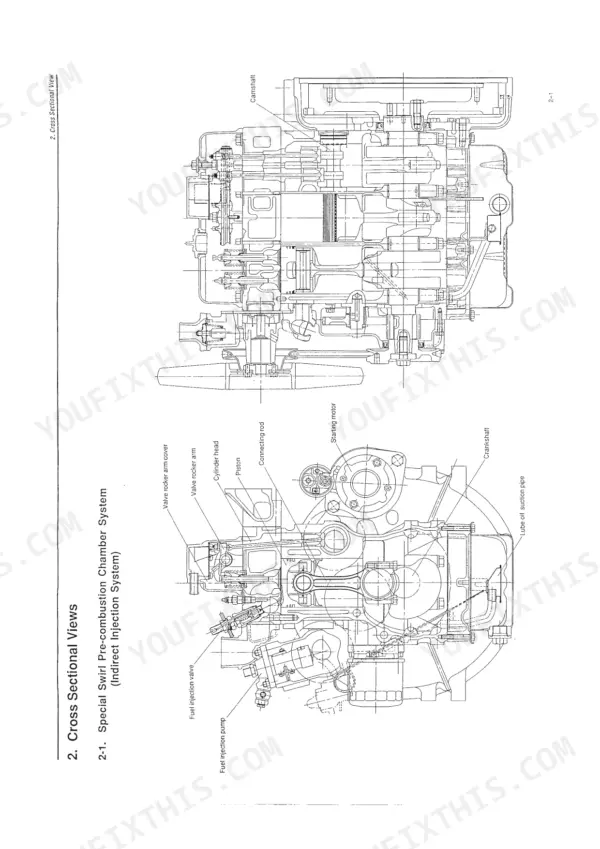

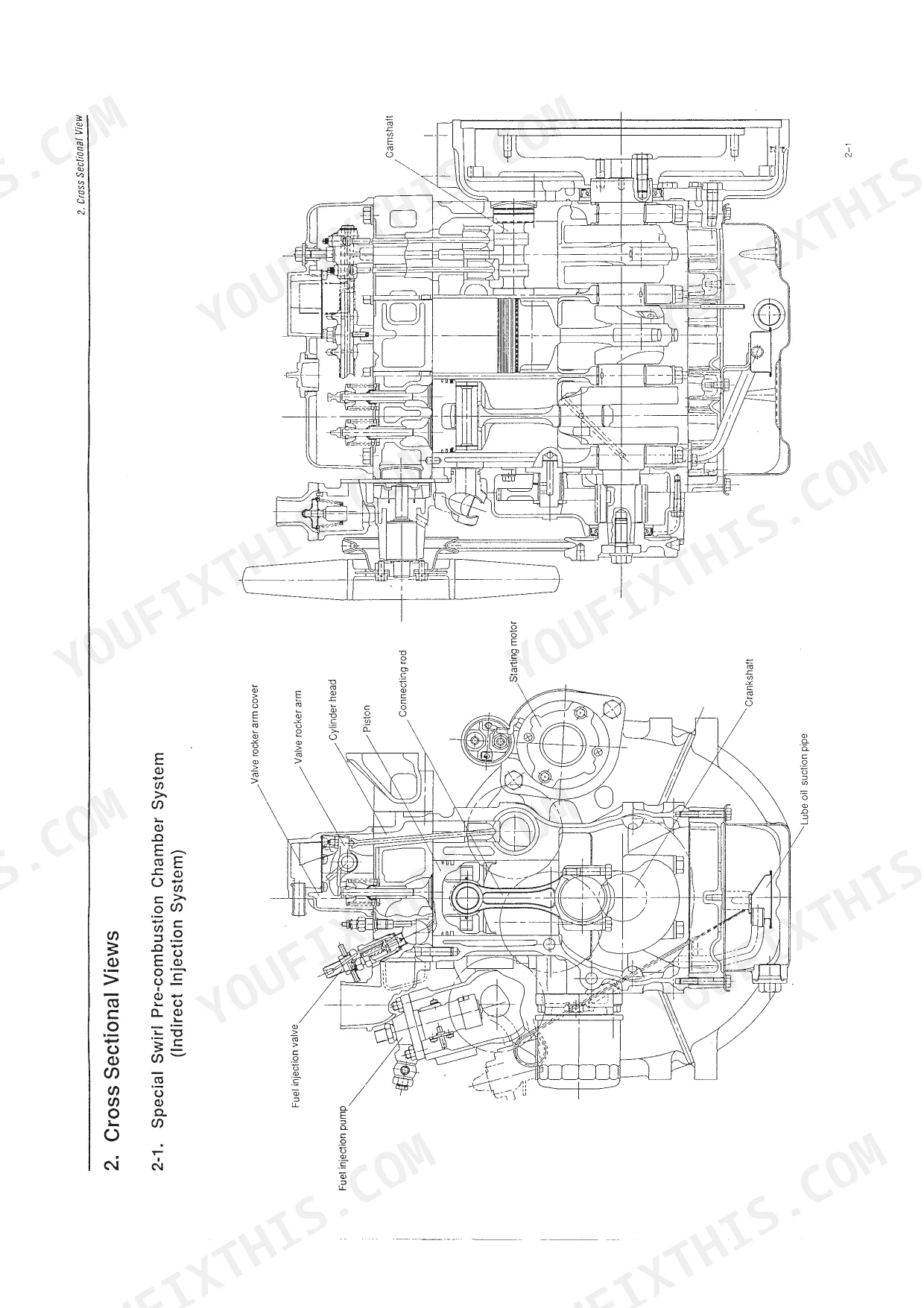

| Cross Sectional Views | 20-21 | Special Swirl Pre-Combustion Chamber System, Direct Injection System |

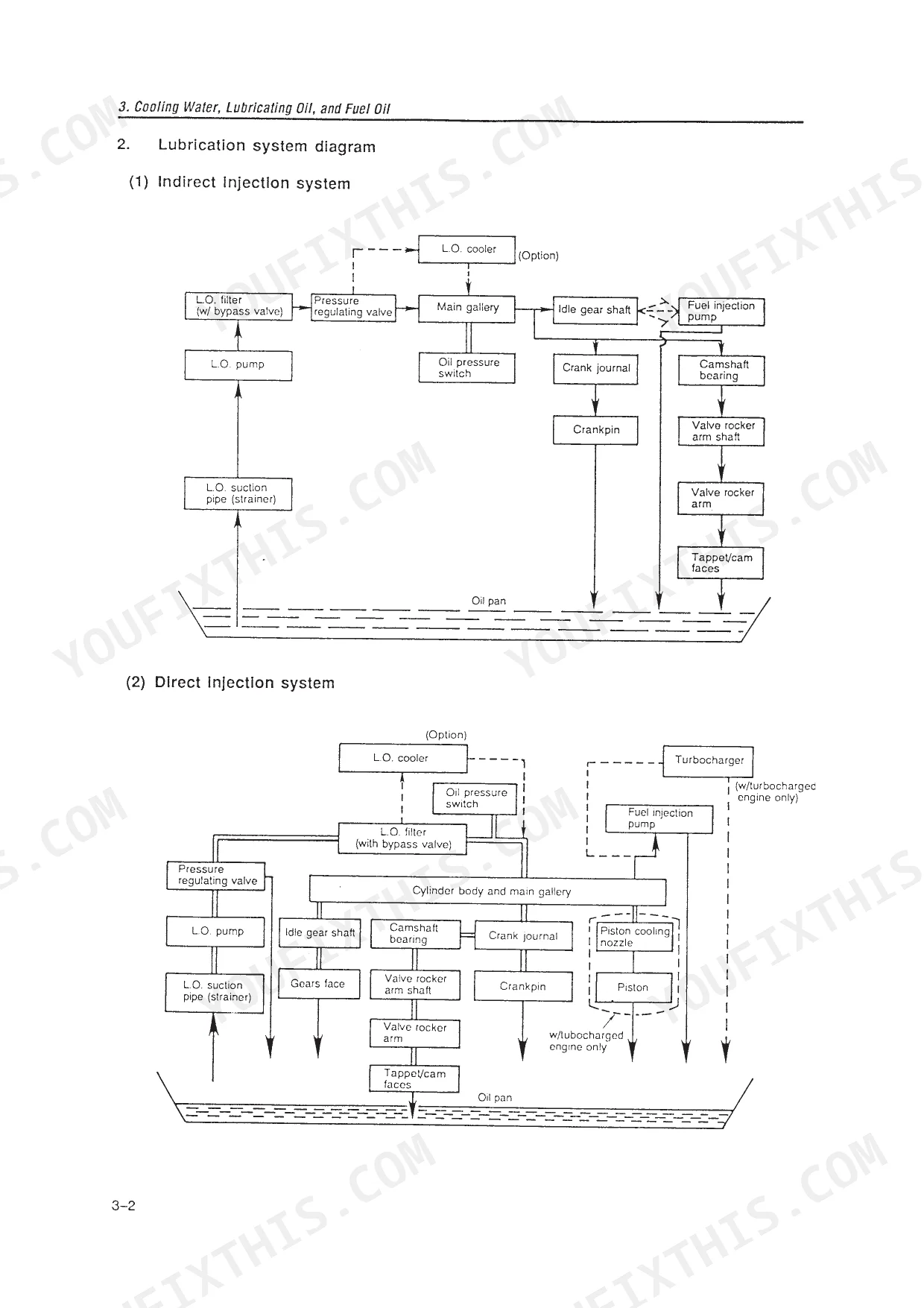

| Cooling Water, Lubricating Oil and Fuel Oil | 22-24 | Cooling Water, Lubricating Oil, Fuel Oil, Cooling Water System, Lubrication System, Fuel System |

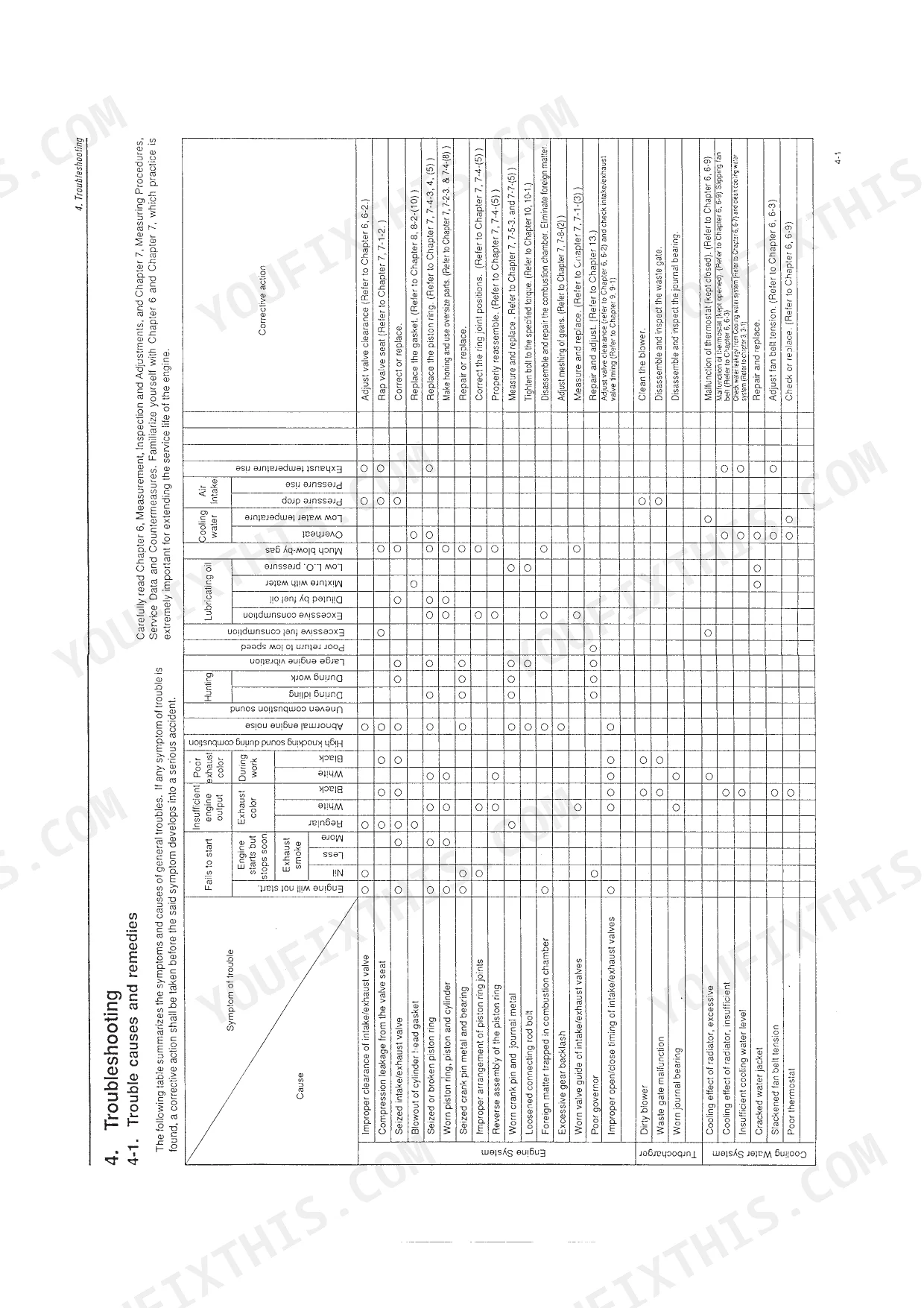

| Troubleshooting | 25-27 | Trouble Causes and Remedies, Trouble Diagnosis Through Measurement of Compression Pressure |
| Special Service Tools and Measuring Instruments | 28-32 | Valve Guide, Connecting Rod Bushing, Valve Spring, Filter, Camshaft Bushing, Cylinder Liner, Piston, Piston Ring |
| Measurement, Inspection and Adjustment | 33-47 | Measuring the Compression Pressure, Valve Head Clearance, Checking the V-Belt Tension, Measuring and Checking the Injection Pressure and Spray Patterns of the Fuel Injection Valve |

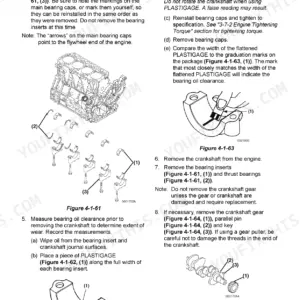

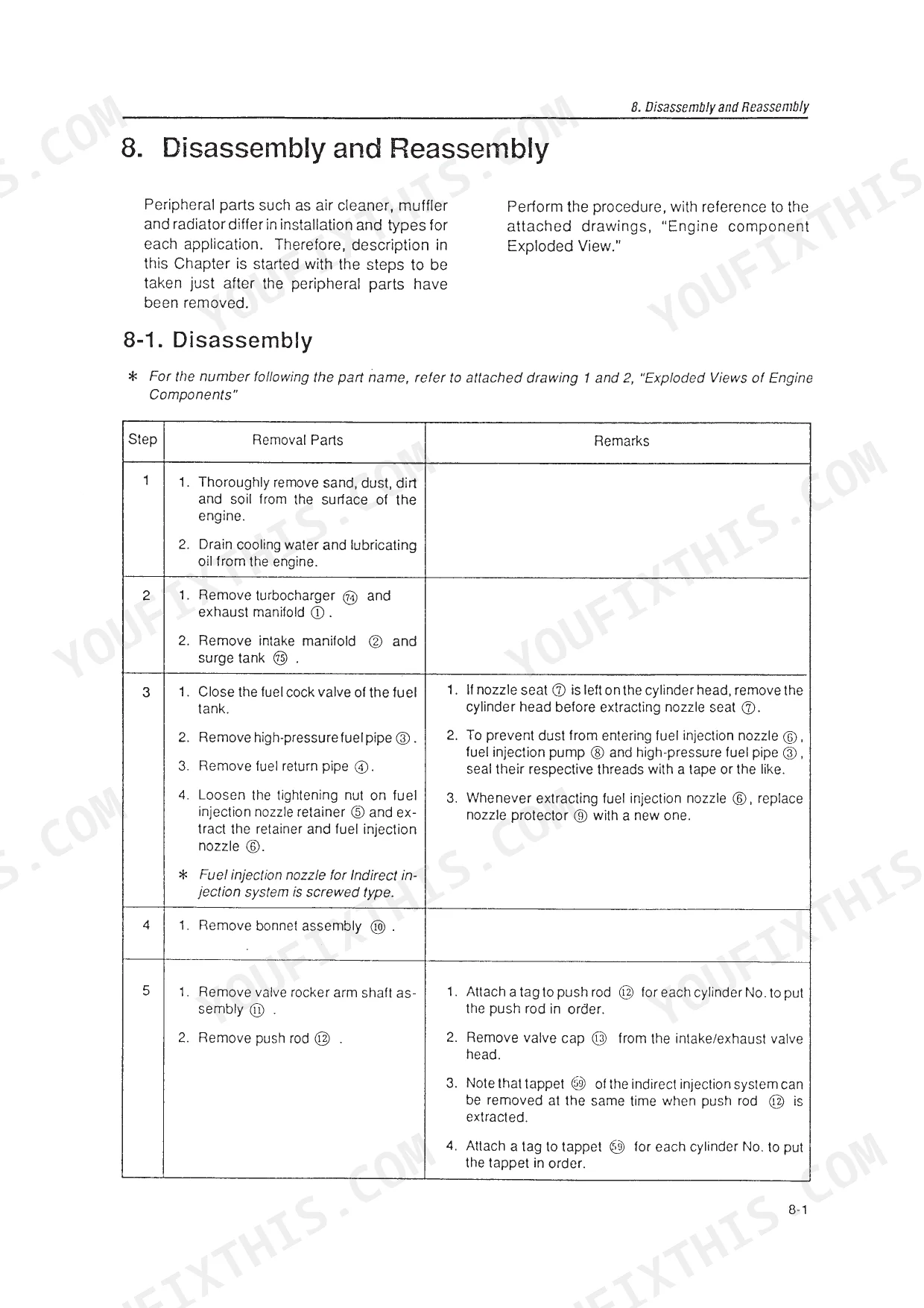

| Measuring Procedures, Service Data and Corrective Action | 48-74 | Cylinder Head, Cylinder Block, Valve Rocker Arm, Piston and Piston Ring, Connecting Rod, Camshaft, Crankshaft, Gears |
| Disassembly and Reassembly | 75-83 | Disassembly, Precautions Before and During Reassembly |
| Service Data | 84-89 | Cylinder Head, Cylinder Block, Valve Rocker Arm, Piston, Piston Ring, Connecting Rod, Camshaft, Crankshaft |
| Fuel Injection Pump for Indirect Injection System | 91-95 | Fuel Injection Pump, Delivery Valve, Plunger, Fuel Control Rack, Fuel Control Pinion, Plunger Guide Outer Roller, Plunger Guide Inner Roller, Plunger Roller Guide |
| Fuel Injection Pump for Direct Injection System | 96-108 | Fuel Injection Pump, Plunger, Delivery Valve, Plunger Guide, Plunger Barrel, Fuel Injection Pump Camshaft, Bearing, Control Rack |
| Governor | 109-120 | Fo Limiter Assembly, Angleich Spring Assembly, Governor Lever Assembly, Governor Weight Assembly, Torque Spring Assembly |
| Turbocharger | 121-126 | Specifications, Construction, Waste Gate Valve Adjusting Method, Exploded View of Turbocharger, Tightening Torque, Service Standards |
| Service Information for Carb Ulg Regulation | 127-133 | Emission Control Labels, Limiting the No-Load Maximum and Minimum Revolutions, Limiting the Fuel Injection Volume |
| Exploded Views of Engine Components | 134-422 | Cylinder Head, Piston, Connecting Rod, Crankshaft, Camshaft, Fuel Injection Pump, Turbocharger, Gears |
Quick Reference Specifications

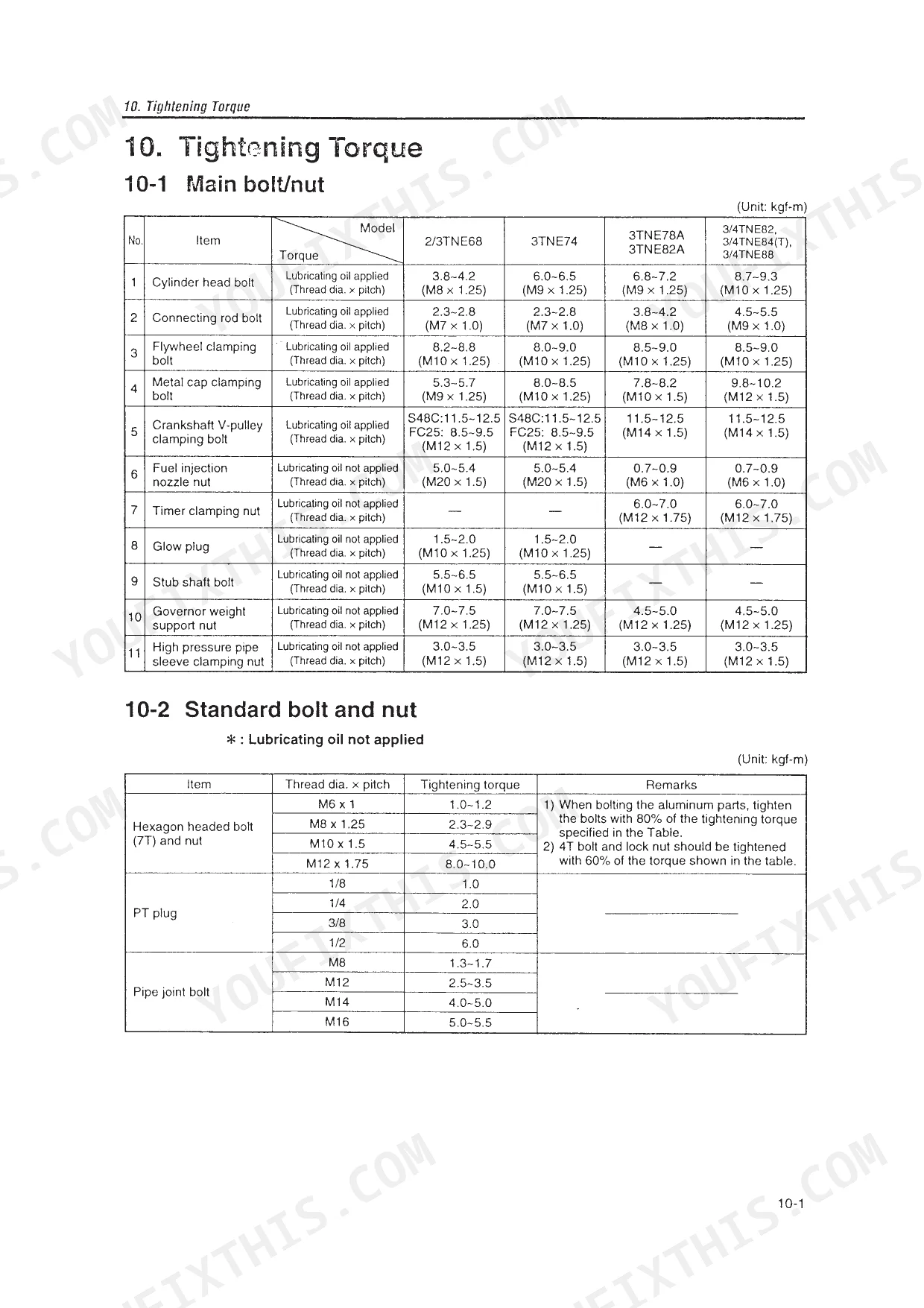

| Specification | Value | Page |
|---|---|---|
| 3TNV82A | ||
| Cylinder head bolt torque, 3TNV82A | 61.7 to 65.7 N•m | p. 354 |
| TNV84 to 88 | ||
| Cylinder head bolt torque, TNV84 to 88 | 85.3 to 91.1 N•m | p. 354 |
| TNV series | ||
| Fuel filter element replacement interval | Every 250 hours or 3 months | p. 174 |
| Water separator draining interval | Daily | p. 174 |
| Water separator cleaning interval | Every 250 hours or 3 months | p. 174 |
| 3TNV82A to 4TNV106 (T) | ||
| Fuel filter element tightening torque | 20 to 24 N•m | p. 178 |
| 2TNE68 | ||
| Cooling water capacity (engine only), 2TNE68 | 0.6 L | p. 7 |
| 3TNE68 | ||
| Cooling water capacity (engine only), 3TNE68 | 0.9 L | p. 8 |
| RHB31 | ||
| Blower impeller set nut tightening torque (left-handed screw), RHB31 | 0.9 to 1.1 N•m | p. 277 |
| RHB51 | ||
| Blower impeller set nut tightening torque (left-handed screw), RHB51 | 1.8 to 2.2 N•m | p. 277 |
| All Models | ||
| Thermostat valve opening temperature | 69.5-72.5 °C | p. 45 |
| Thermostat lift height | Min. 4.5 mm (at 85°C and above) | p. 89 |
Yanmar TNE series, TNV series Common Problems This Manual Covers
Hard starting and low compression
An engine that needs ether to light is telling you about compression or fuel delivery. The Troubleshooting section pairs a trouble causes and remedies table with diagnosis through compression pressure measurement, so you test instead of swapping parts.
Manual Section: Troubleshooting p. 25Poor spray pattern and white smoke
Rough running and white smoke often trace to injectors that dribble or open late. The manual shows how to measure injection pressure and check spray patterns at the fuel injection valve, alongside valve clearance, injection timing and V-belt tension checks.
Manual Section: Measurement, Inspection and Adjustment p. 33Worn bores, rings and bearings
Rising oil consumption and blow-by mean it is time to measure, not guess. This chapter gives measuring procedures, service data and corrective action for the cylinder head, block, pistons and rings, connecting rods, camshaft, crankshaft and gears.
Manual Section: Measuring Procedures, Service Data and Corrective Action p. 48Fuel contamination in the injection pump
Dirty fuel wears pump internals until the engine runs rough or loses power. Exploded views plus disassembly, inspection and reassembly steps cover the direct injection pump, and a separate chapter handles the pump for indirect injection engines.
Manual Section: Fuel Injection Pump for Direct Injection System p. 96Surging or hunting revolutions
Unstable engine speed often comes from governor wear rather than the pump itself. The Governor chapter carries exploded views for both indirect and direct injection systems with disassembly, inspection and reassembly procedures.
Manual Section: Governor p. 109Turbocharger shaft play and oil carryover
Oil in the intake or a rubbing compressor wheel calls for a rotor play check before anything else. The Turbocharger section lists service standards including a rotor axial play standard of 0.03 to 0.06 mm, tightening torques and the waste gate valve adjusting method.
Manual Section: Turbocharger p. 121Overheating and coolant neglect
The wrong coolant mix and tired lube oil kill these engines slowly. This section sets out the cooling water, lubricating oil and fuel oil requirements so the rebuild you just finished does not scuff a bore in its first season.
Manual Section: Cooling Water, Lubricating Oil and Fuel Oil p. 22Frequently Asked Questions
Which Yanmar engine models does this manual cover?
The Specifications and Performance section lists the 2TNE68, 3TNE68, 3TNE74, 3TNE78A, 3TNE82A, 3TNE82, 3TNE84, 3TNE88, 4TNE82, 4TNE84 and 4TNE88, plus the turbocharged 3TNE84T and 4TNE84T. Service data throughout also covers TNV models including the 3TNV82A, 4TNV94L and 4TNV106. p. 7
Does it cover the turbocharger on turbocharged models?
Yes. The Turbocharger section gives specifications, construction, the waste gate valve adjusting method, an exploded view, tightening torques and service standards, including a rotor axial play standard of 0.03 to 0.06 mm. p. 121
What is the valve clearance, and is the adjustment procedure included?
Valve head clearance for the TNE series is 0.15 to 0.25 mm. The Measurement, Inspection and Adjustment section walks through setting it, along with compression testing, V-belt tension, injection timing and injector spray pattern checks. p. 33
How do I find anything in a 422 page manual?
The PDF carries 30 bookmarks matching the chapter structure, so you can jump straight from Troubleshooting to the fuel injection pump, governor or turbocharger chapter without scrolling. Each chapter also opens with its own numbered contents.
How quickly can I access this manual after buying?
Immediate download of the complete 422-page searchable Service Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this Yanmar TNE series manual include wiring diagrams?

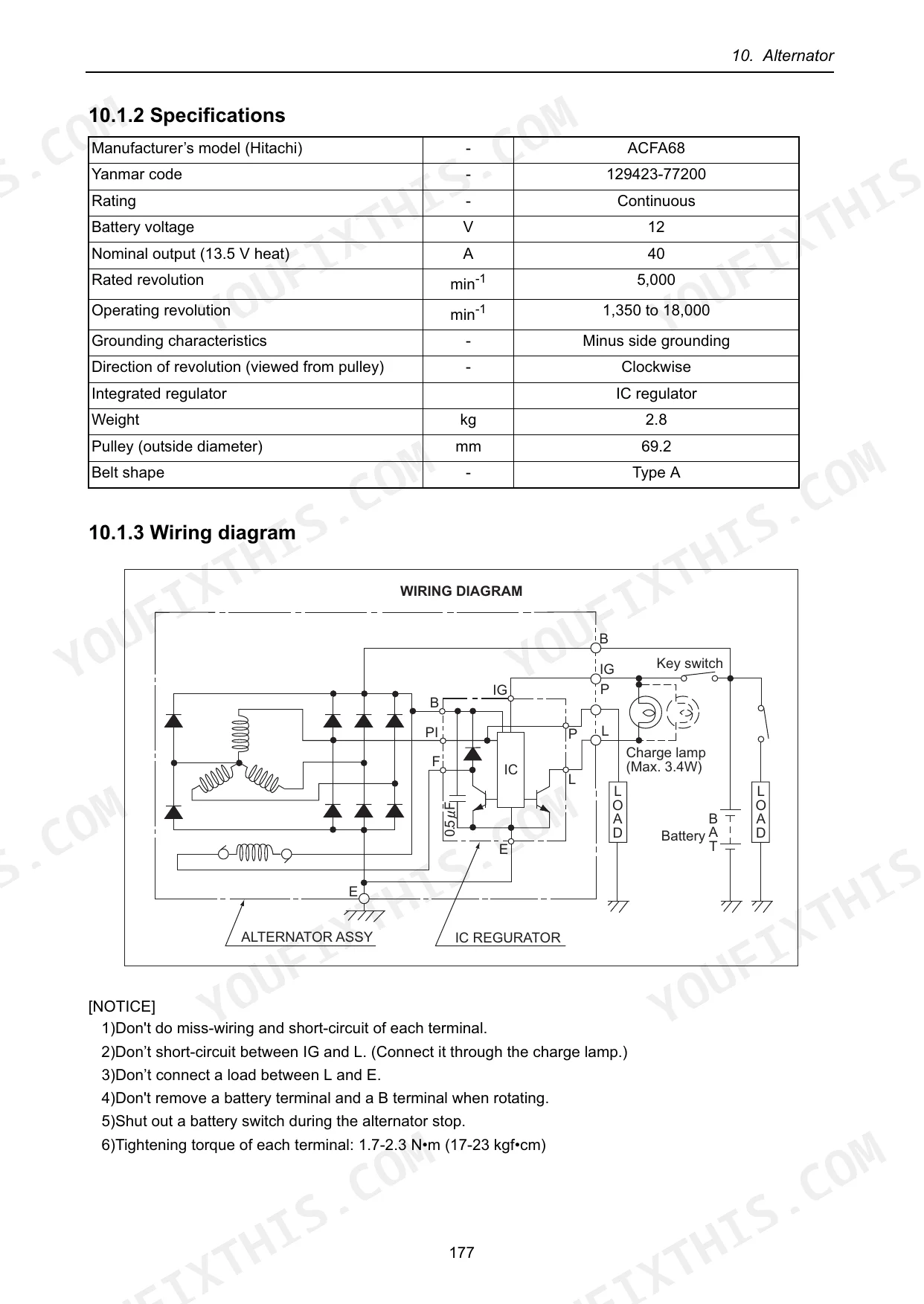

Yes. This manual includes wiring diagrams for the electrical system.
