Need the exact factory repair procedures for your Yanmar B25V Excavator? This 402-page Yanmar b25v service manual pdf breaks down the entire hydraulic system, engine, and undercarriage to get your equipment running right. Inside, you get full fluid routing schematics, detailed exploded views of the track assembly, and complete teardown instructions for the main hydraulic pump. Open up the extensive troubleshooting charts to quickly diagnose swing motor faults, track tension issues, or engine pressure drops without wasting hours. Verify the thermostat begins opening at exactly 71 °C, and confirm the fuel injection pressure hits 200 to 210 kgf/cm² before returning the machine to the dirt. Every hour in the shop costs money. Download the bookmarked file straight to your tablet, find the spec you need, and start wrenching immediately.
What's Inside This Yanmar B25V Manual
| System | Pages | Key Topics |
|---|---|---|
| General Cautions for Maintenance Work | 11-21 | Correct Work, Safety Precautions, Preparations, Cautions for Disassembly and Reassembly, Cautions for Removal and Installation of Hydraulic Equipment |

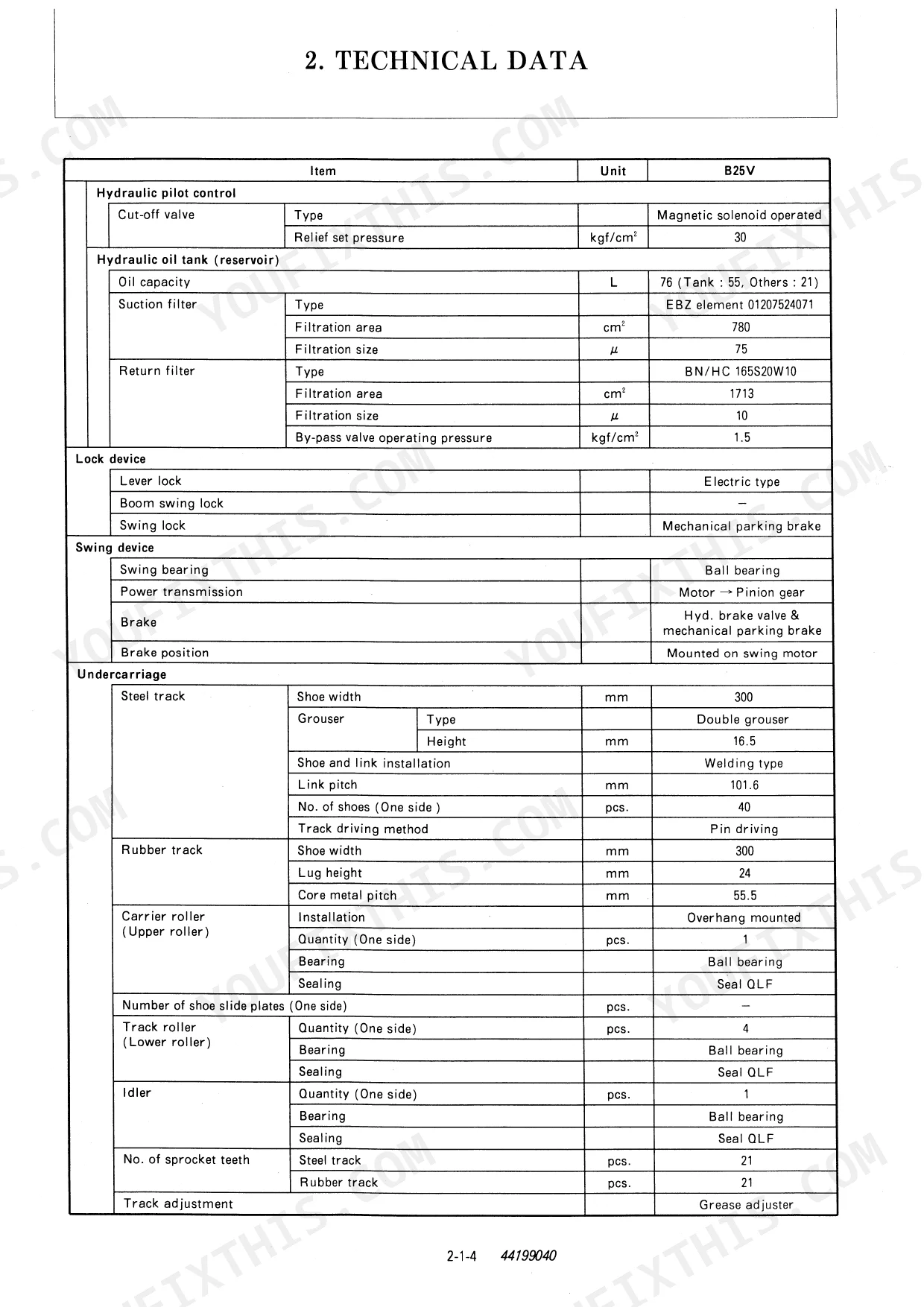

| Technical Data | 23-30 | Main Specifications, Traveling Performance, Hydraulic Implement, Engine Specifications, Electrical Equipment |

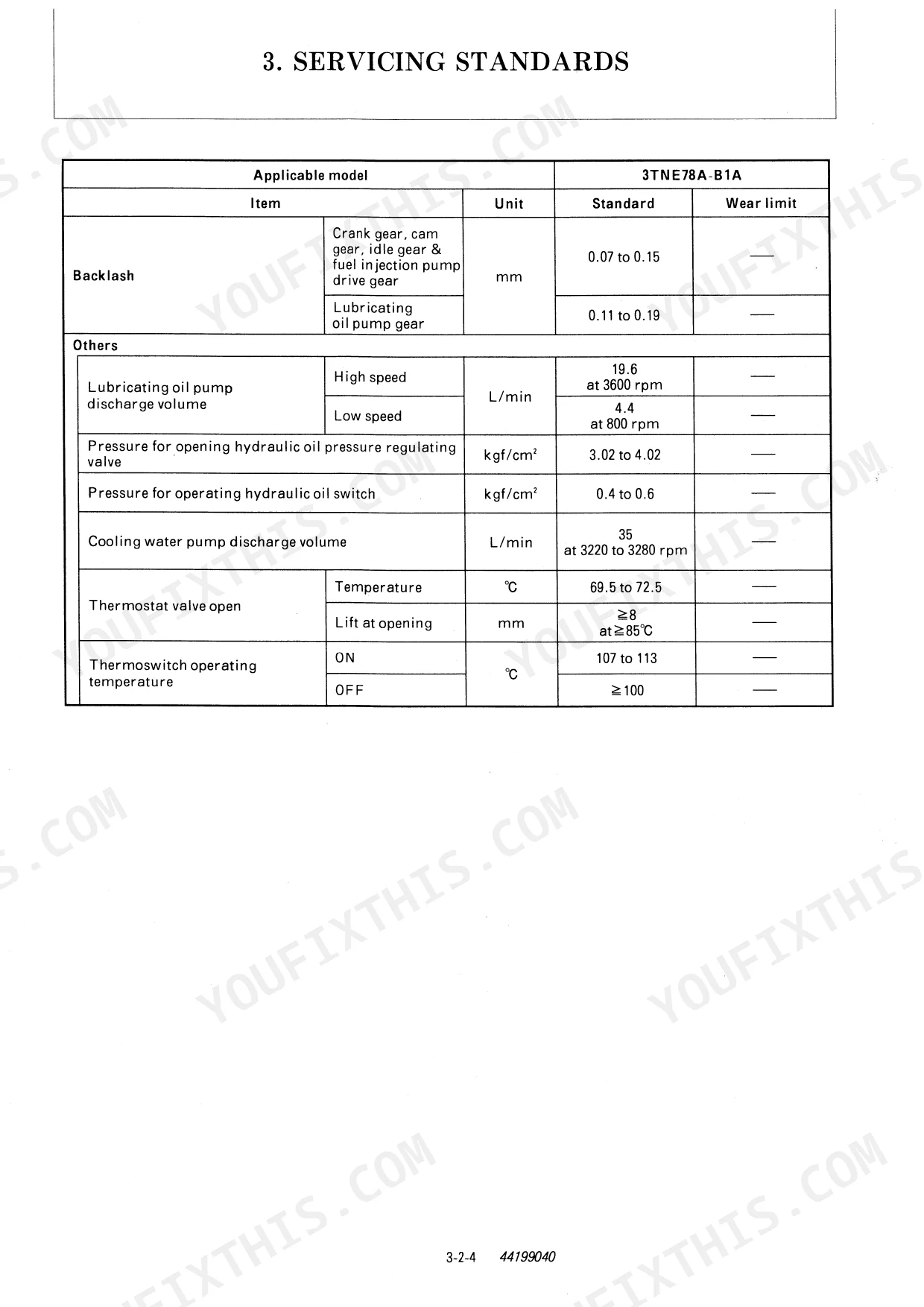

| Servicing Standards | 32-46 | Machine Performance, Engine Standards, Undercarriage Specifications, Hydraulic Cylinder, Tightening Torque |
| Engine | 48-100 | Compression Pressure Measurement, Valve Head Clearance, Fuel Injection Timing, Cooling System Check, Crankshaft Inspection |

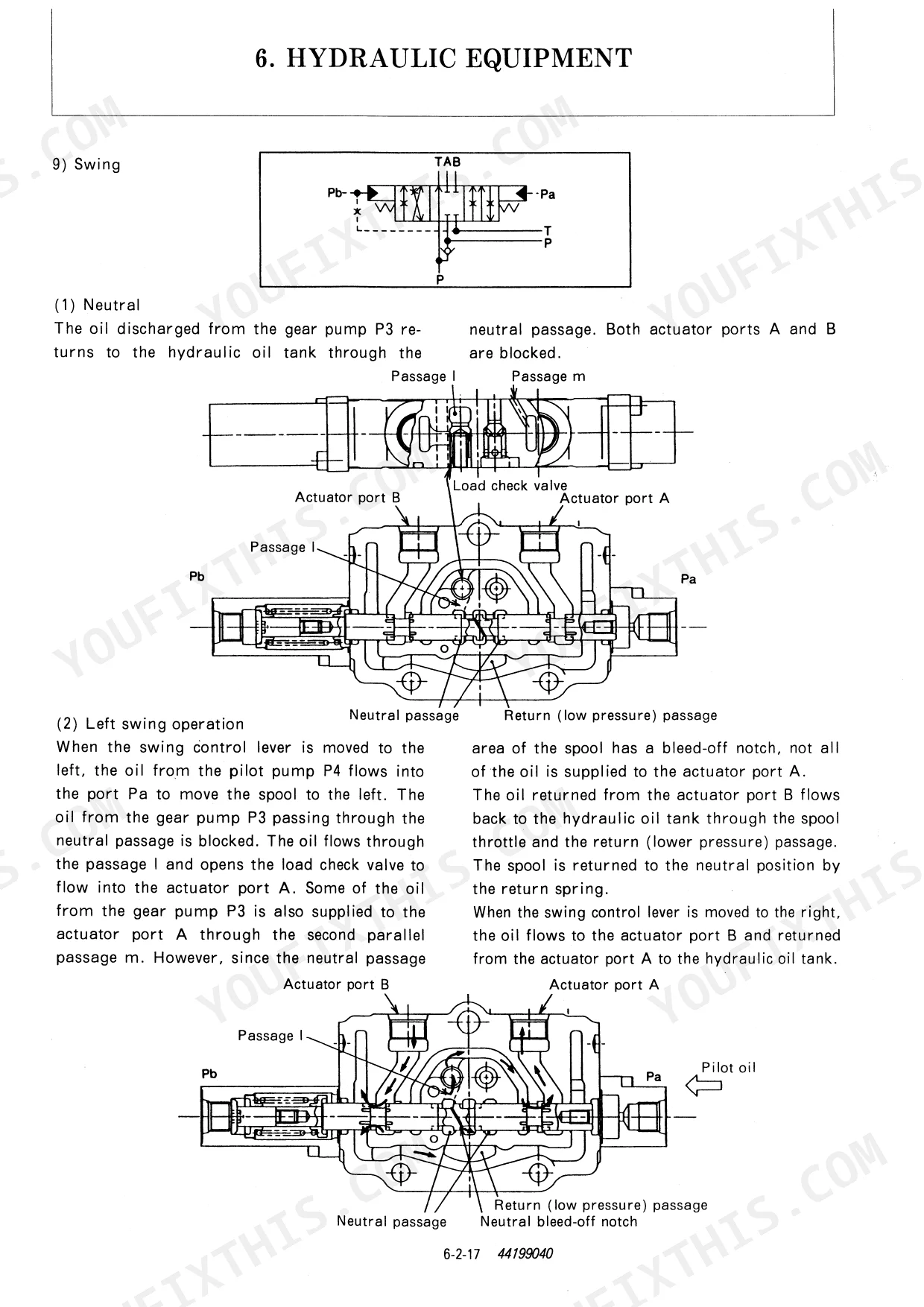

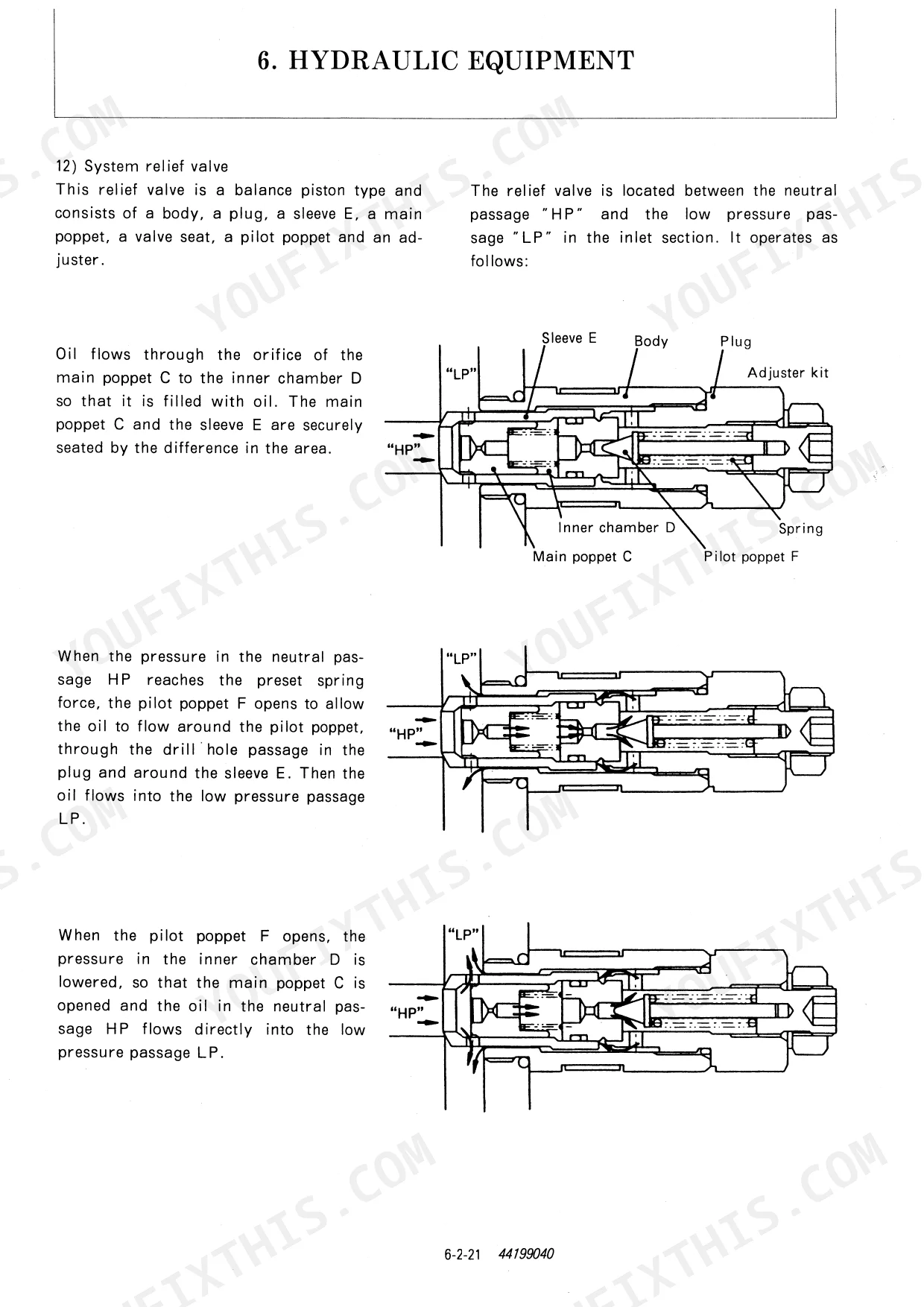

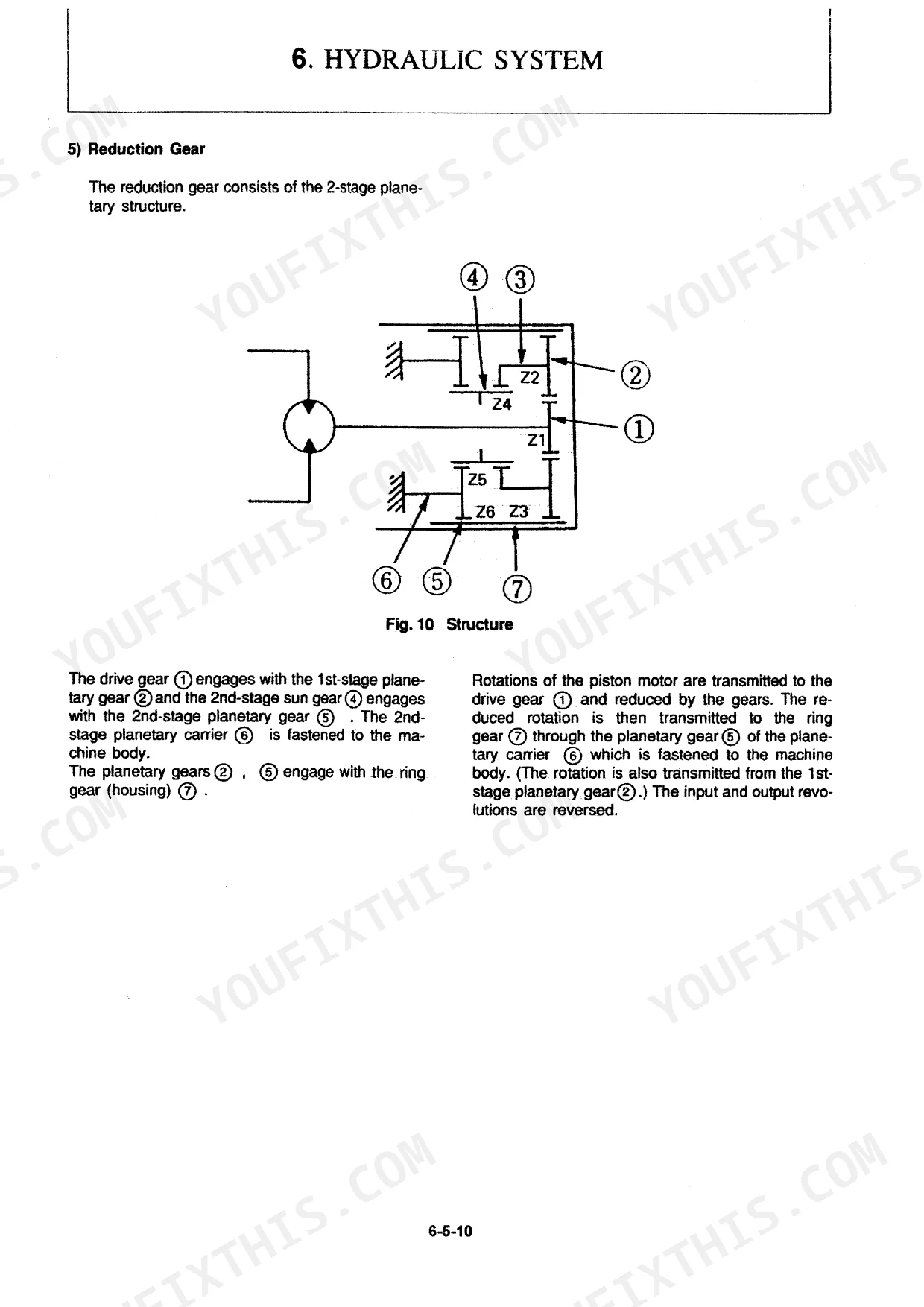

| Hydraulic System | 102-170 | System Outline, Control Valve Operation, Hydraulic Circuit Schematic, Pressure Adjustment, Relief Valves, Cut-Off Valve |

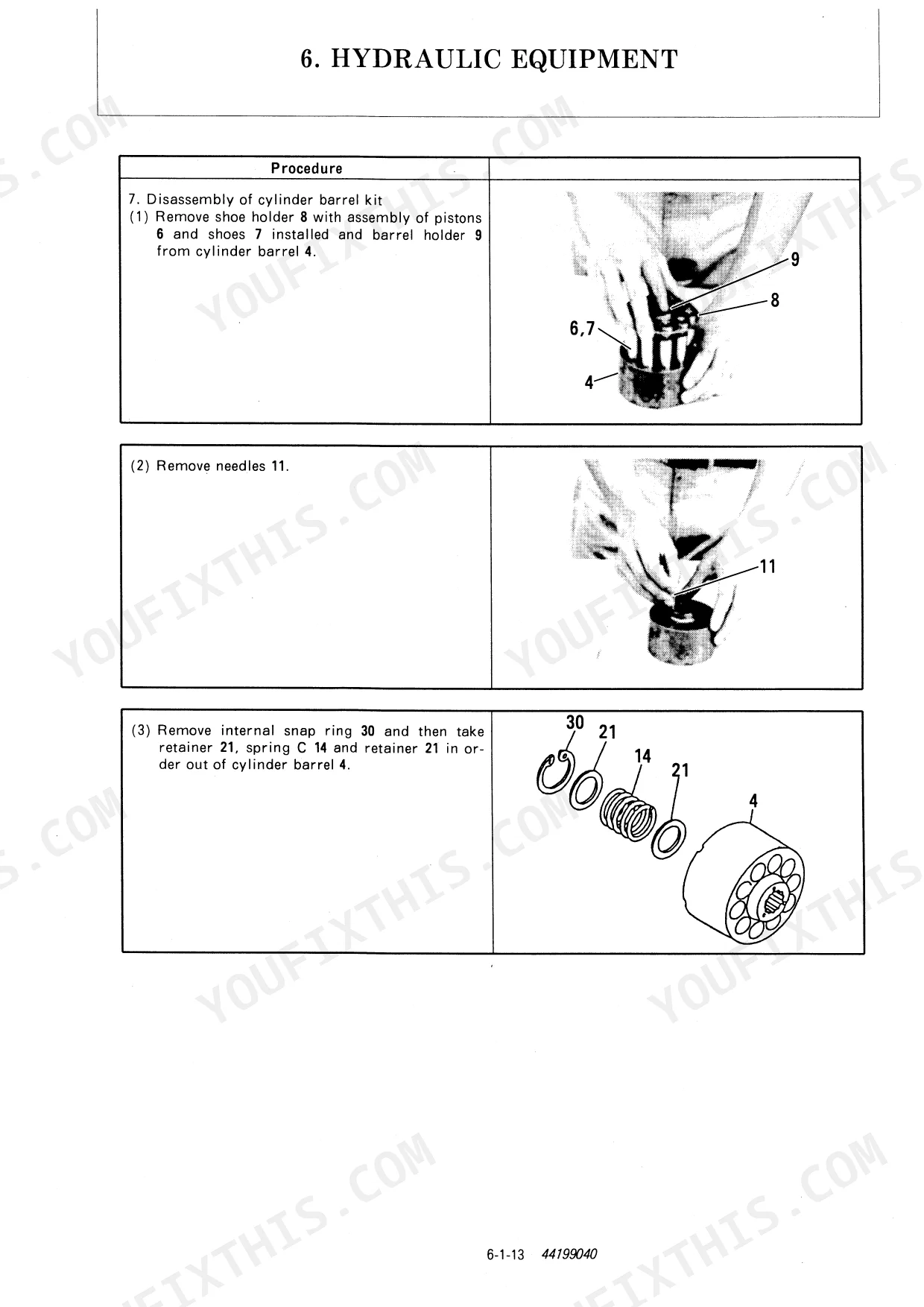

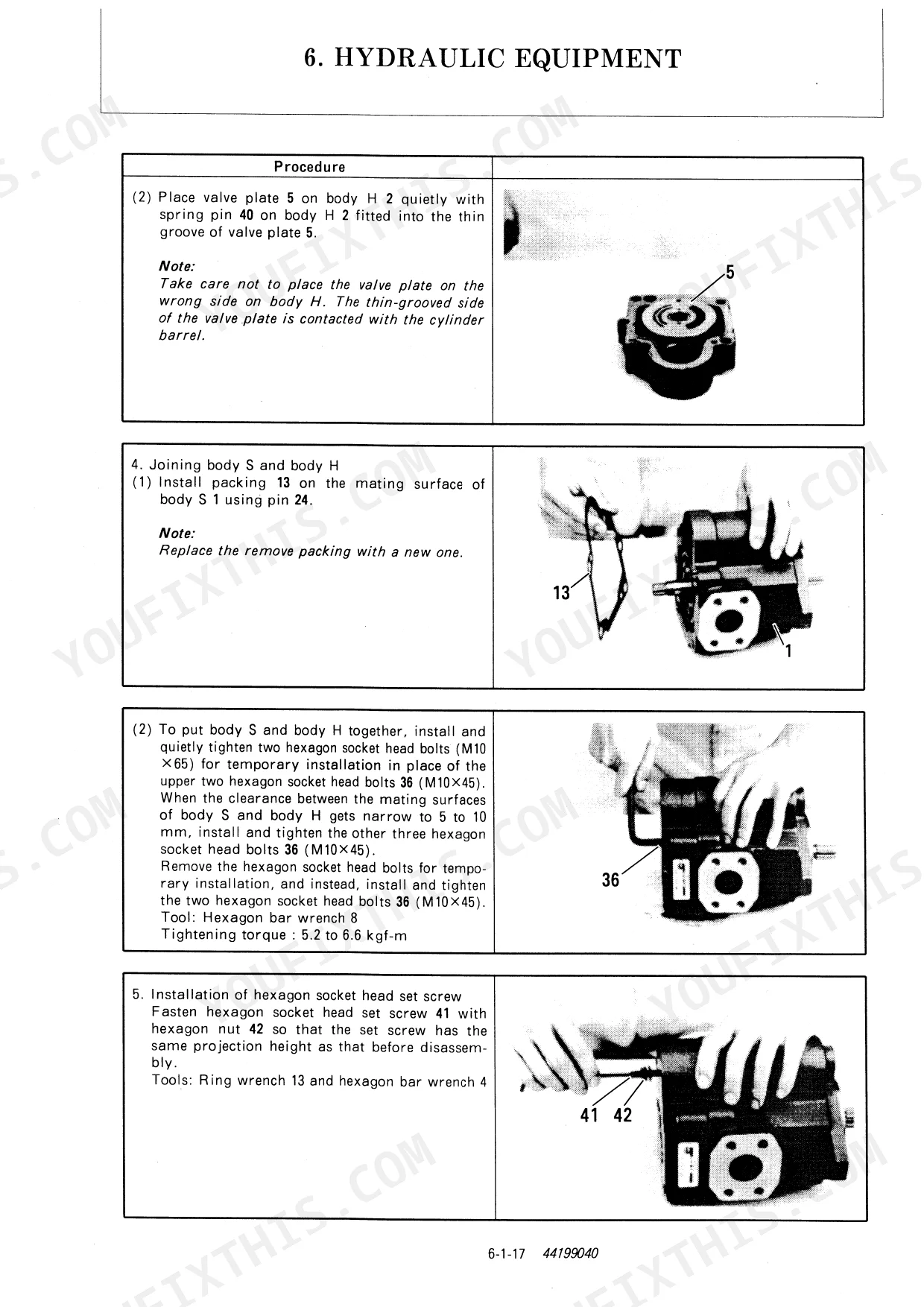

| Hydraulic Equipment | 172-266 | Hydraulic Pump Disassembly, Control Valve Operation, Pilot Valve Disassembly, Swing Motor, Travel Motor |
| Adjustment and Repair | 268-319 | Electric Equipment Arrangement, Monitor and Alarm Systems, Undercarriage Reassembly, Control Linkage Adjustment, Hydraulic Oil Tank |
| Fuel, Lube Oil and Grease Recommended | 324-325 | Fuel Type, Engine Oil, Hydraulic Oil, Grease Type, Cooling Water |
| Troubleshooting | 327-360 | Non-Breakdowns, Machine and Engine Troubleshooting, Electrical Equipment on Panel, Hydraulic System Issues |
| Reference Data | 362-363 | Specifications for Attachment, Bucket Installation, Hydraulic Specifications |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic Oil Tank Capacity | 76 L | p. 28 |
| Max. Engine Output | 14.0 kW (19.1 PS) at 2100 rpm | p. 29 |
| Compression Pressure | 32 ± 1 kgf/cm² | p. 29 |
| Fuel Injection Pressure | 200 to 210 kgf/cm² | p. 30 |
Yanmar B25V Common Problems This Manual Covers
Yanmar B25V excavator engine overheats rapidly during heavy digging or shows poor cooling performance p. 45
Inspect the entire cooling system and verify thermostat operation. Drain the old coolant and check the cylinder head bolt torque, tightening to 6.8 to 7.2 kgf-m as specified on page 45. Clean the radiator fins thoroughly and replace any damaged hoses to restore normal operating temperatures.
Manual Section: EngineHydraulic functions feel weak under load or the hydraulic tank fluid level is noticeably low p. 28
Check the hydraulic oil tank capacity on page 28; it should hold the required 76 L. Inspect all high-pressure rubber hoses for leaks and verify working pressure reaches 140 kgf/cm² as noted on page 15. Fill with recommended hydraulic fluid and bleed air from the cylinders.
Manual Section: Technical DataUnexpected loud mechanical noise when operating the right joystick or moving the right track control p. 68
Inspect the travel motor assembly and track frame connections. Torque the travel motor to track frame bolts to 8 to 10 kgf-m as detailed on page 68. Test the joystick linkage for binding and verify the track drive mechanism operates smoothly without excessive metal friction.
Manual Section: EngineStarter cranks normally but engine will not start or turns over slowly in cold weather p. 30
Test the fuel delivery system and measure the fuel injection pressure. Verify the injection pressure reads between 200 to 210 kgf/cm² according to the specifications on page 30. Replace the fuel filter, bleed the fuel lines, and ensure the battery holds a full charge.
Manual Section: Technical DataFrequently Asked Questions
What are the torque specifications for the track roller tightening nuts on the Yanmar B25V excavator?
The tightening torque for the track roller tightening nuts (M16) on the Yanmar B25V excavator is 14 to 19 kgf-m. It is recommended to apply Three Bond 1324 or an equivalent screw locking agent during reassembly.
What are the operating temperature specifications for the thermostat in the Yanmar B25V engine?
The thermostat in the Yanmar B25V engine should begin opening at 71 °C and be fully open at 85 °C. When checking, ensure it functions at a temperature between 69.5 to 72.5 °C.
What is the specified pressure for the radiator cap on the Yanmar B25V excavator?
The radiator cap pressure for the Yanmar B25V excavator is specified at 1.0 kgf/cm². When checking, attach the cap to a tester and ensure it opens at a pressure between 0.75 to 1.05 kgf/cm²; replace if it does not.
What is the engine oil capacity for the Yanmar B25V excavator?
The engine oil capacity for the Yanmar B25V excavator is 3.6 liters. It is recommended to use SAE 10W30 or 15W40 CD class engine oil.
What do I get after purchasing this Yanmar B25V manual?
Immediate download of the complete 402-page searchable Service Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this Yanmar B25V manual include hydraulic schematics?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
Document Quality
This document is a scanned PDF, so the text is image-only and not searchable or selectable. The text is consistently clear and readable throughout, without any blurriness or fading. All diagrams and illustrations are raster images; they are generally clear and their labels are readable, though they will show some pixelation if you zoom in significantly. Pages are clean with no noticeable scan artifacts or skewed content. You will find several blank pages interspersed within the manual.
