Need the factory spec for your Yanmar B25V? All 110 pages of this B25V operation manual PDF (OEM #LGBCC0-00015) focus on one machine: the mini-excavator's complete control layout, maintenance schedule, and hydraulic system. You get full hydraulic schematics with fluid-circuit routing, wiring diagrams for every electrical path, and a troubleshooting guide that separates real faults from normal machine behavior. Open the operator's area section for a control-by-control breakdown of the monitor panel, switches, and fuses, plus attachment and rubber crawler handling procedures. Replace the fuel filter at 500 hours, pull the main pump outlet hoses no later than 4000 hours or 2 years, and torque M10 fasteners to 44.1-58.8 N•m. Your machine is down. Bookmarked and keyword-searchable: pull it up on your tablet and start wrenching.
What's Inside This Yanmar B25V Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 7 | Manual Purpose, Safety Precautions, Warranty Conditions, Product Information, Safety Instructions |
| Safety Information | 8-9 | Signal Words, Operator Training, Product Warnings, Safety Instructions, Machine Design Modifications, Machine Sections |
| Product Overview and Regulation | 10 | Intended Uses, Operation License, Lifting |
| Ordering Replacement Parts and Service Call | 11-12 | Location of Machine Serial Number Plate, Location of Engine Serial Number Plate, Location of the Epa Identification Plate, Ordering Replacement Parts and Service Calls |
| Safety | 13-36 | Basic Precautions, Operating Precautions, Precautions for Servicing, Safety Messages (Warning Labels) |

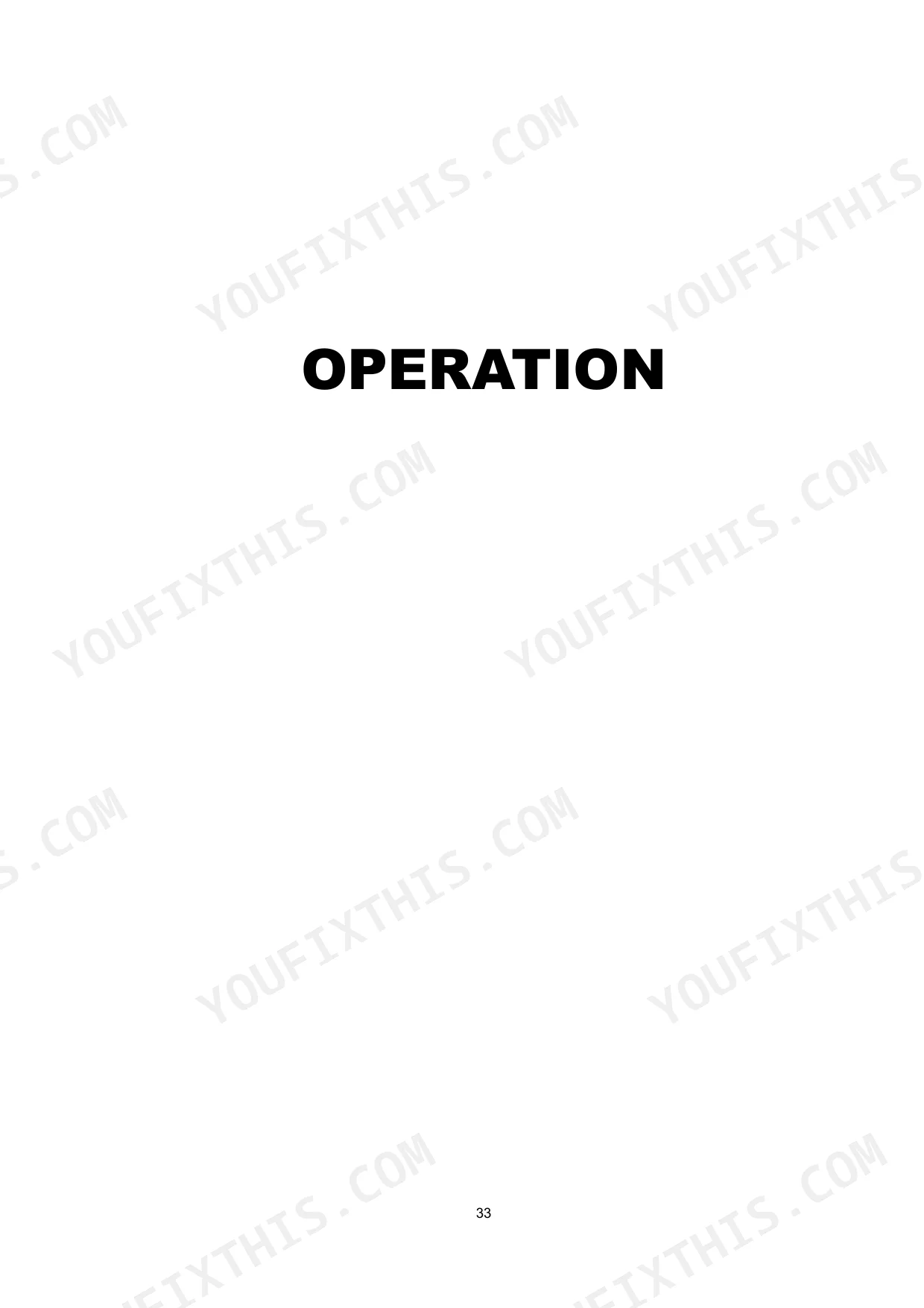

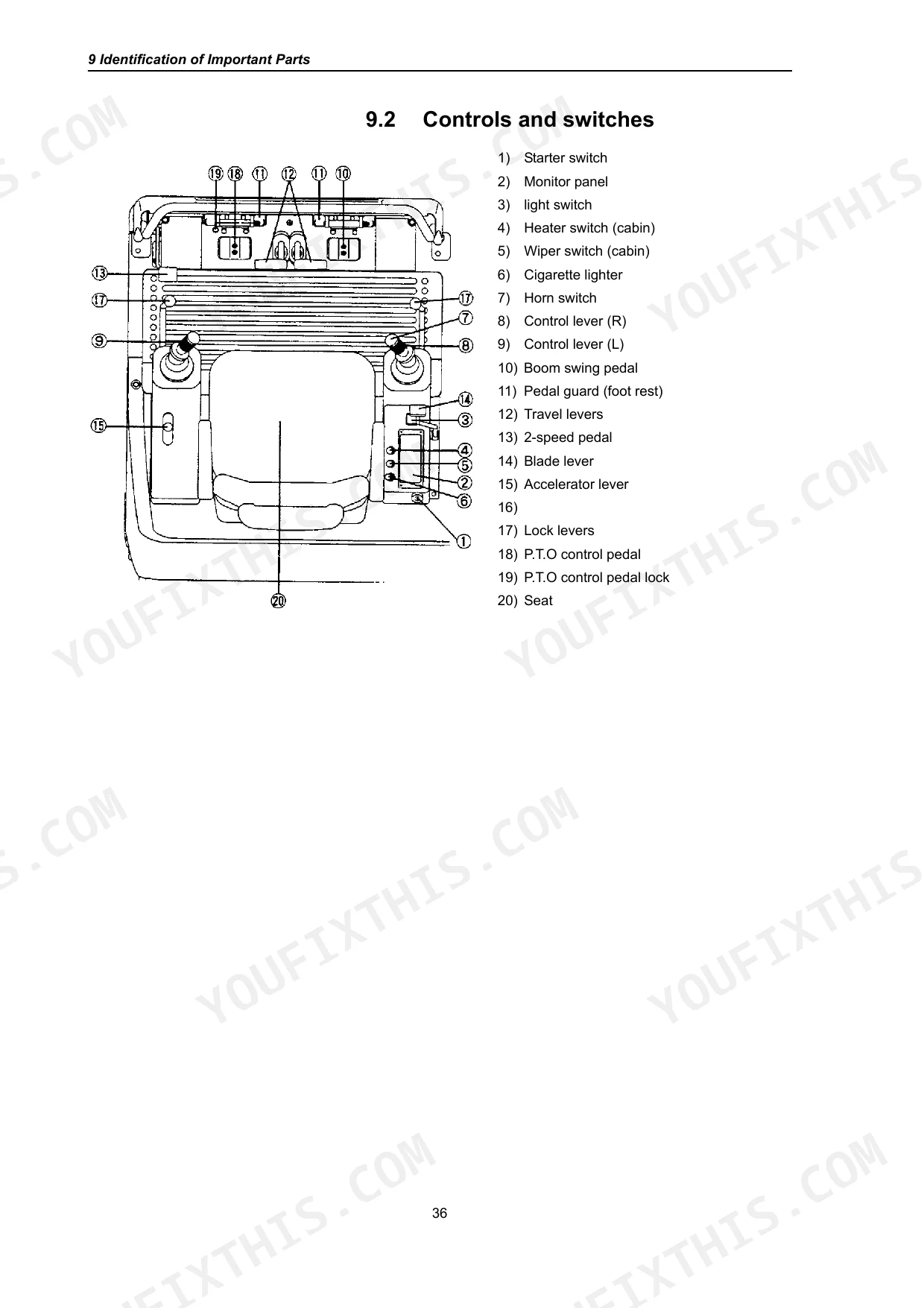

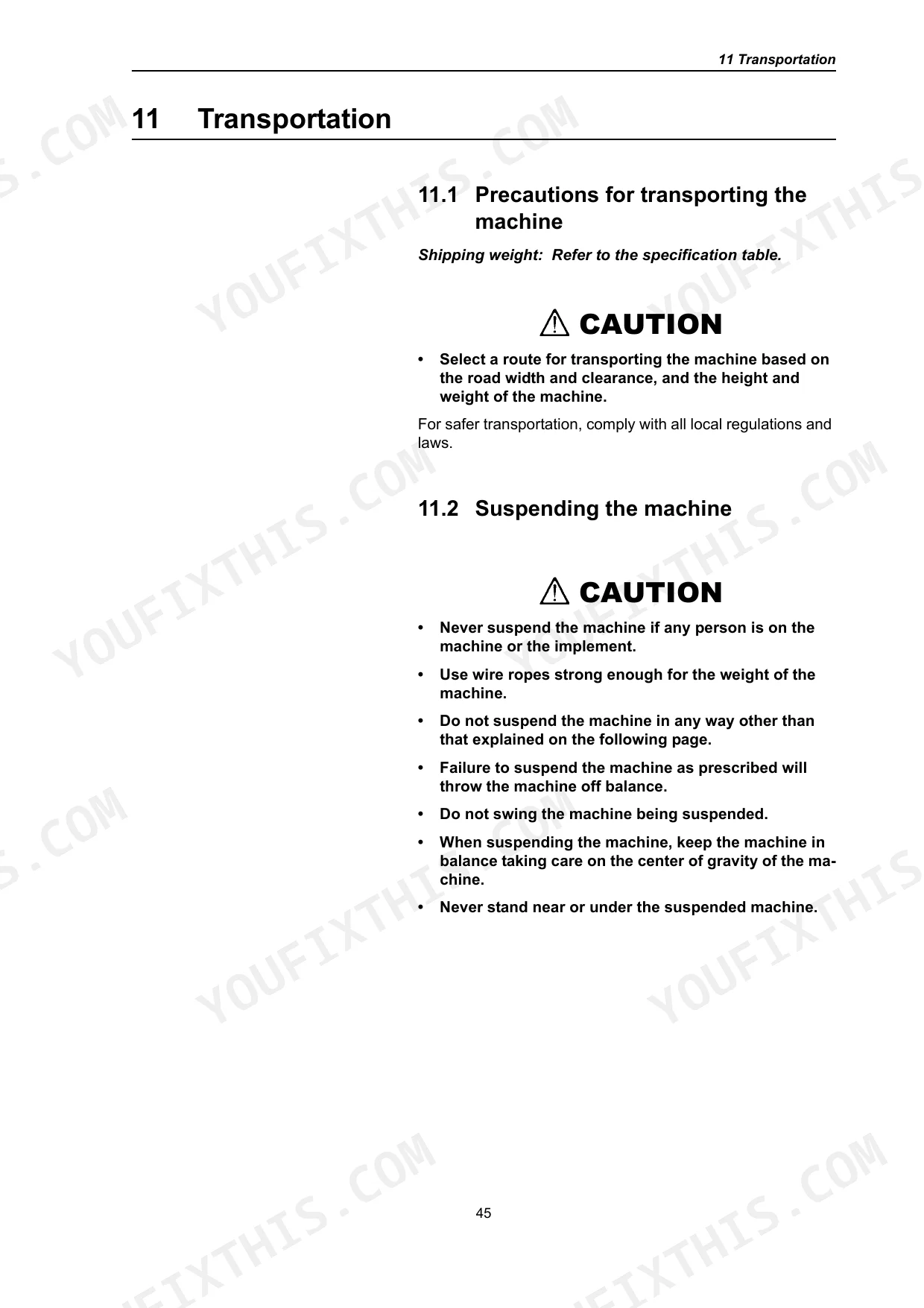

| Operation | 37-68 | Identification of Important Parts, Instructions, Transportation, Long-Term Storage, Description of operator’s Area, Troubleshooting |

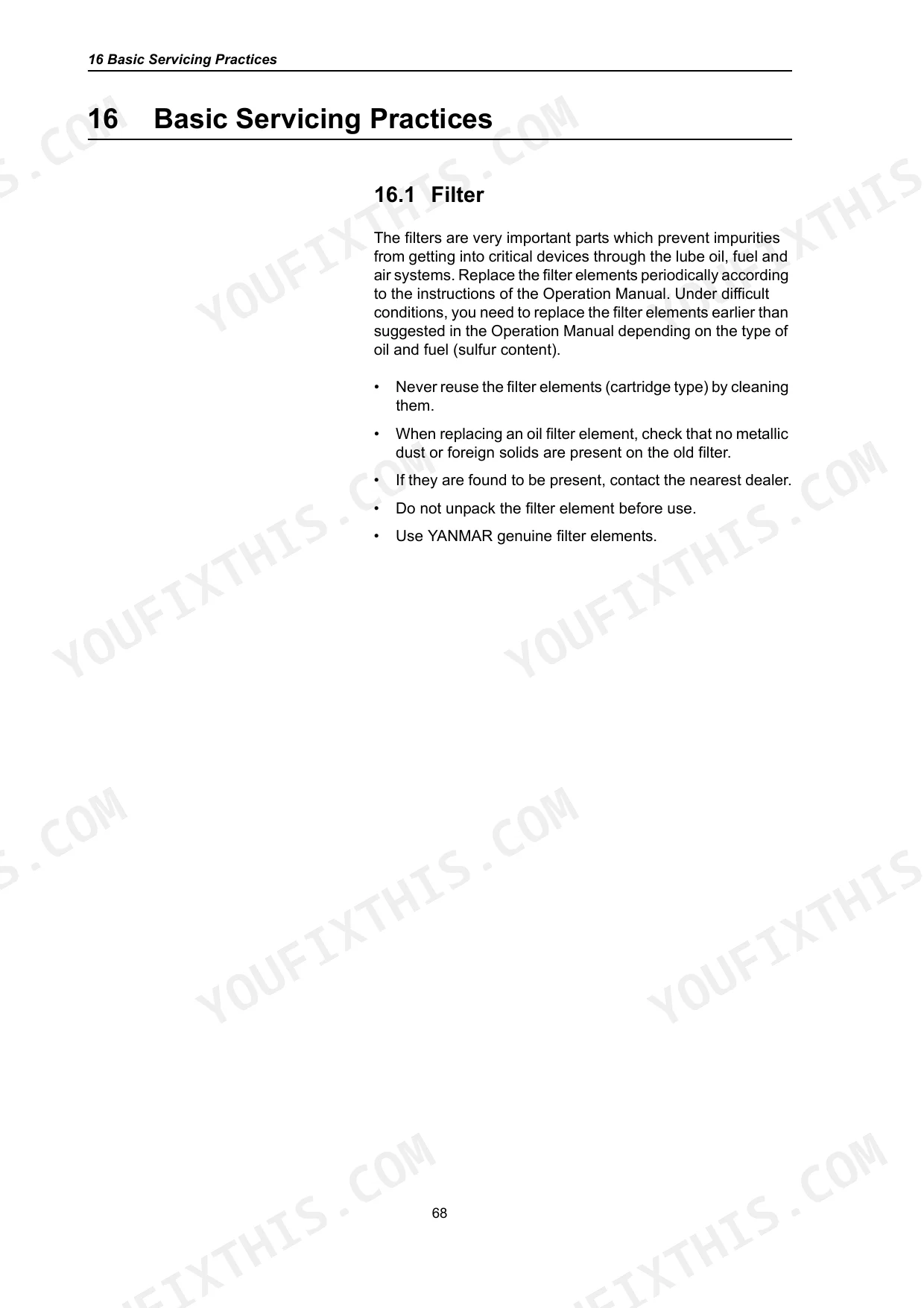

| Maintenance | 69-82 | Precautions for Servicing, Basic Servicing Practices, Fueling, Oiling and Greasing Based on Temperature Range, Standard Tightening Torque for Bolts and Nuts, Maintenance Table |
| Specifications | 83-96 | Options, Hydraulic and Wiring Diagrams |
| Notes | 97-110 | Maintenance |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel filter element replacement interval | Every 500h | p. 77 |
| Main pump outlet hoses replacement interval | Earlier of either every 2 years or every 4000 service hours | p. 31 |
| Engine Oil Capacity (with filter) | 4.0 L | p. 73 |
| Standard Bolt Tightening Torque (M10x1.5 coarse threads) | 44.1 - 58.8 N•m | p. 74 |
| Hydraulic Oil Replacement Interval | 1000 hours | p. 77 |
| Fan Belt Adequate Slack | 10 to 15 mm | p. 79 |

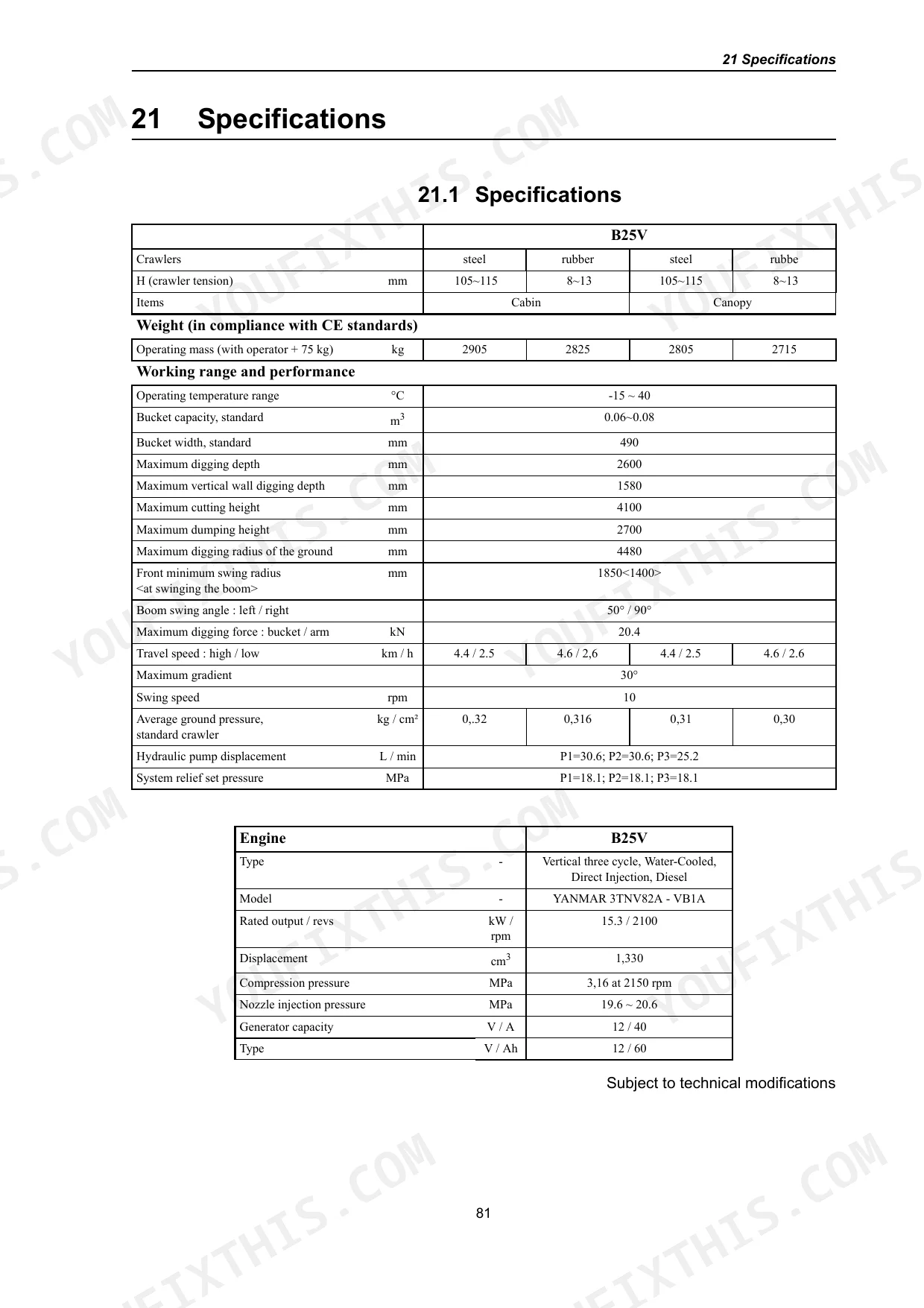

| Operating Mass (Cabin model) | 2905 kg | p. 85 |
| Maximum Digging Depth | 2600 mm | p. 85 |
| Engine Rated Output | 15.3 kW | p. 85 |
| Battery Type | 12 V / 60 Ah | p. 85 |
Yanmar B25V Common Problems This Manual Covers
Engine fails to start or stalls immediately after startup in cold weather p. 77
Remove and inspect the fuel filter element for water droplets, black sludge, or particulate. Replace it every 500 hours per the schedule on page 77. After replacing the filter, bleed trapped air from the fuel lines before cranking. If starting issues continue, measure battery voltage: it must hold at least 12 V under load.
Manual Section: Engine Starting IssuesEngine won't turn over; starter motor clicks or gives no response at all p. 85
Test battery voltage at the terminals: this machine runs a 12 V / 60 Ah battery (page 85). Clean both terminals with a wire brush and tighten the clamps. If voltage checks out but the starter won't respond, test the starter switch circuit using the troubleshooting checklist on page 65. A dead starter typically needs bench-testing or outright replacement.
Manual Section: Electrical Starting IssuesTracks binding on drive sprocket or slipping under the idler during normal operation p. 72
Inspect the track tensioning spring and cylinder for wear or hydraulic failure. Adjust the tensioner grease fitting until sag is within manufacturer spec. Torque any loose track link hardware to 44.1-58.8 N•m for M10x1.5 bolts (page 74). Follow the weekly greasing schedule on page 72 to service all rollers and idlers and prevent early wear failure.
Manual Section: MaintenanceEngine blowing black smoke with loss of power during normal excavation work p. 65

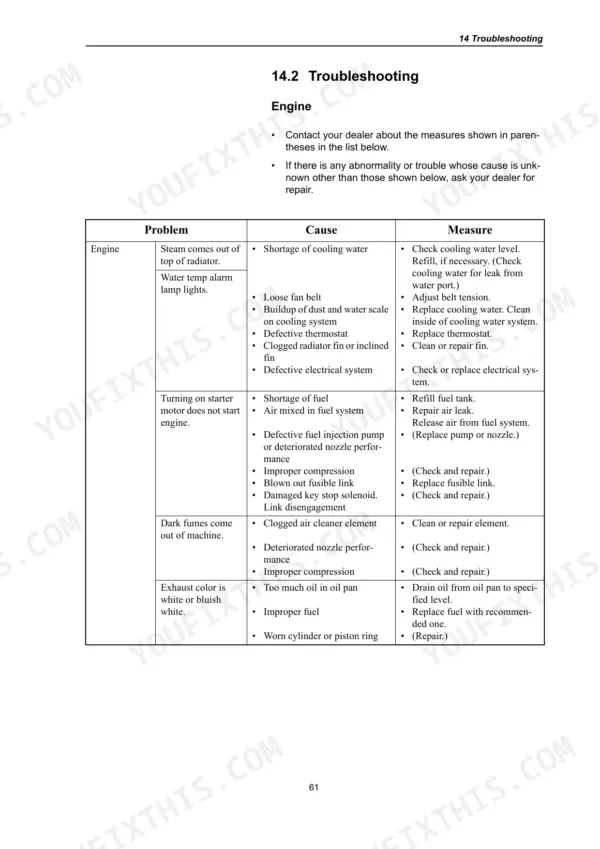

Check the fuel filter element first and replace it at 500 hours (page 77); contaminated fuel starves injectors and produces incomplete combustion. Clean or replace the air filter. If black smoke continues after filter service, the injector nozzles have carbon buildup. Work through the exhaust smoke diagnostics on page 65 before condemning the injection pump.
Manual Section: Engine Performance and Exhaust IssuesFrequently Asked Questions
What are the replacement specifications for Fuel filter element?
The fuel filter element should be replaced every 500 service hours. The manual provides a procedure for changing the fuel filter element, which involves loosening and tightening a retainer ring, and opening/closing specific parts. For the detailed procedure, refer to section 20.6 on page 81.
How do you fix engine fails to start or stalls immediately after startup in cold weather?
Remove and inspect the fuel filter element for water droplets, black sludge, or particulate. Replace it every 500 hours per the schedule on page 77. After replacing the filter, bleed trapped air from the fuel lines before cranking. If starting issues continue, measure battery voltage: it must hold at least 12 V under load.
How do you fix engine won't turn over; starter motor clicks or gives no response at all?
Test battery voltage at the terminals: this machine runs a 12 V / 60 Ah battery (page 85). Clean both terminals with a wire brush and tighten the clamps. If voltage checks out but the starter won't respond, test the starter switch circuit using the troubleshooting checklist on page 65. A dead starter typically needs bench-testing or outright replacement.
Is this Yanmar B25V Operation Manual a digital download?
Immediate download of the complete 110-page searchable Operation Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Are there hydraulic schematics in this Yanmar B25V manual?
Yes. The manual includes a hydraulic system diagram covering the main circuits.
