Inside this 138-page Yanmar ViO15–ViO45 Series Operator Manual (OEM #LGBBF0-00013), you get factory coverage for five mini excavator variants: the ViO15-2A, ViO20-3, ViO25-3, ViO30/35-3, and ViO45/55, in both standard and EP configurations. A full safety section covers basic precautions, operating warnings, attachment handling, and battery procedures before the controls chapter maps every monitor function, switch, lever, and pedal across EP and cabin variants. Hydraulic schematics and wiring diagrams cover system routing and circuit layout, while the maintenance chapter delivers a complete periodic inspection table with fluid and filter replacement schedules. Change your water separator, engine oil filter, and fuel filter on the same 250-hour clock; the main pump outlet hose goes at 4,000 hours or 2 years, whichever hits first. Hunting specs on forums wastes shop time. Search by keyword, jump to any bookmarked section, and open it on your phone or tablet right beside the machine.
What's Inside This Yanmar ViO15–ViO45 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 7 | Intended Uses, Operation License, Lifting, Location of Machine Serial Number Plate, Location of Engine Serial Number Plate, Location of the Epa Identification Plate |
| Safety Information | 8-9 | Signal Words, Product Warnings, User Directions, Safety Signs, Design Modifications, Unauthorized Attachments |
| Product Overview and Regulation | 10 | Intended Uses, Operation License, Lifting |
| Ordering Replacement Parts and Service Call | 11-12 | Location of Machine Serial Number Plate, Location of Engine Serial Number Plate, Location of the Epa Identification Plate, Ordering Replacement Parts and Service Calls |

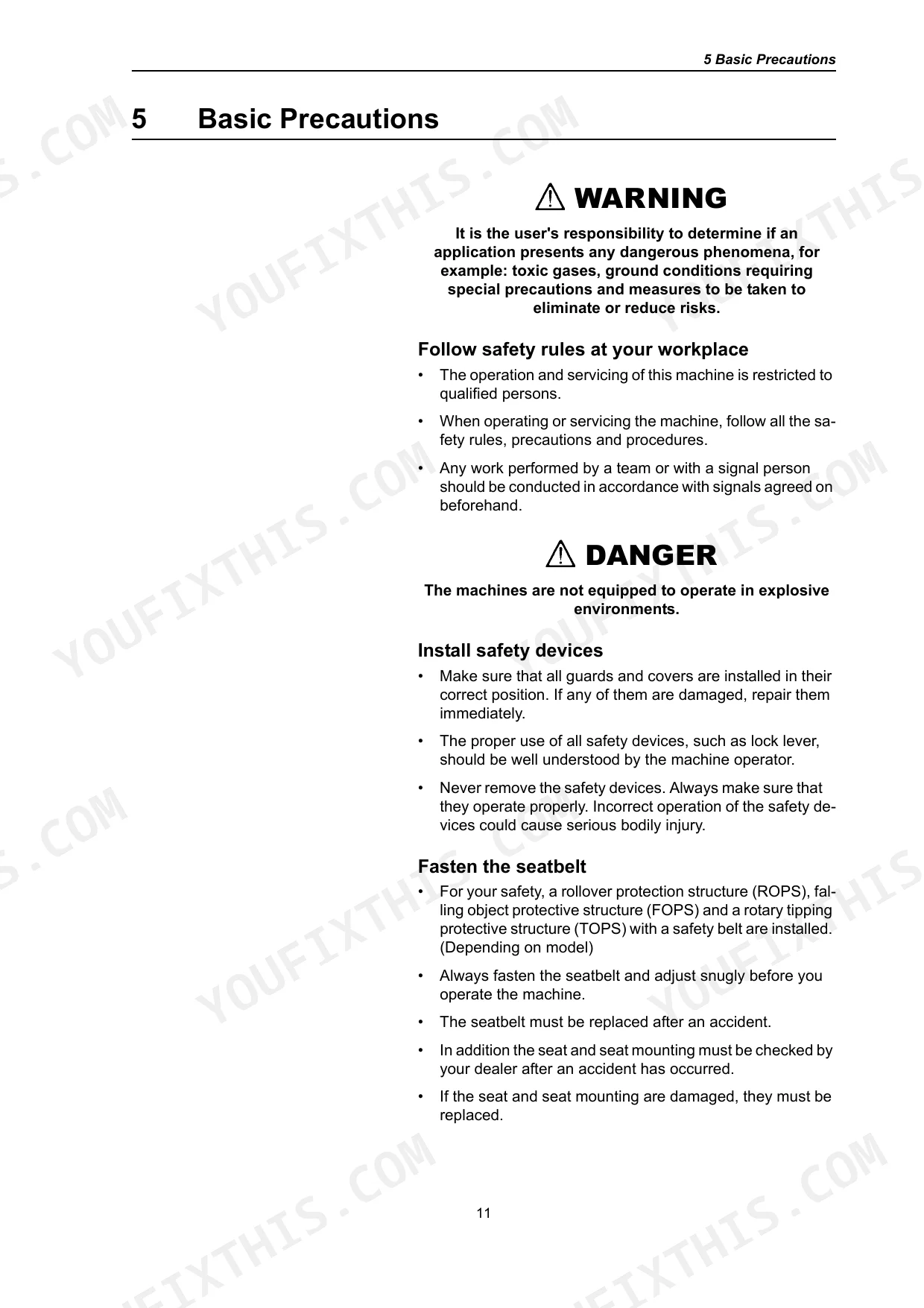

| Safety | 13-38 | Basic Precautions, Operating Precautions, Precautions for Servicing, Safety Messages (Warning Labels) |

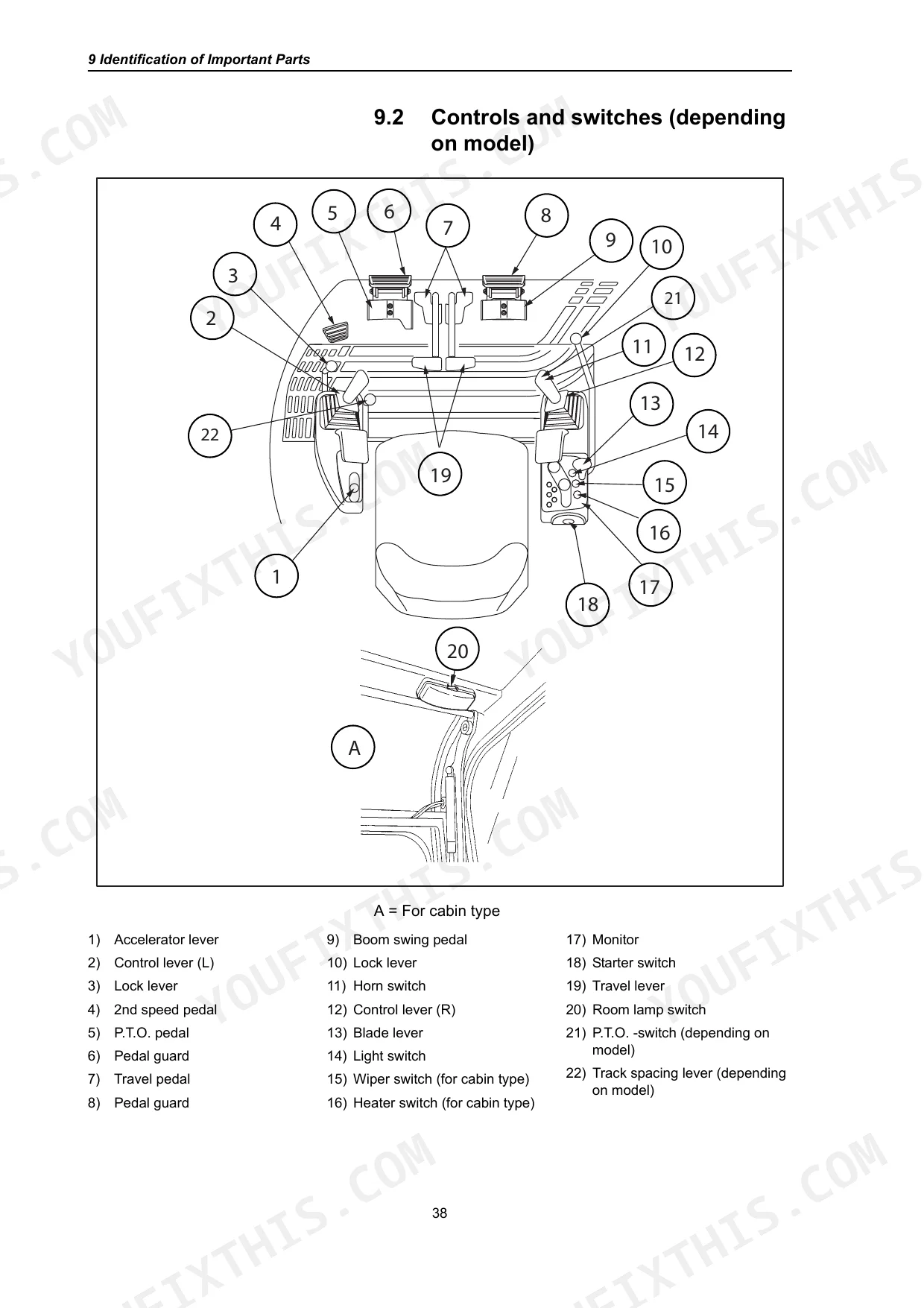

| Operation | 39-72 | Identification of Important Parts, Description of operator’s Area, Instructions, Transportation, Long-Term Storage, Troubleshooting |
| Maintenance | 73-86 | Precautions for Servicing, Basic Servicing Practices, Fueling, Oiling and Greasing Based on Temperature Range, Standard Tightening Torque for Bolts and Nuts, Maintenance Table |

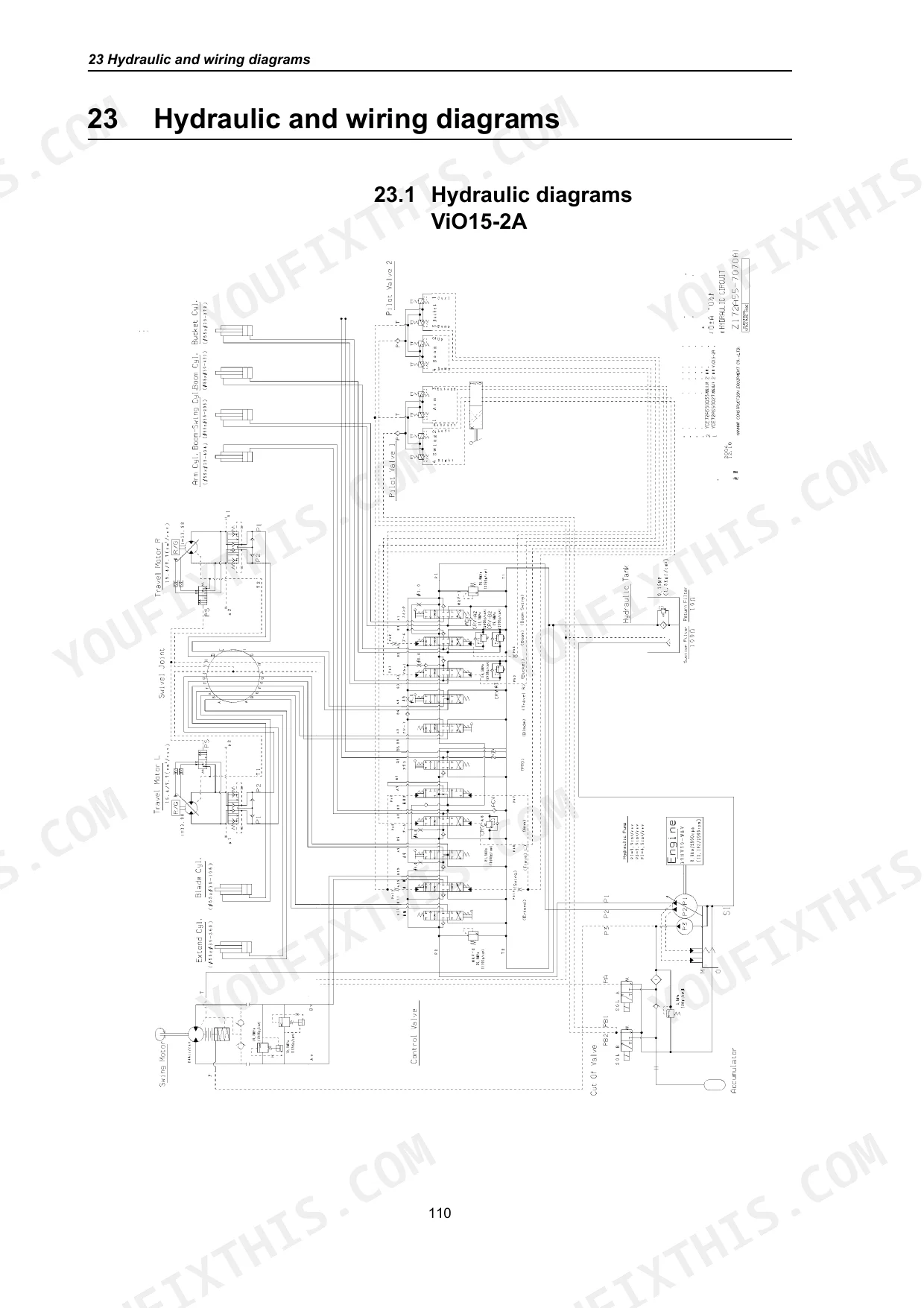

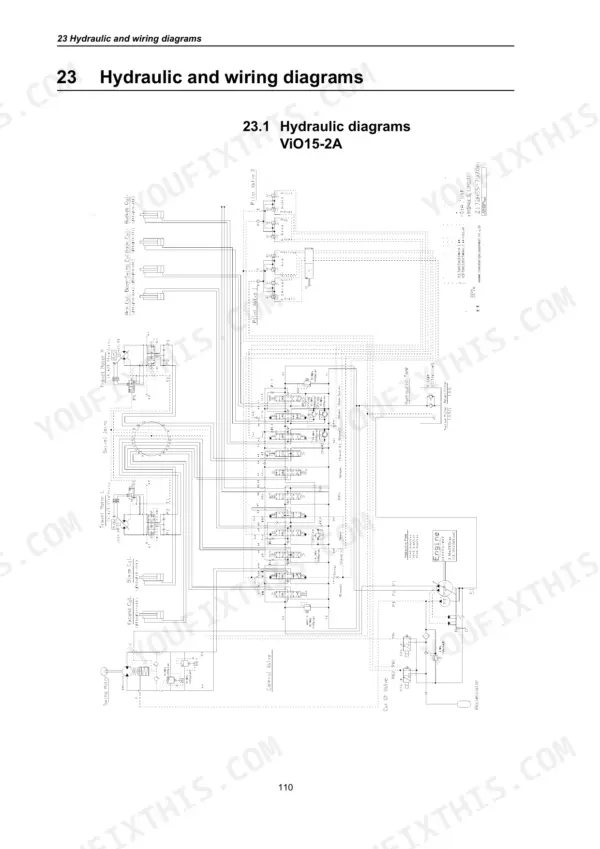

| Specifications | 87-124 | Options, Hydraulic and Wiring Diagrams |
| Notes | 125-138 | Maintenance |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Main pump outlet hose replacement interval | Earlier of either every 2 years or every 4000 service hours | p. 31 |
| Pipe joint bolt tightening torque (M8) | 12.7 - 16.7 N•m | p. 79 |
| Water separator element replacement interval | Every 250h | p. 81 |
| Engine oil filter replacement interval | Every 250h | p. 82 |
| Fuel filter element replacement interval | Every 250h | p. 82 |
| Air filter cleaning interval | Every 250h | p. 82 |
| Air filter replacement interval | Every 500h | p. 82 |
| Hydraulic hose condition for replacement | If any abnormality (damage, crack, wear, peeling) is found, retighten or replace immediately. | p. 29 |
| Fuel hose replacement interval | Earlier of either every 2 years or every 4000 service hours | p. 31 |
| Standard tightening torque for M10x1.5 bolts | 44.1 - 58.8 N•m | p. 79 |
| Fan belt tension pressing load | 98.1 N•m | p. 84 |
| Engine oil capacity (with filter) | 3.4 L | p. 89 |
Yanmar ViO15–ViO45 Series Common Problems This Manual Covers

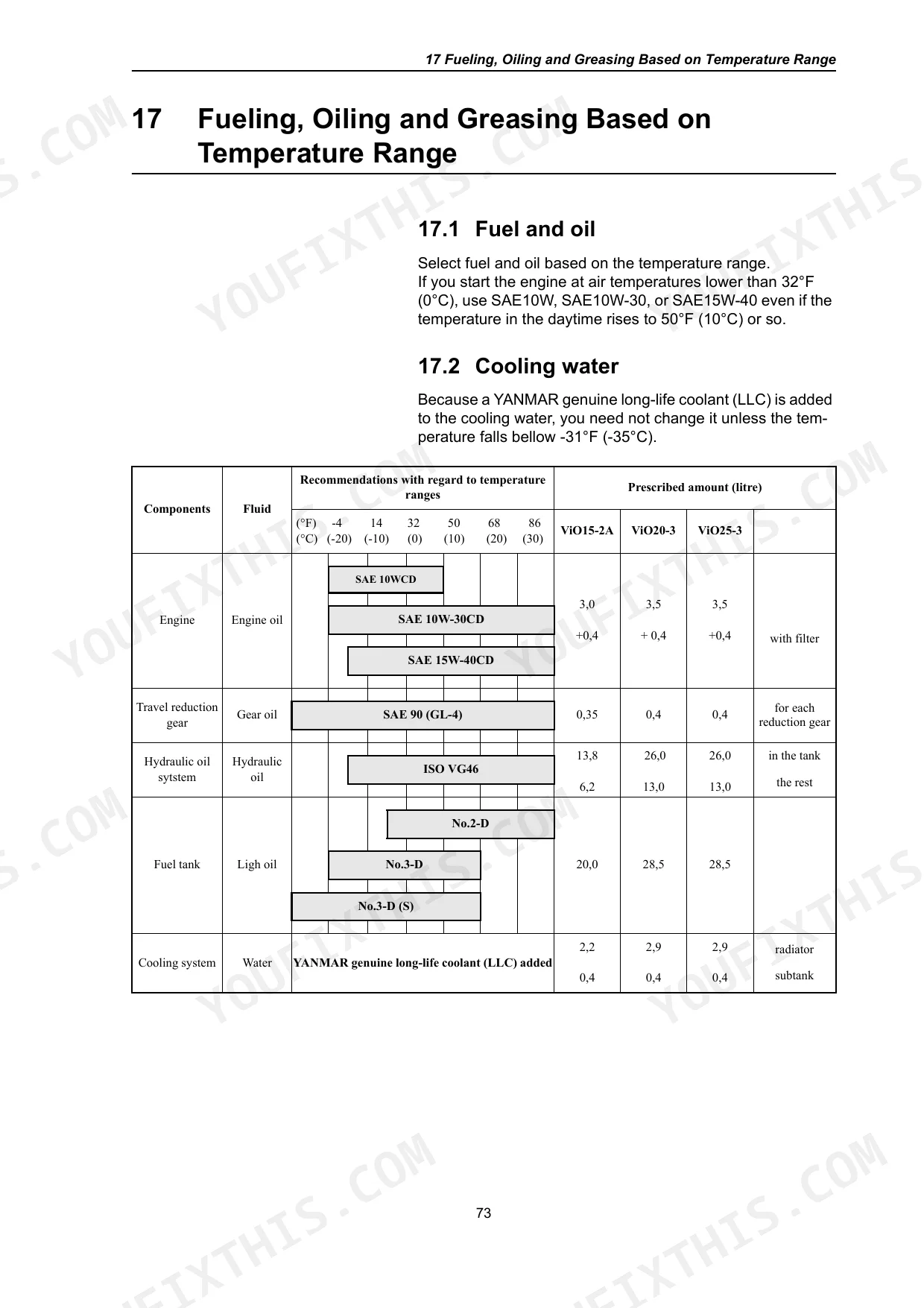

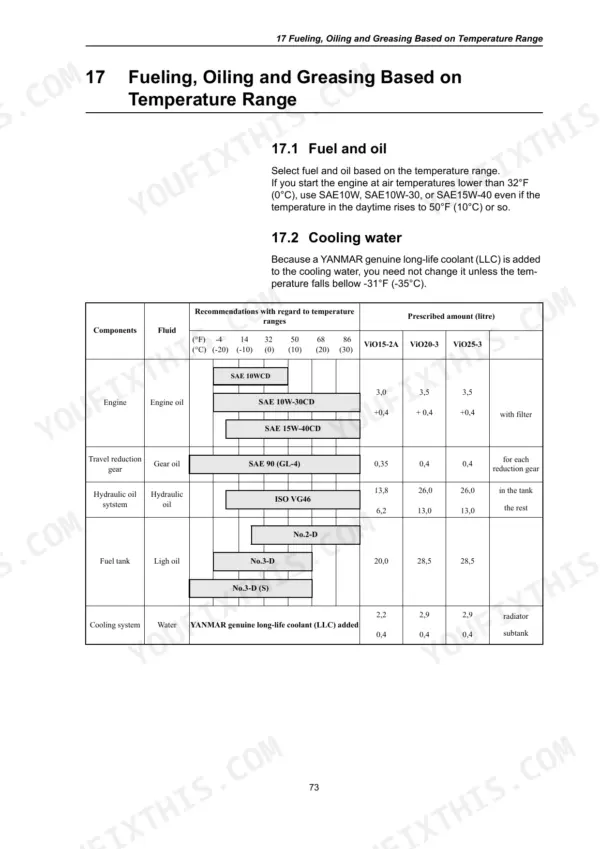

Yanmar ViO mini excavator engine oil level below lower dipstick mark before shift p. 77
Check the dipstick before every start: wipe clean, reinsert fully, pull and read. Oil must reach the upper mark. Top up with the grade specified on page 77 and do not overfill. If the level keeps dropping between checks, inspect the ground under the machine for fresh drips and check the dipstick tube area for seepage. Engine oil filter is due every 250h (page 82).
Manual Section: MaintenanceWater separator ring floating toward the top of the bowl, water in fuel p. 81
Stop the engine immediately and drain the separator bowl before starting again. Loosen the drain plug at the bottom of the bowl, let the water and sediment clear until clean fuel flows, then retighten. Inspect your fuel storage tank for contamination at the source. Replace the water separator element every 250h (page 81). Do not run the engine with water in the bowl — injector damage is fast and expensive.
Manual Section: MaintenanceHydraulic hose showing cracks, dry rot, surface peeling, or visible weeping p. 29
Take the machine out of service and inspect the full hose run. Per page 29, any damage, crack, wear, or peeling means retighten the fitting or replace the hose immediately — do not operate. Replace main pump outlet hoses at the earlier of every 2 years or 4000 service hours (page 31). Check hose routing for contact against sharp edges or hot surfaces that accelerate deterioration.

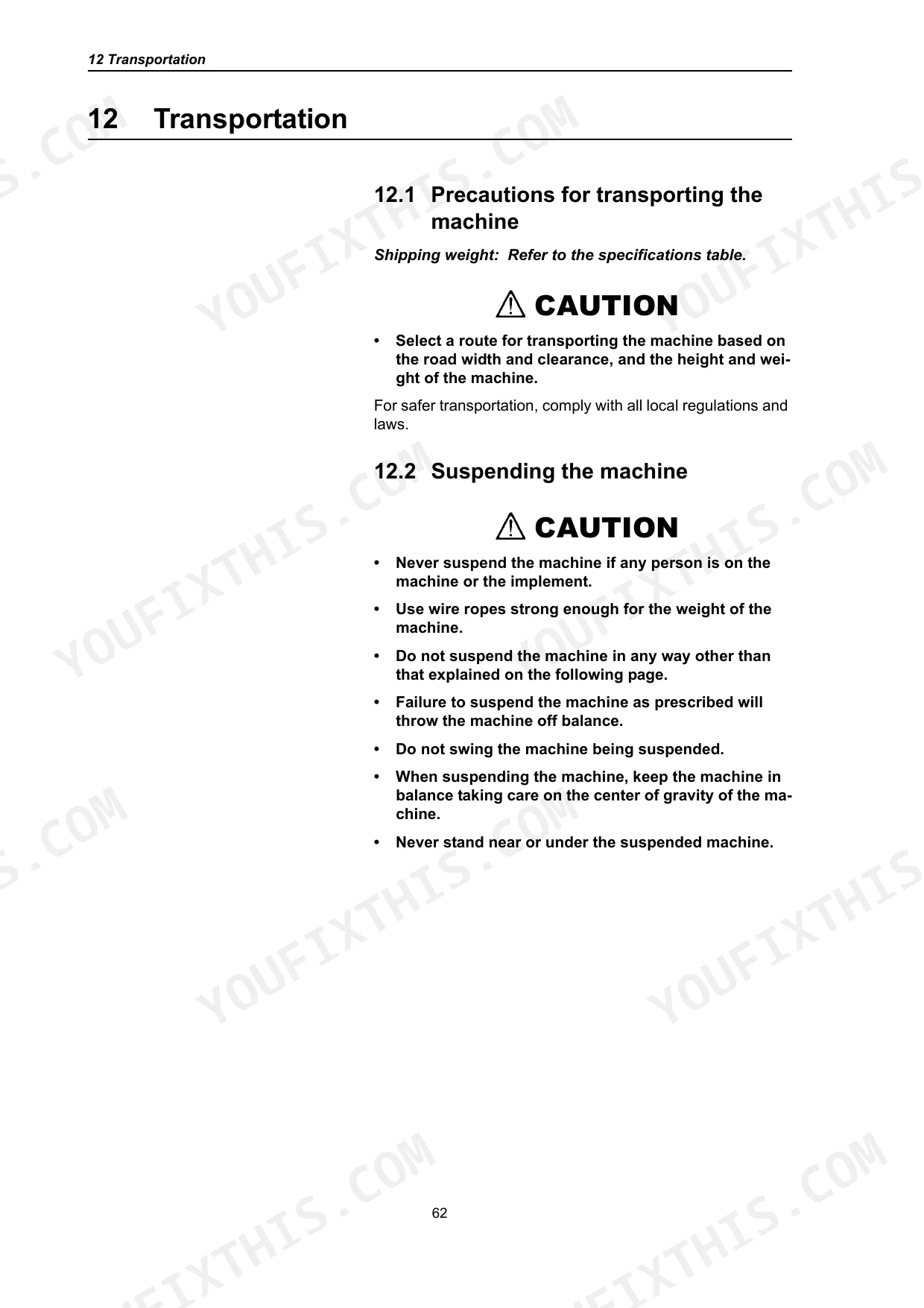

Manual Section: SafetyEngine won't start or cranks very slowly in cold morning conditions p. 66
Check battery terminal connections for corrosion and tighten if loose. Verify fuel level is adequate and the fuel shutoff is open. Cold-start issues are covered in the troubleshooting procedures starting on page 66. If the starter spins freely but does not engage, or lamp brightness is low, see the electrical system checks on page 67. Allow the glow plug indicator to extinguish fully before cranking.
Manual Section: OperationCoolant overflow bottle red indicator ball not floating near the top p. 77
Let the engine cool completely before opening anything. Check the coolant level in the overflow bottle: the red float ball should be near the top when the system is full. Top up with the correct coolant type to the specified level (see maintenance table on page 77). Inspect the radiator cap seal and hose connections for seepage. Operating with low coolant risks overheating — check the temperature gauge during warm-up and watch for any warning indicators on the panel (page 66).
Manual Section: MaintenanceMachine tracking crooked, pulling consistently left or right during straight travel p. 68
Check hydraulic oil level first — low fluid causes uneven travel motor output. Inspect both track tensions for equal deflection; uneven tension pulls toward the tighter side. Refer to the hydraulic system troubleshooting chart on page 68, which covers machine-not-moving-straight conditions. Verify the travel levers return to neutral fully and are not binding in the pivot. If the condition persists under normal oil level and equal track tension, have the travel motor flow balance checked by a dealer.
Manual Section: OperationFrequently Asked Questions
What Are the Torque Specifications for the Engine Bolts on a Yanmar VIO15-2A?
The manual provides standard tightening torque for bolts and nuts. For fine thread screws, which are to be used for the engine only, M14x1.5 bolts should be tightened to 127.5 - 147.1 N•m, and M16x1.5 bolts to 210.9 - 240.3 N•m. It is important to be careful when tightening resin parts to avoid damage.
How to reset hydraulic system Yanmar VIO15-2A
The manual does not describe a procedure to "reset" the hydraulic system. However, it does provide instructions for releasing residual hydraulic pressure before disconnecting attachments by shutting down the machine, leaving the key in the "ON" position, and pressing the 3rd circuit pedal (page 61). Additionally, pressure should be relieved when removing the hydraulic oil tank plug (page 60).
What are the replacement specifications for Hydraulic hoses?
Hydraulic hoses are not considered periodic replacement parts, but they should be checked annually for any abnormalities such as cracks, wear, or peeling. If any damage is found, they must be retightened or replaced immediately, and O-rings and seals should also be replaced at the same time. Fuel hoses and main pump outlet hoses have a specific replacement interval of every 2 years or 4000 service hours, whichever comes first.
What are the replacement specifications for Water separator filter?
The water separator element should be checked and cleaned every 250 hours as part of periodic inspection and servicing. The manual provides a detailed procedure for changing the water separator element in Section 20.5, starting on page 86.
Is this Yanmar ViO15–ViO45 Series Operator Manual a digital download?
Instant PDF download. You get the full 138-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this Yanmar ViO15–ViO45 Series Operator Manual printable?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Are there wiring harness diagrams in this Yanmar ViO15–ViO45 Series?
Yes. You'll find an electrical wiring diagram covering the main wiring layout.
