Need the official factory maintenance schedule for your marine diesel? This 65-page Yanmar 4JH3-TE Operator Manual PDF breaks down the exact daily checks, fluid requirements, and operating procedures for the 4JH3-TCE, 4JH3-HTE, and 4JH3-DTE variants. You get a complete list of periodic inspections, detailed dashboard indicator explanations, and step-by-step bleeding instructions for the fuel system. Open to the maintenance section to find the exact intervals for washing the RHB52 turbocharger blower, plus a dedicated troubleshooting guide for simple problems and emergency marine gear repairs to keep you moving on the water. Swap out the fuel filter element every 250 hours or annually, then tighten the new unit to 11.8-15.6 N-m before cranking the engine. Stop guessing at routine service intervals while out at sea. Grab this bookmarked download, save it to your tablet or phone, and keep the factory answers right in your pocket.
What's Inside This Yanmar 4JH3 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 2 | For Safe Operation, Explanation of Product, Preparation for Operation, Operation, Maintenance & Inspection, Trouble and Troubleshooting |
| 1. for Safe Operation | 5-8 | Warning Symbols, Safety Precautions, Location of Product Safety Labels |

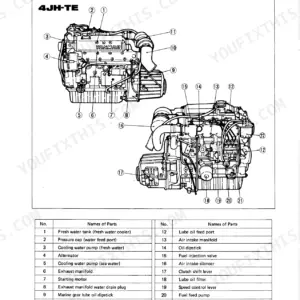

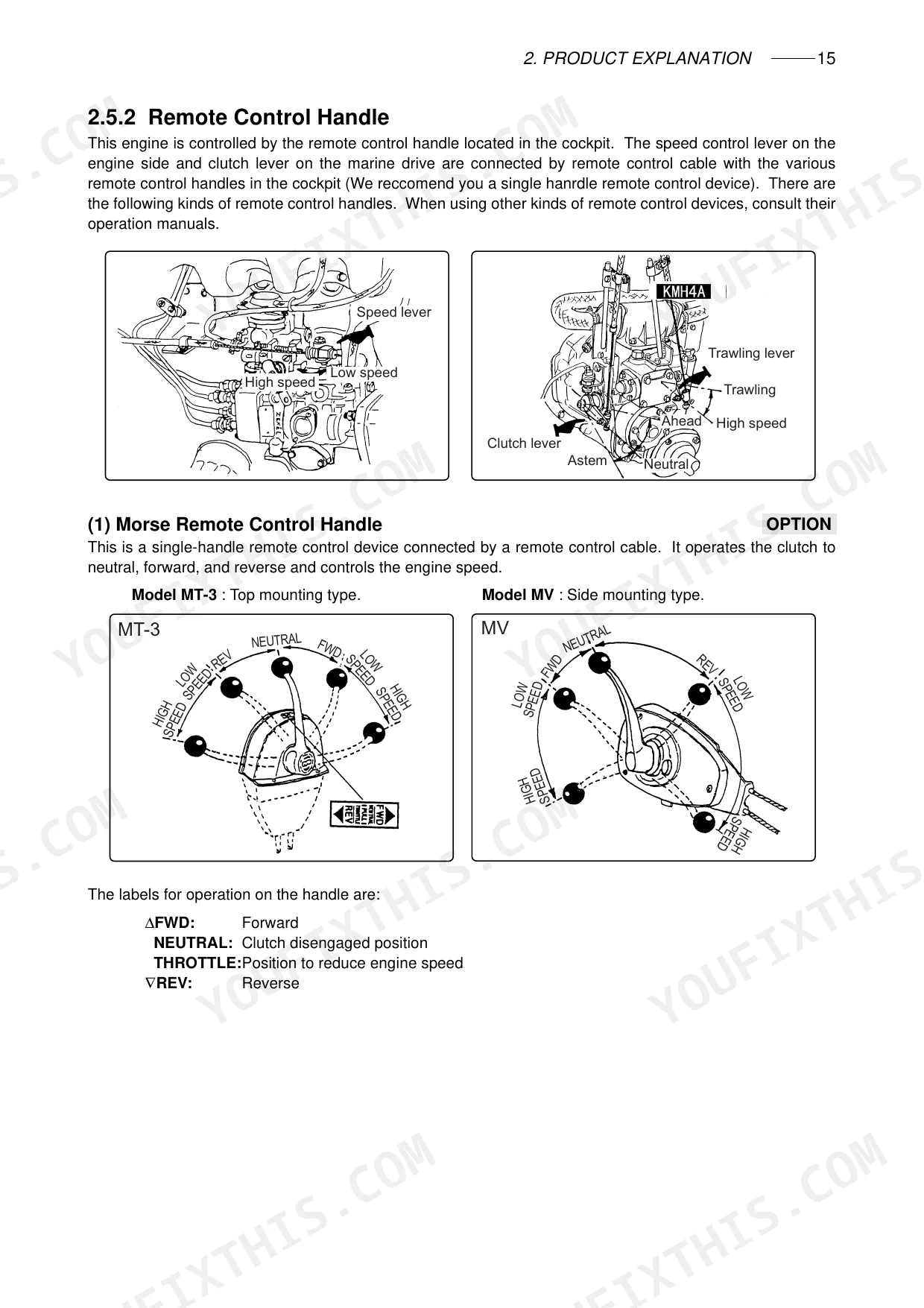

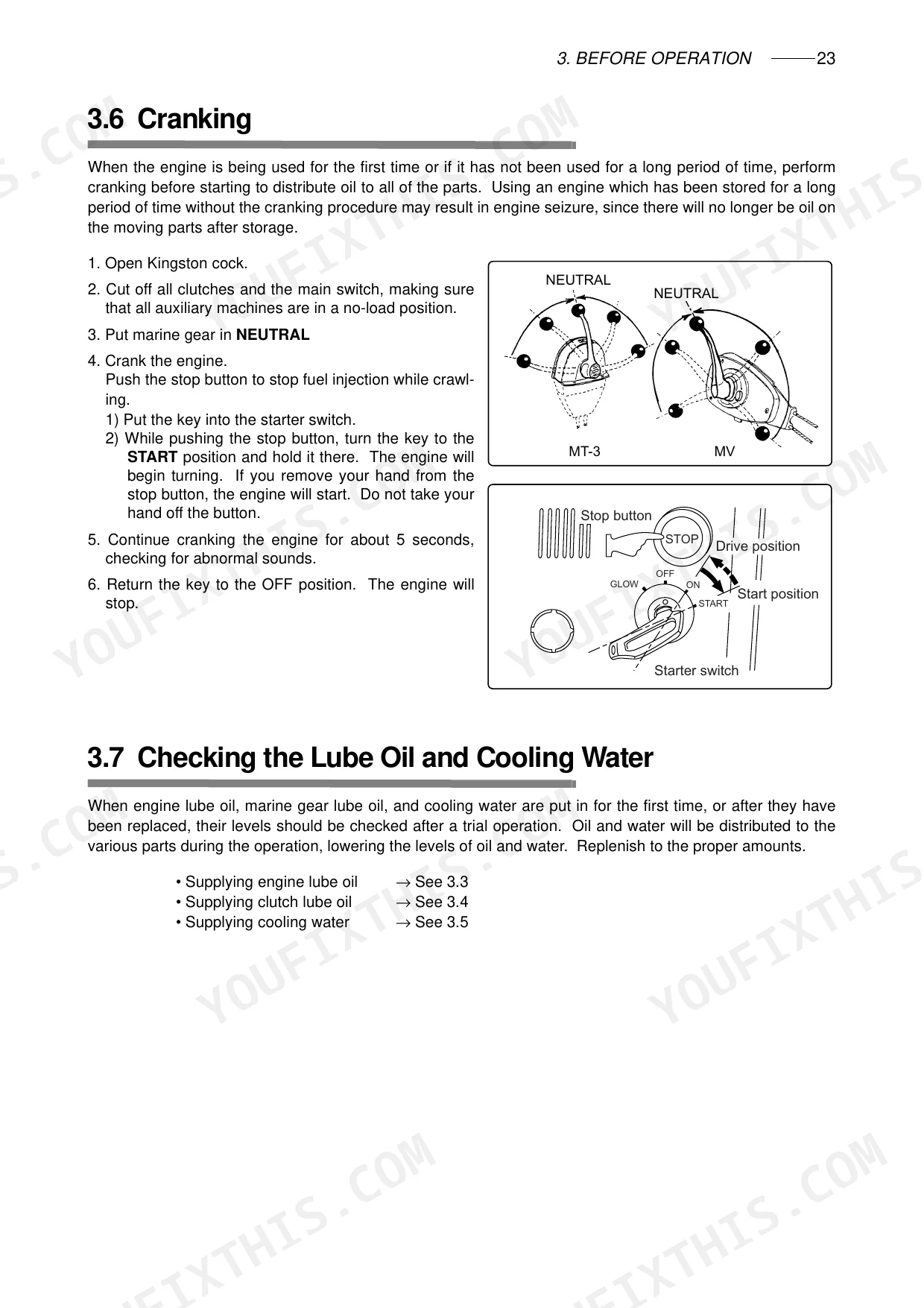

| Product Explanation | 9-21 | Use & Driving System, Engine Specifications (4Jh3-Te, 4Jh3-Tce, 4Jh3-Hte, 4Jh3-Dte), Names of Parts, Major Servicing Parts |
| Before Operation | 22-27 | Fuel Oil, Lube Oil and Cooling Water, Supplying Fuel (Filling the Fuel Tank, Bleeding the Fuel System), Supplying Engine Lube Oil, Supplying Marine Gear Lube Oil |

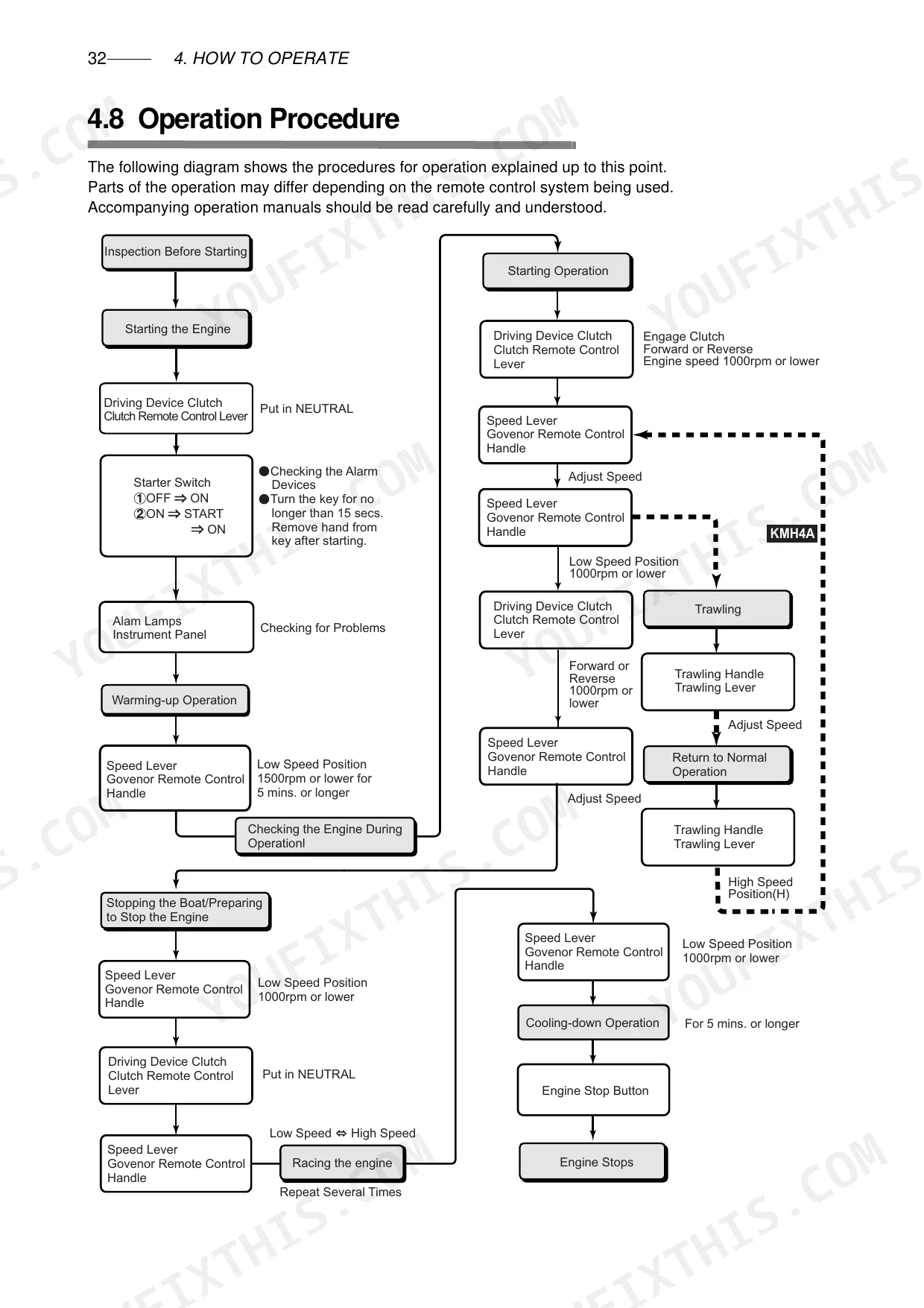

| How to Operate | 28-38 | Inspection Before Starting, Checking the Illumination Lamps of the Panel Meters (Alarm Devices) |
| Maintenance & Inspection | 39-50 | List of Periodic Inspections |

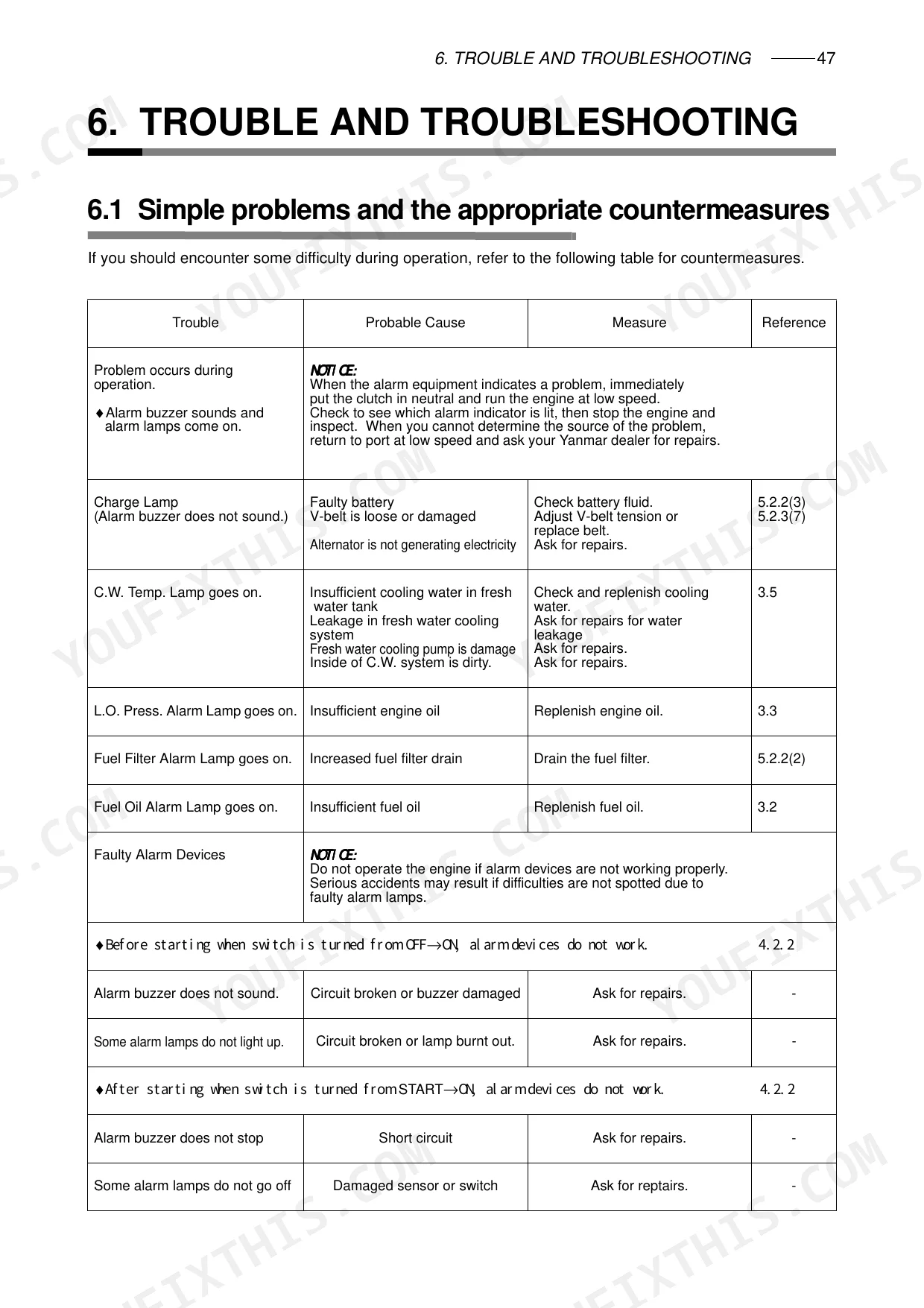

| Trouble and Troubleshooting | 51-54 | Simple Problems and the Appropriate Countermeasures, Emergency Repairs for Marine Gear Trouble, Consulting Your Yanmar Dealer or Distributor |
| Memo | 55 | - |

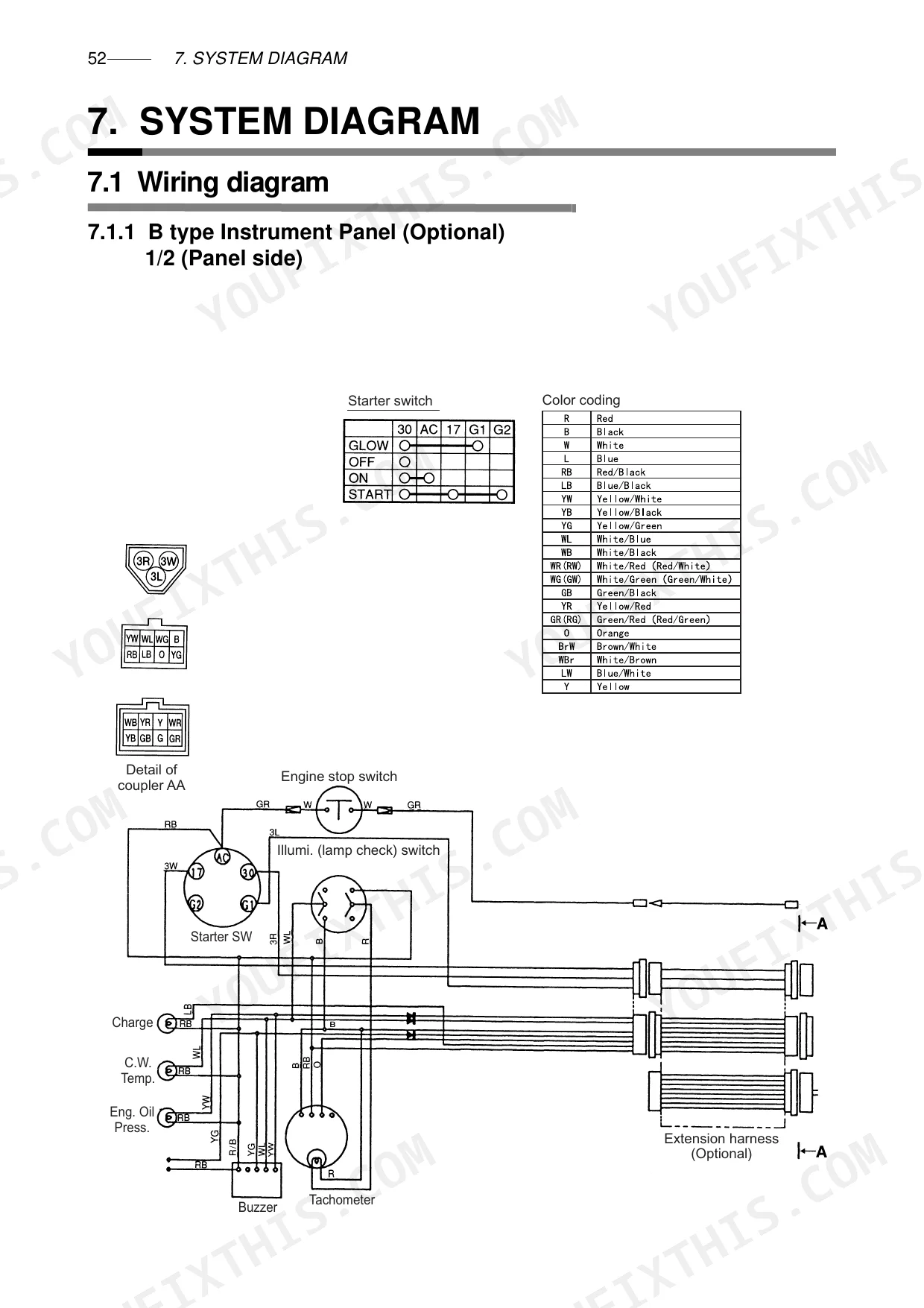

| System Diagram | 56-63 | Wiring Diagram (B Type Instrument Panel, C Type / C Type × B Type Instrument Panel, New B Type Instrument Panel, New C Type / New C Type × New B Type, Instrument Panel) |
| Colophon | 64 | Operation Manual, Models, Code No., Copyright |
| Back-Address | 65 | Overseas Operations Division, Yanmar Diesel America Corp., Yanmar Europe B.V., Yanmar Asia (Singapore) Corporation Pte Ltd., User's Record |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel filter element replacement interval | Every 250 Hrs. or 1 yr. | p. 40 |
| Fuel filter tightening torque | 11.8~15.6N•m(1.2~1.6kgf•m) | p. 45 |
| Turbocharger model | RHB52(IHI) Water cooled and forced lubrication system | p. 10 |
| Turbocharger blower wash interval | Every 250hrs (1 yr.) | p. 40 |
| Recommended battery capacity | 12V-120A or greater | p. 10 |
| all 4JH3-X models | ||
| Engine Displacement | 1.995 L | p. 10 |
| Engine High Idling Speed | 4300±25 rpm | p. 10 |
| Engine Low Idling Speed | 700±25 rpm | p. 10 |
| Alternator Output | DC12V-55A | p. 10 |
| Recommended Battery Capacity | 12V-120A or greater | p. 10 |
| all 4JH3-X models with 0° raked angle | ||
| Engine Lube Oil Capacity (All, 0° raked angle) | 7.5 L | p. 11 |
| KMH4A | ||
| Marine Gear Lube Oil Capacity (KMH4A) | 2.0 L | p. 10 |
Yanmar 4JH3 Series Common Problems This Manual Covers
Yanmar 4JH3-TE engine turns over slowly or experiences intermittent no-start conditions in cold weather p. 52
Inspect the battery connections and verify your battery meets the 12V-120A minimum capacity requirement on page 10. Review the troubleshooting steps for starting failures on page 52. Clean all battery posts, tighten the ground terminals, and ensure the main switch is fully engaged.
Manual Section: Engine Starting FailuresExcessive blue smoke from the exhaust accompanied by noticeable engine oil consumption during normal operation p. 52
Drain excess oil immediately if the crankcase is overfilled. Fill the engine with exactly 7.5 L of approved lube oil for models with a 0° raked angle as specified on page 11. Check the crankcase breather hose for damage or blockages restricting normal ventilation.
Manual Section: Poor Exhaust Color (Black Smoke, White Smoke)Alarm buzzer sounds and dashboard warning indicator lamps flash immediately after engine startup p. 51
Verify the warning lamp meanings in the troubleshooting guide on page 51. Inspect the V-belt tension and adjust it to exactly 8~10 mm of depression per the instructions on page 48. Check the cooling water subtank and ensure it holds 0.8 L of coolant.
Manual Section: Alarm buzzer and lamp issues during operation (Charge, C.W. Temp, L.O. Press, Fuel Filter, Fuel Oil)Engine produces heavy black smoke under load combined with a significant loss of speed or power p. 40
Perform a turbocharger blower wash every 250 hours or 1 year as directed on page 40. Mix approximately 50cc of fresh water with blower wash liquid to clean the compressor side. Replace the fuel filter element to ensure proper fuel delivery and prevent overloading.
Manual Section: 5. Maintenance & InspectionEngine runs rough and stumbles during operation due to severely restricted fuel delivery p. 45
Replace the fuel filter element using part number 129574-55710. Torque the new filter housing to 11.8~15.6 N・m as specified on page 45. Bleed all air from the fuel system completely before attempting to restart the engine to ensure smooth operation.
Manual Section: 5. Maintenance & InspectionFrequently Asked Questions
How to reset alarm on YANMAR 4JH3-TE?
The manual does not describe a specific "reset" procedure for the alarm system. If an alarm buzzer sounds, you can turn off the sound using the Buzzer stop switch. To clear the alarm indication, you must identify and resolve the underlying problem, such as insufficient engine oil or high cooling water temperature, which will cause the alarm lamp to go off.
How to reset low oil pressure alarm on YANMAR 4JH3-TCE?
To clear a low oil pressure alarm, the manual advises replenishing the engine oil if the "L.O. Press. Alarm Lamp goes on" due to insufficient engine oil. Once the oil level is corrected, the alarm lamp should go off. Refer to section 3.3 for supplying engine lube oil.
How to clear shutdown alarm on YANMAR 4JH3-DTE?
The manual does not specify a "shutdown alarm" or a procedure to clear it. For general alarm conditions, it instructs to immediately put the clutch in neutral, run the engine at low speed, check the alarm indicator, and then stop the engine to inspect and repair the cause. Resolving the underlying issue will cause the alarm lamp to go off.
What is the engine lube oil capacity for the 4JH3-TE model?
For the 4JH3-TE engine model, the lube oil capacity for the oilpan is 5.2 liters (7°) and the total capacity for all parts is 6.3 liters (7°). The marine gear oil capacity is 1.2 liters.
What is the recommended replacement interval and part number for the fuel filter element?
The fuel filter element should be replaced periodically every 250 hours or 1 year, whichever comes first, to prevent clogging and reduced fuel flow. The part number for the fuel filter is 129574-55710, and it should be tightened to a torque of 11.8~15.6 N·m (1.2~1.6 kgf·m).
How quickly can I access this manual after buying?
You get a 65-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Document Quality
This document is a scanned PDF with an excellent OCR layer, allowing you to search and copy the full text. The text is generally crisp and easy to read, though smaller fonts may exhibit slight fuzziness due to the scanning process. All diagrams and illustrations are raster images; while labels are readable, fine lines and small text in complex wiring diagrams show some pixelation. Pages are clean throughout, with no visible scan artifacts, stains, or skewed content, and there is one blank 'MEMO' page included.
