Taking care of your marine diesel engine starts right here with this 51-page Yanmar 6LY2-STE operation manual pdf, covering both the 6LY2-STE power plant and the KMH6A1 marine gear. Inside, you get a complete breakdown of daily operating procedures, from initial cold starts to long-term winter storage preparation. Open to the maintenance section for full periodic inspection schedules, alarm buzzer troubleshooting steps, and detailed system piping diagrams to keep your vessel moving. Swap out your fuel filter element every 500 hours, torque the M10x1.5 bolts to 5.0±0.5 Kgf-m, and make sure the raw water pump impeller gets replaced at the 2000-hour mark. A dead engine offshore is a mechanic's worst nightmare. Load this bookmarked digital file onto your tablet and get the factory numbers before you leave the dock.

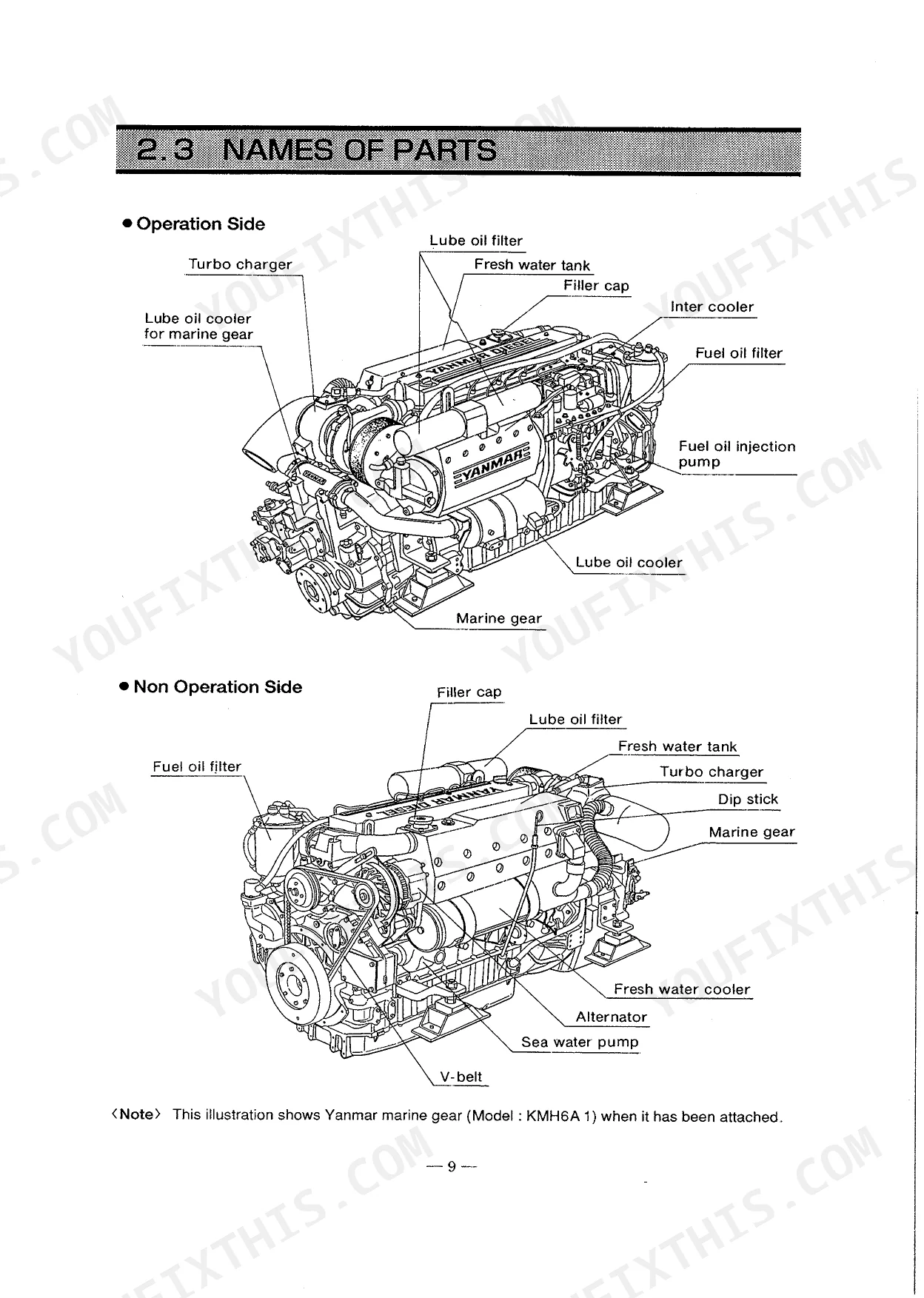

What's Inside This Yanmar 6LY2-STE Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 5-7 | - |
| For Your Safety | 8-11 | Warning Symbols, Safety Precautions, Location for Warning Device Labels |

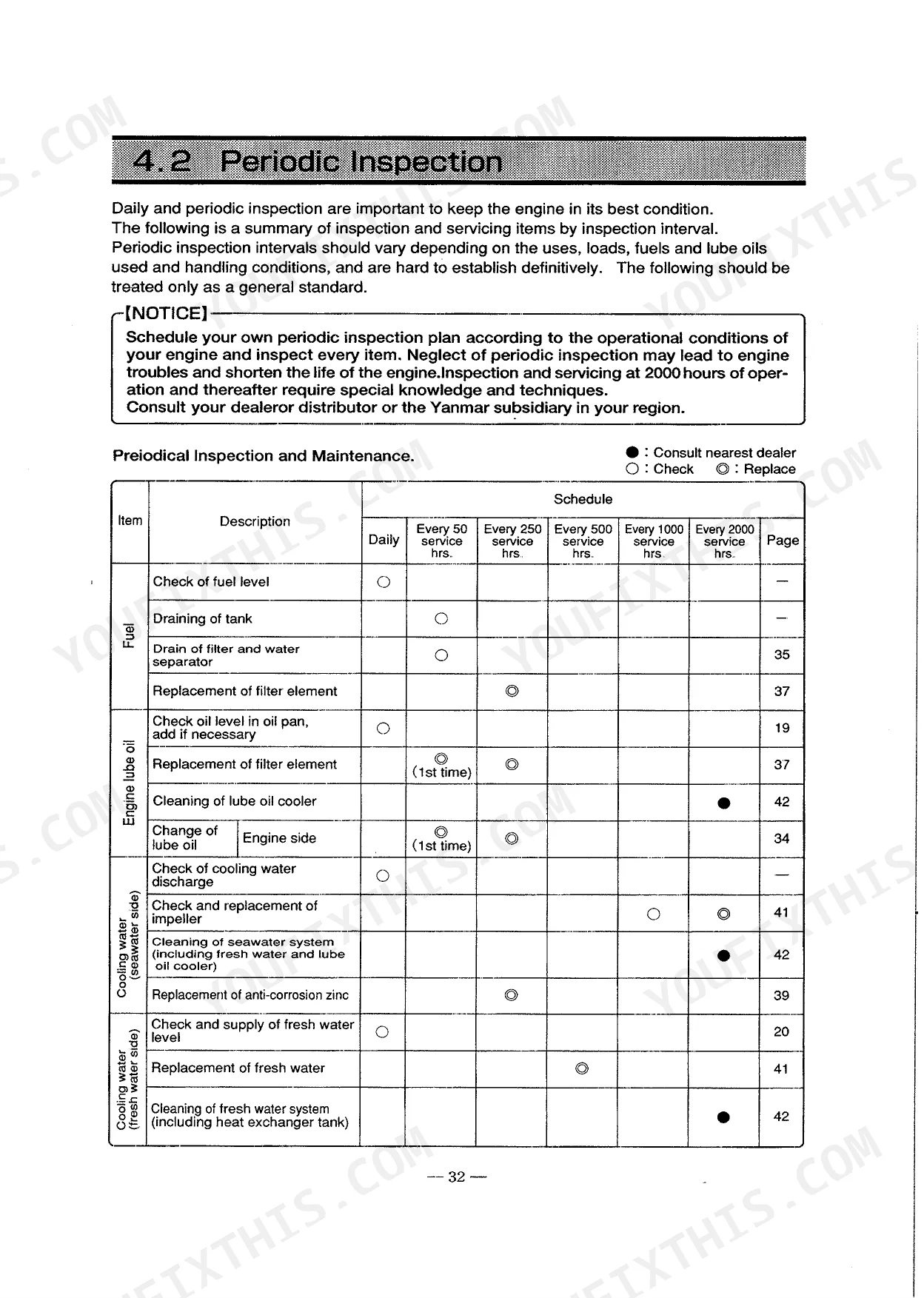

Quick Reference Specifications

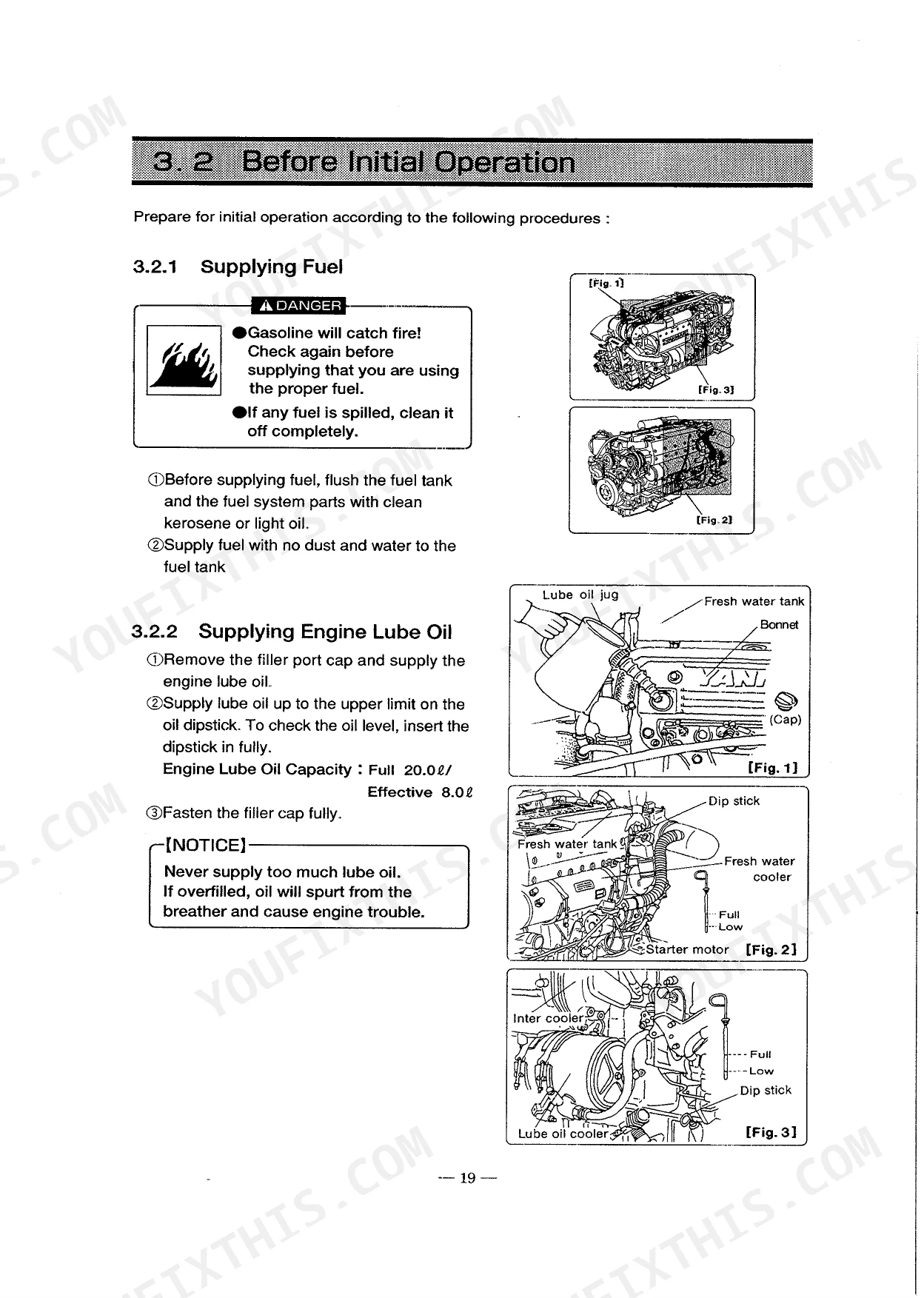

| Specification | Value | Page |
|---|---|---|
| Impeller replacement interval | every 2000 hours | p. 46 |
| Fuel filter element replacement interval | every 500 hours | p. 44 |
| Max. output at crankshaft | 309 kW / 3300 rpm | p. 13 |
| Recommended Battery Capacity | 120AHX1pc | p. 13 |
| Tightening torque for M10x1.5 bolts | 5.0±0.5 Kgf-m | p. 36 |
| V-belt deflection | 8~10mm | p. 45 |
| Engine Lube Oil Change Interval | Every 250 hours | p. 37 |
Yanmar 6LY2-STE Common Problems This Manual Covers
Yanmar 6LY2-STE engine overheats or loses power with high exhaust gas temperature. p. 46

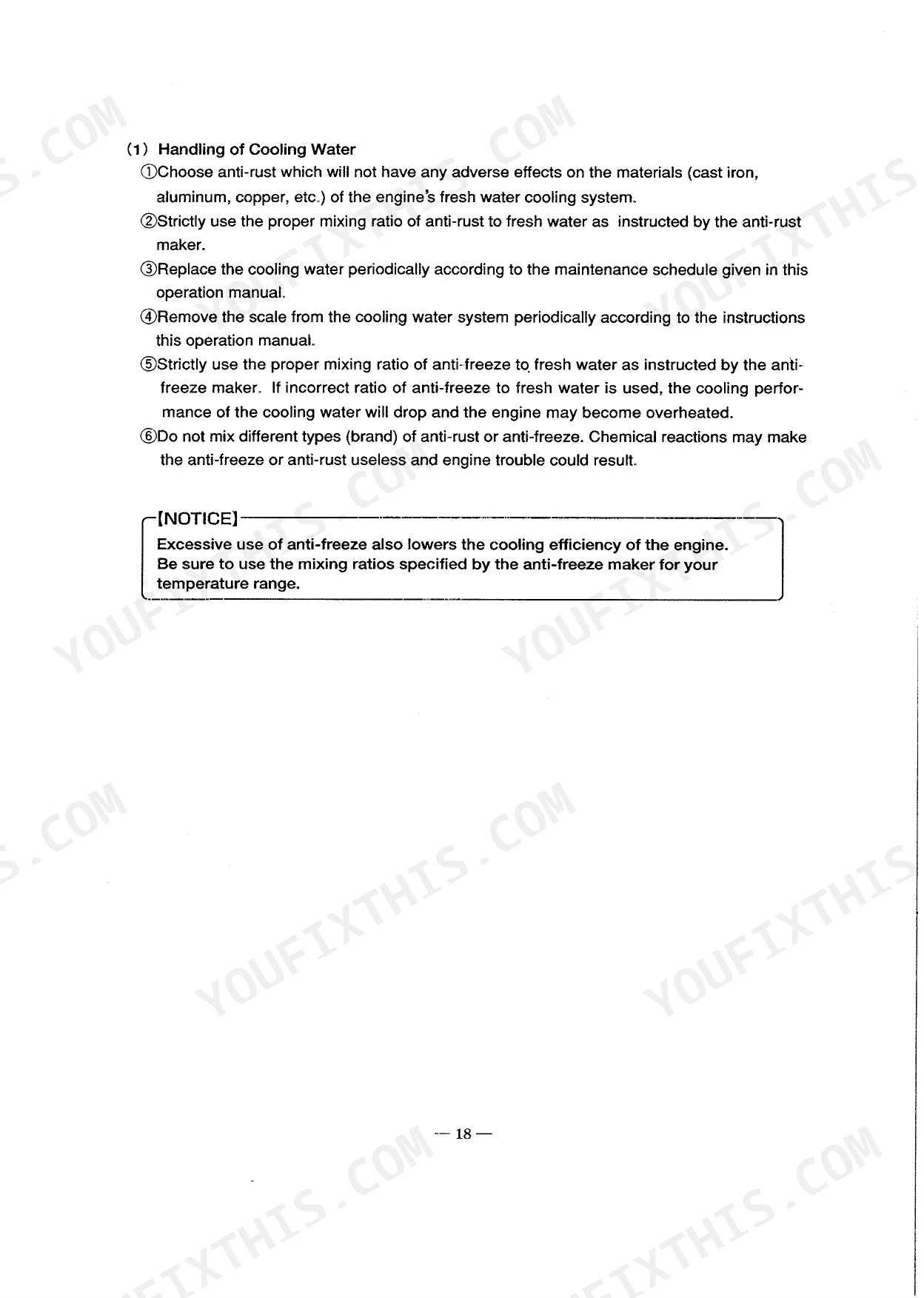

Inspect the seawater discharge and Kingston cock. Remove the raw water pump cover to check the impeller. Replace the impeller every 2000 hours as noted on page 46. Ensure cooling paths are clear of debris to prevent high running temperatures.
Manual Section: Maintenance & InspectionStarter revolves slowly or fails to crank completely during cold weather operation. p. 48
Test the battery charge and inspect cable terminal contacts. Install a fresh battery meeting the recommended capacity of 120AHX1pc if voltage drops excessively under load. Check page 48 for starting failure procedures. Verify the neutral safety switch is fully engaged.
Manual Section: TroubleshootingHeavy black or white smoke under load with oil present in the bilge. p. 44
Inspect the turbocharger for wear and contaminated seals. Replace the fuel filter element every 500 hours according to page 44 to ensure proper fuel delivery. Drain and replace the engine lube oil every 250 hours. Clean the air filter housing.
Manual Section: Maintenance & InspectionStrong engine vibration and excessive movement progressively worsening under heavy marine load. p. 36
Inspect motor mounts for delamination. Check the hull structure and engine resonance points. Torque all M10x1.5 mounting bolts to 5.0±0.5 Kgf-m as specified on page 36. Verify the V-belt deflection measures exactly 8~10mm per page 45 to prevent accessory vibration.
Manual Section: Maintenance & InspectionFrequently Asked Questions

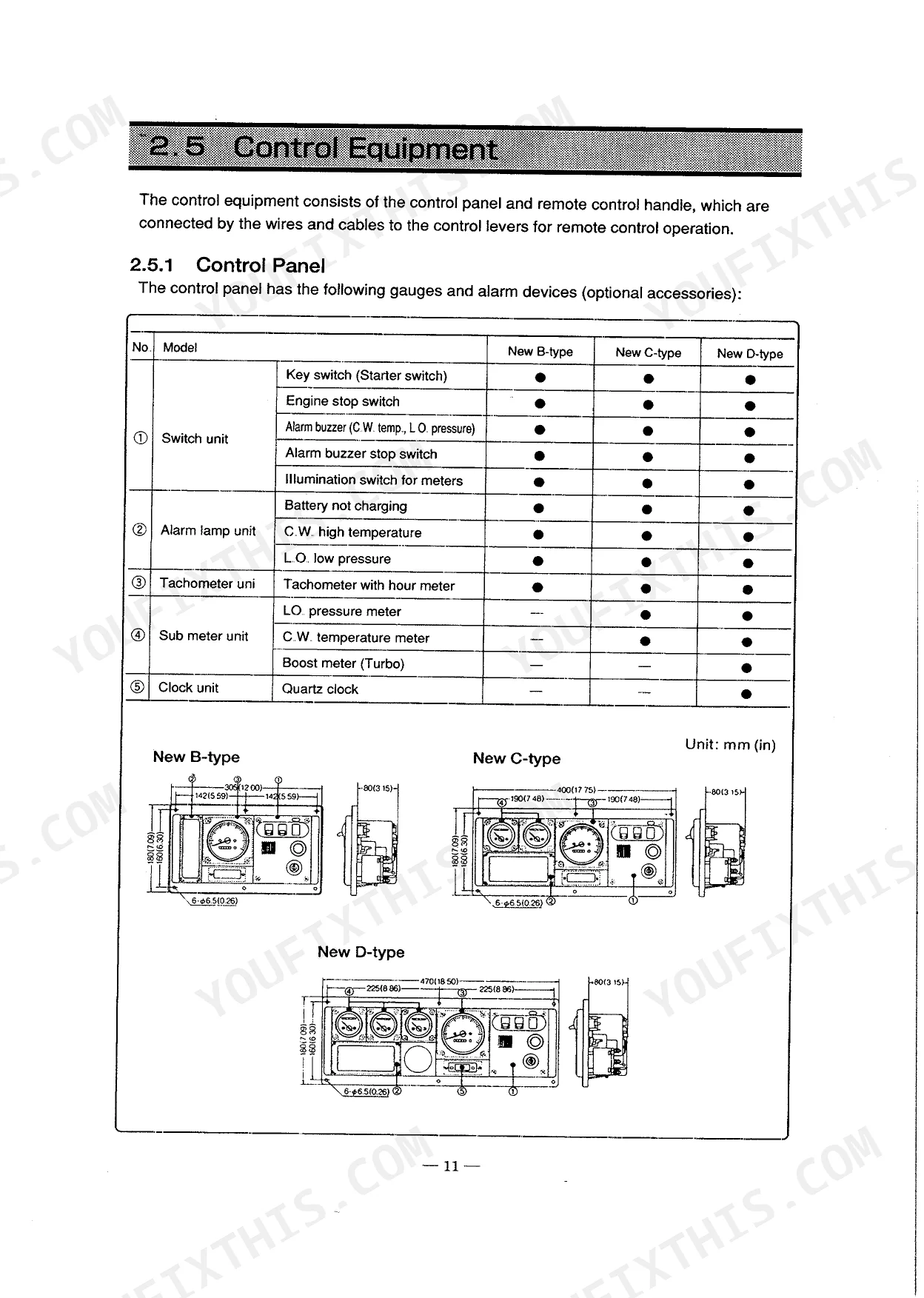

How do I reset the alarm on a YANMAR 6LY2-STE?
The manual describes a "Buzzer stop switch" which is used to temporarily stop the buzzer noise. It advises not to turn the buzzer off except when inspecting for an abnormality. There is no explicit "reset alarm" procedure, implying the underlying issue needs to be resolved for the alarm to cease permanently.
What are the torque specs for the YANMAR 6LY2-STE cylinder head bolts?
The manual provides general tightening torque specifications for standard nuts and bolts based on their diameter and pitch, such as M6x1.0 at 1.1±0.1 Kgf-m and M16x1.5 at 23.0±2.0 Kgf-m. However, it does not specify the torque for cylinder head bolts specifically.

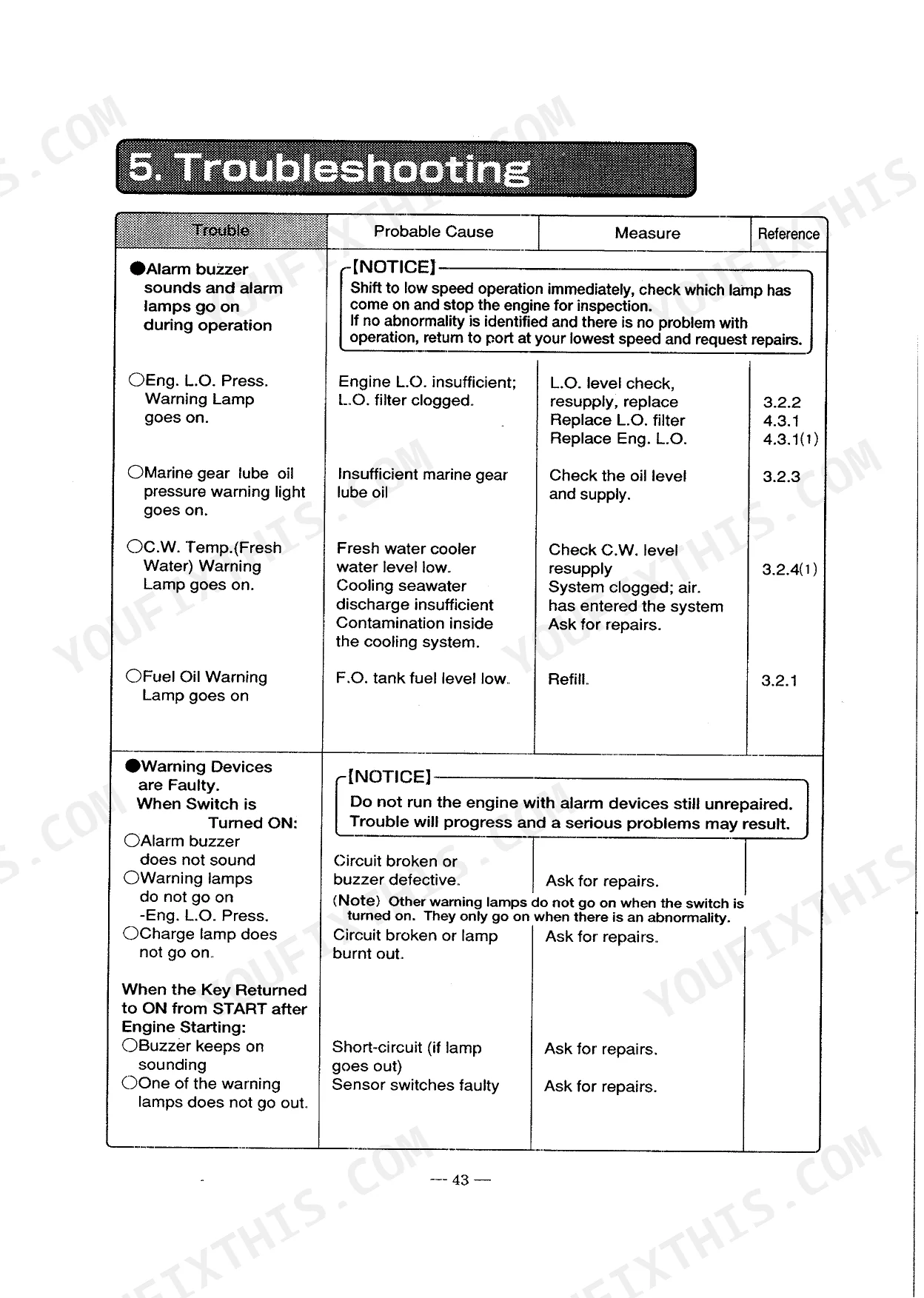

What do YANMAR 6LY2-STE error codes mean?
The manual describes the functions of alarm devices, including warning lamps for Battery Charge, Cooling Water Temp., and Lube Oil Pressure. It explains that the Charge Lamp indicates a charging failure, the Cooling Water Temp. Warning Lamp indicates hot fresh cooling water, and the Lube Oil Pressure Warning Lamp indicates a drop in engine lube oil pressure. The manual does not list specific "error codes" in a numerical or alphanumeric format.
How do I reset the ECU/fault light on a YANMAR 6LY2-STE?
The manual does not mention an ECU or a specific procedure to reset a fault light. It states that after starting the engine, the alarm buzzer should stop and all warning lamps should go out if everything is normal. If warning lamps remain on, it indicates an abnormality that requires inspection and repair.
What is the torque specification for the YANMAR 6LY2-STE valve cover or injectors?
The manual provides general tightening torque specifications for standard nuts and bolts based on their diameter and pitch. However, it does not specify the torque for valve cover or injector components specifically.
What do I get after purchasing this Yanmar 6LY2-STE manual?
You get a 51-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Document Quality
This document is a scanned copy of the original manual with an OCR layer, making the text searchable and copyable. The text is generally crisp and readable, though diagrams and illustrations are raster images that will pixelate when zoomed, but their labels remain clear. Pages are mostly clean, exhibiting minor background speckling and occasional slight skewing from the scanning process, with no truly blank or filler pages.
