Want to keep your Yanmar marine diesel running hard? This 699-page Yanmar 6LPA-STP Operation Manual PDF (OEM #49961-205771) covers every operating parameter and maintenance interval for the 6LPA-DTP, DTZP, STP, and STZP engines. You get complete electric wiring diagrams for multiple control panel types, fuel and cooling system piping schematics, and detailed step-by-step troubleshooting charts for high-temperature alarm conditions. Open to the periodic inspection section to find exact procedures for everything from bleeding the fuel lines to long-term winterization storage. Swap out those intercooler anti-corrosive zincs with exact 1/2"x1" replacements when they drop below half their original size, and lock down the new fuel filter to 14.7-19.6 N-m. Stop hunting through forums for critical marine engine tolerances. Download this bookmarked file right to your tablet, step onto the deck, and get your vessel ready for the water.
What's Inside This Yanmar 6LPA-DTP, 6LPA-DTZP, 6LPA-STP, 6LPA-STZP Manual
| System | Pages | Key Topics |
|---|---|---|
| For Safe Operation | 1-4 | Warning Symbols, Safety Precautions, Location of Product Safety Labels |

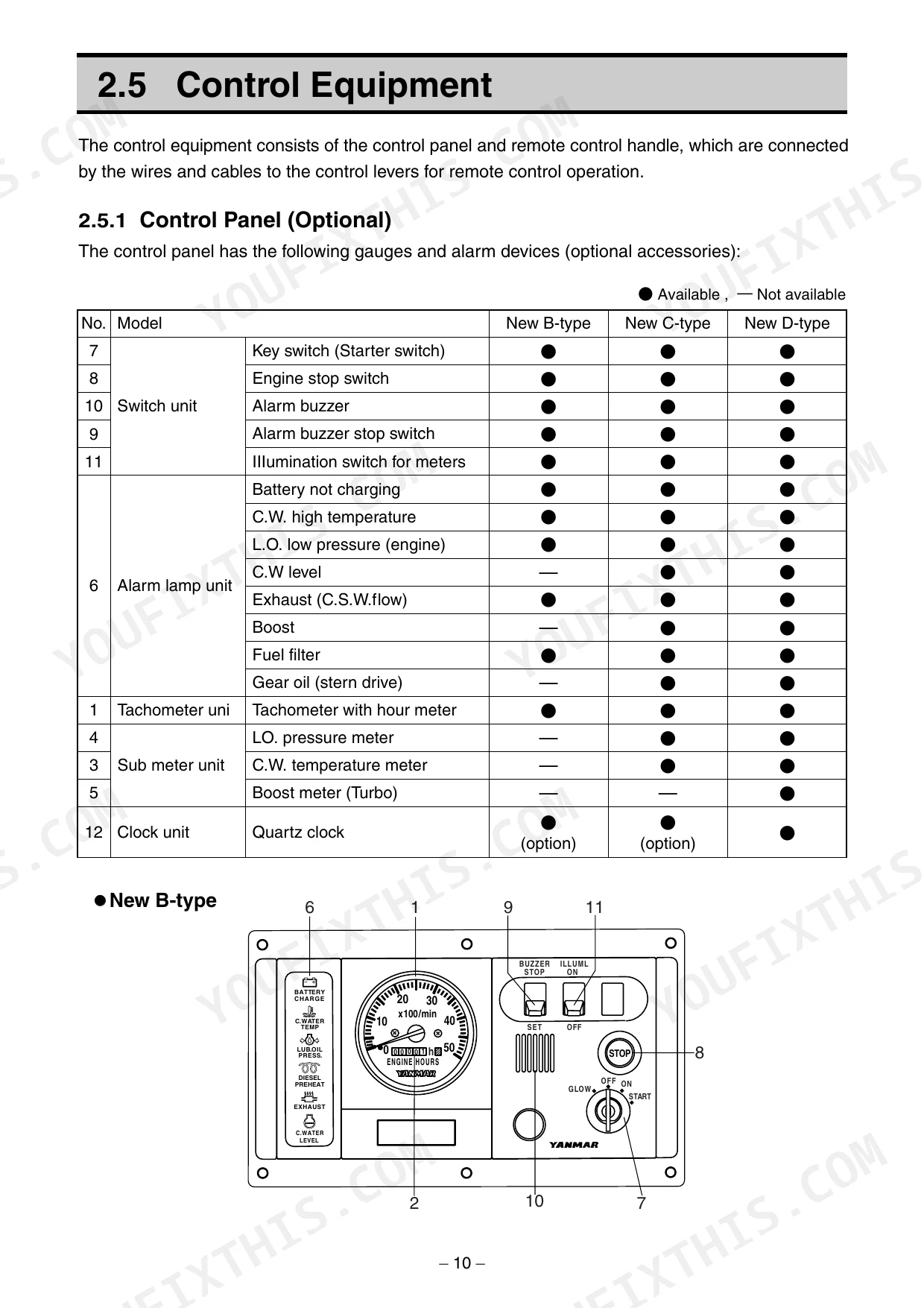

| Explanation of Product | 5-16 | Use & Driving System, Engine Specifications, Names of Parts, Major Servicing Parts, Control Panel, Remote Control Handle |

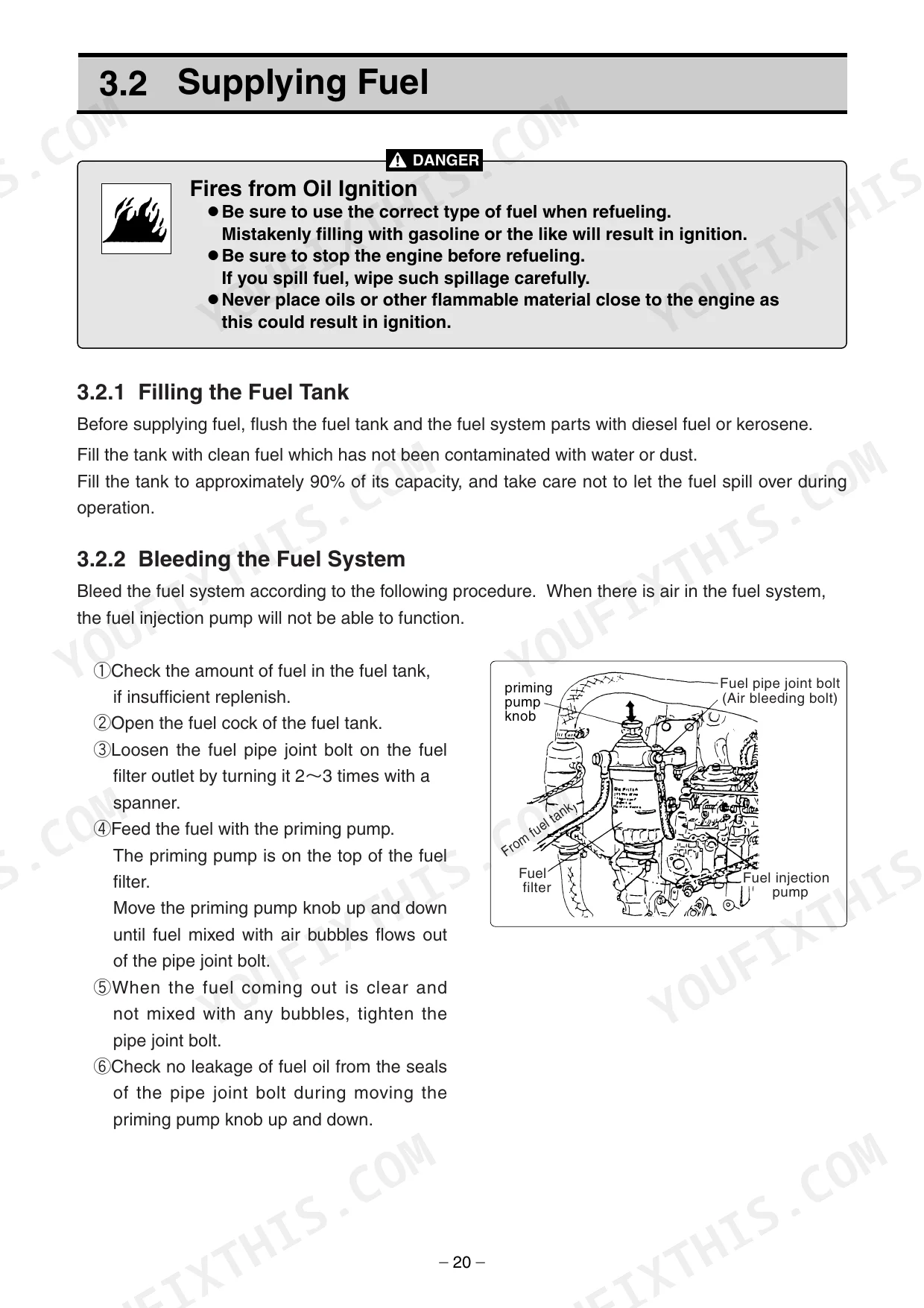

| Before Operation | 17-24 | Fuel Oil, Lube Oil and Cooling Water Requirements, Supplying Fuel (Bleeding Fuel System), Supplying Engine & Marine Drive Oil, Supplying Cooling Water, Cranking |
| How to Operate | 25-34 | Inspection Before Starting, Control Panel & Alarm Devices Check, Daily Starting, Starting Under Low Temperature, Adjusting Engine Speed, Clutch Operation (Forward/Neutral/Reverse), Check During Operation, Stopping, Long-Term Storage |
| Maintenance & Inspection | 35-46 | Periodic Inspection List, Inspection at 50h/125h/250h/500h/1000h/1250h Intervals, Fuel Filter (Part X5186100664), Anti-Corrosive Zinc Replacement |

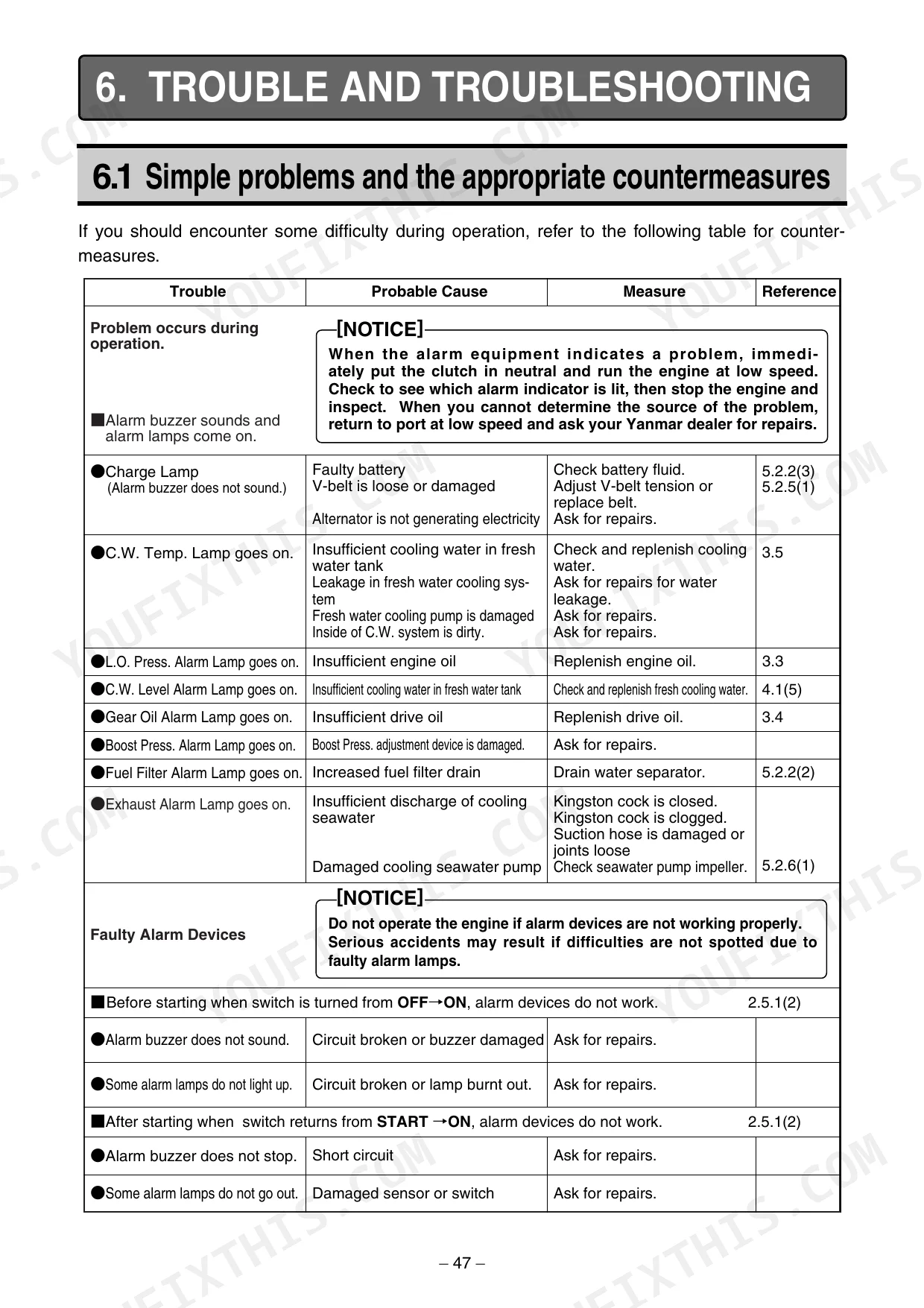

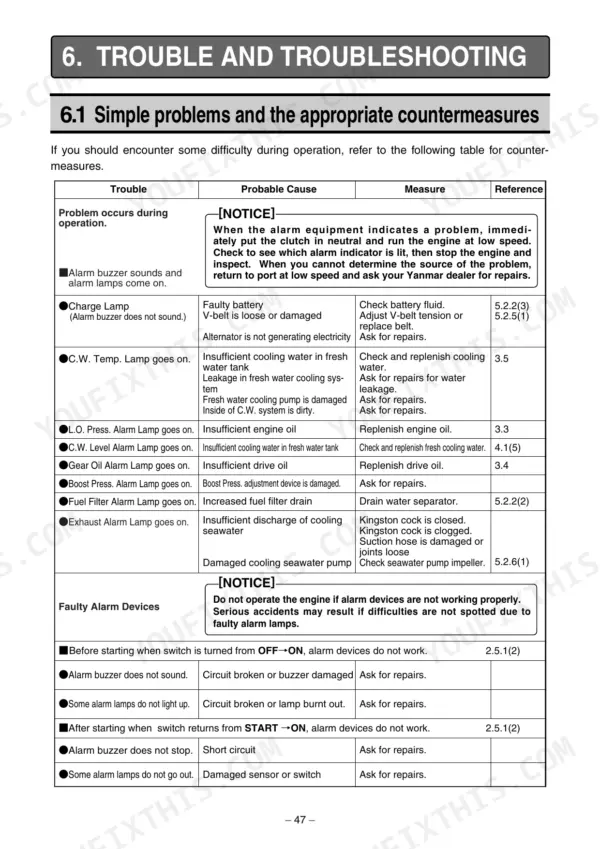

| Trouble and Troubleshooting | 47-49 | Simple Problems and Countermeasures Chart, When to Consult Your Yanmar Dealer |

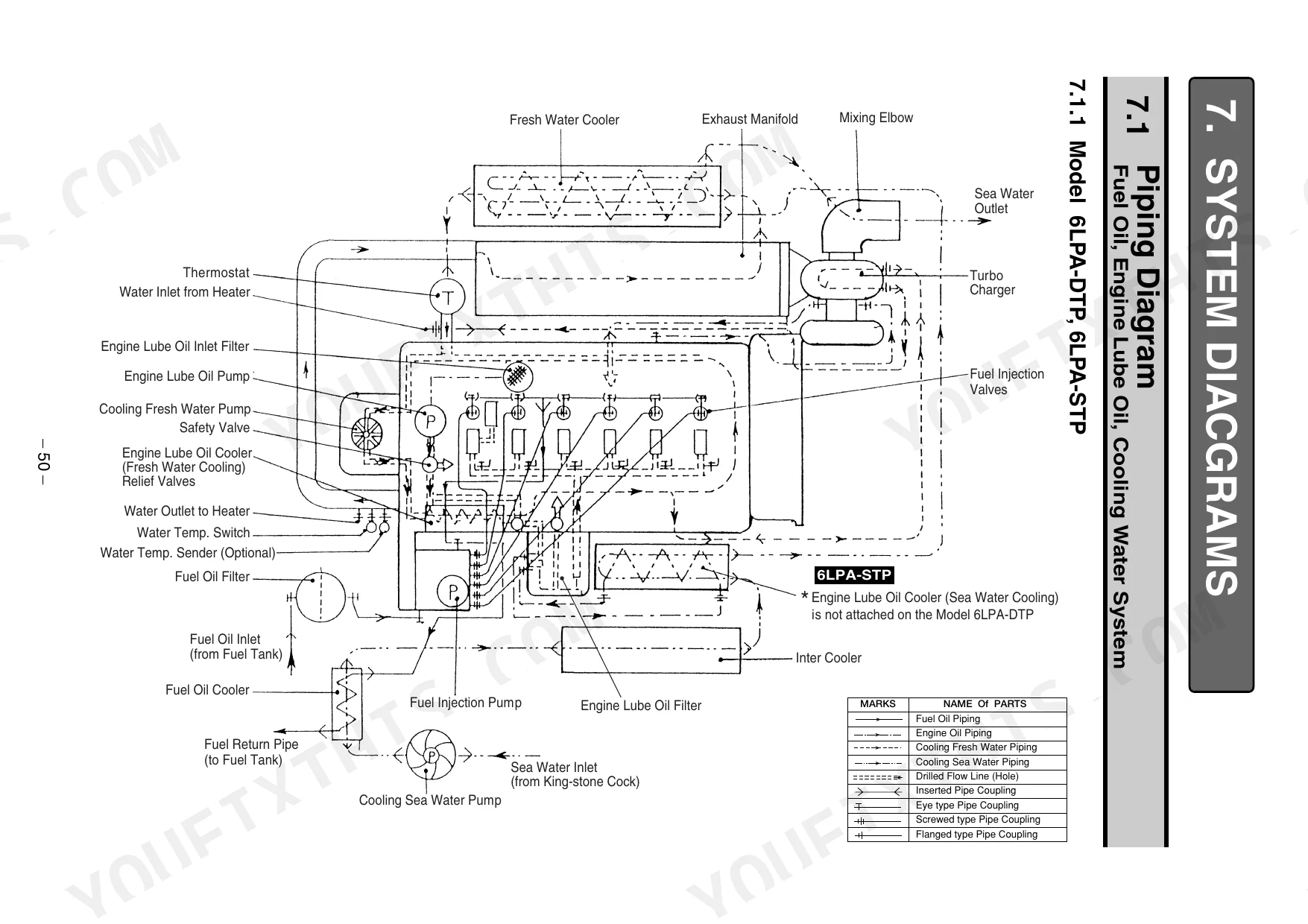

| System Diagrams | 50-54 | Piping Diagram (Fuel/Lube Oil/Cooling Water) for 6LPA-DTP/STP and 6LPA-DTZP/STZP, Electric Wiring Diagram (B-Type, C/D-Type X B-Type, C/D-Type X C-Type Control Panels) |
| Spanish | 62-121 | - |
| Italian | 122-238 | French |
| Dutch | 239-352 | German |
| Norwegian | 353-466 | Finnish |
| Swedish | 467-523 | - |
| Danish | 524-580 | - |
| Greek | 581-637 | - |
| Portuguese | 638-694 | - |

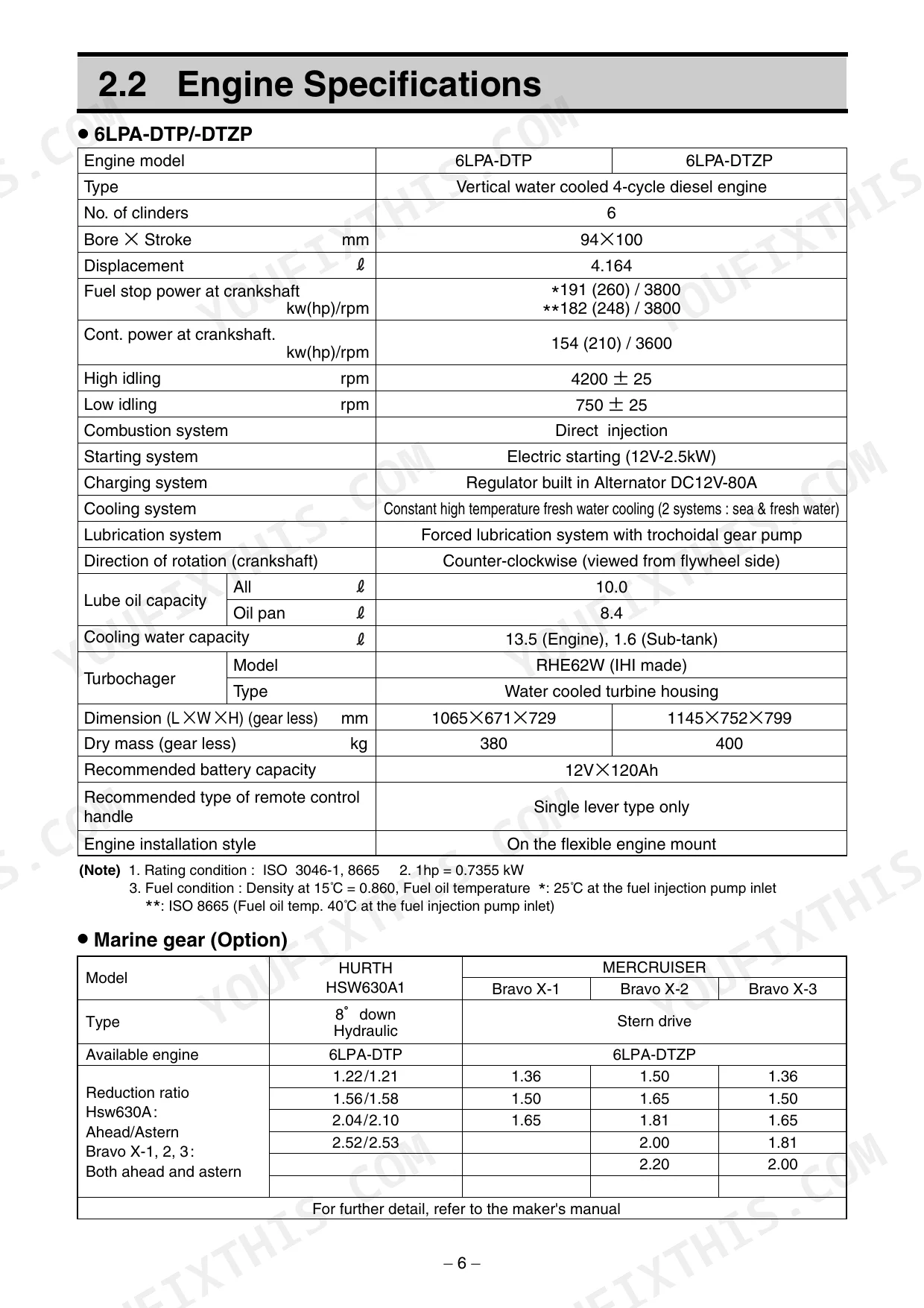

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel filter tightening torque | 14.7~19.6 N·m (1.5~2.0 kgf·m) | p. 46 |
| Anti-corrosive zinc dimensions (Intercooler) | 1/2"x1" | p. 47 |
| Cooling water high temperature alarm threshold | 95℃ or higher | p. 19 |
| No. of cylinders | 6 | p. 12 |
| Bore x Stroke | 94x100 mm | p. 12 |
| Displacement | 4.164 L | p. 12 |
| Cooling water capacity (Engine) | 13.5 L | p. 12 |
| Recommended battery capacity | 12V x 120Ah | p. 12 |
| 6LPA-STP, 6LPA-STZP | ||
| Anti-corrosive zinc dimensions (Engine oil cooler) | 1/2"x1" | p. 47 |
| 6LPA-DTP/DTZP | ||
| Lube oil capacity (Total) | 10.0 L | p. 12 |
| 6LPA-STP/STZP | ||
| Lube oil capacity (Total) | 10.5 L | p. 13 |
Yanmar 6LPA-DTP, 6LPA-DTZP, 6LPA-STP, 6LPA-STZP Common Problems This Manual Covers
Yanmar 6LPA-STP repeated temperature alarms, rapid coolant loss, and general engine overheating under heavy load.
Inspect the fresh water cooler and intercooler on page 47. Remove the anti-corrosive zincs. Replace the 1/2"x1" intercooler zinc and 1/2"x2" fresh water cooler zinc if reduced to less than half their original size. Fill the engine with 13.5 L of coolant.
Manual Section: Engine overheatingLoss of power, rough running, poor throttle response, and thick black smoke emitted.
Replace the fuel filters if they are dirty or plugged. Tighten the new fuel filters to a torque of 14.7~19.6 N·m (1.5~2.0 kgf·m) as specified on page 46. Bleed all air from the fuel lines before attempting to restart the engine.
Manual Section: Black smoke emittedWeak compression, water intrusion in the exhaust elbow, and engine does not turn or turns too slowly.
Check the battery charge and cable connections first. Install a fully charged 12V x 120Ah battery as recommended on page 12. Inspect the exhaust mixing elbow for internal seawater corrosion that allows backflow into the cylinders and weakens the valve seats.
Manual Section: Engine does not turn or turns too slowlyWhite smoke, misfire-like running, low engine oil pressure, or heavy fuel smell at startup.
Drain the crankcase and change the oil. Fill 6LPA-DTP and 6LPA-DTZP models with exactly 10.0 L of fresh oil as outlined on page 12. Verify the injection timing is not delayed to prevent unburnt fuel from generating excessive white smoke.
Manual Section: Low engine oil pressureFrequently Asked Questions
How do I reset the alarm on the Yanmar 6LPA marine diesel?
The alarm buzzer sounds if an abnormality arises. The buzzer can be stopped temporarily using the 'Buzzer stop switch'. Do not turn the buzzer off except when inspecting for an abnormality. Once the engine starts up and the key switch returns to ON, the warning buzzer stops sounding and all warning lamps go off, indicating normal operation.
What do the Yanmar 6LPA engine alarm codes and warning symbols mean?
The alarm monitor window indicates the trouble spot when one of the symbols lights up. These symbols represent various conditions such as BATTERY CHARGE, C.WATER TEMP, LUB. OIL PRESS, C.WATER LEVEL, GEAR OIL, BOOST, FUEL FILTER, and EXHAUST. Each symbol corresponds to a specific engine abnormality.
What are the replacement intervals for the exhaust mixing elbow?
The mixing elbows, which are constantly in contact with exhaust gas and seawater, deteriorate with use and must be replaced. This maintenance requires specialized knowledge, and you should consult your Yanmar dealer or distributor. The periodic inspection schedule recommends checking and/or replacing the mixing elbow every 250 hours or 1 year, and also at 500 hours/2 years, 1000 hours/4 years, and 1250 hours/5 years, with a recommendation to consult the nearest dealer.
What is the fuel filter part number and replacement schedule for the 6LPA engine?
The fuel filter element should be replaced periodically before clogging occurs, as indicated in the periodic inspection list for 'Every 50hrs'. The part number for the fuel filter is X5186100664. Detailed replacement instructions are provided in section 5.2.4 (1).
How will I receive this manual?
You get a 699-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this 6LPA operation manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.

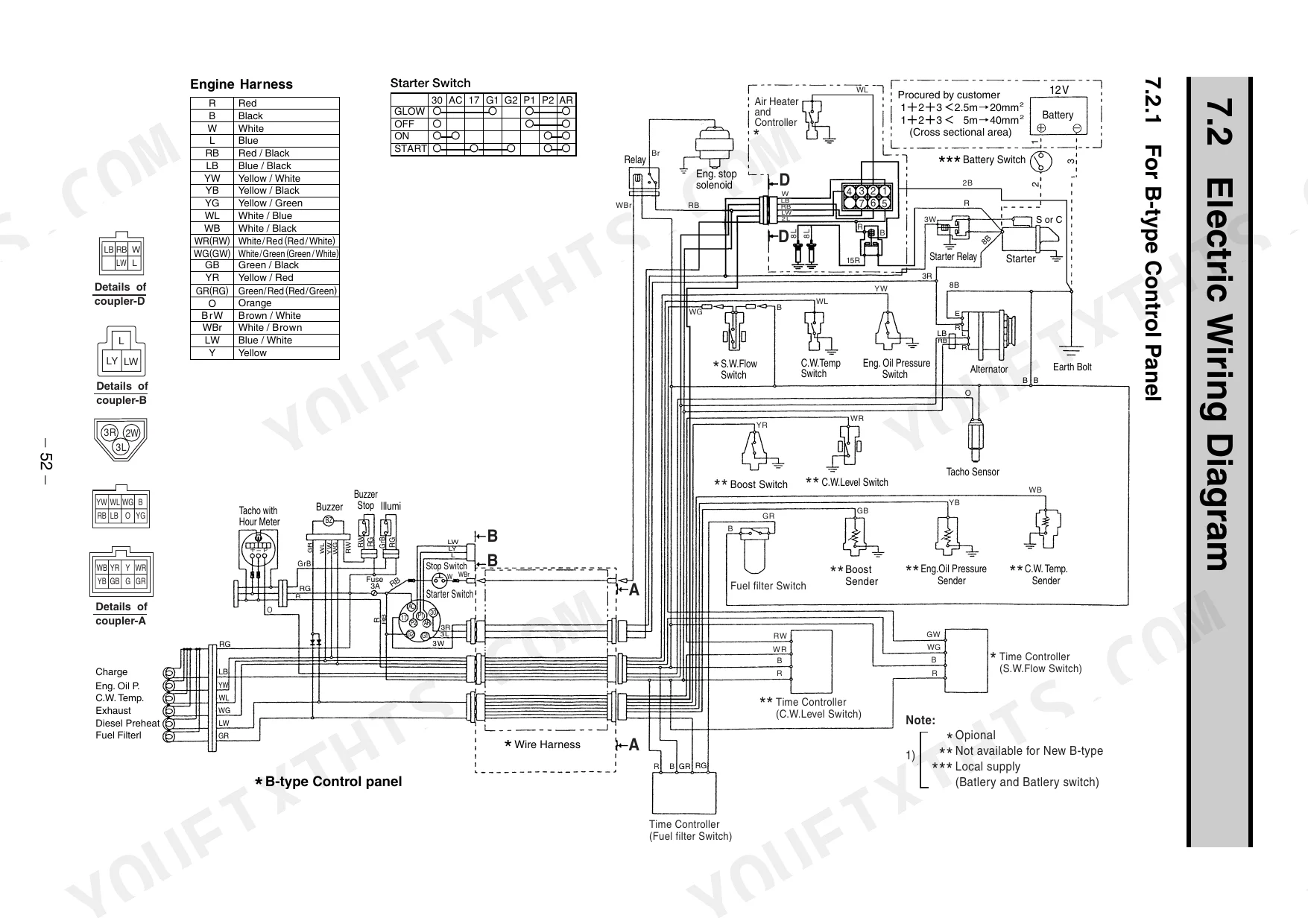

Does this manual include wiring diagrams for the 6LPA engine?
Yes, this Yanmar 6LPA Operation Manual includes complete electric wiring diagrams for B-Type, C/D-Type x B-Type, and C/D-Type x C-Type control panels, plus fuel, lube oil, and cooling water piping diagrams.
