Protect your mini-excavator investment and keep it running like new with this complete 229-page Yanmar ViO15-2 Operator Manual PDF. Inside, you get everything required to run the machine safely, including operating procedures, precise load charts, and step-by-step daily maintenance walkthroughs. Open up to find detailed dashboard indicator guides, complete fluid capacities, and full maintenance interval schedules mapping out every required service from the initial 50-hour check all the way to your 2000-hour major maintenance. Adjust your track tension clearance strictly between 0.31 and 0.51 inches, and remember to limit your shop compressed air pressure to 100 PSI or less when blowing out the air filter. A broken machine on the jobsite instantly ruins the weekly schedule. Download this fully bookmarked file, pull it up on your tablet or phone, and get back to digging.
What's Inside This Yanmar ViO15-2, VIOB- Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | - | Informations Importantes, Utilisation sûre Et Efficace, Commande De Manuel |
| Informations De sécurité | - | Signaux De Danger, Modifications Non autorisées, Désignation Des Sections, Avertissements |
| Vue générale Du Produit | - | Applications De La Mini-Pelle, Procédure De Rodage, Conformité Aux Standards d'émission Epa |
| Commandes Des pièces De Rechange | - | Position Plaque numéro De série Machine, Position Plaque numéro De série Moteur, Localisation Plaque signalétique Epa, Durée De Garantie, Commande Des pièces |
| Précautions De Base | - | Règles De sécurité Sur Le Lieu De Travail, Dispositifs De sécurité, Vêtements Et éQuipements De Protection, Amiante, Extincteur Et Trousse De Secours |
| Précautions d’utilisation | - | Avant Le démarrage Du Moteur, Démarrage, Utilisation Et Stationnement, Précautions Pour Le Transport, Précautions Pour La Batterie, Précautions Pour Le Remorquage |
| Précautions d’entretien | - | Avant L'entretien, Lors De L'entretien, Alimentation En Combustibles Et Graissage, Niveau D'eau Refroidissement, Manipulation De La Batterie, Traitement Des déchets |
| Messages De sécurité (Labels Avertissement Sur Autocollant) | - | Emplacement Des Labels, Montée Ou Descente De La Machine, Batteries, Rotation Des éQuipements, Risque De Renversement, Tableau De Charge |

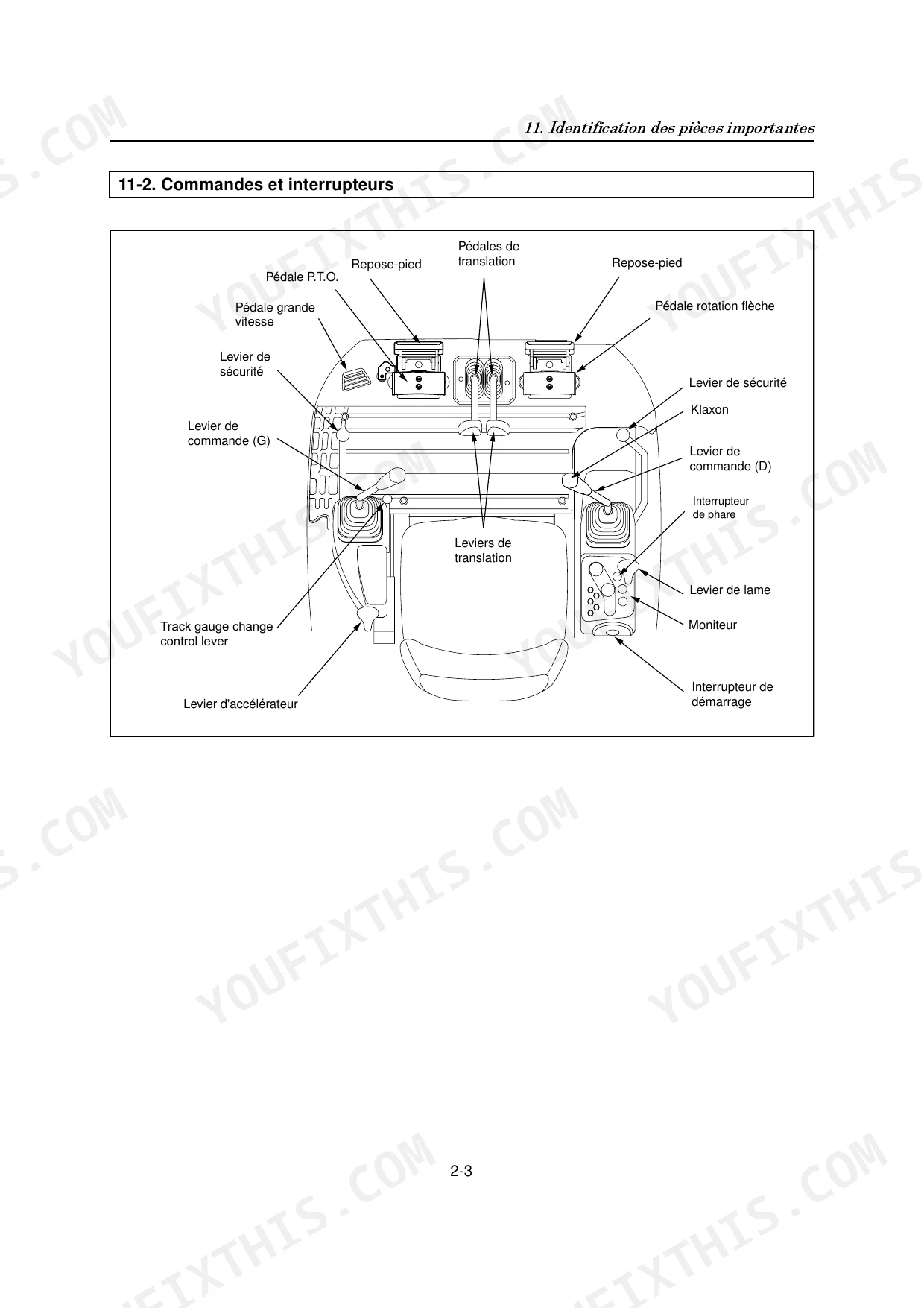

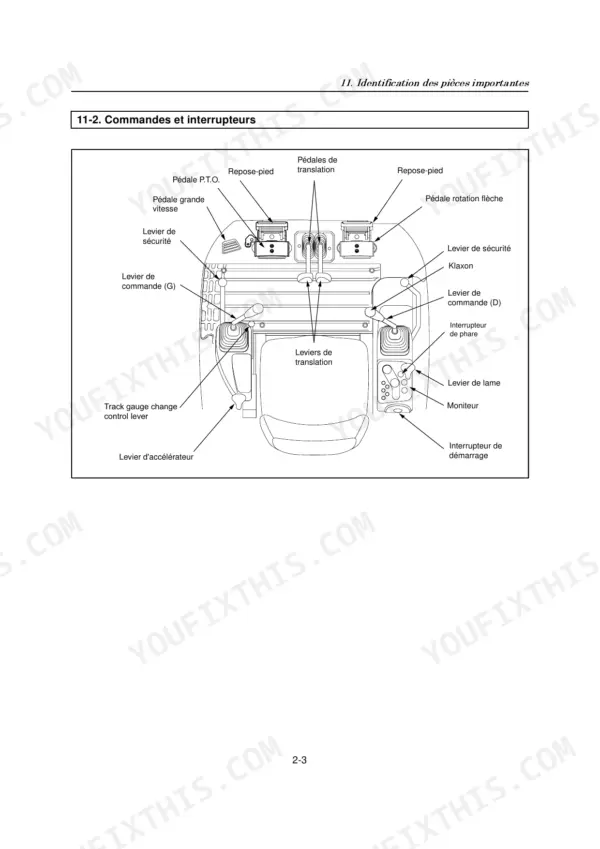

| Identification Des pièces Importantes | - | Vue générale De La Machine, Commandes Et Interrupteurs, Leviers De sécurité, Pédales De Translation |
| Description Du Tableau De Bord | - | Jauge à Gasoil, Indicateurs De température/pression, Compteur Horaire, Démarreur, Interrupteurs, Leviers Et pédales De Commande, Fusibles |

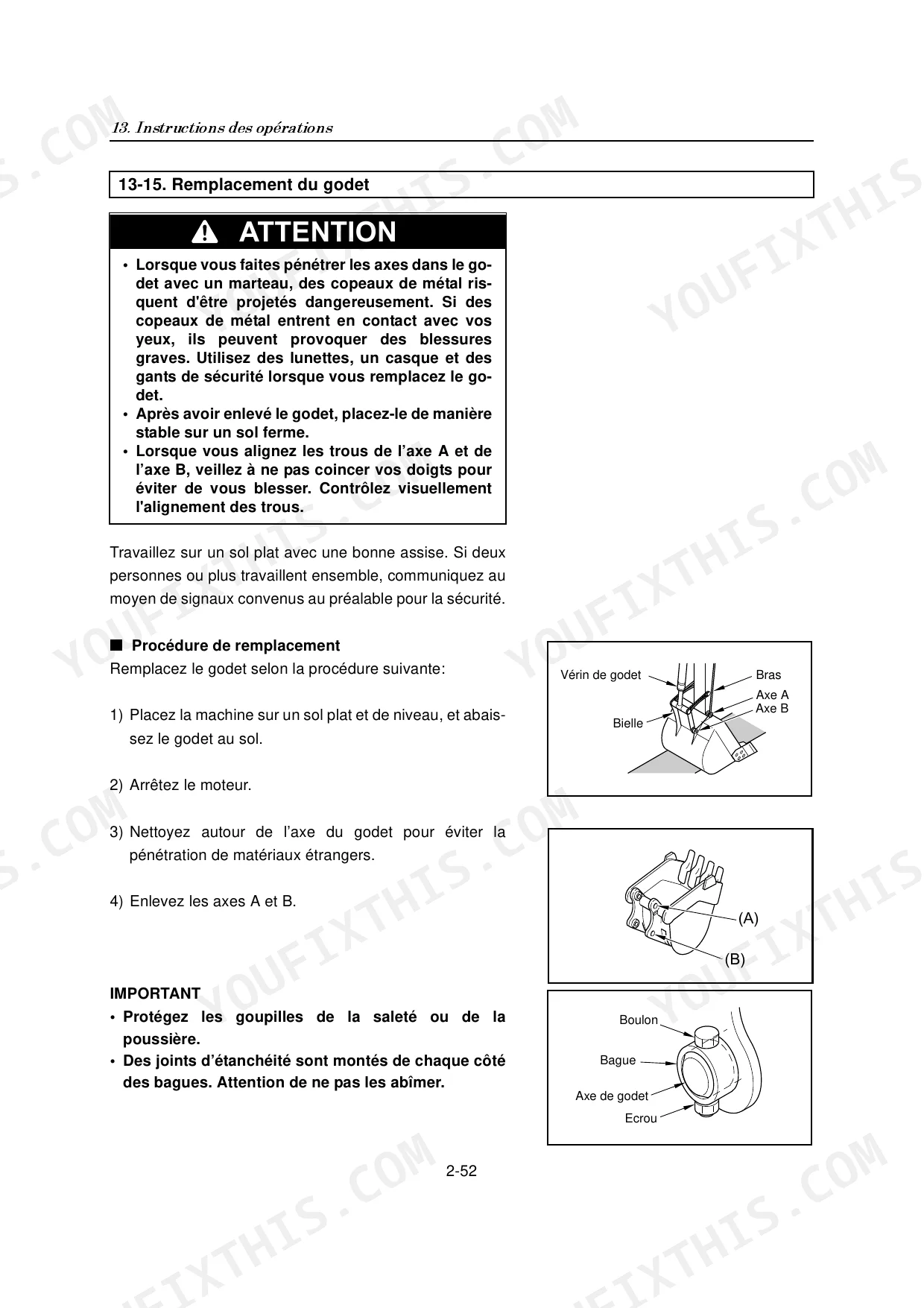

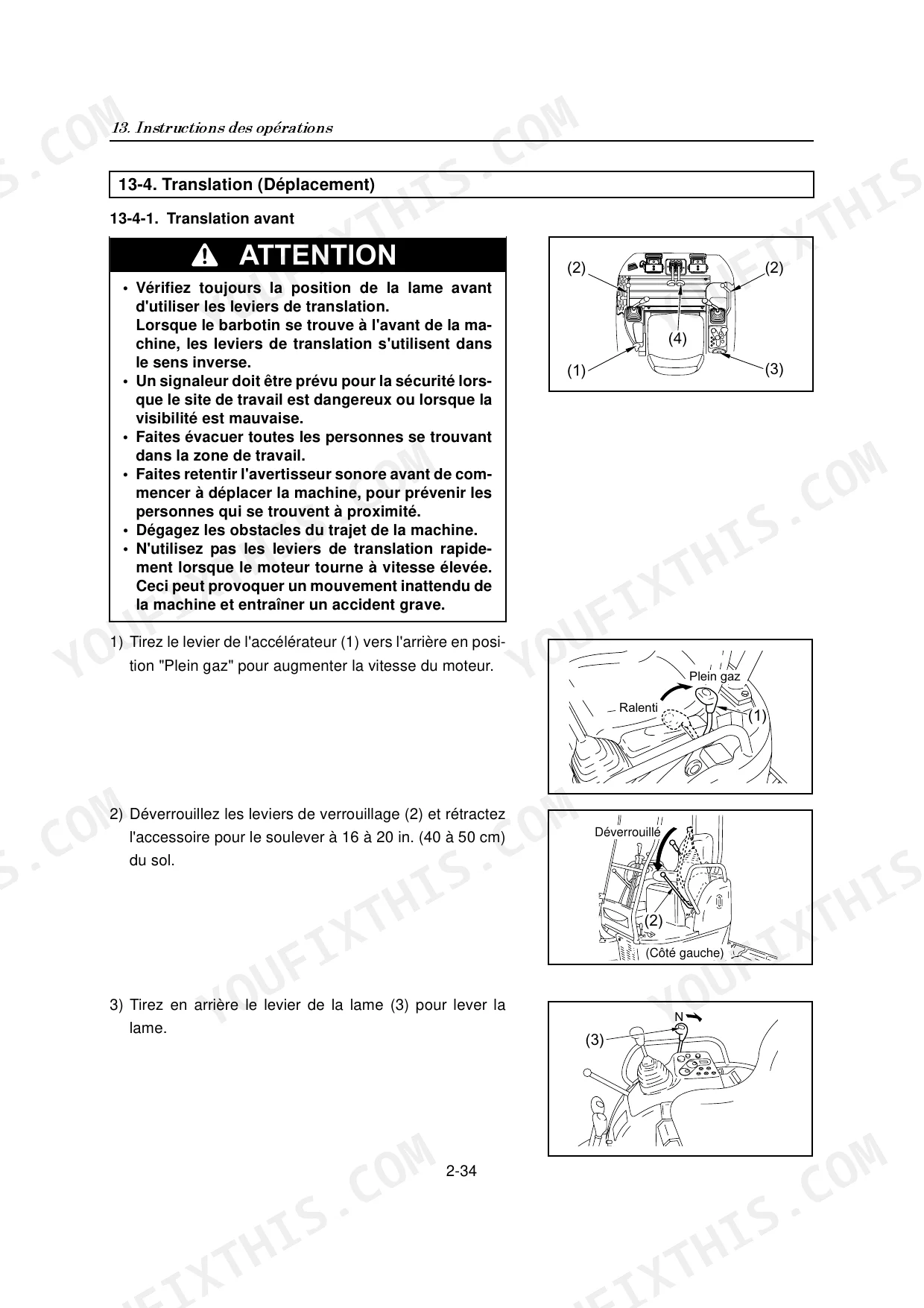

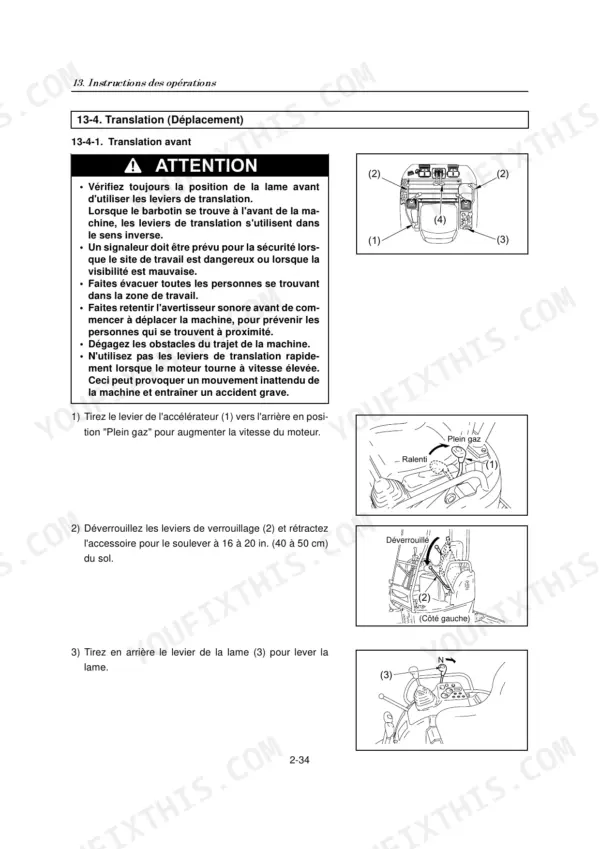

| Instructions Des opérations | - | Vérification Avant démarrage, Démarrage Du Moteur, Translation (Déplacement), Arrêt De La Machine, Utilisation De l'équipement, Remplacement Du Godet |
| Transport | - | Chargement Et déchargement De La Machine, Précautions Pour Le Chargement, Précautions Pour Le Transport, Suspension De La Machine |
| Maintenance | - | Vérification Compteur Horaire, Pièces De Rechange Yanmar, Huiles, Carburant Et Eau De Refroidissement, Graisse, Filtres, Système Hydraulique |

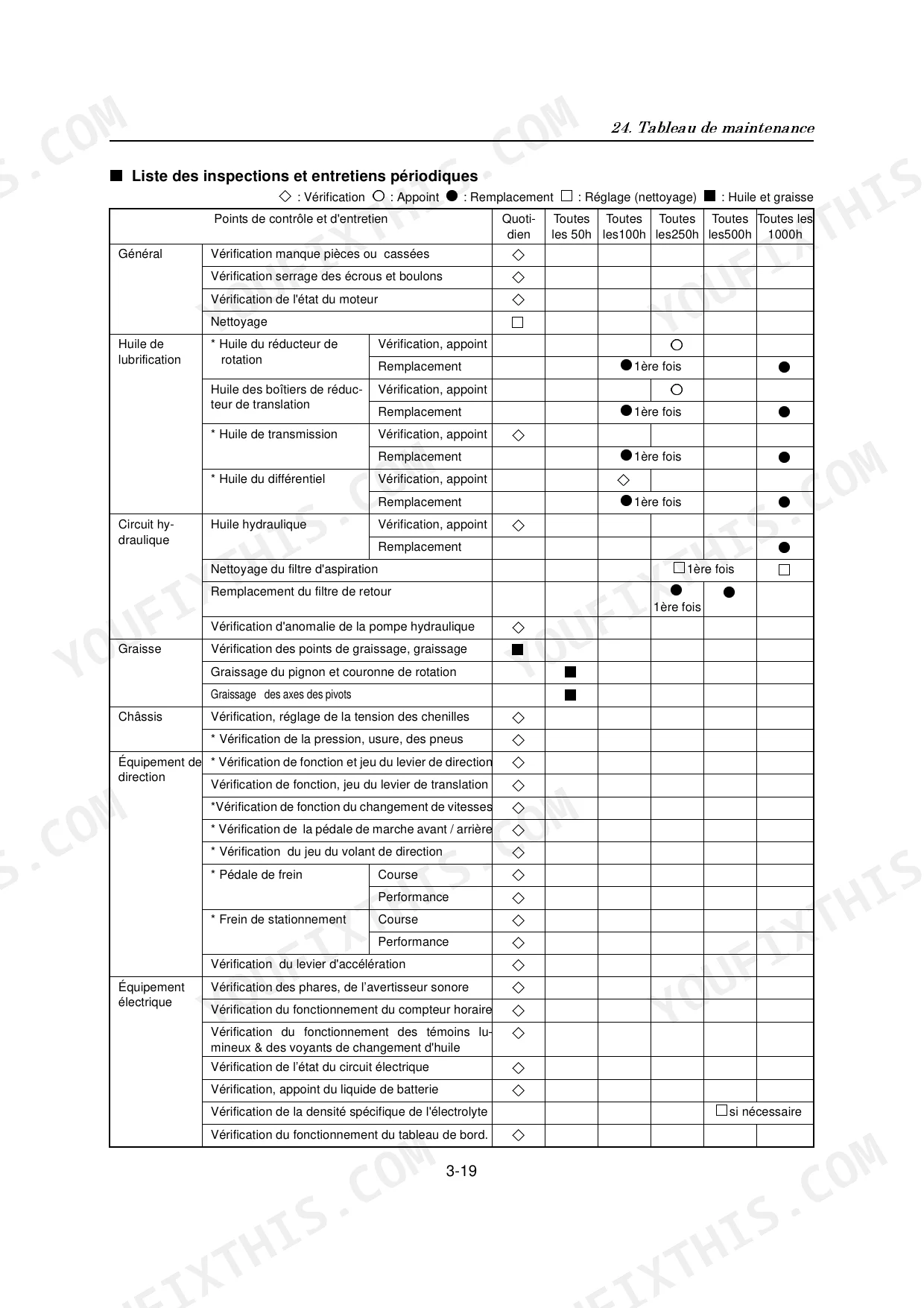

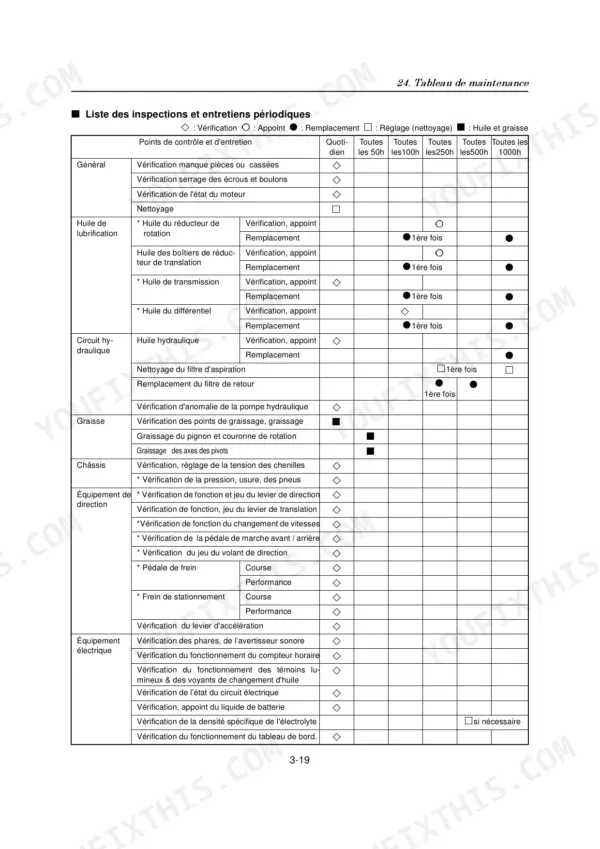

| Tableau De Maintenance | - | Intervalles D'entretien (50h, 100h, 200h, 250h, 400h, 500h, 1000h, 2000h), Intervalles D'entretien Marteau Hydraulique, Points De contrôle Et D'entretien |
| Procédures De Maintenance | - | Premiers Entretiens, Entretiens non-périodiques, Vérifications Avant démarrage, Maintenance Toutes Les 50/100/200/250/400/500/1000/2000 Heures De Service |
| Spécifications Et shémas Dimensionnels | - | Poids De La Machine, Plage De Travail Et Performance, Moteur Diesel Yanmar, Vue Du modèle Et Dimensions De Travail |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Standard bolt/nut torque (M6 x 1) | 7.23 to 8.68 ft·lbf (9.8 to 11.8 N·m) | p. 154 |
| Flexible de sortie de pompe (P1, P2, P3 jusqu’à C/V) replacement interval | Every 2 years or 4000 hours | p. 156 |
| Air filter cleaning compressed air pressure | 100 PSI (0.7 MPa) or less | p. 190 |
| Track nut wear limit ('a' height) | 0.2 in. (5 mm) or less | p. 163 |
| Track tension clearance (H) | 0.31 to 0.51 in. (8 to 13 mm) | p. 165 |
| Poids de la machine | 1600 kg | p. 208 |
| Capacité du godet, standard | 0.050 cu.m | p. 208 |
| Profondeur maximum d’excavation verticale | 1750 mm | p. 208 |
| Force maximale d’excavation (godet) | 13.7 kN | p. 208 |
| Vitesse de translation (déplacement) - grande | 4.3 km/h | p. 208 |
| Vitesse de rotation | 8.5 rpm | p. 208 |
| Pression max du circuit hydraulique (2 circuits) | 20.6 MPa | p. 208 |
Yanmar ViO15-2, VIOB- Common Problems This Manual Covers
Yanmar ViO15-2 engine overheats and water temperature warning light flashes during digging operations
Inspect the radiator and grilles for blockage. Check the coolant level in the reserve tank. If the water temperature warning indicator remains on, review the troubleshooting chart. Clean the air filter using compressed air at 100 PSI (0.7 MPa) or less to ensure proper airflow.
Manual Section: Équipement électrique et moteurUndercarriage feels loose and tracks pull to one side while traveling across uneven ground p. 165
Measure the track tension clearance on page 165. Lift the machine and verify the clearance is between 0.31 to 0.51 in. (8 to 13 mm). Check the track nut wear limit. Replace components if the height is 0.2 in. (5 mm) or less as shown on page 163.
Manual Section: ChenillesStarter will not crank the engine or turns over very slowly in cold weather
Inspect the battery terminals for corrosion and verify tight connections. Check the troubleshooting steps for starting issues. Test the battery to confirm it meets the 12V, 36Ah capacity requirement listed on page 208. Replace the battery if it fails the load test.
Manual Section: Batterie déchargéeHydraulic functions feel weak and pump output hoses show signs of fluid weeping p. 156
Inspect the hydraulic fluid level and look for visible leaks around the pump. Replace the flexible pump outlet hoses every 2 years or 4000 hours as specified on page 156. Tighten any loose M8 x 1.25 standard retaining bolts to 22.6 to 28.4 N·m to prevent further weeping.
Manual Section: Procédures De MaintenanceFrequently Asked Questions
How do I bleed air from the hydraulic system on a YANMAR ViO15-2?
To purge air from the hydraulic system, first set the engine rotation to intermediate with the lever in mid-stroke. Then, slowly operate each cylinder 4 to 5 times, moving it approximately 3.9 inches (100 mm) before reaching its full stroke ends. Finally, operate the cylinder 4 to 5 times at full speed.
What does the hydraulic pressure specification mean on a YANMAR ViO15-2?
The manual lists the maximum hydraulic circuit pressure as 2986 PSI (20.6 MPa) for two pumps and 355.5 PSI (2.5 MPa) for one pump. These values represent the maximum operating pressures for the hydraulic system.
How do I replace seals or hoses on a YANMAR ViO15-2?
When replacing hydraulic flexibles (hoses), it is recommended to also replace the O-rings and seals. Essential safety parts, such as the pump outlet flexible, should be replaced at least every two years or every 4000 hours of service. For specific procedures, refer to sections like "25-9-1. Remplacement de l'élément de filtre de retour d’huile hydraulique" on page 198.
how to reset yanmar vio15-2 hydraulic alarm

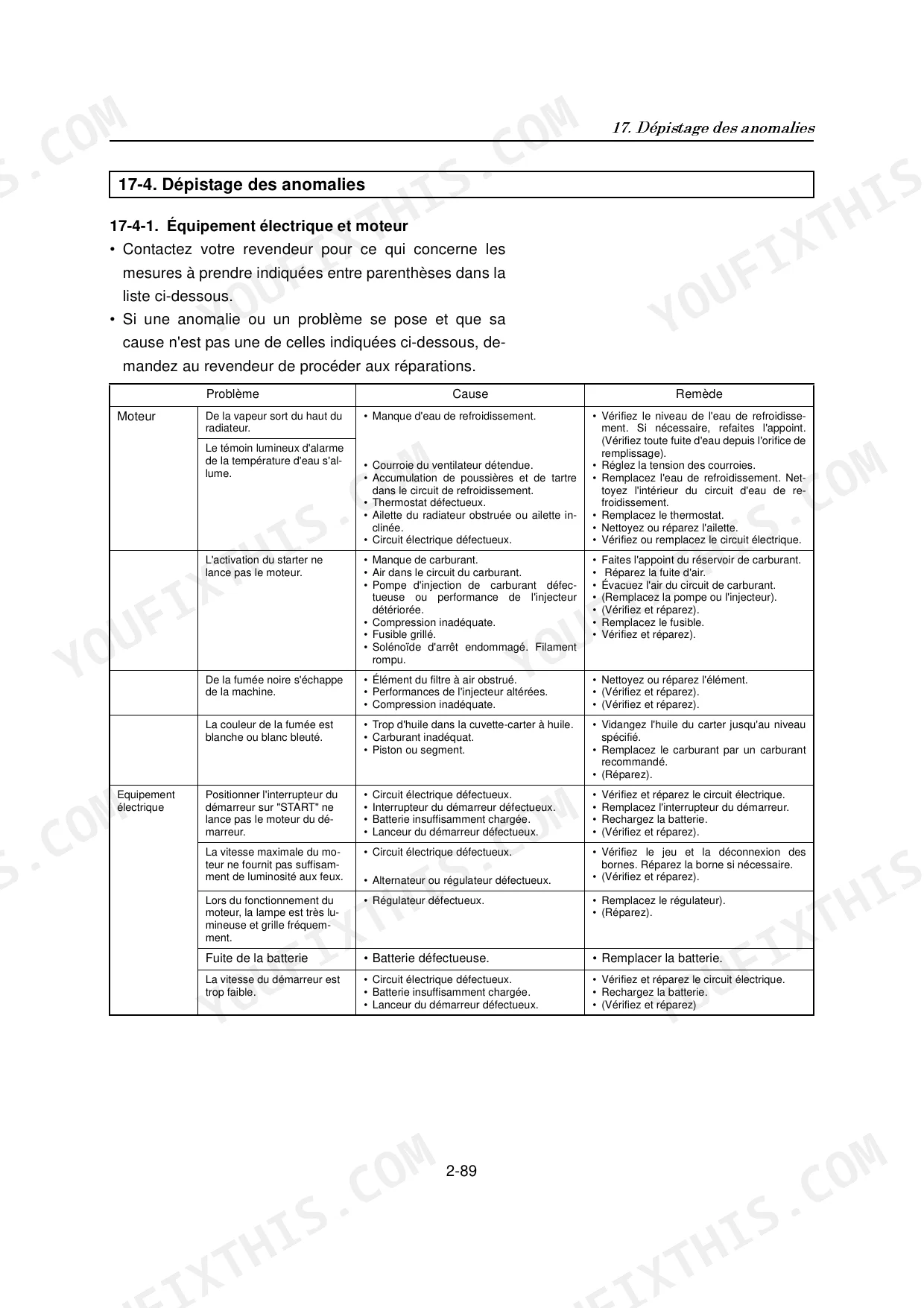

When a warning light illuminates and an alarm sounds during operation, you should immediately stop the machine, identify the problem, and repair it. For engine oil pressure or battery charge alarms, consult chapter "17-4. Dépistage des anomalies" for corrective actions, which focus on resolving the root cause of the alarm.
how to find torque specs for yanmar vio15-2
Standard torque specifications for bolts and nuts on the YANMAR ViO15-2 can be found in the "Tableau de couple" (Torque table) on page 154. This table provides values in ft·lbf (N·m) for various metric bolt sizes, from M6 to M20. It also specifies applying 80% of the torque for aluminum components and 60% for 4T bolts and locknuts.
Is this Yanmar ViO15-2 Operator Manual a digital download?
Instant PDF download. You get the full 229-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this Yanmar ViO15-2 Operator Manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
