Need the exact factory breakdowns for your 2001-2017 crawler back-hoe? This 115-page YANMAR VIO15-2 parts catalog PDF (OEM #0CK10-M37902EN) maps out every bolt, bracket, and cylinder on the JP and EX variants. You get complete exploded views of the entire machine, from the control valve plates to the undercarriage track frames. Open to any section and find precise component identification, interchangeability marks, and factory part numbers to ensure you order the right hardware the first time. Verify your track components with exact dimensions like the 30X62X13.2 QLN seal or confirm the 40A main fuse rating before wiring up accessories. Wasting days waiting for the wrong parts is a rookie mistake. Grab this bookmarked file, pull it up on your phone at the parts counter, and get your excavator back in the dirt.
What's Inside This Yanmar ViO15-2 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Reference Materials | 2-6 | Fuel Injection Pump, Fuel Injection Pump N, Camshaft, Roller Bearing, Retainer |

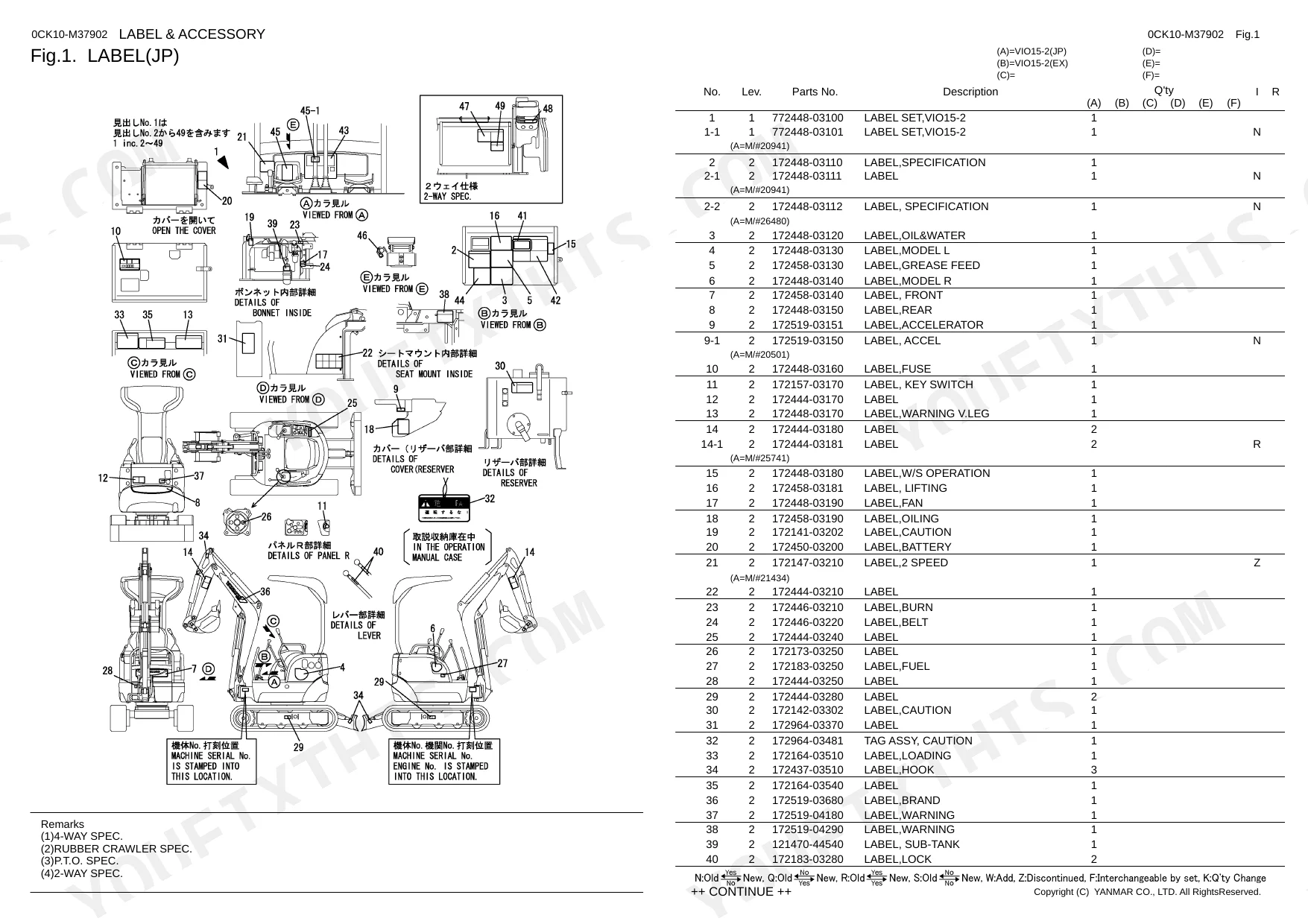

| Label(Jp) | 10-11 | VIO15- Label Set, VIO15- N Label Set, Specification Label, Label N, Specification N Label, Oil \U0026 Water Label, Model L Label, Grease Feed Label |
| Label(Ex) | 12-13 | VIO15- Ex Label Set, Front Label, Rear Label, Accel Label, Grease Label, W\/ S Operation Label, Speed Z Label, PTO Label |
| Safety Label(Jp) | 14 | Label, Warning V.Leg Label, Label N, Fan Label, Caution Label, Battery Label, Burn Label, Belt Label |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Seal dimensions (QLN) | 30X62X13.2 | p. 28 |
| Bush dimensions | 22.15X43 | p. 30 |
| Fuse rating | 40A | p. 25 |
| Fuse B rating | 15A | p. 25 |
| Work lamp bulb | 12V 27W | p. 26 |
| Crawler bush dimension | 22.15X43 | p. 30 |
| Crawler pin length | 70 | p. 30 |
| Crawler shoe plate width | 230 | p. 30 |
| P.T.O. pedal fuse B rating | 20A | p. 41 |

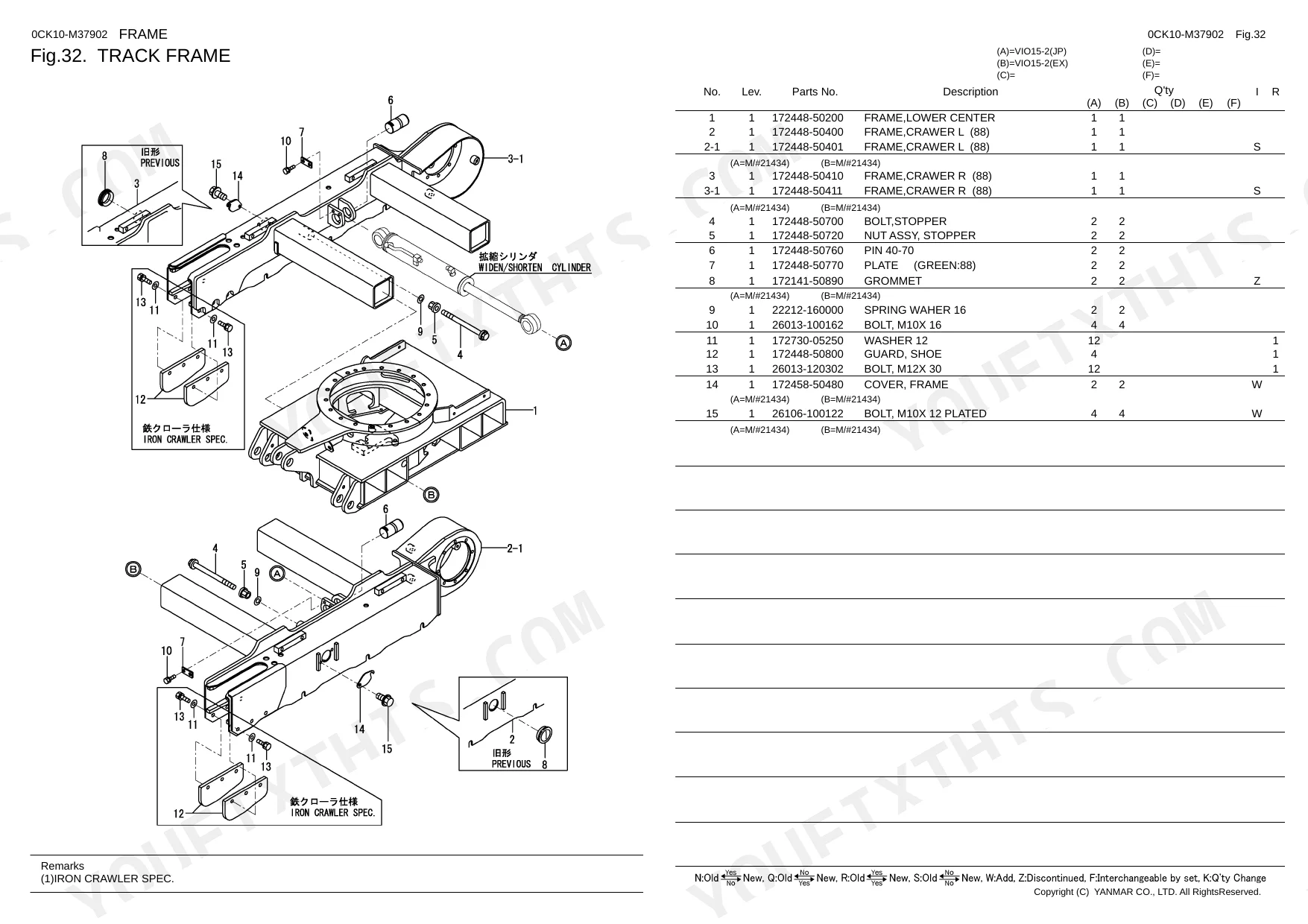

| Track frame pin length | 40-70 | p. 44 |
| Turning frame bush dimension | 50X65 | p. 45 |
| Bonnet pin snap size | 6 | p. 49 |
Yanmar ViO15-2 Common Problems This Manual Covers
Yanmar Vio15-2 blown main fuses, engine will not start or starts intermittently. p. 25
Check the electrical components diagram on page 25 to locate the main fuse block. Identify the correct part numbers for the 40A main fuse and the 15A Fuse B. Cross-reference these numbers with the index before ordering replacements to fix your starting issue.
Manual Section: Electric Part(Equipment)Worn track components and loose tension, undercarriage vibrates heavily while driving across uneven ground. p. 30
Inspect the crawler assembly breakdown on page 30 to identify worn track components. Find the exact part numbers for the 22.15X43 crawler bushings and the 70 mm length pins. Order the matching 230 mm shoe plates using the parts list to completely rebuild the loose track section.
Manual Section: CrawlerFluid leaking around the lower rotation joint, hydraulic sluggishness and weak digging force. p. 64
Review the swivel joint components breakdown on page 64. Locate the specific part number for the 55.76X5.7 dimension O-ring and the complete swivel seal set. Match these replacement part numbers exactly in your order to ensure you receive the correct seals to stop the fluid leak.
Manual Section: Swivel Joint(Y Spec.)Damaged lighting harness or housing, work lights fail to turn on during low light operation. p. 26
Examine the work lamp assembly diagram on page 26. Find the exact replacement part number for the 12V 27W bulb and inspect the surrounding housing components. Verify the required harness connectors in the parts list to restore proper illumination to your machine during night operation.
Manual Section: Wark LampFrequently Asked Questions
What is the bucket size and pin dimensions for a YANMAR VIO15-2?
The manual lists several pin dimensions for bucket-related components. For instance, the COLLAR for the bucket has dimensions of 30X42.7X22 (Part No. 172149-83220), and a BUSH for the bucket arm is 30X45 (Part No. 172137-81300). The overall bucket size is referred to as 'BUCKET ASSY' (e.g., Part No. 172448-82100 for S-TYPE), but specific dimensions for the entire bucket are not provided.
What are the replacement specifications for fuel filter?
The manual identifies the fuel filter as FILTER (FUEL) with Part No. 172183-14250, found in the Fuel Tank section. Additionally, a FILTER ASSY, FUEL is listed with Part No. 119833-55620 in the Fuel Line section. However, specific replacement specifications such as intervals or procedures are not detailed in this parts catalog.
What are the replacement specifications for air filter?
The air filter element is identified with Part No. 119655-12560, located within the CLEANER ASSY, AIR (Part No. 172448-11500) in the Silencer & Air Cleaner section. This parts catalog provides the part numbers for the air filter components but does not specify replacement intervals or detailed procedures.
How do you fix YANMAR VIO15-2 blown main fuses, engine will not start or starts intermittently?
Check the electrical components diagram on page 25 to locate the main fuse block. Identify the correct part numbers for the 40A main fuse and the 15A Fuse B. Cross-reference these numbers with the index before ordering replacements to fix your starting issue.
How will I receive this YANMAR VIO15-2 Parts Catalog?
Immediate download of the complete 115-page searchable Parts Catalog. Access it on any device, from a laptop at your desk to a phone in the field.
Am I able to print pages from this YANMAR VIO15-2 manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
