Every single one of the 158 pages in this Yanmar S190R, S220R parts catalog pdf (OEM #0CS10-M59000EN) focuses on helping you identify the exact factory components for your skid-steer loader. You get highly detailed exploded views breaking down the tandem pump, ROPS structure, and hydrostatic drive motors. Open the catalog to find precise part numbers, hardware descriptions, and component cross-references that eliminate ordering errors. Track down the correct seal kit for the two-speed drive motor, or pull the exact factory part number for the 4-spool pilot control valve before calling the dealer. Parts counter confusion burns through your daily shop profits. Download this bookmarked file instantly, pull up the diagrams on your phone, and get your parts order right the first time.
What's Inside This Yanmar S190R, S220R Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Reference Materials | 2 | Assy/wheel X16. Heavy Duty, Wheel X, Assembly/wheel X Heavy Duty Foam-Filled, Assy/wheel X X Heavy Duty, Tire and Rim/flotation X -Ply, Assy/wheel X Narrow Heavy Duty, Wheel X Narrow, Assembly/wheel X X Heavy Duty |

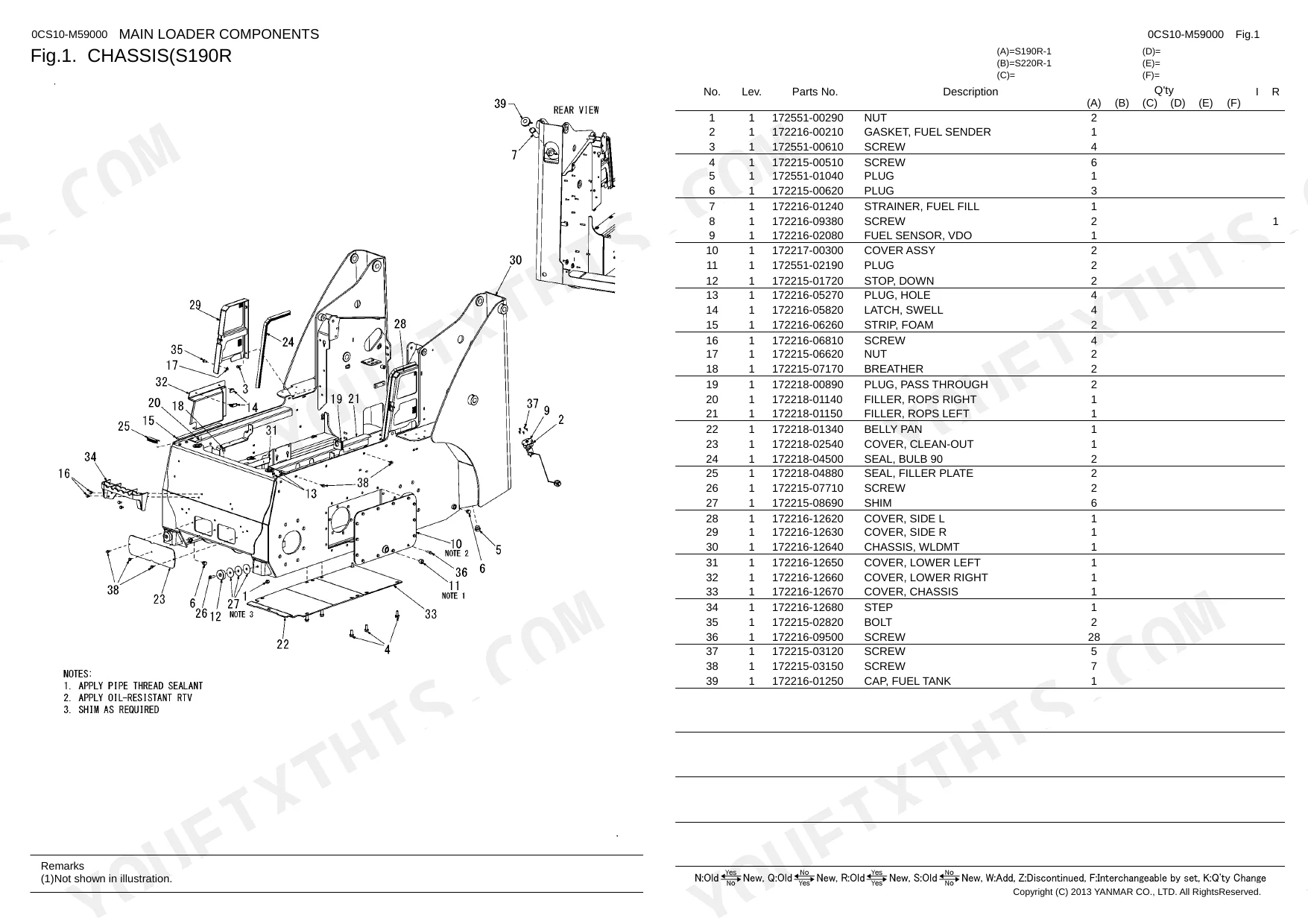

| Chassis(S190R | 6 | Fuel Sender Gasket, Fuel Fill Strainer, Vdo Fuel Sensor, Cover Assy, Down Stop, Swell Latch, Foam Strip, Breather |
| Chassis(S220R | 7 | Fuel Sender Gasket, Fuel Fill Strainer, Waser, Vdo Fuel Sensor, Cover Assy, Down Stop, Swell Latch, Foam Strip |

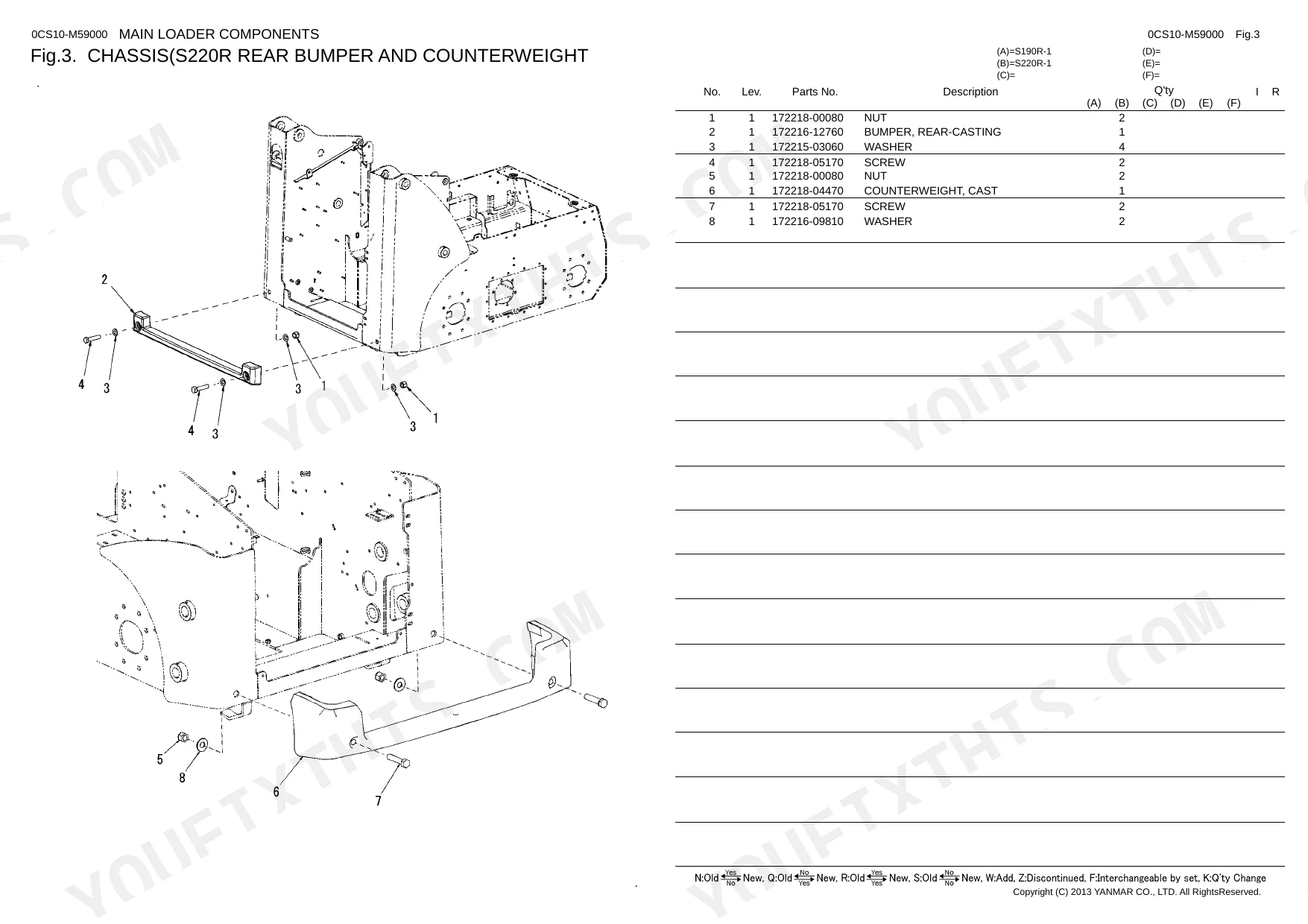

| Chassis(S220R Rear Bumper and Counterweight | 8 | Rear-Casting Bumper, Cast Counterweight, Nut, Washer |
| Chassis(Hvac | 9-10 | Cable Tie, Plate, Fitting, Knob, Heater Switch, Flange, Receiver Drier, Binary Switch |
| Chassis(Hvac | 11 | Receiver Drier, Expansion, AC Valve, Drip Cap, AC Tube, Hose, Fresh Air Filter, Insulation Pad, Heater Tubes Plate |
| Chassis(Heater-Only | 12 | Fitting, Knob, Heater Switch, Flange, Solenoid Valve, A/c Control Module, Valve Bracket, Fresh Air Filter |
| Chassis(Hydraulic Quick Coupler | 13 | Fitting, Plate, Quick Coupler Valve, Quick Coupler Brkt, Quick Coupler Tube, Q Coupler Switch, Drain Tube, Charge Tube |
| Grille and Engine Cover(S190R | 14 | Rear Door Hinge, Compression Spring, Bumper, Bushing, Retaining Clip, Flange, Screen, Grab Handle |
| Grille and Engine Cover(S220R | 15 | Rear Door Hinge, Compression Spring, Bumper, Bushing, Retaining Clip, Flange, Screen, Grab Handle |
| Rops/FOPS Structure | 16 | ROPS Isolator, Rip-Cord Tag, Ring, Insert, Spacer, Window, Weather Strip, Bulb Seal |
| Rops/FOPS Structure(Non-Hvac | 17 | Foam Side Seal, Foam Bottom Seal, Non A/c Headliner, Gas Spring, Upper ROPS Cover |
| Rops/FOPS Structure(Hvac Completing | 18 | Gas Spring, Foam Side Seal, Foam Bottom Seal, Duct A/c Headliner, Clamping Knob, Fan Speed Label, HVAC Housing |
| Rops/FOPS Structure(Heater-Only | 19 | Gas Spring, Foam Side Seal, Foam Bottom Seal, Duct A/c Headliner, Clamping Knob, Fan Speed Label, HVAC Housing |
| Restraint Bar | 20 | Retaining Ring, Pivot Bushing, Proximity Switch, Switch Magnet, Left Armrest, Tube, Extension Spring, Armrest Rail |
| Seats(Non-Suspension | 21 | Seat, Seat Belt Bracket, Harness, Nut |
| Seats(Standard and Suspension | 22 | Suspension Seat, Air Suspension Seat, Spring & Saddle Kit, Slide Kit, Cushion Vinyl Kit, Back Panel Kit, Water Drain, Wire Harness |
| Seats-Seat Belt Option | 23 | Retractor Mount Tab, Seat Belt Assy, Nut, Screw |
| Seats-Three-Point Restraint Seat Belt Option | 24 | Retractor Mount Tab, Spacer, Restraint Assy, Nut |

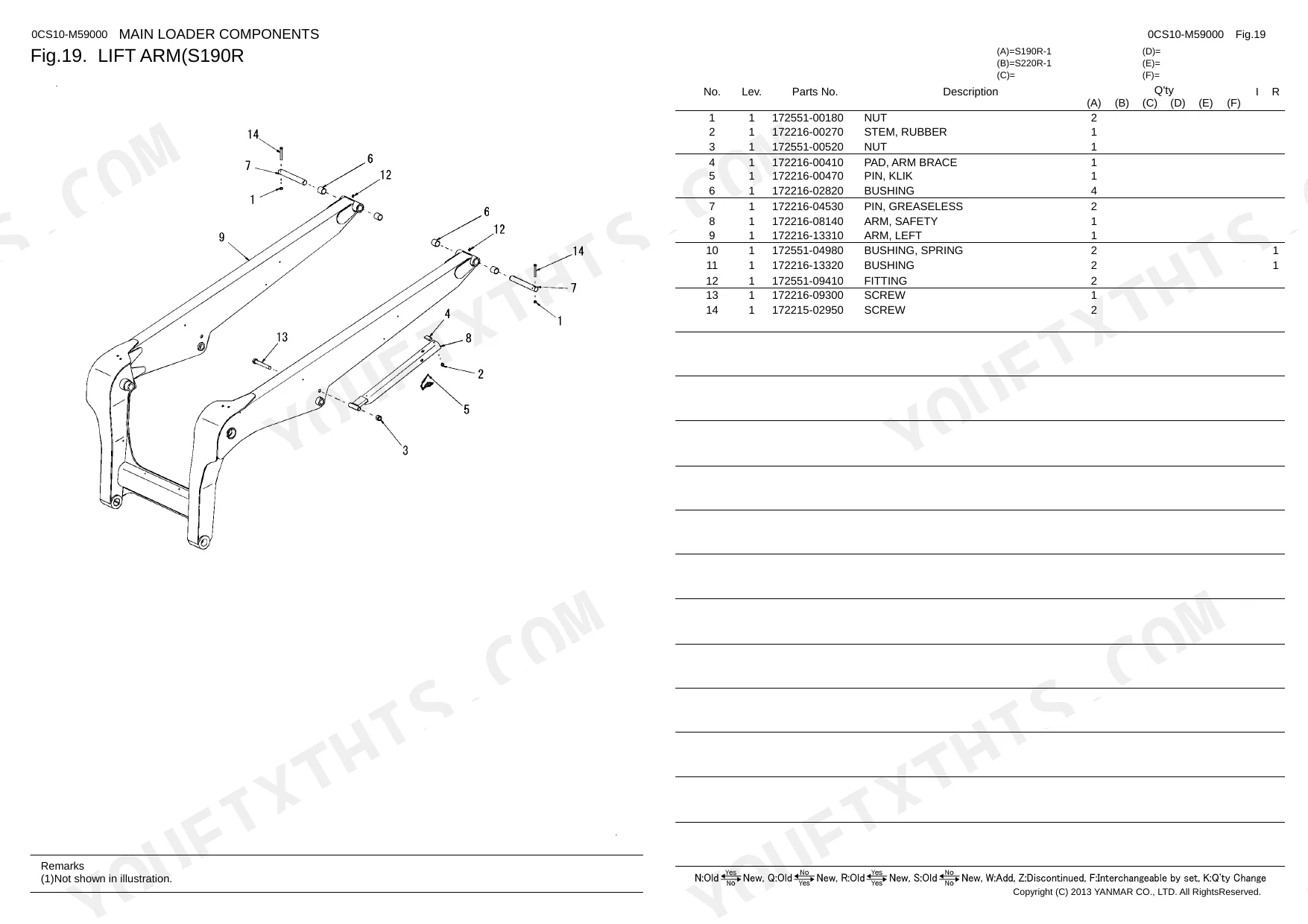

| Lift Arm(S190R | 25 | Rubber Stem, Arm Brace Pad, Bushing, Safety Arm, Left Arm, Spring Bushing, Fitting |
| Lift Arm(S220R | 26 | Rubber Stem, Arm Brace Pad, Safety Arm, Left Arm, Bushing, Fitting |
| Attachment Bracket(S190R Manual Quick Coupler | 27 | Quick Coupler, Grease Cap, Latch Link, Fitting, Zerk, Spring Stop Link, Spring Slide Link, Adjustable End Link |
| Attachment Bracket(S220R Manual Quick Coupler | 28 | Grease Cap, Link Latch, Quick Coupler, Fitting, Spring, Handle Pivot, Adjustable End Link, Spring Slide Link |
| Attachment Bracket(S190R Hydraulic Quick Coupler Hitch | 29 | Fitting, Connector, Plate, Quick Coupler Label, Latching Label, Quick Coupler Valve, Quick Coupler Tube, Quick Coupler Brkt |
| Attachment Bracket(S220R Hydraulic Quick Coupler Hitch | 30 | Fitting, Connector, Plate, Quick Coupler Label, Latching Label, Hydraulic Cylinder, Seal Kit, Spring Slide Link |

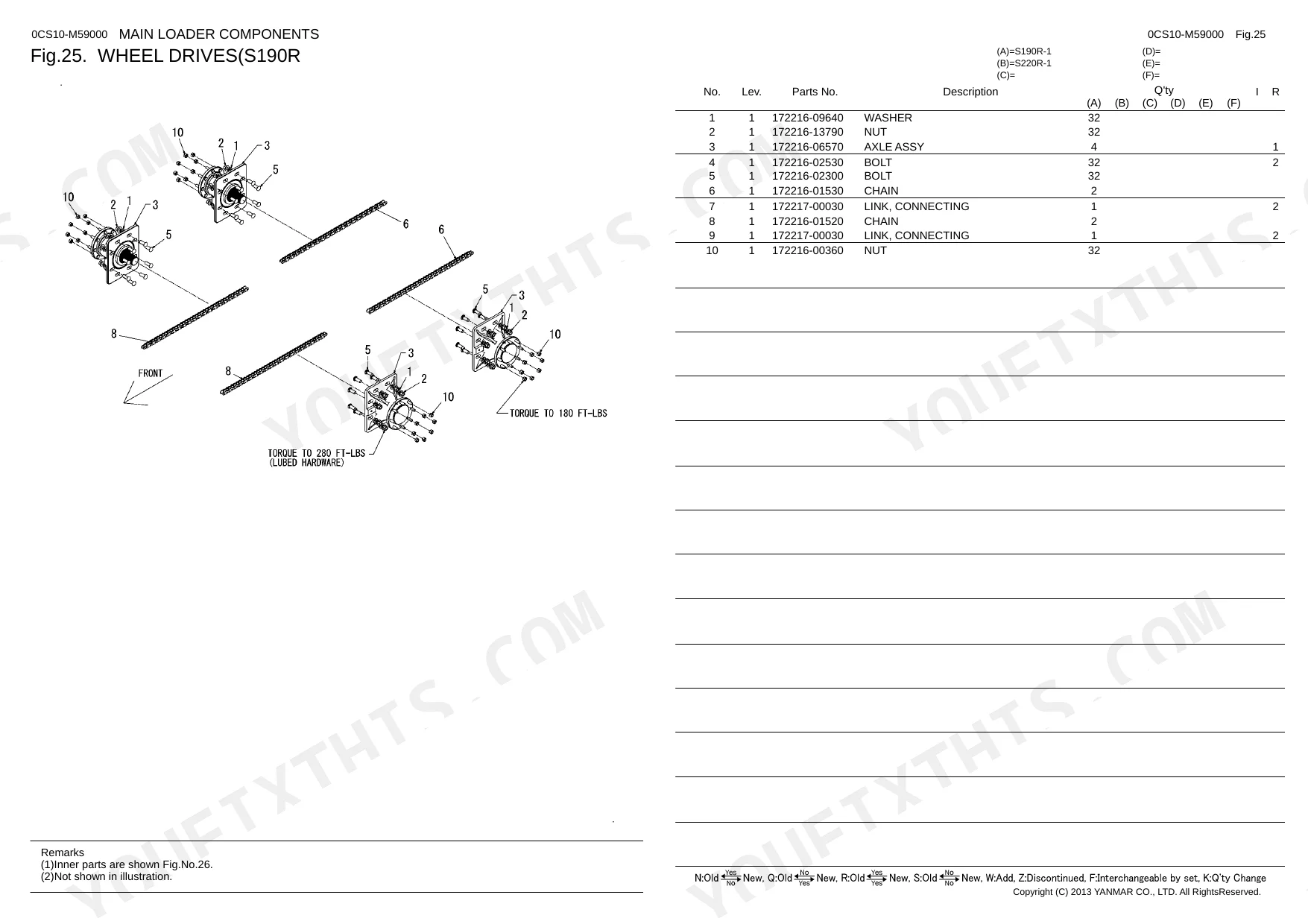

| Wheel Drives(S190R | 31 | Axle Assy, Chain, Connecting Link, Washer |
| Wheel Drives(S190R Axle Assembly | 32 | Bearing Cup, Bearing Cone, Axle Housing, Axle Assy, Retaining Ring, Axle Seal |
| Wheel Drives(S190R | 33 | - |
| Wheel Drives(S220R | 34 | Chain, Connecting Link, Sprocket Assy, Axle Assy |
| Wheel Drives(S220R Axle Assembly | 35 | Bearing Cup, Bearing Cone, Axle Housing, Axle & Bolt Assy, Retaining Ring, Axle Seal |

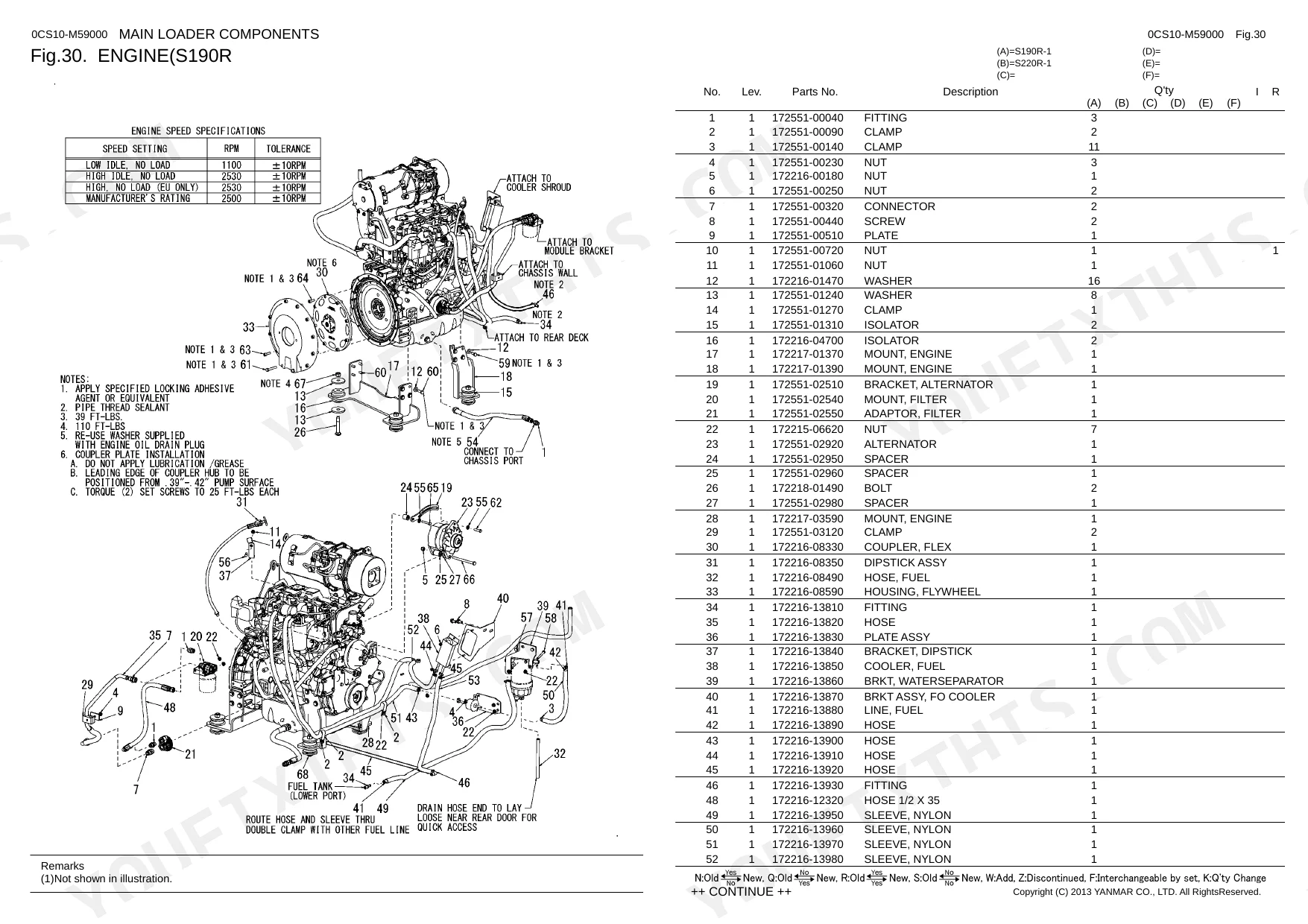

| Engine(S190R | 36-37 | Fitting, Connector, Plate, Isolator, Engine Mount, Alternator Bracket, Filter Mount, Filter Adaptor |
| Engine(S220R | 38-39 | Fitting, Connector, Isolator, Engine Mount, Alternator Bracket, Filter Mount, Filter Adaptor, Dipstick Assy |
| Air Cleaner and Exhaust(S190R | 40 | Elbow, Hose Coupling, Clanp, Air Cleaner Assy, Air Filter, Evacuator Valve, Air Cleaner Cap, Sound Diffuser |
| Air Cleaner and Exhaust(S220R | 41 | Clanp, Service Indicator, Air Cleaner, Main Filter, Secondary Filter, Intake Adapter, Intake Tube, Exhaust Pipe |
| Radiator/Cooler(S190R | 42 | Connector, Hose, Fuel Hose, Bulb Seal, Rad, Upper Hose, Fan, Fan Spacer, Rad Cooler |
| Radiator/Cooler(S220R | 43 | Connector, Hose, Fuel Hose, Bulb Seal, Cooler Mount Plate, Cover Plate, Fan Spacer, Shroud |

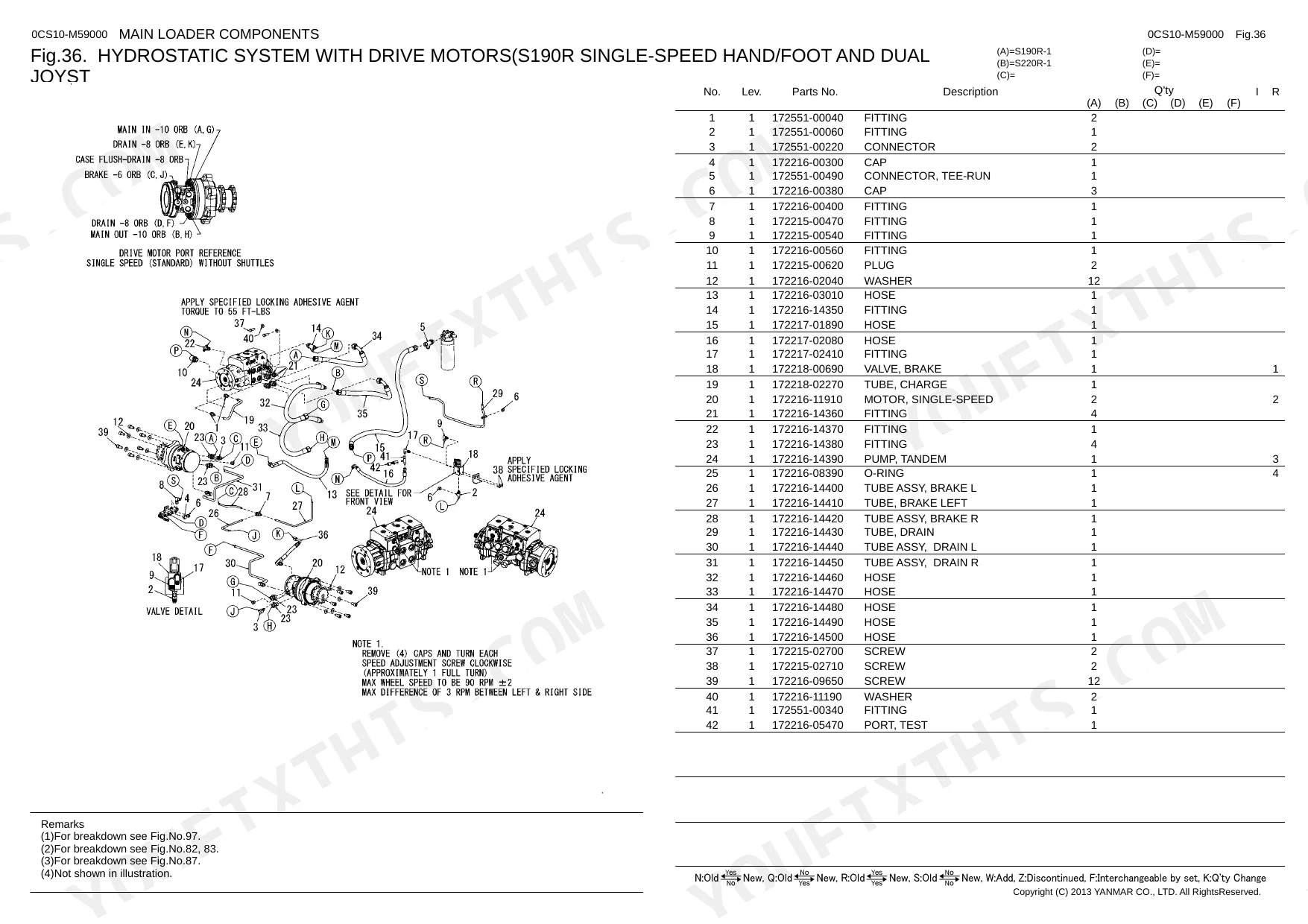

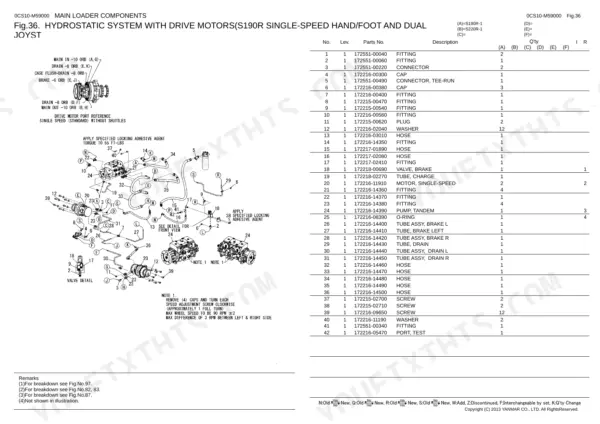

| Hydrostatic System with Drive Motors(S190R Single-Speed Hand/Foot and Dual Joyst | 44 | Fitting, Connector, Cap, Tee-Run Connector, Hose, Brake Valve, Charge Tube, Single-Speed Motor |
| Hydrostatic System with Drive Motors(S190R Two-Speed Hand/Foot and Dual Joystick | 45 | Fitting, Tee-Run Connector, Cap, Connector, Drain Tube, Hose, Two-Speed R Motor, Two-Speed L Motor |
| Hydrostatic System with Drive Motors(S220R Single-Speed Hand/Foot and Dual Joyst | 46 | Fitting, Cap, Connector, Drain Tube, Hose, Motor L Tube Assy, Singlespeed R Motor, Singlespeed L Motor |
| Hydrostatic System with Drive Motors(S220R Two-Speed Hand/Foot and Dual Joystick | 47 | Fitting, Cap, Connector, Drain Tube, Hose, Two-Speed R Motor, Two-Speed L Motor, Motor L Tube Assy |
| Hydraulics-Chassis(S190R Tank Hydraulics | 48 | Connector, Tee-Run Connector, Hydraulic Reservoir Cap, Fitting, Breather, Temperature Switch, Sight Port, Filter Tube |
| Hydraulics-Chassis(S220R Tank Hydraulics | 49 | Connector, Tee-Run Connector, Hydraulic Reservoir Cap, Fitting, Breather, Temperature Switch, Sight Port, Filter Assy |
| Hydraulics-Chassis(Ride Control Assembly | 50 | Fitting, Ride Cntrl Manifold, Accumulator, Spacer Plate, Ride Control Tube, Hose |
| Hydraulics-Chassis(S190R Standard Auxiliary Hydraulics Hand/Foot and Dual Joysti | 51 | Fitting, Connector, Gear Pump, Hose, Solenoid 3WAY Valve, Hyd Pilot Tube, Strap, Hyd Drain Tube |
| Hydraulics-Chassis(S220R Standard Auxiliary Hydraulics Hand/Foot and Dual Joysti | 52 | Fitting, Connector, Hose, Solenoid 3WAY Valve, Hyd Pilot Tube, Strap, Hyd Drain Tube, Valve Bracket |
| Hydraulics-Chassis(S190R High-Flow Auxiliary Hydraulics Dual Joystick and Hand/F | 53 | Fitting, Connector, Hose, Twin Flat Plate, -Spool Pilot Valve, Solenoid 3WAY Valve, Hyd Pilot Tube, Strap |
| Hydraulics-Chassis(S220R High-Flow Auxiliary Hydraulics Dual Joystick and Hand/F | 54 | Fitting, Connector, Hose, Plate, -Spool Pilot Valve, Solenoid 3WAY Valve, Hyd Pilot Tube, Strap |
| Hydraulics-Chassis(Hand/Foot and Dual Joystick Controls with Self-Leveling | 55 | Fitting, Connector, Plate, Spacer, Harness Bracket, Twin Flat Plate, Self-Level Valve, Hyd Lift Tube |
| Hydraulics-Chassis(Hand/Foot and Dual Joystick Controls Without Self-Leveling | 56 | Plate, Harness Bracket, Twin Flat Plate, Hyd Lift Tube, Hyd Std Aux Tube, Hyd Tilt Tube |
| Hydraulics-Lift Arm(S190R | 57 | Fitting, Plate, Lift Cylinder Tube, Liftcylinder R Tube, Liftcylinder L Tube, Hose, Twin Flat Plate, Tilt Cylinder |
| Hydraulics-Lift Arm(S220R | 58 | Fitting, Plate, Lift Cylinder Tube, Liftcylinder R Tube, Liftcylinder L Tube, Crossmember Tube, Hose, Tilt Tube |
| Hydraulics-Lift Arm(S190R High-Flow | 59 | Fitting, Std-aux/drain Tube, Aux Coupler Cover, Hi-Flow Upper Tube, Hi-Flow Lower Tube, Hose, Coupler Block |
| Hydraulics-Lift Arm(S220R High-Flow | 60 | Fitting, Aux Upper Tube, Highflow Lower Tube, Hose, Drain Aux Tube, Coupler Block |
| Controls-Wheel Drives-Lift/Tilt(Hand/Foot Controls | 61-62 | Fitting, Retaining Ring, Connector, Foot Pedal, Tee Fitting, Strip, Pivot Bushing, Hose |
| Controls-Wheel Drives-Lift/Tilt(Dual Joystick Controls | 63-64 | Fitting, Cable Tie, Retaining Ring, Connector, Pivot Bushing, Drive Joystick, -Pin Wedge, Ratchet Handle |
| Controls-Engine(Electric Throttle Sensor Dual Joystick Controls | 65 | Pivot Bushing, Throttle Bracket, Threaded Rod, Throttle Body, Throttle Link, Throttle Pedal, Spring |
| Electrical-Chassis | 66 | Cable Tie, Battery Rod, Face Plate, Battery Decal, Flange, Horn, Switch, Solenoid |
| Electrical-Chassis(Ride Control/Two-Speed Assembly | 67 | Flange, Module, 2-Speed |
| Electrical-Rops/FOPS | 68 | Cable Tie, Dome Light, Auxiliary Power, Cover, Interlock Module, Ignition Switch, Instrument, L Panel, Panel Crosspiece |
| Electrical-Rops/Fops(Standard Light Harness with Self-Leveling | 69 | Harness, Cab Lighting, Switch, Flasher |
| Electrical-Lights | 70 | Cable Tie, White, 55W Light, Taillight Harness, Red, 35W Light, Wire Harness Clip, Grommet, W Bulb |
| Electrical-Engine(S190R | 71 | Cable, Cable Tie, Alternator Wire, Pos Batt Cable, Engine Harness, Harness Retainer, Housing Bracket, Eng Harness Bracket |
| Electrical-Engine(S220R | 72 | Cable, Cable Tie, Alternator Wire, Pos Batt Cable, Engine Harness, Housing Bracket, Eng Harness Bracket, Battery Cable Loom |
| Electrical-Control(High Flow Control/Two-Speed Control | 73 | Flange, High Flow Switch, High-Flow Controller, Lamp Bulb, -Speed Module |
| Electrical-14-Pin Auxiliary Connector(S190R | 74 | Cable Tie, -Pin Aux Harness, Relay Box Harness, -Pin Aux Handle, Relay Box Cover, Relay Box Chassis, Diode Block, Breaker a |
| Electrical-14-Pin Auxiliary Connector(S220R | 75 | Cable Tie, -Pin Aux Harness, Relay Box Harness, -Pin Aux Handle, Connector Mount, Relay Box Cover, Relay Box Chassis, Diode Block |
| Four-Point Lift | 76 | Lift Point Label, Point Lift Eye, Bolt, Nut |
| Sound Suppression(S190R Standard | 77 | Seat Pan Foam, ROPS Back Foam, Gear Pump Pad, Crossmember Pad, Left Panel, Right Panel, Sound Panel L Pad, Sound Panel R Pad |
| Sound Suppression(S190R Deluxe(Optional) | 78 | Chassis R Lower Pad, Chassis R Upper Pad, Chassis, Bottom Pad, Engine Cover Pad |
| Sound Suppression(S220R Standard | 79 | Seat Pan Foam, ROPS Back Foam, Gear Pump Pad, Crossmember Pad, Left Panel, Right Panel, Sound Panel L Pad, Sound Panel R Pad |
| Sound Suppression(S220R Deluxe(Optional) | 80 | Tower R Upper Pad, Tower R Lower Pad, Tower R Middle Pad, Engine Cover Pad, R Upper Fwrd Pad |
| Tires | 81 | Wheel Assy, Tire and Rim, Wheel Sold Flex Assy |
| 132.Brake Release(S190R | 82 | Cable Tie, Connector, Fitting, Jack Label, Hose Protector, Brake Release Valve, Handle Tube, Park Brake Label |
| 133.Brake Release(S220R | 83 | Cable Tie, Connector, Fitting, Jack Label, Hose Protector, Brake Release Valve, Handle Tube, Park Brake Label |
| Decals(1 | 84 | Strip, Red Reflector, Keep Out Label, Tiedown Point Label, ROPS Lock Decal, Label, S190R Right Decal, S190R Left Decal |
| Decals(2 | 85 | Hydraulic Label, Diesel Fuel Label, Warning Label, Fuel Decal, Pdm Fuse Relay Decal, Red Label, Yanmar Badge |
| Decals(3 | 86 | Danger Hot Decal, Warning Label, Tiedown Point Label, Danger Fan Decal, Joystick Right Decal, Joystick Left Label |
| Decals(4 | 87 | No Riders Label, Lock Label, Service Na Decal, Service Turbo Decal, Attach Brt Decal, Latching Decal, Capacity Plate, Serial Yanmar Plate |
| Decals(5 | 88 | Rip-Cord Tag, Ring, Flag Label, Warning Label, A/c Label, High-Flow Label |
| Decals(6 | 89 | Accelerator Label, Ignition Label, Safety Label, Panel ROPS Decal |
| Lift Cylinder(S190R | 90 | Lift Cylinder, Lift Cylinder Tube, Piston, Head Gland, Lift Cylinder Rod, Bushing, Zerk, Fitting |
| Lift Cylinder(S220R | 91 | Lift Cylinder, Lift Cylinder Tube, Piston, Head Gland, Lift Cylinder Rod, Bushing, Zerk, Fitting |
| Tilt Cylinder(S190R | 92 | Tilt Cylinder, Tube Weldment, Piston, Head Gland, Rod Weldment, Bushing, Polylube Bearing, Zerk |
| Tilt Cylinder(S220R | 93 | Tilt Cylinder, Tilt Cylinder Tube, Piston, Head Gland, Tilt Cylinder Rod, Bushing, Zerk, Seal Kit |
| Drive Motors(S190R Single-Speed | 94 | Single-Speed Motor, Seal Kit, Seal Motor Kit, Seal Brake Kit, Seal Cover Kit, Motor Shaft, Roller Bearing, Cylinder Assy Block |
| Drive Motors(S190R Single-Speed | 95 | Single-Speed Motor, Seal Cover Kit, Seal Valving Kit, Valving, Spring Set, Valving Cover, Clips Kit, Piston Assy |
| Drive Motors(S220R Single-Speed | 96 | Singlespeed R Motor, Singlespeed L Motor, Block Clynder Assy, Valve Assy, Valving, Seal Kit, Spring, Shuttle Valving |
| Drive Motors(S190R Two-Speed | 97 | Two-Speed R Motor, Two-Speed L Motor, Block Clynder Assy, Valving Cover Assy, Valving Assy, Spool Assy, Support Assy, Earing Kit |
| Drive Motors(S220R Two-Speed | 98 | Two-Speed R Motor, Two-Speed L Motor, Block Clynder Assy, Valving Cover Assy, Valving Assy, Spool Assy, Support Assy, Earing Kit |
| Tandem Pump(Hand/Foot and Dual Joystick Pump | 99 | Tandem Pump, Rotary Group, Hydraulic Cntrol, Control Cartridge, Relief Valve, Gear/internal Pump, Roller Bearing, Coupler |
| Tandem Pump(Hand/Foot and Dual Joystick Tandem Pump/Engine End | 100 | Rotary Group, Drive Shaft Assy, Seeger-V-Ring, Bearing, Cradle Assy, Bearing Liner, Cradle Bearing, Rotary Right Group |
| Tandem Pump(Hand/Foot and Dual Joystick Tandem Pump/Gear Pump End | 101 | Rotary Group, Drive Shaft Assy, Seeger-V-Ring, Bearing, Cradle Assy, Bearing Liner, Cradle Bearing, Rotary Left Group |
| Gear Pump-Single(S190R Standard Auxiliary | 102 | Gear Pump, Flange Kit, Endcover, Seal Kit, Housing Kit |
| Gear Pump-Single(S220R Standard Auxiliary | 103 | Pump, Single, Seal Kit, Seal, Shaft |
| Gear Pump-Double(S190R High-Flow Auxiliary | 104 | Pump, Gear, Seal, Shaft, Seal Kit |
| Gear Pump-Double(S220R High-Flow Auxiliary | 105 | Pump, Gear, Seal, Shaft, Seal Kit |
| Self-Leveling Valve | 106 | Self-Level Valve, Coil, Valve, Adjustment Cap, Spring, Load Check, Seal Kit, Retaining Ring |
| Lift and Tilt Solenoid Valve(Solenoid | 107 | Solenoid Valve, Solenoid Valve Spool, Ccil, Nut |
| Lift and Tilt Solenoid Valve(Hydraulic Solenoid Three-Way | 108 | Solenoid 3WAY Valve, Solenoid Valve, Seal Kit, Screw |
| Solenoid Valves-Brake, Joystick Supply and Brake Release(Single-Speed | 109 | Brake Valve, Cartridge, Coil, Seal Kit |
| Solenoid Valves-Brake, Joystick Supply and Brake Release(Two-Speed | 110 | Brake -Speed Valve, Cartridge, Coil, Seal Kit |
| Solenoid Valves-Brake, Joystick Supply and Brake Release(Joystick Supply | 111 | Joystick Valve, Cartridge, Coil, Seal Kit |
| 100.Main Control Valve(Standard Control Valve-Hand/Foot and Dual Joystick Controls | 112 | -Spool Pilot Valve, Elechyd F Spool Kit, Anterior Hydraulic Cntrl, Main Relief, Rear Hydraulic Control, Hyd Command Bar, Elechyd R Spool Kit, Relief Port |
| 101.Main Control Valve(High-Flow Control Valve-Hand/Foot and Dual Joystick Controls | 113 | -Spool Pilot Valve, Main Relief, Anterior Hydraulic Cntrl, Elec Hyd Spool, Check Valve, Rear Hydraulic Control, Hyd Command Bar, Relief Port |
| 102.Ride Control Manifold | 114 | Ride Cntrl Manifold, Coil, Cartridge |
| 103.Condensor, Heater Housing and HVAC Housing Assembly | 115 | HVAC Housing Assy, Heater Hosing Assy, Flange, Preset Switch, Blower Assy, Sealed Relay, Evaporator, Heater Core |
| 104.Foot Valve | 116 | Foot Valve, Kinemamtic Kit, Curve Kit, Valve Body |
| 105.Counterweight Kit | 117 | Counterweight Kit, Cast Counterweight, Nut, Screw |
| 106.Auxiliary Coupler Service Kits | 118 | Coupler Block, Male Q-Coupler Kit, Female Q-Coupler Kit, Q-Coupler Kit Return, 4SAE Fitting Kit |
| 107.Warning Lamp Kit | 119 | Warning Lamp Kit, Warning Lamp Switch, 12V Socket, Socket Mtg Brkt, Beacon with Bulb |
| 108.Rearview Mirror Kit | 120 | Rearview Mirror Kit, Mirror, Mirror Plate, Screw |
| 109.Am/Fm Radio Kit | 121 | Radio Kit, Radio Mnt Assy, Speaker RH Housing, Speaker LH Housing, Speaker Mount, Radio Package, Radio Mnt Template, Wire Radio Harness |
| 110.3-Point Restraint-2Inch Seat Belt | 122 | Seat Belt, Restraint Assy, Shoulder Bolt Group, Retractor Mount Tab |
| 111.3-Point Restraint-3Inch Seat Belt | 123 | Seat Belt, Restraint Assy, Shoulder Bolt Group, Retractor Mount Tab |
| 112.Engine Block Heater Kit | 124 | Block Heater, Heater Cord, Cable Tie |

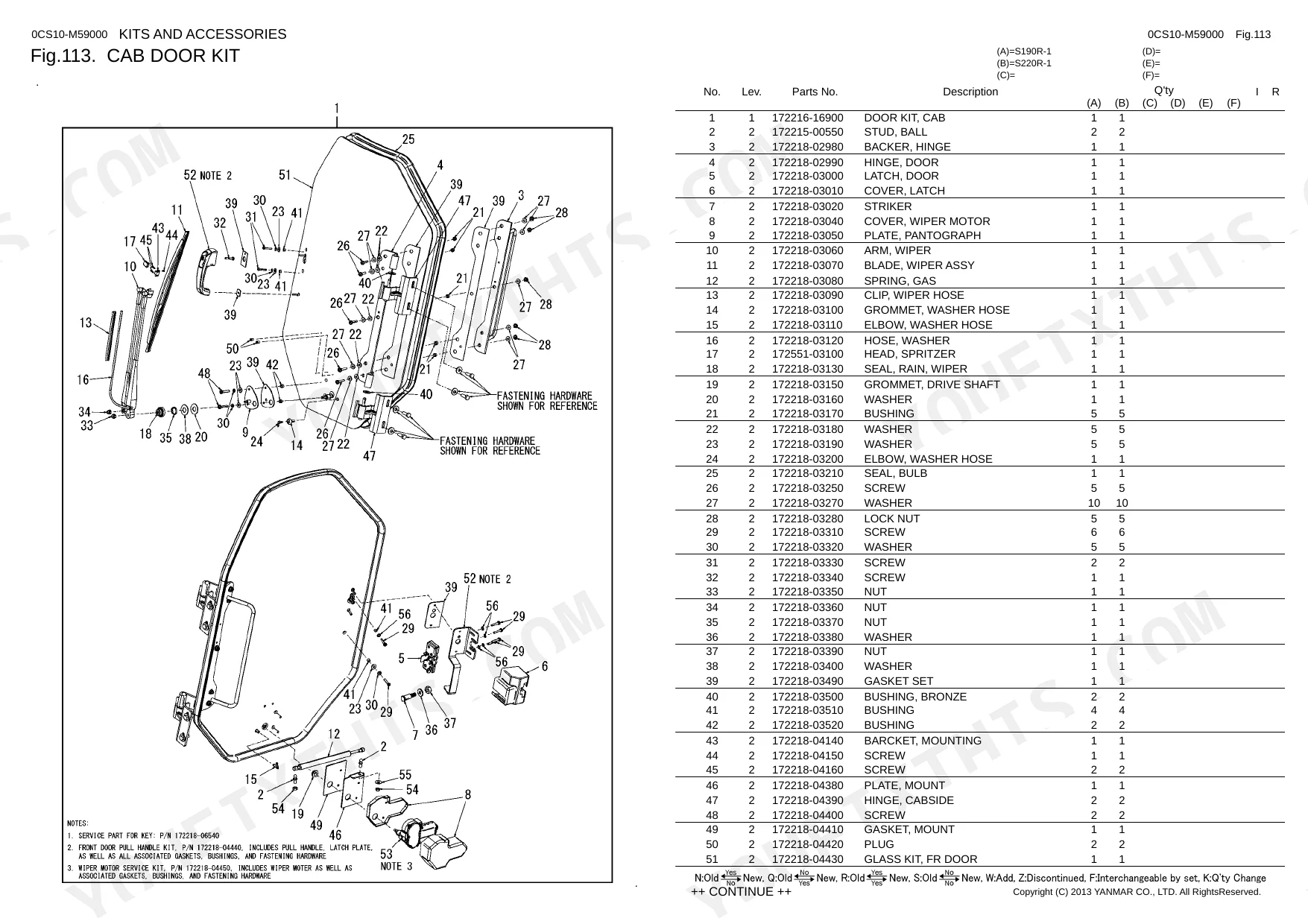

| 113.Cab Door Kit | 125-126 | Cab Door Kit, Hinge Backer, Door Hinge, Door Latch, Latch Cover, Striker, Wiper Motor Cover, Pantograph Plate |
| 114.Cab Door Kit(Door Completing Package | 127 | Cable Tie, Wiper-Washer Switch, Door Harness, Hose Barb, Proximity Sensor, Switch Bracket, Hose, Reservoir |
| 115.Side Window Kit | 128 | Side Window Kit, Right Window Assy, Striker, Latch Assy, Slide Rail, Window Seal, Window, Window RH Frame |
| 116.Seat Belt Kit(2Inch | 129 | Seat Belt, Retractor Mount Tab, Nut, Screw |
| 117.Seat Belt Kit(3Inch | 130 | Seat Belt, Retractor Mount Tab, Nut, Screw |
| 118.Seat Kit(Suspension | 131 | Suspension Seat, Nut, Seat, Suspension |
| 119.Seat Kit(Standard | 132 | Standard Seat, Seat Belt Bracket, Seat, Nut |
| 120.Universal Radio Kit | 133 | Radio Kit, Radio Antenna, Speaker/pair, Radio Install Kit, Radio Harness |
| 121.Pre-Cleaner Kit(S190R | 134 | Pre-Clener Kit, Pre-Cleaner, Pre-Cleaner Adaptor, Elbow, Air Intake Weldment, Hose |
| 122.Dual Flasher Kit | 135 | Dual Flasher Kit, Cable Tie, Warning Light Assy, Guard R Bracket, Guard L Bracket, Hazard Switch, Flasher Harness |
| 123.Impact-Resistant Door Kit(S220R | 136 | Door Kit, Cable Tie, Lexan Door Tab, Door Harness, Door Latch, Latch Cover, Striker, Handle Assy |
| 124.Four-Point Lift Kit | 137 | -Point Lift Kit, Lift Point Label, Point Lift Eye, Bolt |
| 125.Rear Wiper Kit | 138 | Rear Wiper Kit, Cable Tie, Window, Rear Wiper Motor, Wiper-Washer Switch, Wiper Motor Plate, Rear Wiper Harness, Spritzer Head |
| 126.Hydraulic Quick Coupler Kit(S190R | 139 | Quick Coupler Kit, Fitting, Connector, Plate, Quick Coupler Label, Latching Label, Quick Coupler Valve, Quick Coupler Tube |
| 127.Hydraulic Quick Coupler Kit(S220R | 140 | Quick Coupler Kit, Fitting, Connector, Plate, Link Latch, Quick Coupler Label, Latching Label, Hydraulic Cylinder |
| 128.Completing Kit for All Hydraulic Quick Coupler Kits | 141 | Chassis Assy, Fitting, Plate, Cap, Quick Coupler Label, Quick Coupler Valve, Quick Coupler Brkt, Quick Coupler Tube |
| 129.Cab Heater Kit | 142 | Cab Heater Kit, Fitting, Knob, Heater Switch, Flange, Solenoid Valve, A/c Control Module, Valve Bracket |
| 130.Cab Heater Completing Parts-Cab Heater Kit | 143 | Foam Side Seal, Foam Bottom Seal, Duct A/c Headliner, Clamping Knob, Fan Speed Label, HVAC Housing, Gas Spring |
| 131.Impact-Resistant Front Door Kit(S190R | 144 | Resistant Kit, Cable Tie, Lexan Door Tab, Door Harness, Door Latch, Latch Cover, Striker, Handle Assy |
Yanmar S190R, S220R Common Problems This Manual Covers
Yanmar S190R auxiliary electrical connector has no power and needs a replacement breaker p. 74
Inspect the electrical 14-pin auxiliary connector diagram on page 74. Locate the relay box harness and the 15-amp breaker in the diode block assembly. Verify your specific chassis serial number against the parts list before ordering the replacement harness.
Manual Section: Electrical-14-Pin Auxiliary Connector(S190RFront work lights are burnt out or broken and need new housings p. 70
Check the electrical lights breakdown on page 70. Find the exact part number for the white 55W light assembly and the corresponding cable ties. Cross-reference the taillight harness components to ensure you order the complete matching set for your machine.
Manual Section: Electrical-LightsOperator seat belt is frayed, locked up, or fails to retract properly before operation p. 122
Review the 3-point restraint parts list on page 122. Identify the correct 2-inch seat belt and restraint assembly for your specific seat type. Check the shoulder bolt group and retractor mount tab part numbers to replace all worn mounting hardware.
Manual Section: 110.3-Point Restraint-2Inch Seat BeltHigh flow auxiliary hydraulics are weak and control valve drops pressure under load p. 113
Inspect the high-flow control valve diagram on page 113. Locate the 4-spool pilot valve and main relief components. Match the electronic hydraulic spool part numbers to your exact unit to ensure you get the correct seals and fittings.
Manual Section: 101.Main Control Valve(High-Flow Control Valve-Hand/Foot and Dual Joystick ControlsFrequently Asked Questions
What are the torque specs for YANMAR S190R or S220R wheel/track, engine, or loader components?
For YANMAR S190R and S220R models, the wheel drives require a torque of 190 FT-LBS (LUBED HARDWARE). Additionally, for engine components, specifically two set screws, the torque specification is 25 FT-LBS EACH. For a fitting in the chassis hydraulic quick coupler, apply specified locking adhesive agent and torque to 55 FT-LBS.
How do you fix yanmar S190R auxiliary electrical connector has no power and needs a replacement breaker?
Inspect the electrical 14-pin auxiliary connector diagram on page 74. Locate the relay box harness and the 15-amp breaker in the diode block assembly. Verify your specific chassis serial number against the parts list before ordering the replacement harness.
How do you fix front work lights are burnt out or broken and need new housings?
Check the electrical lights breakdown on page 70. Find the exact part number for the white 55W light assembly and the corresponding cable ties. Cross-reference the taillight harness components to ensure you order the complete matching set for your machine.
How do you fix operator seat belt is frayed, locked up, or fails to retract properly before operation?
Review the 3-point restraint parts list on page 122. Identify the correct 2-inch seat belt and restraint assembly for your specific seat type. Check the shoulder bolt group and retractor mount tab part numbers to replace all worn mounting hardware.
What do I get after purchasing this Yanmar S190R, S220R manual?
This is a 158-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this Yanmar S190R, S220R Parts Catalog printable?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
