All 102 pages of this Yanmar SV08 Parts Catalog (OEM #0CK10-M37402EN) map every assembly on your crawler back-hoe: 2TNE68-EBVA engine components, full hydraulic system, drivetrain, electrical parts, and implement hardware for both JP and EX variants. You get exploded-view diagrams with factory part numbers across every system: boom and arm cylinders, travel and turning motors, swivel joints, and multi-section control valves in fixed and variable leg configurations. A detailed hydraulic piping section traces every line from tank to pump to control valve, so you can identify the exact fitting or hose before you order. The electrical section lists the 40A main fuse and 12V 3.4W bulb ratings alongside component-level part numbers. Your machine is down and the parts counter needs the OEM number now. Bookmarked by assembly and searchable by keyword, open it on any device and get the right part number before you waste a trip.
What's Inside This Yanmar SV08 (JP), SV08 (EX), SV08, 2TNE68-EBVA Parts Manual

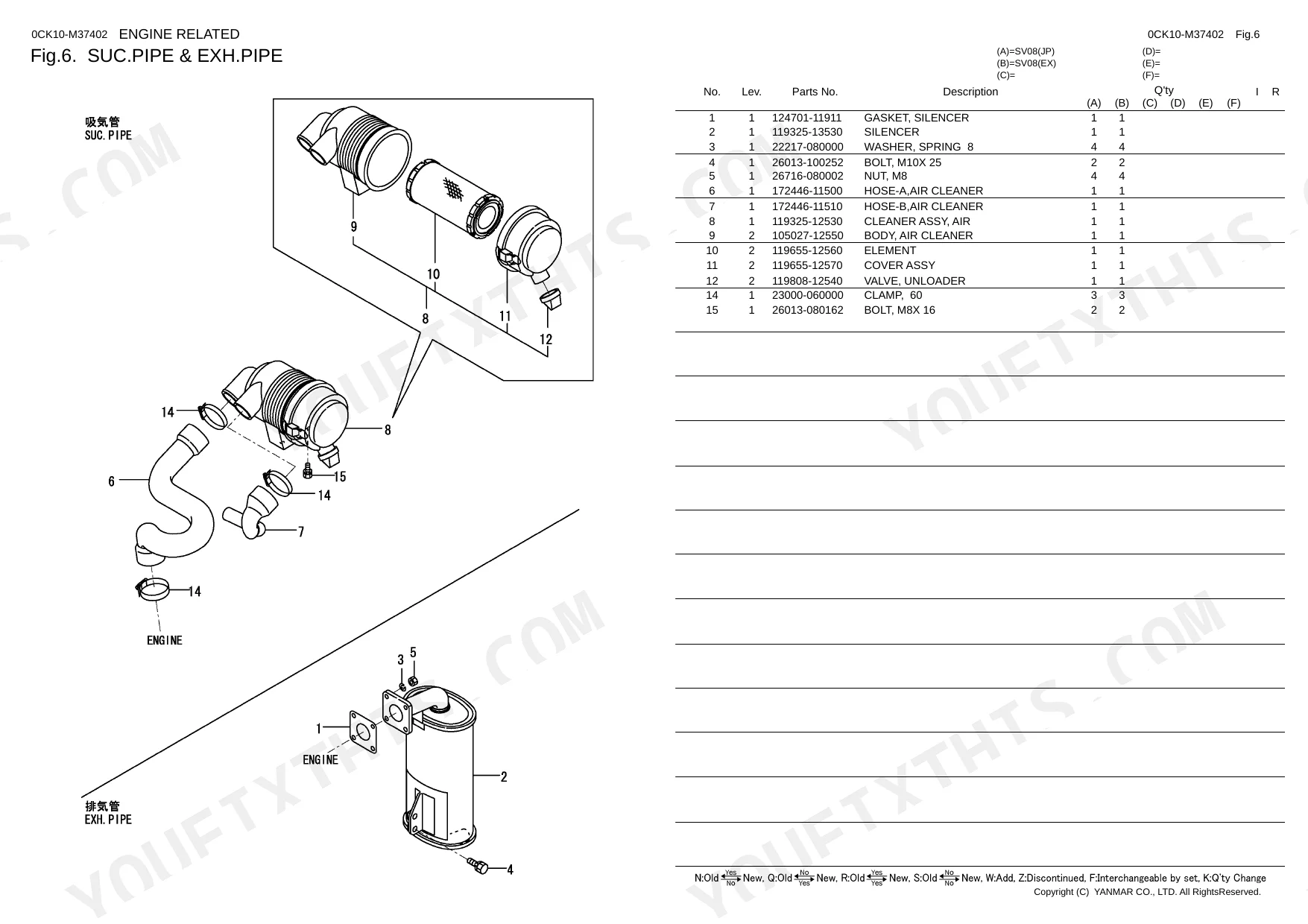

| System | Pages | Key Topics |
|---|---|---|
| Reference Materials | 2-6 | Fuel Injection Pump, Fuel Injection Pump N, Camshaft, Roller Bearing, Retainer |
| Label(Jp) | 10 | SV08 Jp Label Set, Soecification Label, Label N, Specification N Label, Oil & Water Label, Label, Label R, Caution Label |
| Label(Ex) | 11-12 | Label Set SV08 Ex, Label, Brand Label, Caution Tag Assy, Grease Us Label, Lock Label, Hydraulic Oil Us Label, Turning Lock Label |
| Safety Label(Jp) | 13 | Label, Label R, Caution Label, Lifting Label, Battery Label, Burn Label, Belt Label, Warning Label |
| Saefty Label(Ex) | 14-15 | Caution Tag Assy, Slope Label, Slope Us S Label, Hydraulic Oil Tank Label, Hydraulic Oil Tank R Label, Transport Label, Transport R Label, Transport Us S Label |
| Accessory | 16 | Bag, Manual, Sponge |
| Suc.Pipe & Exh.Pipe | 17 | Silencer Gasket, Silencer, Air Cleaner Hose-A, Air Cleaner Hose-B, Air Cleaner Assy, Air Cleaner Body, Element, Cover Assy |
| Accelerator | 18 | Accelerator Cable, Accelerator N Cable, Accel Lever, Accel Plate Assy, Arm Assy, Accelerator Grip, Collar, Spring |
| Engine Mount | 19 | Eng Mount Fl, Eng Mount Fr, Engine Stay, Shock Absorber, Stopper, Shock 290K Absober |
| Radiator & Mount | 20 | Radiator Mount, Radiator Seal, Shock Absober, Fan Guard, Radiator, Pressure Cap, Shroud Assy, Rubber Hose |
| Fuel Tank | 21 | Fuel Tank Assy, Fuel Strainer, Strainer Gasket, Tank Cap Assy, Vent Valve, Hose, Float, Rubber Plate |
| Fuel Line | 22 | Fuel Hose, Hose, Fuel Filter, Hose Clip |
| Battery | 23 | Battery Cord, Battery Mount, Rod |
| Electric Part(Wiring) | 24 | Nylon Band, Harness Wire, Wire N Harness, Diode, Stand Harness, Stand N Harness, Work Lamp Harness, Band |
| Electric Part(Equipment) | 25-26 | Fuse Bracket, Starter Switch Assy, Hour Meter, Insulator, Insulator N, 4P Fuse Cmp, Cover, B 10A Fuse |
| Sprocket & Roller | 27 | Sprocket, Sprocket N, Track Roller, Roller Shaft, TW254716 Seal, Ring |
| Crawler, Idler & Adjust | 28 | Idler Assy W, Idler Assy, Idler Shaft, QLN30X62X13 Seal, Ring, Slider Assy, Rubber Crawler |
| Control Equipment(Link Stand) | 29 | Grommet, Support Assy, Bush, Seal, Stand Cover Assy, Swivel Seal, Assist Bar, Stand Cover Seal |
| Control Equipment(Stopper) | 30 | Lever Knob, Lock Lever, Lock Link, Lock Pipe, Spring |
| Control Equipment(Boom & Bucket) | 31 | Lever Boot P, Knob Assy, Knob Assy Q, Lever R, Nc- Joint, Base Cmp, Arm, Spring |
| Control Equipment(Arm & Turning) | 32 | Lever Boot P, Knob Assy, Leber L, Link L, Nc- Joint, Rod, Elbow |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuse rating (Type B) | 10A | p. 25 |
| Fuse rating | 40A | p. 25 |
| Bulb voltage and wattage | 12V 3.4W | p. 25 |
| O-RING size | 1AP10.0 | p. 51 |
Yanmar SV08 (JP), SV08 (EX), SV08, 2TNE68-EBVA Common Problems This Manual Covers
Yanmar SV08 boom cylinder seal set part number unclear when placing a rebuild order p. 45
Open the Boom Cylinder exploded view on page 45. Locate the Seal Set line item in the parts list and note its reference number. Cross-check the arm and bucket cylinder seal sets on pages 46 and 47 to confirm you have the correct assembly for each circuit before ordering.
Manual Section: Boom CylinderTravel motor O-ring sizes and part numbers unconfirmed before ordering replacement seals p. 51
Check the Travel Motor parts list on page 51. Three O-ring sizes are called out: 1AP10.0, 1BP14.0, and 1BP18.0. Verify your machine's serial number falls within the effective range shown in the reference columns before ordering. These sizes apply to SV08 (JP) and SV08 (EX) models only.
Manual Section: Travel MotorSprocket and roller part numbers hard to confirm after undercarriage wear inspection p. 27
Pull the Sprocket & Roller exploded view on page 27. Match each worn component to its reference number in the parts list. Then check the Crawler, Idler & Adjust section on page 28 to identify tension adjustment and idler components that may also need replacement as a set.
Manual Section: Sprocket & RollerBlown fuse rating and part number unknown when the electrical system won't power up p. 25
Check the Electric Part(Equipment) section on page 25. Two fuse ratings are listed for SV08 (JP) and SV08 (EX): 10A (Type B) and 40A. Verify which circuit is affected, then cross-reference the wiring diagram on page 24 to confirm which fuse position corresponds to the failed circuit.
Manual Section: Electric Part(Equipment)Hydraulic oil tank suction strainer and return filter part numbers needed for scheduled service p. 70
Open the Hyd.Oil Tank exploded view on page 70. The parts list identifies both the suction strainer and return filter as separate line items with individual reference numbers. Cross-reference the hydraulic piping section on page 71 to confirm connector and hose part numbers if the tank-to-pump line is also being replaced.
Manual Section: Hyd.Oil TankBucket arm link pin and bushing part numbers unclear when ordering worn attachment hardware p. 88
Find the Bucket Arm & Link exploded view on page 88. Each pin and bushing position carries its own reference number in the parts list. Check the Greasing section on page 84 to identify which grease points correspond to the pin locations you are replacing, so you order all hardware in the affected joint.
Manual Section: Bucket Arm & LinkFrequently Asked Questions
What are the replacement specifications for Hydraulic oil filter?
The replacement specification for the hydraulic oil filter element is part number 172156-73710. Additionally, a suction filter is listed with part number 172446-73700 or 172480-73700.
How do you fix yanmar SV08 boom cylinder seal set part number unclear when placing a rebuild order?
Open the Boom Cylinder exploded view on page 45. Locate the Seal Set line item in the parts list and note its reference number. Cross-check the arm and bucket cylinder seal sets on pages 46 and 47 to confirm you have the correct assembly for each circuit before ordering.

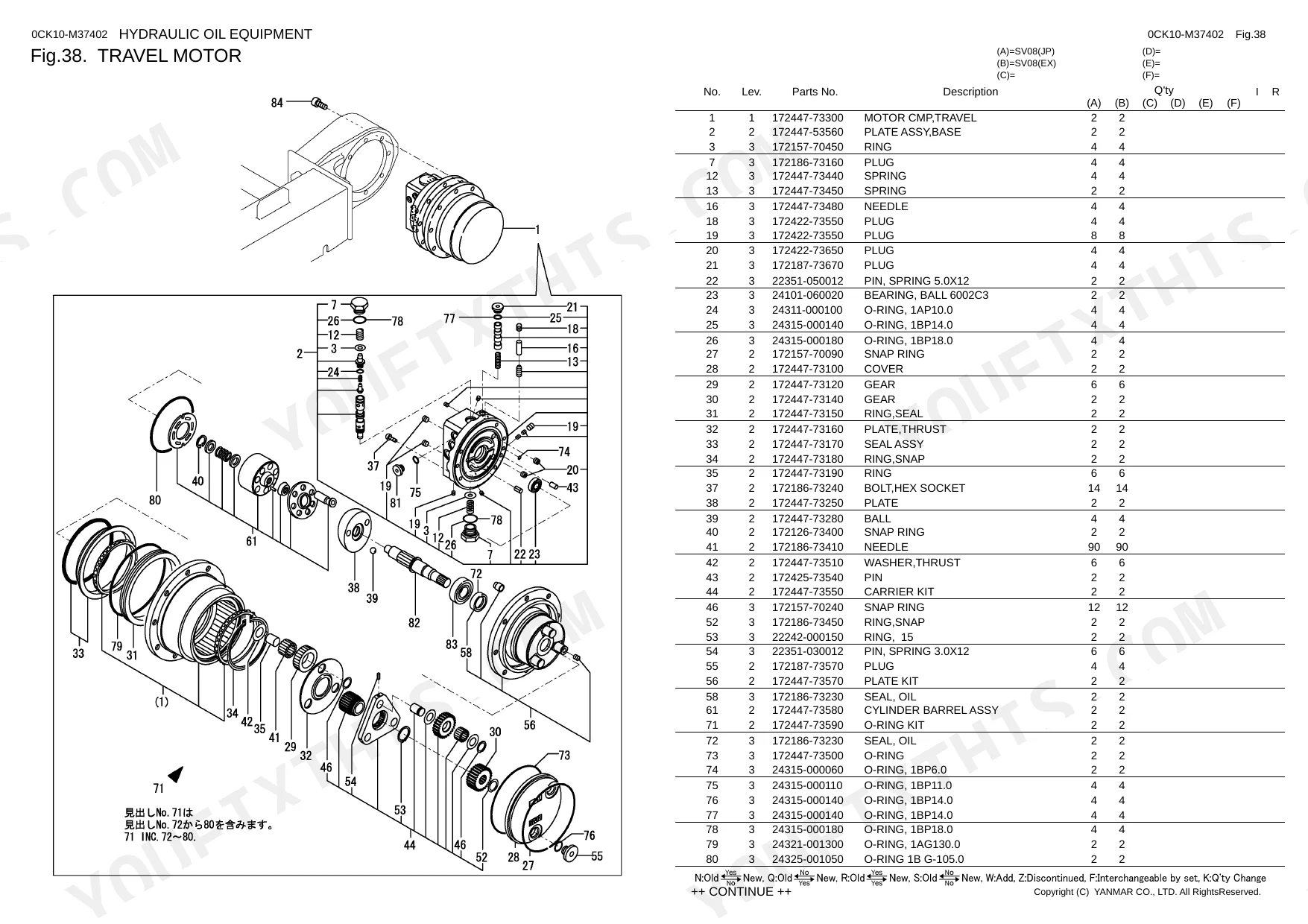

How do you fix travel motor O-ring sizes and part numbers unconfirmed before ordering replacement seals?
Check the Travel Motor parts list on page 51. Three O-ring sizes are called out: 1AP10.0, 1BP14.0, and 1BP18.0. Verify your machine's serial number falls within the effective range shown in the reference columns before ordering. These sizes apply to SV08 (JP) and SV08 (EX) models only.
How do you fix sprocket and roller part numbers hard to confirm after undercarriage wear inspection?
Pull the Sprocket & Roller exploded view on page 27. Match each worn component to its reference number in the parts list. Then check the Crawler, Idler & Adjust section on page 28 to identify tension adjustment and idler components that may also need replacement as a set.
Is this manual a digital?
You get a 102-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy text throughout. The text is generally crisp and clear, making it easy to read. Diagrams and illustrations are raster images, which remain readable, and their labels are clear. Pages are clean with no noticeable scan artifacts, stains, or skewed content. Be aware that some table sections, particularly on pages like 15 and 16, contain minimal or no part information.
