Need the factory-correct Yanmar SV08 parts manual PDF for your crawler backhoe? This 157-page Parts Catalog covers the SV08, SV08 (JP), and SV08 (EX) variants, complete with exploded views and genuine OEM part numbers to get your order right the first time. Open to the picturesque index and you get a visual map of every assembly: engine, hydraulics, drivetrain, chassis, and boom, each broken out with individual reference numbers and interchangeability marks. The wiring diagram section lays out the full electrical schematic: battery, starting switch, fuses, indicator lamps, horn, and glow resistor, with a part number for every component. Confirm you're ordering for the right variant: the specs page lists max digging depth at 1500 mm and generator output at 12V/9A. Wrong part, wasted trip. Grab the PDF, use the bookmarks to jump straight to your system, and have the OEM number ready before you call the counter.
What's Inside This Yanmar SV08 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Specifications | 3 | Machine Mass, Max. Digging Depth, Travel Speed, Hyd. Pump Flux (9.8x2 L/min), Engine Displacement, Generator Capacity, Main Relief Pressure (18.6 MPa) |
| Painted Color No.1, Body & Upperstructure | 4 | Yanmar New Permanent Yellow, Yanmar Peacock Green, Yanmar New Deep Green, Yanmar Dark Olive Gray, Yanmar Red, Boom Arm Cab Panels |
| Painted Color No.2, Undercarriage & Attachments | 5 | Yanmar New Permanent Yellow, Yanmar Peacock Green, Yanmar New Deep Green, Yanmar Dark Olive Gray, Yanmar Red, Track Frame Blade |
| Wiring Diagram | 6 | Battery (30Ah), Starting Switch, Fuse, Indicator Lamp, Horn, Glow Resistor, Electrical Circuit |

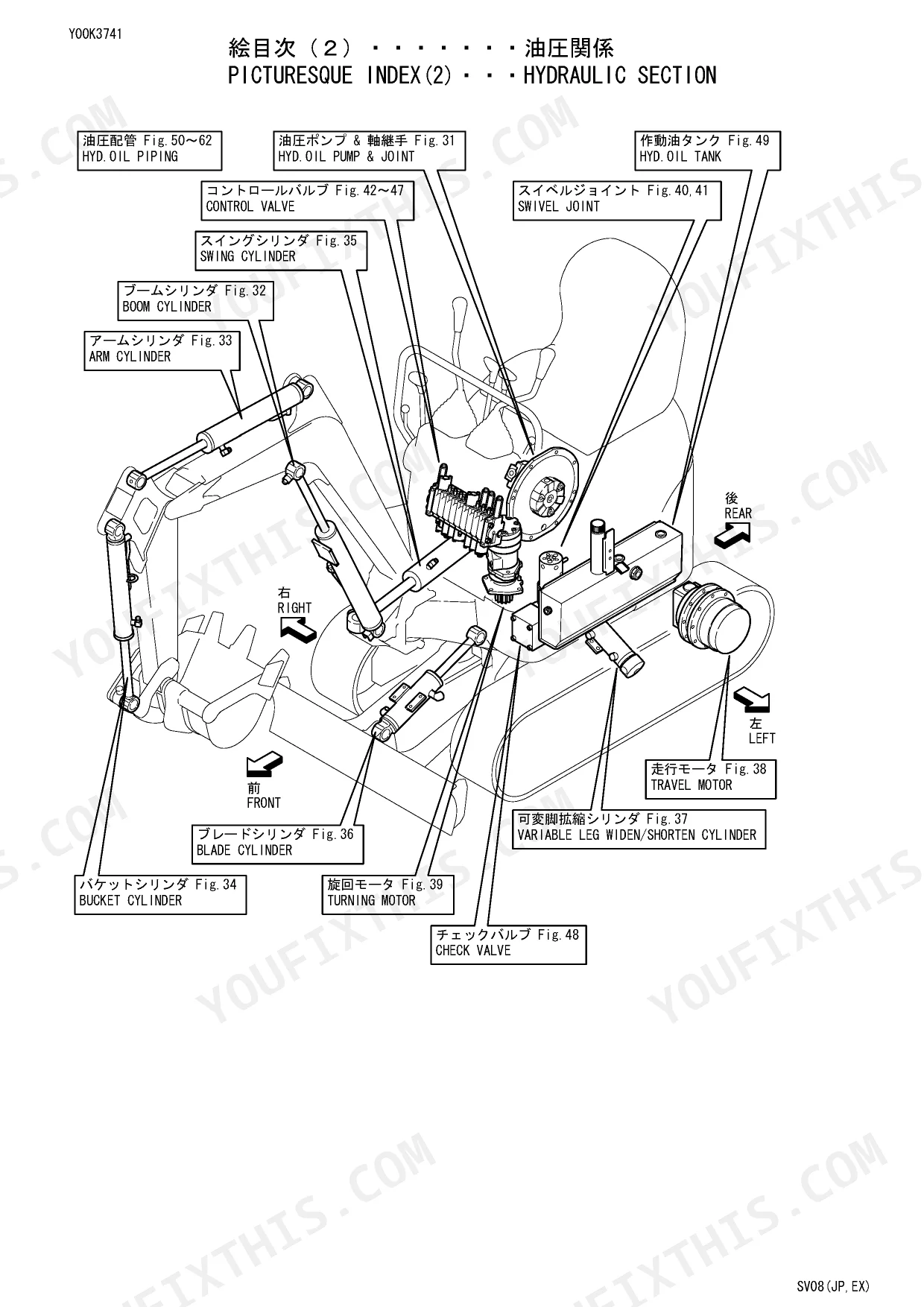

| Picturesque INDEX(1) | 7 | Exploded Assembly Overview, Main Frame, Upper Structure Part Numbers |

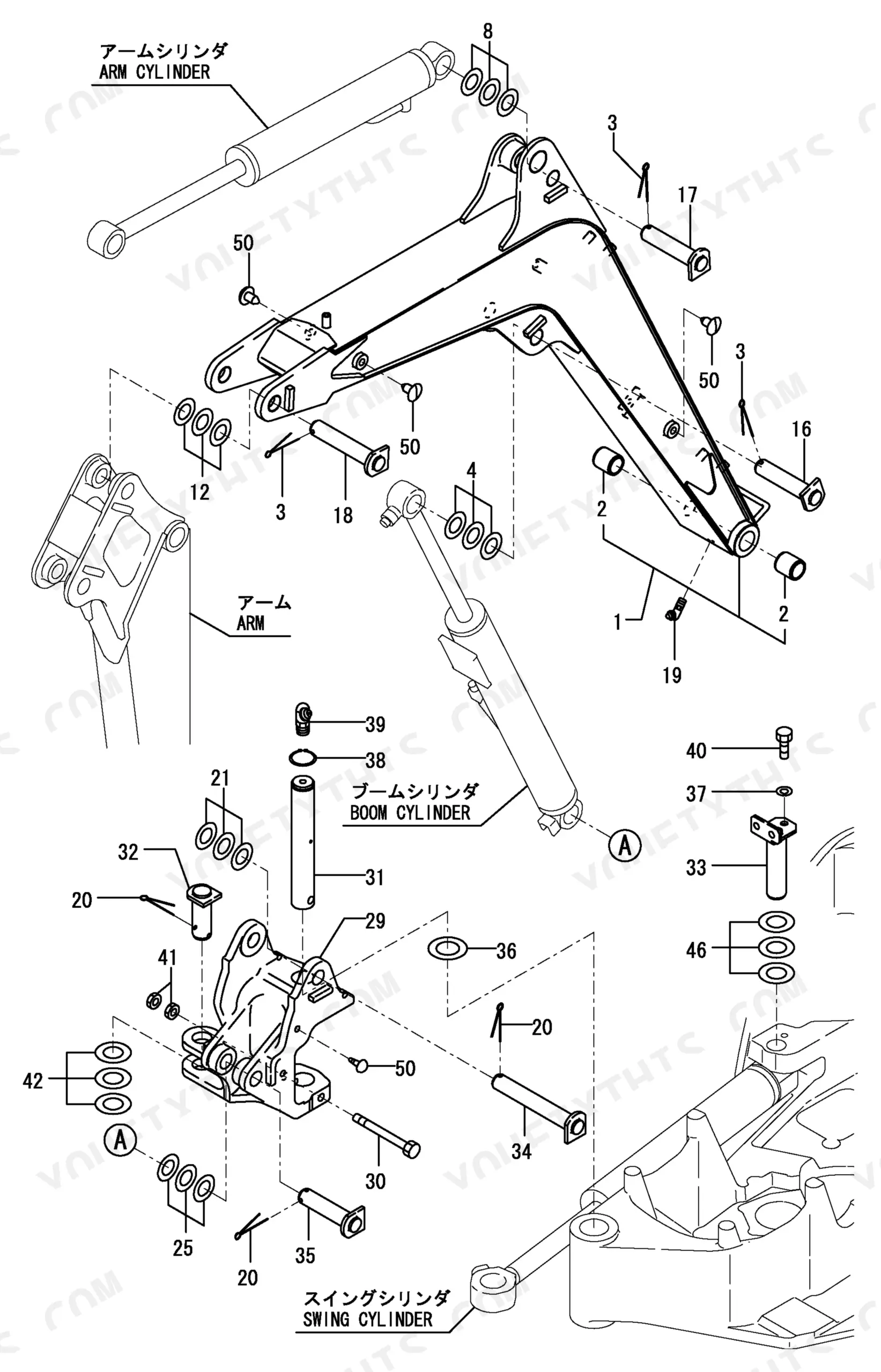

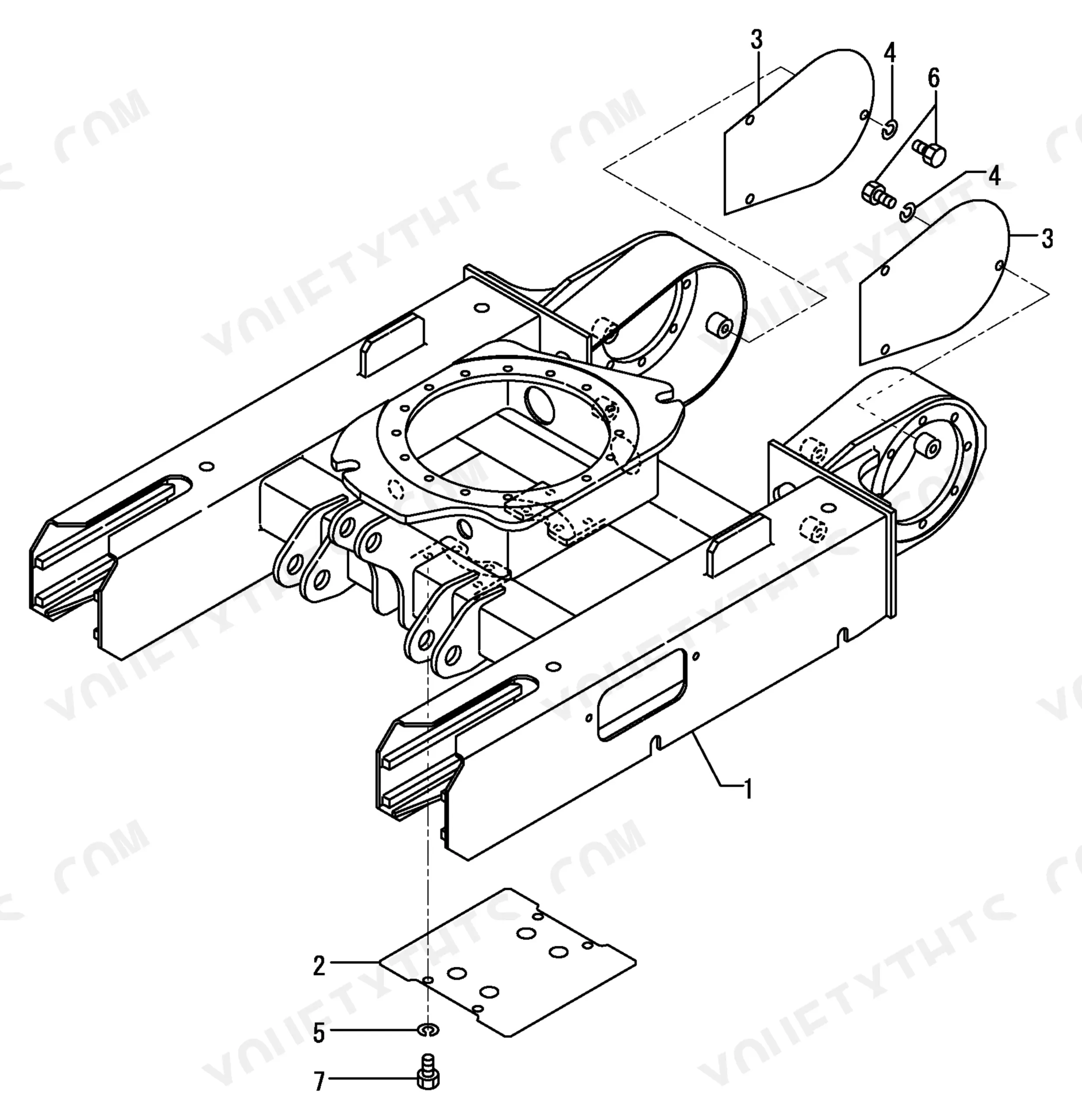

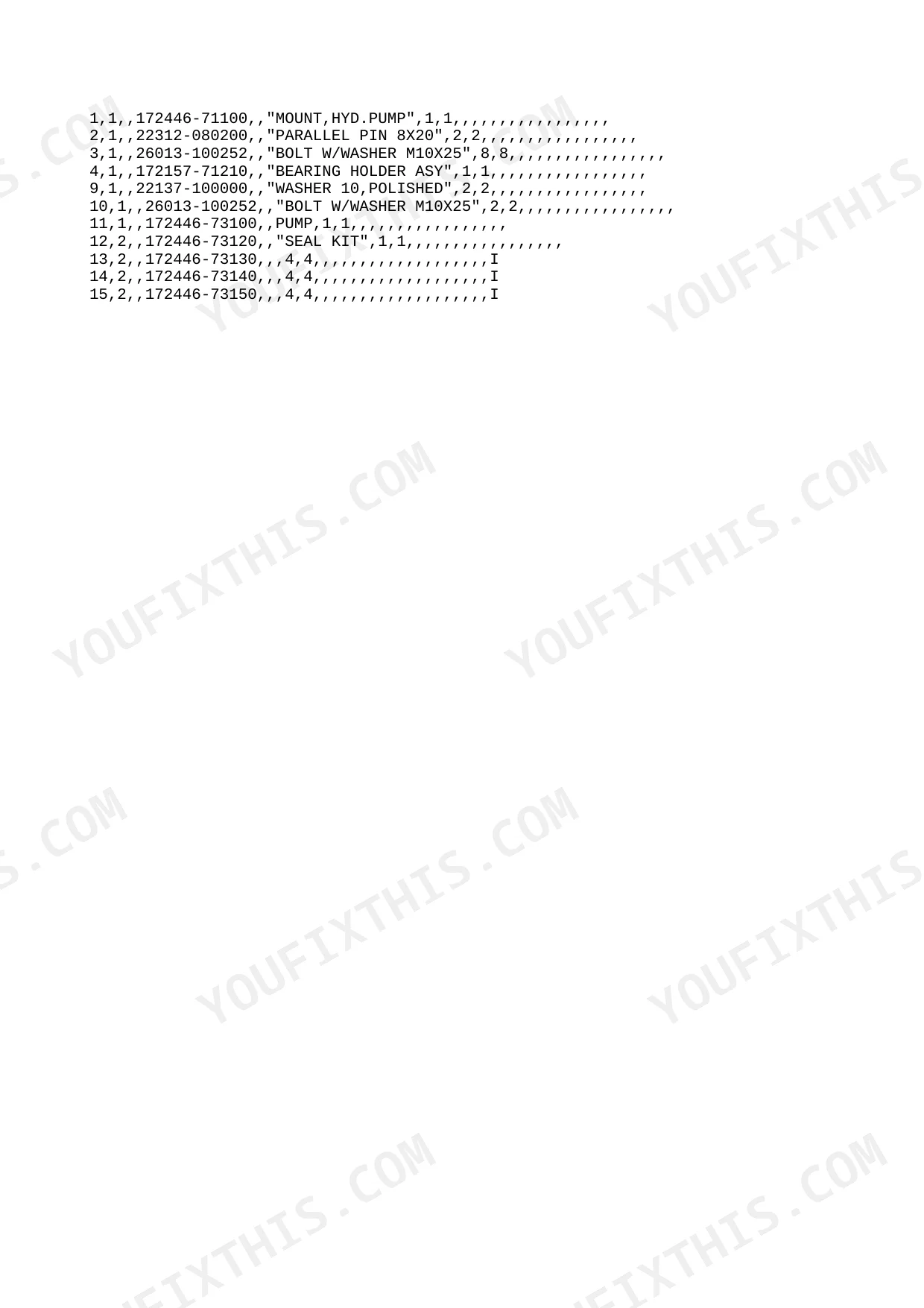

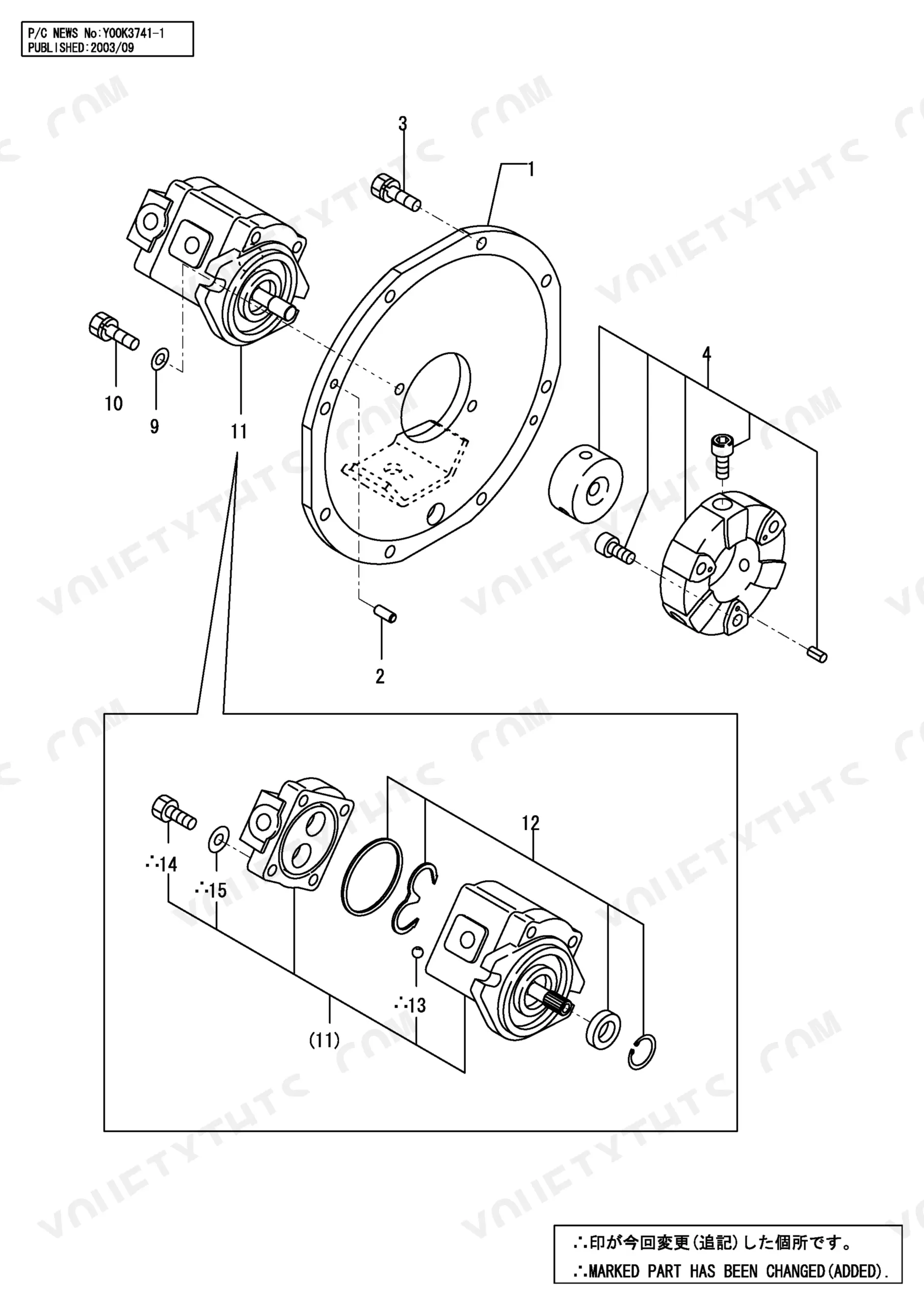

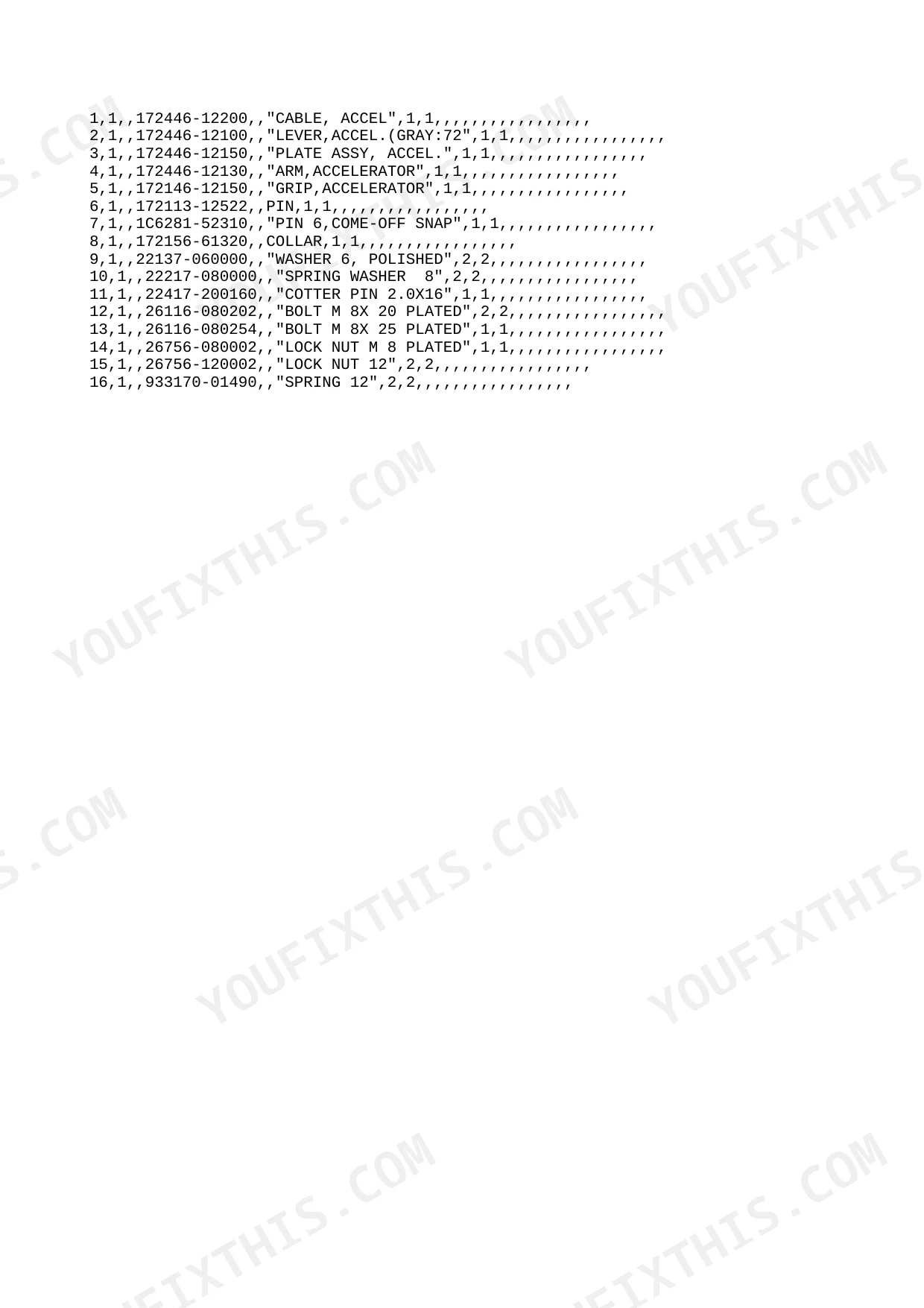

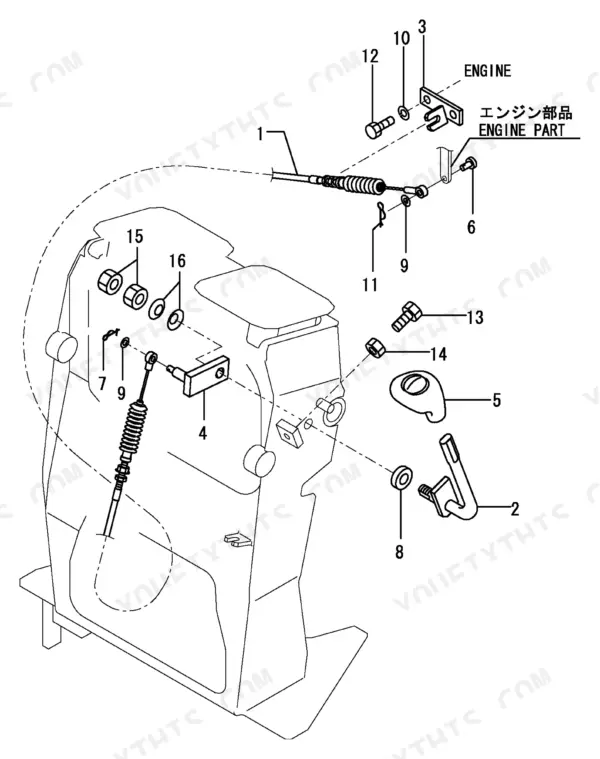

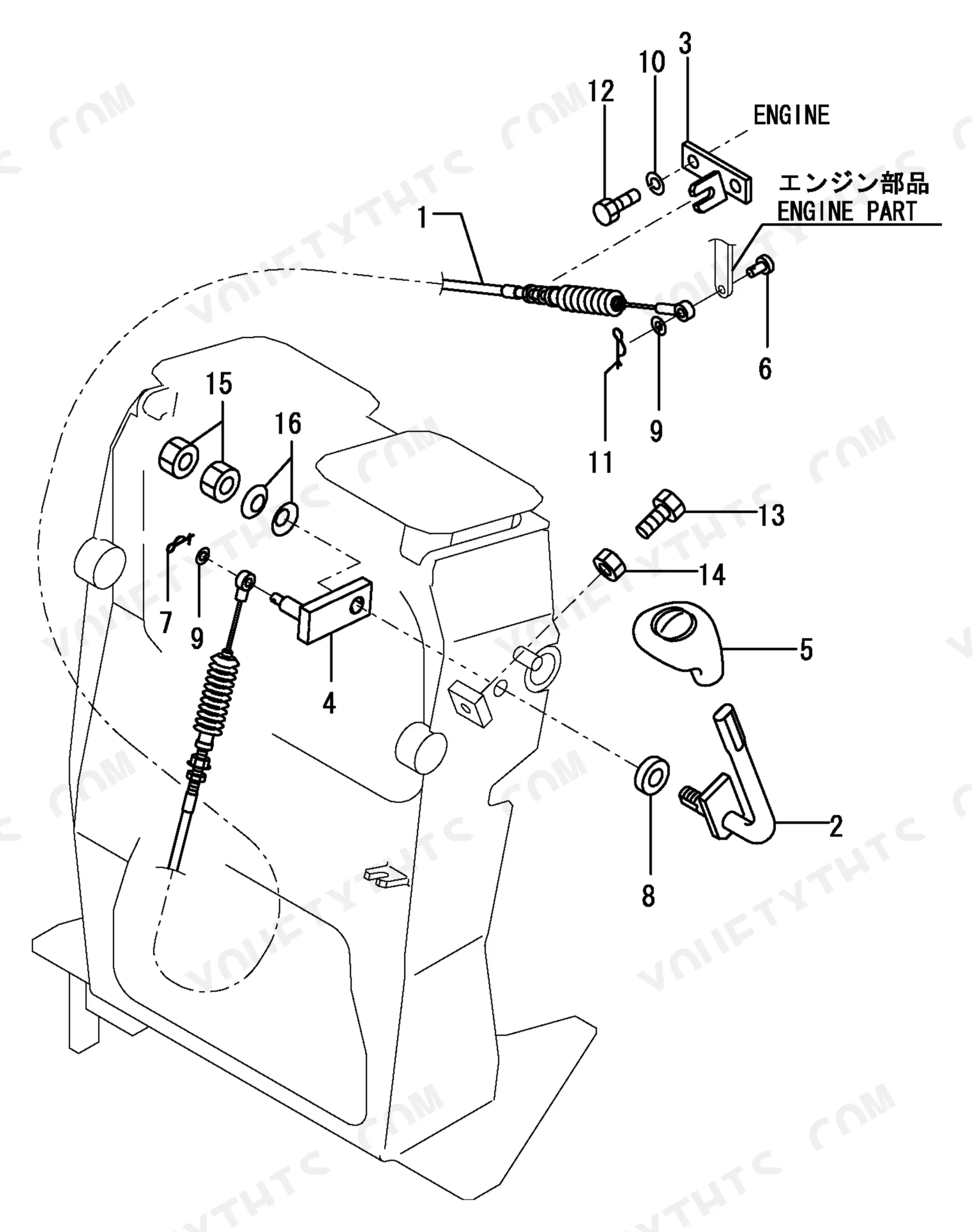

| Picturesque INDEX(2) | 8 | Boom Arm, Bucket Linkage, Attachment Part Numbers |
| Picturesque INDEX(3)(1/6) | 9 | Track Frame, Undercarriage Components, Part Numbers Sec 1 |
| Picturesque INDEX(3)(2/6) | 10 | Travel System, Drive Sprocket, Idler, Part Numbers Sec 2 |
| Picturesque INDEX(3)(3/6) | 11 | Hydraulic Cylinder, Swing, Slew Ring Part Numbers Sec 3 |
| Picturesque INDEX(3)(4/6) | 12 | Engine, Cooling, Fuel System Part Numbers Sec 4 |
| Picturesque INDEX(3)(5/6) | 13 | Electrical, Starter, Alternator Part Numbers Sec 5 |
| Picturesque INDEX(3)(6/6) | 14 | Cab, Seat, Controls, Blade Part Numbers Sec 6 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Max. digging depth (Fixed leg spec) | 1500 mm | p. 3 |
| Generator capacity | 12V/9A | p. 3 |
| Battery model capacity | 30Ah | p. 3 |
Yanmar SV08 Common Problems This Manual Covers
Need exact replacement battery and charging system part numbers for a Yanmar SV08 dead machine p. 6
Check the Wiring Diagram on page 6 to trace the generator and electrical layout. Verify your replacement battery meets the 30Ah minimum capacity specification listed on page 3. Locate exact replacement part numbers for the starting switch and indicator lamps in the Parts Number List.
Manual Section: Wiring DiagramLocating the correct replacement rubber tracks and idler assemblies after tearing off a track p. 2

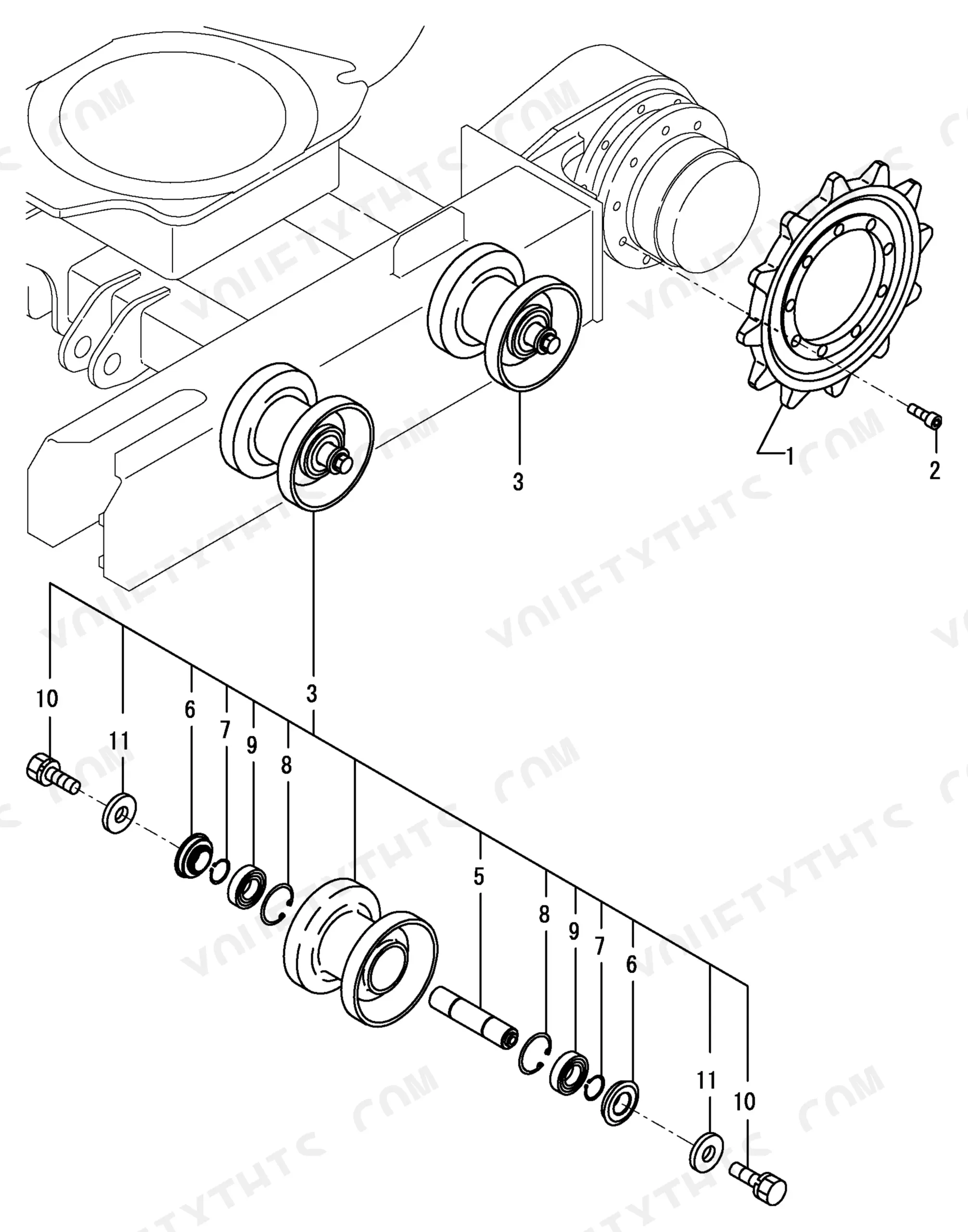

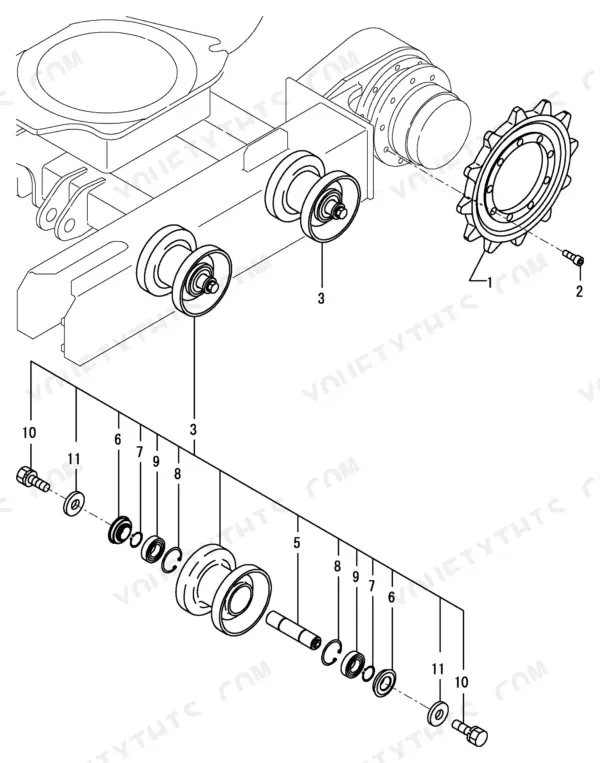

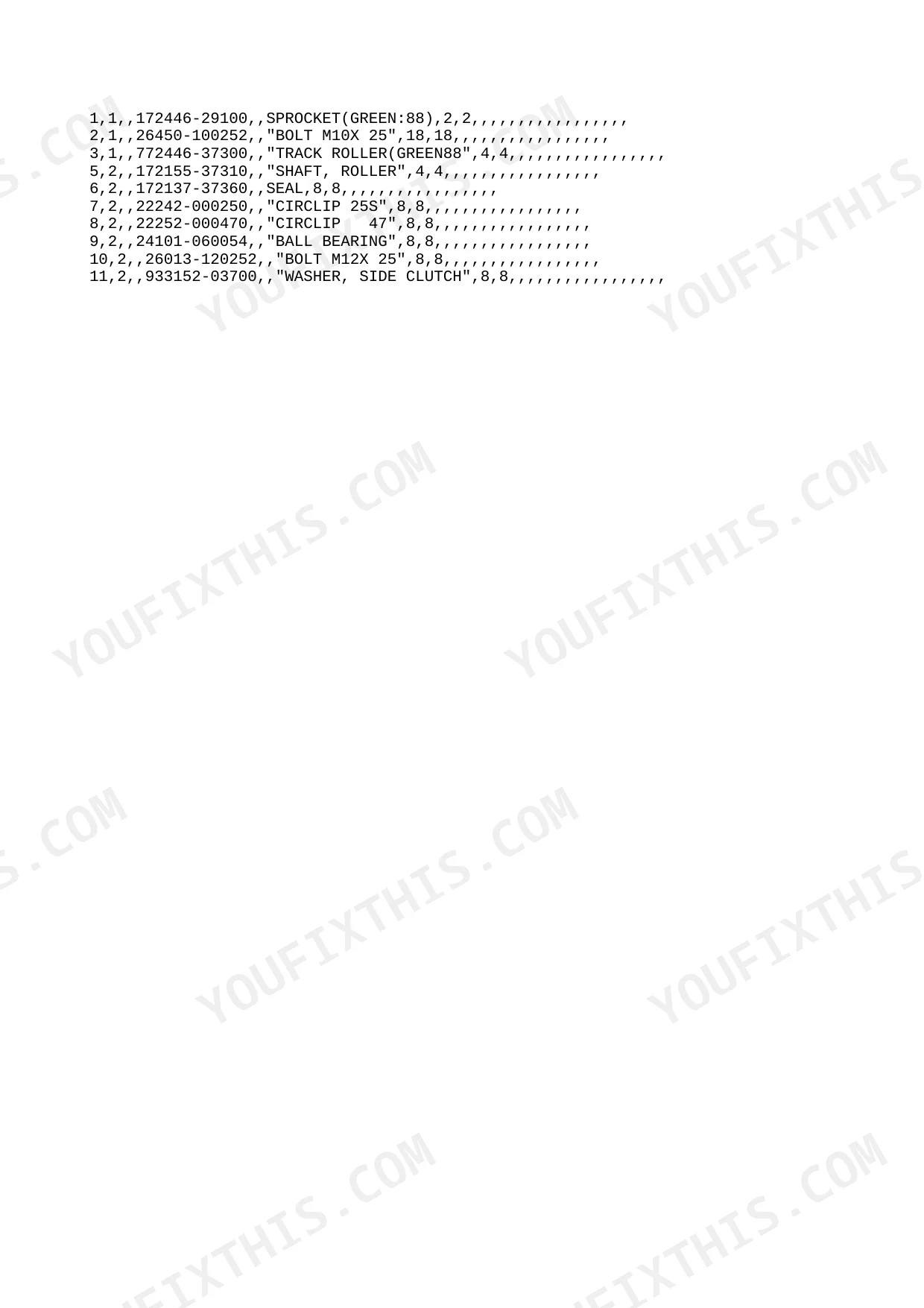

Inspect the Drivetrain Parts Diagram to find the exploded view of the track assembly. Match the reference numbers to get the exact track roller part numbers. Read the guide on page 2 to understand interchangeability marks for the 1500 mm maximum digging depth model.
Manual Section: How to Read This Parts CatalogFinding replacement hydraulic hoses and seal kits for a leaking main boom cylinder p. 3

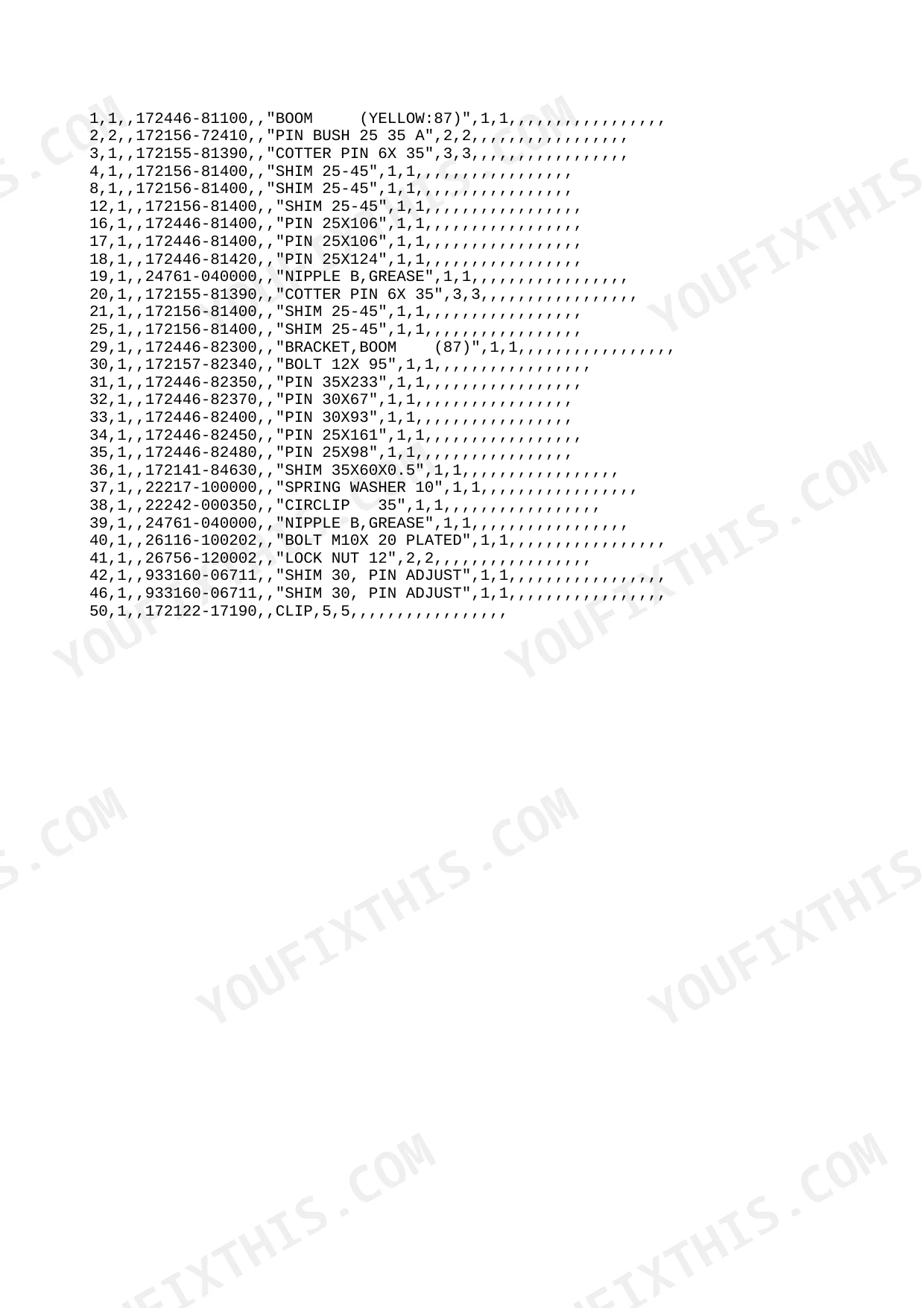

Review the Boom & Attachment Parts Diagram to identify specific cylinder components. Verify the exact hose part numbers in the Hydraulic Schematic. Ensure the ordered parts support the 1500 mm maximum digging depth parameters listed in the specifications section on page 3.

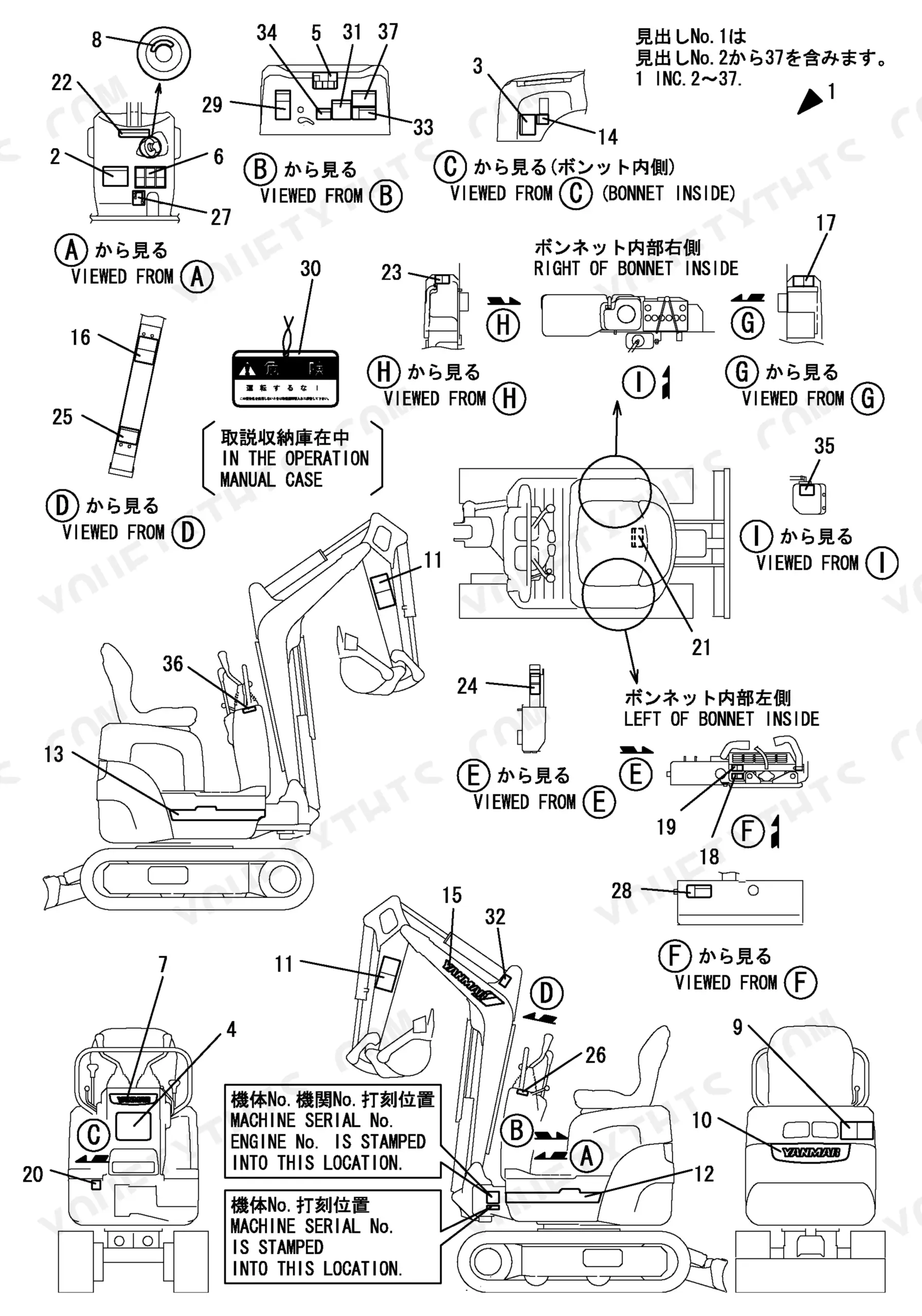

Manual Section: SpecificationsOrdering the right touch-up paint and replacement chassis panels for a damaged side cover p. 4

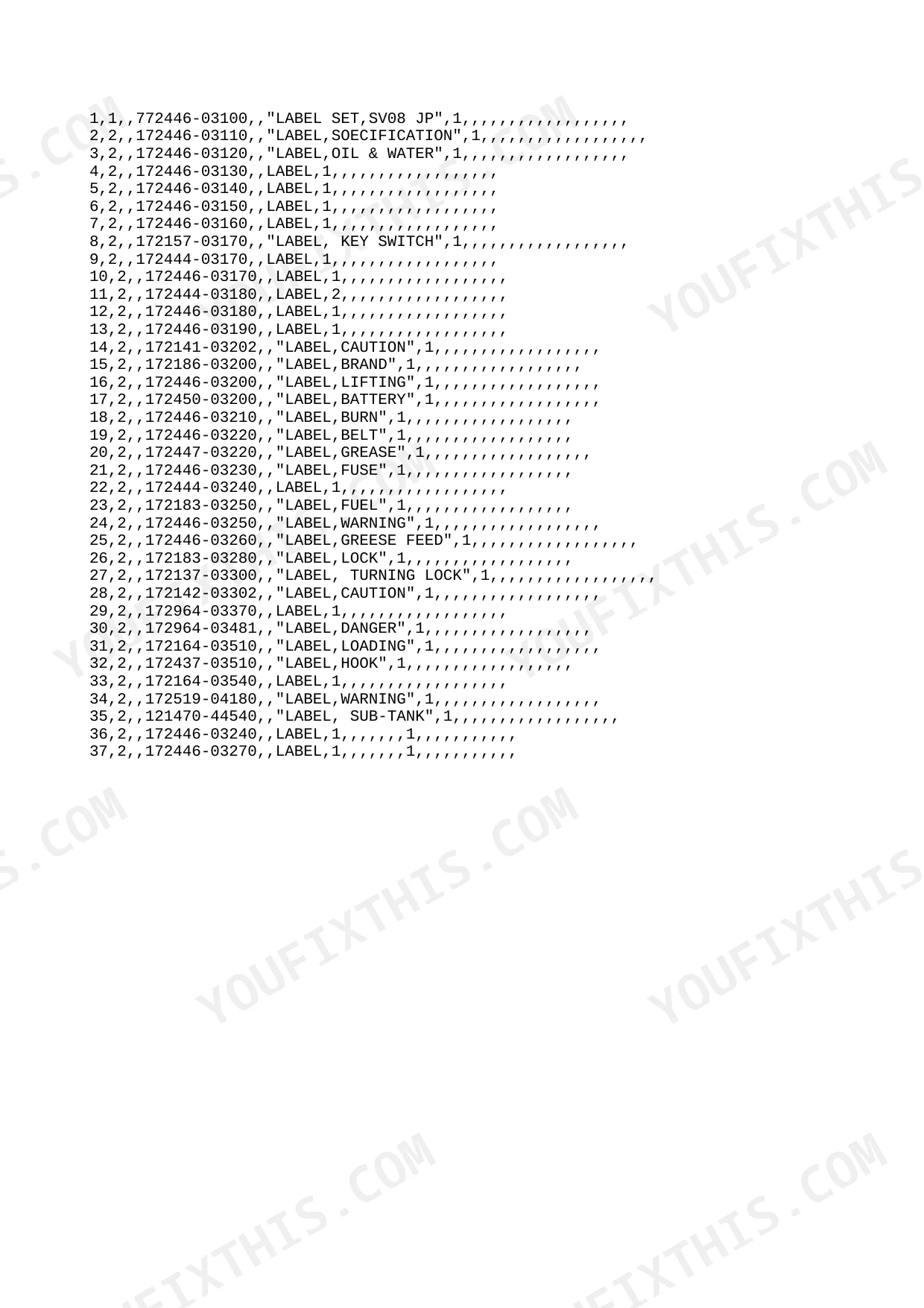

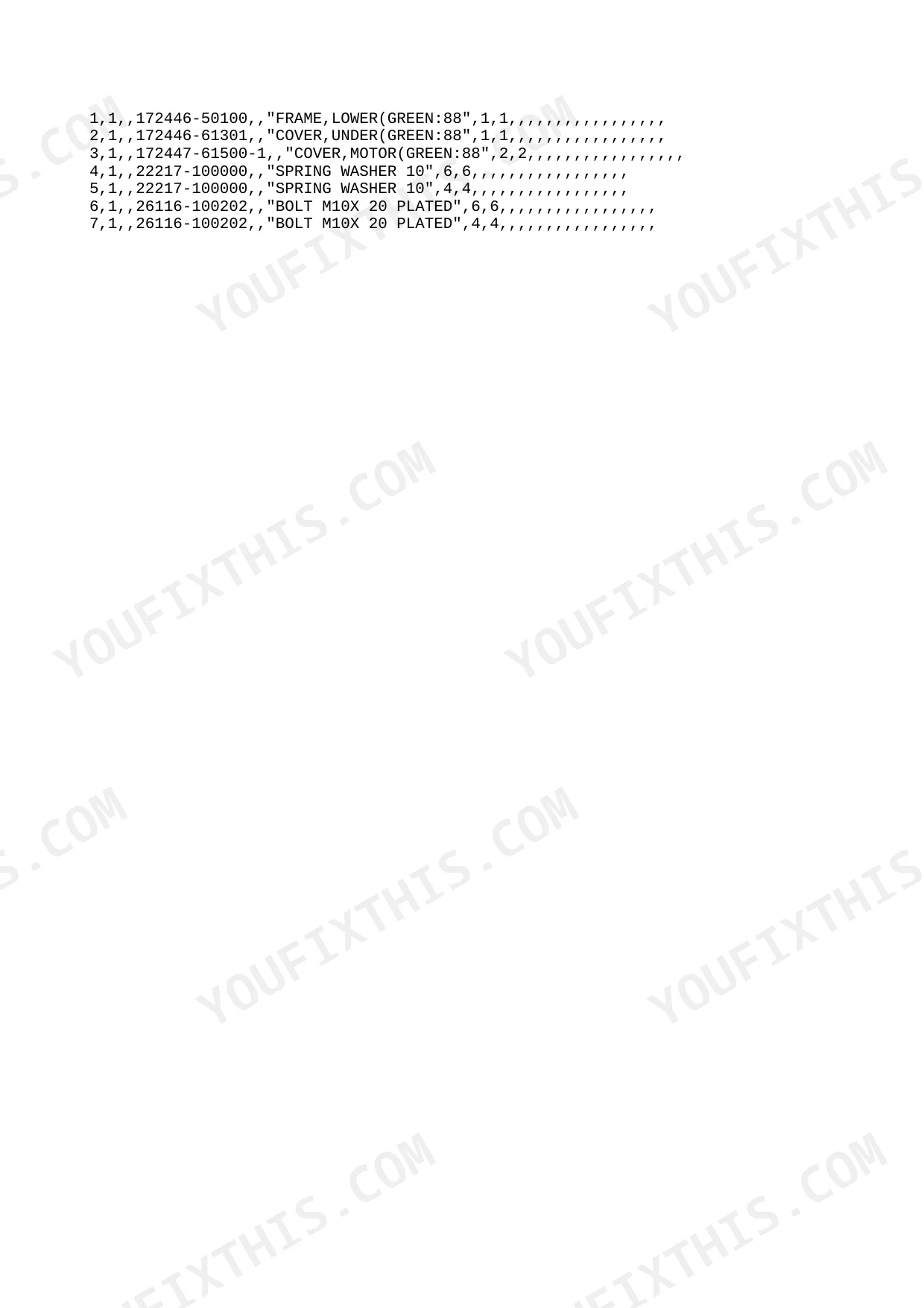

Identify the correct paint codes on page 4 for Yanmar New Permanent Yellow or Yanmar Peacock Green. Locate the exact panel replacement numbers in the Chassis Parts Diagram. Confirm your electrical system runs a 12V/9A generator before replacing any warning decals on the cover.
Manual Section: Painted Color No.1Frequently Asked Questions
What is the hydraulic pressure on a Yanmar SV08?
The hydraulic pump flux for the Yanmar SV08 is 9.8×2 (gear pump) l/min. The set pressure for the main relief is 18.6 (190) ×2 MPa (kgf/cm²).
What are the replacement specifications for air filter element?
The air filter element for the Yanmar SV08 is identified by part number 119655-12560. This element is listed under the SUC. PIPE section of the parts catalog.
How do you fix need exact replacement battery and charging system part numbers for a Yanmar SV08 dead machine?
Check the Wiring Diagram on page 6 to trace the generator and electrical layout. Verify your replacement battery meets the 30Ah minimum capacity specification listed on page 3. Locate exact replacement part numbers for the starting switch and indicator lamps in the Parts Number List.
How do you fix locating the correct replacement rubber tracks and idler assemblies after tearing off a track?
Inspect the Drivetrain Parts Diagram to find the exploded view of the track assembly. Match the reference numbers to get the exact track roller part numbers. Read the guide on page 2 to understand interchangeability marks for the 1500 mm maximum digging depth model.
How will I receive this Yanmar SV08 Parts Manual?
Immediate download of the complete 157-page searchable Parts Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Am I able to print pages from this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Are there wiring harness diagrams in this Yanmar SV08 manual?
Included. The Yanmar SV08 Parts Manual provides a wiring diagram for the electrical system.
Document Quality
This document is a mixed-format PDF, starting with native digital pages for the preface and index, then transitioning to high-quality scanned pages for the detailed parts catalogs. You can search and copy text throughout the document due to an effective OCR layer, even on scanned pages where the underlying text might appear slightly less crisp than native digital. Diagrams and illustrations are clear and readable, whether they are vector graphics in the initial sections or high-resolution raster images in the parts breakdown. All pages are clean and free from notable scan artifacts, stains, or skewed content.
