Hunting down the right hardware for your skid-steer loader just got easier with this 140-page Yanmar S220R parts catalog PDF (OEM #0CS10-M56700EN). Inside, you get highly detailed exploded views of the entire machine, from the hydrostatic drive motors to the tandem pump assemblies. Open up the chassis and hydraulic sections to find direct OEM part numbers, complete component breakdowns, and clear visual identification for every single pin, bushing, and seal kit. While pulling those replacement numbers, confirm your hydrostatic system hose fittings are locked down at 55 ft-lbs and the lubed wheel nuts hit exactly 280 ft-lbs. Stop ordering the wrong components and waiting on returns. Grab this bookmarked download, locate your exact part instantly, and get your loader back in the dirt.
What's Inside This Yanmar S220R Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Reference Materials | 2 | - |

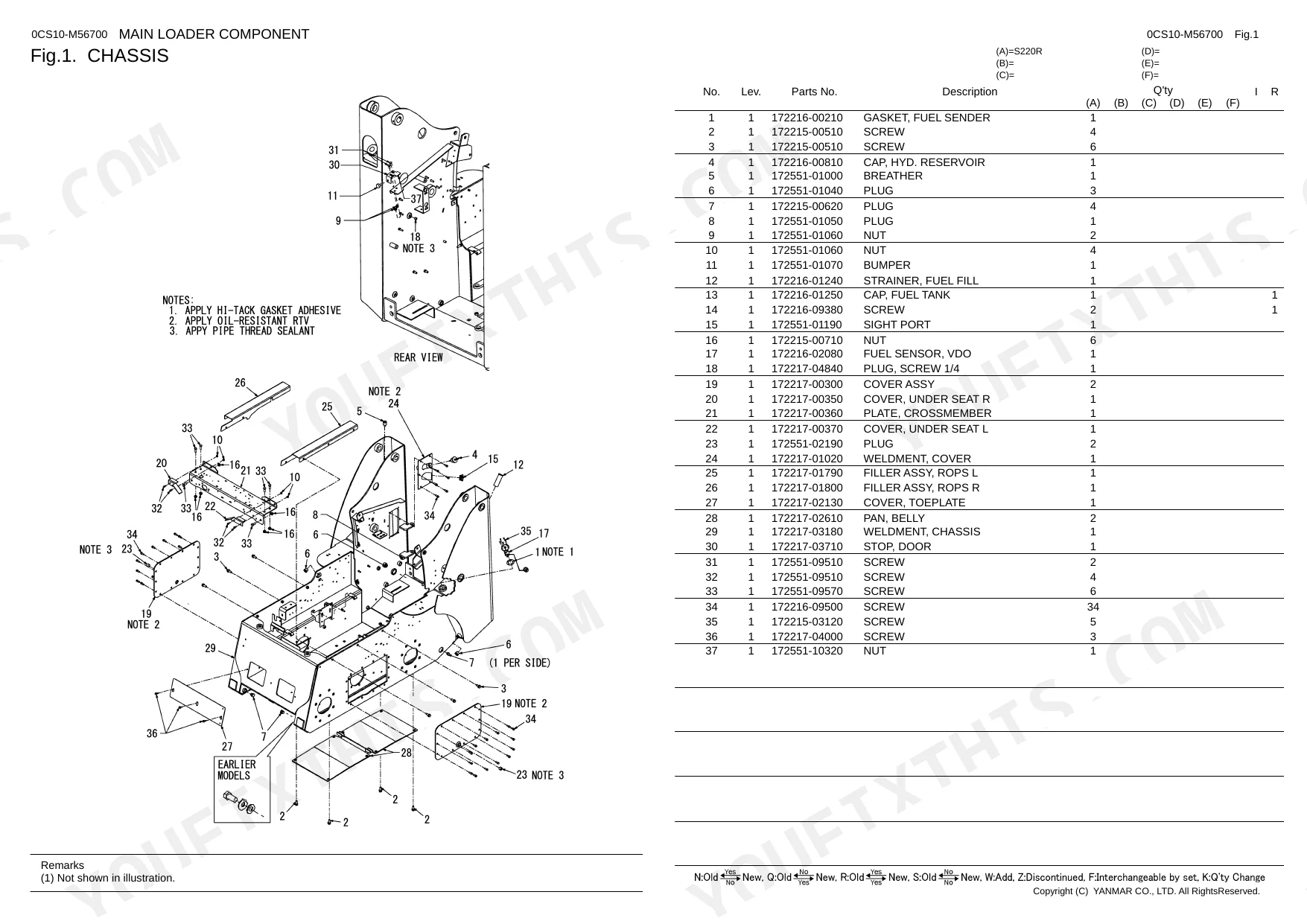

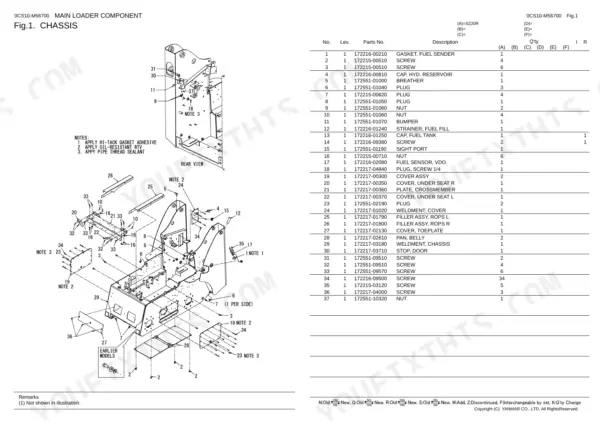

| Chassis | 6 | Fuel Sender, Hydraulic Reservoir, Weldment, Under Seat Covers, ROPS Filler, Door Stop |
| Chassis(Hvac Completing) | 7-8 | HVAC Switches, Condenser Assembly, Heater Hoses, AC Belt, Wire Harness, Compressor Manifold |
| Chassis(Hvac Completing, Cab Door Assembly) | 9-10 | Door Glass, Wiper Assembly, Latch Mechanism, Door Harness, Gas Spring, Weather Seal |
| Chassis(Hvac Completing, Interior Console Assembly) | 11 | Round Louver, Roll Nozzle Louver, Air Duct, Console Screws |
| Chassis(Hvac Completing, Side Windows Assembly) | 12 | Window Frames, Window Glass, Window Latch, Top Track, ROPS Support |
| Chassis(Covers - Hand/Foot Controls) | 13 | Boot Covers, Control Panel Covers, Interior Sound Pad, Swell Latch, Pump Cover |
| Chassis(Covers - Dual Joystick Controls) | 14 | Pilot Plate, Floor Support Plate, Control Panel Covers, Throttle Harness, Interior Sound Pad, Swell Latch |
| Grille and Engine Cover | 15-16 | Grille, Engine Cover, Latch, Seal, Bumper, Plate |
| Rops/FOPS Structure | 17 | Isolator, Spring, Window, Harness, Support, Liner |
| Restraint Bar | 18 | Ring, Bushing, Pin, Rod, Bracket, Switch |

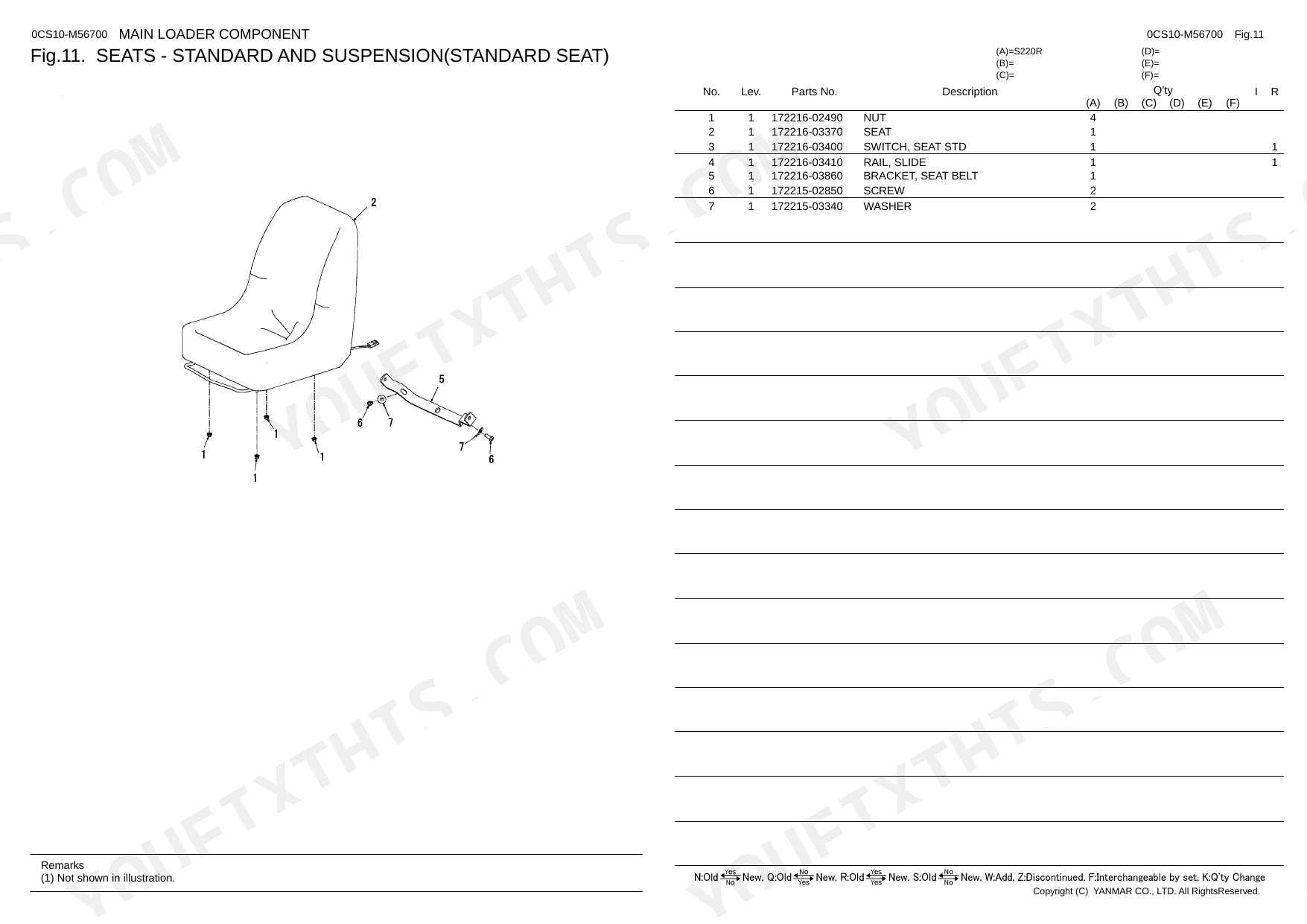

| Seats - Standard and Suspension(Standard Seat) | 19 | Seat, Switch, Rail, Bracket, Screw |
| Seats - Standard and Suspension(Suspension Seat) | 20 | Seat, Switch, Rail |
| Seats - Seat Belt Option | 21 | Tab, Retractor Mount, Belt Assy, Screw |
| Seats - Three-Point Restraint Seat Belt Option | 22 | Tab, Retractor Mount, Spacer, Restraint Assy, Screw |

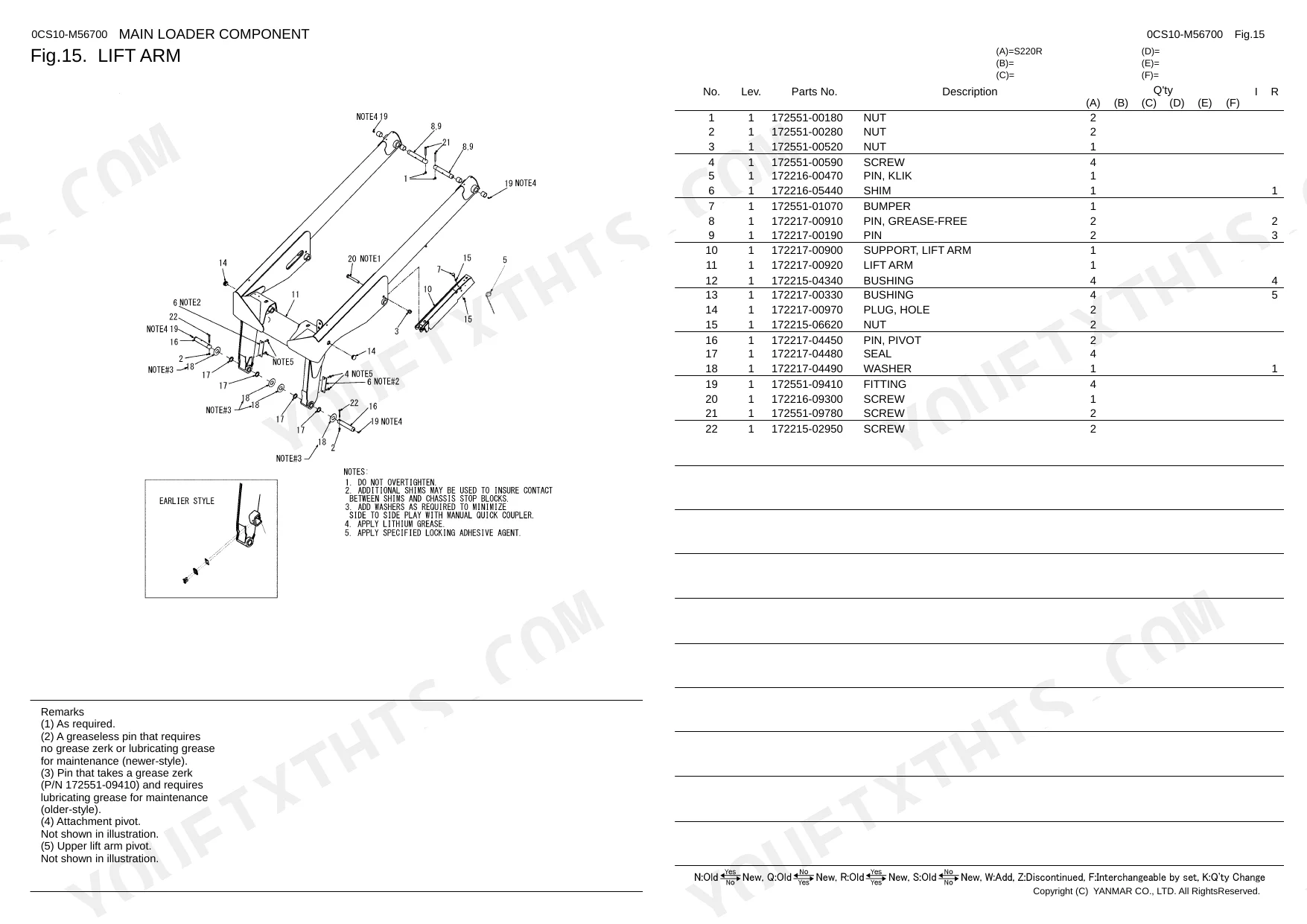

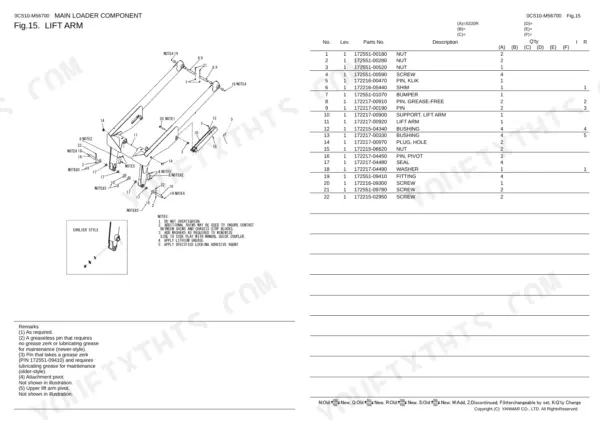

| Lift Arm | 23 | Pin, Shim, Bumper, Bushing, Seal |
| Attachment Bracket(Manual Quick Coupler) | 24 | Pin, Spring, Compression, Rod, Push, Plate, Latch Link |
| Attachment Bracket(Manual Quick Coupler) | 25 | - |
| Attachment Bracket(Hydraulic Quick Coupler) | 26 | Pin, Spring, Compression, Rod, Push, Plate, Latch Link |
| Attachment Bracket(Hydraulic Quick Coupler) | 27 | - |
| Wheel Drives | 28 | Chain, Link, Connecting, Sprocket Assy, Axle Assy |
| Wheel Drives(Axle Assembly) | 29 | Cup, Bearing, Cone, Housing, Axle, Seal |
| Engine | 30-31 | Pump Assy, Fuel Feed, Valve, Fuel Shut Off, Filter, Fuel, Mount, Starter |
| Air Cleaner and Exhaust | 32 | Clamp, Air Cleaner, Filter, Air, Cleaner Assy, Outlet, Exhaust |
| Radiator/Cooler | 33 | - |
| Hydrostatic System with Drive Motors(Single-Speed, Hand/Foot Controls) | 34-35 | - |
| Hydrostatic System with Drive Motors(Single-Speed, Dual Joystick Controls) | 36 | - |
| Hydrostatic System with Drive Motors(Two-Speed, Hand/Foot Controls) | 37-38 | - |
| Hydrostatic System with Drive Motors(Two-Speed, Dual Joystick Controls) | 39 | - |
| Hydraulics - Chassis(Standard Auxiliary Hydraulics) | 40-41 | - |
| Hydraulics - Chassis(High-Flow Auxiliary Hydraulics) | 42-43 | - |
| Hydraulics - Chassis(Hydraulic Quick Coupler) | 44 | - |
| Hydraulics - Chassis(Ride Control Hydraulics) | 45 | Manifold, Ride Cntrl, Accumulator, Plate, Tube, Hose, Fitting |
| Hydraulics - Chassis(Oil Supply Assembly, Dual Joystick Controls) | 46 | Hose |
| Hydraulics - Chassis(Oil Supply Assembly, Hand/Foot Controls) | 47 | Fitting, Hose |
| Hydraulics - Lift Arm | 48 | Fitting, Nut, Clamp, Hose, Tube, Cylinder |
| Hydraulics - Lift Arm(High-Flow Option) | 49 | Fitting, Clamp, Plate, Hose, Coupler, Tube |
| Controls - Wheel Drives(Hand/Foot Controls) | 50 | Washer, Nut, Rod End, Shaft, Bushing, Control Arm |
| Controls - Wheel Drives(Dual Joystick Controls) | 51 | Fitting, Bushing, Joystick, Valve, Handle, Boot |
| Controls - Lift/Tilt(Hand/Foot Controls) | 52 | Fitting, Pedal, Valve, Plate, Tube, Hose |
| Controls - Lift/Tilt(Dual Joystick Controls) | 53 | - |
| Controls - Engine(Electric Throttle Sensor, Dual Joystick Controls) | 54 | - |
| Electrical - Chassis | 55 | - |
| Electrical - Chassis (Rear Light Power Distribution) | 56 | - |
| Electrical - ROPS/FOPS | 57 | - |
| Electrical - Lights | 58 | - |
| Electrical - Engine | 59 | - |
| Electrical - Engine(Remote Battery Terminal) | 60 | - |
| Electrical - Control(High Flow Control) | 61 | Flange, Module, High Flow, Switch |
| Electrical - Control(Two-Speed Control) | 62 | Bulb, Lamp, Flange, Module, 2-Speed |
| Sound Suppression(Standard) | 63 | Pad, Acoustic, Seal, ROPS Front, ROPS Rear, Cover, ROPS Pillar L |
| Tires | 64 | Wheel Assy, Wheel, Stem, Valve |
| Decals(1) | 65 | Reflector, Plate, Label, Tag, Ring |
| Decals(2) | 66 | Label, 2-Speed, S220R Right, Keep Out, Diesel Fuel |
| Decals(3) | 67 | Label, Safety, Warning, Panel, Joystick Left |
| Decals(4) | 68 | Label, Tiedown Point, Tape, Safety Walk, High-Flow |
| Decals(5) | 69 | Strip, Label, Throttle, High Flow, Fuse, Quick Coupler |
| Decals(6) | 70 | Label, Tiedown Point |
| Lift Cylinder | 71 | Cylinder, Lift, Tube, Rod, Piston, Seal Kit |
| Tilt Cylinder | 72 | Cylinder, Tilt, Piston, Tube, Rod, Seal Kit |
| Drive Motors(Single-Speed) | 73 | Motor, Clynder Assy, Valve Assy, Valving, Seal Kit, Brake Assy |
| Drive Motors(Two-Speed) | 74 | Motor, Clynder Assy, Valving, Spool Assy, Brake Assy, Seal Kit |
| Tandem Pump(Dual Joystick Pumps) | 75 | Pump, Tandem, Rotary Group, Control, Cartridge, Seal Kit |
| Tandem Pump(Dual Joystick Tandem Pump / Engine End) | 76 | Rotary Group, Shaft, Seeger-V-Ring, Ring, Shaft Seal |
| Tandem Pump(Dual Joystick Tandem Pump / Gear Pump End) | 77 | Rotary Group, L Rot., Shaft, Drive, Seeger-V-Ring |
| Tandem Pump(Tandem Pump / Gear Pump End) | 78 | Pump, Tandem, Rotating Kit, Piston, Servo, Valve, Relief, Housing Assy |
| Tandem Pump(Tandem Pump / Engine End) | 79 | Pump, Tandem, Rotating Kit, Piston, Servo, Valve |
| Gear Pump - Single(Standard Auxiliary) | 80 | - |
| Gear Pump - Double(High-Flow Auxiliary) | 81 | - |
| Self-Leveling Valve | 82 | - |
| Lift and Tilt Solenoid Valve | 83 | - |
| Solenoid Valves - Brake - Single, Two-Speed and Brake Release(Single-Speed) | 84 | - |
| Solenoid Valves - Brake - Single, Two-Speed and Brake Release(Two-Speed) | 85 | Valve, Dual Solenoid, Coil, Seal Kit, Cartridge |
| Solenoid Valves - Brake - Single, Two-Speed and Brake Release(Brake Release S | 86 | Valve, Brake Release, Body, Pump, Hand, Switch, Manual |
| Main Control Valve(Standard Control Valve) | 87 | Plug Kit, Valve, Check, Hyd. Control, Rear, Relief |
| Main Control Valve(High-Flow Control Valve) | 88 | - |
| Proportional Valves(3 Bank Valve, Standard Auxiliary) | 89 | Manifold, Solenoid, Valve, Seal Kit, Fitting, Proportional |
| Proportional Valves(5 Bank Valve, High-Flow Auxiliary) | 90 | - |
| Ride Control Manifold | 91 | Manifold, Ride Cntrl, Coil, Cartridge |
| Solenoid Valve - Hydraulic Quick Coupler | 92 | Valve, Solenoid, Cartridge, Coil, Seal Kit |
| Pump - Cold Weather Hydraulic Quick Coupler | 93 | - |
| Foot Valve | 94 | - |

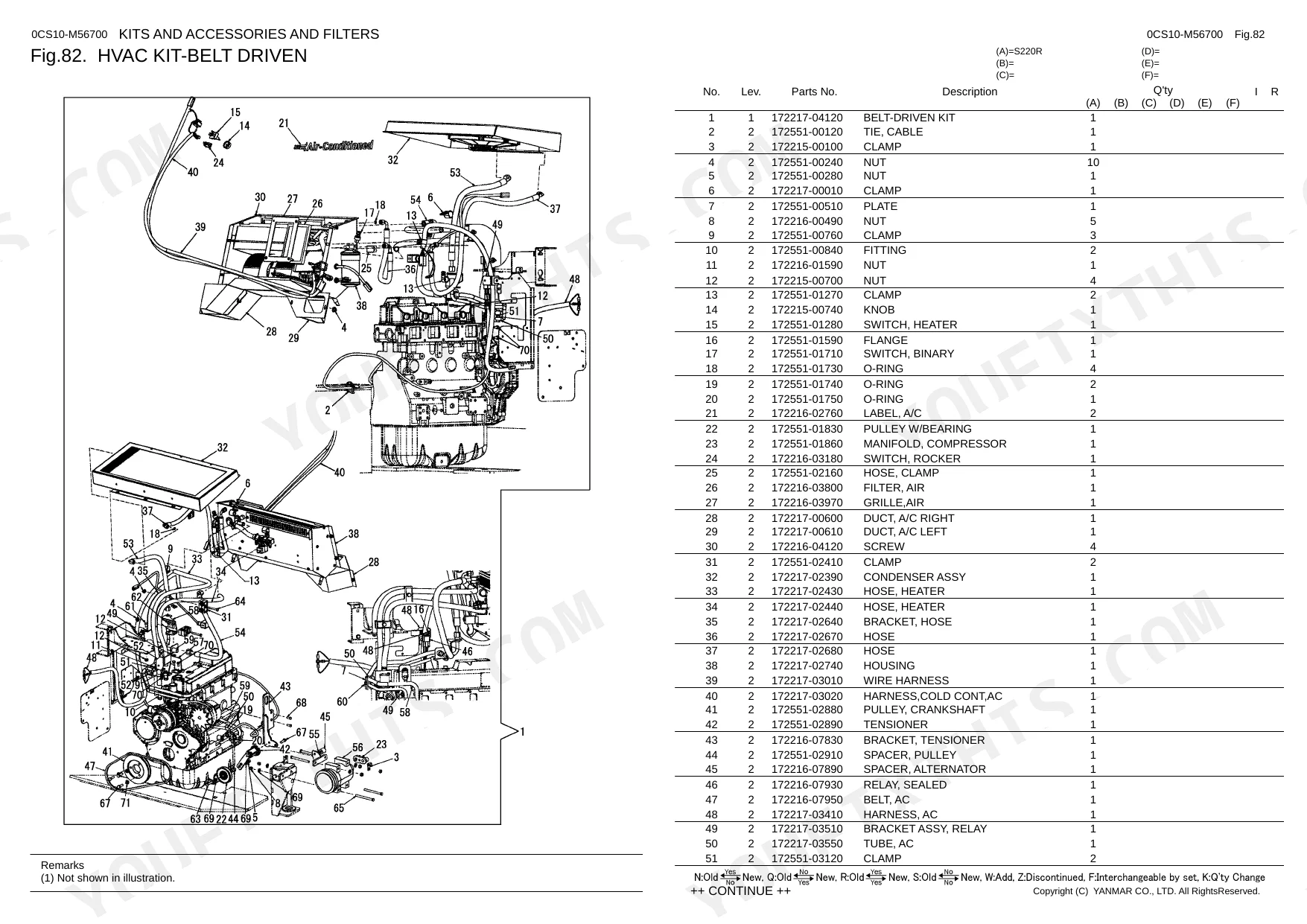

| HVAC Kit-Belt Driven | 95-96 | - |
| HVAC Kit, HVAC Kit Service Parts Assemblies, HVAC Housing | 97 | - |
| HVAC Kit, HVAC Kit Service Parts Assemblies, Yanmar Condensor Assembly | 98 | - |
| Heater-Defroster Kit | 99 | - |
| Backup Alarm Kit | 100 | - |
| Horn Kit | 101 | - |
| Rearview Mirror Kit | 102 | - |
| Front Door Kit | 103-104 | - |
| Seat Belt Kits - 2" | 105 | - |
| Seat Belt Kits - 3" | 106 | - |
| Seat Kits - Suspension | 107 | - |
| Seat Kits - Standard | 108 | - |
| Side Window Kit | 109 | - |
| Pre-Cleaner Kit | 110 | - |
| Strobe Light Kit | 111 | - |
| Dual Flasher Kit | 112 | - |
| Impact-Resistant Front Door Kit | 113 | - |
| Single-Point Lift Kit | 114 | - |
| 100.Interior Console Kit | 115 | - |
| 101.Am/Fm Radio Kit | 116 | - |
| 102.Four-Point Lift Kit | 117 | - |
| 103.14-Pin Connector for Auxiliary Attachments Kit | 118 | - |
| 104.Backup Alarm Kit for Dual Joystick | 119 | Backup Alarm Kit, Alarm, Switch, Pressure, Fitting, Nut |
| 105.Counterweight Kits Light and Heavy | 120 | Counterweight Kit, Counterweight, Plate, Grille, Pad, Nut |
| 106.Hydraulic Quick Coupler Kit | 121 | Quick Coupler Kit, Hydraulic Cylinder, Rod, Extension, Hose, Clamp |
| 107.Hydraulic Quick Coupler Kit | 122 | Quick Coupler Kit, Valve, Solenoid, Switch Assy, Tube, Hose |
| 108.Remote Terminal Kit | 123 | Remote Terminal Kit, Terminal, Cable, Battery, Bracket, Shield |
| 109.Hydraulic Quick Coupler Kit - Cold Weather Option | 124 | Quick Coupler Kit, Hydraulic Cylinder, Rod, Extension, Hose, Clamp |
| 110.Hydraulic Quick Coupler Kit - Cold Weather | 125 | Pump, Solenoid, Switch Assy, Harness, Hose, Cover |
| 111.Hydraulic Quick Coupler Kit - Cold Weather | 126 | - |
| 112.Rear Wiper Kit(1) | 127 | Wiper Motor, Harness, Switch, Valve, Shut-Off, Ripcord |
| 113.Rear Wiper Kit(2) | 128 | Motor Kit, Blade, Arm, Hose, Nozzle, Valve, Check |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel nuts torque | 280 FT-LBS | p. 28 |
| Hydrostatic system hydraulic hose fittings torque | 55 FT-LBS | p. 34 |
| Wheel Drives Torque | 280 FT-LBS | p. 28 |
Yanmar S220R Common Problems This Manual Covers
Yanmar S220R loader travels very slowly in forward like the drive system is bypassing hydraulic oil. p. 34

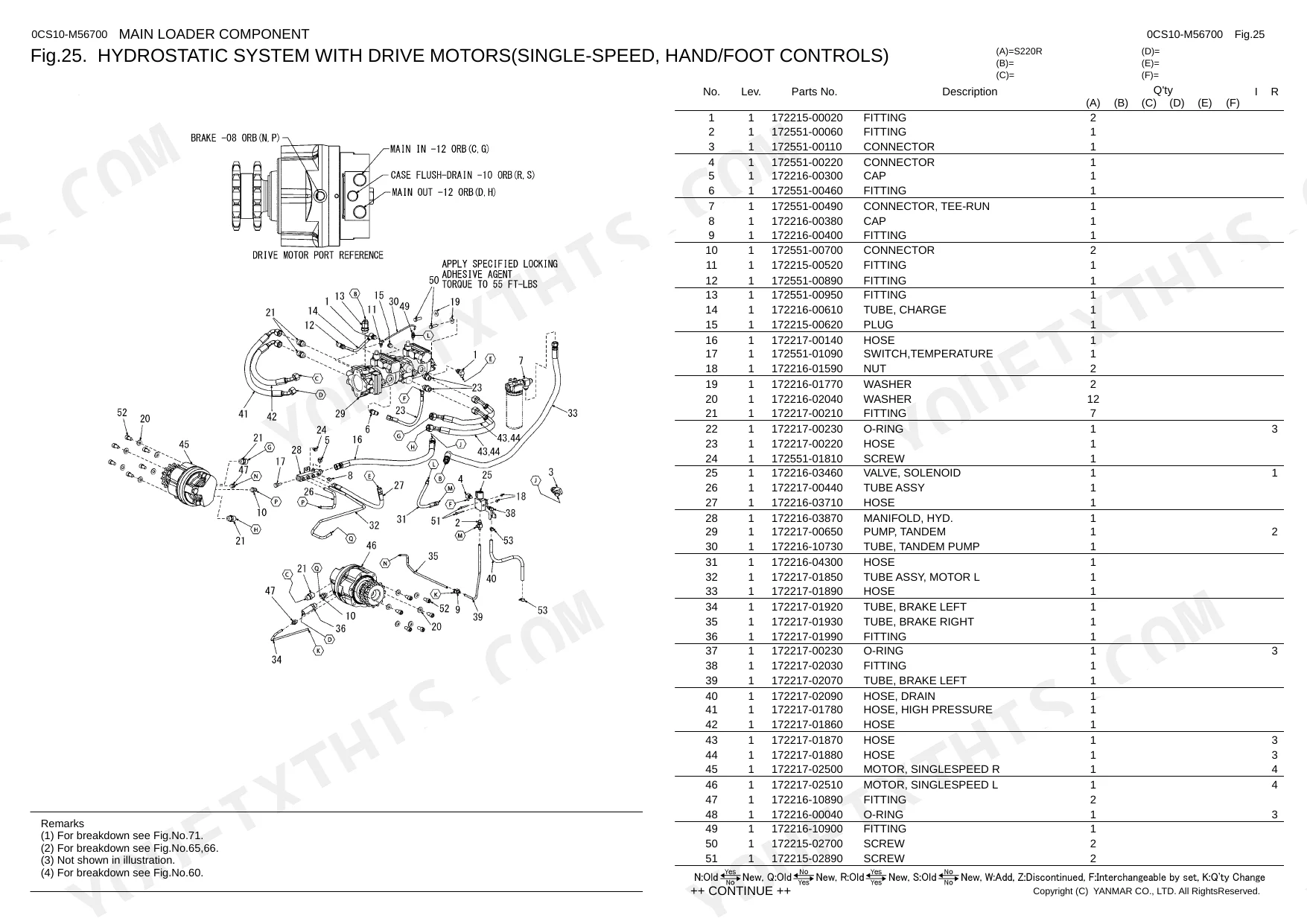

Inspect the hydrostatic system parts breakdown on page 34 to identify replacement hoses and fittings. Locate the exact part numbers for the drive motor lines to fix the bypass issue. When installing your new hydrostatic system hydraulic hose fittings, apply the specified locking adhesive and torque them to 55 FT-LBS.
Manual Section: Hydrostatic System with Drive Motors(Single-Speed, Hand/Foot Controls)Hydraulic functions are weak and the main lift arm cylinder is actively leaking fluid down the boom. p. 71
Review the lift cylinder exploded view on page 71 to find the exact seal kit part number. Check the diagram to identify the piston, rod, and tube components. Ensure you order the correct matching seals before torquing any nearby hydrostatic hose fittings to 55 FT-LBS during reassembly.
Manual Section: Lift CylinderDrive chain makes a loud clunking noise and the outer wheel axle seal is actively leaking fluid. p. 28

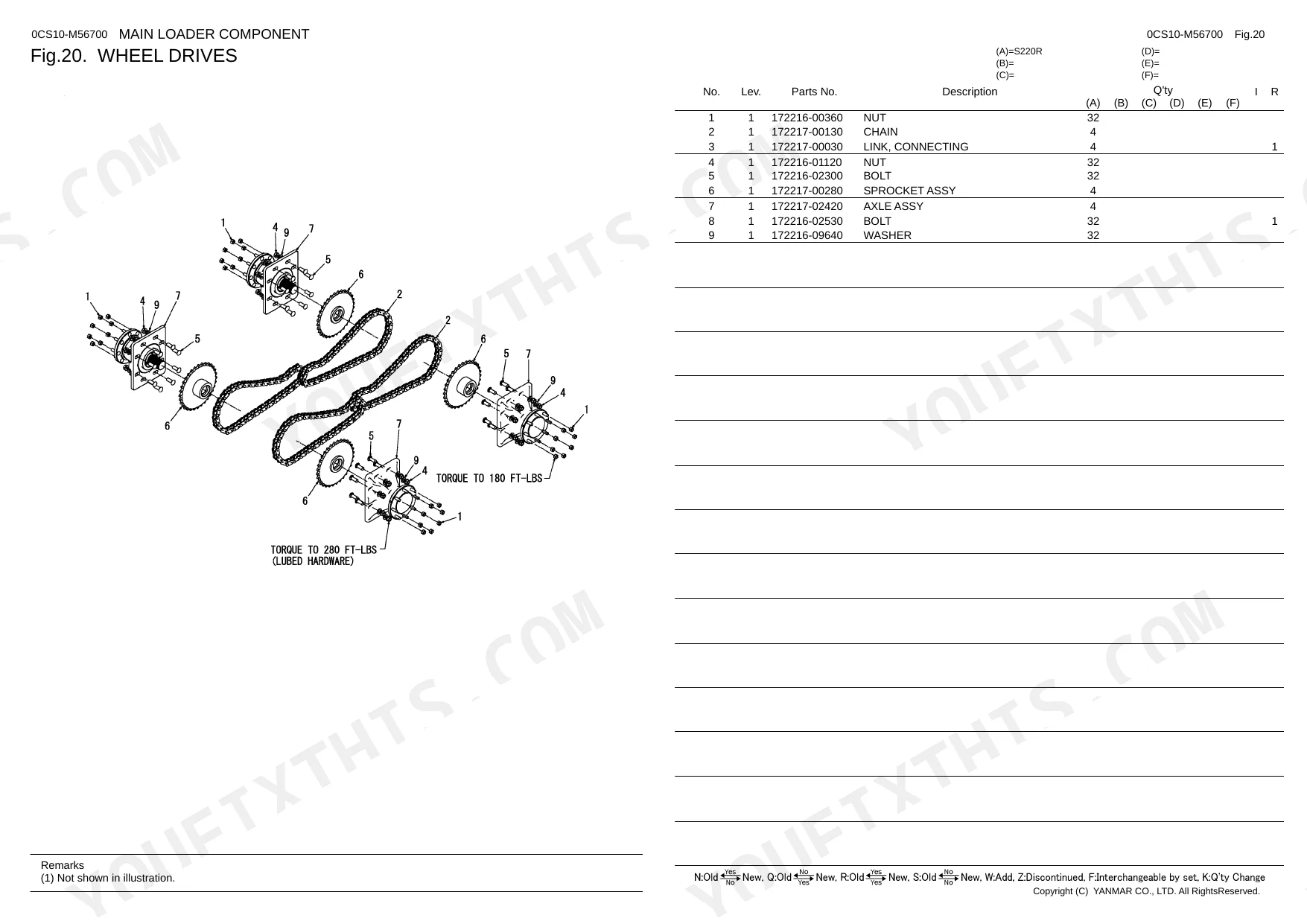

Open the wheel drives parts diagram on page 28 to identify replacement sprockets, chains, and axle seals. Cross-reference the required housing components and bearings before ordering. When reassembling the drivetrain, always use lubed hardware and torque the wheel nuts to 280 FT-LBS.
Manual Section: Wheel DrivesMachine will not start or engine turns over very slowly on cold mornings. p. 30

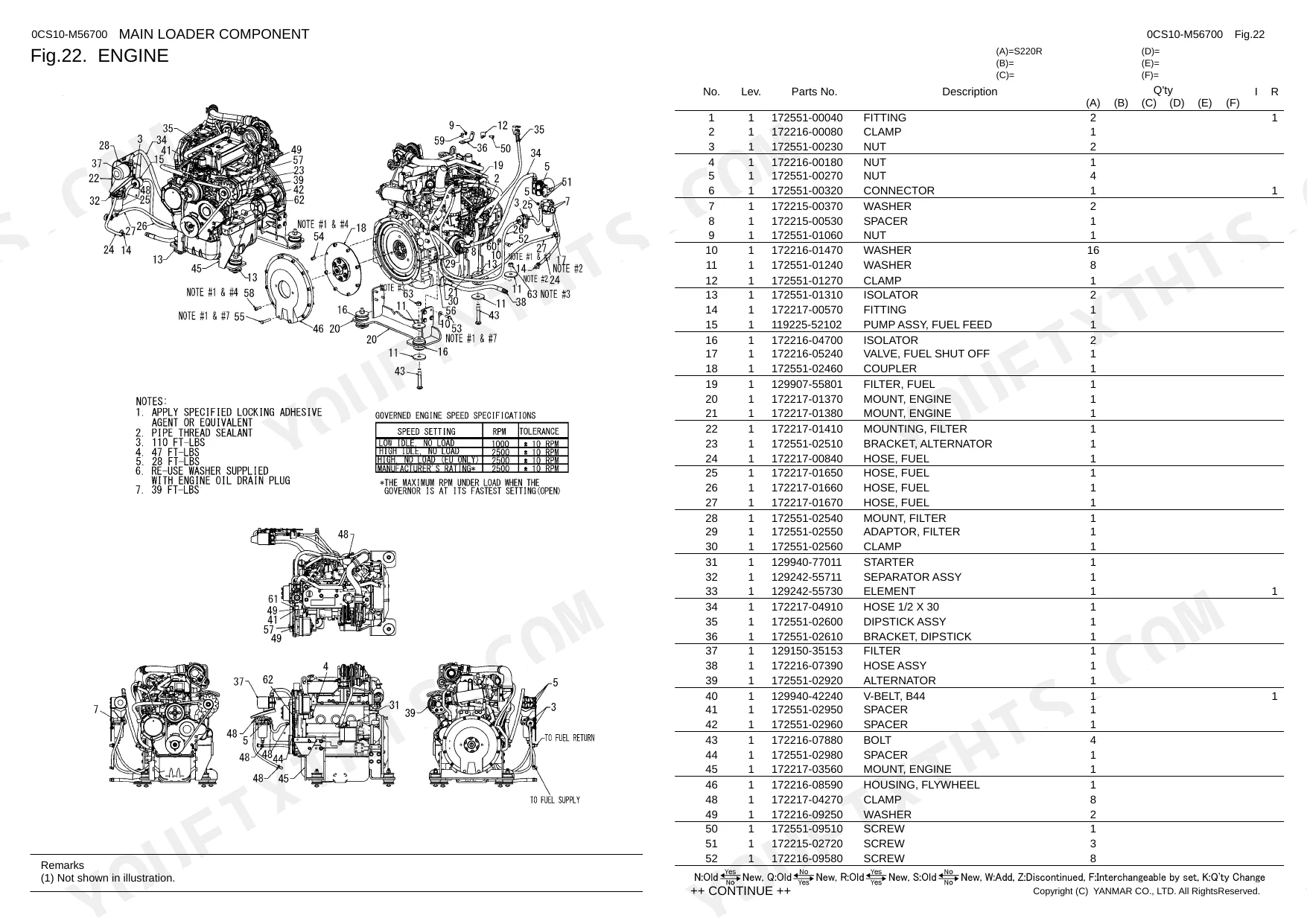

Examine the engine parts diagram on page 30 to locate the starter assembly and fuel shut-off valve part numbers. Match the components to your specific block. If you remove nearby hydraulic lines during replacement, remember to torque the hydrostatic hose fittings to 55 FT-LBS upon installation.
Manual Section: EngineFrequently Asked Questions
What are the torque specs for Yanmar S220R wheel bolts?
The torque specification for Yanmar S220R wheel bolts is 280 FT-LBS, to be applied to lubed hardware. This information is found in the notes section of the 'WHEEL DRIVES' diagram.
What are the torque specs for Yanmar S220R hydraulic fittings?
Torque specifications for hydraulic fittings vary by system. For hydrostatic system fittings, apply specified locking adhesive agent and torque to 55 FT-LBS. For hydraulic quick coupler fittings, the torque is 100 FT-LB.
What are the replacement specifications for hydraulic hoses?
This parts catalog lists hydraulic hoses by part number and sometimes includes dimensions, such as "HOSE 5/8 X 30" (P/N 172217-04900 on page 41). However, it does not provide general replacement specifications like material type, pressure ratings, or detailed installation procedures.
What are the replacement specifications for hydraulic filters?
This parts catalog lists hydraulic filters by part number, such as "FILTER, HYDRAULIC" (P/N 172551-00380 on page 40). It does not provide general replacement specifications like micron rating, filter type, or detailed installation procedures.
What do I get after purchasing this Yanmar S220R manual?
Instant PDF download. You get the full 140-page searchable Parts Catalog immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Are there any print restrictions on this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
