Looking for the exact factory part numbers for your 1997-2000 crawler backhoe? This Yanmar ViO30-1 Parts Catalog PDF (OEM #Y00K3433) breaks down every single assembly for the C(JP), P(JP), C(EX), and P(EX) variants. You get complete exploded views and component identification for the entire machine, from the engine block and cab components to the undercarriage and boom assemblies. Inside, find wiring diagrams for standard, cooler, and decel configurations, plus component indexes covering the hydraulic sections. Verify your machine's configuration before ordering your replacement hardware. Ordering the wrong component wastes days of expensive downtime. Grab this digital download, jump directly to your assembly using the built-in bookmarks, and get your equipment back in the dirt.
What's Inside This Yanmar ViO30-1 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Preface | 1 | Parts Catalog History, Model Name, Vehicle, Engine |
| Specifications | 2 | Model, Engine, Dimensions, Std.bucket Capacity, Max.digging Force, Travel Speed |
| Vehicle Painted Color | 3 | Color Description, Munsell No., Painted Color, Paint Part No. |

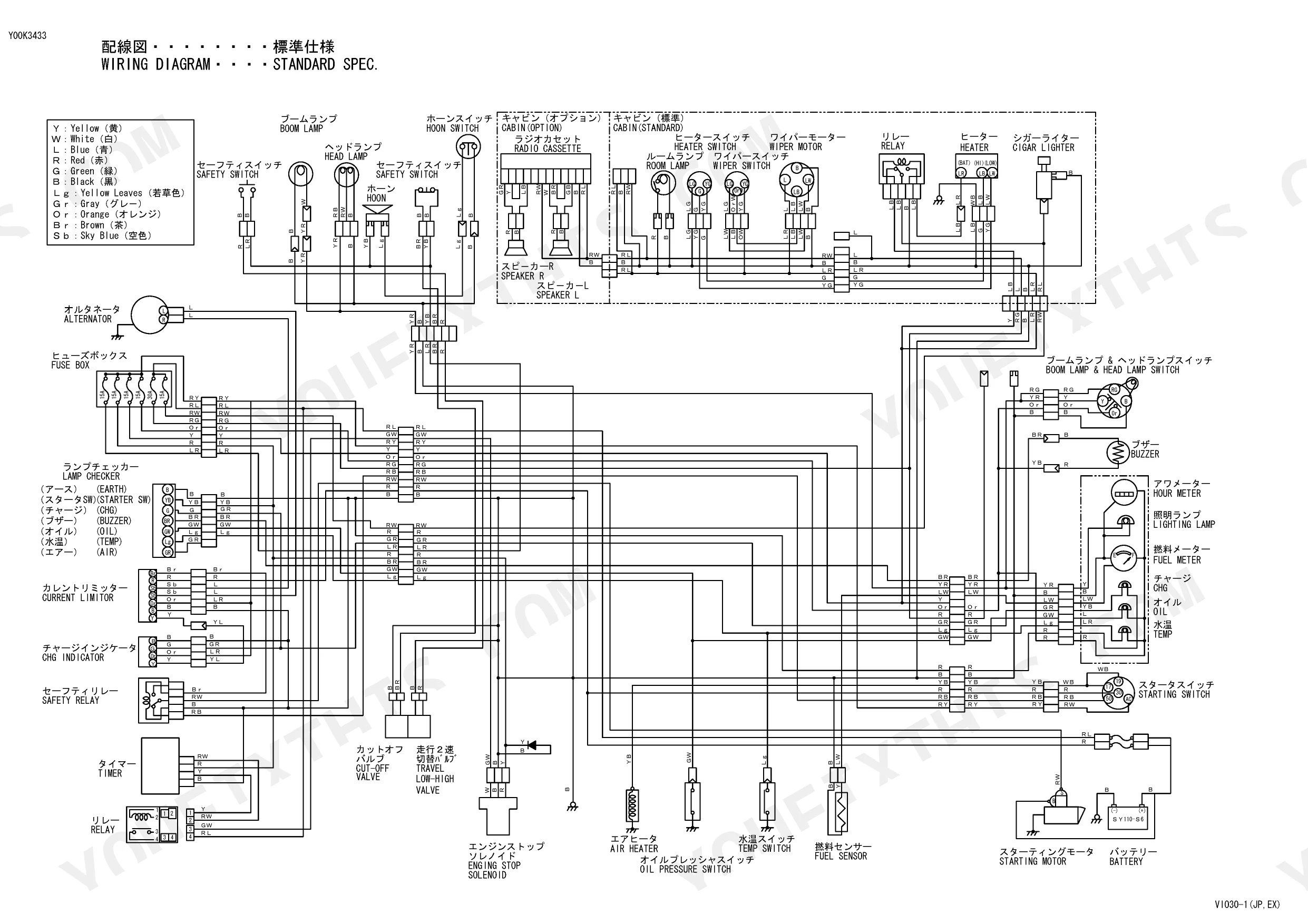

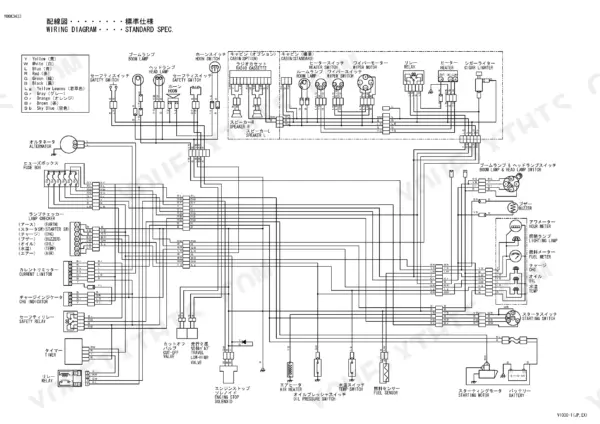

| Wiring Diagram(Standard Spec.) | 4 | Boom Lamp & Headlamp Switch, Safety Switch, Heater Switch, Alternator, Fuse Box, Starting Motor |
| Wiring Diagram(Cooler Spec.) | 5 | Power Relay, Condenser Fan Motor, Magnet Clutch, Solenoid, Main Relay, Fan Switch |
| Wiring Diagram(One Touch Decel) | 6 | Timer Relay, Decel Solenoid, Decel Lamp, Decel Switch, Start Switch, Battery |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine Bore X Stroke | 82 X 84 mm | p. 2 |
| Boom swing angle | Left 60 & Right 80 degree | p. 2 |
Yanmar ViO30-1 Common Problems This Manual Covers
Need to order replacement hydraulic hoses for the Yanmar ViO30-1 because the main pump lines are leaking p. 2
Check the hydraulic parts diagram. Locate the main pump line assembly in the exploded view to find the exact part number. Verify your machine matches the standard specifications on page 2, which lists the 82 X 84 mm engine bore and stroke.
Manual Section: SpecificationsCan't identify the correct wiring harness part number after a short circuit in the standard headlamp switch p. 4
Review the wiring diagram standard spec on page 4. Trace the headlamp switch circuit to identify the associated harness connections. Cross-reference the switch components with the electrical parts breakdown. Confirm your boom swing angle is Left 60 & Right 80 degree for standard cab fitment.
Manual Section: Wiring Diagram(Standard Spec.)Missing pin and bushing part numbers for the front digging attachment after noticeable pivot joint wear p. 2
Inspect the boom and attachment parts diagram. Find the exploded view of the pivot joints to identify specific pin and bushing part numbers. Match the components to your machine using the specifications on page 2, ensuring the boom swing angle is Left 60 & Right 80 degree.
Manual Section: SpecificationsStruggling to locate the correct track roller and sprocket part numbers due to severe undercarriage wear p. 2
Examine the chassis parts diagram. Locate the track roller and sprocket assembly in the parts breakdown to extract the correct part numbers. Confirm your machine configuration matches the 82 X 84 mm engine bore and stroke listed on page 2 before ordering replacement undercarriage components.
Manual Section: SpecificationsFrequently Asked Questions
What are the replacement specifications for tracks?
The manual specifies rubber crawler tracks with a standard width of 300 mm. For replacement, refer to part number 172422-38600 for the CRAWLER, RUBBER assembly. Specific master track components are listed as MASTER TRUCK 300L (part 16, 172422-38260) and MASTER TRUCK 300R (part 17, 172422-38270).
Where can I find the electrical wiring diagrams in this parts catalog?
Electrical wiring diagrams for this model are covered on pages 4 through 6. Page 4 provides the Standard Spec wiring diagram covering the boom lamp, headlamp switch, safety switch, heater switch, alternator, fuse box, and starting motor. Page 5 covers the Cooler Spec wiring (power relay, condenser fan motor, magnet clutch). Page 6 covers the One Touch Decel wiring (timer relay, decel solenoid, decel switch).
Which ViO30-1 model variants does this parts catalog cover?
The Yanmar ViO30-1 Parts Catalog (OEM #Y00K3433) covers the 1997-2000 production period and applies to four variants: C(JP), P(JP), C(EX), and P(EX). The Preface on page 1 provides a catalog revision history and clarifies which assemblies apply to each variant, helping you confirm parts compatibility before ordering.
How do I find the correct factory paint color and part number for bodywork repairs?
The Vehicle Painted Color section on page 3 provides the official Yanmar factory paint specifications including the color description, Munsell color number, painted color name, and the OEM paint part number. Use this reference when sourcing touch-up paint or ordering replacement panels to match the original factory finish.
