Looking for the right startup sequences and maintenance schedules for your excavator? This 219-page Yanmar ViO15-2 Operation Manual PDF breaks down the complete operating procedures, safety guidelines, and service intervals for the ViO15-2. Open to a full troubleshooting section to quickly diagnose startup issues and track gauge faults. You get step-by-step daily inspection routines, clear control layouts, and complete fluid capacity charts to keep your equipment running strong. Lock down the travel reduction gear oil plug between 15.9 and 17.4 ft-lbf of torque, and remember to replace the fuel filter every 400 service hours. Stop relying on internet guesses for daily maintenance. This bookmarked download opens instantly on your phone or tablet, allowing you to find the right spec and get back to work.
What's Inside This Yanmar ViO15-2 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3 | Operating Procedures, Inspecting Procedures, Servicing Instructions, Safety Instructions, Machine Specifications |
| Safety Information | 4 | Signal Words, Product Warnings, User Directions, Excavator Design Modifications, Safety Guards, Unauthorized Attachments, Machine Components |
| Product Overview | 5-6 | Intended Uses, Break in Period, Conditions to Be Met to Assure Compliance with Epa Emission Standards Condi |
| Operation License | 7 | Licensing Requirements, Applicable Laws |
| Ordering Replacement Parts and Service Calls | 8-9 | Location of Machine Serial Number Plate, Location of Engine Serial Number Plate, Location of Epa Emission Control Plates Localisation De La Plaque signaléti |
| Safety | 15 | Location of Warning Labels |
| Basic Precautions | 16-19 | Safety Devices, Personal Protective Equipment, Flammable Materials, Hot Fluids, Asbestos Dust, Optional Attachments |
| Operating Precautions | 20-32 | Precautions Before Starting the Engine, Precautions for Starting the Engine, Working and Parking, Precautions for Transportation, Precautions for the Battery |
| Precautions for Servicing | 33-38 | Precautions Before Servicing, Precautions During Servicing |
| Safety Messages (Warning Labels) | 39-44 | Location of Warning Labels |

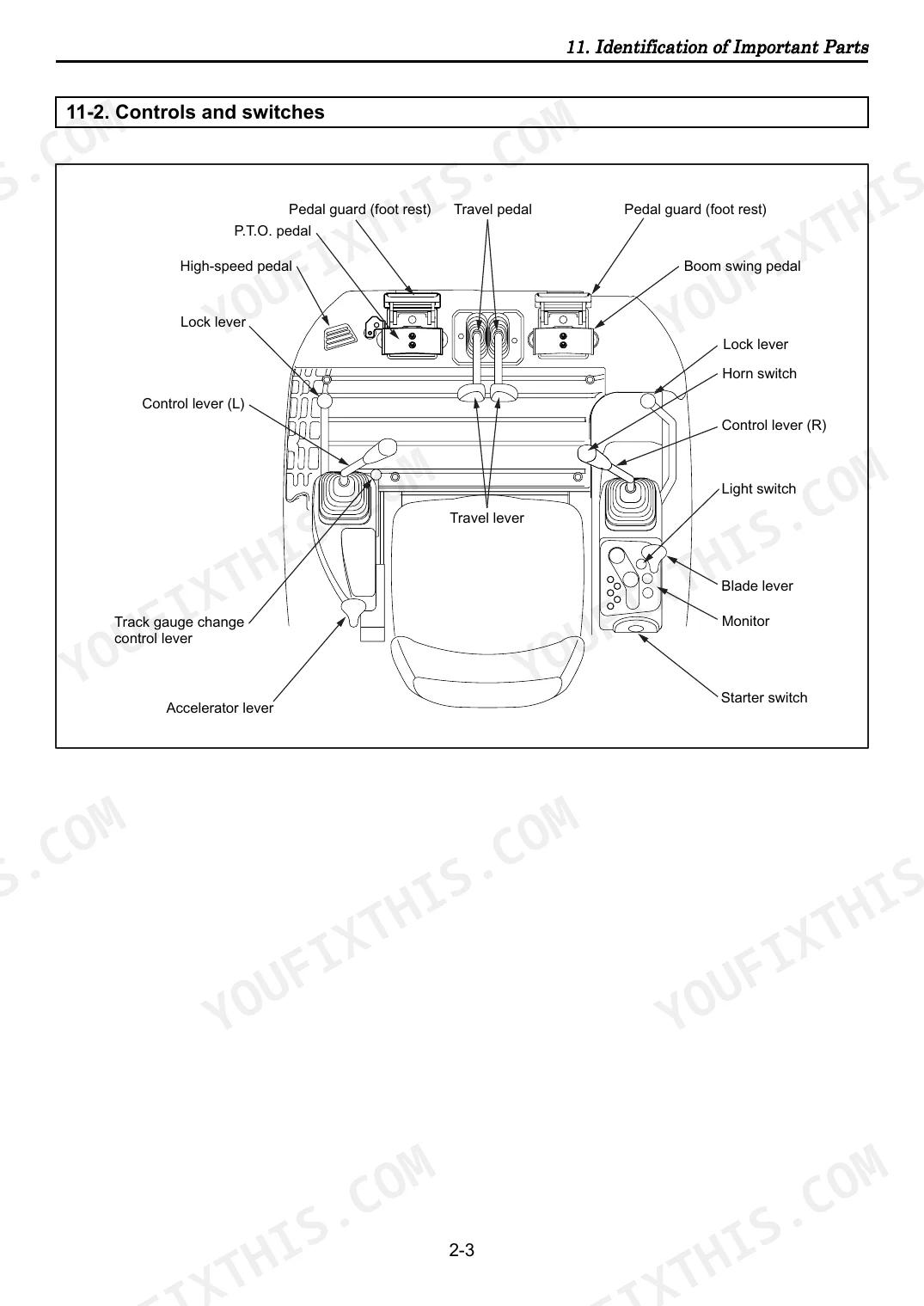

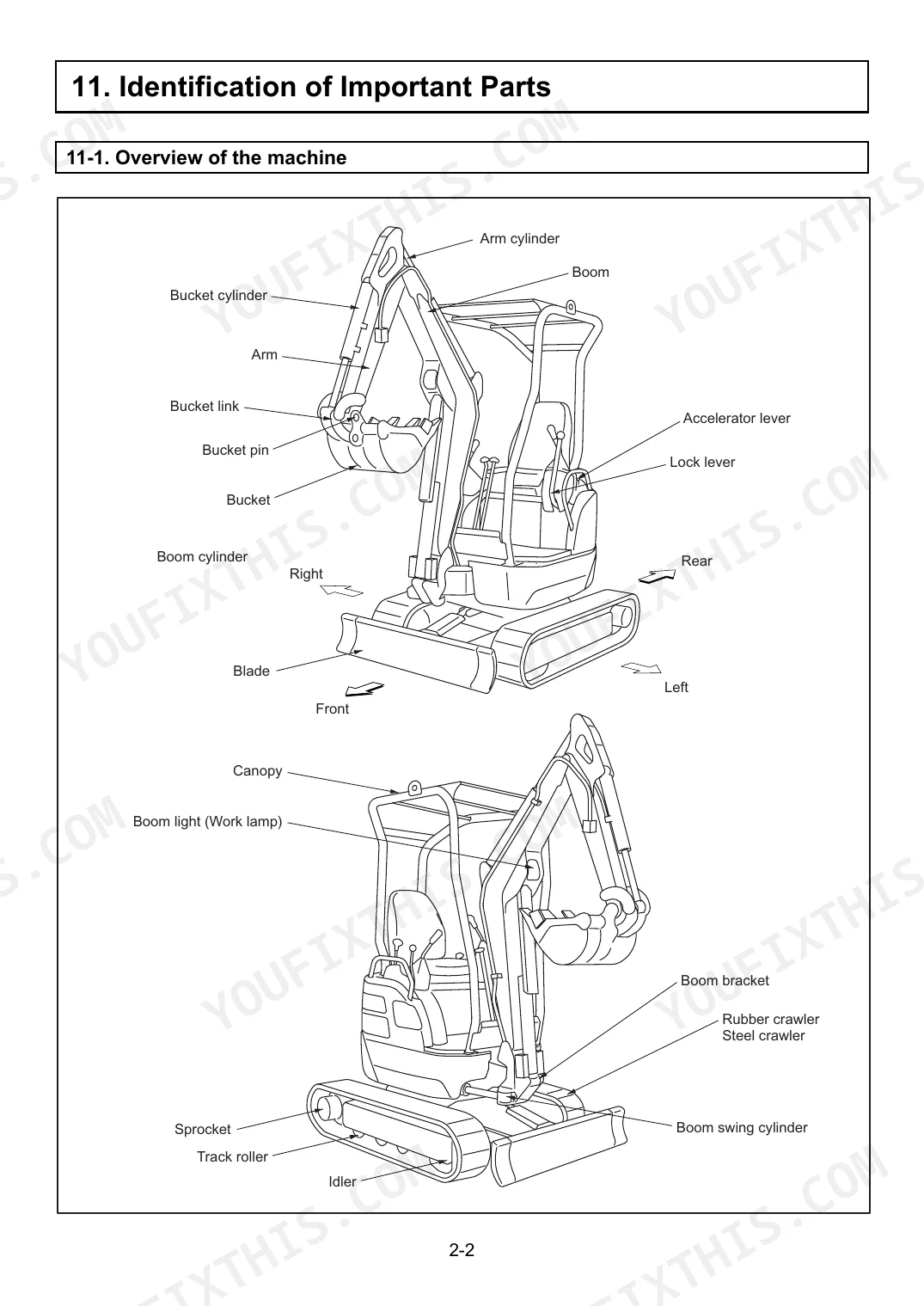

| Identification of Important Parts | 46-47 | Overview of the Machine, Controls and Switches |
| Description of Control Devices | 48-61 | Monitors, Switches, Control Levers and Pedals, Engine Hood, Storage Compartment for the Operation & Maintenance Manual, Operator’s Seat, Fuse |

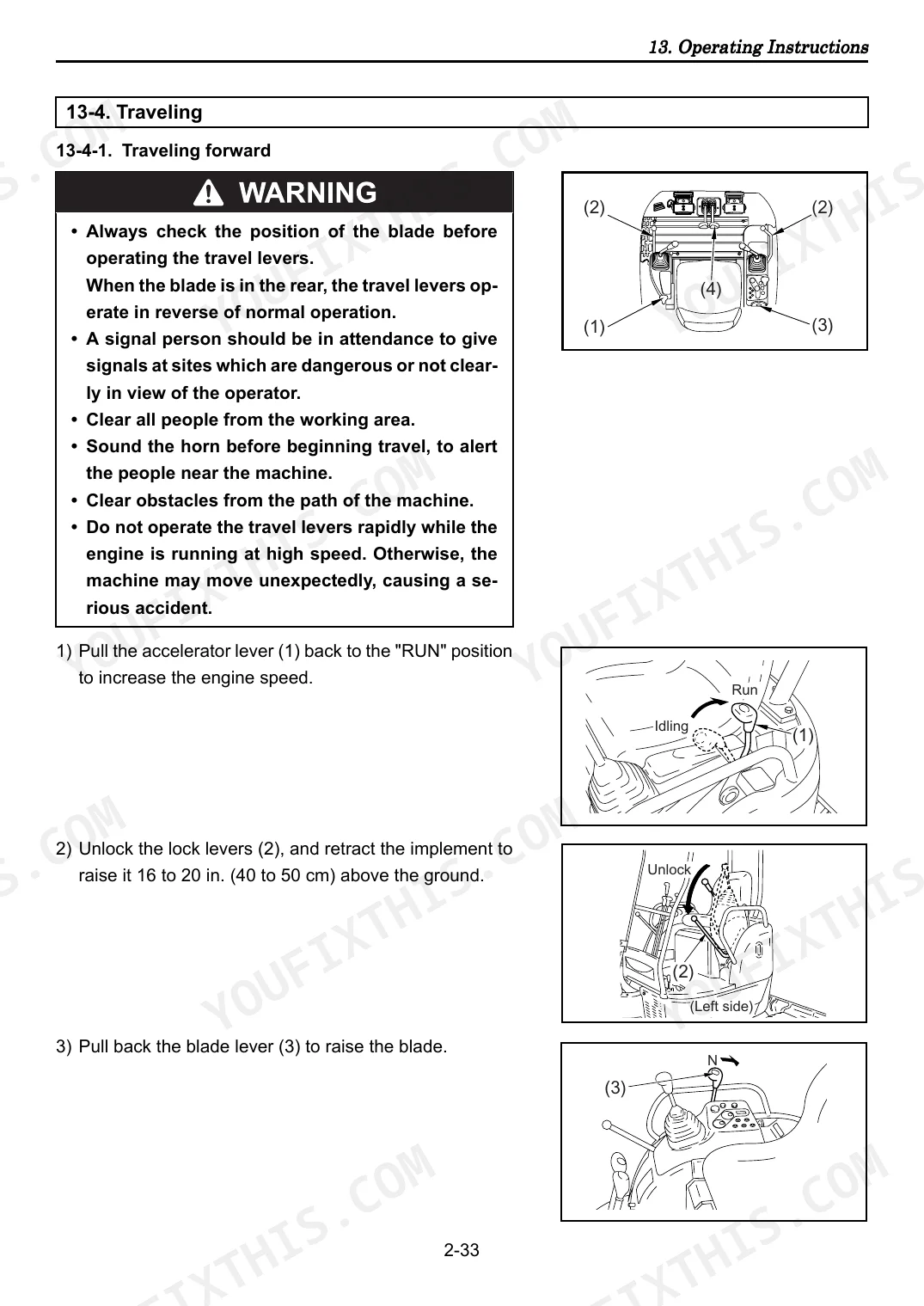

| Operating Instructions | 62-112 | Checking Before Starting the Engine, Starting Up the Engine, Operating and Checking Instructions After Starting the Engine, Traveling, Steering, Stopping the Machine |
| Transportation | 113-118 | Loading and Unloading the Machine, Precautions for Loading the Machine, Precautions for Transporting the Machine, Suspending the Machine |
| Care and Service in Cold Weather | 119-121 | Preparing for Cold Weather, Precautions After a Day's Work, After Cold Weather Ends |
| Long-Term Storage | 122-123 | Before Storing, Storing, Using the Machine Again |

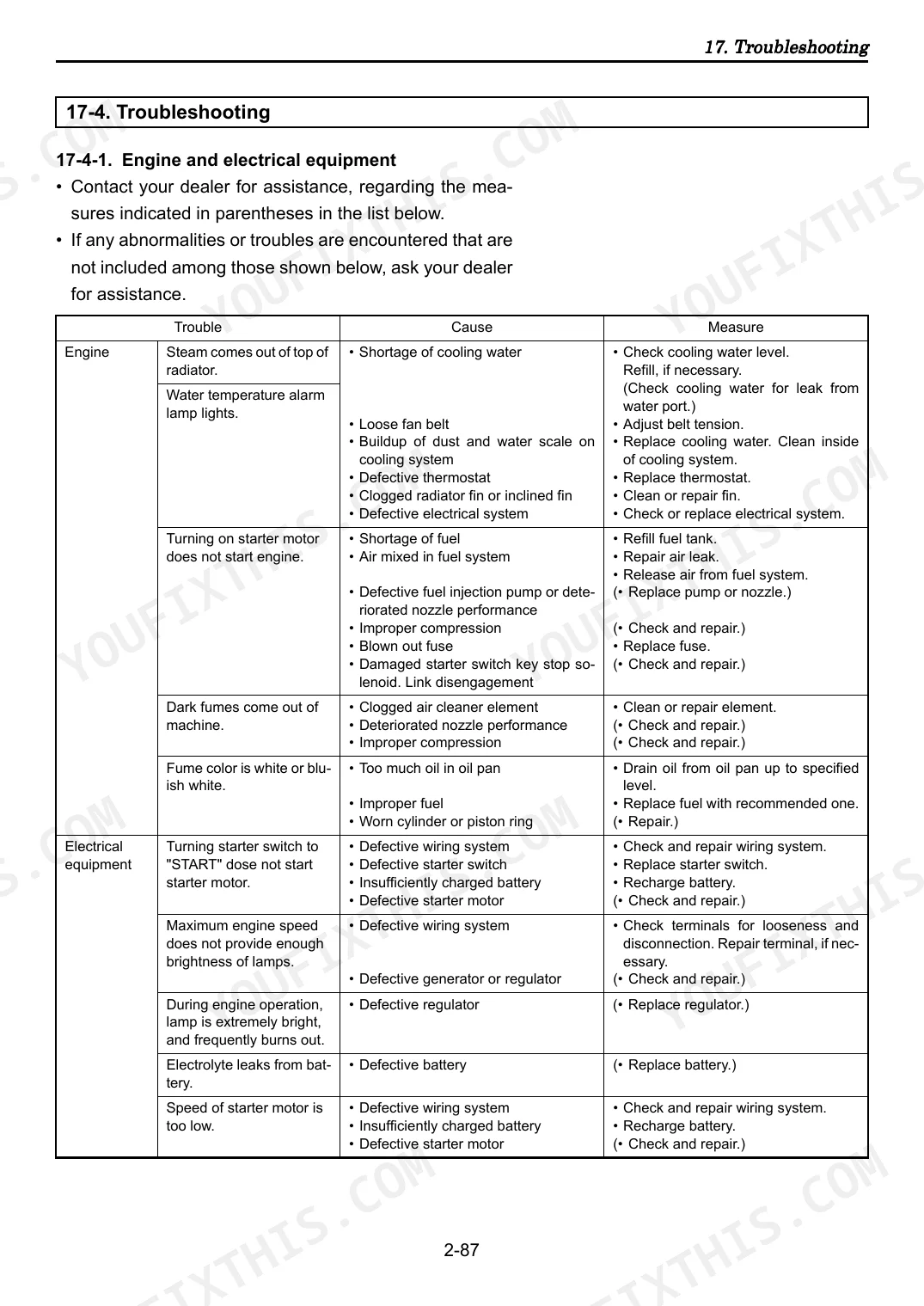

| Troubleshooting | 124-132 | Phenomena That Do Not Constitute Faults, Towing, If the Battery Is Overdischarged |
| Maintenance | 133 | First Services, Nonperiodic Services, Checking Before Start-Up, Maintenance Every 50 Service Hours, Maintenance Every 100 Service Hours, Maintenance Every 200 Service Hours |
| Precautions for Servicing | 134-136 | Genuine Replacement Parts, Lube Oil, Grease, Filter Elements, Warning Tag, Battery Cables, Undercarriage Inspection |
| Basic Servicing Practices | 137-142 | Oils, Fuel, And Cooling Water, Electrical Equipment, Hydraulic System |

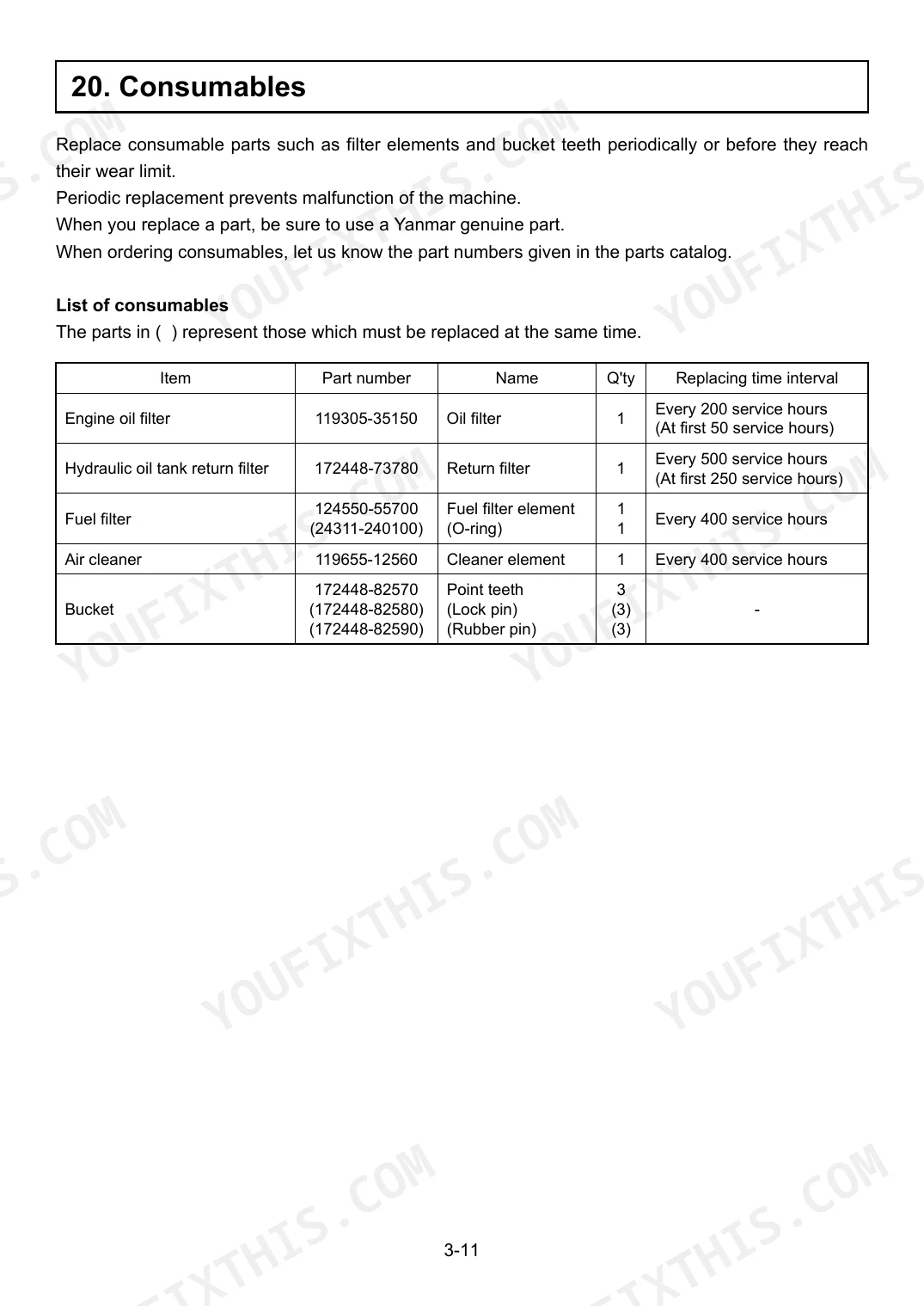

| Consumables | 143 | Filter Elements, Bucket Teeth, Engine Oil Filter, Hydraulic Oil Tank Return Filter, Fuel Filter, Air Cleaner, Bucket Components |
| Fueling, Oiling and Greasing Based on Temperature Range | 144 | Fuel and Oil, Cooling Water |
| Standard Tightening Torque for Bolts and Nuts | 145-146 | Required Tools, Torque Table |
| Replacing Essential Parts Periodically | 147-148 | Safety Parts, Hose Clamp, Hydraulic Hoses, O-Rings, Seals, Fuel Hoses, Main Pump Outlet Hose |

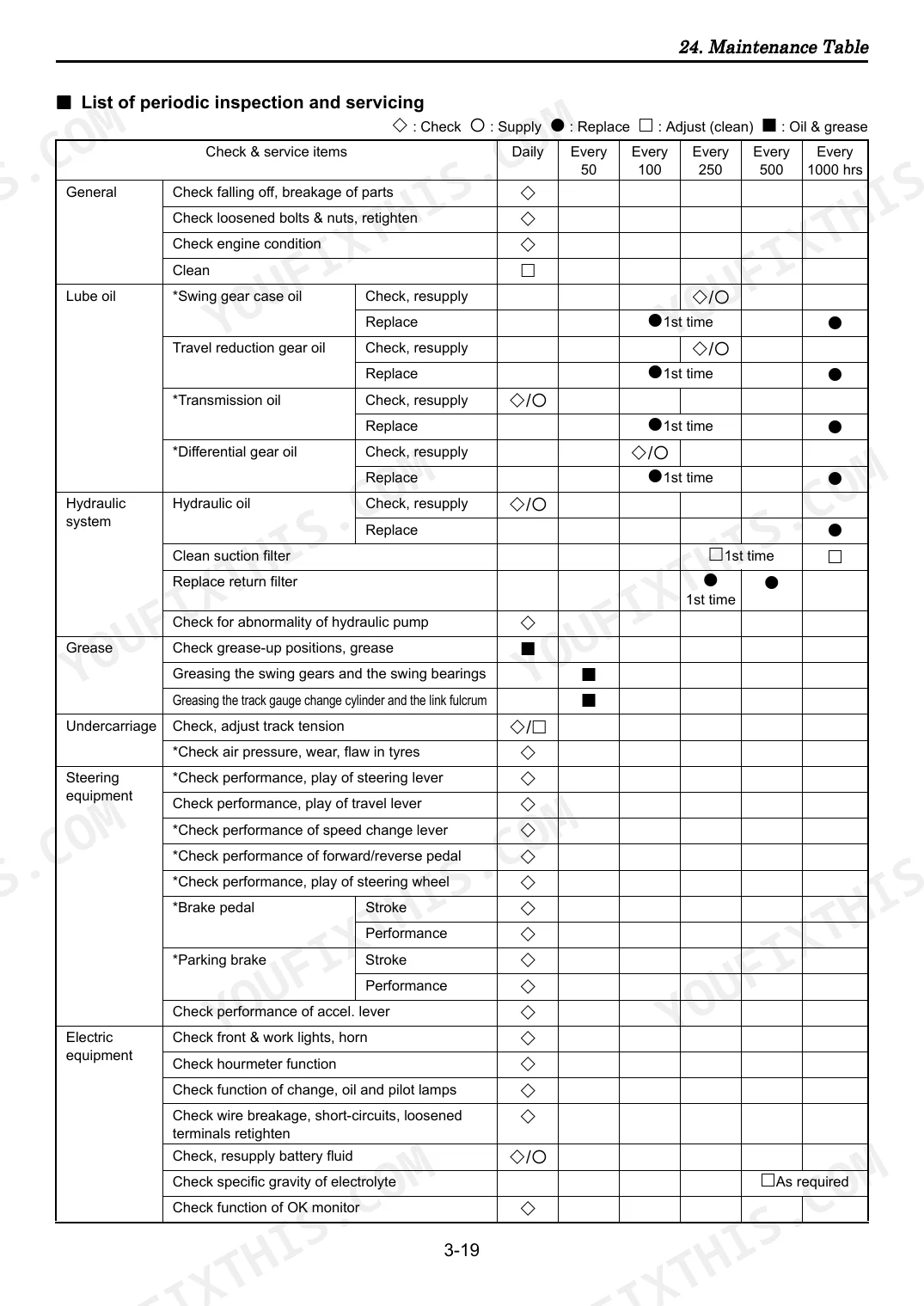

| Maintenance Table | 149-153 | Table of Service Time Intervals, Service Intervals When Using the Hydraulic Breaker |

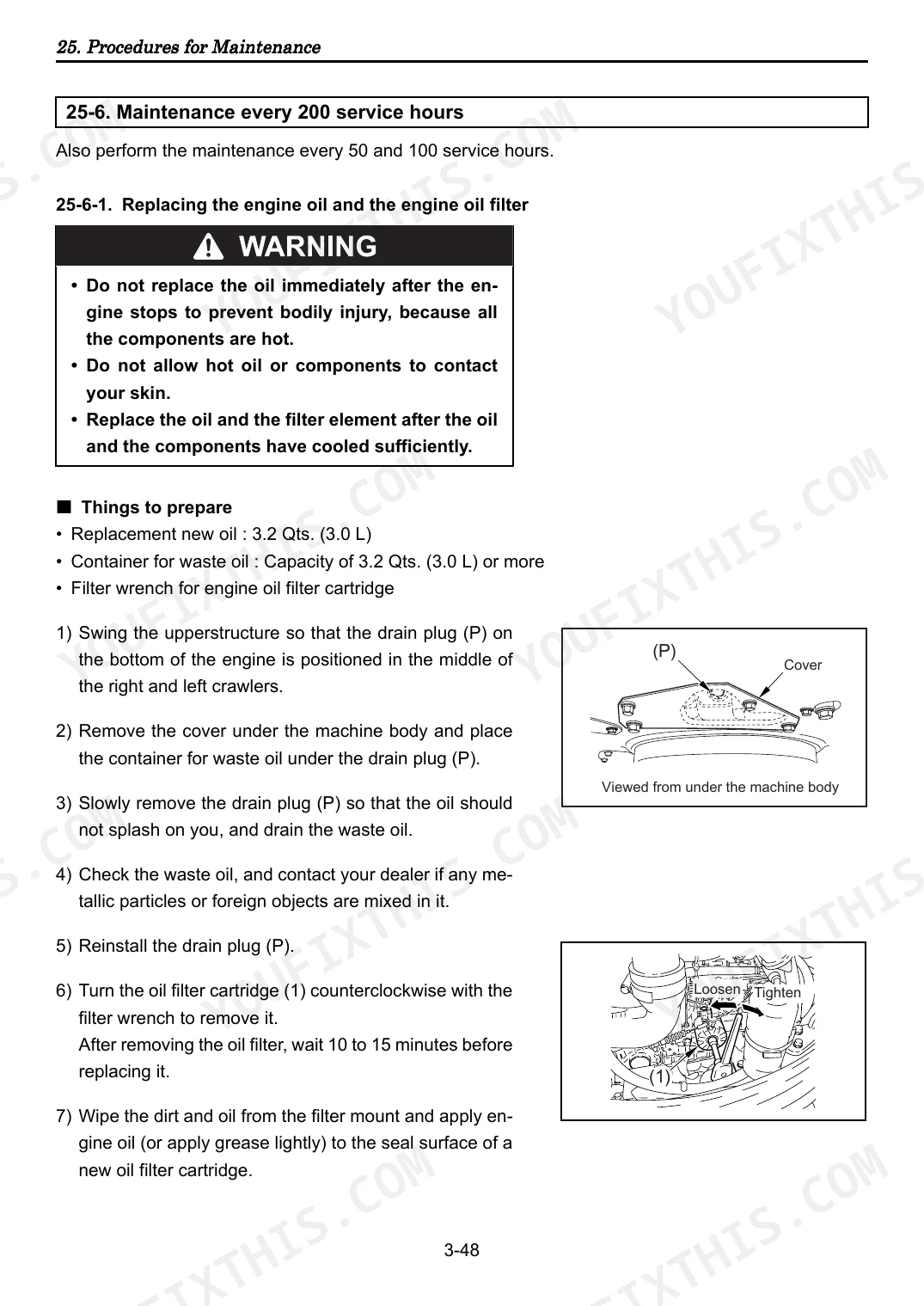

| Procedures for Maintenance | 154-196 | First Services, Nonperiodic Services, Checking Before Start-Up, Maintenance Every 50 Service Hours, Maintenance Every 100 Service Hours, Maintenance Every 200 Service Hours |
| Specifications and Dimensional Diagrams | 197 | Operating Mass, Working Range, Engine Specifications, Hydraulic System Specifications, Battery Specifications, Dimensional Diagrams |
| Specifications and Dimensional Diagrams | 198-200 | Operating Mass, Bucket Capacity, Maximum Digging Depth, Hydraulic Pump Displacement, Engine Model, Generator Capacity |
| General Precautions | 202-203 | Safety Precautions, Precautions for Mounting an Attachment (Implement) |
| Handling the Hooked Bucket | 204 | Checking the Hooked Bucket for Damage, Prohibitions, Precautions |
| Optional Parts and Attachments | 205-206 | - |
| Notes | 207 | - |
| Maintenance Log | 208-211 | - |
| Notes | 212-217 | - |
| Spine Title | 218 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Travel reduction gear oil plug tightening torque | 15.9 to 17.4 ft·lbf (21.6 to 23.5 N·m) | p. 191 |
| Fuel filter replacement interval | Every 400 service hours | p. 143 |
| Water separator element cleaning interval | Every 50 hours | p. 150 |
| Air cleaner element replacement interval | Every 400 service hours | p. 143 |
| Compressed air pressure for cleaning air cleaner element | less than 100 PSI (0.7 MPa) | p. 182 |
| Engine oil filter replacement interval | Every 200 service hours (At first 50 service hours) | p. 143 |
| Hydraulic oil tank return filter replacement interval | Every 500 service hours (At first 250 service hours) | p. 143 |
| Hydraulic oil tank return filter flange bolts tightening torque | 50.6 to 65.1 ft·lbf (68.6 to 88.2 N·m) | p. 190 |
| Battery type and capacity | SY110-S6 / 12V, 36Ah (5 hours rated capacity) | p. 198 |
| Cooling water pipe check and replacement interval | Every 2000 hours | p. 150 |
| Rubber crawler tension clearance (H) | 0.31 to 0.51 in. (8 to 13 mm) | p. 157 |
| Nipple valve tightening torque | 36.1 ft·lbf (49 N·m) | p. 159 |
Yanmar ViO15-2 Common Problems This Manual Covers
Yanmar ViO15-2 rubber crawler tracks pop off the idler or show excessive undercarriage wear p. 157
Inspect the undercarriage and measure the rubber crawler tension clearance as shown on page 157. Adjust the grease cylinder until the clearance is exactly 0.31 to 0.51 in. (8 to 13 mm). Torque the nipple valve to 36.1 ft·lbf (49 N·m) to secure the tension setting.
Manual Section: Procedures for MaintenanceEngine cranks but will not start or stumbles heavily due to water contamination in the fuel system p. 150
Drain the fuel system and clean the water separator element, which is required every 50 hours per the schedule on page 150. Check the main fuel filter and replace it if you exceed the 400-hour service interval. Bleed all air from the fuel lines before attempting to restart.
Manual Section: Maintenance TableBoom and bucket controls feel slow or hydraulic pump whines under load during heavy digging p. 190
Verify the system relief set pressure reaches 2986 PSI. Replace the hydraulic oil tank return filter element as detailed on page 190 if fluid is contaminated. Reinstall the filter housing and tighten the flange bolts to a torque of 50.6 to 65.1 ft·lbf (68.6 to 88.2 N·m).
Manual Section: Procedures for MaintenanceCoolant temperature alarm sounds during operation and engine runs excessively hot under normal load p. 182
Clean the radiator fins and inspect the air cleaner element. Blow out dirt from the inner filter using compressed air at less than 100 PSI (0.7 MPa) as directed on page 182. Replace the air cleaner element completely if the machine has reached the 400-hour service mark.
Manual Section: Procedures for MaintenanceFrequently Asked Questions
What are the replacement specifications for fuel filter?
The fuel filter element for the YANMAR ViO15-2 excavator, part number 124550-55700, along with its O-ring (part number 24311-240100), should be replaced every 400 service hours. The manual provides a detailed procedure for replacing the fuel filter element in Section "25-8-1. Replacing the fuel filter element" on page 3-55.
How do you fix yanmar ViO15-2 rubber crawler tracks pop off the idler or show excessive undercarriage wear?
Inspect the undercarriage and measure the rubber crawler tension clearance as shown on page 157. Adjust the grease cylinder until the clearance is exactly 0.31 to 0.51 in. (8 to 13 mm). Torque the nipple valve to 36.1 ft·lbf (49 N·m) to secure the tension setting.
How do you fix engine cranks but will not start or stumbles heavily due to water contamination in the fuel system?
Drain the fuel system and clean the water separator element, which is required every 50 hours per the schedule on page 150. Check the main fuel filter and replace it if you exceed the 400-hour service interval. Bleed all air from the fuel lines before attempting to restart.
How do you fix boom and bucket controls feel slow or hydraulic pump whines under load during heavy digging?
Verify the system relief set pressure reaches 2986 PSI. Replace the hydraulic oil tank return filter element as detailed on page 190 if fluid is contaminated. Reinstall the filter housing and tighten the flange bolts to a torque of 50.6 to 65.1 ft·lbf (68.6 to 88.2 N·m).
What format is this manual in?
Instant PDF download. You get the full 219-page searchable Operation Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this Yanmar ViO15-2 Operation Manual?
Print as much as you need. The PDF is DRM-free, so you can print whatever sections you need to take out to the shop. Standard letter or A4 paper works fine.
