Before you put your diesel tractor to work, make sure you have this 76-page Yanmar EF393T operator manual sitting in the cab. You get complete daily maintenance schedules, dashboard indicator guides, and step-by-step operating procedures for safe handling on steep slopes and uneven fields. Open to the service section to find detailed fluid capacities, implement loading charts, and a dedicated troubleshooting guide covering both the engine and power train. Verify your transmission and hydraulic system holds exactly 28 liters of fluid, then torque the front wheel disc mounting nuts to 118-147 N-m before hitting the dirt. Stop guessing at your daily routine checks. Download this bookmarked file directly to your phone or tablet, and keep your machine out of the repair shop.
What's Inside This Yanmar EF393T Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Instructions | 3-20 | Study the Tractor and Implements, Protect Operator Safely, Avoid Tipping Over, Stay Clear of the PTO, Transporting, Maintenance and Service |
| After Sales Services | 21-22 | Tractor Model Name & Serial Number, Engine Model Name & Serial Number, Hour-Meter, Availability of Spare Parts |

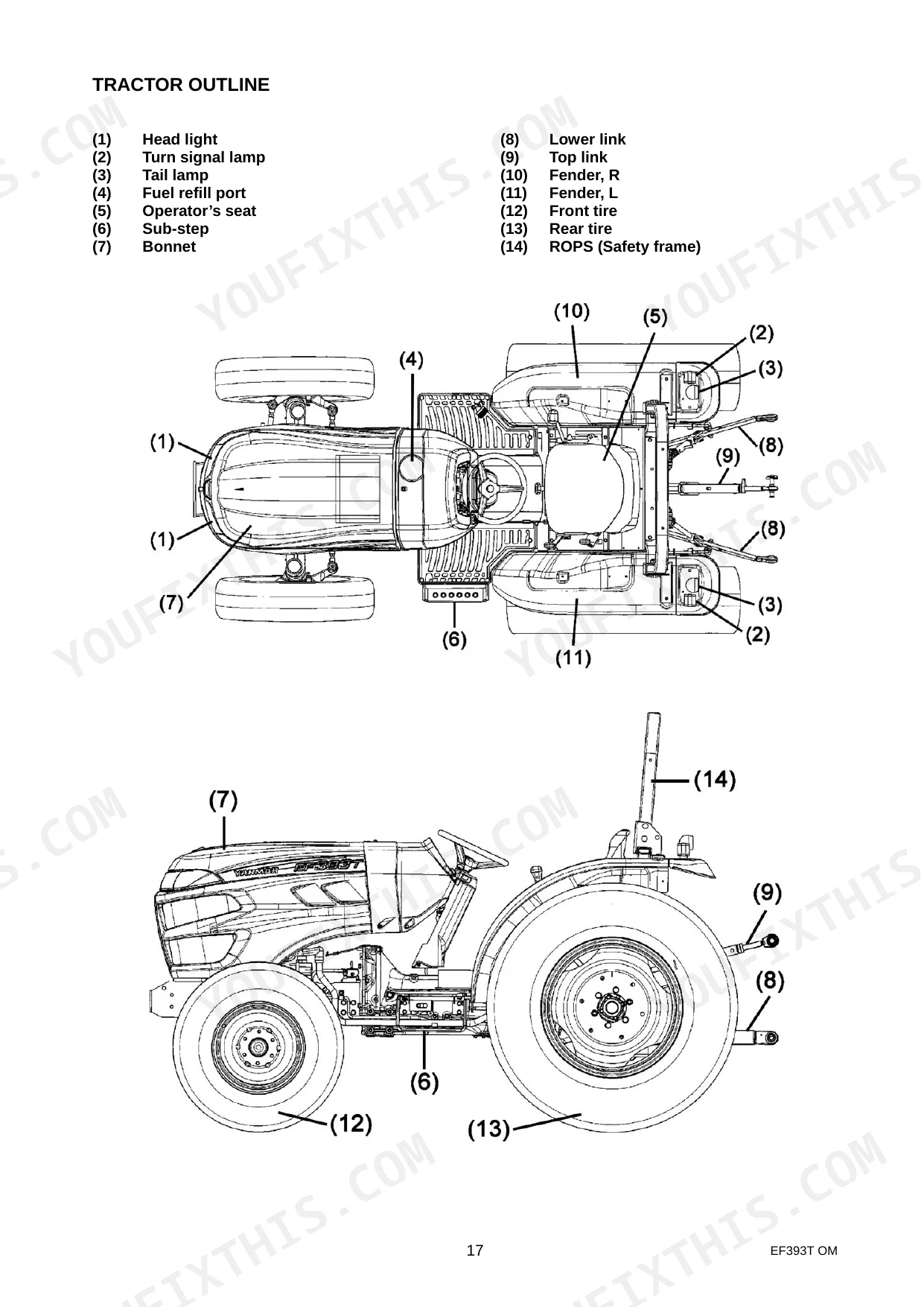

| Tractor Outline | 23 | Head Light, Turn Signal Lamp, Fuel Refill Port, Operator's Seat, Lower Link, ROPS (Safety Frame) |

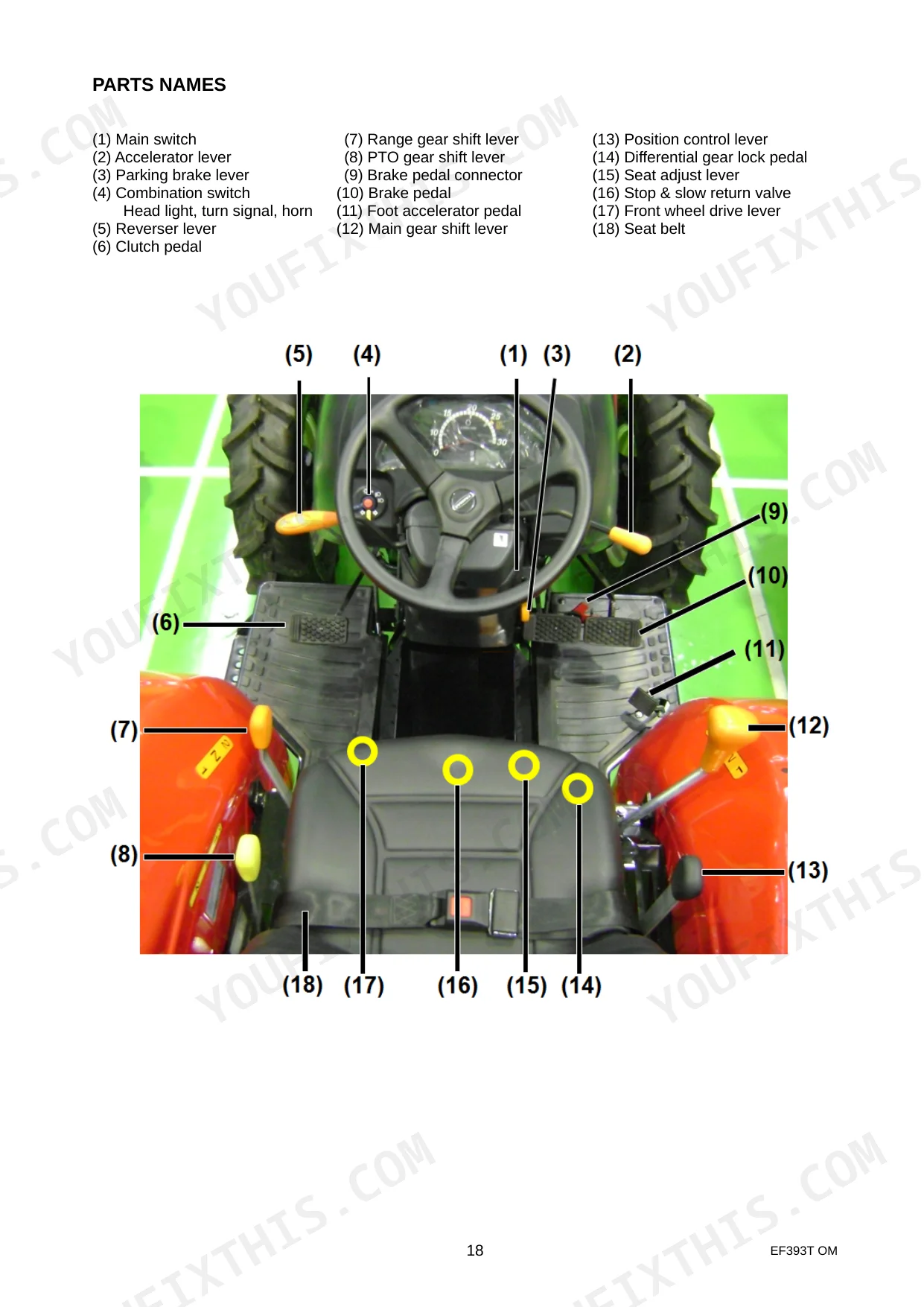

| Parts Names | 24 | Main Switch, Accelerator Lever, Parking Brake Lever, Reverser Lever, Clutch Pedal, PTO Gear Shift Lever |
| Label Locations | 25-26 | Meter Panel Indicators, Label, Fire Caution, Caution Muffler, Brake Coupling |
| Controls | 27-34 | Main Switch, Accelerator Lever, Main Shift Lever, PTO Shift Lever, Brake Pedal, Position Control Lever |
| Operations | 35-45 | Pre-Operation Checks, Break-In, Before Starting, Start and Stop (Engine, Start, Gear Shifting and Stop Tractor), Driving on a Road, Driving on a Slope, Driving in and Out of Fields |
| Opening Bonnet | 46 | Bonnet, Bonnet Open Lever, Gas Damper |
| After Operation | 47-48 | Care for Long Period of Storage, Coolant Drain Plug, Battery, Tires |

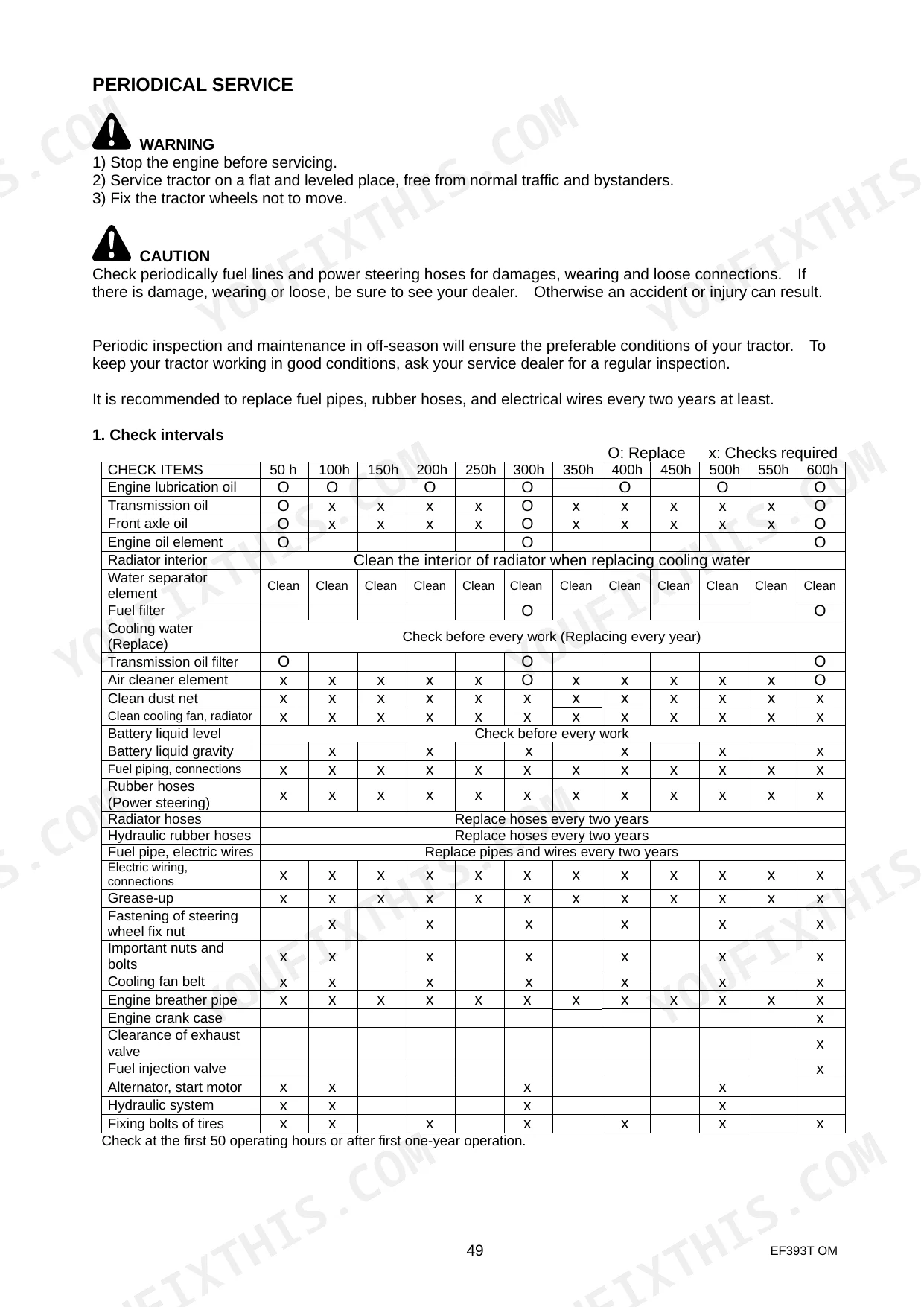

| Periodical Service | 49-65 | Check Intervals, Oil and Grease, Capacity of Oil and Water, Equivalent Oil to Transmission Fluid TF500 |

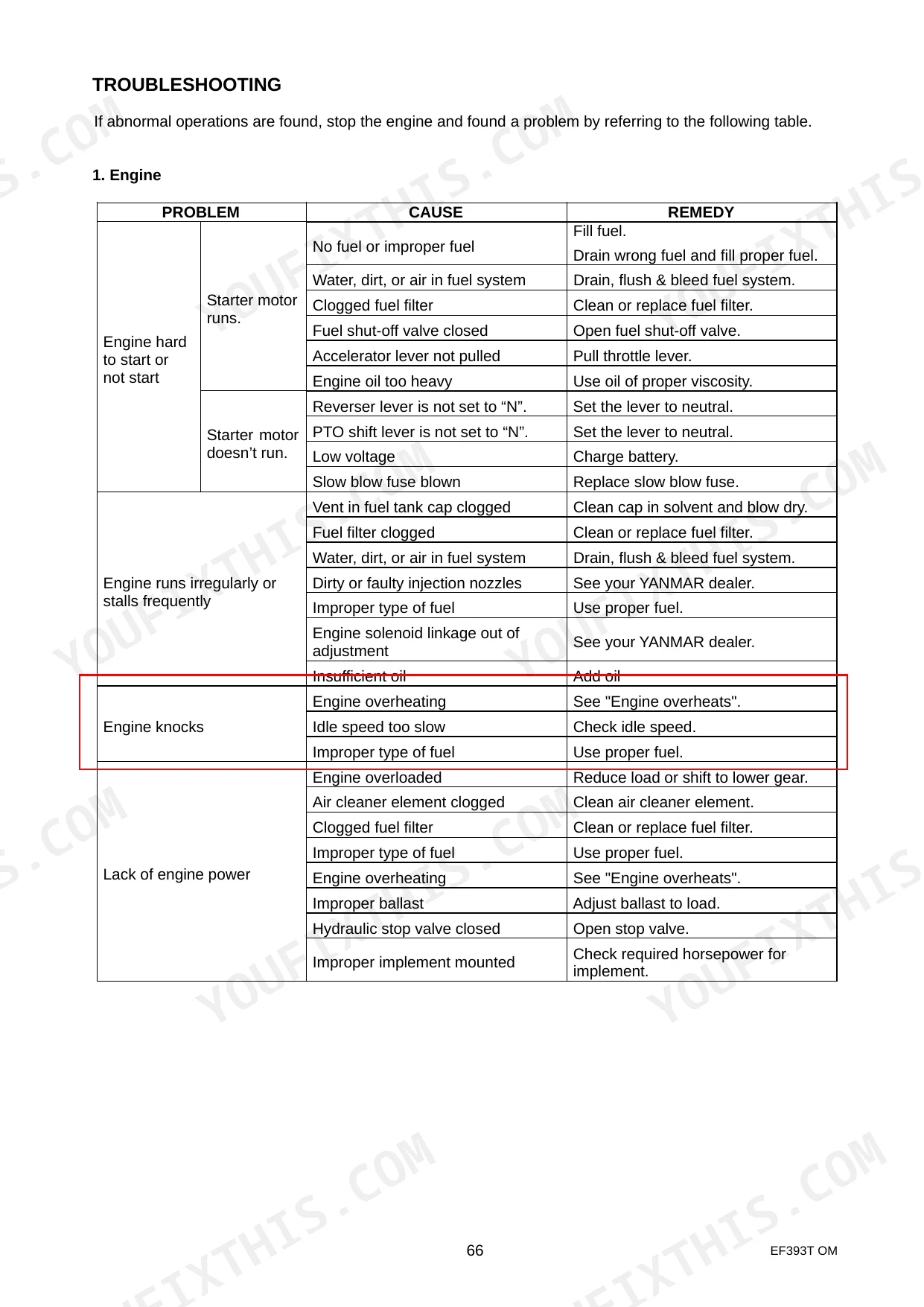

| Troubleshooting | 66-68 | Engine, Electrical System, Hydraulic System, Power Train |
| Specifications | 69 | Engine, Dimension, Weight, Transmission, PTO, Hydraulic System |
| Implement Capacities | 70-76 | Rotary, Disc Plough, Poly Disc Plough, Front Blade, Trailer, Front Weight |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front wheel disc mounting bolt and nut torque | 118-147 N-m | p. 71 |
| Rear wheel disc mounting bolt and nut torque | 177-196 N-m | p. 71 |
| Engine Oil Capacity | 3.8 lit | p. 59 |
| Transmission and Hydraulic System Oil Capacity | 28 lit | p. 60 |
| Front Axle Oil Capacity | 5.5 lit | p. 61 |
| Fuel Tank Capacity | 38 lit | p. 56 |
| Engine Oil Replacement Interval | First 50hrs and every 100 hrs | p. 59 |
| Fuel Filter Replacement Interval | Every 300 hours | p. 58 |
| Brake Pedal Free Play | 25-35 mm | p. 68 |
| Clutch Pedal Free Play | 15-25 mm | p. 68 |
| Front Wheel Disc Mounting Bolt Torque | 118-147 N-m | p. 71 |
| Rear Wheel Disc Mounting Bolt Torque | 177-196 N-m | p. 71 |
Yanmar EF393T Common Problems This Manual Covers
Yanmar EF393T front or rear wheels vibrating, shifting, or feeling loose during heavy field operation p. 71
Inspect wheel mounting bolts daily before operation. Torque the front wheel disc mounting bolts to 118-147 N-m as detailed on page 71. Torque the rear wheel bolts to 177-196 N-m. Verify tire inflation pressure is exactly 1.6 kg/cm2 (157 kPa).
Manual Section: Implement CapacitiesThree-point hitch implement not raising or dropping too slowly when position control lever is moved p. 60
Check the hydraulic oil level before operating. Fill the system to the specified 28 lit capacity if low, referencing page 60. Inspect the lower link and pump flow, ensuring pump capacity reaches 20.2 lit./min. Lower the implement fully before shutting off the engine.
Manual Section: Periodical ServiceEngine runs irregularly, stalls unexpectedly under heavy load, or is exceptionally hard to start p. 58
Drain water and sediment from the fuel system. Replace the fuel filter every 300 hours as instructed on page 58. Fill the fuel tank up to the 38 lit capacity. Bleed air from the fuel lines completely before attempting to restart the engine.
Manual Section: Periodical ServiceTractor pulls heavily to one side during road transport or when applying the brakes p. 68
Measure the brake pedal free play on both sides. Adjust the brake linkage to achieve a free play of 25-35 mm, as shown on page 68. Verify the tire pressures are equal on both sides. Ensure the brake coupling is correctly engaged for road travel.
Manual Section: TroubleshootingFrequently Asked Questions
What are the recommended service intervals?
The manual provides a detailed service interval table. For instance, engine lubrication oil should be replaced every 50, 250, and 500 hours, while transmission oil is replaced every 250 and 500 hours. The fuel filter should be replaced every 250 and 500 hours, and cooling water should be checked before every work and replaced yearly.
What fluids and capacities does this machine require?
The tractor requires Diesel fuel only for fuel oil, API grade CD or better grade 15W40 for engine oil (3.8 liters), and Yanmar TF-500 Transmission fluid or equivalent for transmission and hydraulic system oil (28 liters). The front axle uses Gear oil SAE #90 (5.5 liters), and multipurpose grade grease is specified. The fuel tank capacity is 38 liters, and the radiator holds 4.3 liters of coolant.
How to troubleshoot engine won't start?
If the engine is hard to start or won't start, common causes include no fuel or improper fuel (remedy: fill fuel), or a clogged fuel filter (remedy: clean or replace fuel filter). If the starter motor doesn't run, it could be due to low voltage, requiring the battery to be charged.
What are the hydraulic system specifications?
The hydraulic system features position control and a Category 1, 3-point hitch. It has a maximum lifting capacity of 925 kg at the lower link end and a hydraulic pump capacity of 20.2 liters/min.
What torque specifications are listed?
General tightening torques for Grade 7T bolts range from 8-12 N-m (0.8-1.2 kgf-m) for M6 bolts to 323-402 N-m (33.0-41.0 kgf-m) for M20 bolts. Specifically for wheel disc mounting, front tires require 118-147 N-m (12.0-15.0 kgf-m) and rear tires require 177-196 N-m (18.0-20.0 kgf-m).
What format is this manual in?
You get a 76-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this Yanmar EF393T Operator Manual printable?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
