Crack the bleed screw on a TNE fuel filter and you either know the priming order or you lose an afternoon guessing. This Yanmar operator manual, publication A0B5017, settles those questions for the industrial TNE series: 2TNE68, 3TNE68, 3TNE74, 3TNE78A, 3TNE82A, 3TNE84, 3TNE88, 4TNE84 and 4TNE88, plus the turbocharged 3TNE84T and 4TNE84T.
Across 128 pages it walks through fuel, lube oil and cooling water selection, breaking-in, starting and stopping, cold weather procedure, periodic checks, long-term storage, and a long troubleshooting section that runs from the fuel feed pump and injection valves through compression, valve and injection timing faults. Per-model specifications, bore, stroke, displacement and cooling system, sit up front.
When the engine is on a stand and there is nobody to call, this is the book Yanmar wrote for the person running it. It comes in English, French, German, Spanish and Italian, and it prints clean, so the pages can go to the bench and get dirty.
Complete the set for your TNE Series
- Parts Catalog: Yanmar 3TNE68 Series (SA/G1A/G2A, incl. 3TNE68C) Engine Parts Catalog
- Parts Catalog: Yanmar 3TNE82A-BVA, VIO30-1 Parts Catalog
- Parts Catalog: Yanmar 3TNE82A-B1, B27-2B Engine Parts Catalog
What's Inside This Yanmar TNE Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Tips on Safety | 7 | Preventing Fires, Preventing Exhaust Gas Inhalation, Preventing Burns, Other Safety Tips, When Charging the Battery |

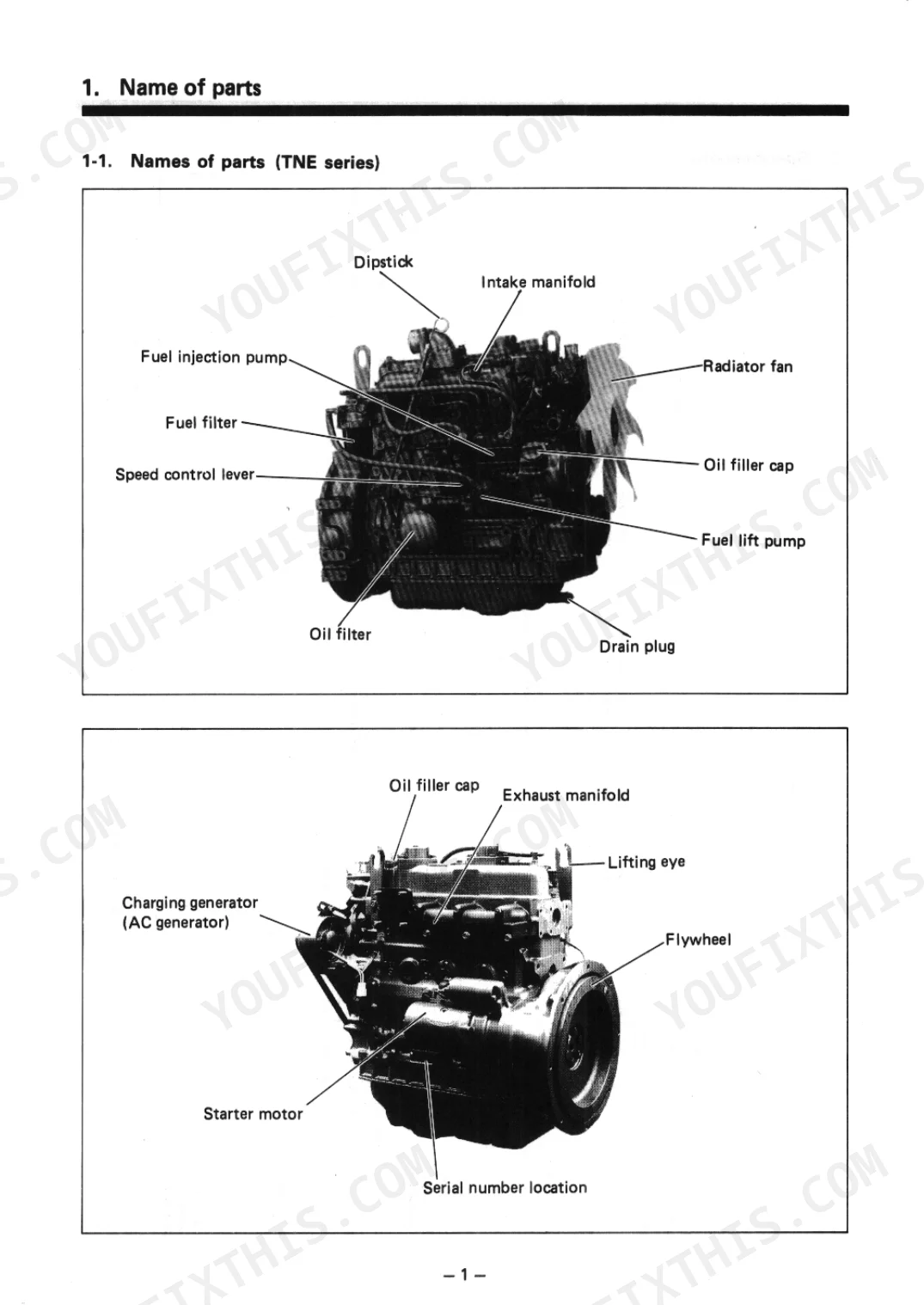

| Names of Parts | 9 | Fuel Injection Pump, Fuel Filter, Oil Filter, Radiator Fan, Charging Generator, Starter Motor |

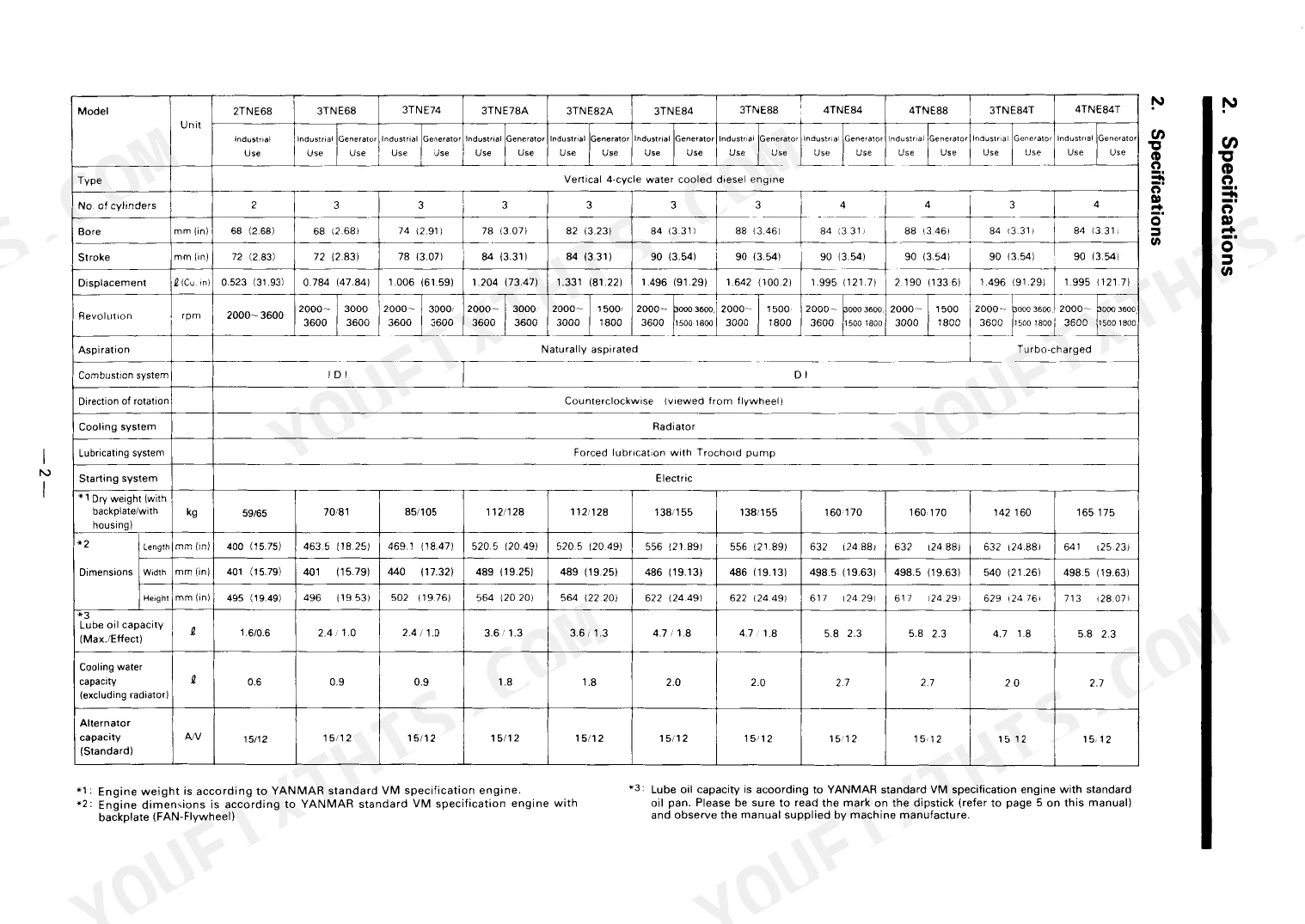

| Specifications | 10 | No. of Cylinders, Bore, Stroke, Displacement, Revolution, Cooling System |
| Basic Rules That Must Be Kept for Engine Handling | 11-12 | Running-In Operation, Engine Warm-Up, Fuel Cetane Value, Lube Oil Quality, Cooling Water, Drive Belt Tension |
| Fuel Oil, Lube Oil and Cooling Water | 13-14 | Fuel Oil Selection, Fuel Oil Handling, Lube Oil Selection, Lube Oil Refilling, Cooling Water Handling, Cooling Water Draining |
| Breaking-In Operation | 15-16 | Fuel Supply, Fuel System Bleeding, Fuel Filter Draining, Engine Lubrication, Pilot Lamps Check |
| Operating Your Engine | 17-20 | Engine Starting, Cold Weather Starting, Exhaust Color, Oil Pressure Alarm, Cooling Water Temperature Alarm, Engine Stopping |
| Periodical Checks and Maintenance | 21-25 | Fuel Oil System Check, Lube Oil System Check, Cooling Water System Check, Air Intake System Check, Electrical Equipment Check, Fan Belt Tension Adjustment |
| Long-Term Storage | 26 | Engine Surface Cleaning, Engine Oil Change, Fuel Injection Valves, Cooling Water, Anti-Freeze, Exhaust Silencer, Air Cleaner, Batteries |
| Troubleshooting | 27 | Fuel Filter, Fuel Feed Pump, Fuel Injection Pump, Fuel Injection Valve, Compression, Intake/Exhaust Valves, Injection Timing |
| Additional Language Editions | 28-128 | Full Operator Manual Repeated in French, German, Spanish and Italian |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| V-belt Flexion | 8-10 mm | p. 26 |
Yanmar TNE Series Common Problems This Manual Covers
Engine cranks but will not start
On a mechanically injected TNE the usual suspects are fuel delivery, injection timing and compression. The troubleshooting section works through the fuel filter, feed pump, injection pump and injection valves in order, then moves on to compression and the intake and exhaust valves.
Manual Section: 9. Troubleshooting p. 27Air lock after changing the fuel filter
A filter or line change lets air into the system and the engine dies or refuses to fire until it is bled. The manual gives the fuel system bleeding and filter draining procedure so you prime it once instead of cranking the battery flat.
Manual Section: 5. Breaking-In Operation p. 15Hard starting in cold weather

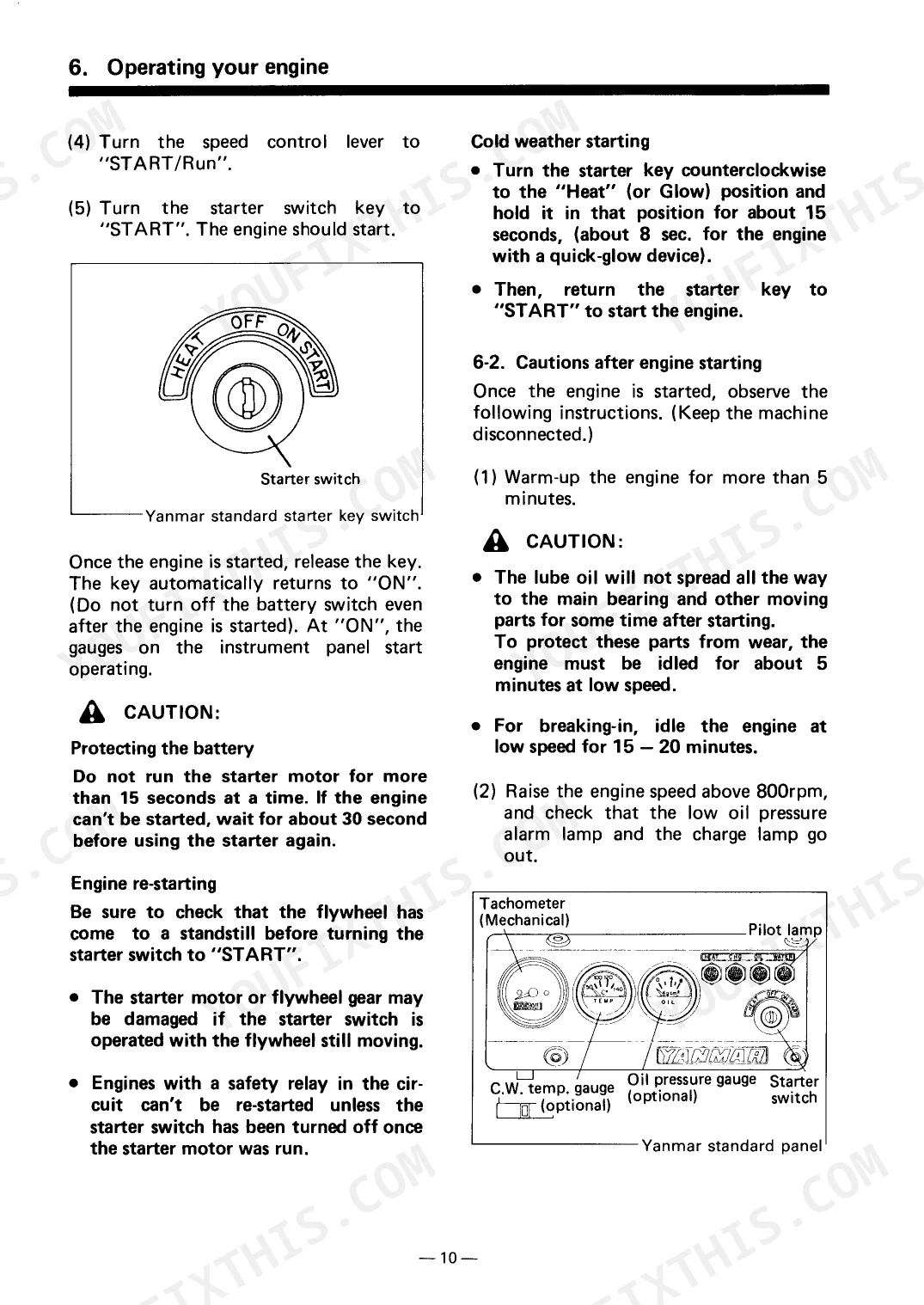

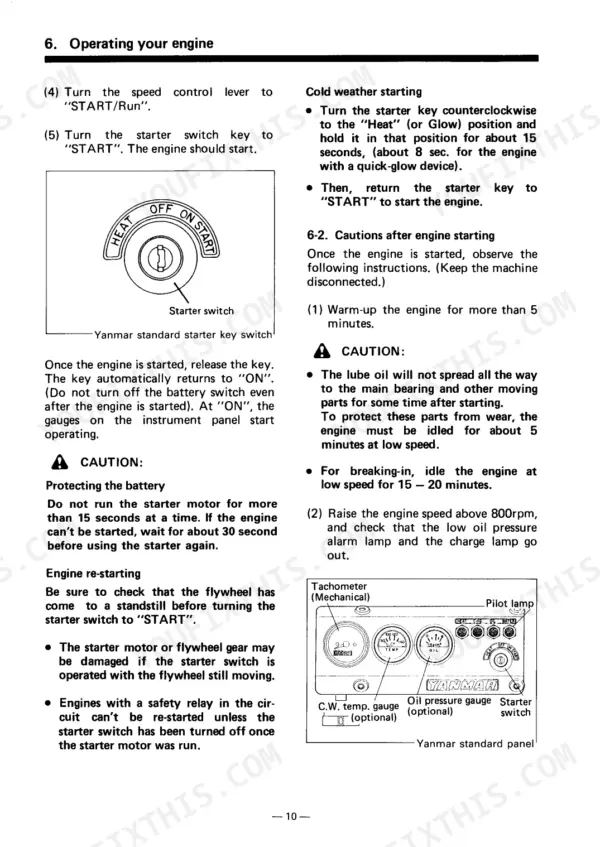

Cold mornings expose weak batteries, thin cranking speed and marginal fuel. The operating section lays out the cold weather starting procedure, what exhaust color should look like, and how the oil pressure and water temperature alarms behave at start-up.
Manual Section: 6. Operating Your Engine p. 17Slipping fan belt and weak charging

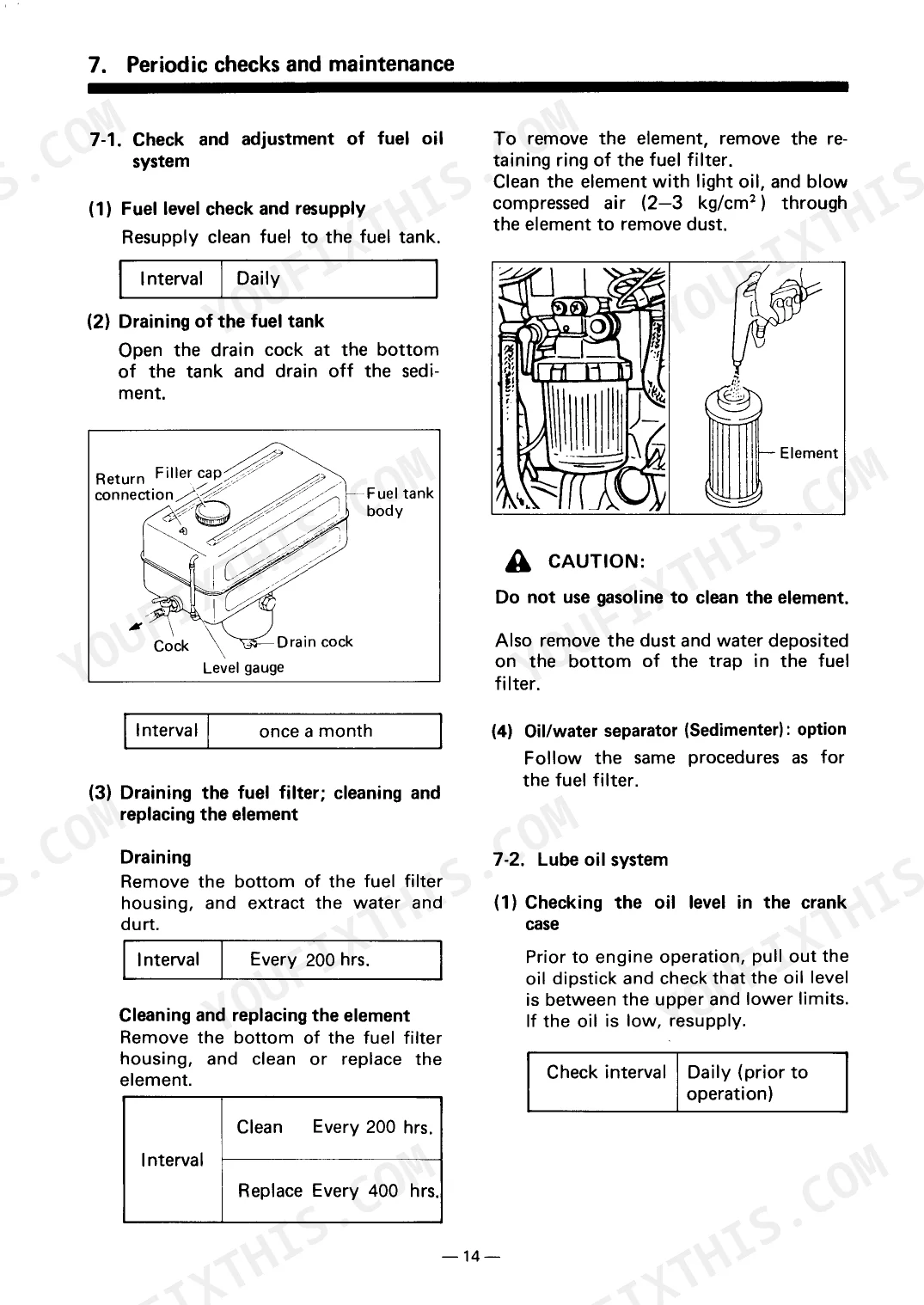

A loose V-belt squeals, undercharges the battery and lets the engine run warm. Fan belt tension adjustment is covered in the periodic maintenance schedule alongside the electrical equipment checks.
Manual Section: 7. Periodical Checks and Maintenance p. 21Overheating from neglected cooling water
Wrong or dirty cooling water scales up the jacket and the engine creeps toward the temperature alarm. The manual covers cooling water selection, handling and draining, together with lube oil quality and fuel oil selection.
Manual Section: 4. Fuel Oil, Lube Oil and Cooling Water p. 13Engine seized or sluggish after storage
An engine parked for a season without preparation comes back with stuck rings, gummed injection valves and a flat battery. The storage section covers the oil change, injection valve treatment, anti-freeze, air cleaner and battery care that prevent it.
Manual Section: 8. Long-Term Storage p. 26Frequently Asked Questions
Which Yanmar engines does this manual cover?
The industrial TNE series: 2TNE68, 3TNE68, 3TNE74, 3TNE78A, 3TNE82A, 3TNE84, 3TNE88, 4TNE84 and 4TNE88, including the turbocharged 3TNE84T and 4TNE84T. It applies to the engine itself, whatever equipment it is installed in.
How do I bleed air from the fuel system?
The Breaking-In Operation section covers fuel supply, fuel system bleeding and fuel filter draining step by step, which is the procedure you need after a filter change or after running the tank dry. p. 15
Does it give a maintenance schedule?
Yes. The Periodical Checks and Maintenance section covers the fuel, lube oil, cooling water, air intake and electrical checks at each interval, including fan belt tension adjustment; the manual specifies 8-10 mm belt flexion. p. 21
Will it help me diagnose a running problem?

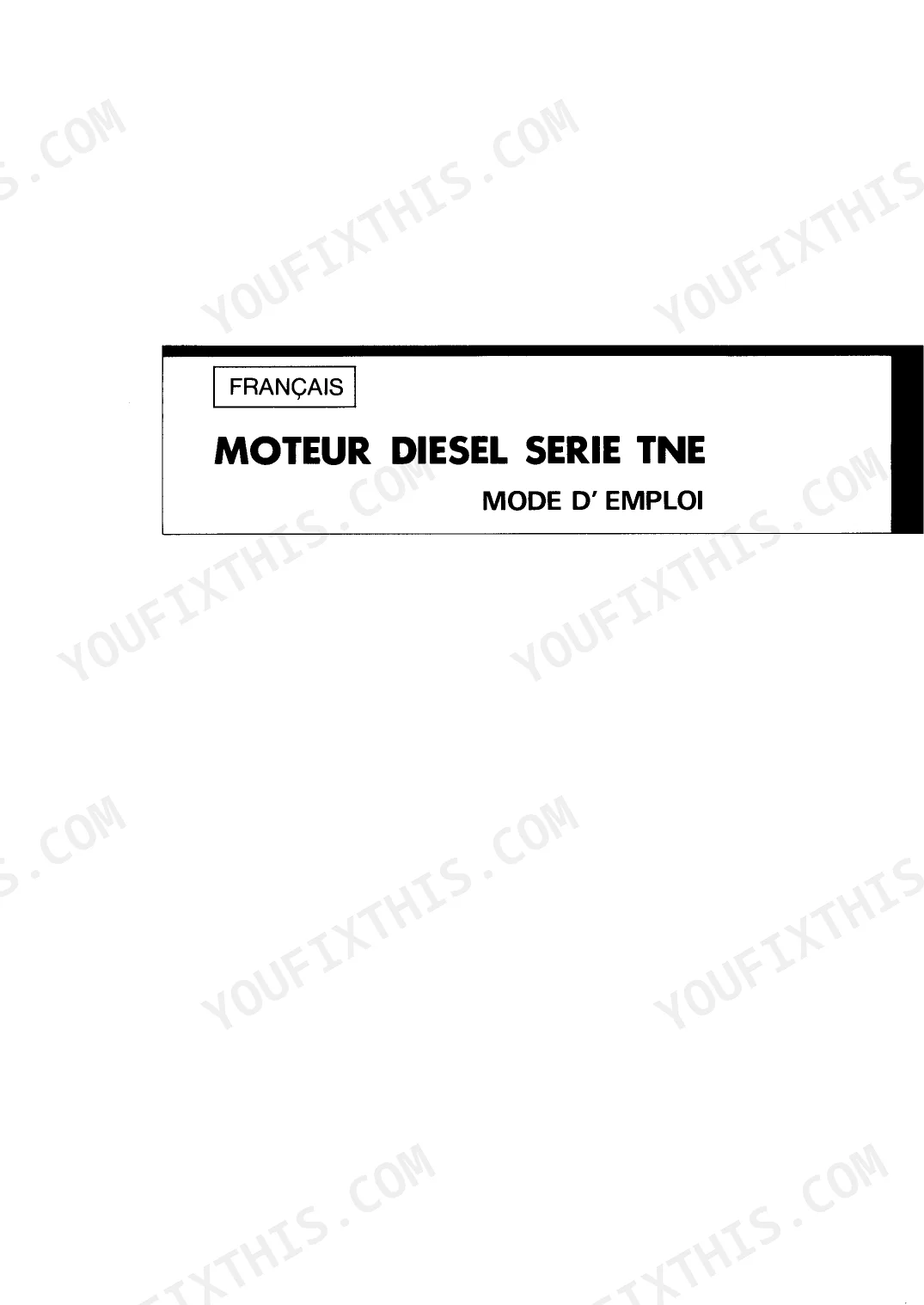

Yes. The Troubleshooting section works through the fuel filter, feed pump, injection pump and injection valves, then compression, the intake and exhaust valves and injection timing. Note that this 128-page file repeats the whole operator manual in French, German, Spanish and Italian after the English text, so the English portion is the shorter part of the page count. p. 27
Will this Yanmar TNE series Operator Manual download right away?
Instant PDF download (15 MB). You get the full 128-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
