Need the Yanmar ViO20 operator manual PDF with actual factory service intervals, not a third-party summary? All 222 pages of this Yanmar ViO20 Operator Manual (OEM #LGBVIO20.0(EP)230603) come straight from the factory: controls, safety, operation, and maintenance for your compact excavator. You get full control device identification, step-by-step operating instructions, cold weather care, long-term storage procedures, and a complete maintenance chapter packed with the full service interval table. First engine oil change hits at 50 service hours, then every 200 after that; clean the water separator every 50 hours; inspect and replace cooling water pipes at 2,000. Replace rubber crawlers when lug height drops to 0.2 in. (5 mm) or less. Your machine is down. Get the factory answer on the first try, not a forum guess. Bookmarked and searchable; open it on your tablet, walk to the machine, and start the work.
What's Inside This Yanmar ViO20 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 5 | Manual Purpose, Safety Importance, Machine Overview |
| Safety Information | 6 | Signal Words, Warnings, Machine Component Definitions |
| Product Overview | 7 | Intended Uses, Break-In Period, Operating Restrictions |
| Operation License | 8 | Licensing Requirements, Legal Compliance, Dealer Consultation |
| Ordering Replacement Parts and Service Call | 9 | Machine Serial Number Plate Location, Engine Serial Number Plate Location, Information for Ordering parts/service |
| Safety | 16-43 | - |

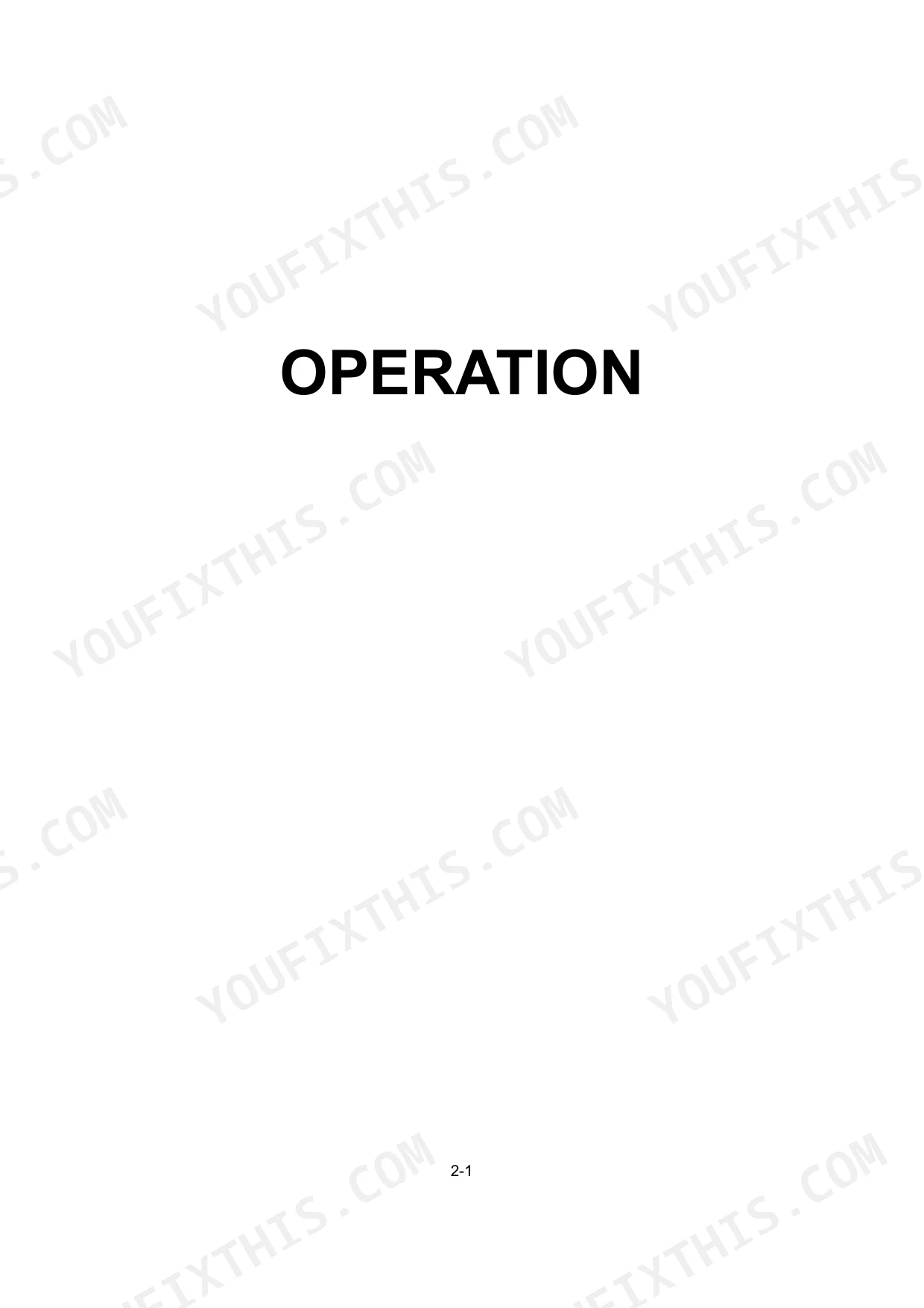

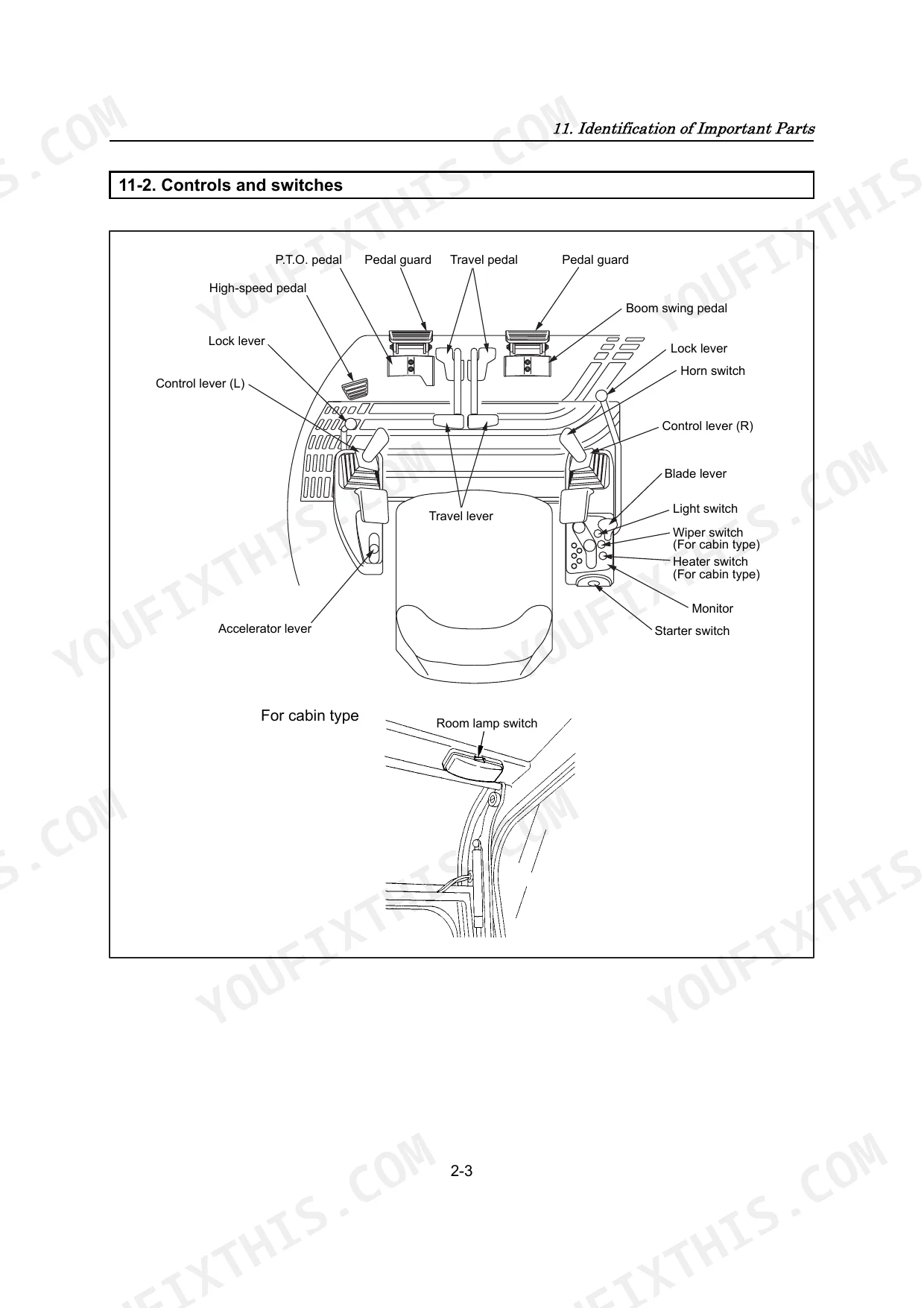

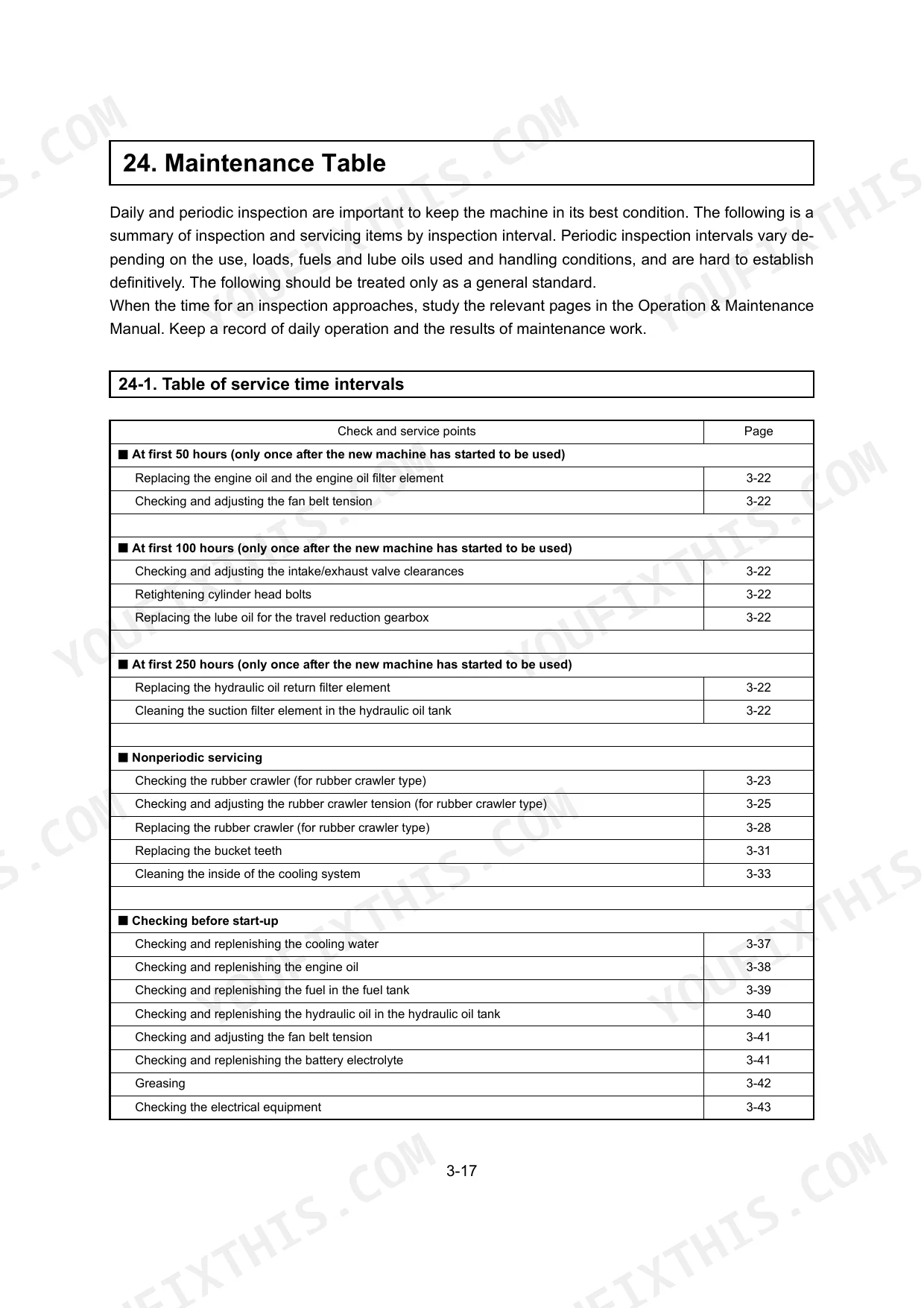

| Operation | 46-123 | Part Identification, Control Devices, Operating Instructions, Transportation, Cold Weather Care, Long-Term Storage |
| Maintenance | 134-195 | Servicing Precautions, Basic Servicing Practices, Consumables, Fueling/Oiling/Greasing, Tightening Torque, Essential Parts Replacement, Maintenance Table, Maintenance Procedures |
| Specifications and Dimensional Diagrams | 198-200 | Machine Specifications, Working Range Diagrams, Dimensions (Canopy Type), Dimensions (Cabin Type) |
| Optional Parts and Attachments | 202-208 | General Precautions, Attachment Mounting, Hooked Bucket Handling, Optional Parts List, Noise/vibrations/fittings, Technical Data |
| Notes | 212-219 | Maintenance Log, General Notes |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic system air release procedure | 1) Set the engine rotation to medium. 2) Slowly operate each cylinder 4 to 5 times to approximately 3.9 in. (100 mm) before both stroke ends. 3) Operate the cylinder 4 to 5 times at full stroke. 4) Check the hydraulic oil level and replenish to the specified level if necessary. | p. 142 |
| Water separator element cleaning interval | Every 50 service hours | p. 150 |
| Engine oil replacement interval | Every 200 service hours (At first 50 service hours) | p. 143 |
| Cooling water pipe check and replace interval | Every 2000 hours | p. 150 |
| Rubber crawler lug height for replacement | 0.2 in. (5 mm) or less | p. 155 |
| Rubber crawler tension clearance (H) | 0.31 to 0.51 in. (8 to 13 mm) | p. 157 |
| Discontinuous arm movement (engine speed drop) | This phenomenon is not a breakdown. Especially, this phenomenon will occur when the engine speed is low. | p. 124 |

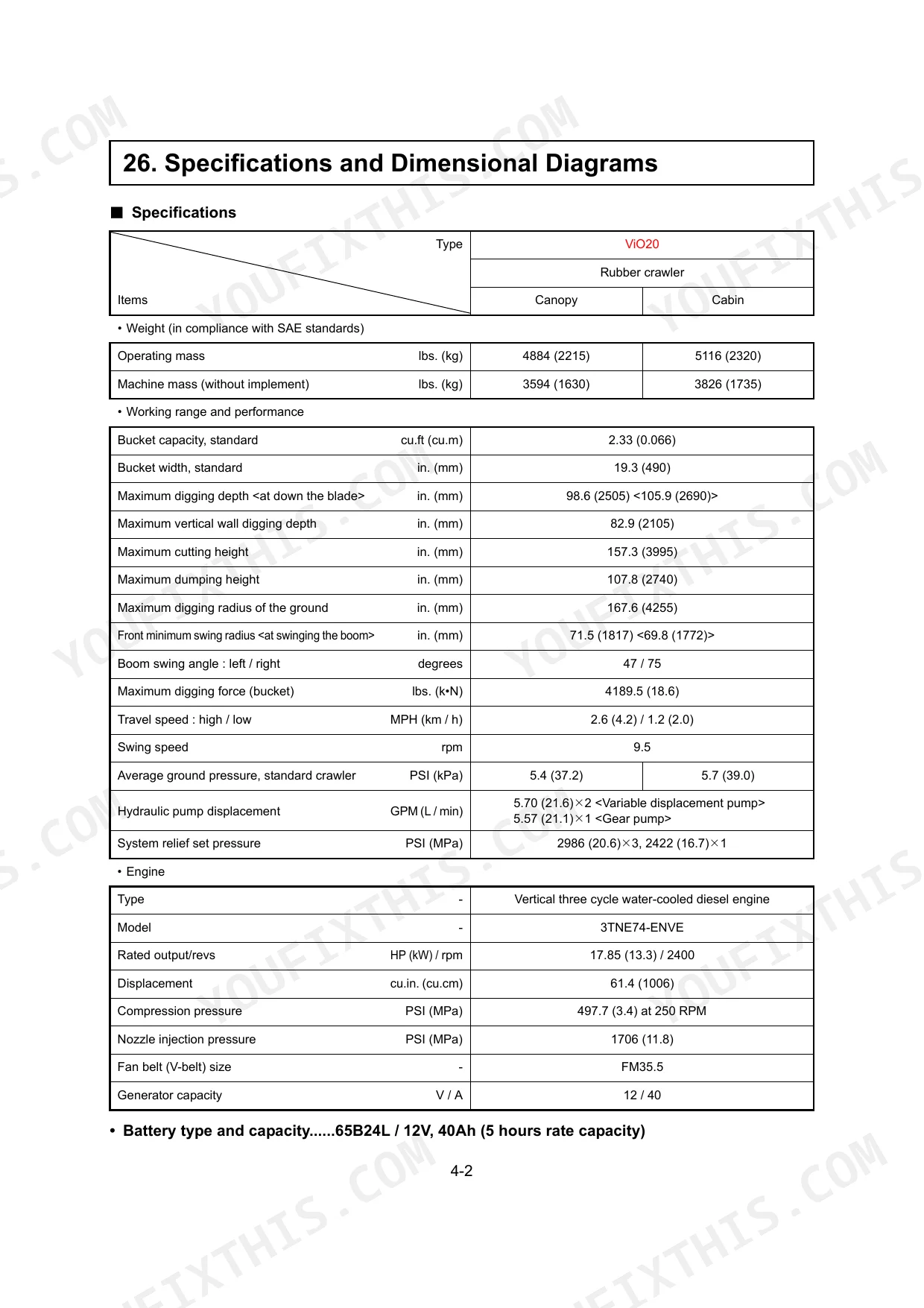

| Operating Mass (Canopy) | 4884 lbs | p. 198 |
| Standard Bucket Capacity | 2.33 cu.ft | p. 198 |
| Maximum Digging Depth | 98.6 in. | p. 198 |
| Maximum Digging Force (Bucket) | 4189.5 lbs | p. 198 |
| Travel Speed (High) | 2.6 MPH | p. 198 |

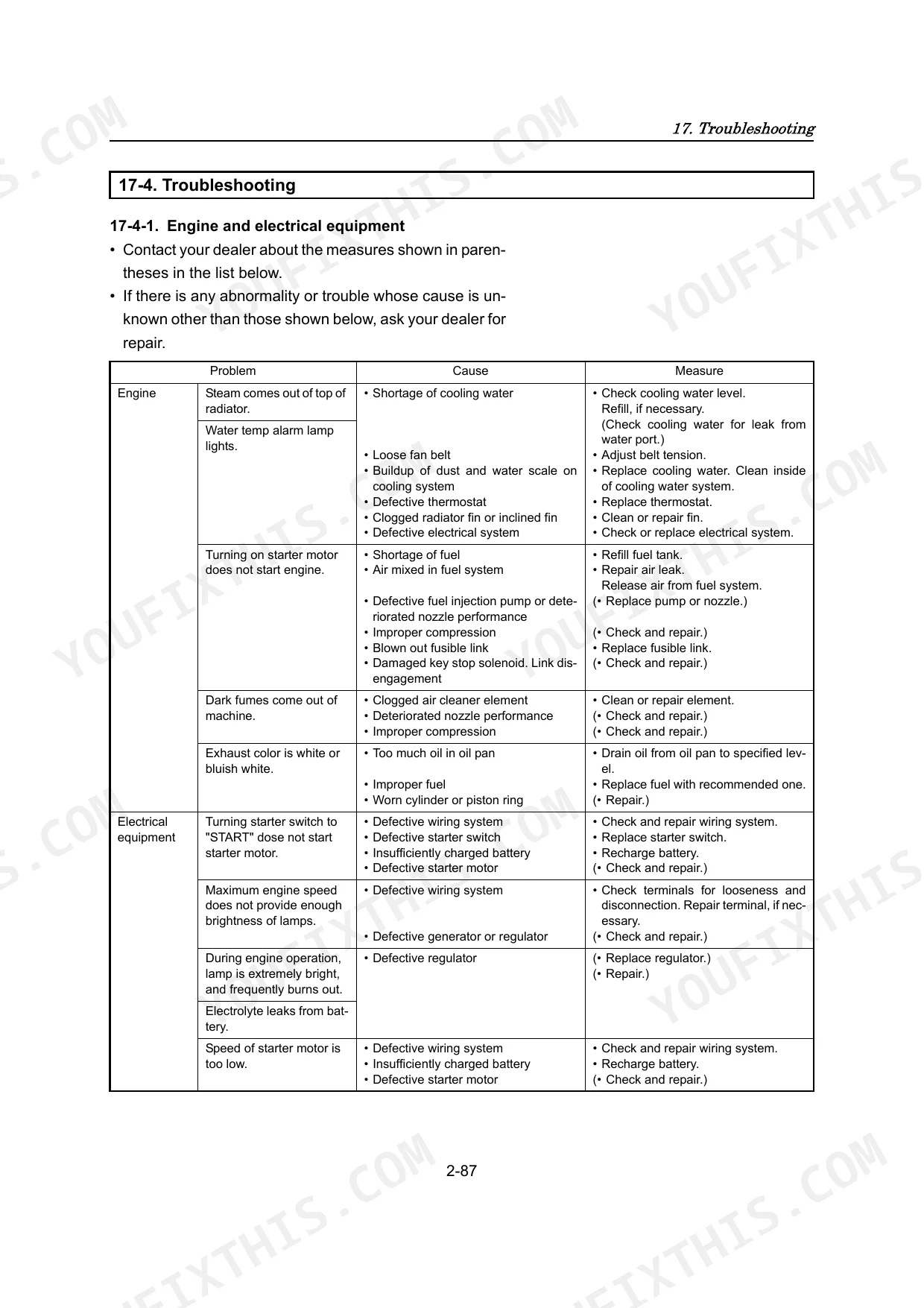

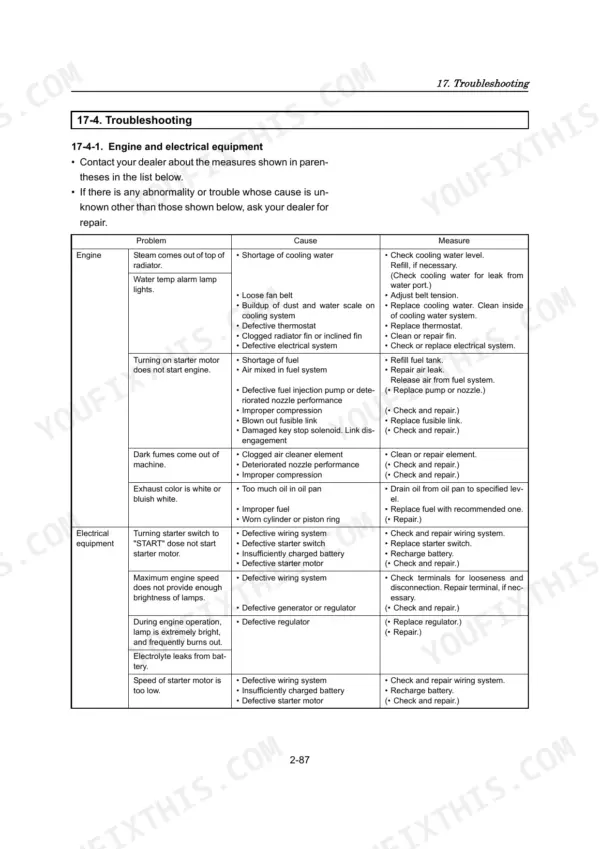

Yanmar ViO20 Common Problems This Manual Covers
Yanmar ViO20 engine RPM drops when operating boom or arm, attachment slows mid-cycle p. 124
Raise engine throttle to high before engaging any hydraulic function. Page 124 notes that the RPM dip during boom or arm movement at low idle is a normal, non-breakdown phenomenon on this 17.85 HP engine (page 198). Run at full speed and retest. If the drop continues at high RPM, follow the troubleshooting steps.
Manual Section: Non-Breakdown PhenomenaWater separator bowl full of water at startup, daily drainage interval unclear p. 150
Drain the water separator bowl before each shift: loosen the drain cock counterclockwise until water clears, then retighten. Clean or replace the separator element every 50 service hours (page 150). If the bowl fills faster than normal, check the fuel tank cap seal and inspect fuel for contamination at the fill point.
Manual Section: MaintenanceEngine turns over slowly or won't crank at all after sitting overnight
Connect a 12V booster cable with positive clamp to the dead battery positive terminal first, then negative to a chassis ground point away from the battery. Let the donor vehicle idle 3 to 5 minutes before cranking. This machine carries a 40Ah battery (page 198). If the battery won't hold a charge after a full day of operation, schedule a charging system inspection.
Manual Section: Battery Overdischarge & Booster Cable UseRubber tracks feel loose or machine pulling sideways on flat, level ground p. 157
Check track sag at the center of the lower run: correct tension is 0.31 to 0.51 in. (8 to 13 mm) clearance between the track and frame (page 157). Inspect lug height while you're there; replace the crawler when lugs wear to 0.2 in. (5 mm) or less (page 155). Recheck tension after the first hour of work following any adjustment.
Manual Section: MaintenanceEngine oil warning light on, or unsure how much to add and when to change
Check the engine oil level on the dipstick before each shift with the machine parked on level ground. First oil change is due at 50 service hours; after that, change every 200 service hours per the maintenance schedule. Fill to 3.7 Qts. (page 179) and confirm no drips from the drain plug before restarting.
Manual Section: MaintenanceFrequently Asked Questions
What are the replacement specifications for Engine oil (regular level checks and replacement)?
The engine oil and engine oil filter element should be replaced every 200 service hours. Additionally, they must be replaced 6 months after the previous replacement, even if the 200 service hours interval has not been reached. Regular level checks are performed as part of daily maintenance.
How do you fix yanmar ViO20 engine RPM drops when operating boom or arm, attachment slows mid-cycle?
Raise engine throttle to high before engaging any hydraulic function. Page 124 notes that the RPM dip during boom or arm movement at low idle is a normal, non-breakdown phenomenon on this 17.85 HP engine (page 198). Run at full speed and retest. If the drop continues at high RPM, follow the troubleshooting steps.
How do you fix water separator bowl full of water at startup, daily drainage interval unclear?
Drain the water separator bowl before each shift: loosen the drain cock counterclockwise until water clears, then retighten. Clean or replace the separator element every 50 service hours (page 150). If the bowl fills faster than normal, check the fuel tank cap seal and inspect fuel for contamination at the fill point.
How do you fix engine turns over slowly or won't crank at all after sitting overnight?
Connect a 12V booster cable with positive clamp to the dead battery positive terminal first, then negative to a chassis ground point away from the battery. Let the donor vehicle idle 3 to 5 minutes before cranking. This machine carries a 40Ah battery (page 198). If the battery won't hold a charge after a full day of operation, schedule a charging system inspection.
What format is this manual in?
A 222-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
