Every one of the 106 pages in this Yanmar 6LPA-STP2, 6LPA-STZP2 operator manual pdf (OEM #0A6LP-G00103) is dedicated to keeping your marine engine running flawlessly on the water. Inside, you get full fluid-system piping diagrams (fuel, cooling, and lube), complete wiring diagrams, and a strict periodic maintenance schedule mapping out your 50-hour and 1000-hour service intervals. Open to the troubleshooting charts to quickly diagnose starting issues or abnormal smoke before the boat leaves the dock. Swap out the seawater pump impeller every 1000 hours and lock down the replacement fuel filter to exactly 14.7 - 19.6 N·m. A dead engine miles offshore is not an option. Grab this bookmarked download, pull it up on your phone or tablet, and perform your maintenance strictly by the book.
What's Inside This Yanmar 6LPA-STP2, 6LPA-STZP2 Operator Manual

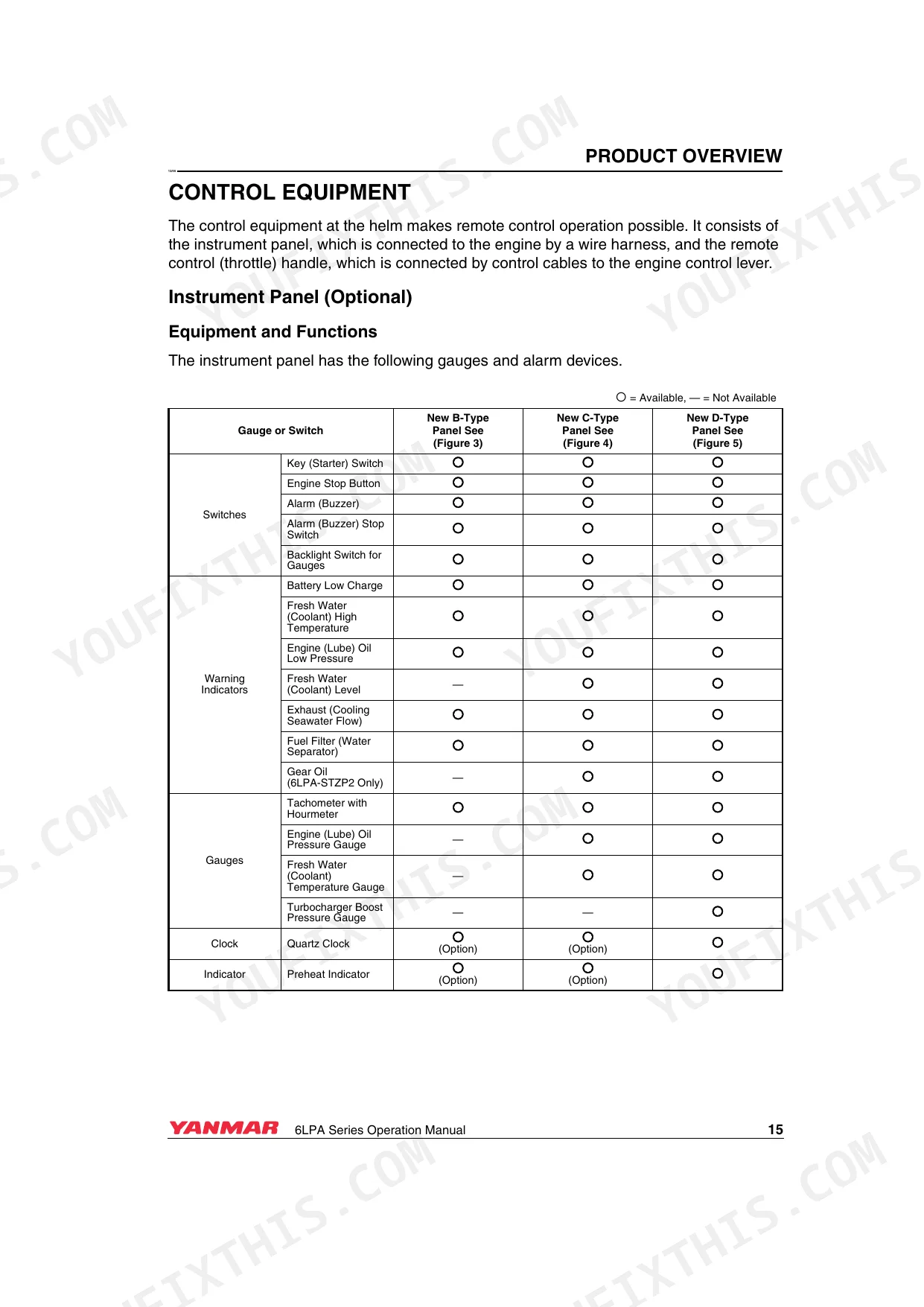

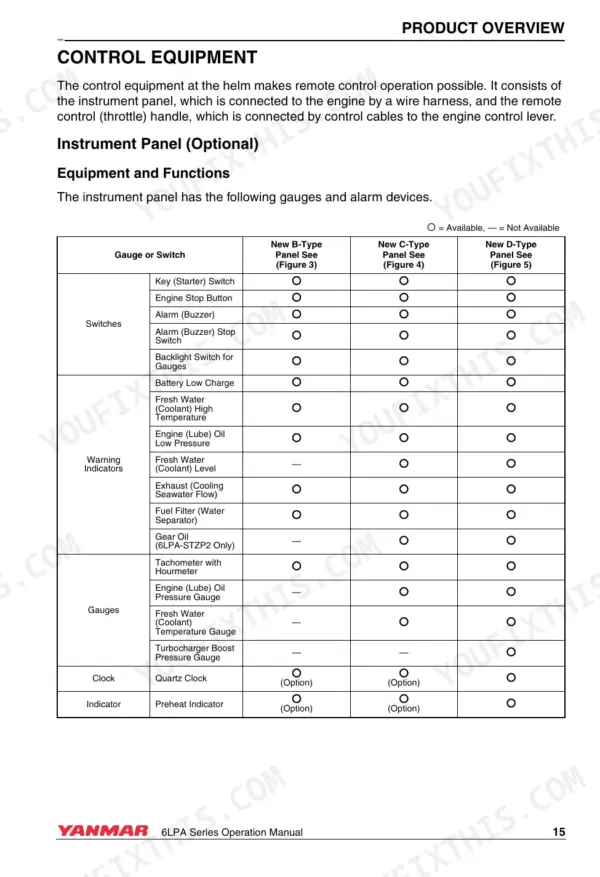

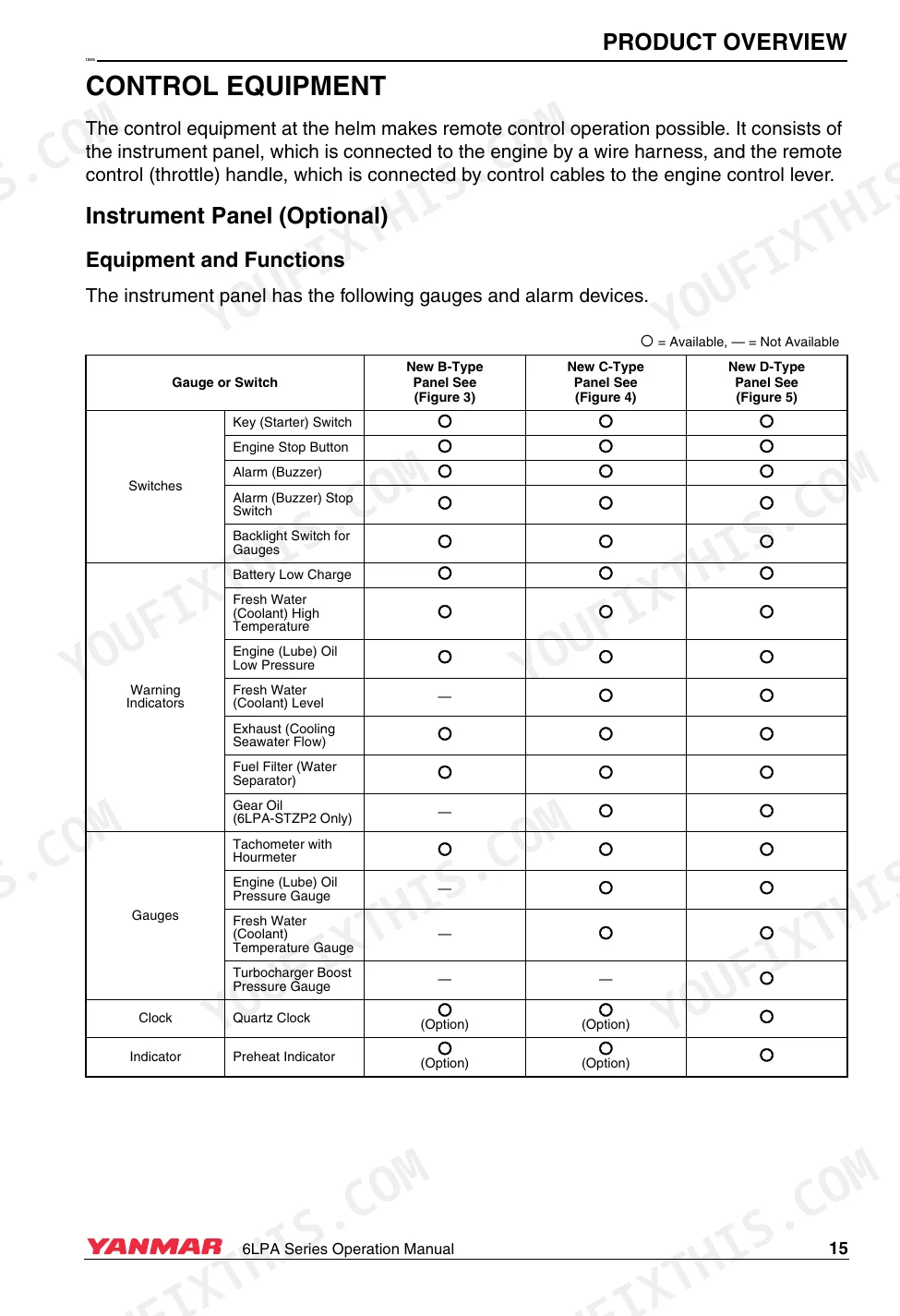

| System | Pages | Key Topics |
|---|---|---|
| English | 1-2 | - |
| Introduction | 7-8 | Record of Ownership |
| Safety | 9-14 | Safety Precautions (Before You Operate, During Operation and Maintenance), Location of Safety Decals |
| Product Overview | 15-30 | Yanmar 6LPA Series Features and Applications (New Engine Break-In), Component Identification (Service Side, Left Side As Viewed From Propeller, Non-Service Side), Nameplates |
| Before You Operate | 31-42 | Safety Precautions, Diesel Fuel, Engine Oil, Marine Drive Oil, Engine Coolant |

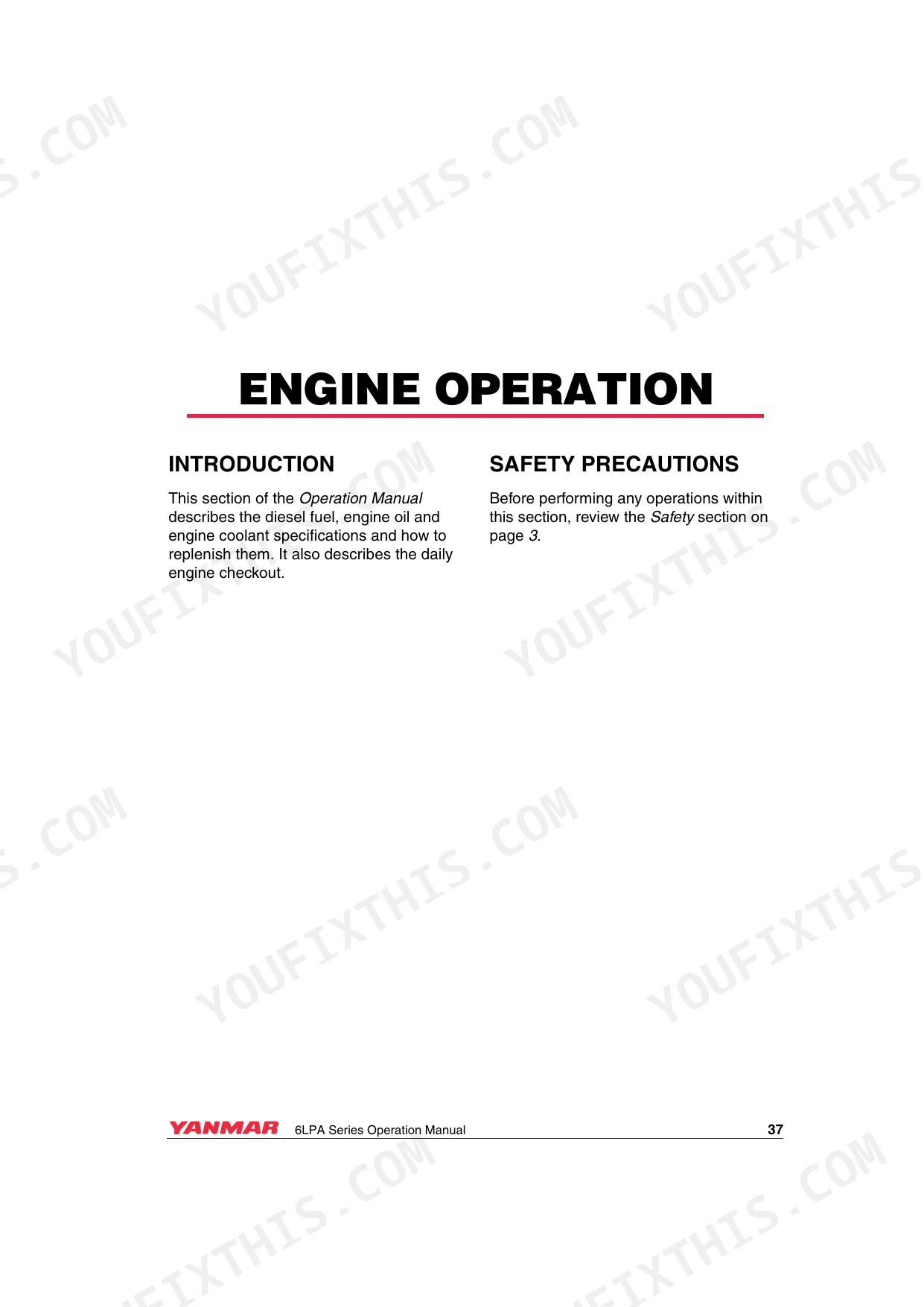

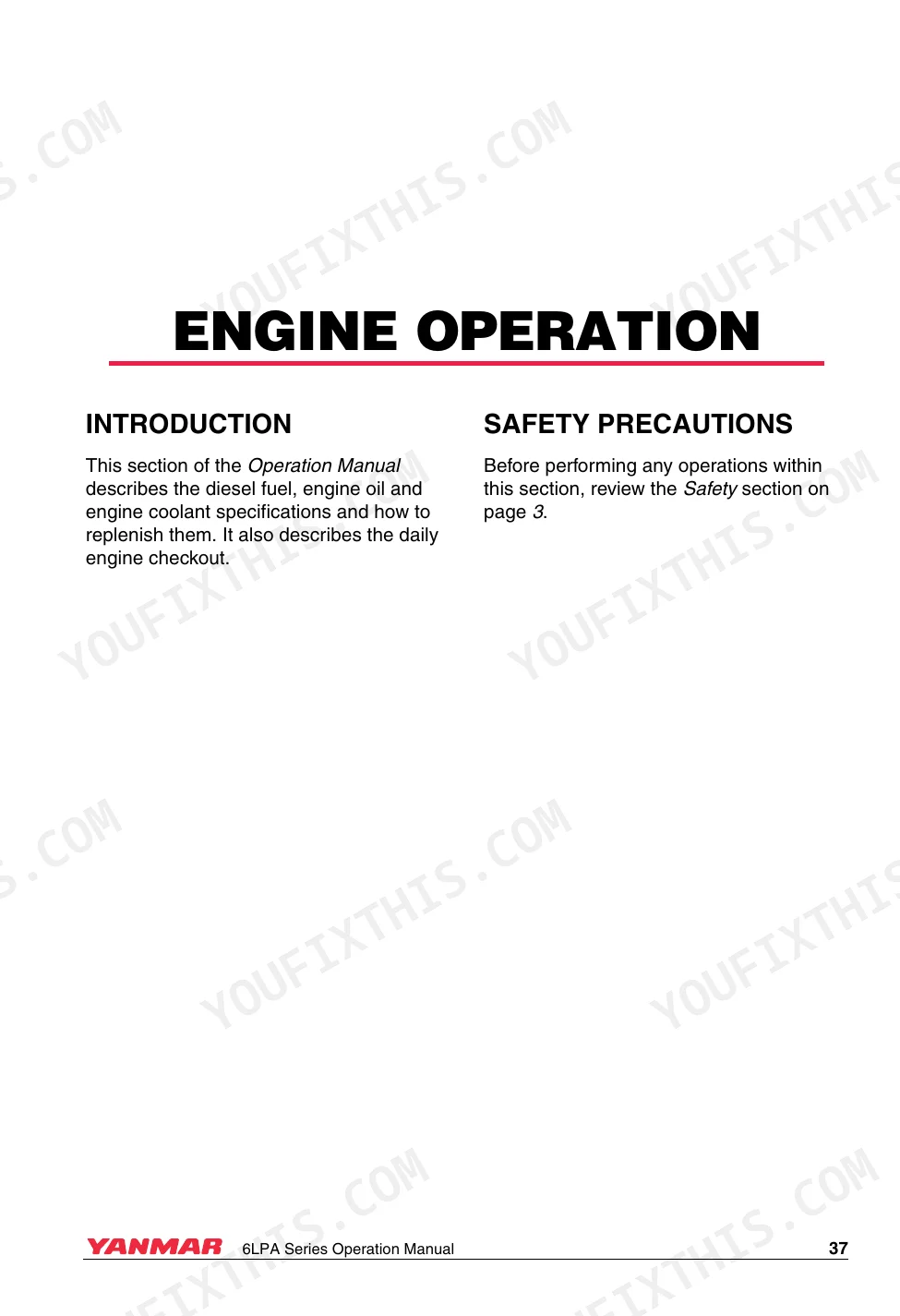

| Engine Operation | 43-54 | Safety Precautions, Starting the Engine (If the Engine Fails to Start, Starting at Low Temperatures, After the Engine Has Started) |

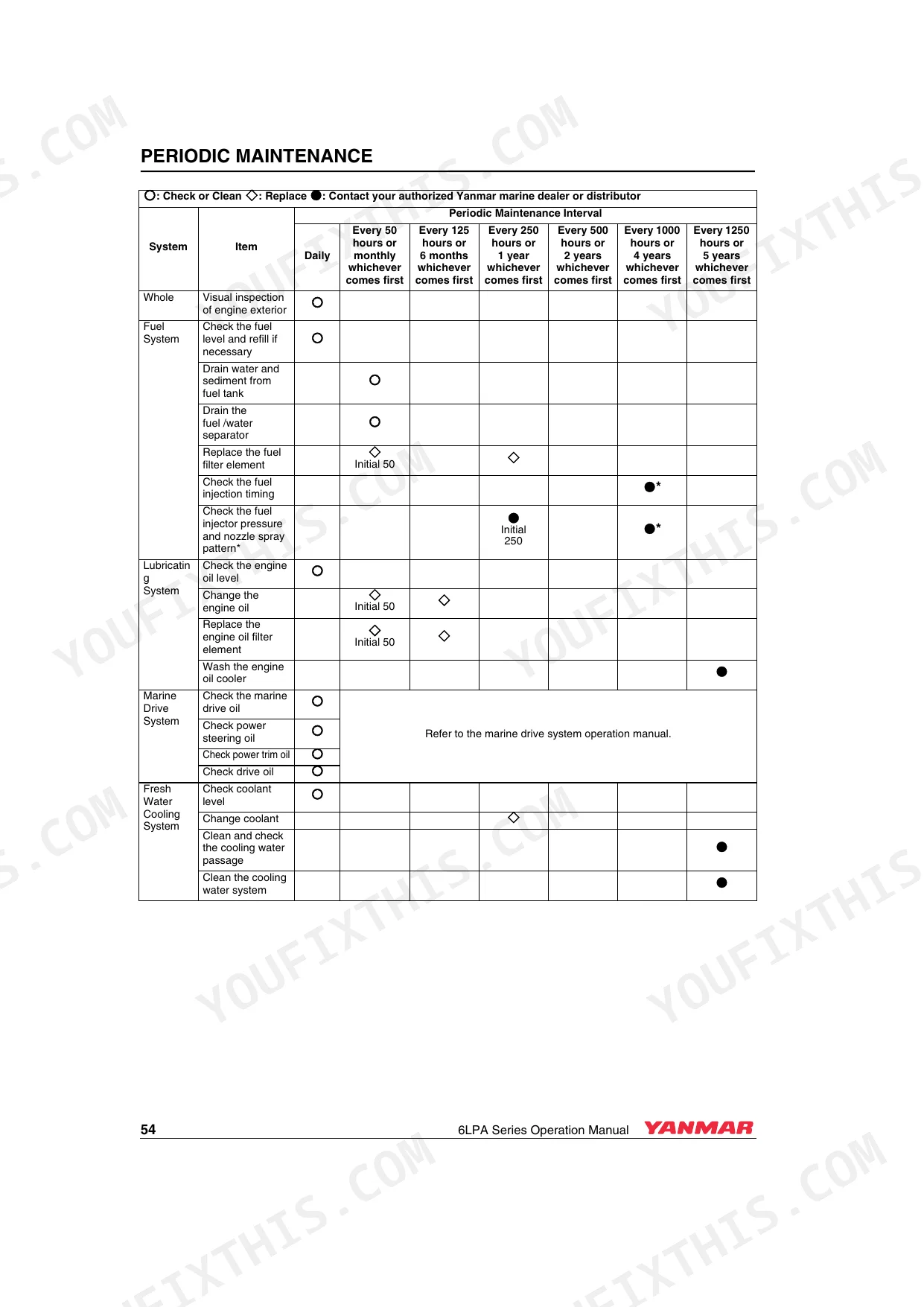

| Periodic Maintenance | 55-74 | Safety Precautions |
| Troubleshooting | 75-78 | Safety Precautions, Troubleshooting After Starting, Troubleshooting Information, Troubleshooting Chart |
| Long-Term Storage | 79-82 | Prepare Engine for Long-Term Storage, Drain Seawater Cooling System, Returning the Engine to Service |
| Specifications | 83-86 | Principal Engine Specifications, Marine Drive Specifications |

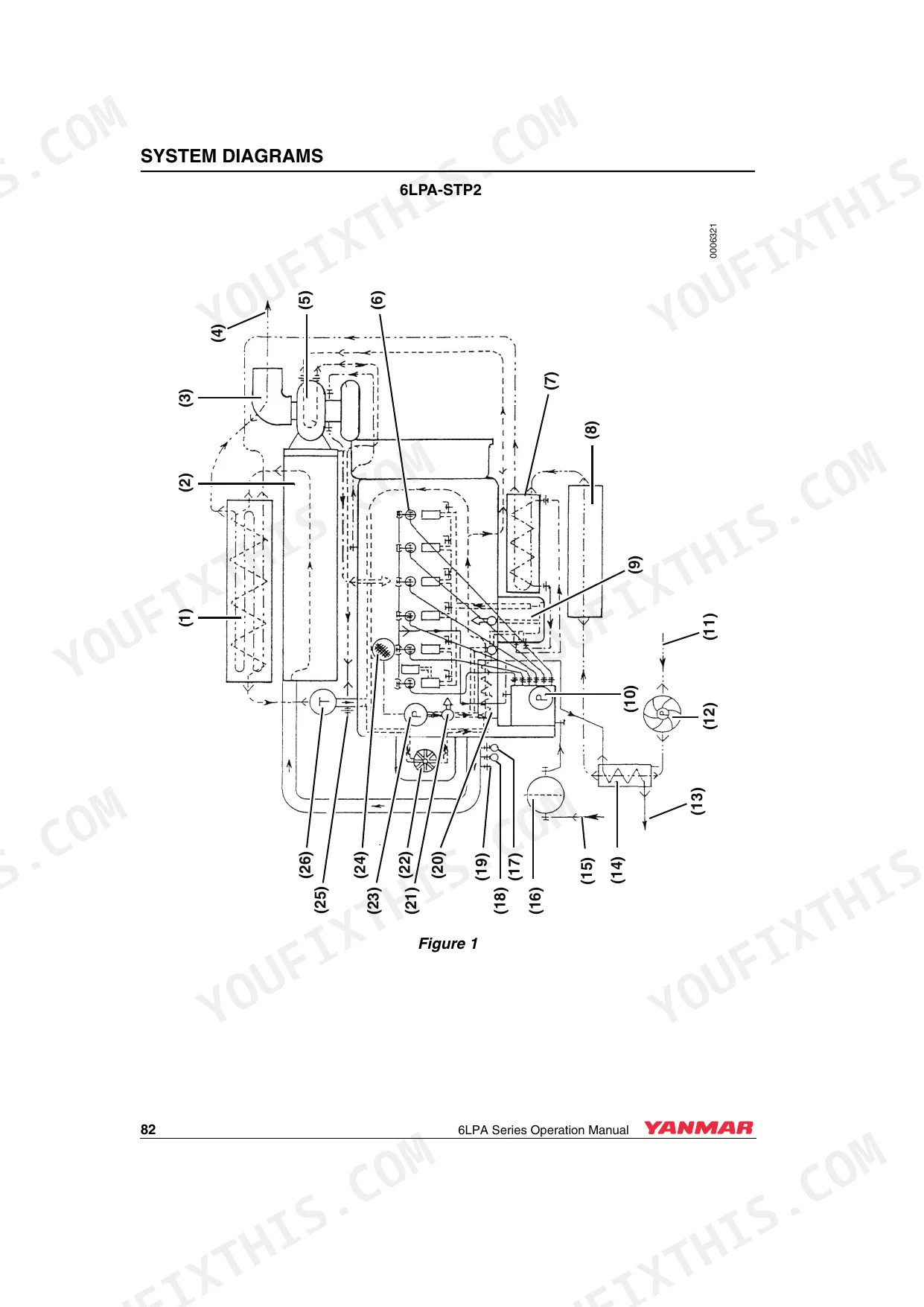

| System Diagrams | 87-100 | Piping Diagrams, Wiring Diagrams |
| Warranty Service | 101 | - |
| Rcd | 102-106 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel filter replacement interval | Initial 50 hours, then every 250 hours or 1 year whichever comes first | p. 60 |
| Fuel filter tightening torque | 14.7 - 19.6 N·m (130.1 - 173.5 in.-lb) | p. 65 |
| Air bleed screw loosening instruction | two to three turns | p. 36 |
| Air bleed screw tightening instruction | tighten (no specific torque value provided) | p. 36 |
| Seawater pump impeller replacement interval | Every 1000 hours or 4 years whichever comes first | p. 73 |
| Seawater pump impeller inspection criteria | Impeller blades are cracked or nicked. Edges or surfaces of the blades are marred or scratched. Wear plate is damaged. | p. 73 |
| Engine oil API Service Category | CD or higher | p. 36 |
| Engine oil SAE Viscosity | 10W30, 15W40 | p. 36 |
| Air cleaner cleaning interval | Every 250 hours or 1 year whichever comes first | p. 61 |
| Air cleaner replacement criteria | if unable to clean or if damaged | p. 71 |
| Coolant tank filler cap tightening instruction | tighten filler cap firmly (no specific torque value) | p. 40 |
| Reservoir cap tightening instruction | tighten reservoir cap securely (no specific torque value) | p. 41 |
Yanmar 6LPA-STP2, 6LPA-STZP2 Common Problems This Manual Covers
Yanmar 6LPA-STP2 cranks over but will not start after replacing the fuel filter assembly p. 78
Loosen the air bleed screw two to three turns as shown on page 36. Pump the priming plunger until a solid stream of fuel with no bubbles appears. Tighten the bleed screw and verify the fuel filter is torqued to 14.7 - 19.6 N·m (130.1 - 173.5 in.-lb).
Manual Section: Starting Failures: Starter turns but engine does not startHigh temperature alarm sounds and indicator lights up on the instrument panel during heavy load operation p. 77
Check the coolant level in the reservoir and verify engine temperature is not exceeding 95°C (203°F) as noted on page 25. Inspect the seawater pump impeller for cracked or nicked blades. Replace the impeller if it has reached the 1000 hours or 4 years service interval.
Manual Section: Indicators light on the instrument panel and alarm sounds during operationEngine oil low pressure indicator illuminates on the dashboard shortly after startup or routine maintenance p. 77
Verify the engine oil level is correct and the total system holds 10.5 L (11.0 qt) of API CD or higher oil. Check page 64 to ensure the oil filter was tightened by hand until the seal touches, plus an additional 3/4 turn with a wrench.
Manual Section: Indicators light on the instrument panel and alarm sounds during operationBattery low charge indicator remains illuminated on the instrument panel while the engine is running p. 77
Inspect the alternator V-belt for wear or damage. Measure the belt tension and adjust it to achieve 8 - 10 mm (approximately 3/8 in.) of deflection as specified on page 72. Check the battery cable terminals for proper contact and clean off any corrosion.
Manual Section: Battery low charge indicator does not go out during operationFrequently Asked Questions
What is the total engine oil capacity and the oil pan capacity for the Yanmar 6LPA-STP2 engine?
The total engine oil capacity for the Yanmar 6LPA-STP2 engine is 10.5 L (11.0 qt), and the oil pan capacity is 8.4 L (8.9 qt). This information is crucial for proper lubrication and maintenance.
What is the recommended battery capacity for the Yanmar 6LPA series marine engine?
The recommended battery capacity for the Yanmar 6LPA series marine engine is 12V x 120 Ah. This ensures adequate power for starting and electrical systems.
What are the recommended engine oil viscosities for the Yanmar 6LPA series engine?
The recommended engine oil viscosities for the Yanmar 6LPA series engine are SAE 10W30 or SAE 15W40. These viscosities can be used throughout the year to ensure proper engine lubrication.
What is the correct deflection for the alternator V-belt tension on the Yanmar 6LPA engine?
For proper tension, the alternator V-belt on the Yanmar 6LPA engine should deflect 8 - 10 mm (approximately 3/8 in.) when pushed on the middle of the belt with your finger. This ensures optimal performance and prevents damage.
How will I receive this Yanmar 6LPA-STP2, 6LPA-STZP2 Operator Manual?
This is a 106-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Does this Yanmar 6LPA-STP2, 6LPA-STZP2 Operator Manual have electrical diagrams?

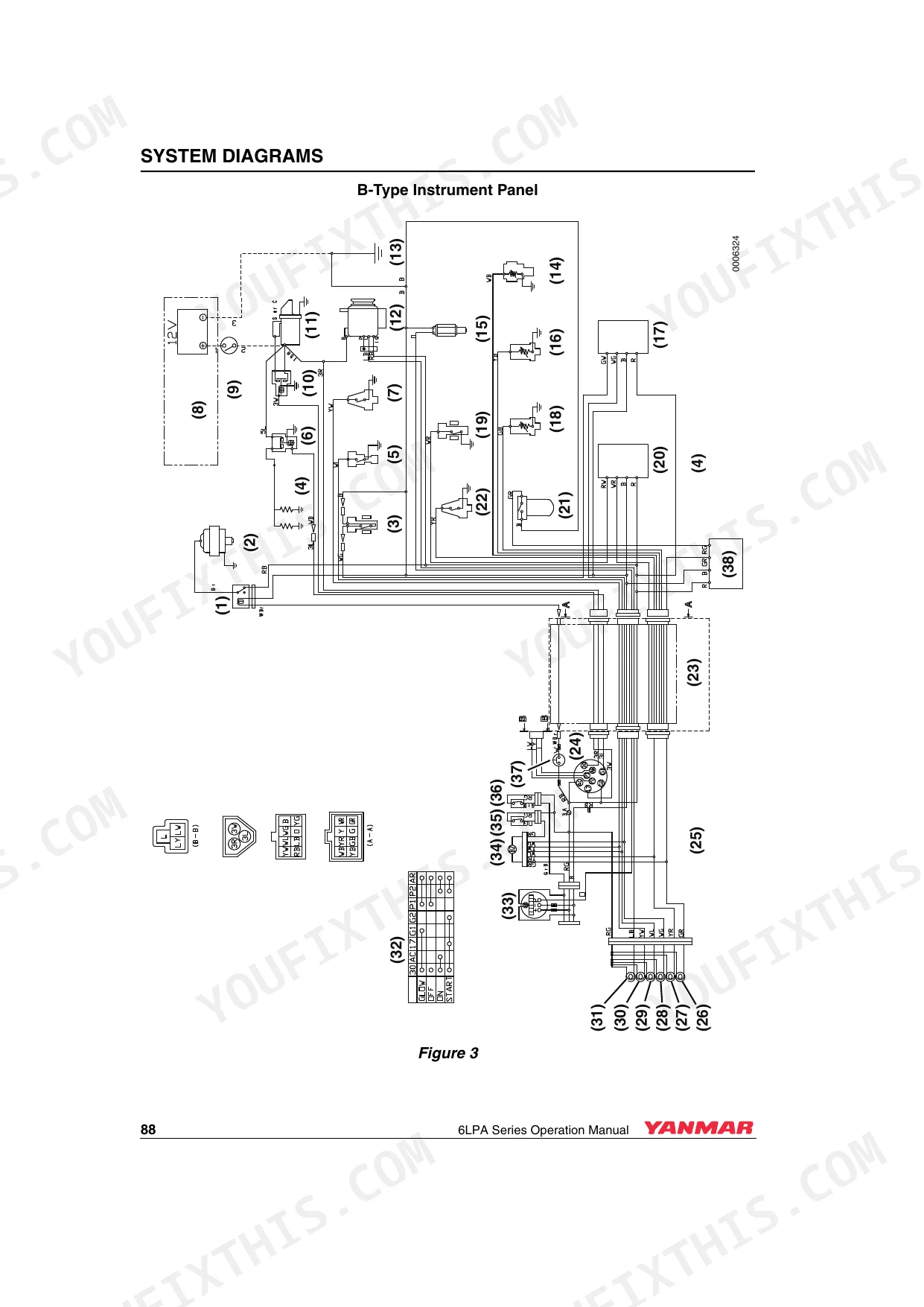

A wiring diagram for the Yanmar 6LPA-STP2, 6LPA-STZP2 electrical system is included.
Document Quality
This document is a scanned PDF with an optical character recognition (OCR) layer, allowing you to search and copy the full text. The text throughout the manual is crisp and easy to read, with no blurriness or fading. Diagrams and illustrations are clear raster images, and their labels are generally readable. Pages are clean with no noticeable scan artifacts, stains, or skewed content. There are several intentionally blank pages included in the document.
