Before you leave the dock, ensure your 2006-2009 marine engine runs flawlessly with this 88-page Yanmar 4BY2, 6BY2 Operator Manual PDF (OEM #0ABY0-G00200). Inside, you get complete daily maintenance schedules, fluid capacities, and dashboard indicator guides for the 4BY2-150, 4BY2-150Z, 4BY2-180, 4BY2-180Z, and 6BY2-220 variants. Open to the troubleshooting section to find exact diagnostic trouble codes and step-by-step procedures for safely starting, operating, and shutting down your power plant. Swap the fuel filter water separator element every 250 hours and tighten the 5mm hex head hose clamps to exactly 1.0 - 1.5 N·m. A dead engine on the water ruins the whole weekend. Grab this bookmarked file right now, save it to your tablet, and keep your maintenance strictly factory.
What's Inside This Yanmar 4BY2, 6BY2 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 7-8 | Record of Ownership |
| Safety | 9-14 | Safety Precautions (Before You Operate, During Operation and Maintenance), Safety Decals |
| Product Overview | 15-26 | Yanmar BY-Series Features and Applications, Component Identification, Location of Nameplates, Function of Major Components, Fuses and Relays, Engine Cover |

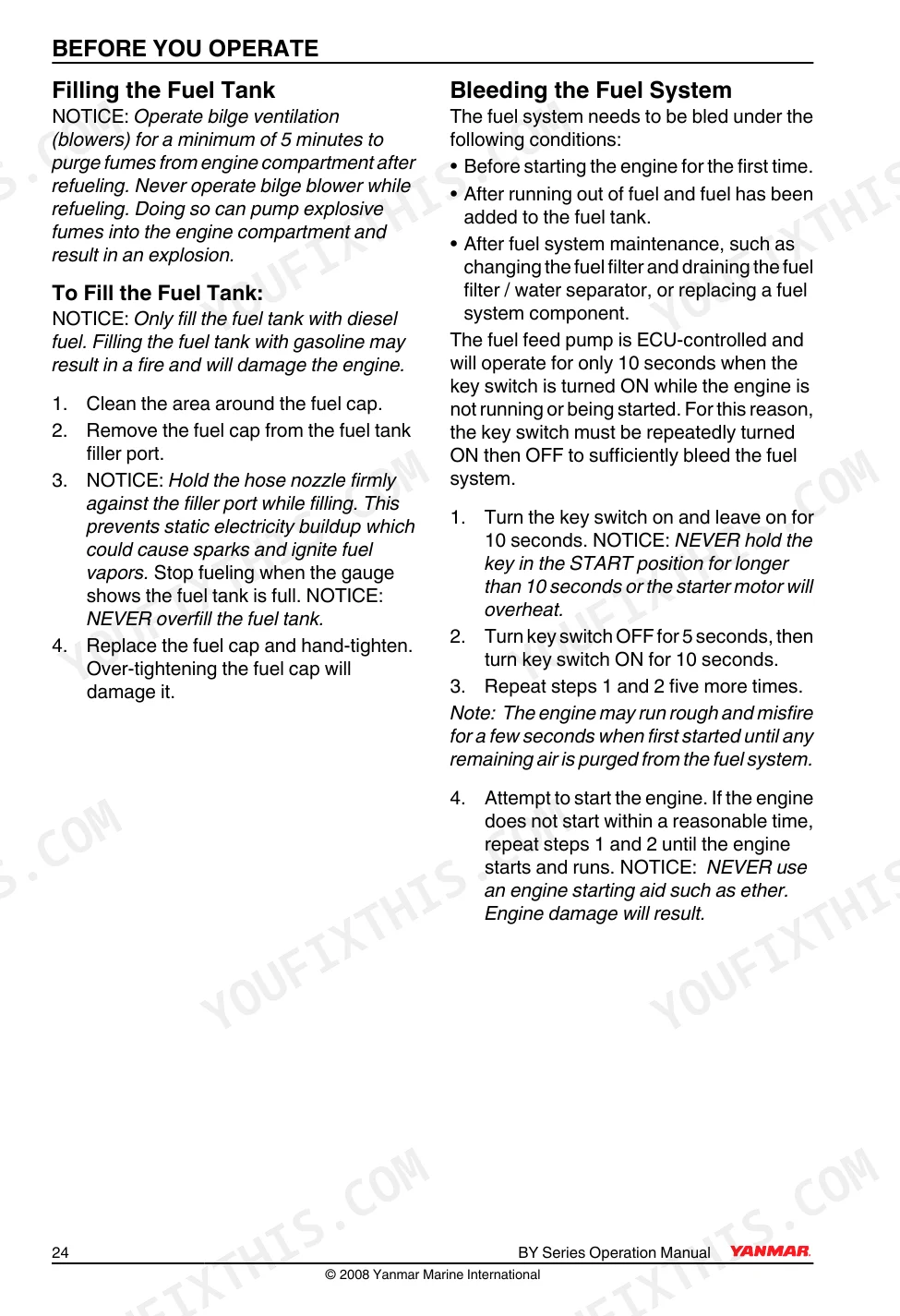

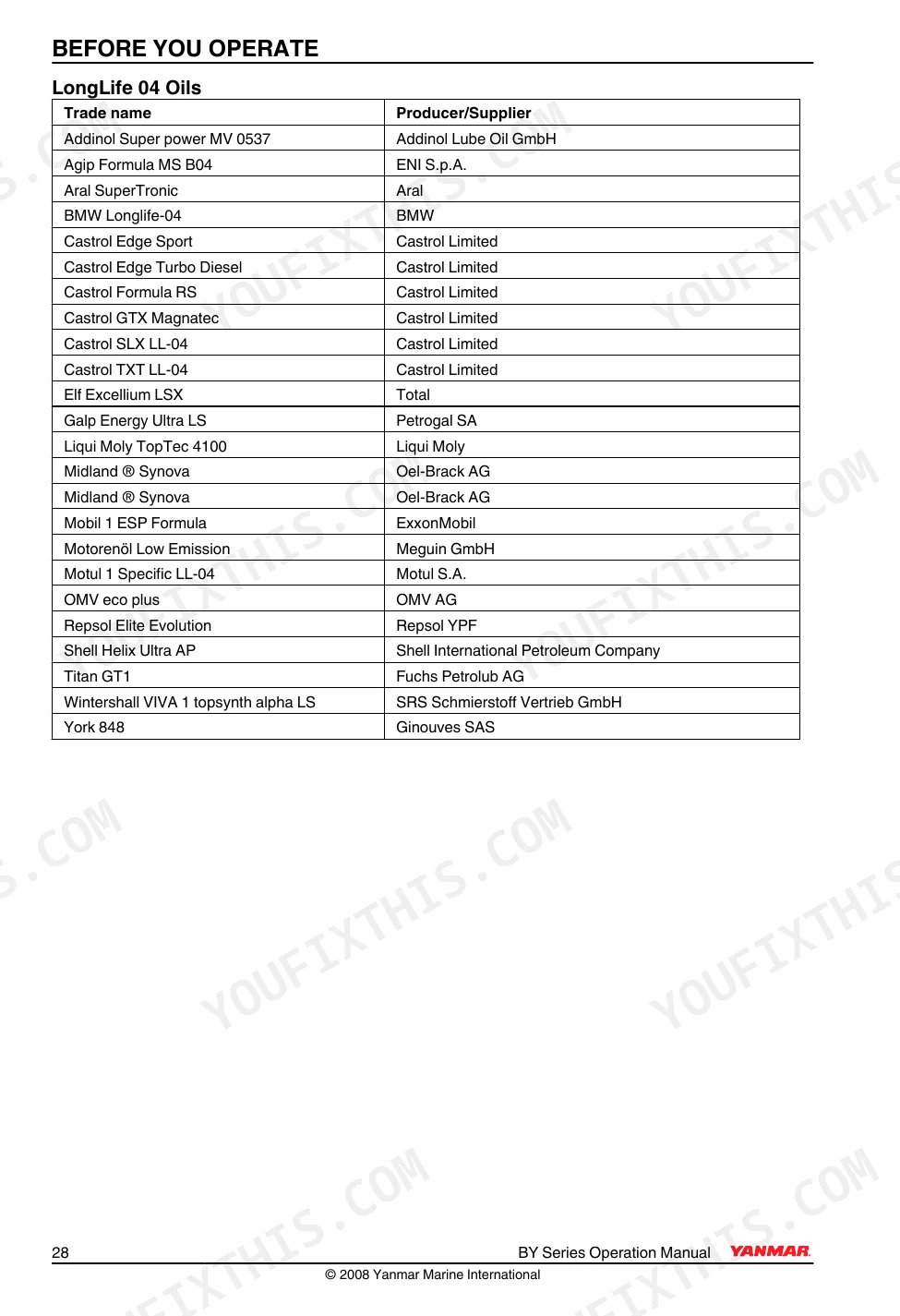

| Before You Operate | 27-38 | Diesel Fuel, Engine Oil, Marine Gear or Stern Drive Oil, Power Steering Fluid Specifications, Engine Coolant |
| Engine Operation | 39-42 | Starting the Engine, Shutting Down the Engine, Checking the Engine After Operation |

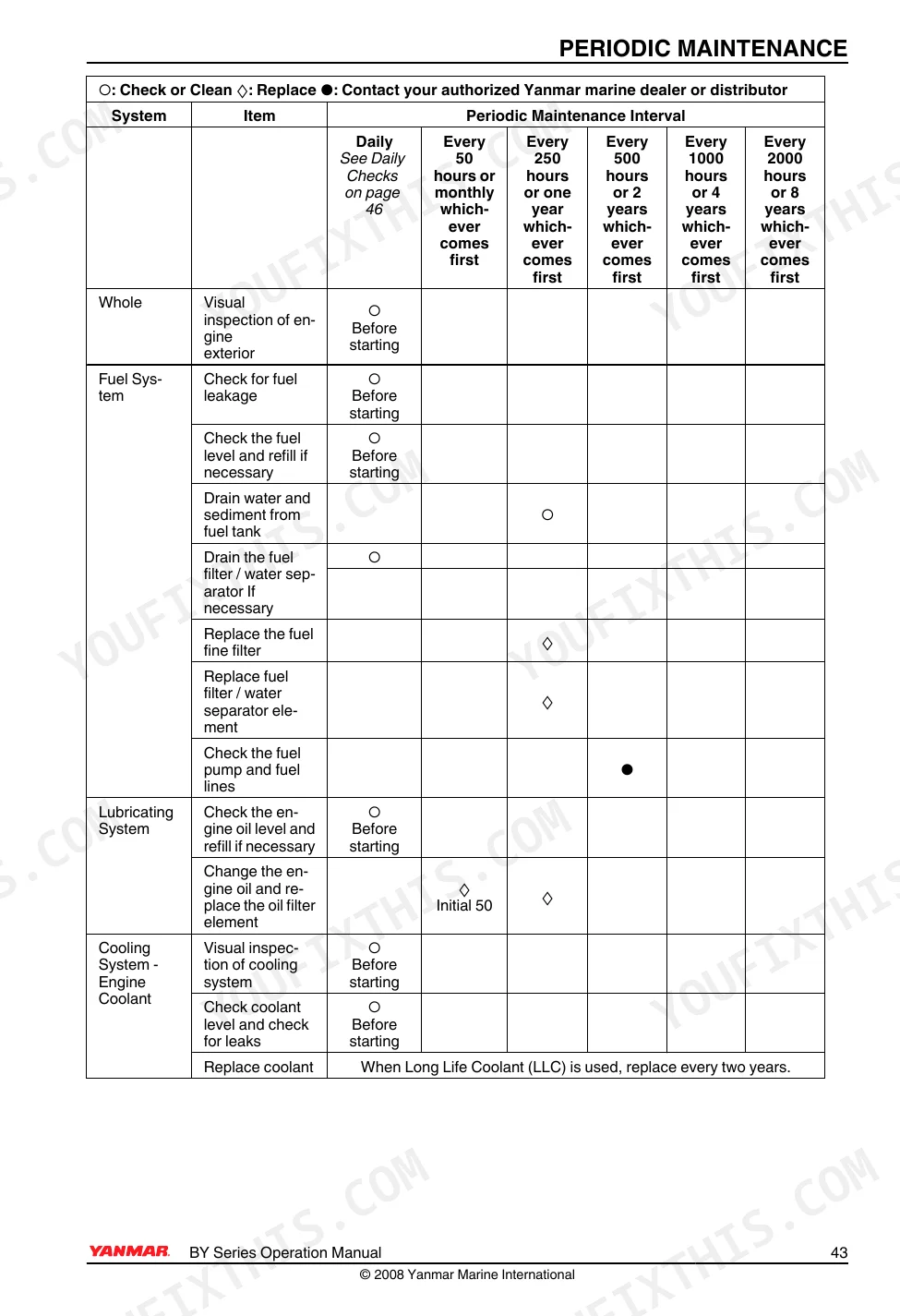

| Periodic Maintenance | 43-64 | Safety Precautions, Precautions, Epa Requirements, Periodic Maintenance Schedule, Daily Checks, Periodic Maintenance Procedures |

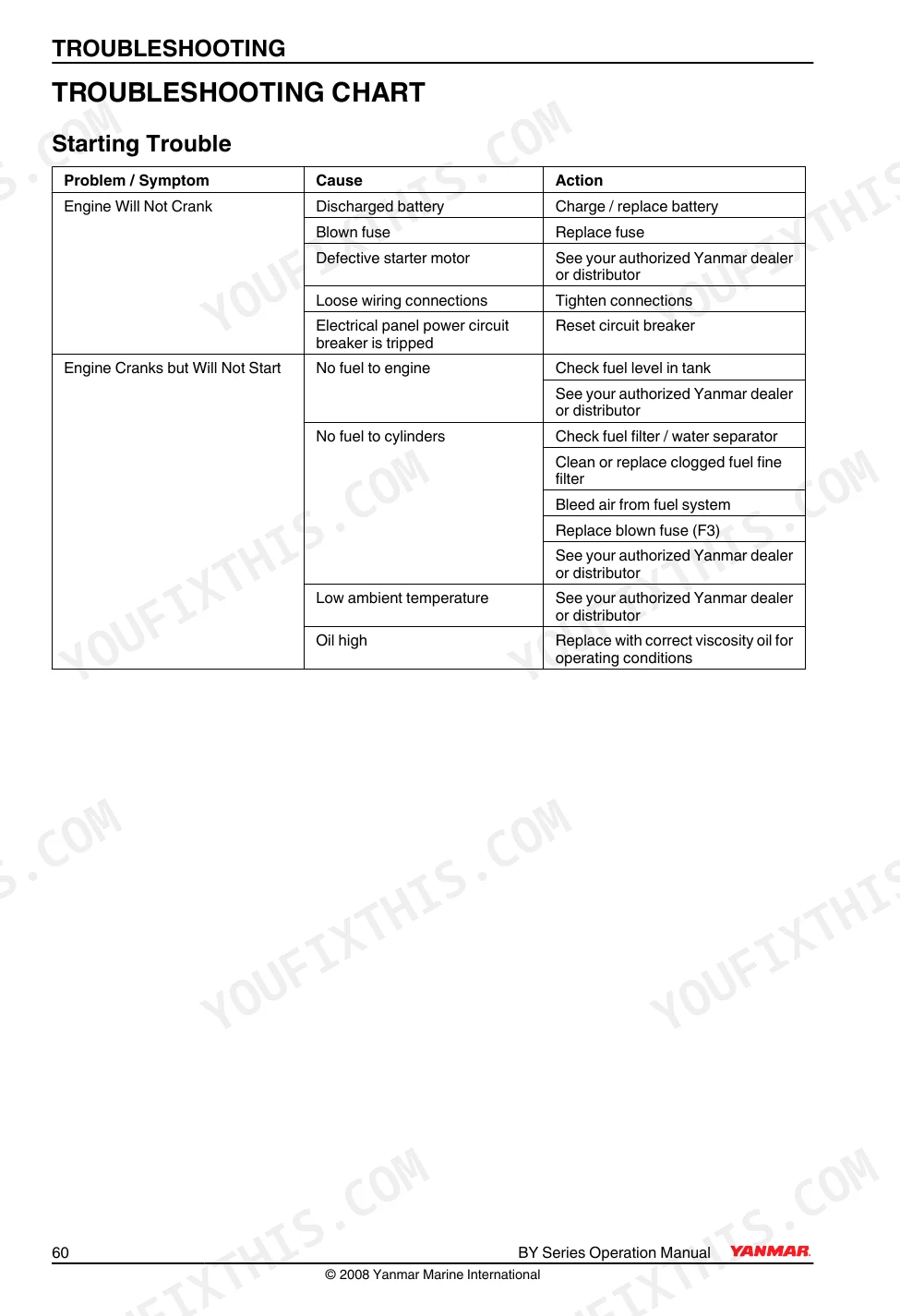

| Troubleshooting | 65-74 | Troubleshooting Information, Troubleshooting Chart, Diagnostic Trouble Codes |
| Long-Term Storage | 75-76 | Prepare Engine for Long-Term Storage |

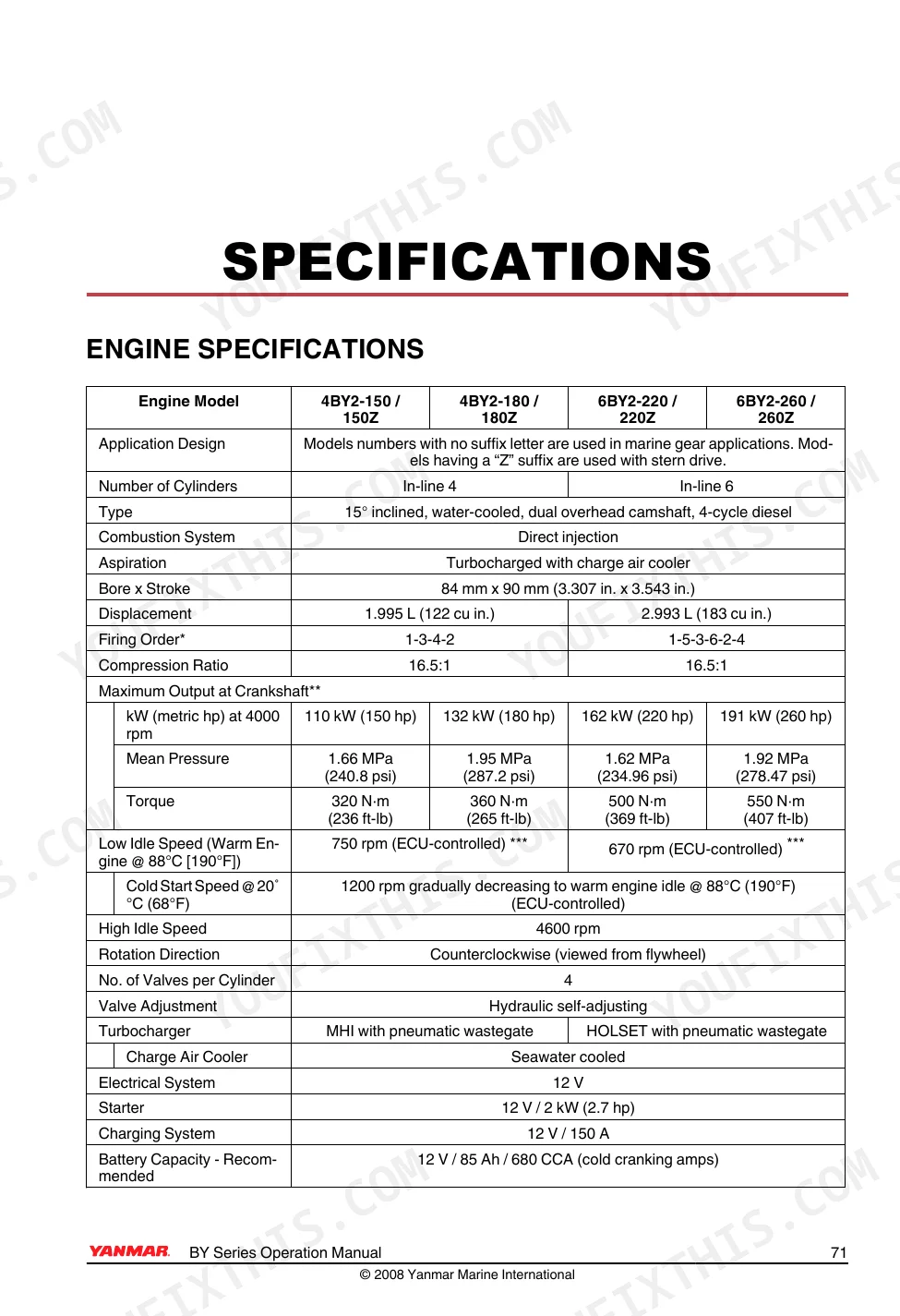

| Specifications | 77-80 | Engine Specifications |
| Epa Warranty Usa Only | 81-88 | Yanmar Co., Ltd. Limited Emission Control System Warranty - Usa Only |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Standard Torque Values for Hexagon Bolts and Nuts | Refer to table on page 47 for specific values based on nominal diameter and grade | p. 47 |
| Hose Clamp Torque (5mm Hex Head) | 1.0 - 1.5 N·m (8.9 - 13 in.-lb) | p. 47 |
| Fuel Filter / Water Separator Element Replacement Interval | Every 250 hours or one year, whichever comes first | p. 49 |
| Fuel Filter / Water Separator Element Torque (filter bowl) | Turn clockwise by hand to tighten | p. 58 |
| Fuel Filter / Water Separator Drain Plug Tightening | Securely tightened | p. 58 |
| Seawater Pump Impeller Replacement Interval | Every 250 hours or one year, whichever comes first | p. 49 |
| Seawater Pump Impeller Replacement Interval (Long-Term) | Every 2000 hours of operation or every 8 years, whichever comes first | p. 63 |
| Rubber Hoses (water) Replacement Interval | Every 250 hours or one year, whichever comes first | p. 51 |
| Hose Clamp Torque (6mm Hex Head) | 2.5 - 3.5 N·m (22 - 31 in.-lb) | p. 47 |
| Rubber Hoses (fuel) Replacement Interval | Every 250 hours or one year, whichever comes first | p. 51 |
| Air Filter Element Replacement Interval | Every 250 hours or one year, whichever comes first | p. 49 |
| Alternator Belt Check/Replacement Interval | Every 250 hours or one year, whichever comes first | p. 49 |
Yanmar 4BY2, 6BY2 Common Problems This Manual Covers
Yanmar 4BY2 check-engine warning light illuminates during operation and engine shuts down at higher RPM. p. 71
Stop the engine immediately. Check the diagnostic trouble codes on page 71. Inspect the engine oil level and verify oil pressure at 4000 rpm reaches 3.5 to 6.0 bar (51 to 87 psi). Inspect all fuel and cooling water hoses for signs of leakage.
Manual Section: Diagnostic Trouble CodesContinuous heavy white smoke emitting from the exhaust under load with a dropping coolant recovery tank level. p. 49
Inspect the cooling system for leaks and test the seawater pump capacity to ensure it delivers 165 L/min. Check the maintenance schedule on page 49 to verify coolant is replaced every two years. Never open the filler cap while the engine remains hot.
Manual Section: Exhaust Smoke DiagnosisIntermittent engine shutdowns or alarms under load with the ECU threshold voltage dropping unexpectedly. p. 78
Verify the emergency shutdown switch circuit is secure. Measure the ECU threshold voltage to ensure it stays above 7.8 V as specified on page 78. Inspect the 5mm hex head hose clamps on the turbo vacuum lines and tighten to 1.0 to 1.5 N·m (8.9 to 13 in.-lb).
Manual Section: SpecificationsLow power output and rough engine vibration with drive engaged at higher speeds. p. 58
Drain the fuel separator water components and replace the fuel pre-filter element. Turn the filter bowl clockwise by hand to tighten as shown on page 58. Replace the rubber fuel hoses every 250 hours or one year to prevent air intake restriction.
Manual Section: Periodic MaintenanceFrequently Asked Questions
How do I reset the YANMAR 4BY2/6BY2 alarm or fault code?
Some warning alarms can be canceled by turning the engine off and then restarting it. However, for Diagnostic Trouble Codes (DTCs), a special tool is required by a technician to read and correct the fault, as indicated on page 70.
What does the YANMAR 4BY2/6BY2 error code mean?
The manual provides a Diagnostic Trouble Code Table (pages 71-74) that lists various error codes and their meanings. For example, error code P0003 indicates a "Fuel Metering Unit Short circuit to Ground," which would trigger an alarm and reduce engine performance.
What is the normal oil pressure for the YANMAR 4BY2/6BY2 marine engine?
The normal oil pressure for the 4BY2/6BY2 at 4000 rpm is 3.5 to 6.0 bar (51 to 87 psi), as listed in the troubleshooting section on page 71. If oil pressure falls outside this range during operation, stop the engine immediately and inspect the oil level and oil pump before restarting.
What are the torque specs for YANMAR 4BY2 cylinder head bolts?
This operation manual provides generic torque values for standard hexagon bolts and nuts (M4 to M12) on page 47, but does not specify torque values for cylinder head bolts. For example, an M8 bolt of grade 8.8 or 8 should be tightened to 23 N·m (204 in.-lb).
How do I prepare the YANMAR 4BY2/6BY2 for long-term storage or winterization?
To prepare the 4BY2/6BY2 for long-term storage (pages 75-76), flush the cooling system with fresh water, run the engine on flushing water until coolant is clear, change the engine oil while warm, and fog the cylinders with preservative oil. Also disconnect the battery and store the engine in a dry, ventilated location. Follow the full checklist on page 75 to prevent corrosion and seal deterioration during layup.
What format is this manual in?
A 88-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is this Yanmar 4BY2, 6BY2 Operator Manual printable?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Document Quality
This document is a native digital PDF, allowing you to search and copy all text, which is consistently crisp and easy to read. Diagrams and illustrations are clear raster images with readable labels, though some very small text on nameplates may require zooming. The pages are clean, free of scan artifacts, stains, or skewed content, but you will find several pages intentionally left blank.
