Covering the 2004 marine diesel engine lineup, this 214-page Yanmar 3JH4(B)(C)(M)E service manual PDF (OEM #M9961-03E090) gives you every teardown and repair procedure for the 3JH4E, 3JH4BE, 3JH4CE, and 3JH4ME variants. Open up to find complete electrical wiring diagrams, a dedicated troubleshooting chart for fuel injection equipment, and step-by-step disassembly guides for the basic engine parts. You get detailed maintenance schedules covering everything from the initial 50-hour inspection to the 1,000-hour overhaul of the cooling water system. Lock down the cylinder head bolts in two stages, first to 44-54 N-m and finishing at 85.2-91.2 N-m, before verifying your fuel filter handles a maximum flow of 1.5 L/min. Don't let a bad sensor ruin your time on the water. Download the bookmarked file, pull it up on your tablet in the engine room, and fix the problem right.
What's Inside This Yanmar 3JH4(B)(C)(M)E Manual
| System | Pages | Key Topics |
|---|---|---|

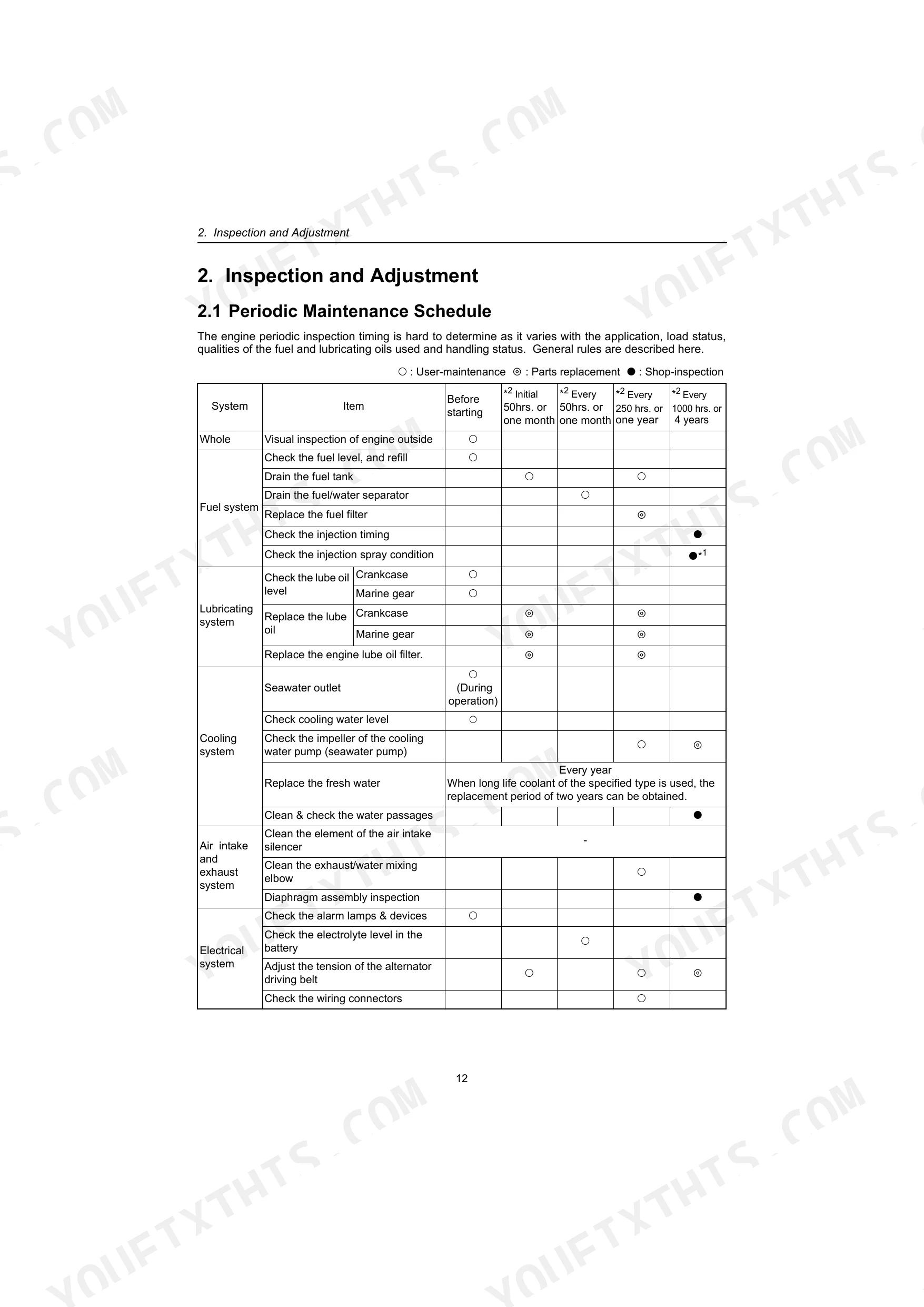

| History of Revision | 3 | - |

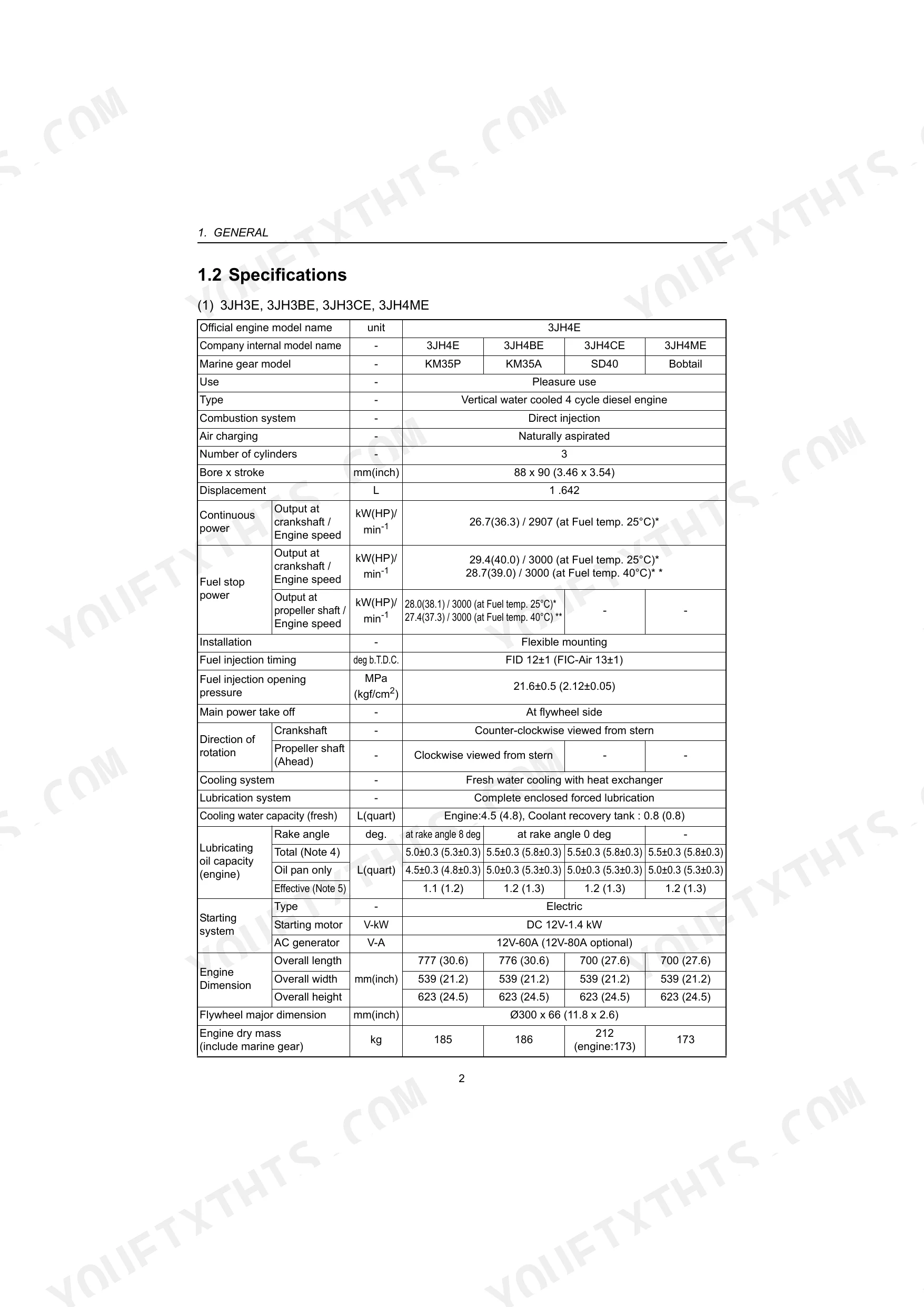

| General | 17-27 | Exterior Views, Specifications, Engine Outline, Piping Diagrams |

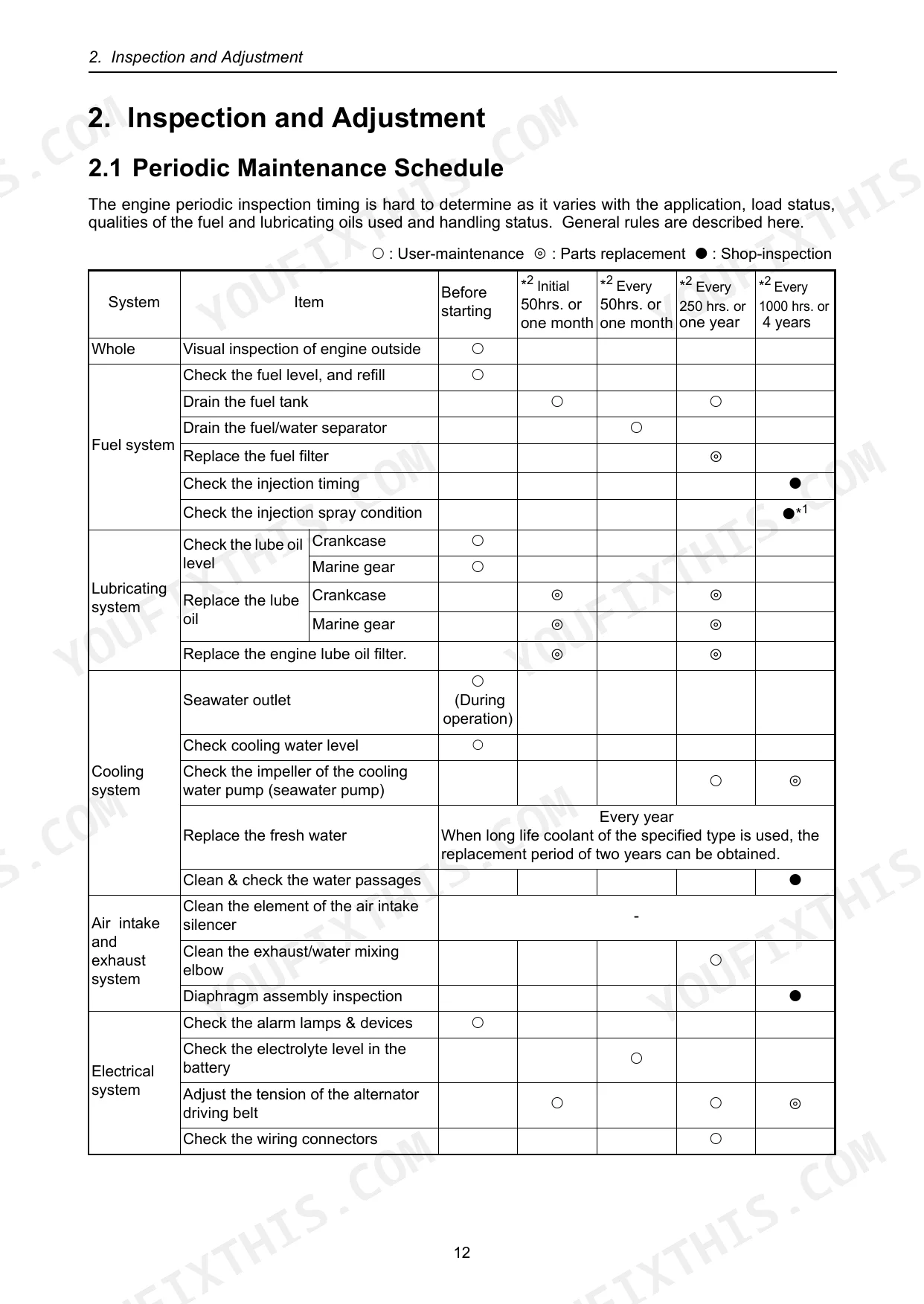

| Inspection and Adjustment | 28-58 | Periodic Maintenance Schedule |

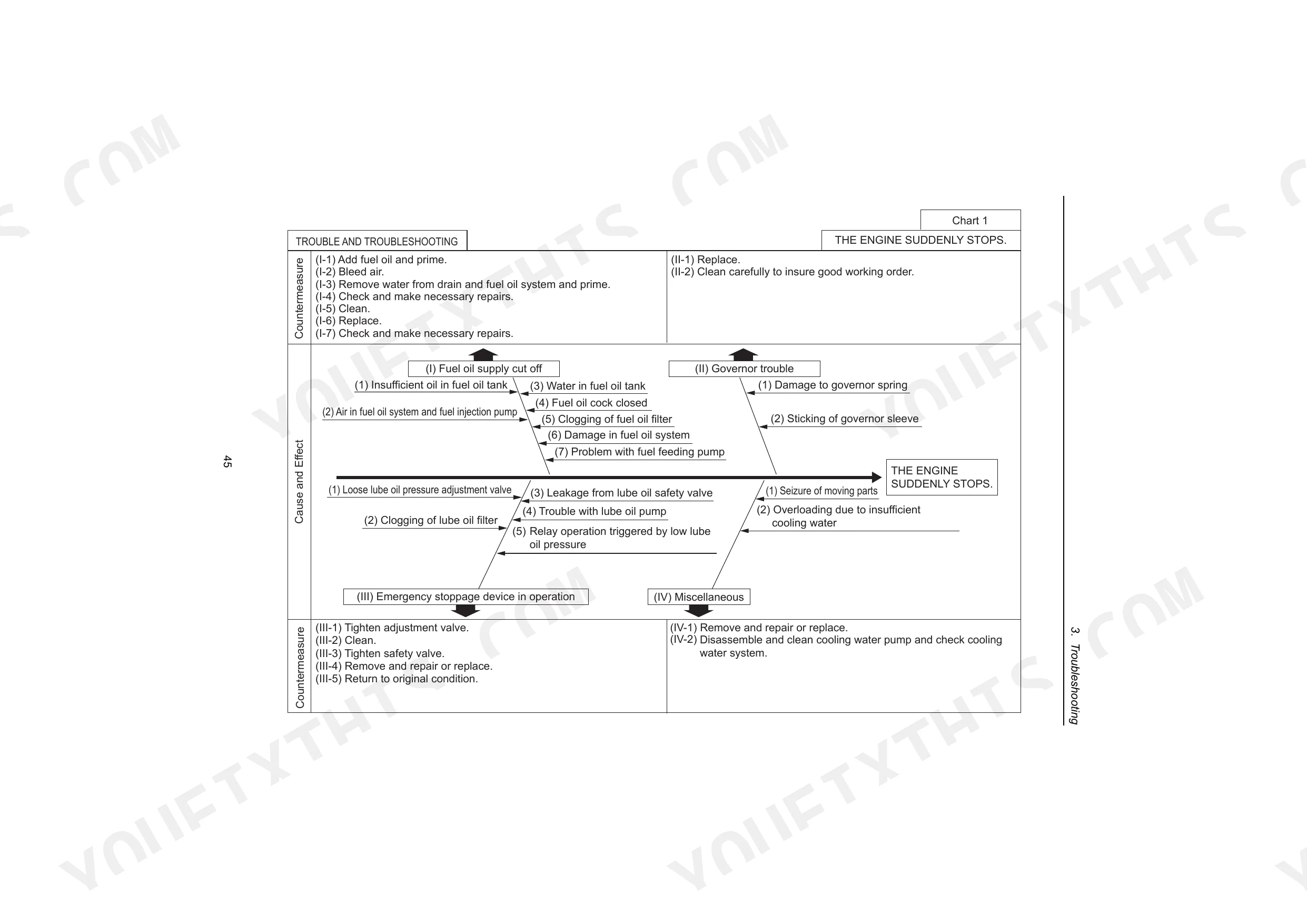

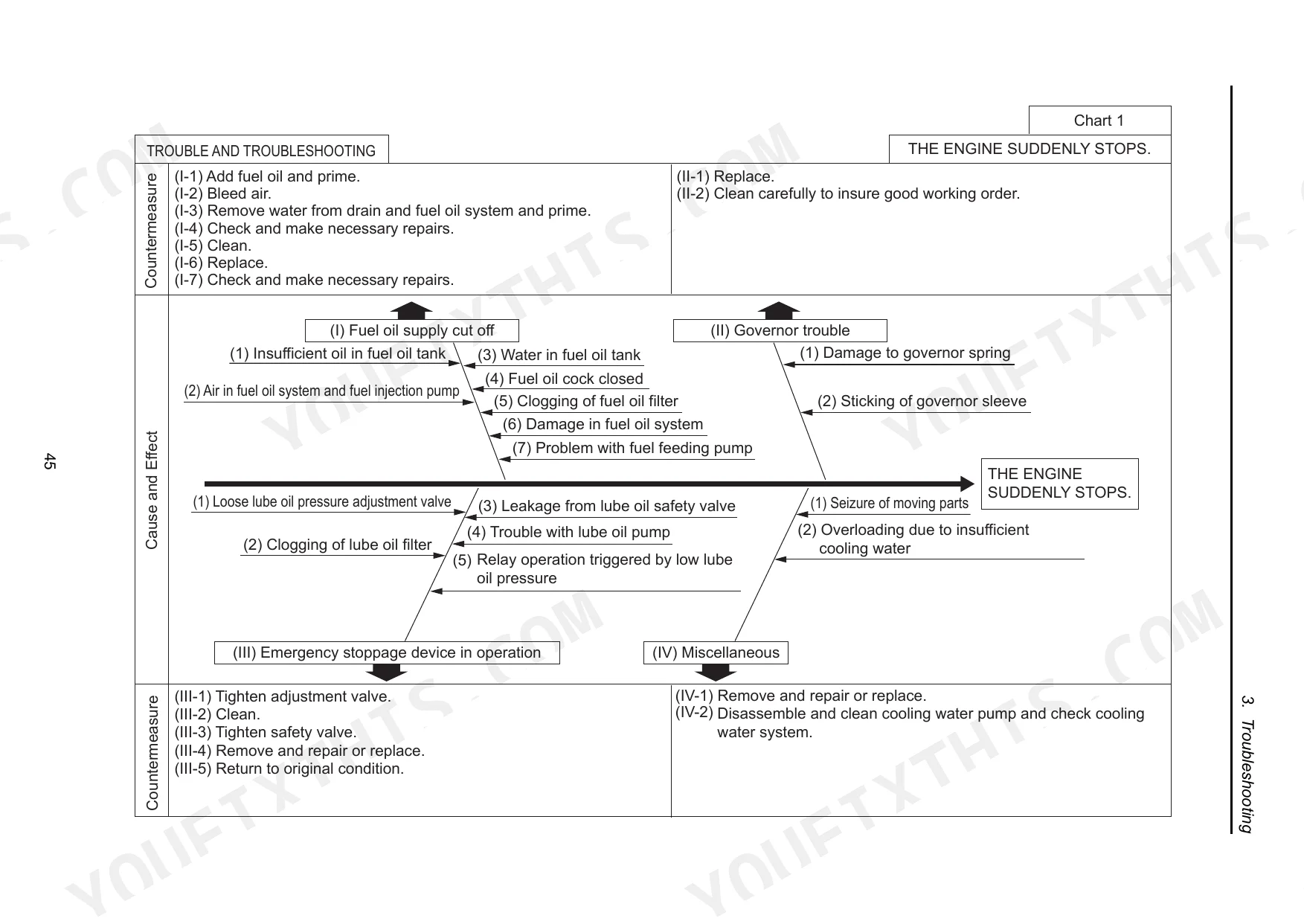

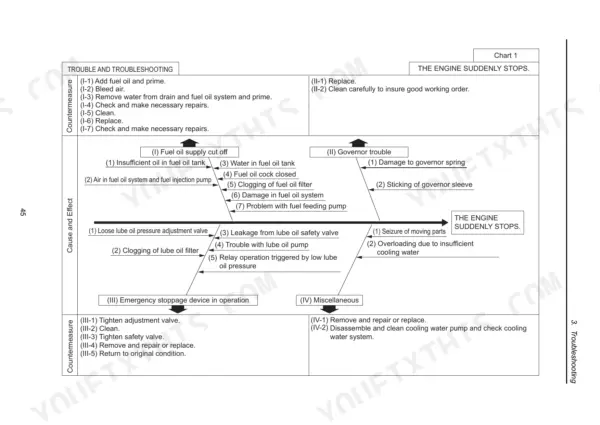

| Troubleshooting | 59-73 | Preparation Before Troubleshooting, Quick Reference Chart for Troubleshooting, Troubleshooting (Concerning Engine and Fuel Injection Equipment) |
| Disassembly and Reassembly | 74-108 | Disassembly and Reassembly Precautions, Disassembly and Reassembly Tools |

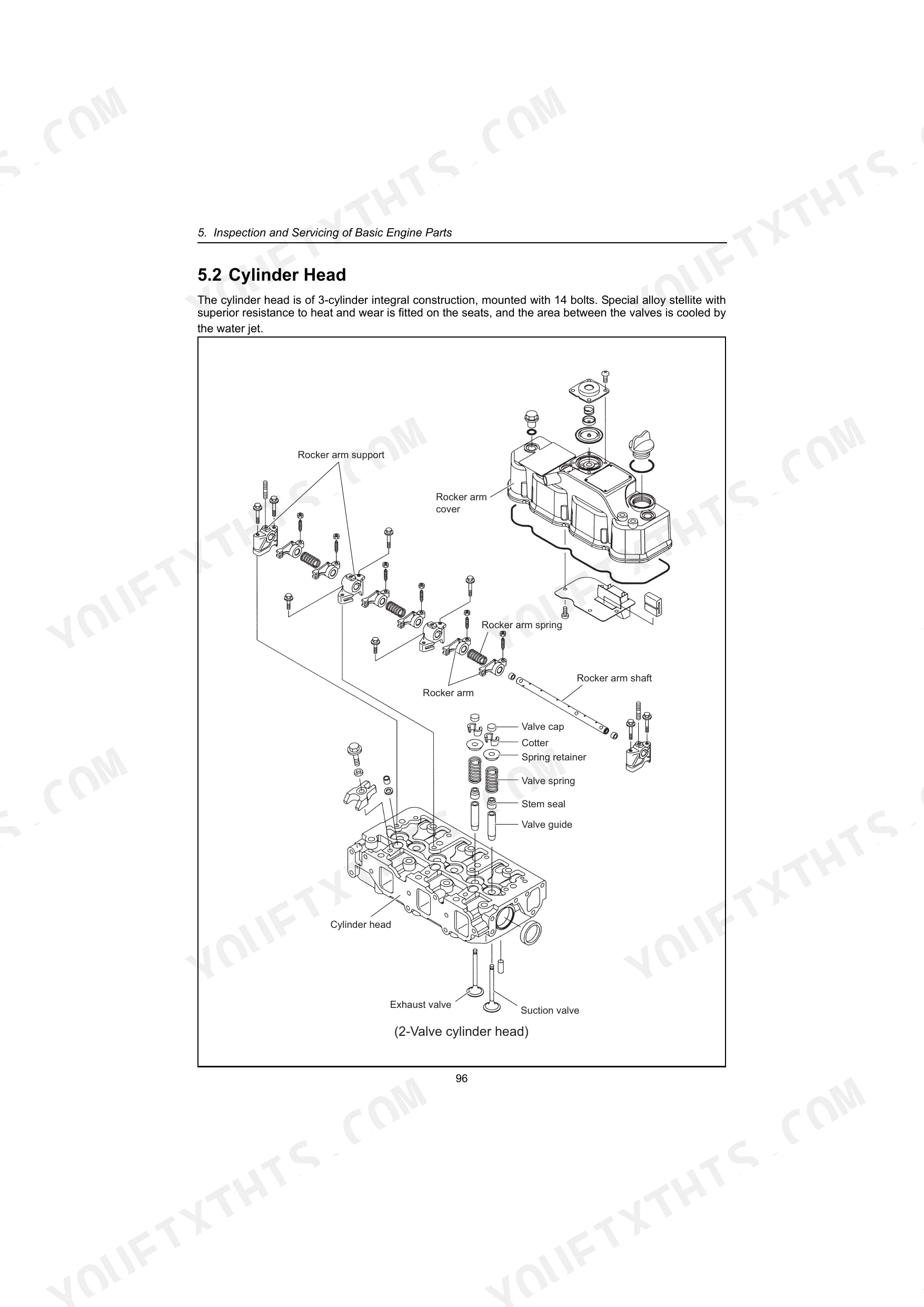

| Inspection and Servicing of Basic Engine Parts | 109-137 | Cylinder Block (Parts, Cleaning of Oil Holes, Color Check Procedure, Cup Plugs, Cylinder Bore Measurement) |
| Fuel Injection Equipment | 138-153 | Fuel Injection Pump/Governor, Fuel Feed Pump, Fuel Filter, Fuel Tank |
| Intake and Exhaust System | 154-156 | Intake System, Exhaust System |

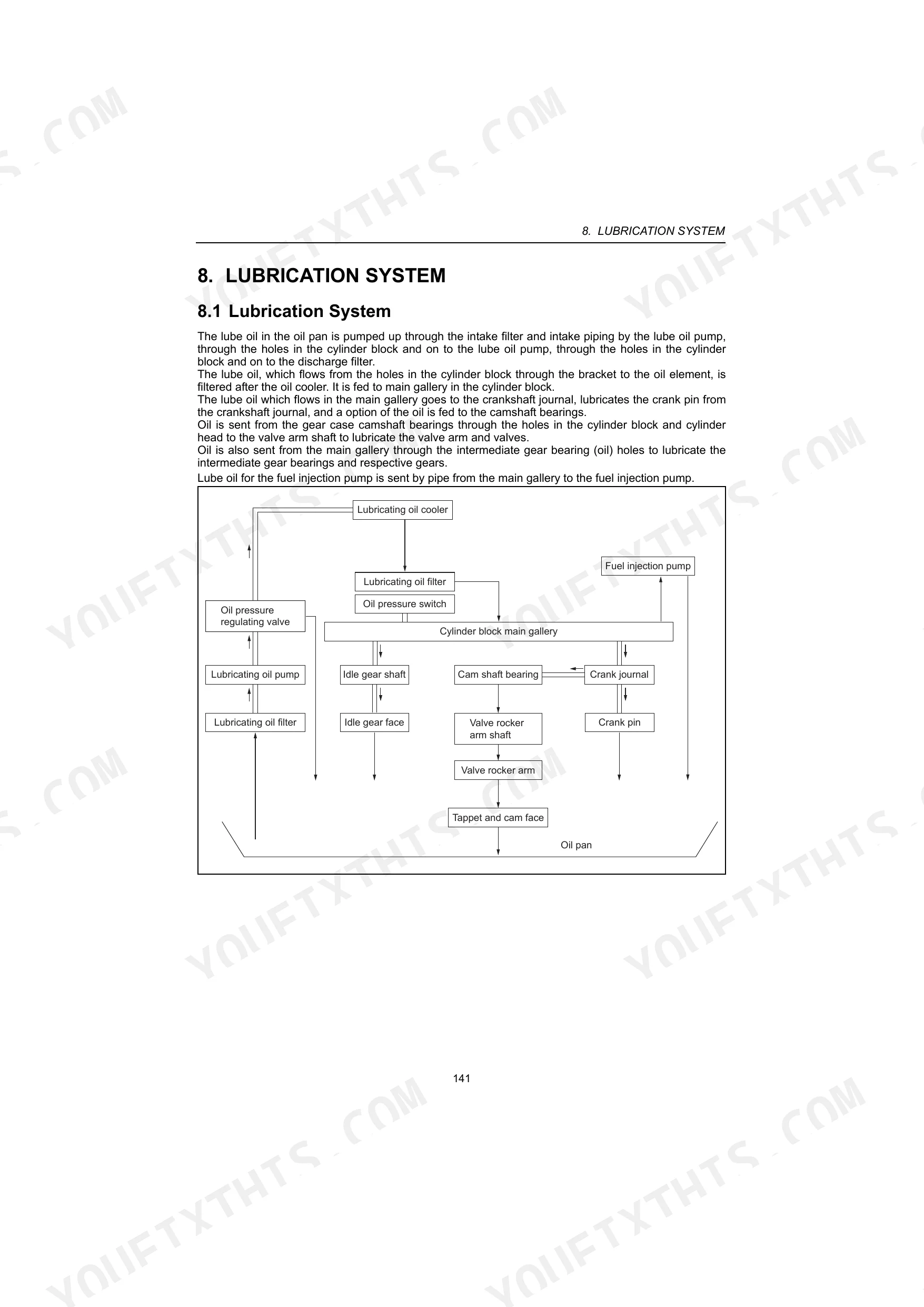

| Lubrication System | 157-161 | Lube Oil Pump, Lube Oil Filter, Lube Oil Cooler, Rotary Waste Oil Pump (Optional) |

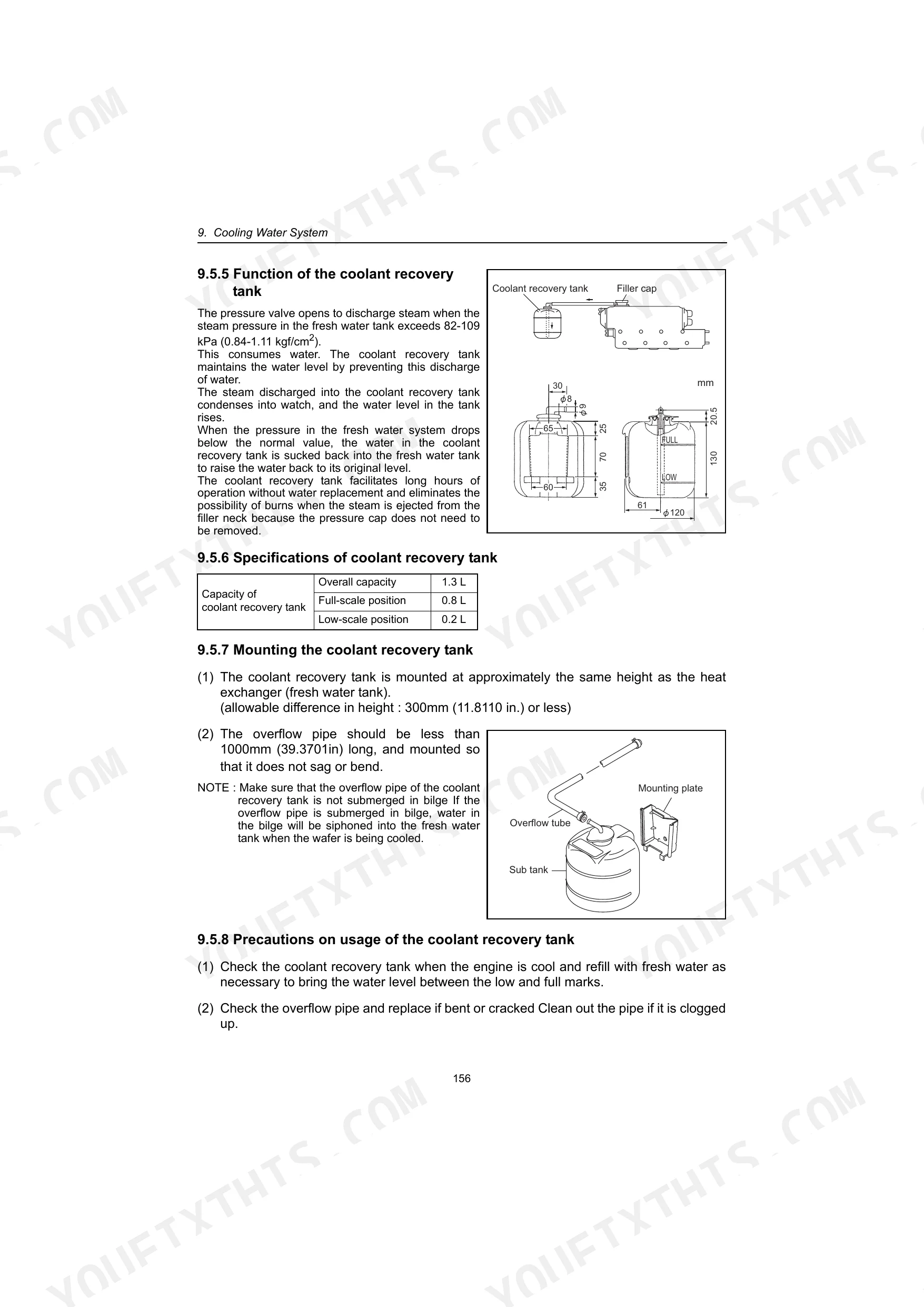

| Cooling Water System | 162-179 | Seawater Pump, Fresh Water Pump, Heat Exchanger, Pressure Cap and Coolant Recovery Tank, Thermostat |
| Reduction and Reversing Gear | 180 | Clutch, Reduction Ratio, Propeller Shaft Speed, Direction of Rotation, Output Shaft Coupling, Shift Lever |
| Remote Control (Optional) | 181-186 | Remote Control System, Remote Control Installation, Remote Control Inspection, Remote Control Adjustment |
| Electrical System | 187-206 | Battery, Starting Motor, Alternator Standard, 12V/60A, Alternator 12V/80A (Optional), Instrument Panel, Warning Devices |
| Service Standards | 207-212 | Engine Tuning, Engine Body, Lubricating Oil System (Trochoid Pump) |
| Tightening Torque for Bolts and Nuts | 213 | Main Bolt and Nut, Standard Bolts and Nuts (Without Lube Oil) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cylinder head bolt tightening torque (First step) | 44-54 N•m (4.5-5.5 kgf•m) | p. 118 |
| Cylinder head bolt tightening torque (Second step) | 85.2-91.2 N•m (8.69-9.30 kgf•m) | p. 118 |
| Fuel filter Filtering method | filter paper | p. 152 |
| Fuel filter Filtering area | 840 cm2 | p. 152 |
| Lube oil filter By-pass valve opening pressure | 0.08-0.12 MPa (0.8-1.2 kgf/cm2) | p. 160 |
| Lube oil filter Tightening torque | 20-24 N•m (177-212 lb-in) | p. 34 |
| Fuel nozzle type (ID mark) | 159P185VAD1 | p. 139 |
| Fuel nozzle Injection pressure measurement (Standard) | 21.1-22.1 MPa (215-225 kgf/cm2) | p. 48 |
| Fuel injection pump Part code (Back No.) | 729271-51450 (TM02) | p. 139 |
| Fuel injection pump Fuel valve (Valve pressure) | VBG(220) (170) | p. 139 |
| Rubber pipe dimension | inner dia. x thickness | p. 23 |
| Rubber pipe example (Fuel oil piping) | Ø 7.8 x t4.5 rubber hose | p. 23 |
Yanmar 3JH4(B)(C)(M)E Common Problems This Manual Covers
Yanmar 3JH4E marine diesel engine overheating, abnormal coolant hose temperatures, and poor coolant circulation. p. 173
Test the thermostat opening temperature as detailed on page 173. Verify it opens between 75-78 °C. Inspect the fresh water pump for leaks and ensure the setting bolts are tightened to 6.9-11 N•m as shown on page 105. Replace the thermostat if it fails the temperature check.
Manual Section: 9. Cooling Water SystemAir in the fuel system or contaminated diesel presenting as fuel starvation, hard starting, or rough running. p. 42
Remove and inspect the fuel filter element on page 152. Verify the max unfiltered particle size is 10 μ. Bleed all air from the fuel lines. Install a new filter and torque the housing to 20-24 N•m (177-212 lb-in) according to the specifications on page 42.
Manual Section: 6. Fuel Injection EquipmentFaulty fuel injection valves or incorrect injection timing presenting as loud engine knocking and poor combustion. p. 72
Measure the cylinder compression pressure as described on page 72. Ensure the standard pressure reads 3.63 ± 0.1 MPa. Test the fuel nozzles on page 48 to confirm the injection opening pressure is between 21.1-22.1 MPa (215-225 kgf/cm2). Replace any faulty injection valves immediately.
Manual Section: 3. TroubleshootingWorn drive belts or loose tensioners presenting as loud squealing noises and low battery charging voltage. p. 34
Inspect the drive belts for cracks or glazing. Measure the used V-belt deflection as shown on page 34. Adjust the alternator bracket until the deflection is exactly 8-10 mm. Replace the belt if tension cannot be maintained or if the rubber shows heavy wear.
Manual Section: 2. Inspection and AdjustmentFrequently Asked Questions
What does the low oil pressure alarm mean on a YANMAR 3JH4E?
The low oil pressure alarm indicates that the lubricating oil pressure has fallen below normal. If the engine oil pressure is below 0.01-0.03 MPa (0.1-0.3 kgf/cm²), the oil pressure sensor contacts close, illuminating the lamp and sounding an alarm. Continuing operation with insufficient oil pressure will result in damage and seizure, so the oil level should be checked.
How do I bleed the fuel system after changing the fuel filter on a YANMAR 3JH4E?
To bleed the fuel system after changing the fuel filter, first check the fuel level and replenish if insufficient. Then, loosen the air bleeding bolt at the top of the fuel/water separator by 2-3 turns. Feed fuel with the fuel feed pump by moving its lever up and down until fuel without air bubbles comes out, then tighten the bolt. Repeat this process for the fuel filter's air bleeding bolt.
What are the replacement specifications for Fuel filter?
The fuel filter is a full flow, paper element type with a filtering area of 0.069 m² and a maximum flow of 1.5 L/min. It is designed to filter particles down to 10 µ. The applicable fuel filter part number is 129470-55702.
What are the replacement specifications for Engine lube oil filter?
The applicable part number for the engine lube oil filter is 119305-35150. When replacing, moisten the new filter gasket with engine oil, install it manually turning clockwise until it contacts the mounting surface, and then tighten it further to 3/4 of a turn with a filter wrench, applying a tightening torque of 20-24 N•m (177-212 lb-in).
Is this Service Manual a digital download?
Instant PDF download. You get the full 214-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Are there any print restrictions on this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Are electrical wiring diagrams included in this Yanmar 3JH4(B)(C)(M)E manual?
Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the Yanmar 3JH4(B)(C)(M)E.
