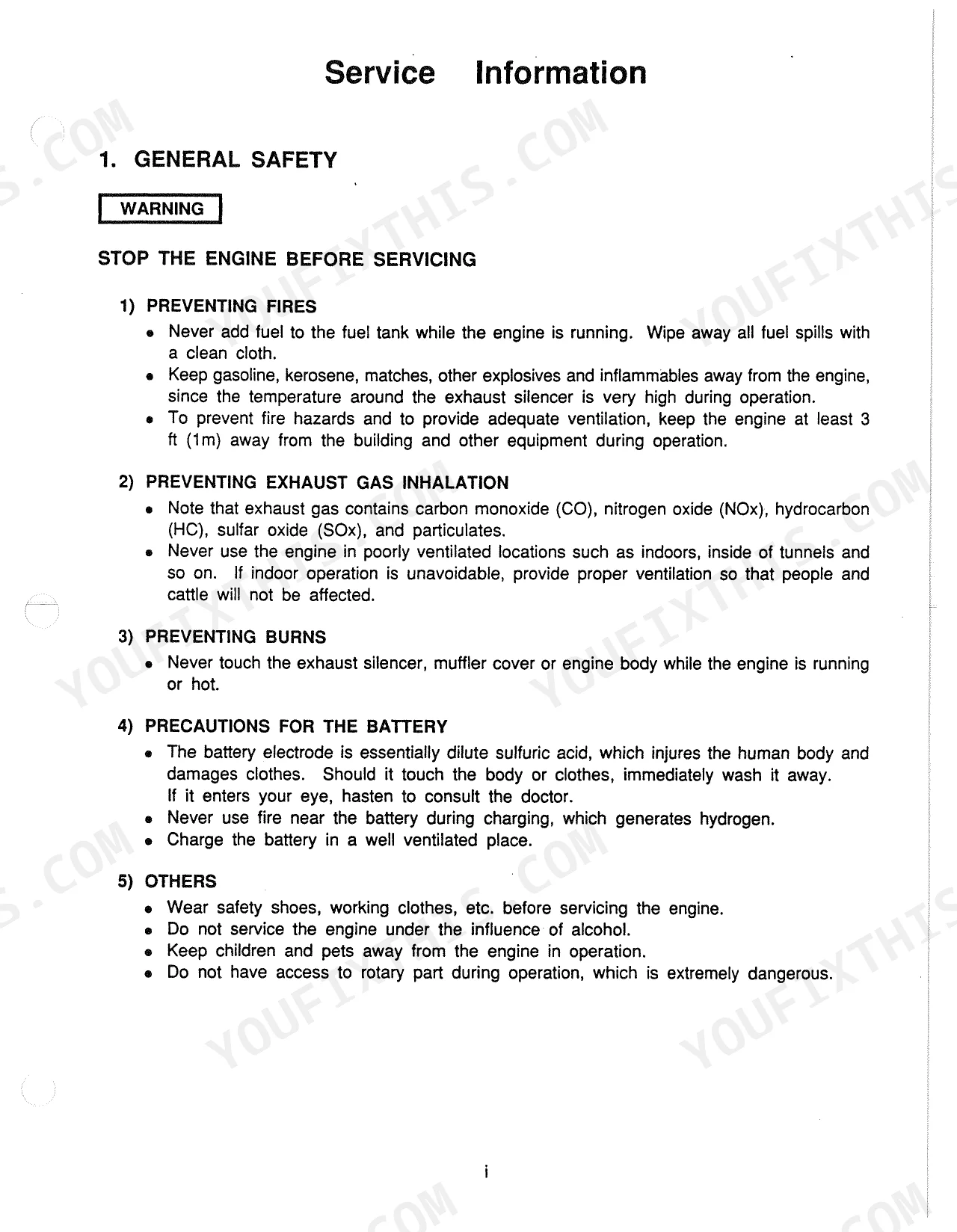

Looking for the exact factory procedures for your industrial diesel engine? This 121-page Yanmar L100AE Service Manual PDF details the complete teardown and rebuild process for the L-A series, including the L40AE, L48AE, L60AE, L70AE, L75AE, and L90AE variants. Inside, you get complete wiring diagrams for the starter motor and generator, full troubleshooting charts for low compression or starting failures, and step-by-step disassembly instructions for the cylinder head and fuel system. Open to the service standard section to find every clearance, wear limit, and test value required to keep your single-cylinder air-cooled engine running right. Lock down the valve rocker arm support to 14.5-16.6 lb-ft for L40AE-L70AE models or 21.7-34.0 lb-ft for L75AE-L100AE models and tighten the flywheel end nuts to 86.8-94.0 lb-ft for L40AE-L70AE models or 159.1-166.3 lb-ft for L75AE-L100AE models before test-running the block. Guessing at clearances ruins fresh rebuilds. Grab this bookmarked PDF, jump straight to the specification you need, and get your equipment back to work.
What's Inside This Yanmar L40–L100 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Specifications | 1-7 | Cross Sectional Views |
| Service Standard | 8-17 | Intake/exhaust Valve Seats, Valve Spring, Piston, Piston Ring, Connecting Rod, Crankshaft and Main Bearing |
| Disassembly and Reassembly | 18-36 | Tools, Meters and Instruments (Meters, Instruments and Service Accessories), Tightening Torque, Maintenance Schedule, Disassembly Procedures, Reassembly Procedures, Recoil Starter |
| Cylinder Head | 37-40 | Combustion Surfaces, Intake and Exhaust Valve Seats, Valve Spring, Top Clearance, Valve Rocker Arms, Push Rods |
| Piston and Piston Pin | 41-44 | Piston, Piston Pin, Piston Pin Hole, Piston Rings, Piston Ring Side Clearance, Piston Ring End Gap |
| Connecting Rod | 45-48 | Connecting Rod Parallelism or Distortion, Side Gap, Small and Large End Hole, Crank Pin Metal, Crank Pin Bearing Metals, Piston Top Mark |
| Crankshaft, Flywheel and Main Bearing | 49-50 | Crankshaft, Crank Pin, Main Bearing Metal, Flywheel, Ring Gear |
| Camshaft and Tappet | 51 | Camshaft, Camshaft Bearing, Camshaft Thrust Clearance, Tappet, Tappet Stem O.D., Fuel Injection Pump Tappet |
| Timing Gear | 52 | Balancer Gear, Cam Gear, Lo Pump Drive Gear, Crank Gear |
| Crankcase Cover | 53-54 | Tightening Torque, Cleaning and Checking, Crankshaft Bearing Part, Camshaft Bearing Part, Oil Filter, Lo Flow Path |
| Cylinder Sleeve and Cylinder Block | 55 | Cylinder Sleeve, Cylinder Block, Crankshaft Bearing Part, Camshaft Bearing Part, Cylinder Sleeve I.D. |

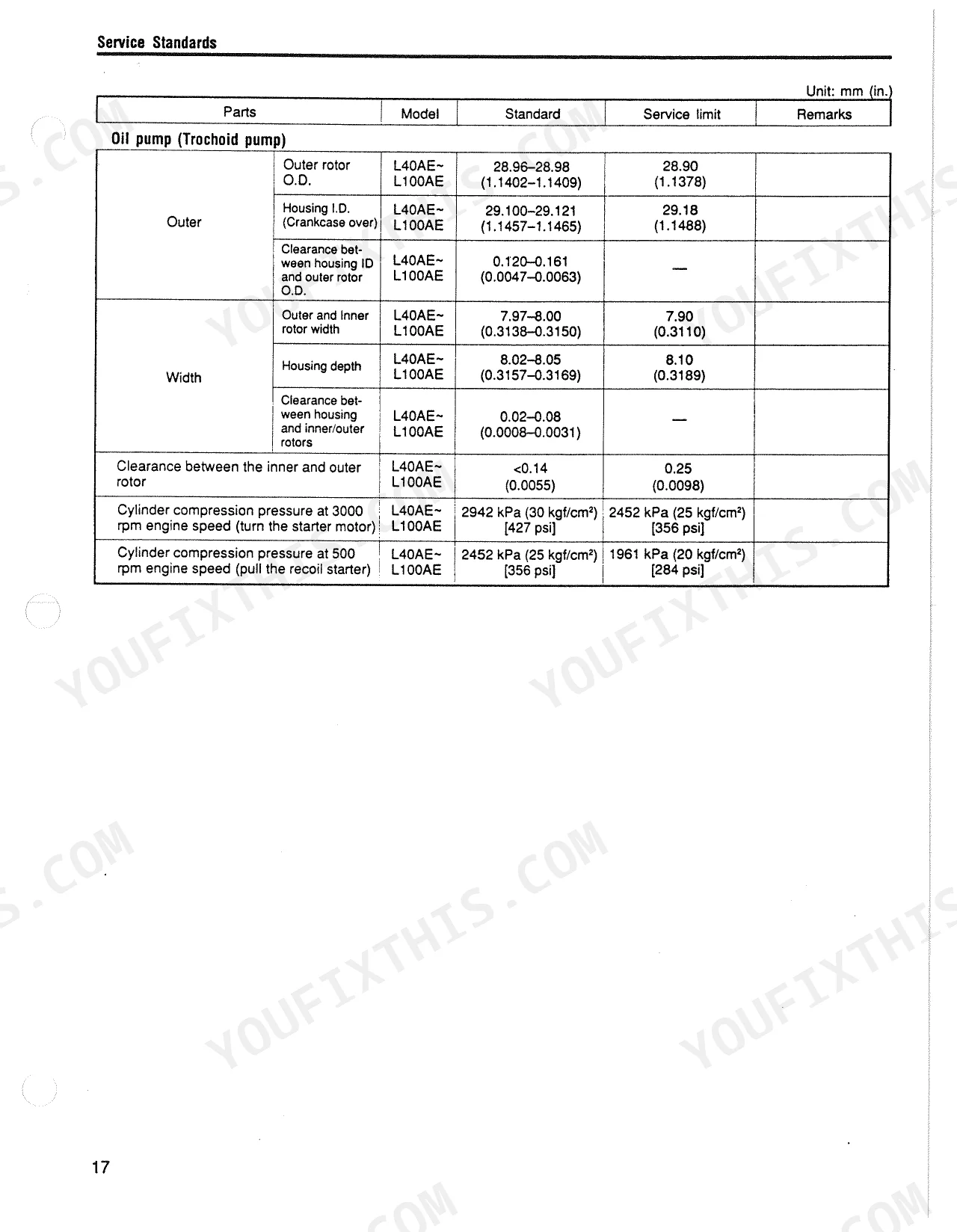

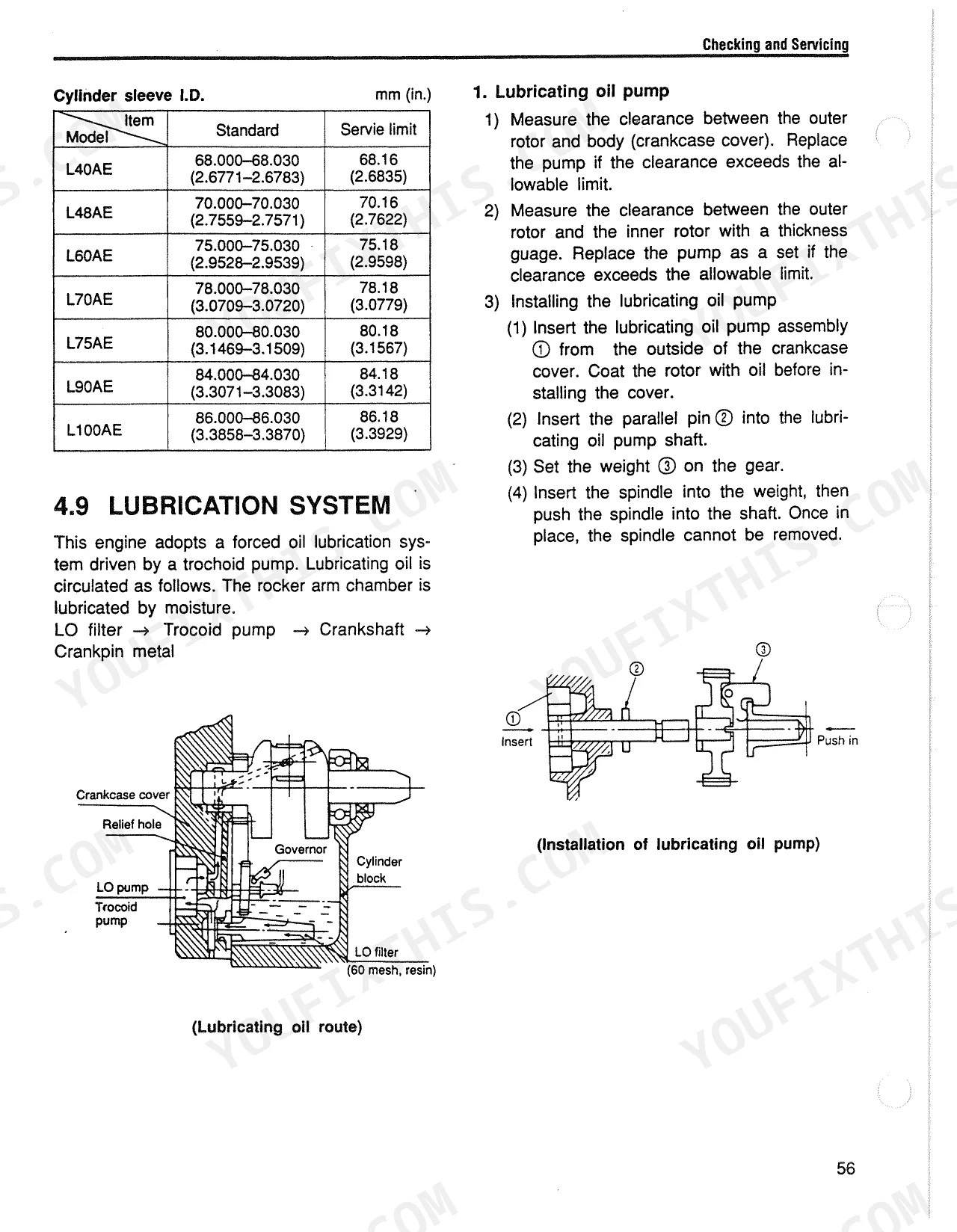

| Lubrication System | 56-57 | Lubricating Oil Pump, Outer Rotor O.D., Housing I.D., Outer and Inner Rotor Width, Housing Depth, Clearance Between Rotors |
| Fuel System | 58-61 | Fuel Injection Pump, Fuel Injection Valve, Fuel Filter, Adjusting Shims, Disassembly and Reassembly |
| Speed Control Device | 62-63 | Position of Governor Spring Hole, Type of Speed Control Device, Regulator Lever, Governor Spring, Governor Handle, Governor Lever |

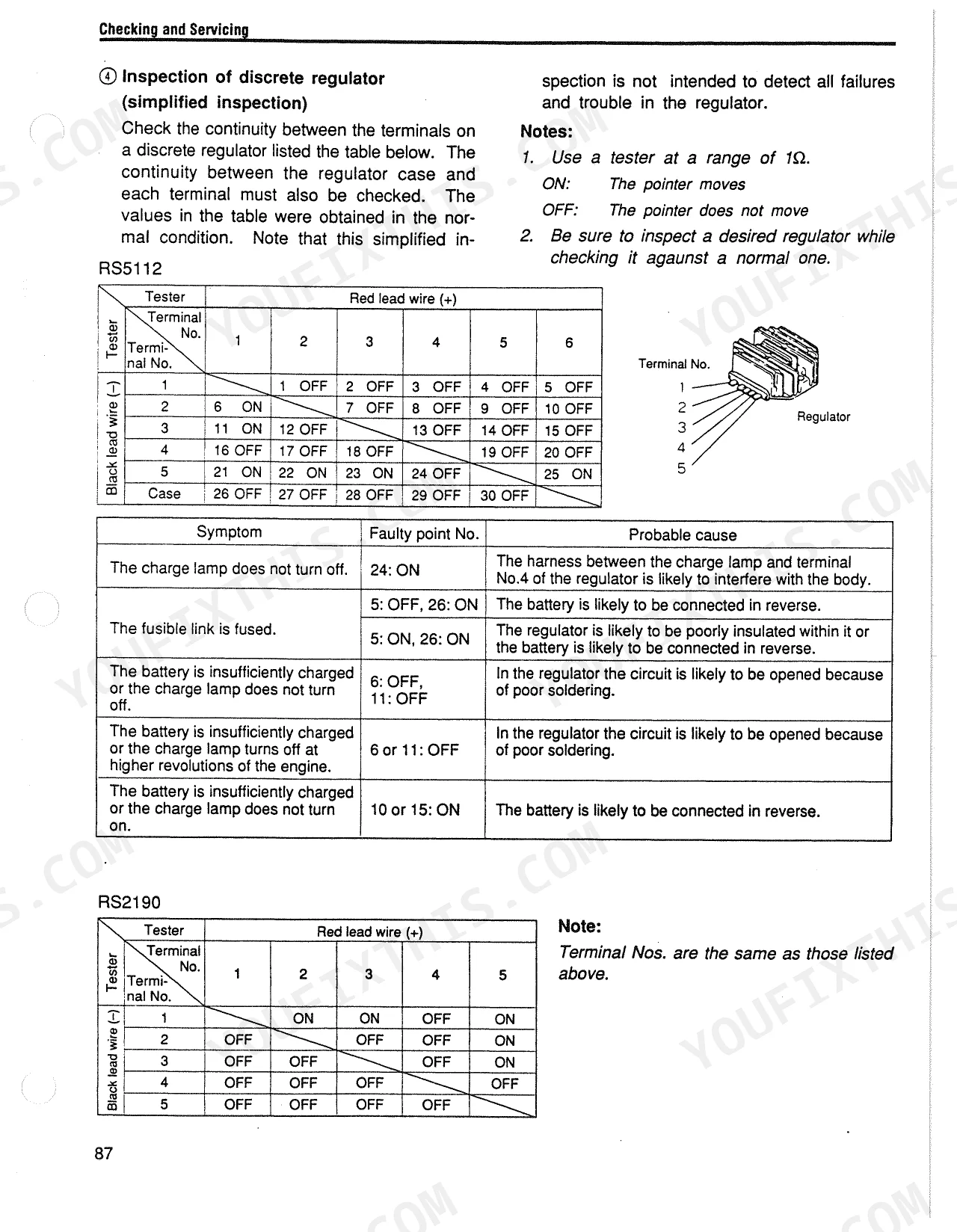

| Electrical System | 64-92 | Wiring Diagram, Starter Motor, Generator (Dynamo), Regulator and Rectifier, Air Heater |
| Adjustment | 93-94 | Fuel Injection Timing, Bleeding Air From Fuel System, Fuel Injection Volume Limitation, Adjusting the Clearance on intake/exhaust Valve Head |
| Troubleshooting | 95-110 | No Fuel Injection Sound, Low Compression Pressure, Recoil Too Heavy, Failure of Starter Motor, Insufficiently Charged Battery, Abnormal Exhaust Color |
| Test Run | 111-113 | Before Starting, Starting, Operation, Stopping |
| Helical Inserting Part for Repair | 114-116 | Size of Helical Inserting Part, Procedure for Helical Inserting Part, Drilling, Tapping, Insertion |
| Appendix 1 Difference Between Parts Under Spec. S and D | 117-119 | Crank Case Cover, Camshaft Assy, Crankshaft Cover, Flywheel, Piston, Cooling Fan Case |
| Appendix 2 Detail of Special Tools | 120-130 | Oil Seal Fitting Tool, Oil Seal Fitting Guide, Valve Stem Seal Fitting Tool, Flywheel Tightening Handle, Flywheel Extractor |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

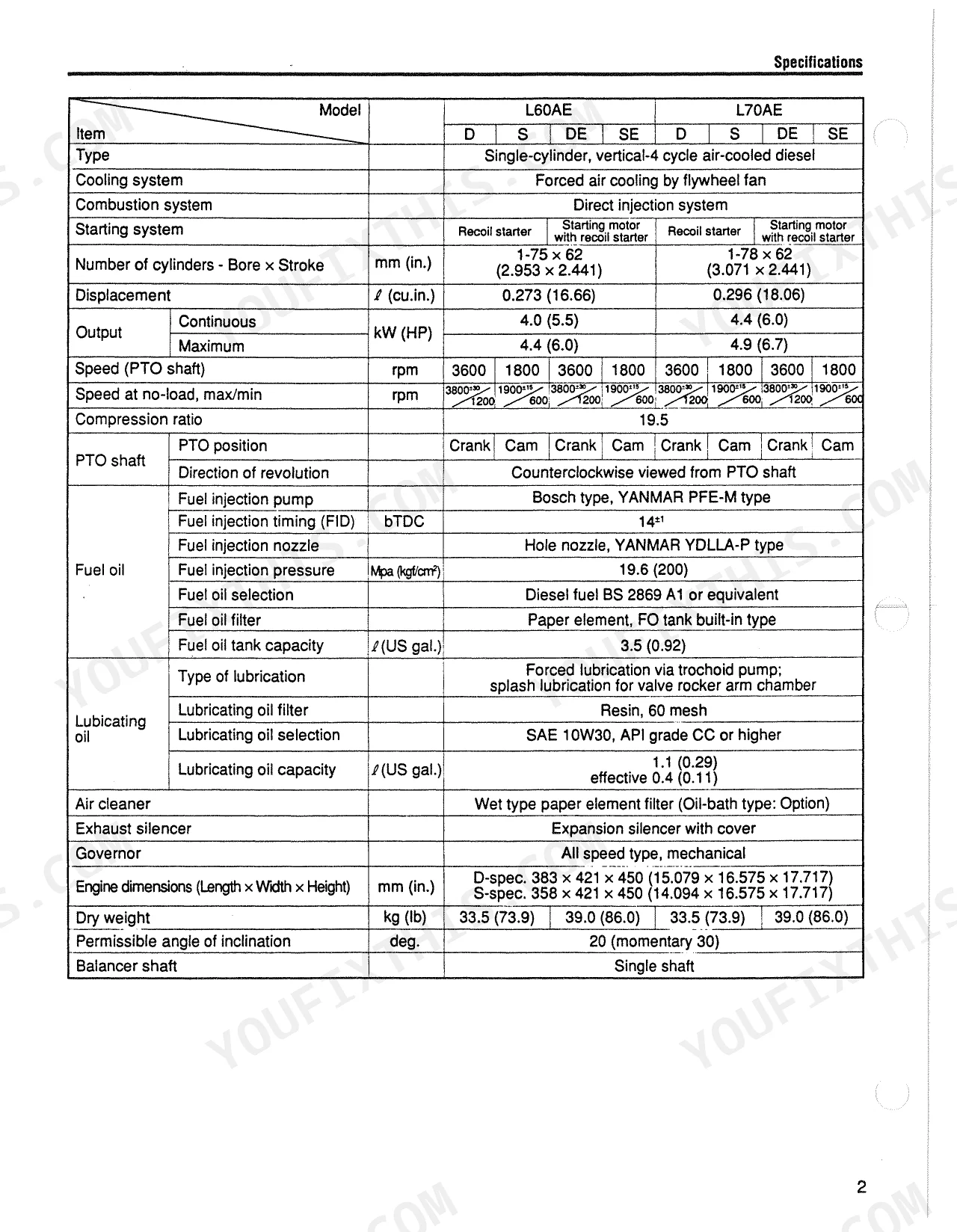

| Engine Type | Single-cylinder, vertical-4 cycle air-cooled diesel | p. 9 |
Yanmar L40–L100 Series Common Problems This Manual Covers
Yanmar L40AE through L100AE series engine turns over slowly and exhibits hard starting in cold weather p. 95
Inspect the cylinder head and valves. Check the maintenance schedule on page 24 to ensure engine oil is changed every 100 hrs. Verify the FO nozzle case nut is torqued to 300-350 kg-cm. Replace the glow plugs and verify battery voltage if cold-start trouble persists.
Engine runs rough or overheats due to incorrect valve clearance p. 94
Adjust intake/exhaust valve head clearance to 0.10-0.15 mm (0.0039-0.0059 in.) with engine cold (per p. 94 Checking and Servicing). Incorrect clearance causes incomplete combustion, excess heat, and power loss on all L-series models (L40AE-L100AE).
Loss of compression or knocking noise after cylinder head work on L-series engines p. 31
Re-torque cylinder head nuts in two steps per model: L40AE/L48AE first 150 kg-cm then final 280-320 kg-cm; L60AE/L70AE first 230 kg-cm then final 420-460 kg-cm; L75AE-L100AE first 300 kg-cm then final 540-580 kg-cm (per p. 31, Disassembly and Reassembly). Also re-check connecting-rod bolt torque: 180-210 kg-cm for L40AE-L70AE, 375-425 kg-cm for L75AE-L100AE.
Frequently Asked Questions
What are the torque specs for the cylinder head bolts on YANMAR L40AE/L48AE/L60AE/L70AE/L75AE/L90AE/L100AE?
The cylinder head nuts for YANMAR L-series engines require a two-step tightening process. For L40AE and L48AE models, the final torque is 280-320 kg-cm (20.2-23.1 lb-ft). For L60AE and L70AE models, the final torque is 420-460 kg-cm (30.4-33.3 lb-ft). For L75AE-L100AE models, the final torque is 540-580 kg-cm (39.0-41.9 lb-ft).
What are the torque specs for the main bearing bolts on a YANMAR L-series engine?
For L40AE-L70AE models, the connecting rod torque is 180-210 kg-cm (13.0-15.2 lb-ft). For L75AE-L100AE models, the connecting rod torque is 375-425 kg-cm (27.1-30.7 lb-ft).
What is the recommended valve clearance for YANMAR L-series diesel engines?
The recommended intake/exhaust valve head clearance for YANMAR L-series diesel engines is 0.10-0.15 mm (0.0039-0.0059 in.) when the engine is in a cold state. This clearance should be adjusted as part of regular maintenance.
What is the lubricating oil capacity for YANMAR L-series diesel engines?
The lubricating oil capacity varies by model. For L40AE-L48AE models, the total capacity is 0.80 US gal (0.21 US gal effective). For L60AE-L70AE models, it is 1.1 US gal (0.29 US gal effective). For L75AE-L100AE models, the capacity is 1.65 US gal (0.44 US gal effective).
What is the standard fuel injection pressure for YANMAR L-series diesel engines?
The standard fuel injection pressure for all YANMAR L-series diesel engine models (L40AE through L100AE) is 19.6 MPa (200 kgf/cm²). This specification is consistent across the entire series.
What is the recommended oil change interval for YANMAR L-series diesel engines?
The recommended interval for checking and adding engine oil is every 100 hours of operation. This is part of the regular maintenance schedule to ensure proper engine lubrication and performance.
What are the recommended battery capacities for YANMAR L-series diesel engines?
Recommended battery capacities (20 hrs rating) vary by model and ambient temperature. For L40AE/L48AE, capacities range from 18AH to 45AH. For L60AE/L70AE, they range from 24AH to 45AH. For L75AE-L100AE, capacities range from 30AH to 45AH, with specific recommendations for temperatures like -10°C (14°F) or higher.
What format is this manual in?
Instant PDF download. You get the full 121-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this Yanmar L40AE & variants Service Manual printable?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Document Quality
This document is a scanned PDF, not a native digital file. Consequently, the text is image-only, meaning you cannot search or copy text directly from the pages. The text quality is generally clear and readable, though some pages exhibit minor fading or slight blur from the scanning process. Diagrams and illustrations are raster images (scanned drawings) with readable labels. Page condition is fair; you will notice some faint scan lines, minor page skew, and occasional small smudges, along with several blank pages interspersed throughout.
