Set a feeler gauge against the rocker arm of a Yanmar L48AE and the number you need is in here, along with every other clearance for the L40-L100 LA series: L40AE, L48AE, L60AE, L70AE, L75AE, L90AE, and L100AE. Across 126 pages this service manual walks the whole engine end to end: cylinder head, piston and rings, connecting rod, crankshaft, camshaft, timing gear, lubrication, fuel system, speed control, and the complete electrical system with wiring diagrams.
It covers full disassembly and reassembly with tightening torques, service standard tables with wear limits, a maintenance schedule, troubleshooting charts for fuel, compression, and starting faults, and a test run procedure. Every day the engine sits apart on the stand waiting for a spec is a day whatever it powers stays down.
Download the PDF, check your ring end gaps and bearing clearances against the tables, torque the head to spec, and get it running again.
Other edition of this manual
- Yanmar L100AE, L40AE, L – A Series Industrial Diesel Engine Service Manual (incl. Wiring) Original price was: $46.99.$29.99Current price is: $29.99.
What's Inside This Yanmar L40-L100AE LA Series Manual

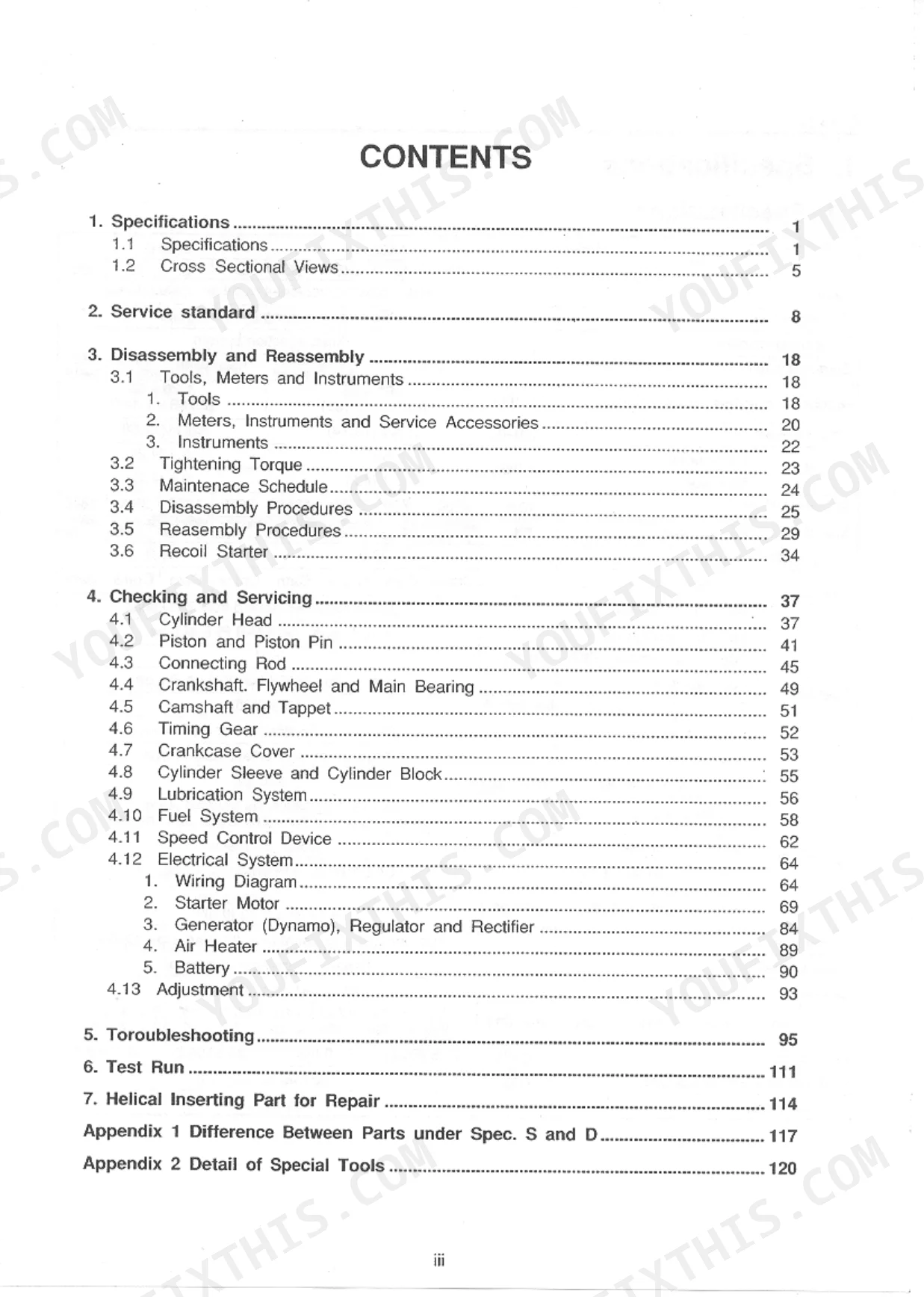

| System | Pages | Key Topics |
|---|---|---|

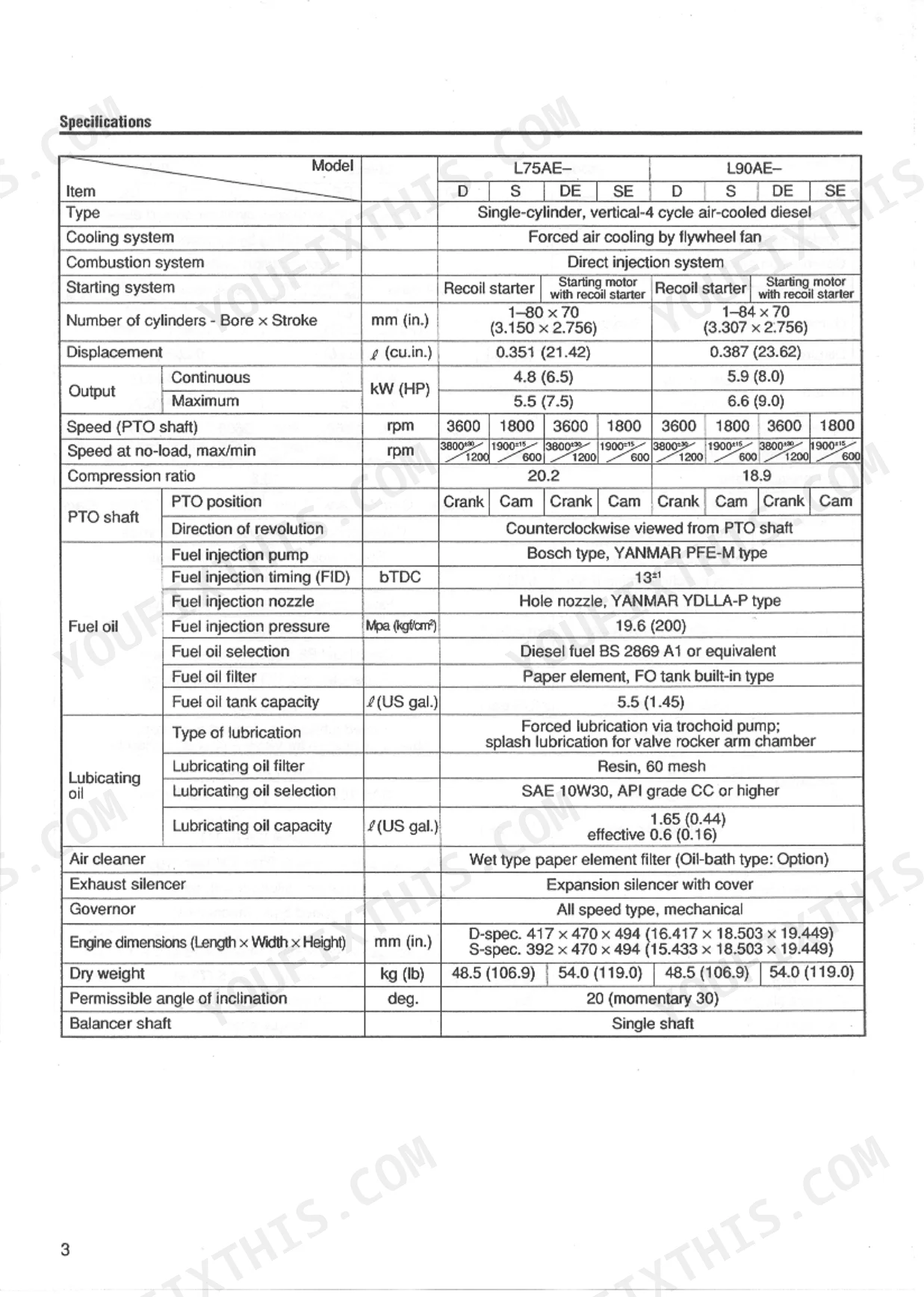

| Specifications | 6-12 | Type, Cooling System, Combustion System, Displacement, Output, Fuel Oil |
| Service Standard | 13-18 | Valve System Components, Piston and Rings |

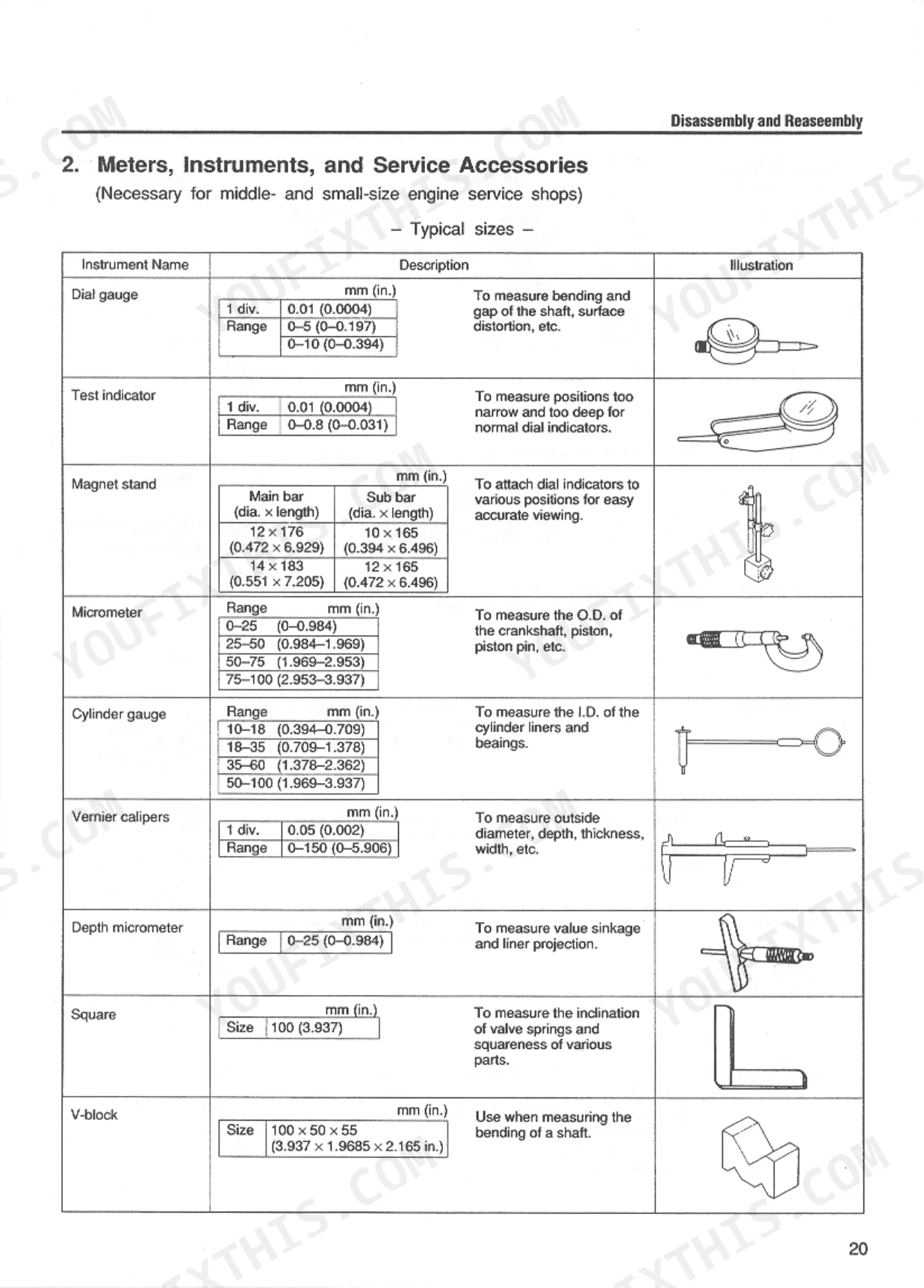

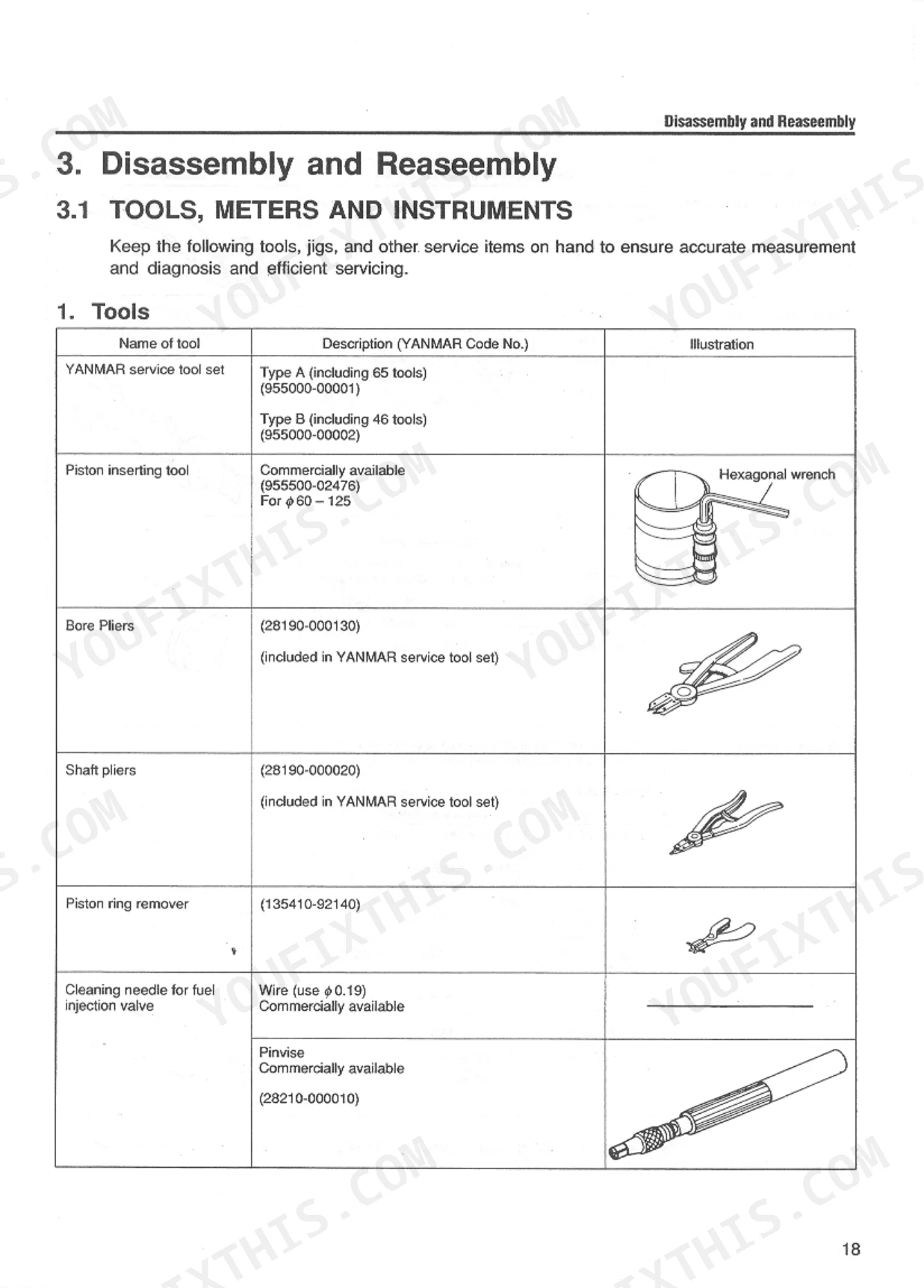

| Disassembly and Reassembly | 19-36 | Tools, Meters and Instruments (Meters, Instruments and Service Accessories), Tightening Torque, Maintenance Schedule, Disassembly Procedures, Reassembly Procedures, Recoil Starter |
| Cylinder Head | 37-40 | Combustion Surfaces, Intake Valve Seats, Exhaust Valve Seats, Valve Spring, Valve Rocker Arm, Push Rod |
| Piston and Piston Pin | 41-44 | Piston, Piston Pin, Piston Pin Hole, Piston Rings, Piston Ring Side Clearance, Piston Ring End Gap |
| Connecting Rod | 45-48 | Side Gap, Small End Hole, Large End Hole, Crank Pin Metals, Piston Top Mark |
| Crankshaft, Flywheel and Main Bearing | 49-50 | Crankshaft, Main Bearing Metal, Flywheel, Timing Mark |
| Camshaft and Tappet | 51 | |
| Timing Gear | 52 | |
| Crankcase Cover | 53-54 | Tightening Torque, Oil Filter, S-Specification, D-Specification |
| Cylinder Sleeve and Cylinder Block | 55 | Crank-Shaft Bearing Part |
| Lubrication System | 56-57 | Lubricating Oil Pump, Outer Rotor, Housing I.D., Rotor Width, Housing Depth, Rotor Clearance |
| Fuel System | 58-61 | Fuel Injection Pump, Fuel Injection Valve, Fuel Filter |
| Speed Control Device | 62-63 | Governor Spring Hole, Speed Variable Type, Remote Control Type, Friction Plate Type, Constant Revolution Type |

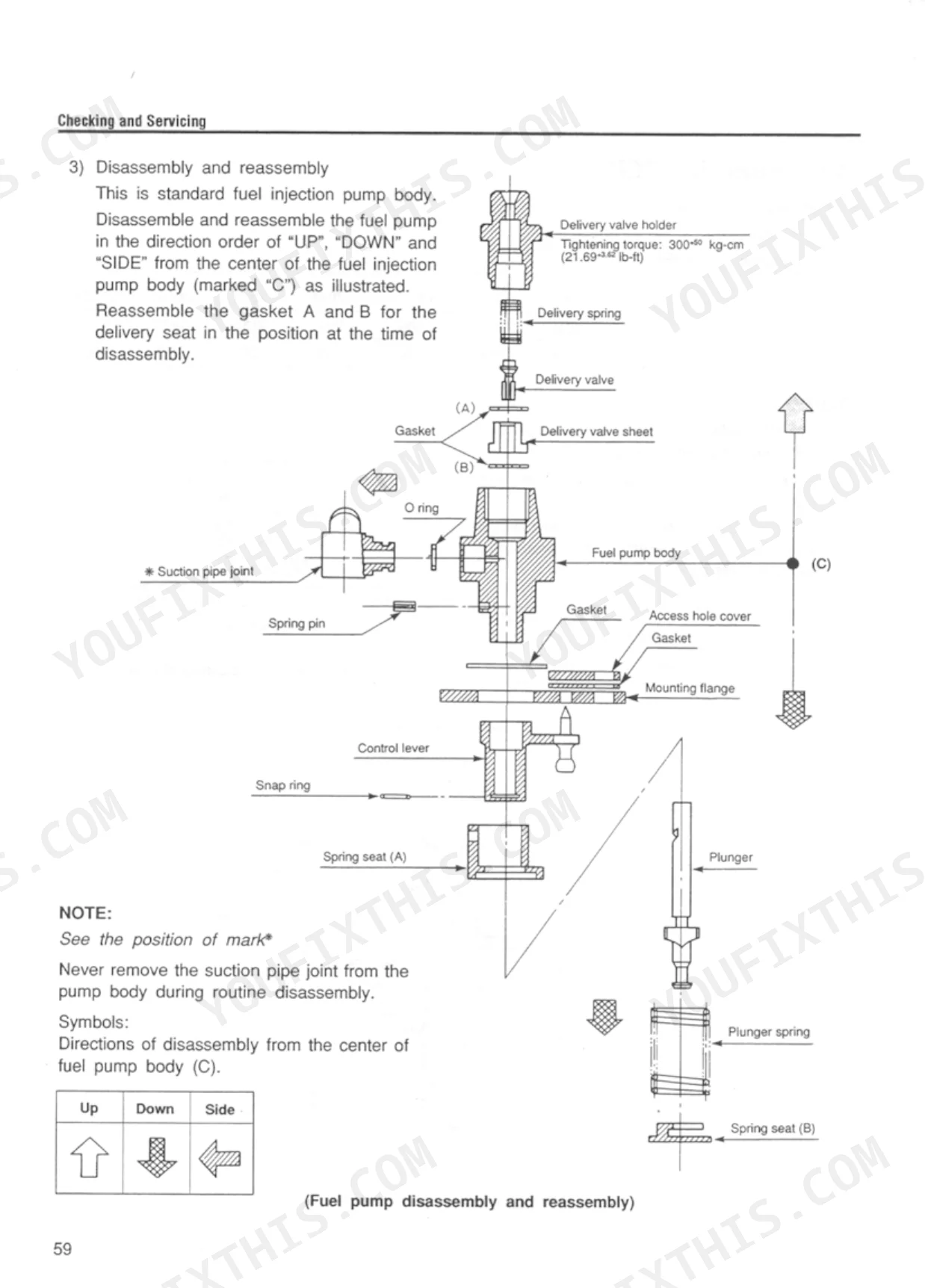

| Electrical System | 64-92 | Wiring Diagram, Starter Motor, Generator (Dynamo), Regulator and Rectifier, Air Heater |
| Adjustment | 93-94 | Fuel Injection Timing, Bleeding Air From Fuel System, Fuel Injection Volume Limitation, Intake/Exhaust Valve Head Clearance |
| Troubleshooting | 95-110 | Fuel and Compression Issues, Starting System Issues, Engine Operation Issues |
| Test Run | 111-113 | Before Starting, Starting, Operation, Stopping |
| Helical Inserting Part for Repair | 114-116 | Helical Inserting Part, Size of Helical Inserting Part, Procedure for Using Helical Insert Part, Helical Insert Part Application |
| Appendix 1 Difference Between Parts Under Spec. S and D | 117-119 | Crank Case Cover, Camshaft Assy, Crankshaft Cover, Flywheel, Piston, Cooling Fan Case |
| Appendix 2 Detail of Special Tools | 120-126 | Oil Seal Fitting Tool, Oil Seal Fitting Guide, Valve Stem Seal Fitting Tool, Flywheel Tightening Handle, Flywheel Extractor |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Intake/Exhaust Valve Seat Angle | 60°~90° | p. 13 |
| Intake/Exhaust Valve Seat Width | 1.5-3.0 mm (0.059-0.118 in.) | p. 13 |
| 1st Ring Side Clearance | 0.065-0.095 mm (0.0026-0.0037 in.) | p. 16 |
Yanmar L40-L100AE LA Series Common Problems This Manual Covers
Cranks but will not start cold
Hard starting is the most reported complaint on these singles, and the causes range from a clogged fuel filter to lost compression. The Troubleshooting section works through fuel, compression, and starting system faults in order so you can isolate the real one instead of replacing parts blind.
Manual Section: Troubleshooting p. 95Dies or misfires after fuel work
Air trapped in the lines after a filter change or fuel runout will let the engine fire briefly and then stall. The Adjustment section covers bleeding air from the fuel system along with fuel injection timing and injection volume limitation.
Manual Section: Adjustment p. 93Blow-by and worn piston rings
Stuck or worn rings show up as blow-by, oil use, and weak compression. The Piston and Piston Pin section gives inspection procedures for the piston, pin, ring side clearance, and ring end gap so you can measure whether the old parts go back in.
Manual Section: Piston and Piston Pin p. 41Burnt valves and poor valve seating
A leaking exhaust valve bleeds off compression and makes starting worse the hotter the engine gets. The Cylinder Head section covers combustion surfaces, intake and exhaust valve seats, valve springs, rocker arms, and push rods.
Manual Section: Cylinder Head p. 37Starter clicks or cranks slowly

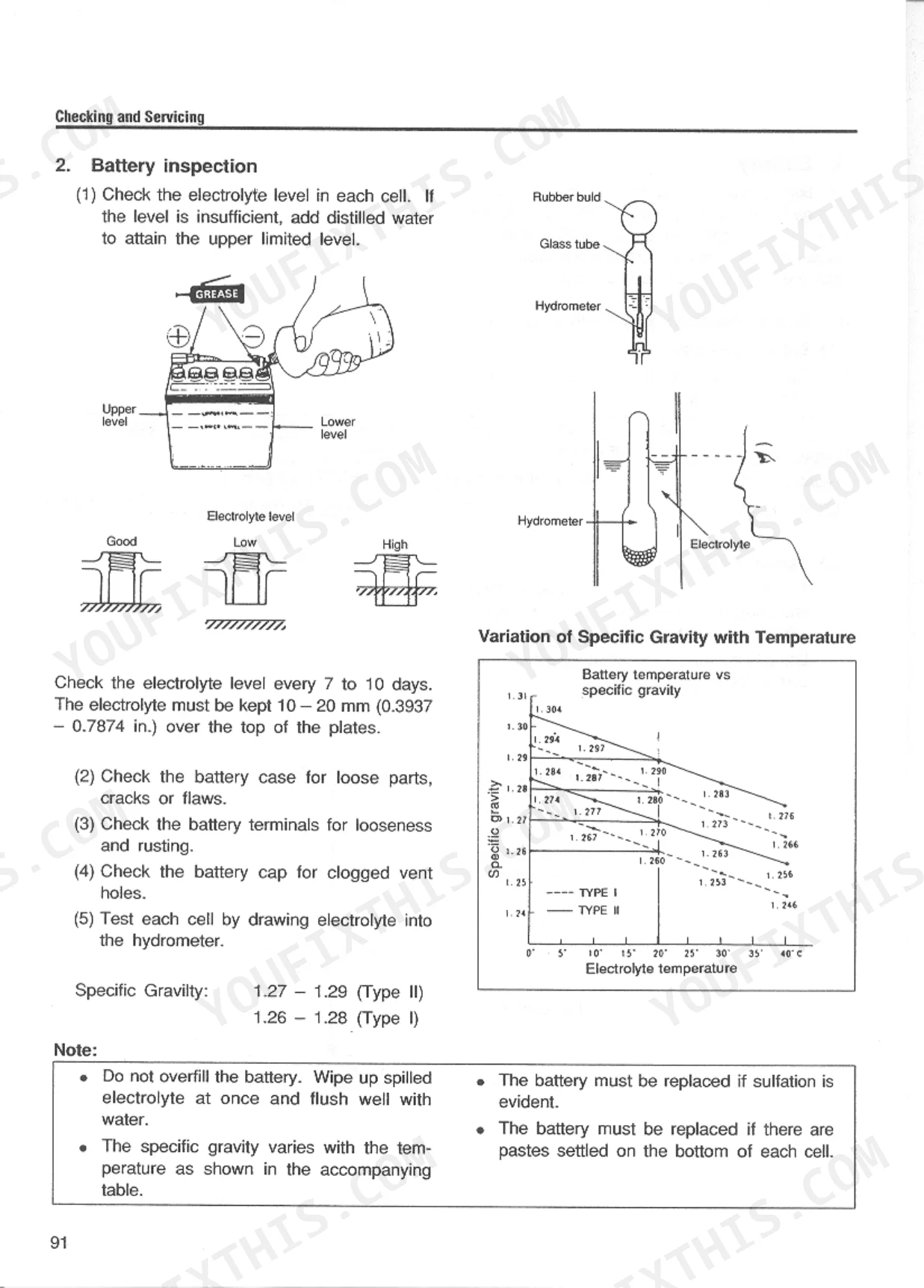

Electric-start engines that click, spin slowly, or stay dead need the circuit traced before the starter comes off. The Electrical System section includes wiring diagrams plus service coverage of the starter motor, generator (dynamo), regulator and rectifier, air heater, and battery.
Manual Section: Electrical System p. 64Recoil starter rope failure
Pull-start versions eventually snap a rope or lose spring tension, and rewinding one wrong wastes an afternoon. The Disassembly and Reassembly section covers the recoil starter along with disassembly and reassembly procedures for the rest of the engine.
Manual Section: Disassembly and Reassembly p. 19Low oil pressure from pump wear
A worn trochoid pump quietly starves the bearings long before the engine complains audibly. The Lubrication System section gives the checks for the oil pump, including rotor width, housing depth, and rotor clearance.
Manual Section: Lubrication System p. 56Frequently Asked Questions
Which Yanmar engines does this manual cover?
The L40-L100 LA series industrial diesels: L40AE, L48AE, L60AE, L70AE, L75AE, L90AE, and L100AE. Appendix 1 also details the parts differences between S and D specification engines, so both variants are covered.
Does it include tightening torque specs?
Yes. The Disassembly and Reassembly section includes a tightening torque table alongside the required tools, maintenance schedule, and step-by-step teardown and rebuild procedures, and later sections repeat torque figures where they apply, such as the crankcase cover. p. 19
Are wiring diagrams included?
Yes. The Electrical System section contains wiring diagrams and service coverage for the starter motor, generator (dynamo), regulator and rectifier, air heater, and battery. p. 64
How do I set valve clearance and injection timing?
The Adjustment section covers intake and exhaust valve head clearance, fuel injection timing, fuel injection volume limitation, and bleeding air from the fuel system. The Service Standard section supplies the measurement limits to check parts against. p. 93
What format is this manual in?
A 126-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Am I able to print pages from this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Are there wiring harness diagrams in this Yanmar L40-L100 LA Series & variants?
Yes. The Electrical System section carries the wiring diagram for the LA series, and the diagrams run from page 64. That section also covers the starter motor, the generator (dynamo), the regulator and rectifier, and the air heater.
