Part of the Yanmar Repair Manuals.
Halfway through a track motor reseal on a ViO12-2A, the job stalls the moment you need one number that is not in your head: a relief setting, a bolt torque, an oil seal wear limit. This Yanmar service manual (publication MMB58ENMA0100) puts 409 pages around exactly those moments, covering the ViO12-2A mini excavator and its 3TNV70-WBVB diesel from cylinder head to rubber crawler.
Inside are full specifications, service standards with wear limits and tightening torques, engine measurement and adjustment procedures, hydraulic circuit schematics with pressure adjustment steps, electrical equipment layouts, and a troubleshooting chapter that works from symptom back to cause. Dedicated repair chapters walk through the undercarriage, controls, swing bearing, hydraulic equipment, and implement.
Because it is a PDF, it lives on the laptop or phone that rides in the truck. Wherever the machine is parked, the book is already there.
What's Inside This Yanmar ViO12-2A Manual
| System | Pages | Key Topics |
|---|---|---|
| General Cautions for Maintenance Work | 8-21 | Correct Work, Safety Precautions, Preparations, Cautions for Disassembly and Reassembly, Cautions for Removal and Installation of Hydraulic Equipment |

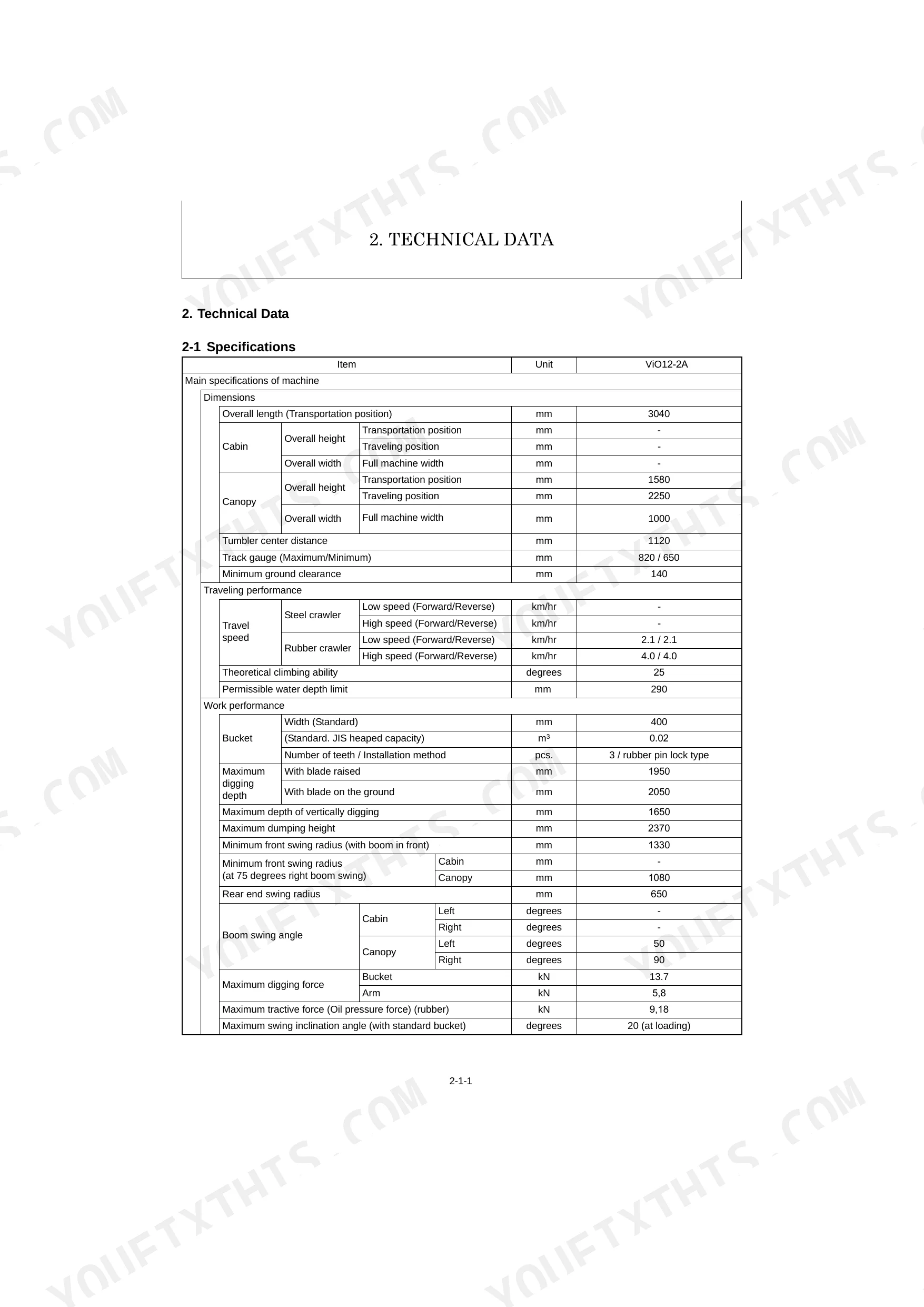

| Technical Data | 22-35 | 2-1 Specifications, 2-2 Outline Drawing and Working Area, 2-3 Weight List of Main Parts, 2-4 Lifting Capacity List |
| Service Standards | 36-55 | Machine Performance, Engine, Undercarriage (Rubber Crawler Specifications), Controls, Hydraulic Equipment (Hydraulic Cylinders) |

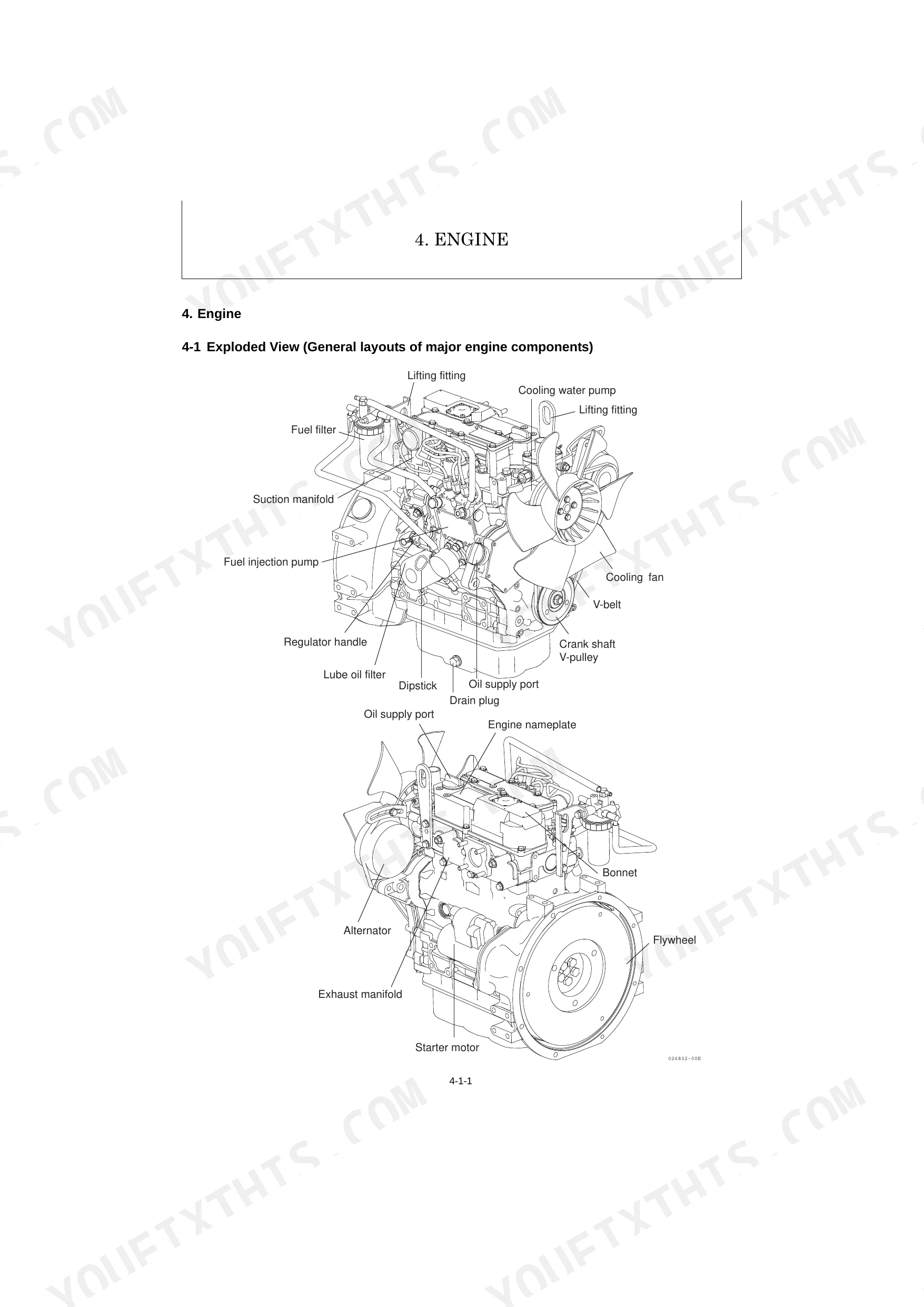

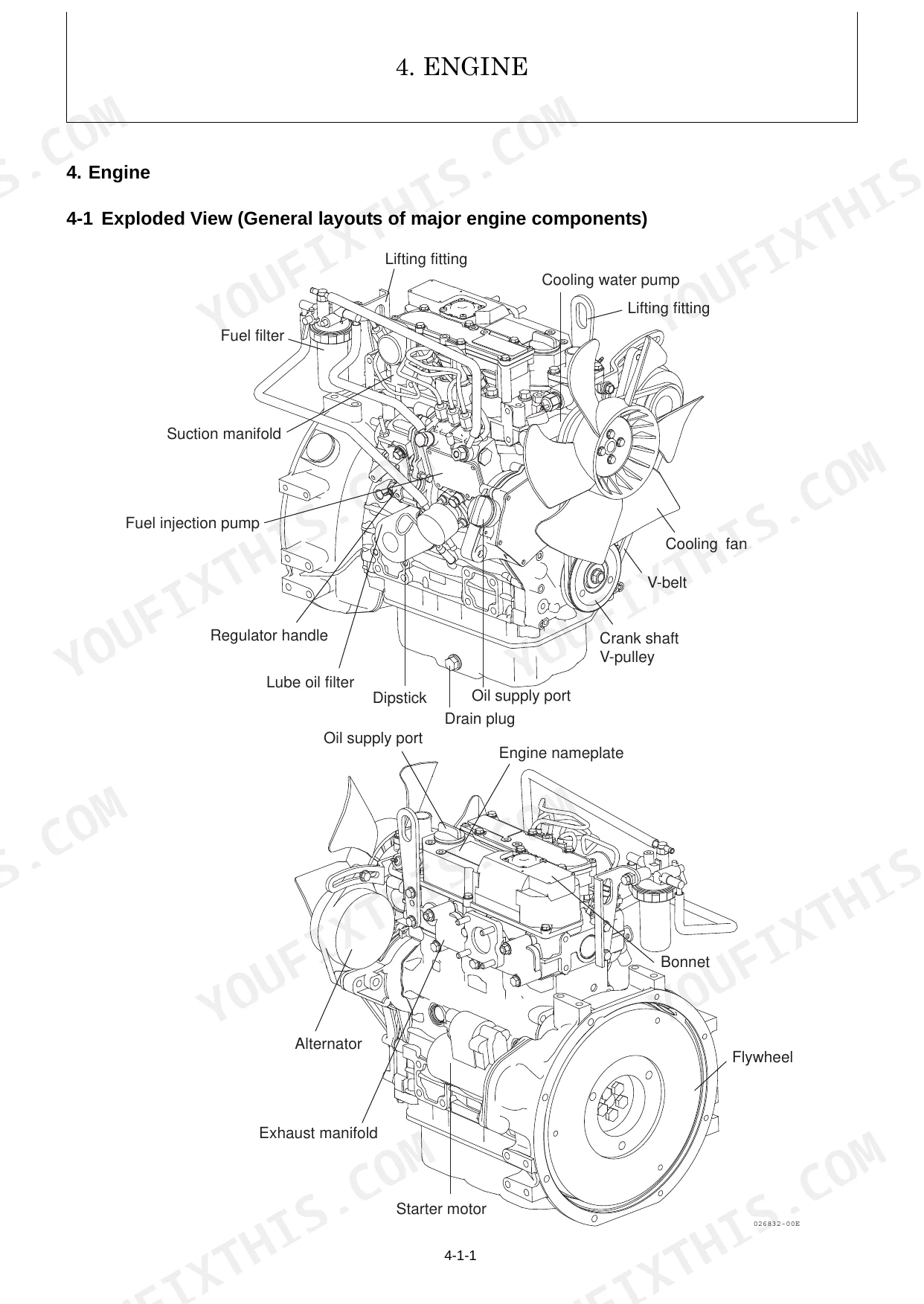

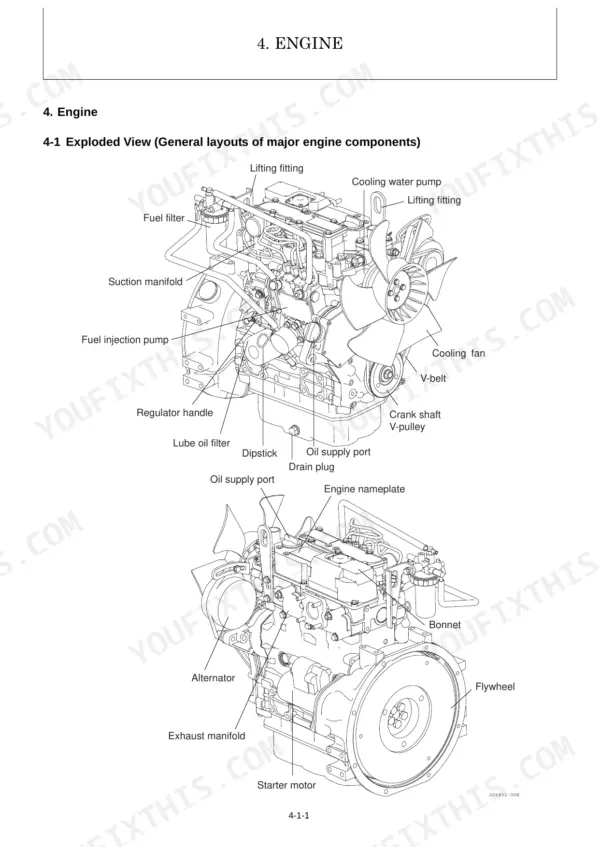

| Engine | 56-97 | Measurement |
| Electric System | 98-112 | Parts Layout of Electrical Equipment (Electrical Equipment and Electric Wiring) |

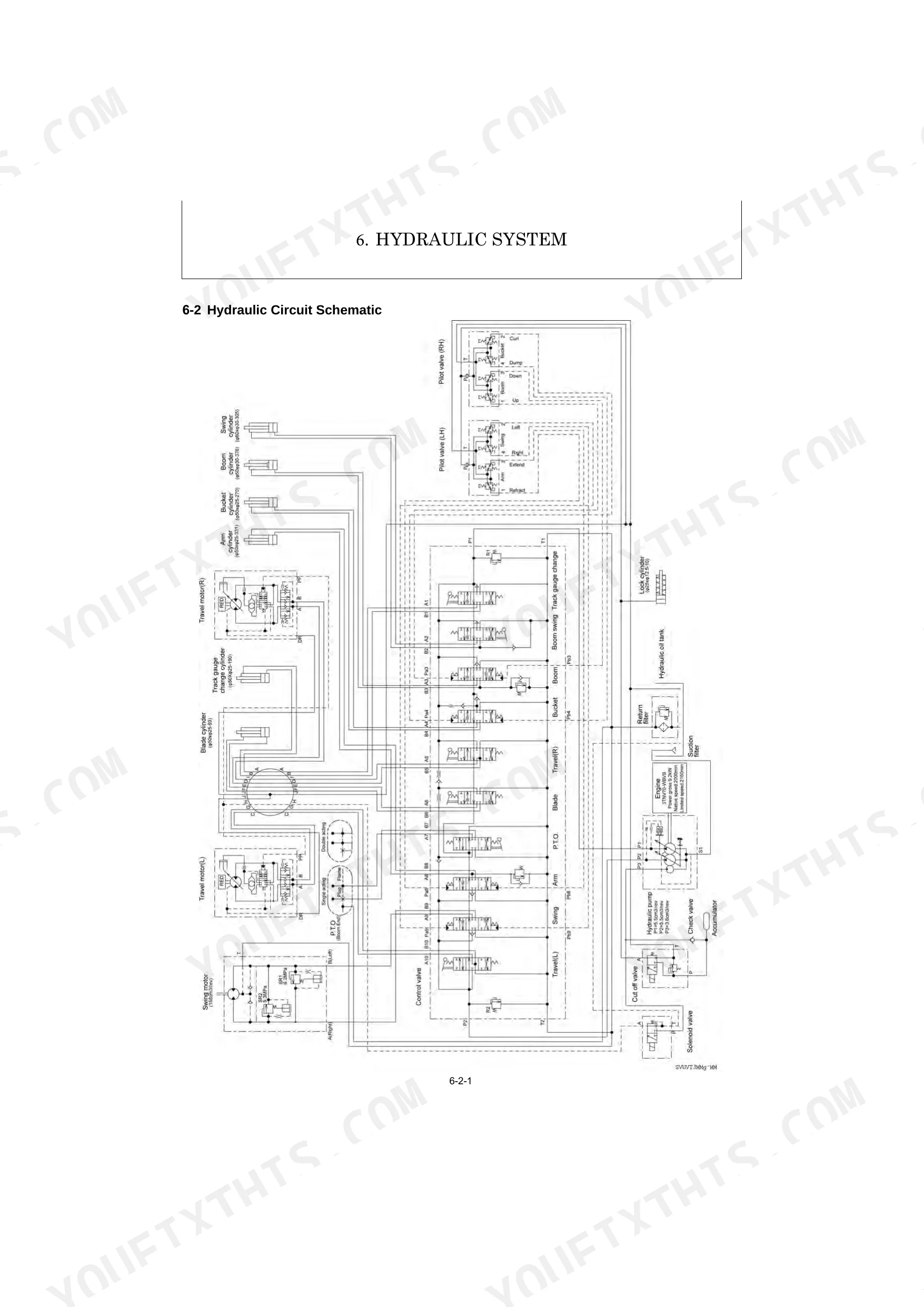

| Hydraulic System | 113-275 | 6-1 Outline, 6-2 Hydraulic Circuit Schematic, 6-3 Circuit Operation, 6-4 Pressure Adjustment, 6-5 Hydraulic Pump, 6-6 Control Valve, 6-7 Pilot Valve, 6-8 Cut-Off Valve |

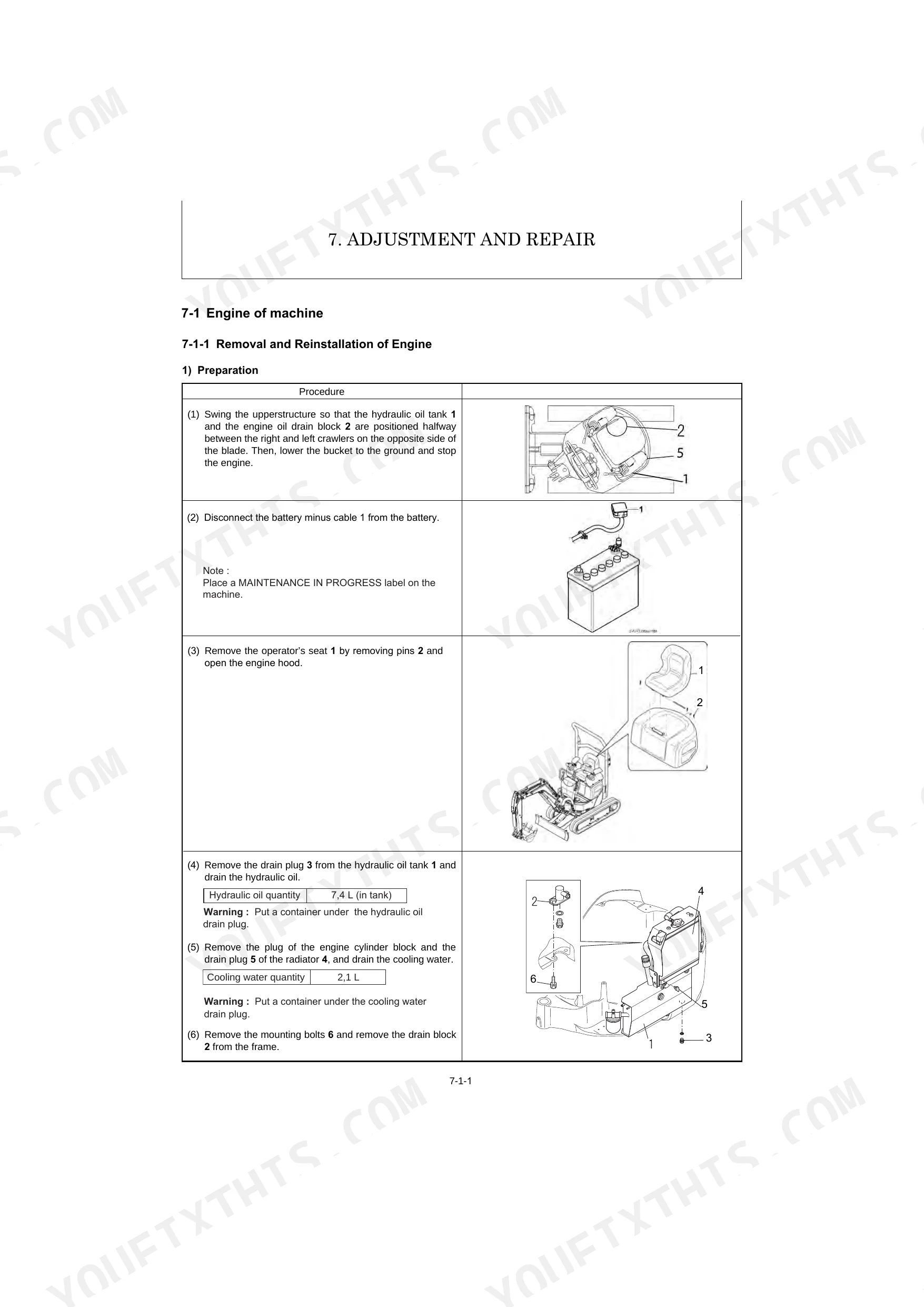

| Adjustment and Repair | 276-359 | 7-1 Engine of Machine, 7-2 Undercarriage, 7-3 Controls, 7-4 Swing Bearing, 7-5 Hydraulic Equipment, 7-6 Implement |

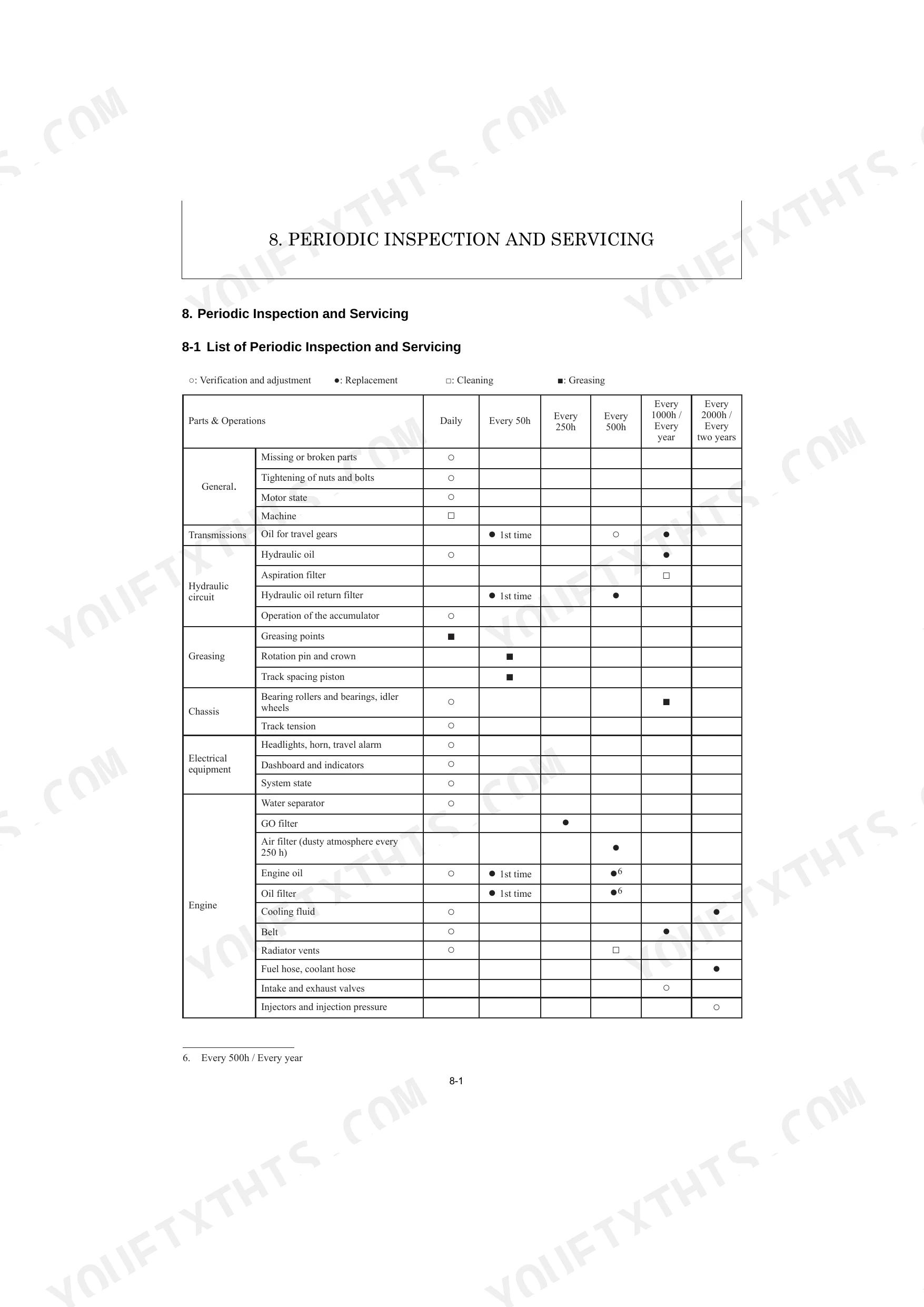

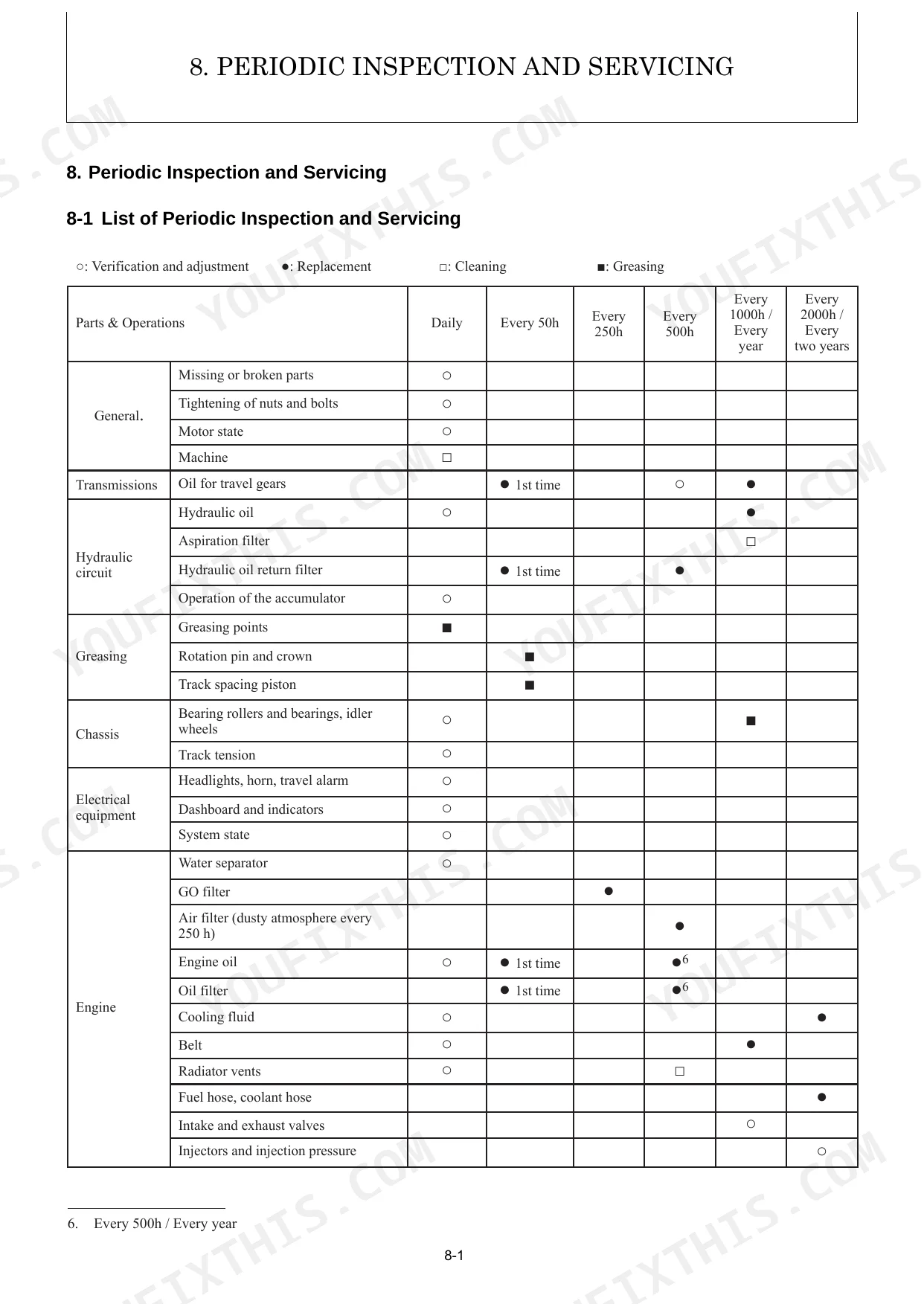

| Periodic Inspection and Servicing | 360-363 | 8-1 List of Periodic Inspection and Servicing |
| Fuel, Lube Oil and Grease Recommended | 364-367 | Thermal Engine, Travel Gears, Hydraulic Circuit, Fuel Tank, Cooling System |

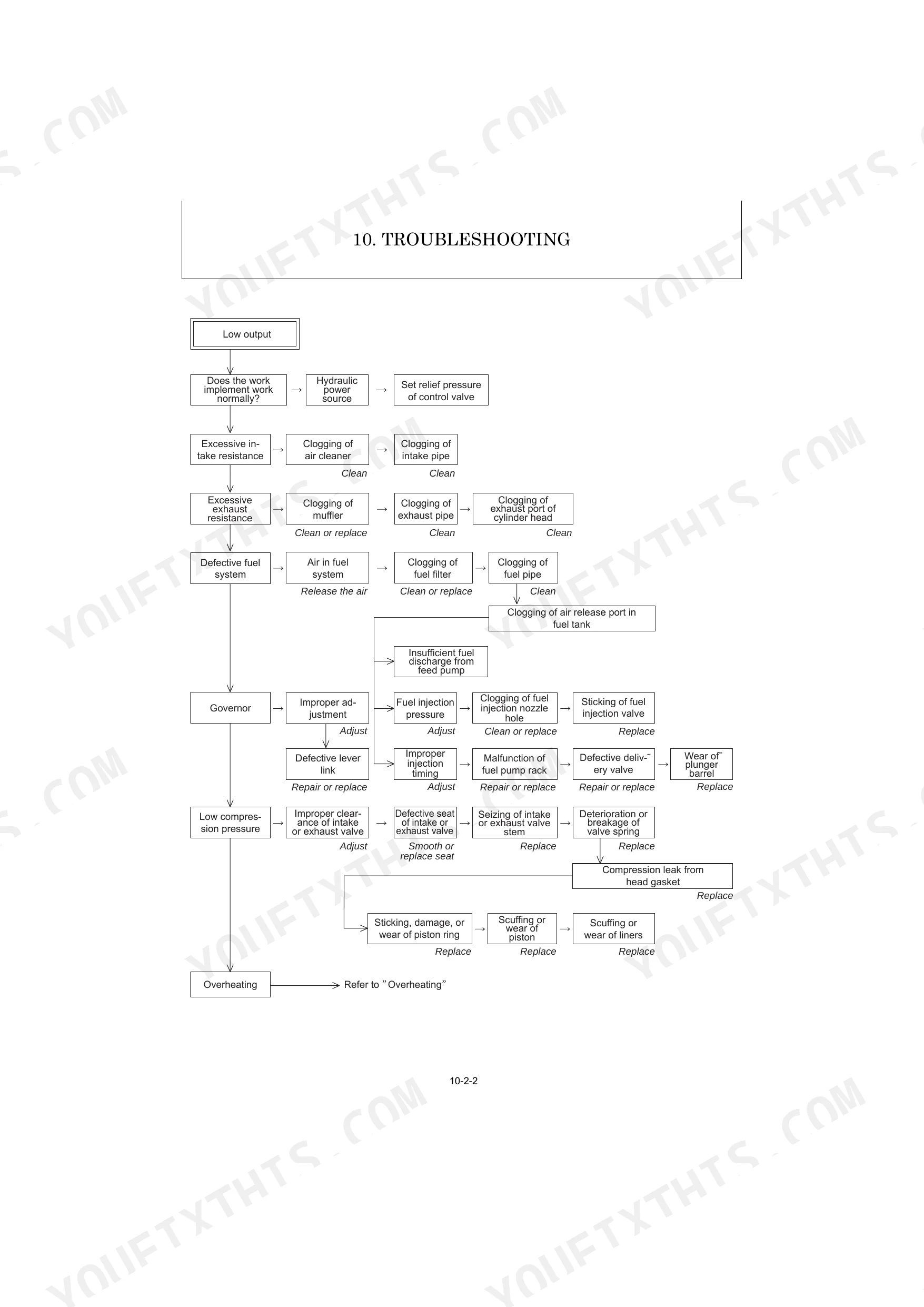

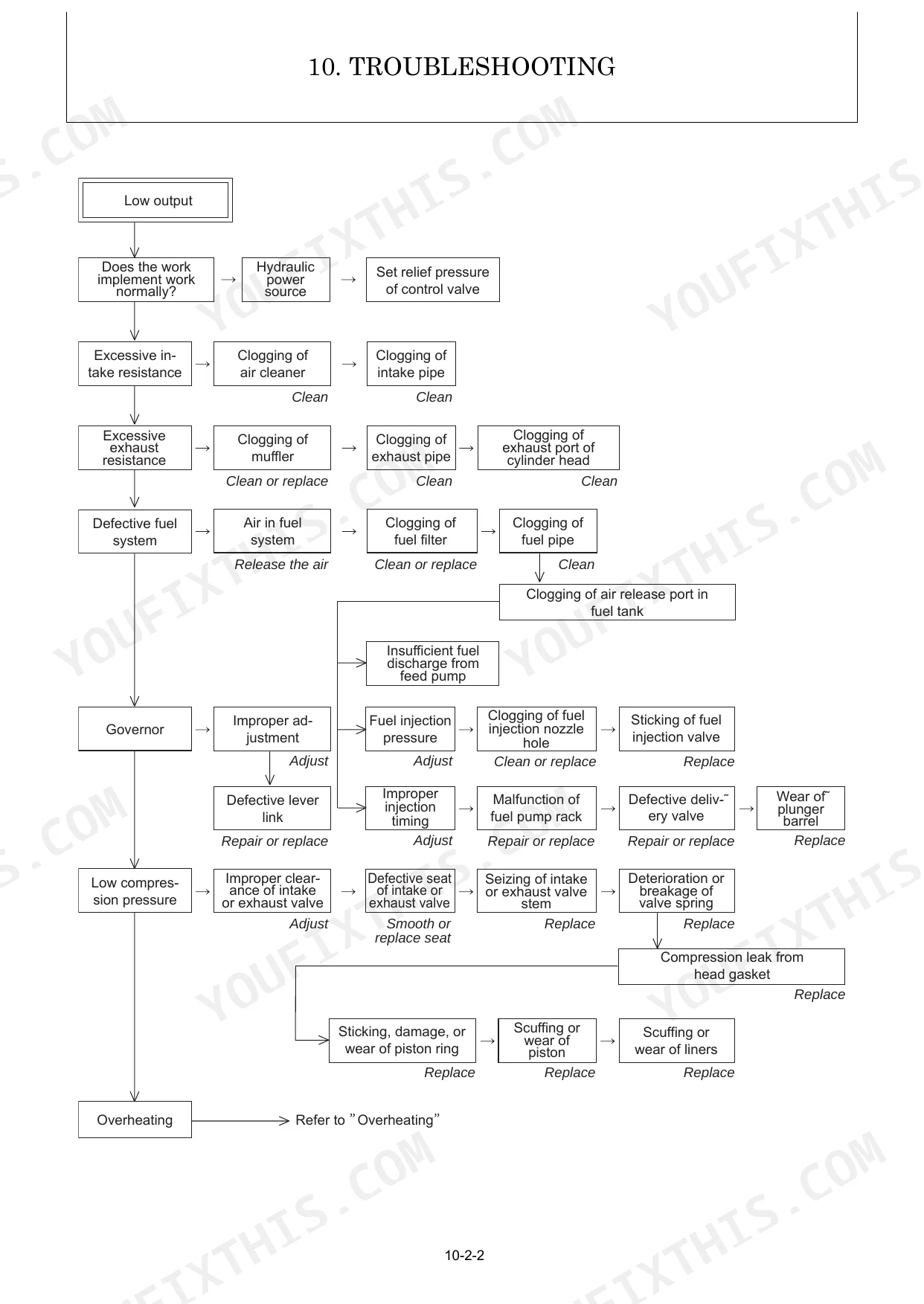

| Troubleshooting | 368-405 | 10-1 Non-Breakdowns, 10-2 Troubleshooting |
| Reference Data | 406-409 | 11-1 Specifications for Attachment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

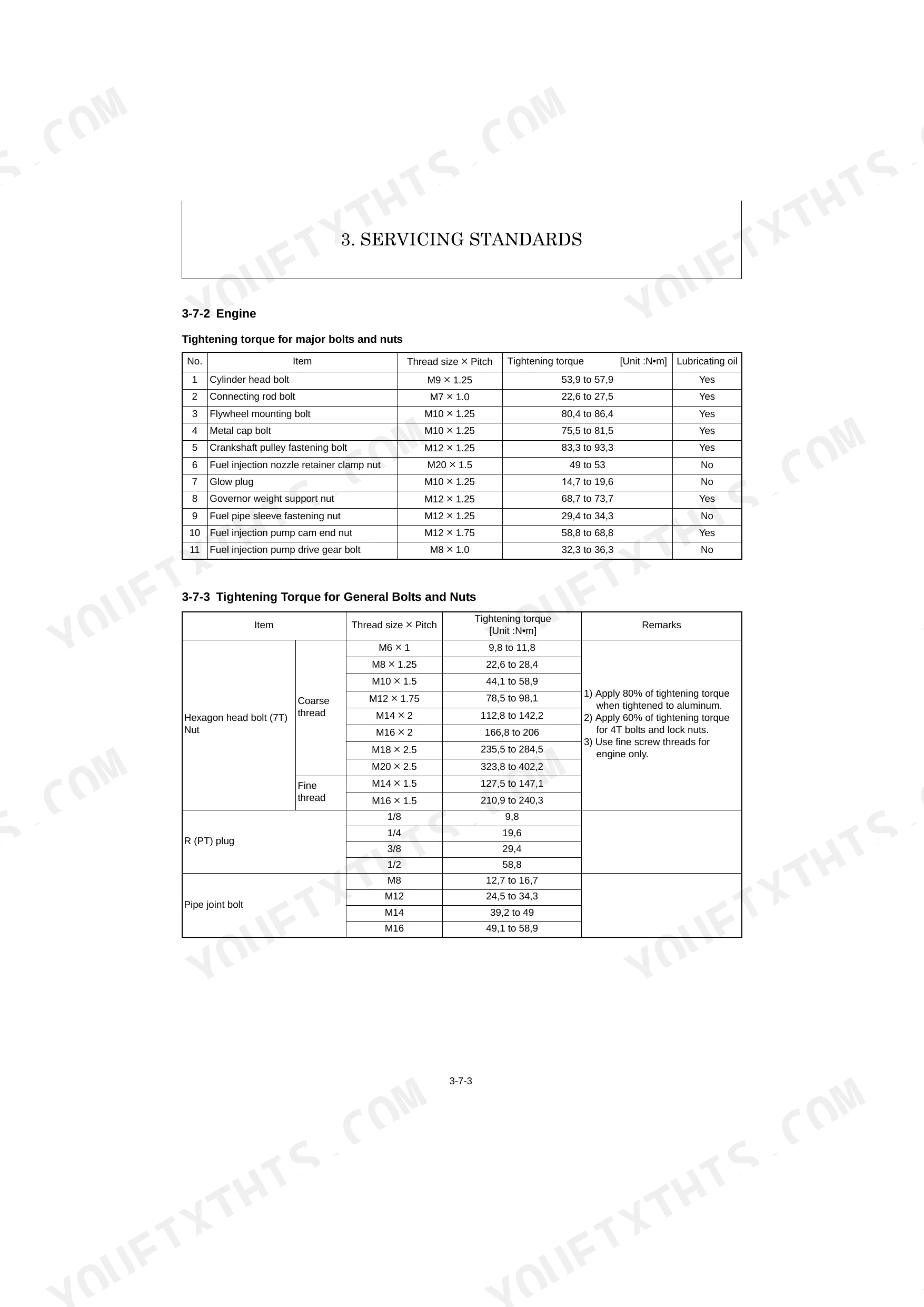

| Tightening torque for general bolts and nuts (M6 x 1) | 9,8 to 11,8 N\u2022m | p. 54 |
| Working pressure for SAE J517,100R1 (02 hose dia) | 17.2 MPa | p. 16 |
| Oil seal installation part wear limit | \u2264 0.025 mm | p. 189 |
| Fuel filter filtration area | 430 cm\u00b2 | p. 29 |
| Oil/water separator type | Mesh filter screen | p. 29 |
| Air cleaner filtration area | 0.9 m\u00b2 | p. 30 |
| LO filter filtration area | 800 cm\u00b2 | p. 29 |
| Hose clip 38 tightening torque | 2 to 2,9 N\u2022m | p. 292 |
| Overall length (Transportation position) | 3040 mm | p. 24 |
| Rubber crawler Low speed (Forward/Reverse) | 2.1 / 2.1 km/hr | p. 24 |
Yanmar ViO12-2A Common Problems This Manual Covers
Weak hydraulics after hose replacement
Air trapped in the circuit after hose or component work leaves the boom and travel functions slow or jerky. The manual's air release procedure is specific: run the engine at medium speed and activate the affected circuits for about 10 to 15 minutes, and it also covers correct hydraulic hose installation so the problem does not come back.
Manual Section: 1. General Cautions for Maintenance Work p. 8Hydraulic oil leaks at fittings
Twisted O-rings, incorrect tightening, and hoses rubbing against the frame are the usual sources of leaks after service on this machine. The repair chapter covers hydraulic equipment step by step, and the manual is explicit that O-rings get replaced with new ones on reassembly.
Manual Section: 7. Adjustment and Repair p. 276Sluggish digging force, low pressure
When the bucket will not break ground it once handled, the main relief setting is the first suspect. This section gives the hydraulic circuit schematic, circuit operation, and pressure adjustment procedures for the pump, control valve, pilot valve, and cut-off valve, with the system relief set pressure specified at 20.6 MPa.
Manual Section: 6. Hydraulic System p. 113Water in the fuel system
Water collecting in the separator causes rough running and hard starts, and a neglected separator will stop the machine mid-shift. The troubleshooting chapter works from these symptoms back to the cause, separating true faults from non-breakdowns before you start replacing parts.
Manual Section: 10. Troubleshooting p. 368Rubber track wear and tension loss
Loose or worn rubber crawlers accelerate undercarriage wear and can throw a track in a turn. The service standards give rubber crawler specifications so you can measure what you have against what Yanmar allows.
Manual Section: 3. Service Standards p. 36Hard starting and low engine power
A tired 3TNV70-WBVB usually announces itself through compression and valve clearance. This section covers measuring compression pressure, adjusting valve clearance, checking the fuel injection valve, and setting injection timing, with the cold intake valve clearance specified at 0.2 mm.
Manual Section: 4. Engine p. 56Electrical faults during pre-start checks
A dead switch, gauge, or display during the walkaround can idle a crew while you guess at wiring. The electric system section maps the parts layout of the electrical equipment and wiring so you can trace the circuit instead of probing blind.
Manual Section: 5. Electric System p. 98Frequently Asked Questions
Which machine and engine does this manual cover?
It covers the Yanmar ViO12-2A mini excavator fitted with the 3TNV70-WBVB diesel engine. It is Yanmar publication MMB58ENMA0100, a 409 page service manual in English.
Does it include torque specs and wear limits?
Yes. The Service Standards section includes a List of Tightening Torque for the machine and engine plus a general bolt and nut torque table, alongside wear limits for the engine, undercarriage, controls, and hydraulic cylinders. p. 36
Can I test and adjust hydraulic pressures with this manual?
Yes. The Hydraulic System section provides the hydraulic circuit schematic, circuit operation, and pressure adjustment procedures covering the hydraulic pump, control valve, pilot valve, and cut-off valve. The specified system relief set pressure is 20.6 MPa. p. 113
How will I receive this Service Manual?
A 409-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this Service Manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Can I find wiring schematics in this Yanmar ViO12-2A manual?
The Electric System section carries the parts layout of the electrical equipment together with the electric wiring, starting on page 112, which is what you trace a dead switch or gauge with. There is no separate wiring-harness chapter in this book - the schematics it does carry in full are hydraulic, in the Hydraulic System section.
