Pop pressure on a TNV injector is nothing you guess at, and with the engine on a stand and the nozzles out, this Yanmar service manual (publication 0ETNV-U00102) puts the test values and retainer torques in front of you across 378 pages. It covers the industrial TNV family: 3TNV82A, 3TNV84, 3TNV84T, 3TNV88, 4TNV84, 4TNV84T, 4TNV88, 4TNV94L, 4TNV98, 4TNV98T, 4TNV106 and 4TNV106T, including the -B, -U, -Z and -E variants.
Chasing bearing clearances and head torque sequences through forum posts is a good way to scrap a crank; here they sit in one book. Dedicated chapters cover the base engine, fuel system, cooling, lubrication, turbocharger, starter motor, alternator, electronic control system and wiring, plus a failure diagnosis chapter built around compression testing. The PDF carries 445 bookmarks, so getting from a symptom to the page that fixes it takes seconds, not a flip through the whole book.
What's Inside This Yanmar TNV Series Manual

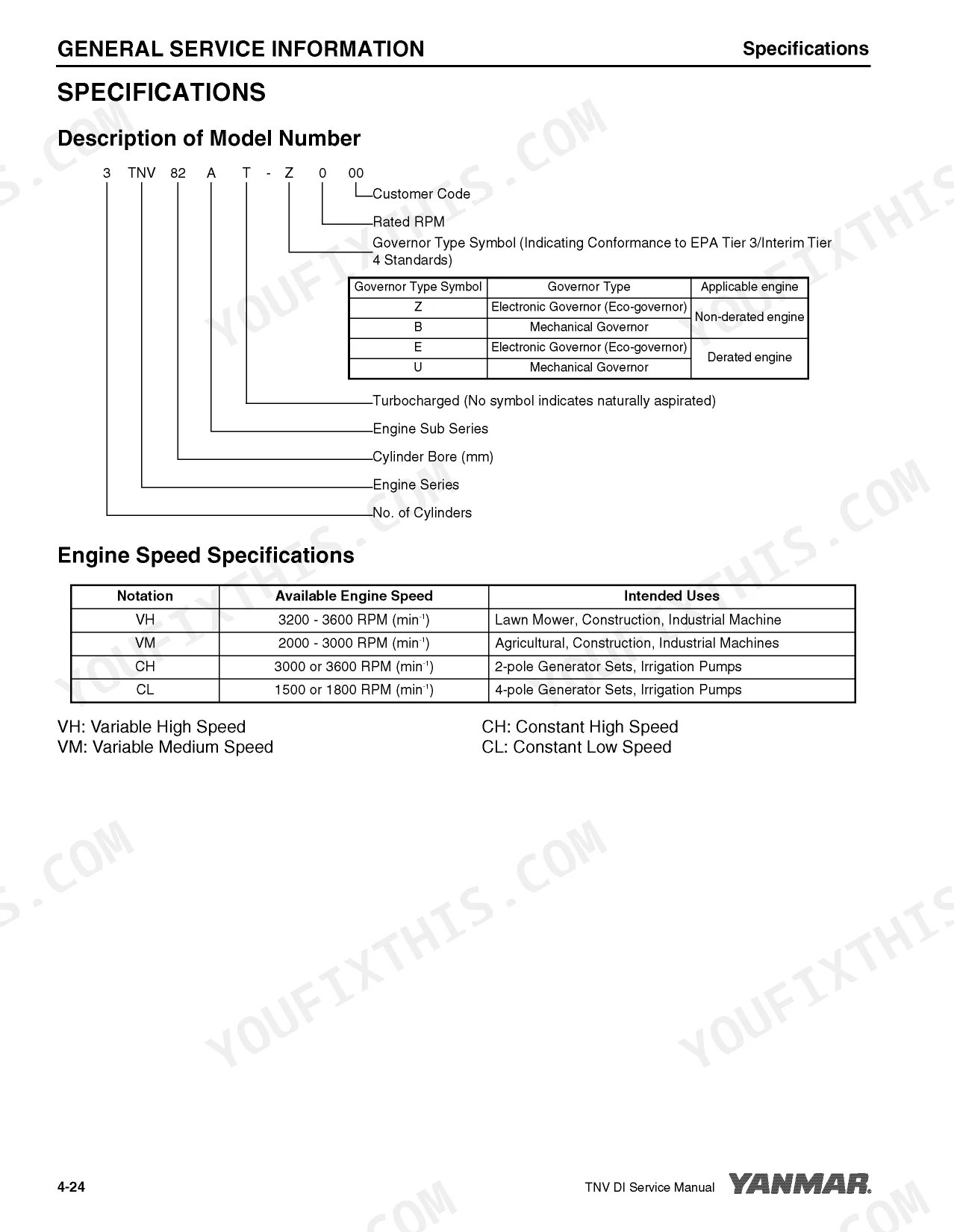

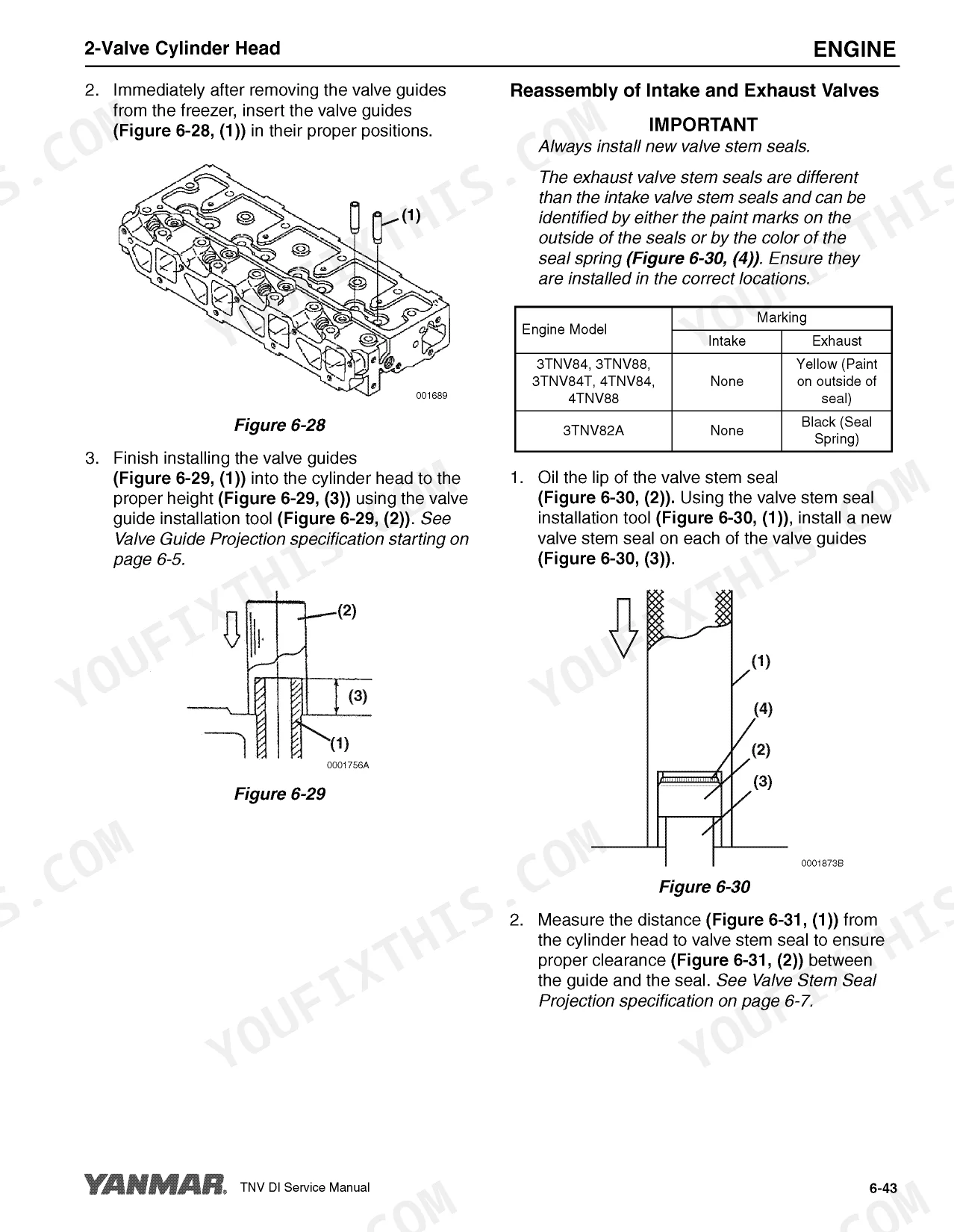

| System | Pages | Key Topics |
|---|---|---|
| Yanmar Warranties | 7-14 | Yanmar Limited Warranty, Emission System Warranty, Yanmar Co., Ltd. Limited Emission Control System Warranty - Usa Only |
| Safety | 15-32 | - |
| General Service Information | 33-88 | Component Identification, Location of Labels, Emission Control Regulations, Emission Control Labels, The 97/68/EC Directive Certified Engines, Engine Family |
| Periodic Maintenance | 89-116 | Before You Begin Servicing, Introduction, Periodic Maintenance Schedule, Periodic Maintenance Procedures |
| Engine | 117-222 | Before You Begin Servicing, Introduction, Cylinder Head Specifications, Camshaft and Timing Gear Train Specifications, Crankshaft and Piston Specifications |
| Fuel System | 223-262 | Before You Begin Servicing, Introduction, Fuel System Specifications, Special Service Tools, Measuring Instruments, Fuel System Diagram, Fuel System Components, Fuel Injection Pump |
| Cooling System | 263-274 | Before You Begin Servicing, Introduction, Cooling System Diagram, Engine Coolant Pump Components, Engine Coolant System Check, Engine Coolant Pump |
| Lubrication System | 275-292 | Before You Begin Servicing, Introduction, Oil Pump Service Information, Lubrication System Diagram, Checking Engine Oil Pressure, Trochoid Oil Pump |
| Turbocharger | 293-306 | Before You Begin Servicing, Introduction, Specifications, Troubleshooting, Turbocharger Components, Turbocharger Component Functions, Washing Procedure, Periodic Inspection |
| Starter Motor | 307-326 | Before You Begin Servicing, Introduction, Starter Motor Information, Starter Motor Specifications, Starter Motor Troubleshooting, Starter Motor Components |
| Alternator | 327-346 | Before You Begin Servicing, Introduction, Dynamo and Alternator Information, Alternator Specifications, Dynamo Specifications, Alternator Troubleshooting, Alternator Components |
| Electronic Control System | 347-352 | Engines Available with the Electronic Control System, Before You Begin Servicing, Introduction, Electronic Control Harness Connections |
| Electric Wiring | 353-360 | Electric Wiring Precautions, Electrical Wire Resistance, Battery Cable Resistance, Electrical Wire Sizes - Voltage Drop, Conversion of Awg to European Standards |
| Failure Diagnosis | 361-377 | Special Service Tools, Troubleshooting by Measuring Compression Pressure, Quick Reference Table for Troubleshooting, Electrical Wiring |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel Filter / Water Separator Check Interval | Daily | p. 93 |
| Fuel Filter / Water Separator Cleaning Interval | Every 250 hours | p. 93 |
| Fuel Injector Retainer Bolt Torque | 29 ft·lb (39.2 N·m; 4 kgf·m) | p. 229 |
| Fuel Injector Nozzle Case Nut Torque | 30 - 33 ft·lb (39.2 - 44.1 N·m; 4 - 4.5 kgf·m) | p. 229 |
| Total Battery Cable Resistance (Less than 2.68 HP (2 kW)) | less than 0.002 Ω | p. 357 |
| Total Battery Cable Resistance (Greater than 2.68 HP (2 kW)) | less than 0.0012 Ω | p. 357 |
| Thermostat Operating Temperature (All Models) | 157°F - 163°F (70°C - 73°C) | p. 83 |
| Thermostat Operating Temperature (All Models Option) | 176°F - 183°F (80°C - 84°C) | p. 83 |
| Turbocharger Maximum Continuous Allowable Speed | 250,000 rpm | p. 296 |
Yanmar TNV Series Common Problems This Manual Covers
Hard starting and long cranking
Air drawn into the fuel lines, a restricted filter or a weak cold-start circuit will keep a TNV cranking without firing. The Failure Diagnosis chapter's quick reference troubleshooting table and compression pressure test procedure narrow it down before you start swapping parts.
Manual Section: Failure Diagnosis p. 361White smoke and rough idle
Worn or fouled nozzles atomize unevenly, and the engine tells you with smoke and misfire. The Fuel System chapter covers injection pump and injector service, including pop pressure values by nozzle ID mark and the retainer and case nut torques for reassembly.
Manual Section: Fuel System p. 223Overheating or coolant loss under load
A lazy thermostat or a tired coolant pump shows up as creeping temperature when the engine works hard. The Cooling System chapter includes the system diagram, coolant system checks and engine coolant pump teardown, with thermostat opening temperatures listed in the general specifications.
Manual Section: Cooling System p. 263Low or fluctuating oil pressure
A worn trochoid oil pump or blocked pickup will flicker the oil light long before a bearing lets go. The Lubrication System chapter walks through checking engine oil pressure and servicing the trochoid pump.
Manual Section: Lubrication System p. 275Turbo oil leaks and lost boost
On the turbocharged 3TNV84T, 4TNV84T, 4TNV98T and 4TNV106T, oil in the intake or a lazy spool means the turbo needs inspection. The Turbocharger chapter provides specifications, troubleshooting, component functions, the washing procedure and periodic inspection steps.
Manual Section: Turbocharger p. 293Slow cranking and starter faults
Voltage drop across undersized or corroded battery cables mimics a dying starter. The Starter Motor chapter gives specifications and a troubleshooting sequence, and the manual's wiring coverage sets hard limits on total battery cable resistance so you can measure instead of guess.
Manual Section: Starter Motor p. 307Blow-by and rising oil consumption
Worn rings, glazed bores or tired valve guides push oil past the combustion chamber and pressurize the crankcase. The Engine chapter carries the cylinder head, camshaft, crankshaft and piston specifications you need to measure wear and decide what stays and what gets replaced.
Manual Section: Engine p. 117Frequently Asked Questions
Which Yanmar engines does this service manual cover?
The Yanmar TNV industrial diesels: 3TNV82A, 3TNV84, 3TNV84T, 3TNV88, 4TNV84, 4TNV84T, 4TNV88, 4TNV94L, 4TNV98, 4TNV98T, 4TNV106 and 4TNV106T, with their -B, -U, -Z and -E variants. Yanmar publication 0ETNV-U00102, 378 pages in English.
Does it include injector and fuel system specifications?
Yes. The Fuel System section lists injector pop pressures by nozzle ID mark (for example, mark W at 2843 to 2988 psi), fuel injector retainer bolt torque of 29 ft-lb, nozzle case nut torque of 30 to 33 ft-lb, plus the system diagram and injection pump service. p. 223
Can it help me diagnose a no-start or low-power condition?
Yes. The Failure Diagnosis section includes a quick reference troubleshooting table and a procedure for troubleshooting by measuring compression pressure, with the Starter Motor and Alternator sections carrying their own troubleshooting charts for the electrical side. p. 361
Does it cover rebuild clearances and torque sequences?
The Engine section carries cylinder head, camshaft and timing gear train, and crankshaft and piston specifications, which is where the measuring and reassembly data lives when the engine is apart on the stand. p. 117
How quickly can I access this manual after buying?
This is a 378-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this Service Manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.

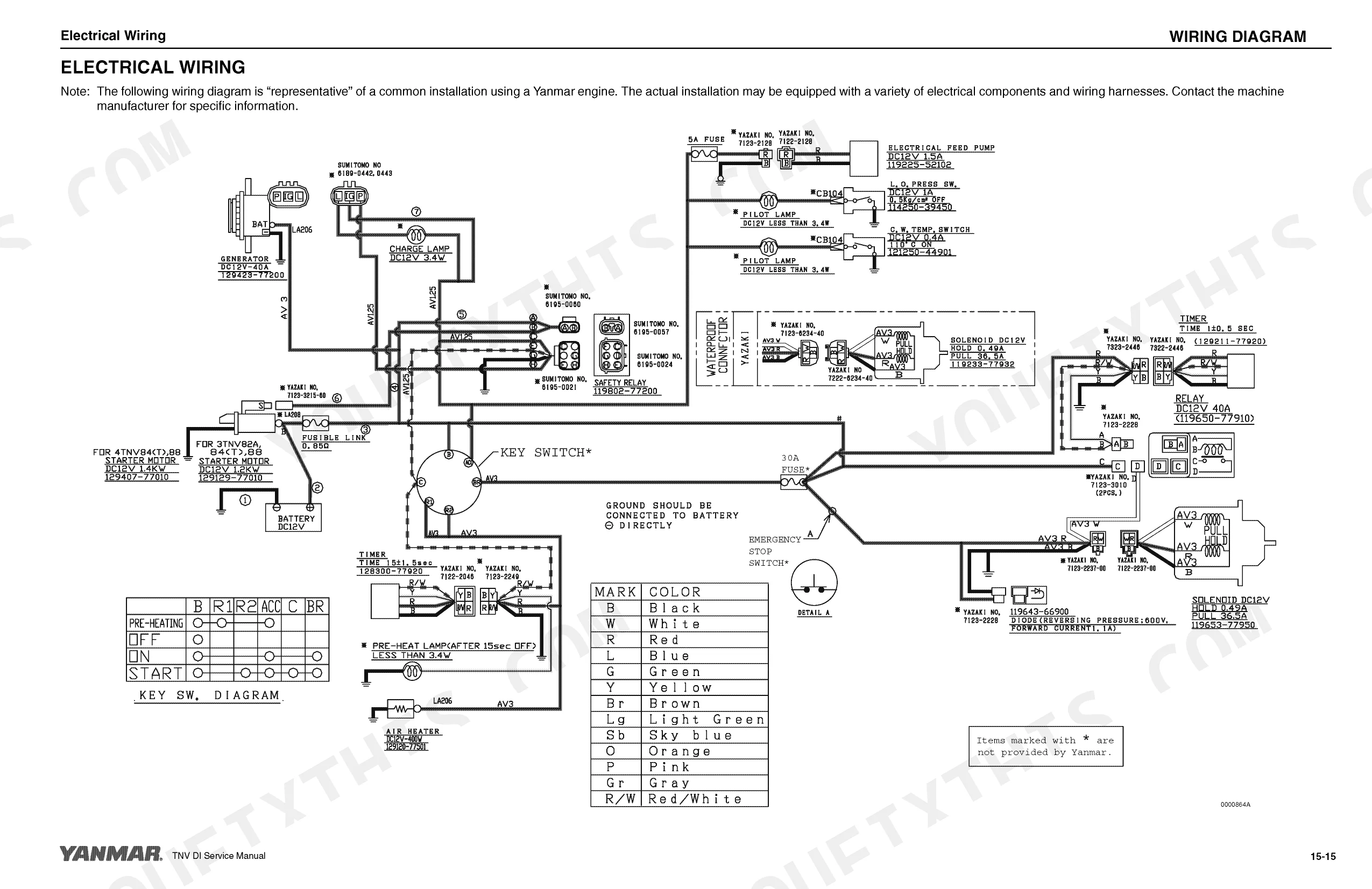

Can I find wiring schematics in this Yanmar 3TNV82A & variants manual?
Included. The Yanmar 3TNV82A & variants Service Manual covers complete wiring harness diagrams, electrical circuits, and connector pinouts.
