Need the factory specs to tear down your TNV Series industrial engine? All 370 pages of this Yanmar 3tnv88 service manual pdf (OEM #0BTNV0-G0000) deliver the complete teardown and rebuild procedures for the 3TNV82A, 3TNV84, 3TNV84T, 4TNV84, 4TNV84T, 4TNV88, 4TNV94L, 4TNV98, 4TNV98T, 4TNV106, and 4TNV106T variants. Inside, you get a massive troubleshooting section with diagnostic charts mapping out compression pressure measurements, complete alternator wiring diagrams, and detailed fuel system service steps. Open to the exploded views to see exactly how the trochoid oil pump and turbocharger assemblies go together before you even pick up a wrench. Torque the cylinder head bolts to 63-67 ft-lb and verify your valve clearance is set to 0.010-0.014 inches. Stop guessing at specs while a piece of heavy equipment sits dead in the dirt. Download this bookmarked file directly to your tablet, jump straight to the numbers, and get that engine running.
What's Inside This Yanmar TNV Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 5-6 | - |
| Warranties | 7-14 | Yanmar Limited Warranty, What Is Covered by This Warranty?, How Long Is the Warranty Period?, What the Engine Owner Must Do, Emission System Warranty |
| Safety | 15-36 | - |

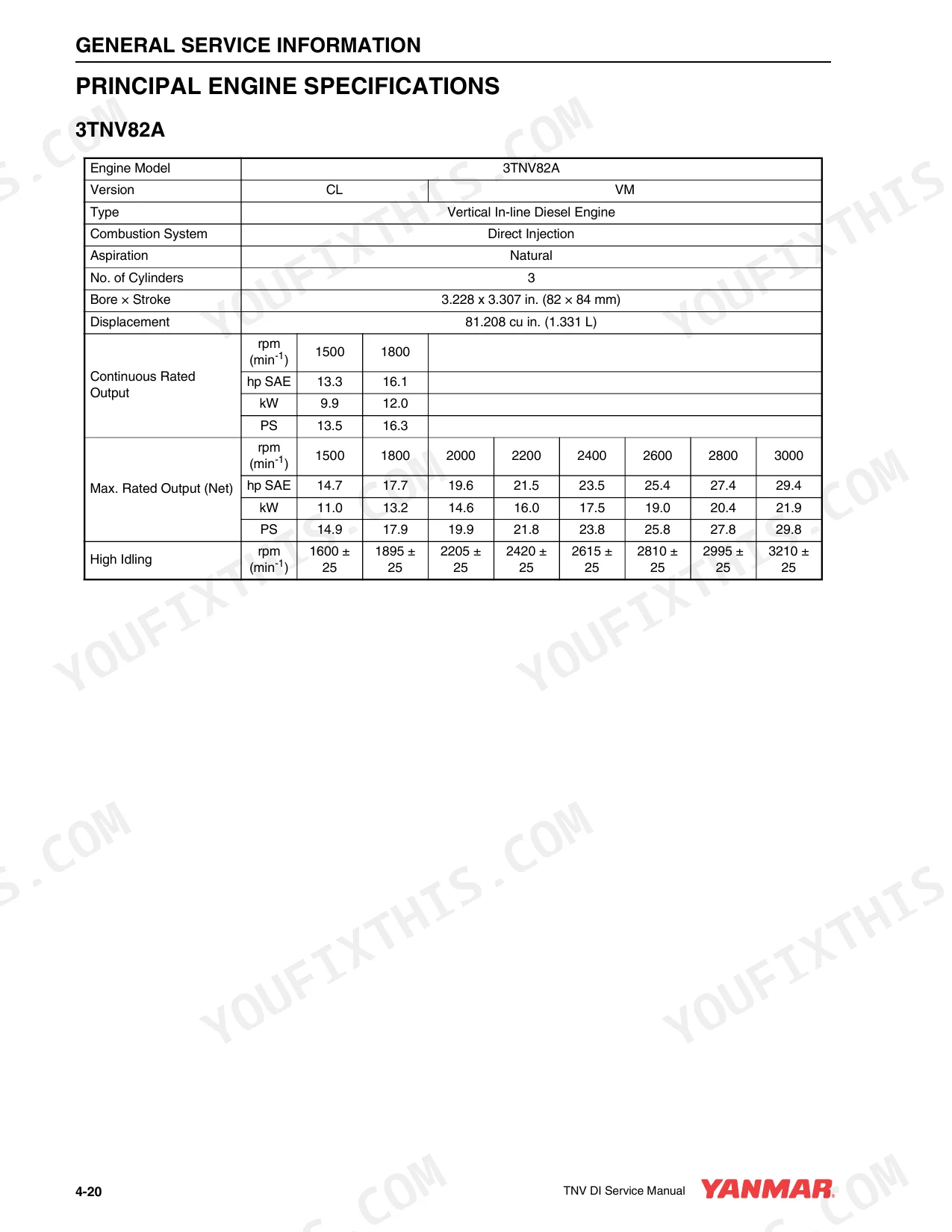

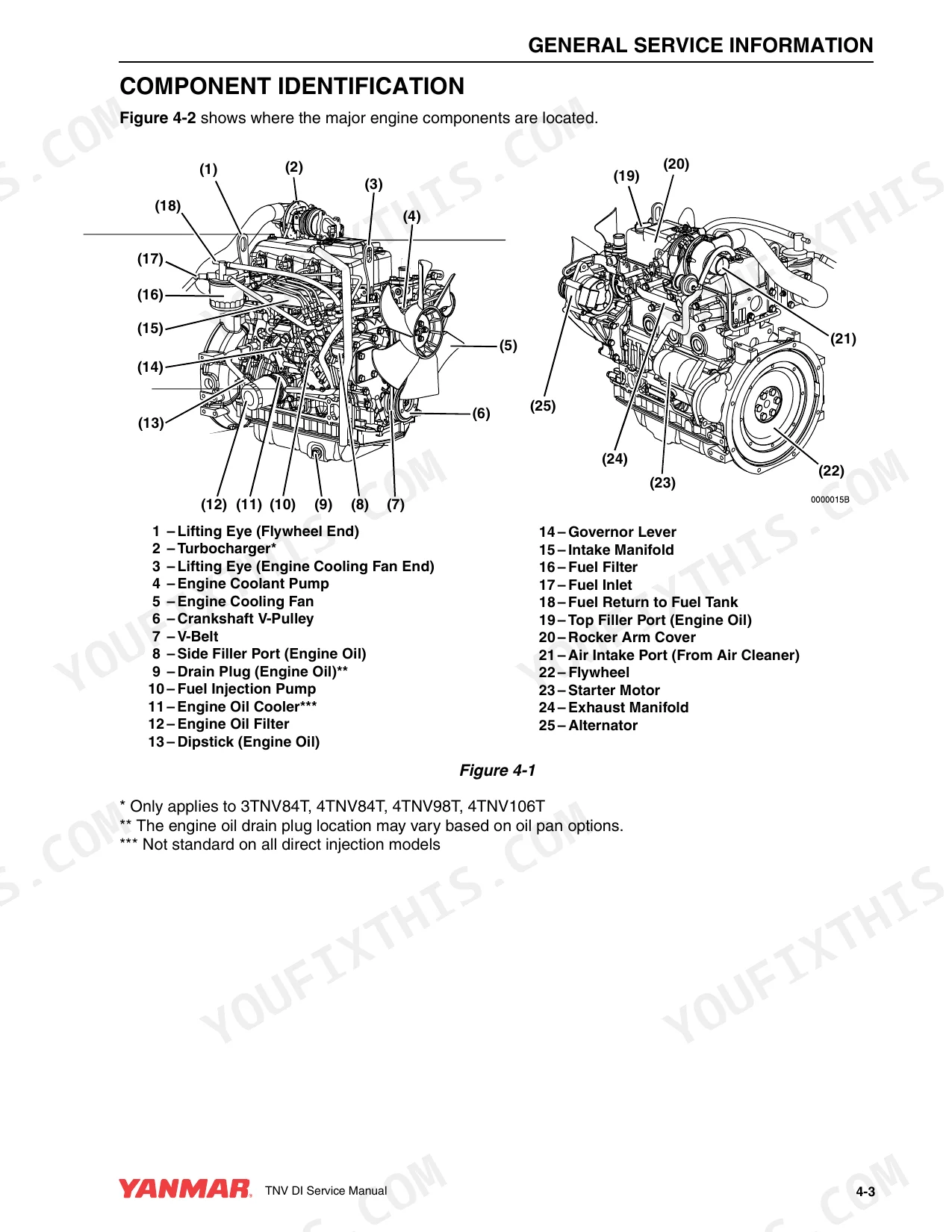

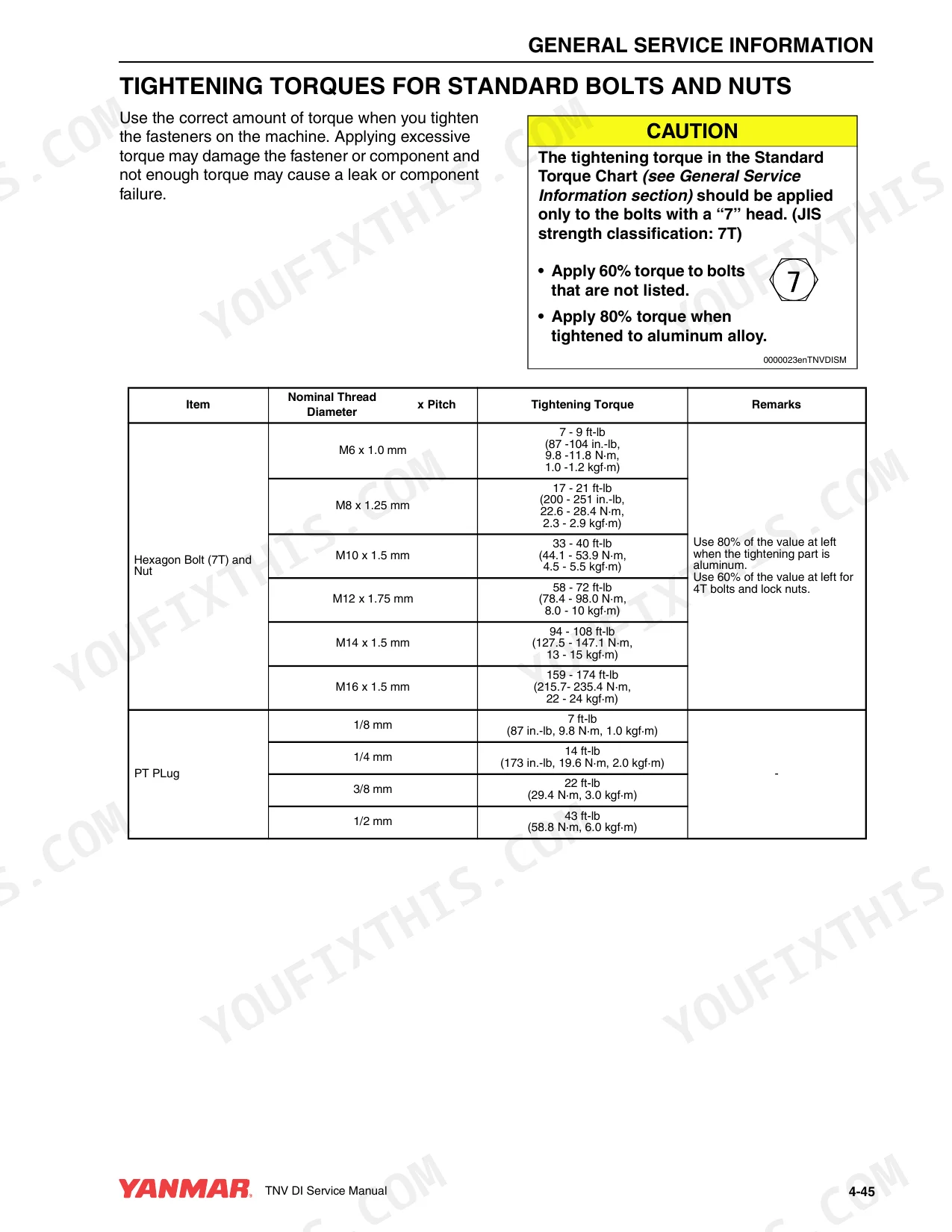

| General Service | 37-84 | Component Identification, Location of Labels, Emission Control Regulations, Engine Family, Function of Major Engine Components, Diesel Fuel, Engine Oil, Engine Coolant |

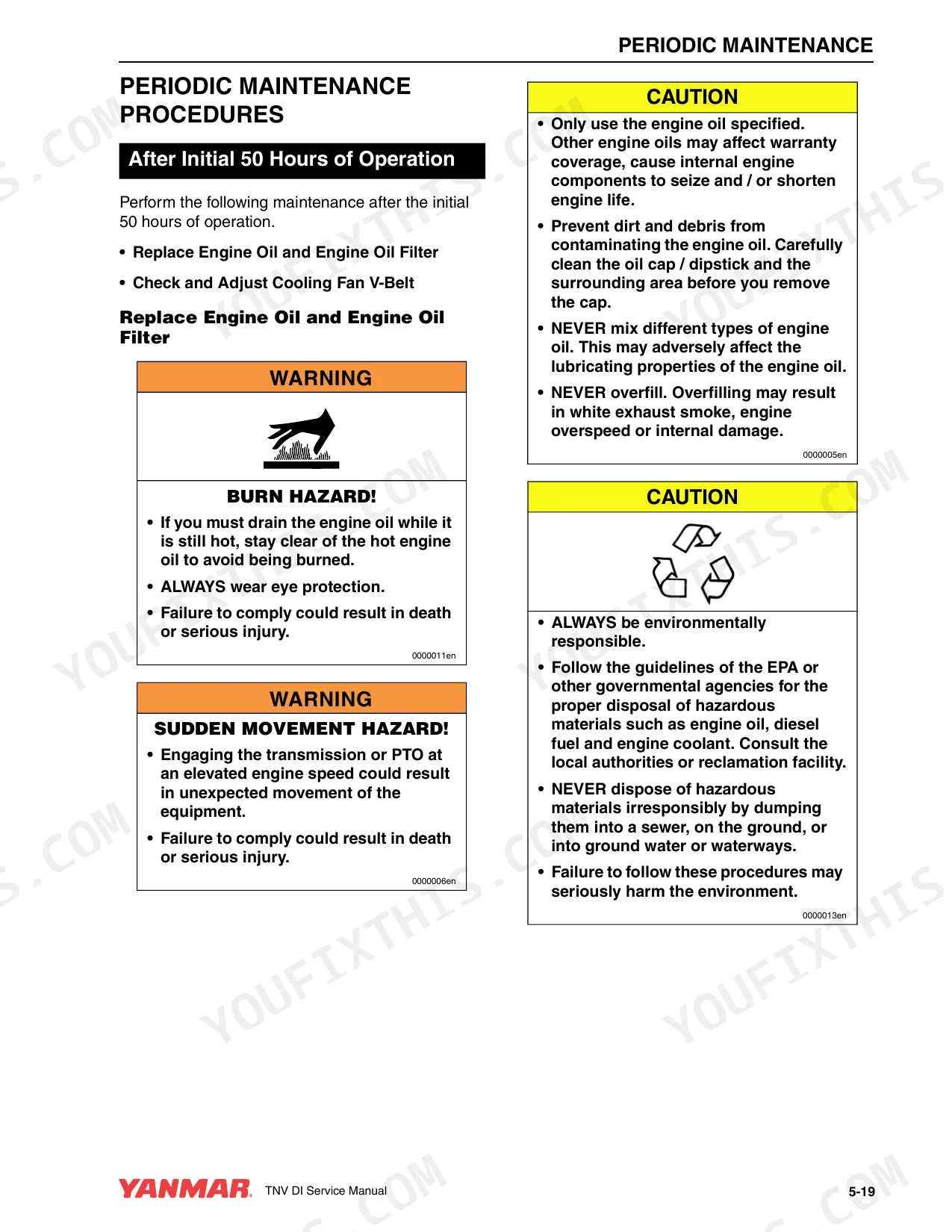

| Periodic Maintenance | 85-124 | Before You Begin Servicing, The Importance of Periodic Maintenance |
| Engine | 125-218 | - |

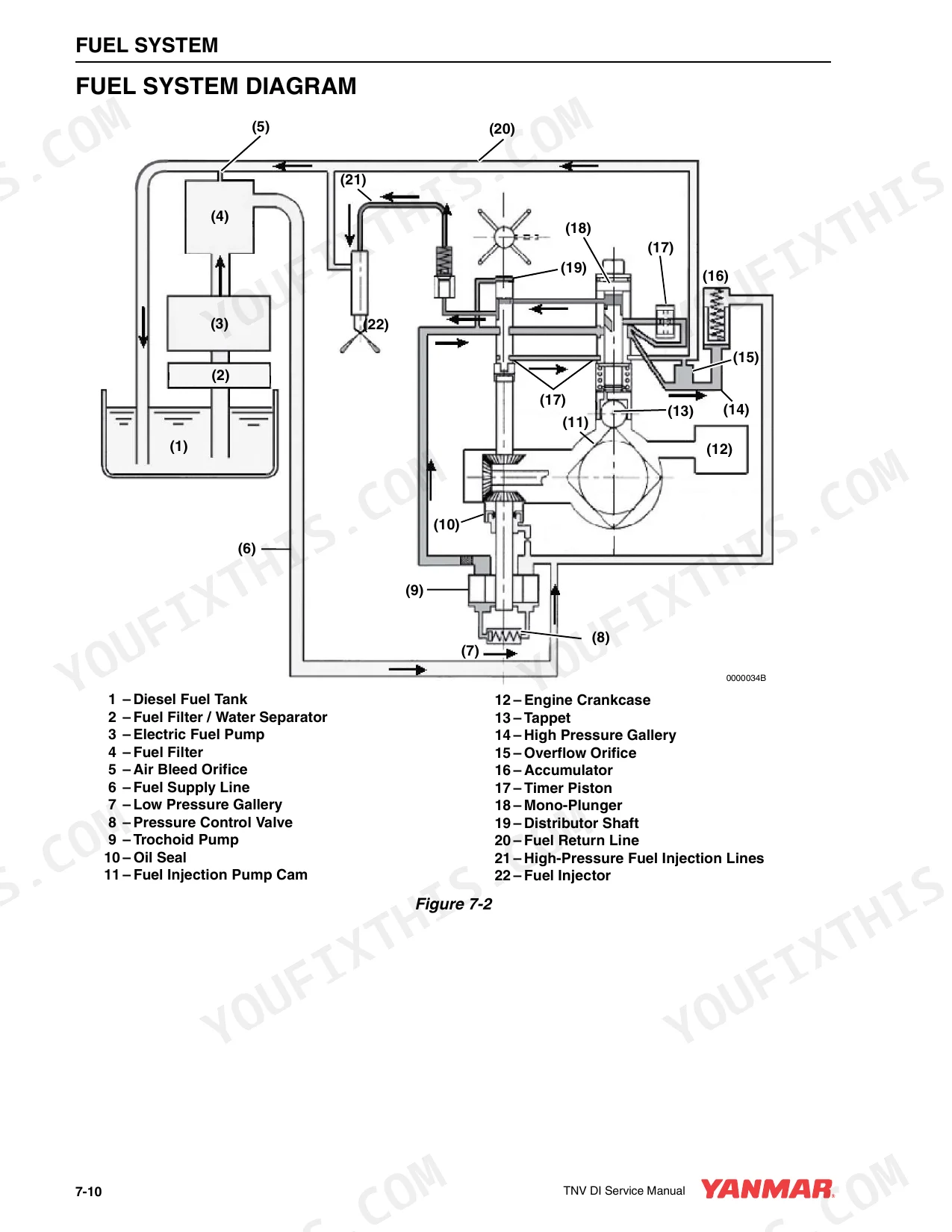

| Fuel System | 219-256 | - |
| Cooling System | 257-268 | - |
| Lubrication System | 269-284 | Oil Pump Service Information, Lubrication System Diagram, Checking Engine Oil Pressure, Trochoid Oil Pump, Disassembly of Oil Pump, Cleaning and Inspection |
| Turbocharger | 285-300 | Specifications, Turbocharger Service Information, Troubleshooting, Turbocharger Components, Turbocharger Component Functions, Washing Procedure |
| Starter | 301-320 | Starter Motor Information, Starter Motor Specifications, Starter Motor Troubleshooting, Starter Motor Components, Removal of Starter Motor, Installation of Starter Motor |
| Alternator | 321-342 | Dynamo and Alternator Information, Alternator Specifications, Alternator Troubleshooting, Alternator Components, Alternator Wiring Diagram, Alternator Standard Output |

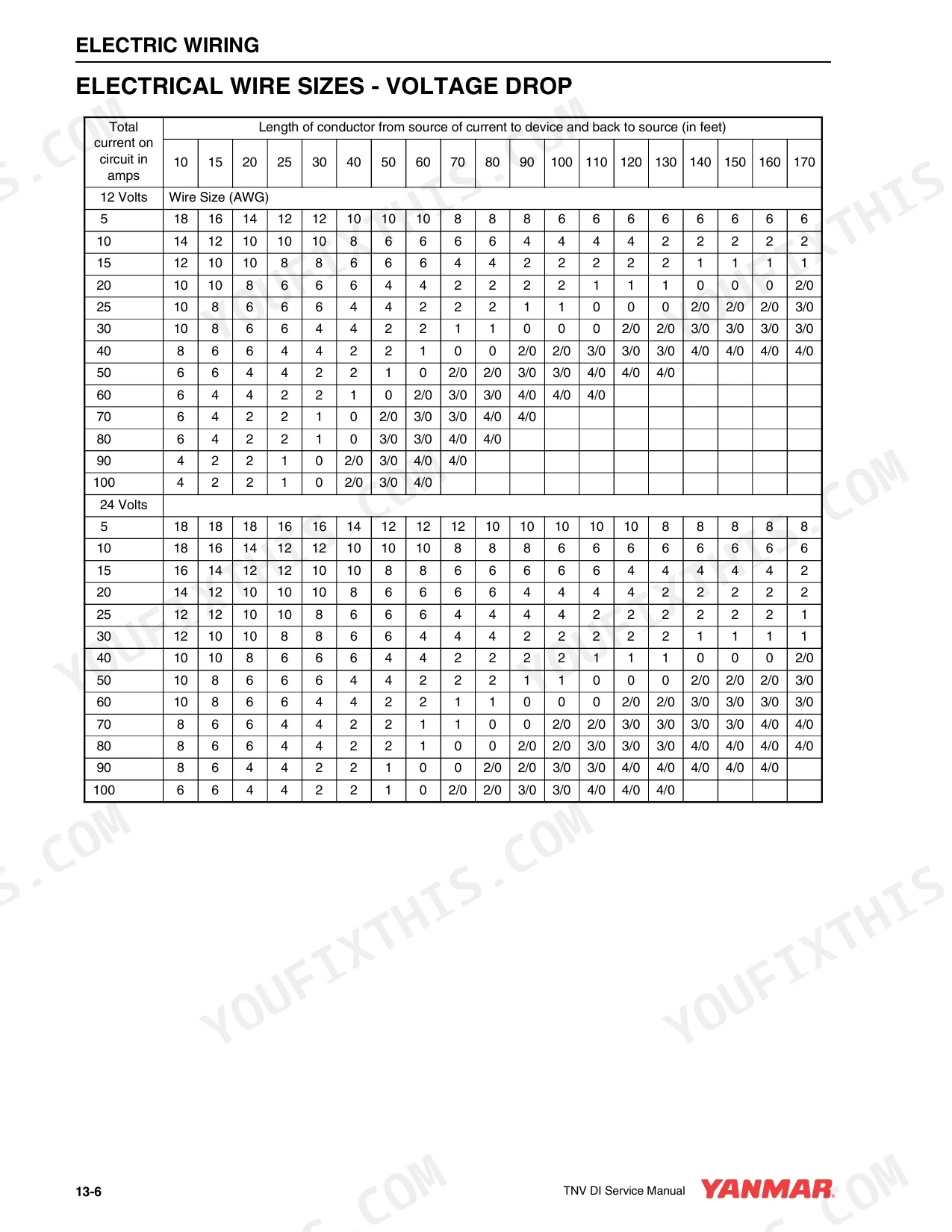

| Electric Wiring | 343-350 | Electric Wiring Precautions, Electrical Wire Resistance, Battery Cable Resistance, Electrical Wire Sizes - Voltage Drop, Conversion of Awg to European Standards |

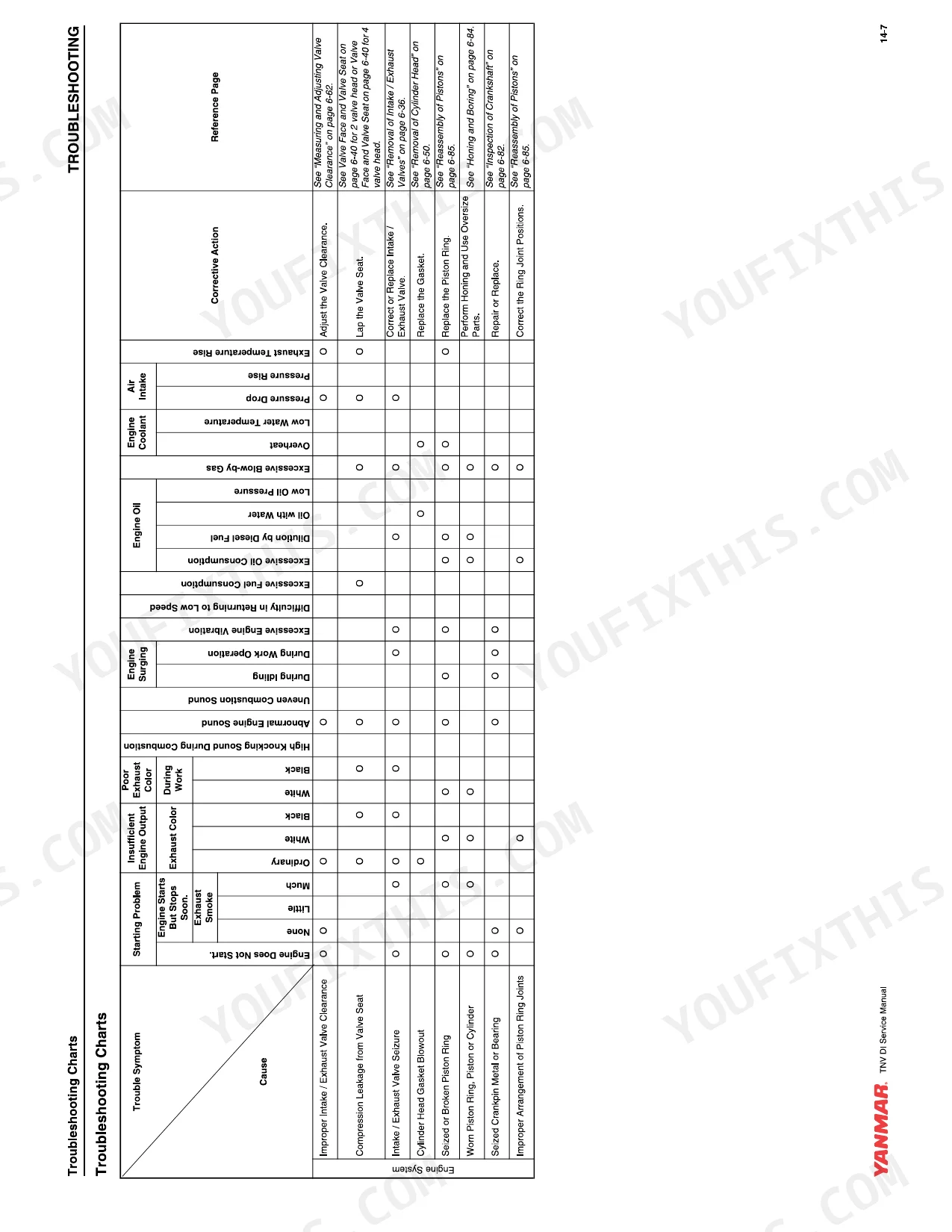

| Troubleshooting | 351-370 | Special Service Tools, Troubleshooting by Measuring Compression Pressure, Compression Pressure Measurement Method, Quick Reference Table for Troubleshooting, Troubleshooting Charts |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 3TNV82A, 3TNV84, 3TNV84T, 3TNV88, 4TNV84, 4TNV84T, 4TNV88 | ||
| Cylinder Head Bolt Torque | 63 - 67 ft·lb (85.1 - 91.1 N·m; 8.7 - 9.3 kgf·m) | p. 147 |
| 3TNV82A to 4TNV88 | ||
| Fuel Injector Retainer Bolt Torque | 29 ft·lb (39.2 N·m; 4 kgf·m) | p. 226 |
| 4TNV106, 4TNV106T | ||
| Valve Clearance | 0.010 - 0.014 in. (0.25 - 0.35 mm) | p. 130 |
| All Models | ||
| Thermostat Full Opening Lift Temperature | 157 - 163°F (70°C - 73°C) | p. 80 |
| Output Allowable Deviation (After Break-In) | ± 3% | p. 55 |
Yanmar TNV Series Common Problems This Manual Covers
Yanmar 4TNV88 cranks normally but won't start after sitting idle for long periods. p. 351
Bleed the fuel lines and check the filter. Replace the fuel filter every 500 hours of operation as shown on page 102. Verify the stop solenoid operates correctly and inspect the injector retainer bolts, torqueing them to 29 ft·lb (39.2 N·m) on page 226 if loose.
Manual Section: Section 14 TroubleshootingCoolant temperature gauge reads high under heavy load and machine consistently overheats. p. 257
Test the thermostat opening temperature. Remove the unit and heat it in water, verifying full opening lift occurs between 157 - 163°F (70°C - 73°C) as specified on page 80. Inspect the radiator for fouling and confirm the coolant mix matches the technical specifications on page 56.
Manual Section: Section 8 Cooling SystemEngine lacks power, blows excessive black smoke, and runs rough under normal operating load. p. 125
Measure the intake and exhaust valve clearance on a cold engine. Adjust the clearance to 0.15 - 0.25 mm for most models, following the specifications on page 80. If the head was removed, torque the cylinder head bolts to 63 - 67 ft·lb (85.1 - 91.1 N·m) referencing page 147.
Manual Section: Section 6 EngineHigh-pitched whistling noise from the intake side accompanied by a sudden decrease in output. p. 285
Inspect the turbocharger compressor wheel for physical damage or excessive shaft play. Check the output allowable deviation to ensure it stays within ± 3% after break-in as noted on page 55. Clean the intake piping and replace the air cleaner element every 250 hours according to page 102.
Manual Section: Section 10 TurbochargerFrequently Asked Questions
What is the torque specification for the cylinder head bolts on a Yanmar 3TNV84 engine?
The torque specification for the cylinder head bolts on Yanmar 3TNV84 engines, which are M10 x 1.25 mm, is between 63 and 67 ft-lb (85.3 to 91.1 N·m). This information can be found in the special torque chart.
What is the engine oil capacity for the Yanmar 3TNV82A engine?
The engine oil capacity for the Yanmar 3TNV82A engine, measured at the dipstick upper and lower limits, is 5.8 quarts (5.5 liters) and 3.8 quarts (3.6 liters) respectively.
What is the engine coolant capacity for the Yanmar 3TNV82A engine?
The engine coolant capacity for the Yanmar 3TNV82A engine is 0.5 gallons (2.0 liters) for the engine only. This specification is important for proper cooling system maintenance.
What is the valve clearance specification for the Yanmar TNV series engine?
The intake and exhaust valve clearance on the Yanmar TNV series is 0.15 to 0.25 mm (0.006 to 0.010 in), measured with the engine cold. Set the clearance to this range during periodic valve adjustment.
What is the injector retainer torque on a Yanmar TNV series engine?
The fuel injector (nozzle) retainer on the Yanmar TNV series is tightened to 39.2 N·m (28.9 ft-lb; 4.0 kgf·m). Use this torque when reinstalling the injector to avoid leaks or seat damage.
At what temperature does the Yanmar TNV series thermostat open?
The thermostat on the Yanmar TNV series begins to open at approximately 70 to 73°C. A thermostat that fails to open in this range is a common cause of overheating and should be replaced.
How often should the fuel filter and air cleaner be serviced on a Yanmar TNV engine?
On the Yanmar TNV series, replace the fuel filter every 500 hours and service the air cleaner element every 250 hours as part of the periodic maintenance schedule.
Document Quality
This is a native digital PDF document, allowing you to search and copy all text. The text is crisp and clear throughout, ensuring easy readability. Diagrams and illustrations are high-resolution raster images with all labels clearly legible. Pages are clean with no scan artifacts, stains, or skewed content. Please note that there are numerous "This Page Intentionally Left Blank" filler pages present in the document.
