Need the exact tear-down and rebuild procedures for your diesel powerplant? This 246-page Yanmar 4TNV98, 4TNE98 service manual PDF (OEM #SB4319E00) breaks down every internal component, fuel system, and cooling assembly for these workhorse engines. Open to find step-by-step engine overhaul instructions, complete fluid capacity charts, and a dedicated troubleshooting section to track down hard starting or low power issues. You get precise exploded views of the fuel injection pump, full lubrication system routing, and clear wiring diagrams to sort out starter motor faults. Lock down the cylinder head bolts to 76 - 83 ft·lb and verify the standard thermostat valve opening temperature hits right at 176°F - 183°F before buttoning it up. Stop hunting through dead-end forum threads for clearances. Download this bookmarked file, pull it up on your tablet in the shop, and get the engine running right.
What's Inside This Yanmar 4TNV98, 4TNE98 Manual
| System | Pages | Key Topics |
|---|---|---|
| Service Manual | 1-2 | General Service Information, Periodic Maintenance, Engine, Fuel System, Cooling System, Lubrication System |
| Important Safety Information | 3-4 | Basic Safety Rules or Precautions, Safety Precautions and Warnings, Improper Operation, Lubrication, Maintenance or Repair, Product Damage, Notice Labels, Information |

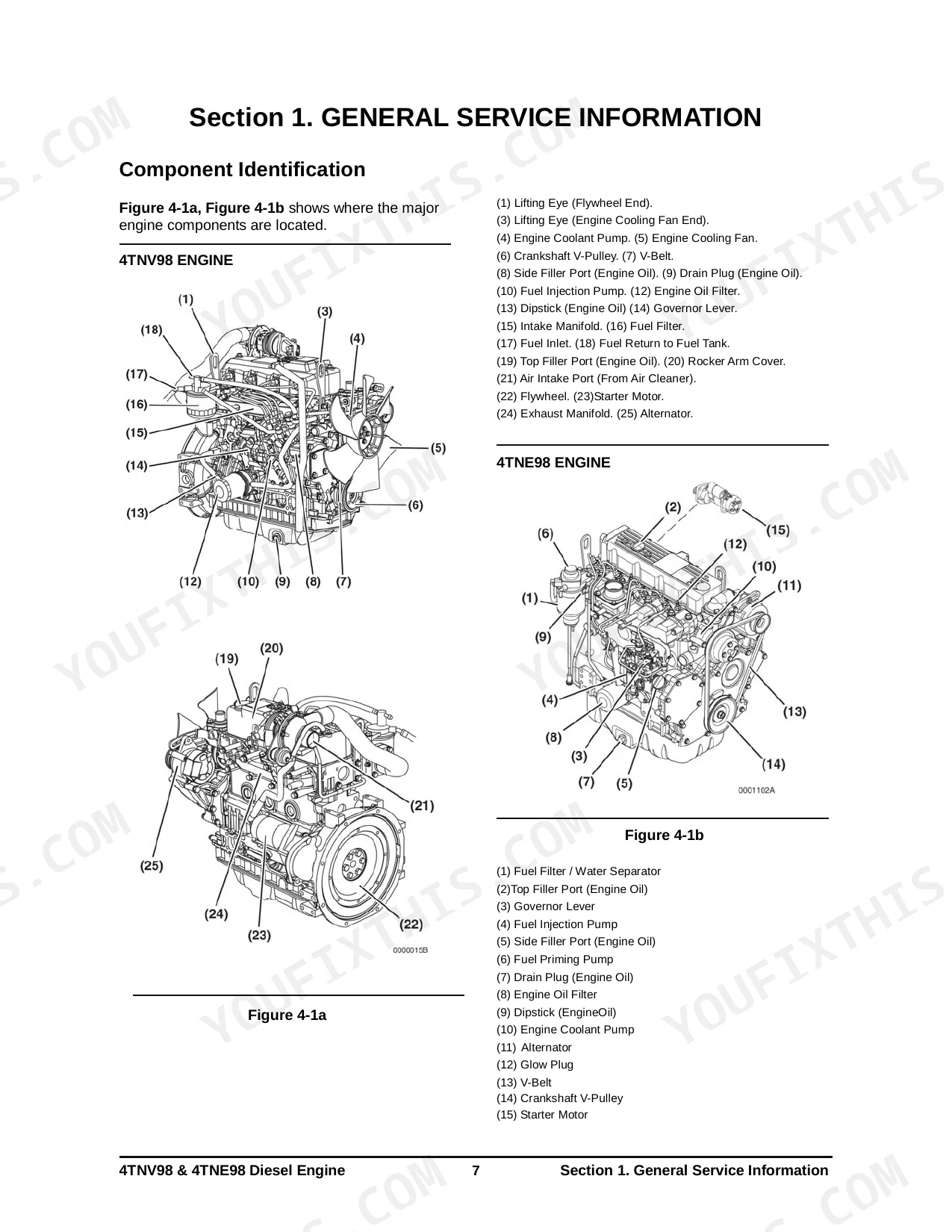

| General Service Information | 5-30 | Component Identification, Location of Labels, Emission Control Labels, Function of Major Engine Components, Function of Cooling System Components, Diesel Fuel, Engine Oil |

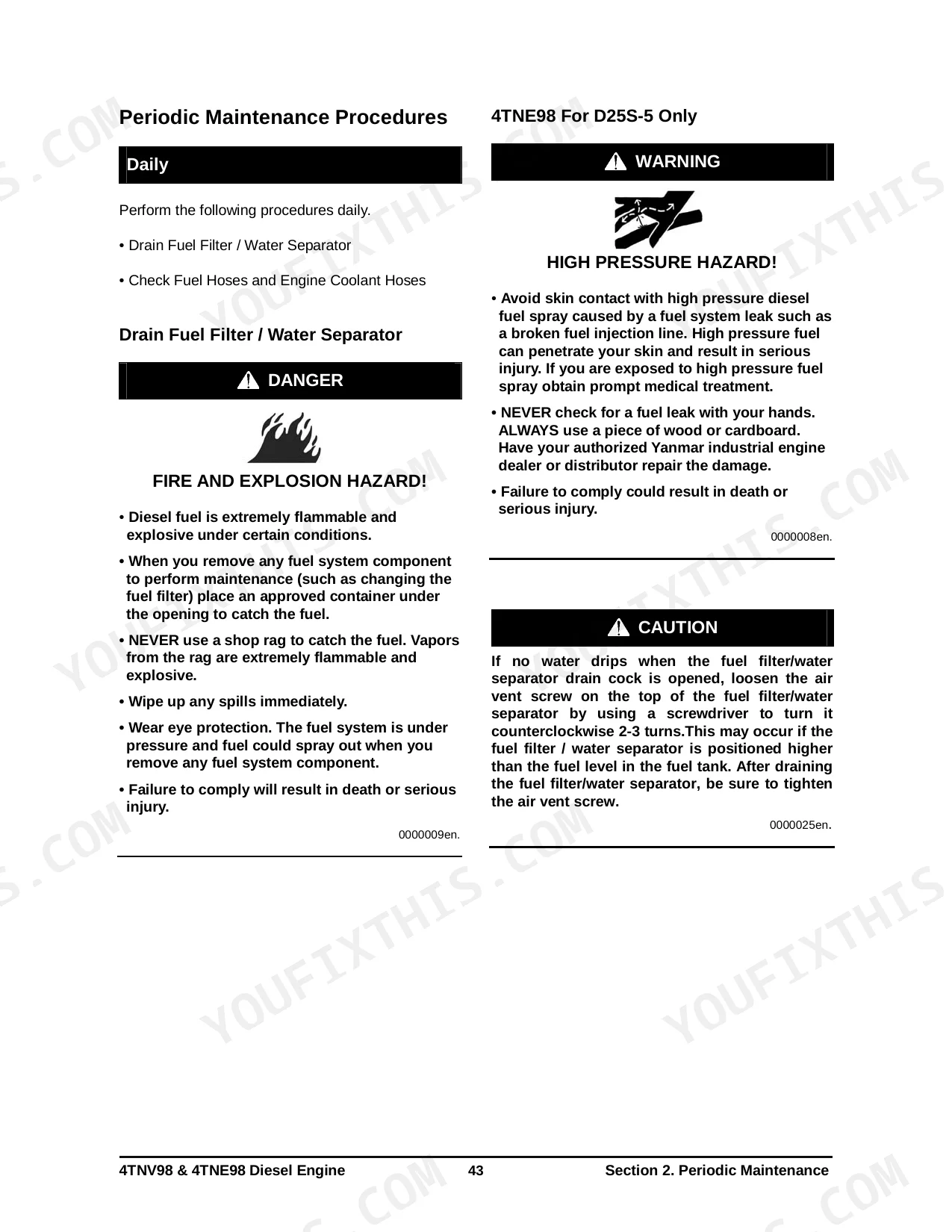

| Periodic Maintenance | 31-64 | Before You Begin Servicing, Introduction, Periodic Maintenance Schedule, Periodic Maintenance Procedures, Daily, Every 50 Hours of Operation, Every 250 Hours of Operation |
| Engine | 65-140 | Before You Begin Servicing, Introduction, Crankshaft and Piston Specifications, Cylinder Block Specifications, Special Service Tools, Measuring Instruments, Cylinder Head |
| Fuel System | 141-202 | Before You Begin Servicing, 4Tnv98 Engine, Fuel System Specifications, Special Service Tools, Fuel System Diagram, Fuel System Components, Fuel Injection Pump |
| Cooling System | 203-211 | Before You Begin Servicing, Introduction, Engine Coolant Pump Components, Engine Coolant System Check |
| Lubrication System | 212-220 | Before You Begin Servicing, Introduction, Lubrication System Diagram, Checking Engine Oil Pressure |
| Starter Motor | 221-236 | Before You Begin Servicing, Introduction, Starter Motor Specifications, Starter Motor Troubleshooting, Starter Motor Components |

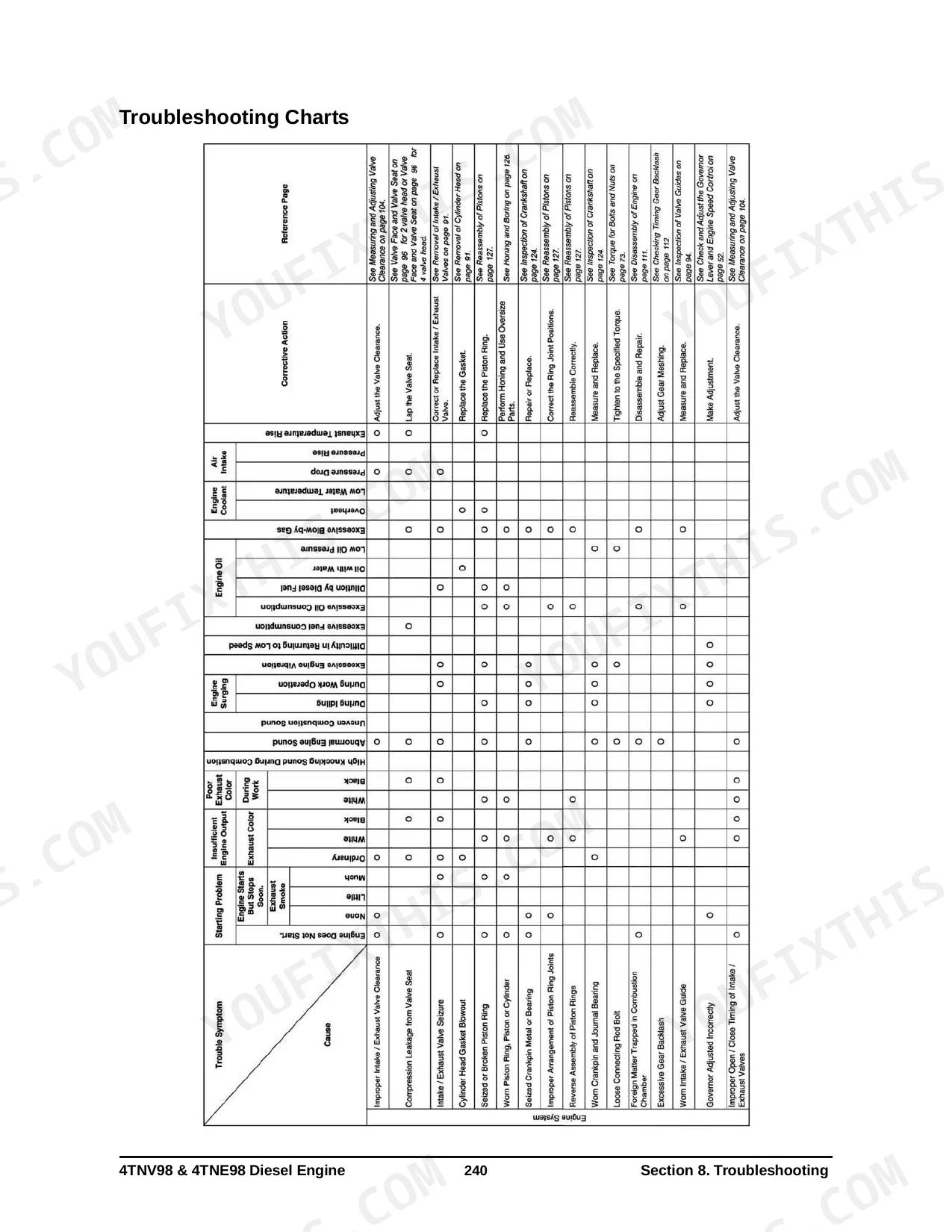

| Troubleshooting | 237-246 | Special Service Tools, Troubleshooting by Measuring Compression Pressure, Quick Reference Table for Troubleshooting, Troubleshooting Charts, Wiring Diagram |

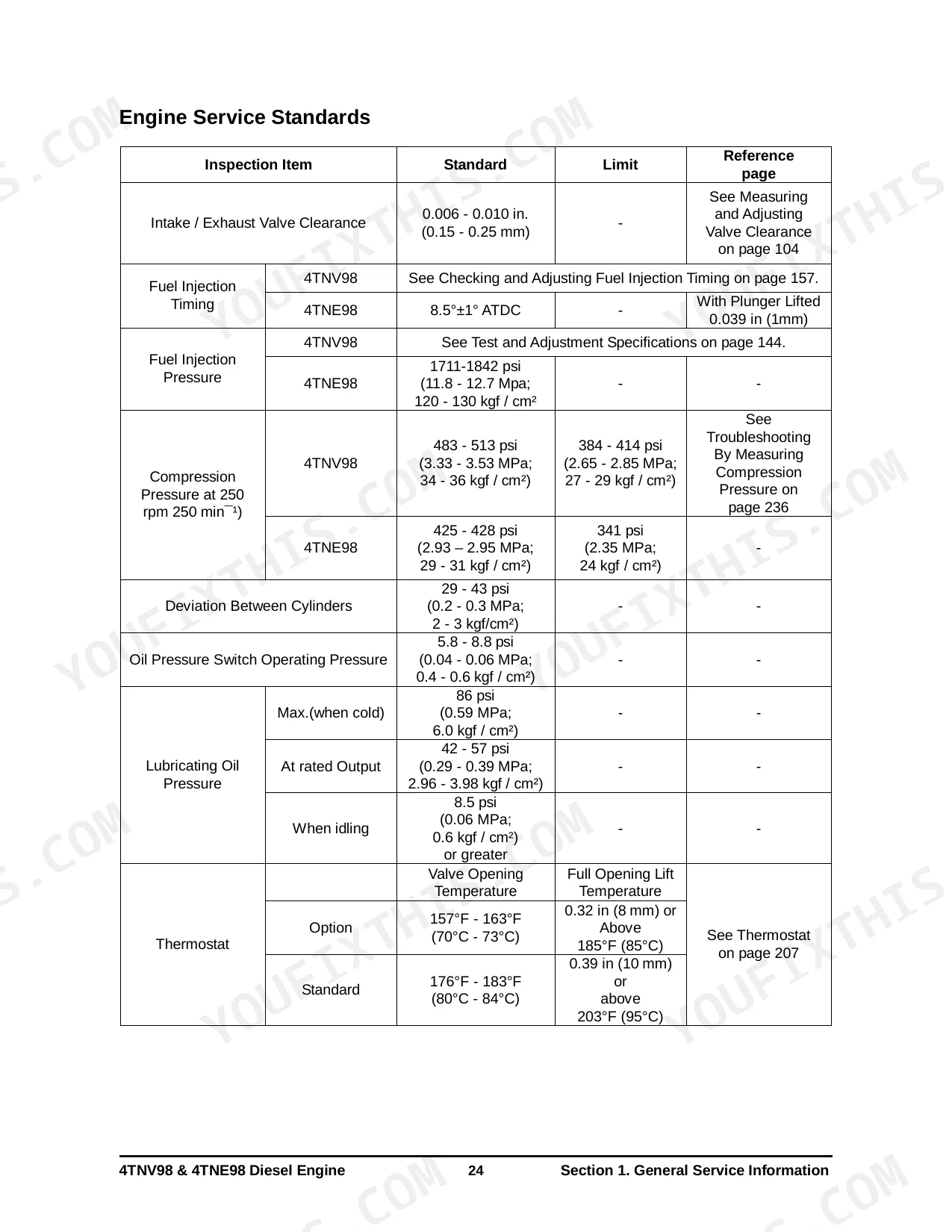

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Cylinder Head Bolt Torque | 76 - 83 ft·lb (103.1 - 112.9 N·m; 10.5 - 11.5 kgf·m) | p. 75 |
| Thermostat Valve Opening Temperature (Option) | 157°F - 163°F (70°C - 73°C) | p. 26 |
| Thermostat Valve Opening Temperature (Standard) | 176°F - 183°F (80°C - 84°C) | p. 26 |
| Used V-Belt Tension (Deflection) - Position A | 3/8 - 1/2 in. (10 - 14 mm) | p. 49 |
| Used V-Belt Tension (Deflection) - Position B | 1/4 - 3/8 in. (7 - 10 mm) | p. 49 |
| Cylinder Head Combustion Surface Distortion (Flatness) Standard | 0.0020 in. (0.05 mm) or less | p. 68 |
| Cylinder Head Combustion Surface Distortion (Flatness) Limit | 0.0059 in. (0.15 mm) | p. 68 |
| Engine Coolant Capacity (Engine Only) | 4.2 L | p. 24 |
| Intake / Exhaust Valve Clearance | 0.15 - 0.25 mm | p. 26 |
| 4TNV98 | ||

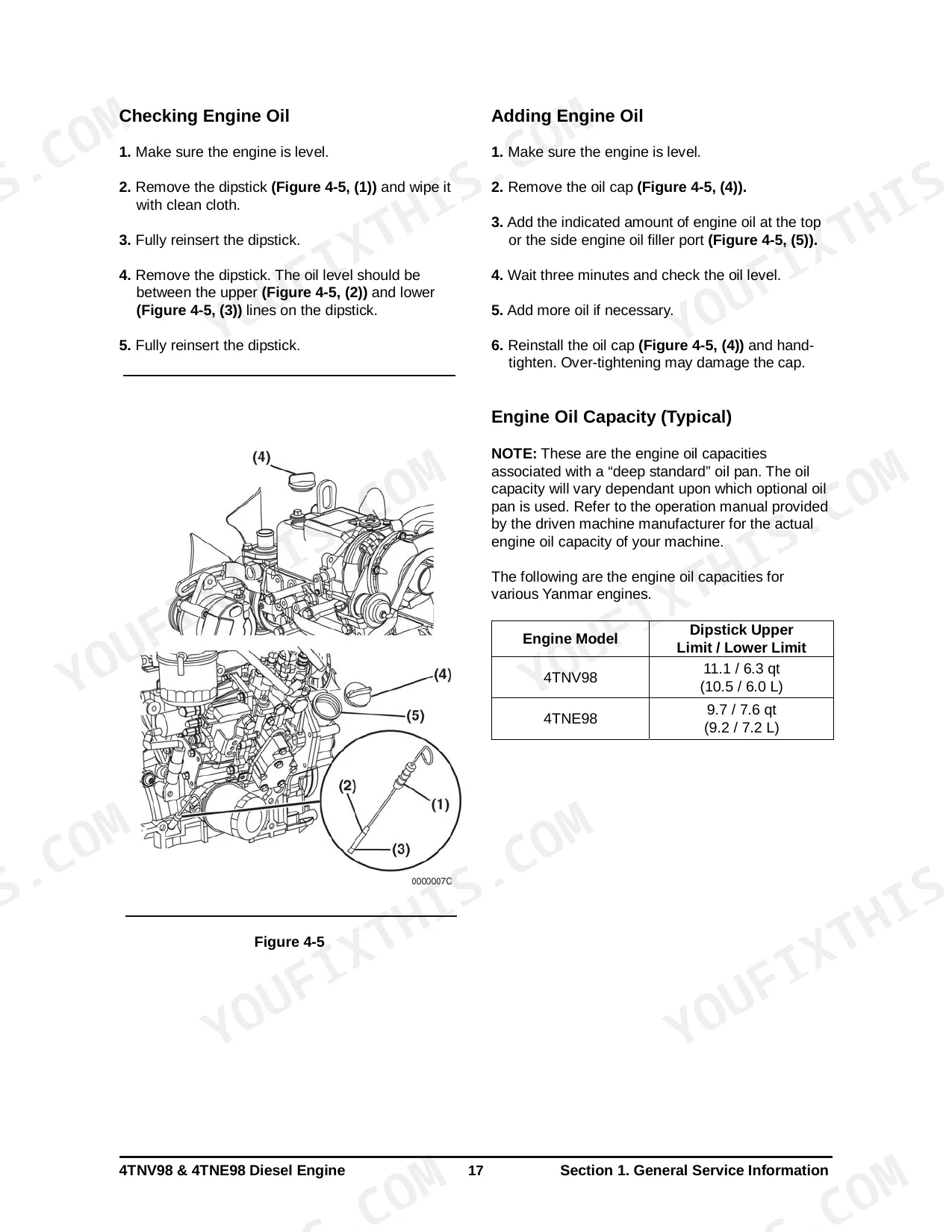

| Engine Oil Capacity (Upper Limit) | 10.5 L | p. 19 |
| Fuel Injection Pressure (Standard) | 3133-3278 psi | p. 146 |
| 4TNE98 | ||
| Engine Oil Capacity (Upper Limit) | 9.2 L | p. 19 |
Yanmar 4TNV98, 4TNE98 Common Problems This Manual Covers
Yanmar 4TNV98 engine overheats, loses coolant, and repeatedly runs hot after operating under heavy load p. 49
Inspect the drive belt tension on page 49. Adjust a used v-belt to have 3/8 - 1/2 in. (10 - 14 mm) deflection at position A. Verify the thermostat opening temperature is between 176°F - 183°F (80°C - 84°C) as noted on page 26. Replace if outside specs.
Manual Section: Periodic MaintenanceEngine won't start or turns over slowly in cold weather and requires starting fluid to fire p. 239
Measure compression pressure at 250 rpm using the procedure on page 239. Confirm pressure reaches 483 - 513 psi for the 4TNV98 model. For the 4TNE98, verify pressure is 426 ± 15 psi on page 240. If readings are low, inspect cylinder head components.
Manual Section: Troubleshooting By Measuring Compression PressureCylinder head gasket failure, coolant leakage, and severe compression loss after starting fluid abuse p. 68
Remove the cylinder head and check combustion surface distortion on page 68. Ensure flatness is 0.0020 in. (0.05 mm) or less. Replace the gasket and torque the cylinder head bolts to 76 - 83 ft·lb following the specifications on page 75.
Manual Section: EngineEngine cranks but fails to start due to a suspected fuel delivery or injector fault p. 146
Test fuel injection pressure using a nozzle tester. For 4TNV98 engines, adjust pressure to 3133-3278 psi as shown on page 146. Once calibrated, reinstall the injectors and torque the retainer bolts to 29 ft·lb according to page 145. Bleed the system.
Manual Section: Fuel SystemFrequently Asked Questions
What are the torque specifications for the Yanmar 4TNV98 cylinder head bolts?
For the Yanmar 4TNV98 engine, the cylinder head bolts (M11 x 1.25 mm) should be tightened to 76 - 83 ft·lb (103.1 - 112.9 N·m; 10.5 - 11.5 kgf·m). Lubricating oil should be applied to the thread portion and seat surface before tightening. The tightening procedure involves two steps: first to 1/2 of the final torque, then to the final torque, following a specific sequence shown in Figure 6-68 on page 102.
What are the torque specifications for Yanmar 4TNE98 rocker arm or valve cover bolts?
The manual does not list specific torque values for the 4TNE98 rocker arm or valve cover bolts. However, general guidelines state to apply 60% torque to bolts that are not listed in the Special Torque Chart, and 80% torque when tightened to aluminum alloy. For cylinder head reassembly, the manual instructs to tighten rocker arm support bracket nuts and bolts to the specified torque, but does not provide a numerical value in that section.
How should the cylinder head bolts be torqued on a Yanmar 4TNV98 engine?
For the Yanmar 4TNV98, the cylinder head bolts should be lightly oiled on their threads and tightened to the specified torque in two steps: first to 1/2 of the final torque, then to the final torque. The specified torque is 76 - 83 ft·lb (103.1 - 112.9 N·m; 10.5 - 11.5 kgf·m), and a specific tightening sequence shown in Figure 6-68 on page 102 must be followed.
What are the replacement specifications for the Thermostat?
The thermostat should be replaced if it does not operate properly according to its specifications. For the 'Option' thermostat, the valve opening temperature is 157°F - 163°F (70°C - 73°C) with a full opening lift temperature of 0.32 in (8 mm) or above at 185°F (85°C). For the 'Standard' thermostat, the valve opening temperature is 176°F - 183°F (80°C - 84°C) with a full opening lift temperature of 0.39 in (10 mm) or above at 203°F (95°C).
Is this Service Manual a digital download?
You get a 246-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this Service Manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.

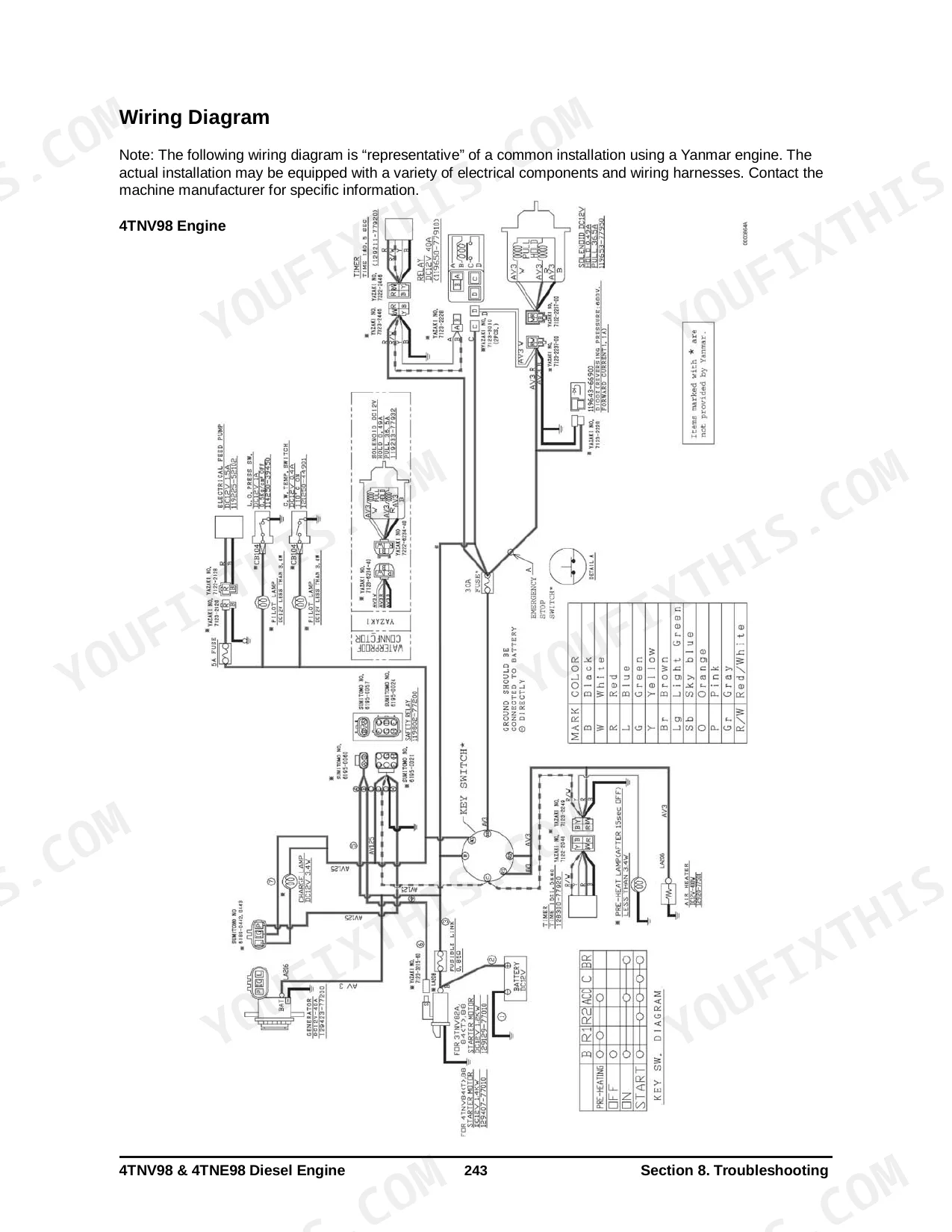

Does this Service Manual have electrical diagrams?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
Document Quality
This document is a scanned PDF, not a native digital file, but it includes an OCR layer, so you can search and copy the full text. The text quality is generally crisp and readable throughout the manual. Diagrams and illustrations are raster images, meaning they may appear slightly pixelated when zoomed in, but their labels and details are consistently readable. Pages are clean with no noticeable scan artifacts, stains, or skewed content, and there are a few blank pages interspersed, likely as section separators.
