Operating a marine stern-drive requires knowing exactly how to maintain it, and this 60-page Yanmar ZT370 operator manual PDF (OEM #0AZTD-EN0022) gives you every factory procedure for your drive unit. Open the file to find detailed daily check routines, complete seasonal lay-up instructions, and a full section on galvanic corrosion protection. You get step-by-step periodic maintenance schedules covering everything from new drive break-in to the 1000-hour service interval, plus targeted troubleshooting guides for shift linkages and power trim systems. Confirm your stern-drive oil capacity is topped off at exactly 2.5 liters, and lock down the propeller shaft anode bolts to 30 N-m before hitting the water. A ruined drive unit ruins your whole season. Grab this bookmarked file, pull it up on your phone at the dock, and handle your maintenance with confidence.
What's Inside This Yanmar ZT370 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| English | 1-2 | - |
| Introduction | 5-6 | Record of Ownership |
| Safety | 7-12 | Safety Precautions (Before You Operate, During Operation and Maintenance) |

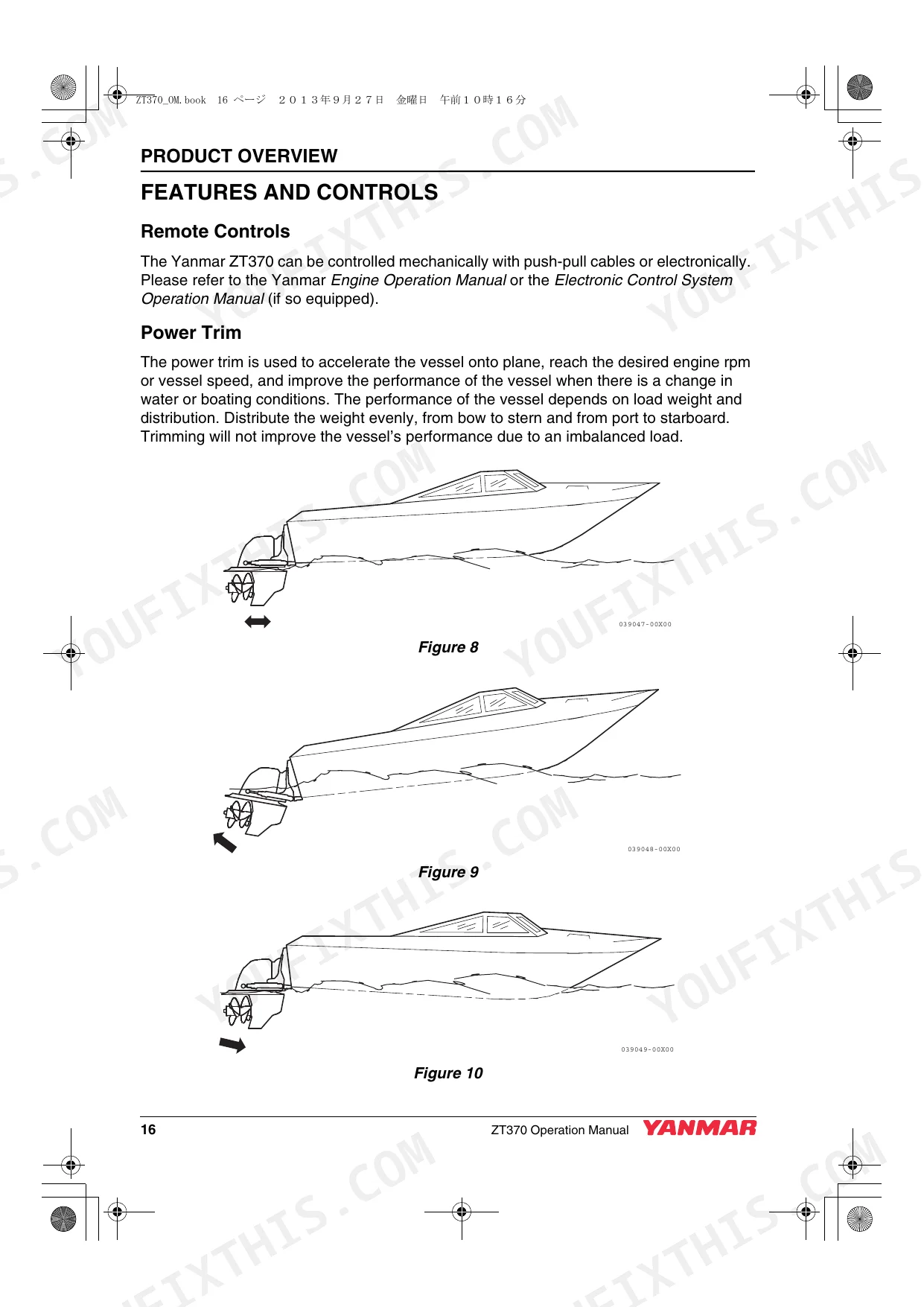

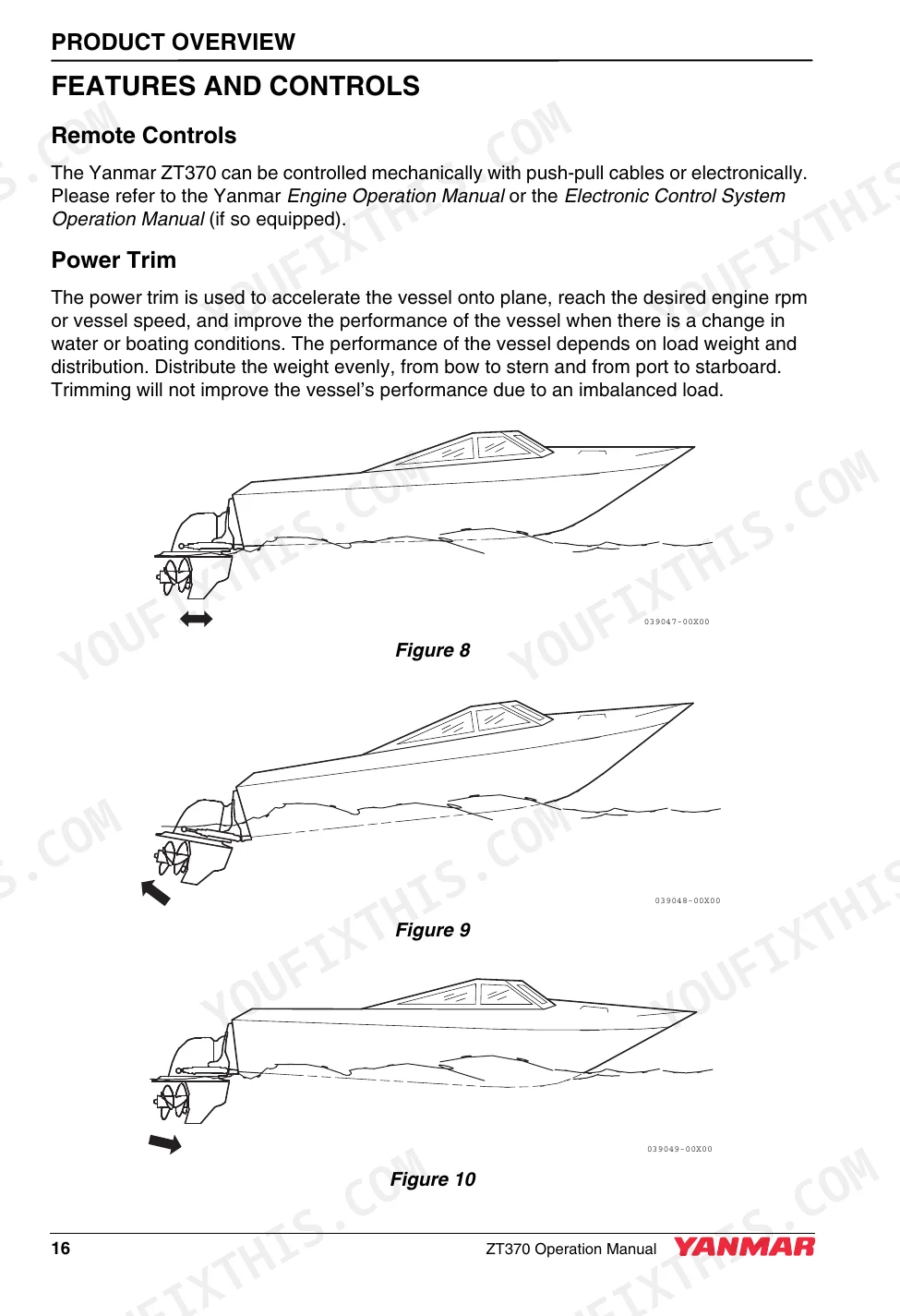

| Product Overview | 13-24 | Overview (Owner/Operator Responsibilities, New Stern-Drive Break-In, Dealer/Distributor Responsibilities), Component Identification, Location of Serial Numbers |

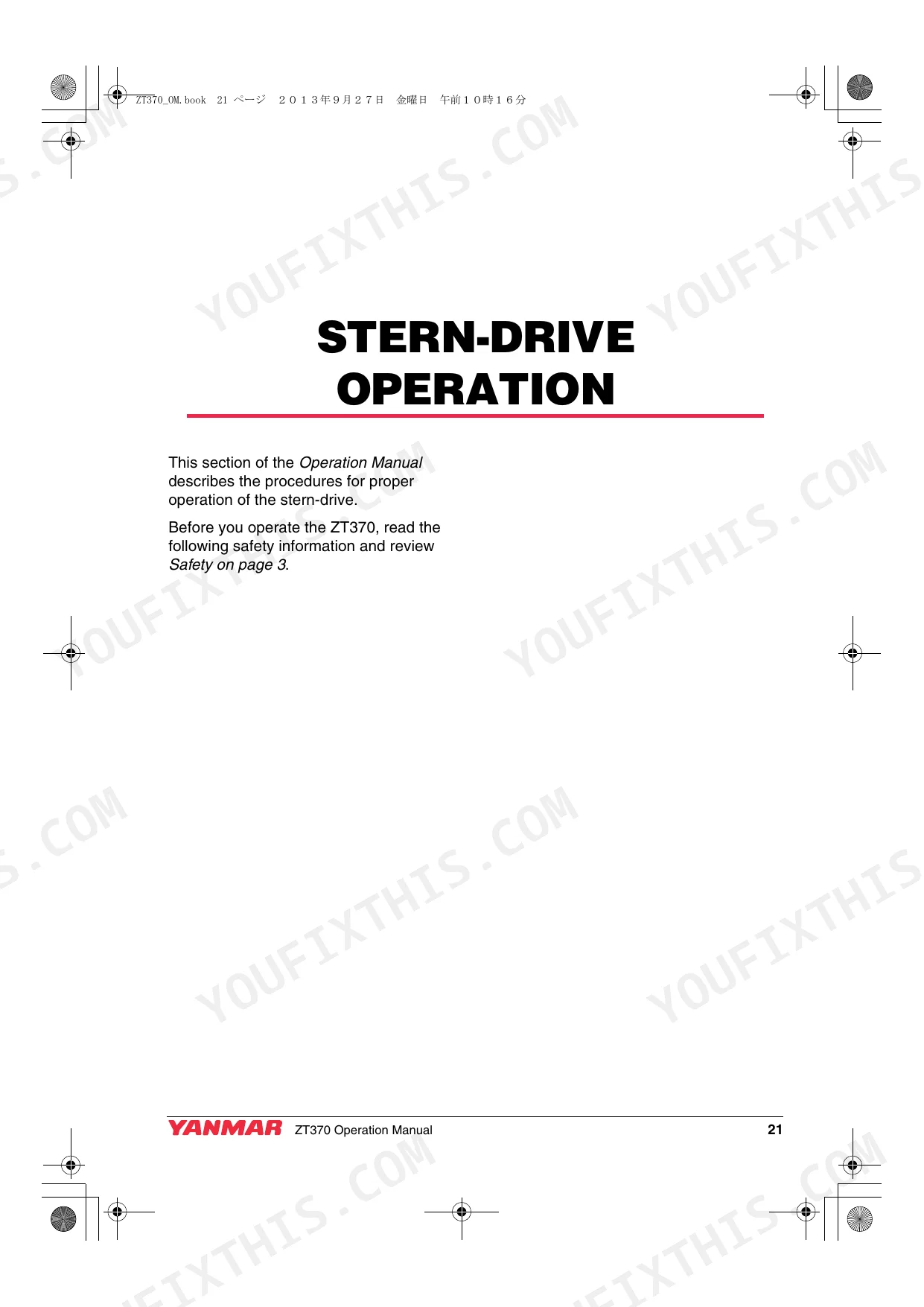

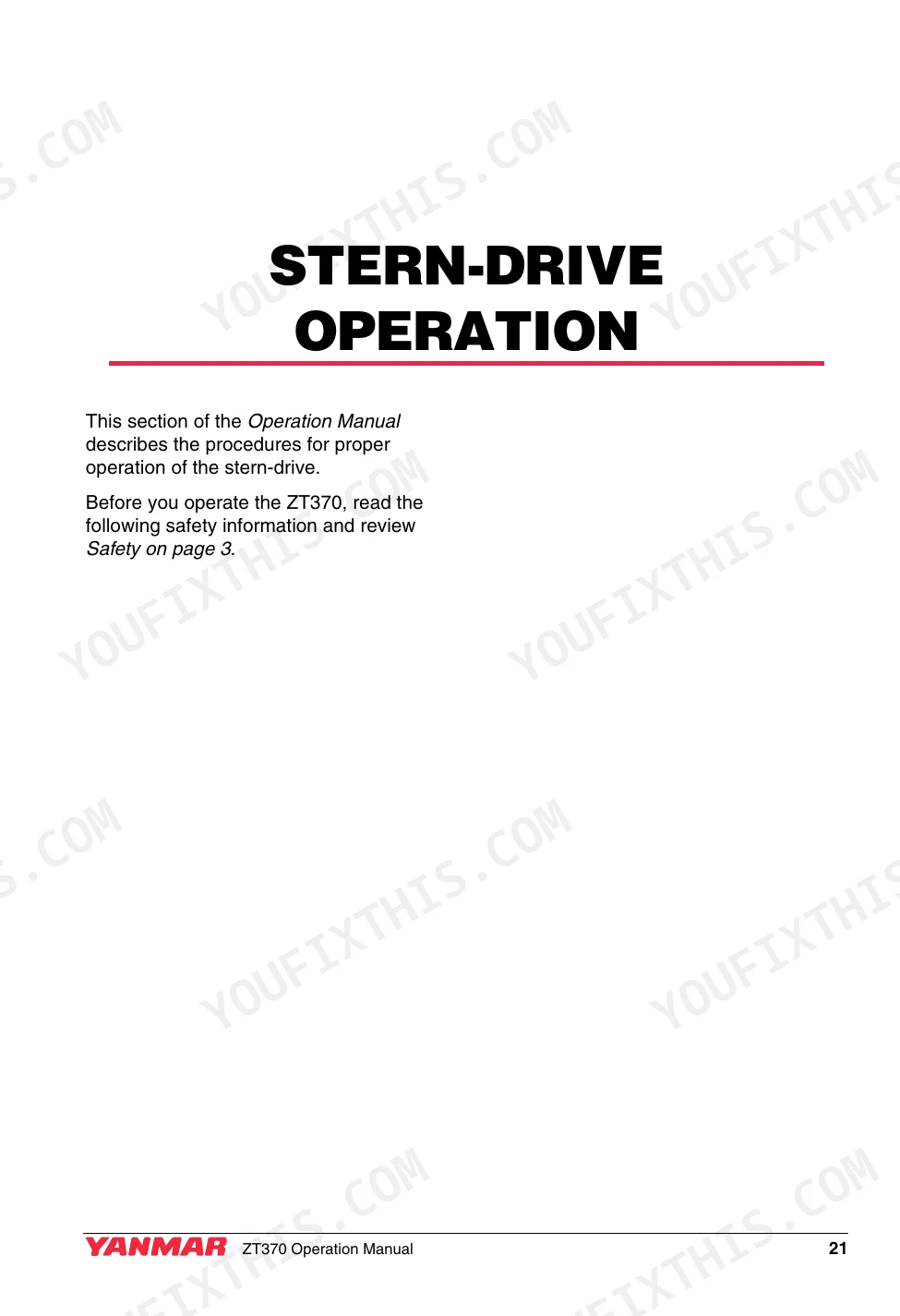

| Stern-Drive Operation | 25-32 | Propeller Selection, Installing the Propellers, Removing the Propeller, Daily Checks (Visual Checks, Check the Stern-Drive Oil Level, Check the Power Trim Pump Fluid) |

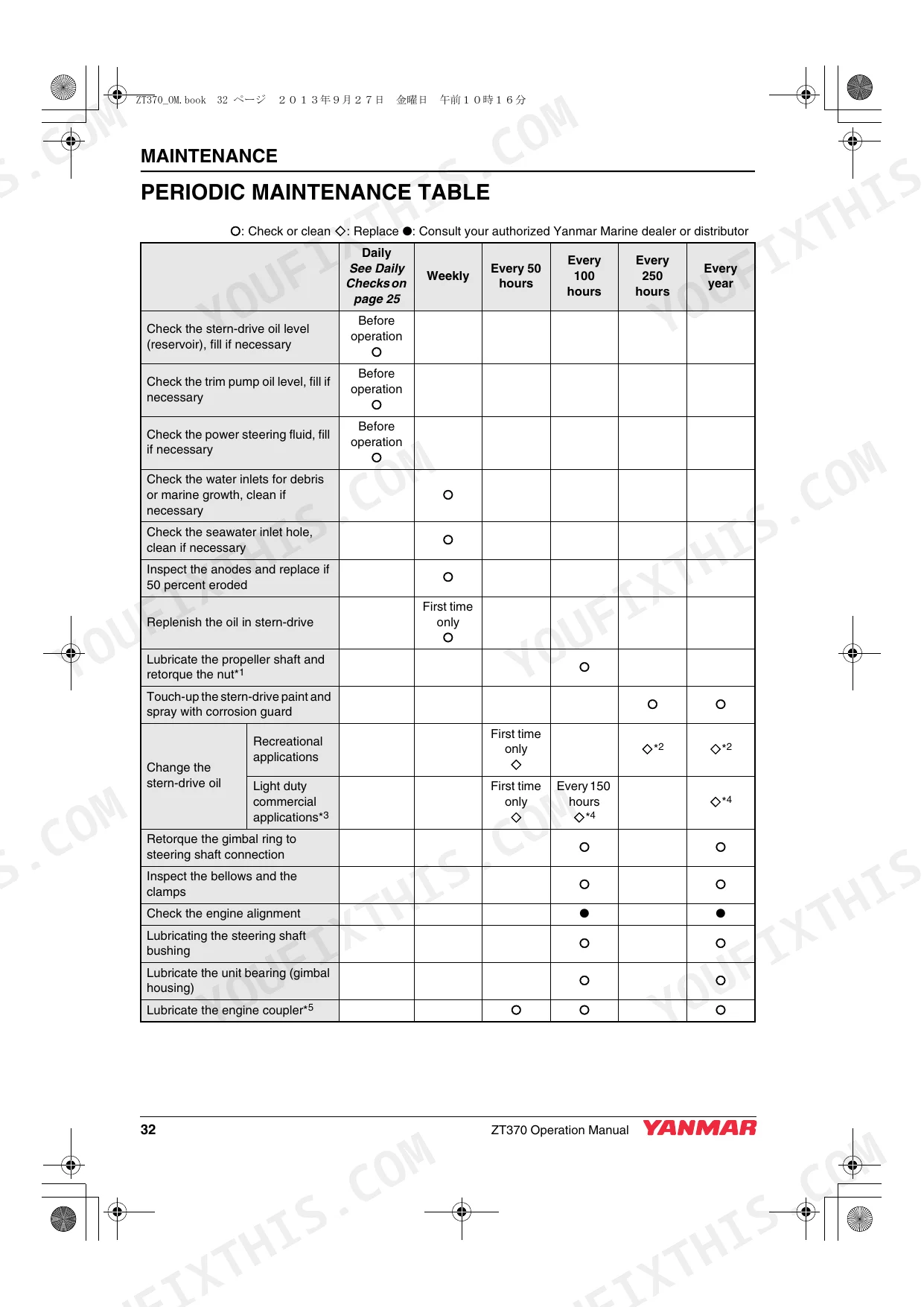

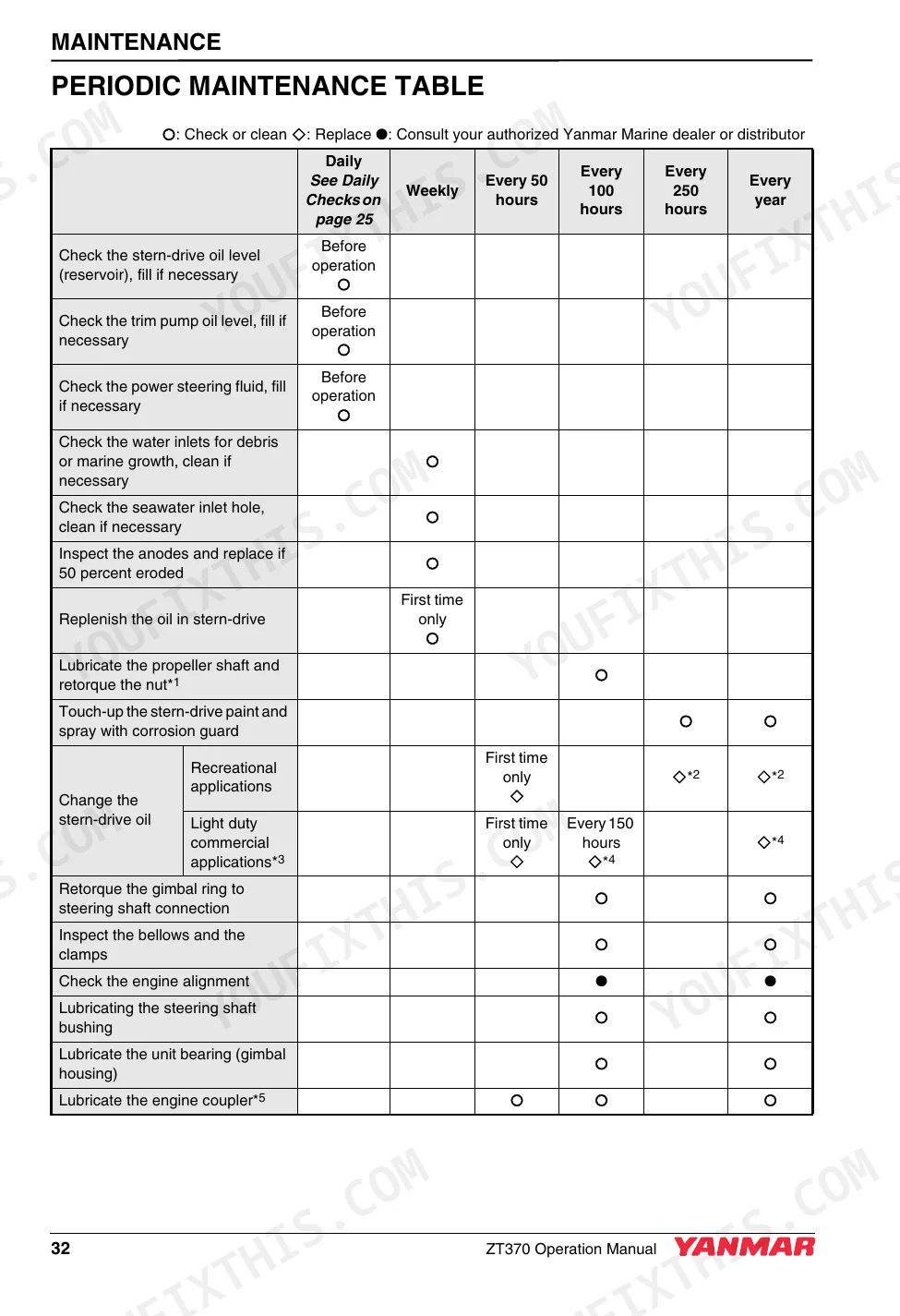

| Maintenance | 33-52 | Periodic Maintenance (Importance of Periodic Maintenance, Performing Periodic Maintenance, Importance of Daily Checks, Yanmar Replacement Parts, Tools Required, Ask Your Authorized Yanmar Marine Dealer or Distributor for Help) |

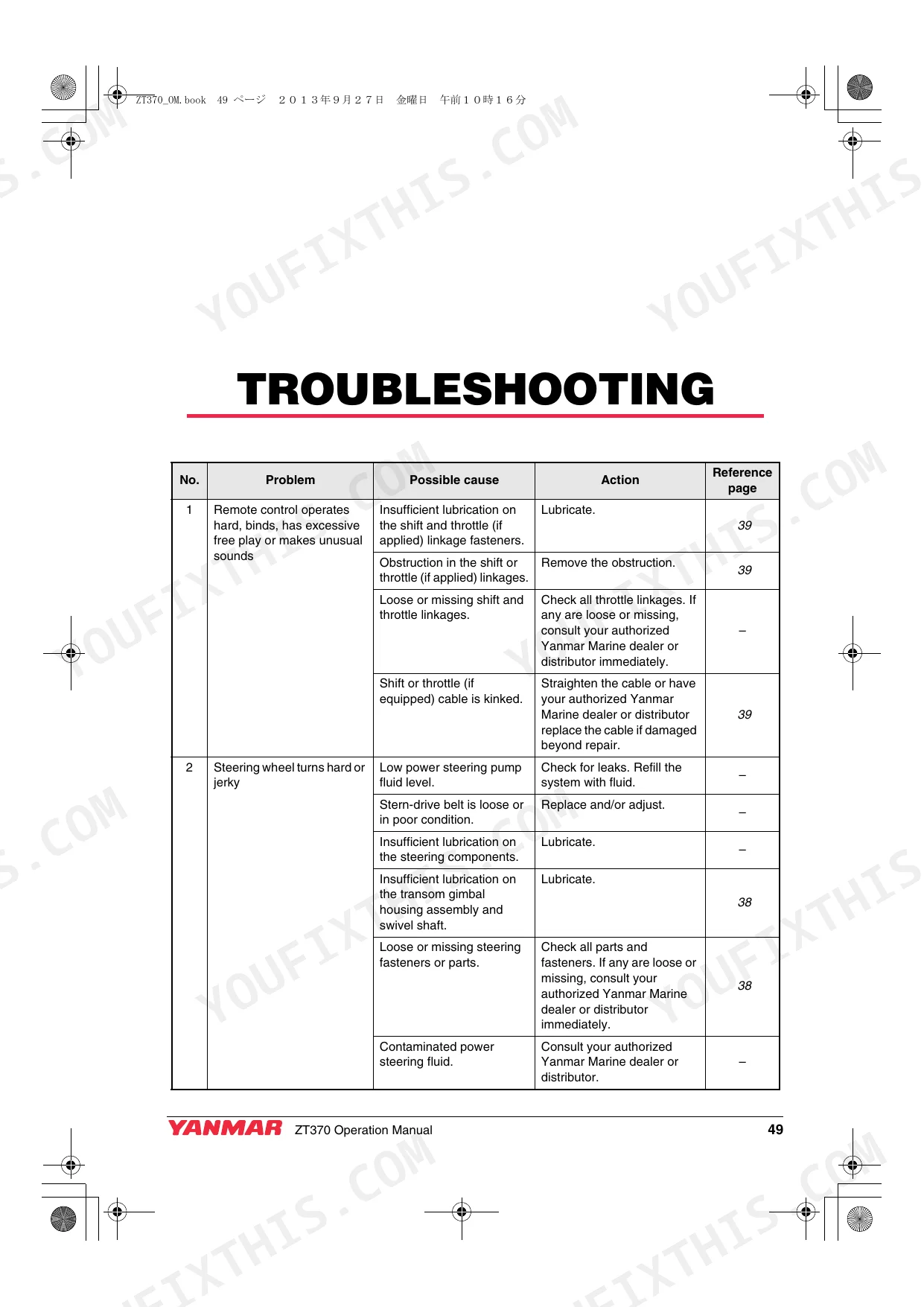

| Troubleshooting | 53-54 | Remote Control, Shift and Throttle Linkages, Steering System, Power Steering Pump Fluid, Power Trim System, Gimbal Ring |
| Long-Term Storage | 55-56 | Cold Weather, Seasonal and Extended Storage (Stern-Drive: Lay Up, Recommissioning) |

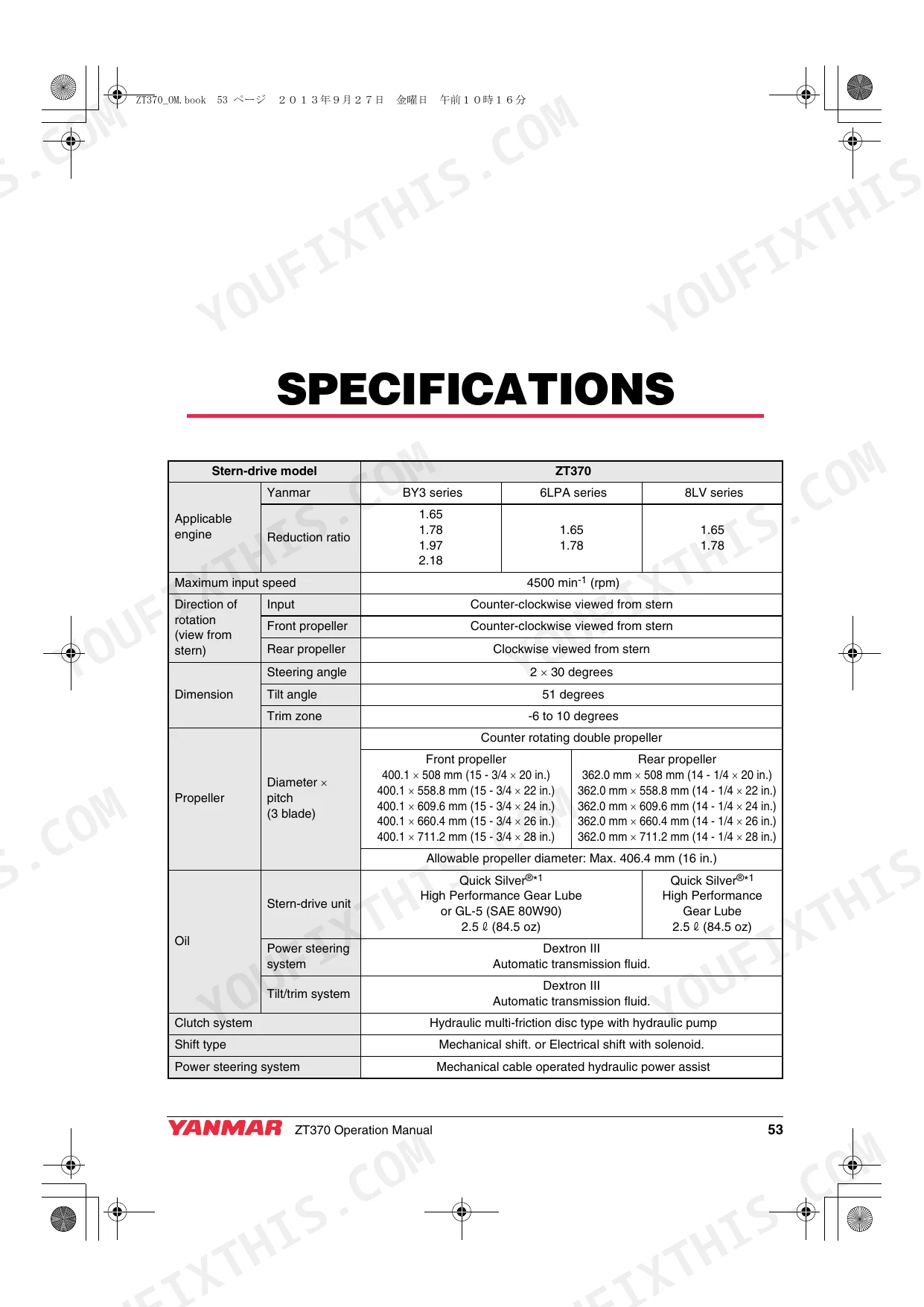

| Specifications | 57-60 | Reduction Ratio, Propeller, Oil, Clutch System, Shift Type, Anti-Corrosion System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| O-ring replacement | Use new O-ring seals each time the drive unit is installed | p. 49 |
| Propeller shaft anode bolt torque | 30 N-m | p. 28 |
| Bolt for anode of cylinder part torque | 3.5 ± 0.5 N-m | p. 35 |
| Y-CaPS in-line fuse | 20 A | p. 23 |
| Stern-Drive Oil Capacity | 2.5 l (84.5 oz) | p. 57 |
| Maximum Input Speed | 4500 min-1 (rpm) | p. 57 |
| Steering Angle | 2 × 30 degrees | p. 57 |
| Tilt Angle | 51 degrees | p. 57 |
| Trim Zone | -6 to 10 degrees | p. 57 |
| Front Propeller Nut Torque | 135 N-m (99 lb-ft) | p. 28 |
| Rear Propeller Nut Torque | 80 N-m (59 lb-ft) | p. 28 |
| Gimbal Ring Locknut Torque | 50 N-m (37 lb-ft) | p. 42 |
Yanmar ZT370 Common Problems This Manual Covers
Yanmar ZT370 stern-drive oil temperature warning light flashes continuously during high-speed operation. p. 57
Inspect the stern-drive oil reservoir level immediately. Fill the system to the full mark, ensuring you do not exceed the 2.5 l (84.5 oz) oil capacity listed on page 57. Check the oil cooler for restricted water flow and clean the intake screens.
Manual Section: Stern-Drive Oil Leakage/ContaminationElectric trim motor operates but the drive does not move up or down. p. 42
Check the power trim pump fluid level inside the engine compartment. Verify the stern-drive operates smoothly within the -6 to 10 degrees trim zone specified on page 57. Inspect the gimbal ring for binding and ensure the locknut torque is 50 N-m (37 lb-ft) as shown on page 42.
Manual Section: Power Trim Mechanical/Hydraulic FailureSevere galvanic corrosion appearing on the lower gearcase and propeller shaft during routine checks. p. 18
Examine the sacrificial anodes for wear according to the guidelines on page 18. Replace any anode that is 50 percent or more eroded. Verify the Y-CaPS electronic anticorrosion system is powered by checking the 20 A in-line fuse on page 23.
Manual Section: Corrosion Protection System (Anode) WearHard or jerky steering wheel turns accompanied by low fluid levels and poor control. p. 57
Check the power steering pump fluid reservoir and top off if necessary. Inspect the stern-drive belt for proper tension. Ensure the drive turns freely through the full steering angle of 2 x 30 degrees as specified on page 57.
Manual Section: Steering System MalfunctionFrequently Asked Questions
What are the torque specifications for YANMAR ZT370 outdrive fasteners?
The manual provides various torque specifications for fasteners. For example, the nut for the U-bolt of the gimbal ring should be torqued to 50 ± 5 N-m (37 ± 4 lb-ft), and the bolt for the anode of the cylinder part to 3.5 ± 0.5 N-m (2.6 ± 0.4 lb-ft). The bolt for the rear of the inner propeller shaft is 80 ± 5.0 N·m (59 ± 3.7 lb-ft), and the bolt for the rear of the outer propeller shaft is 135 ± 5.0 N·m (100 ± 3.7 lb-ft).
How do I troubleshoot sluggish shifting on a YANMAR ZT370?
Sluggish shifting, indicated by the remote control operating hard or binding, can be caused by insufficient lubrication on shift and throttle linkage fasteners, obstructions, or loose/missing linkages. Actions include lubricating the fasteners, removing any obstructions, checking all throttle linkages, and straightening or replacing kinked shift or throttle cables. If issues persist, consult an authorized Yanmar Marine dealer.
What is the stern-drive oil capacity and recommended type for the Yanmar ZT370?
The Yanmar ZT370 stern-drive requires a capacity of 2500 ml (85 oz) of oil. The recommended fluid type is Quick Silver® High Performance Gear Lube or GL-5 (SAE 80W90).
What is the torque specification for the propeller shaft anode bolt on the Yanmar ZT370?
The propeller shaft anode bolt on the Yanmar ZT370 should be torqued to 30 N-m (22 lb-ft). This specification is provided in the 'Propeller shaft anode bolt torque' chart within the stern-drive operation section.
What type of fuse protects the Yanmar Cathodic Protection System (Y-CaPS)?
The Yanmar Cathodic Protection System (Y-CaPS) is protected by a 20 A in-line fuse. This fuse is located in the wire connecting to the positive (+) terminal on the controller, and if it blows, the system will lose corrosion protection.
Is this Yanmar ZT370 Operator Manual a digital download?
You get a 60-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
