Need the exact factory operating procedures for your 2005-2007 industrial engine? This 95-page Yanmar 4TNE92, 4TNE94L, 4TNE98 operator manual PDF breaks down every daily check, dashboard indicator, and maintenance schedule required to keep your equipment running. Inside, you get a full section on engine operation, detailed fluid capacities, and step-by-step periodic maintenance schedules. Open to the troubleshooting charts to quickly diagnose starting issues, or check the product overview for exact component identification and emissions compliance data. Tighten the fuel filter retaining ring to exactly 11-15 ft lbs, and remember to blow out the air cleaner element with 42-71 psi of compressed air before the 2000-hour replacement interval. Stop ruining perfectly good parts with guesswork. Download this bookmarked file directly to your phone and bring the factory answers straight to the job site.
What's Inside This Yanmar 4TNE92, 4TNE94L, 4TNE98 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 6-7 | Record of Ownership |
| Yanmar Warranties | 8-13 | Yanmar Limited Warranty (What Is Covered by This Warranty?, How Long Is the Warranty Period?, What the Engine Owner Must Do, To Locate an Authorized Yanmar Industrial Engine Dealer or Distributor, What Yanmar Will Do, What Is Not Covered by This Warranty?, Warranty Limitations, Warranty Modifications, Questions, Customer Registration) |
| Safety | 18-31 | - |

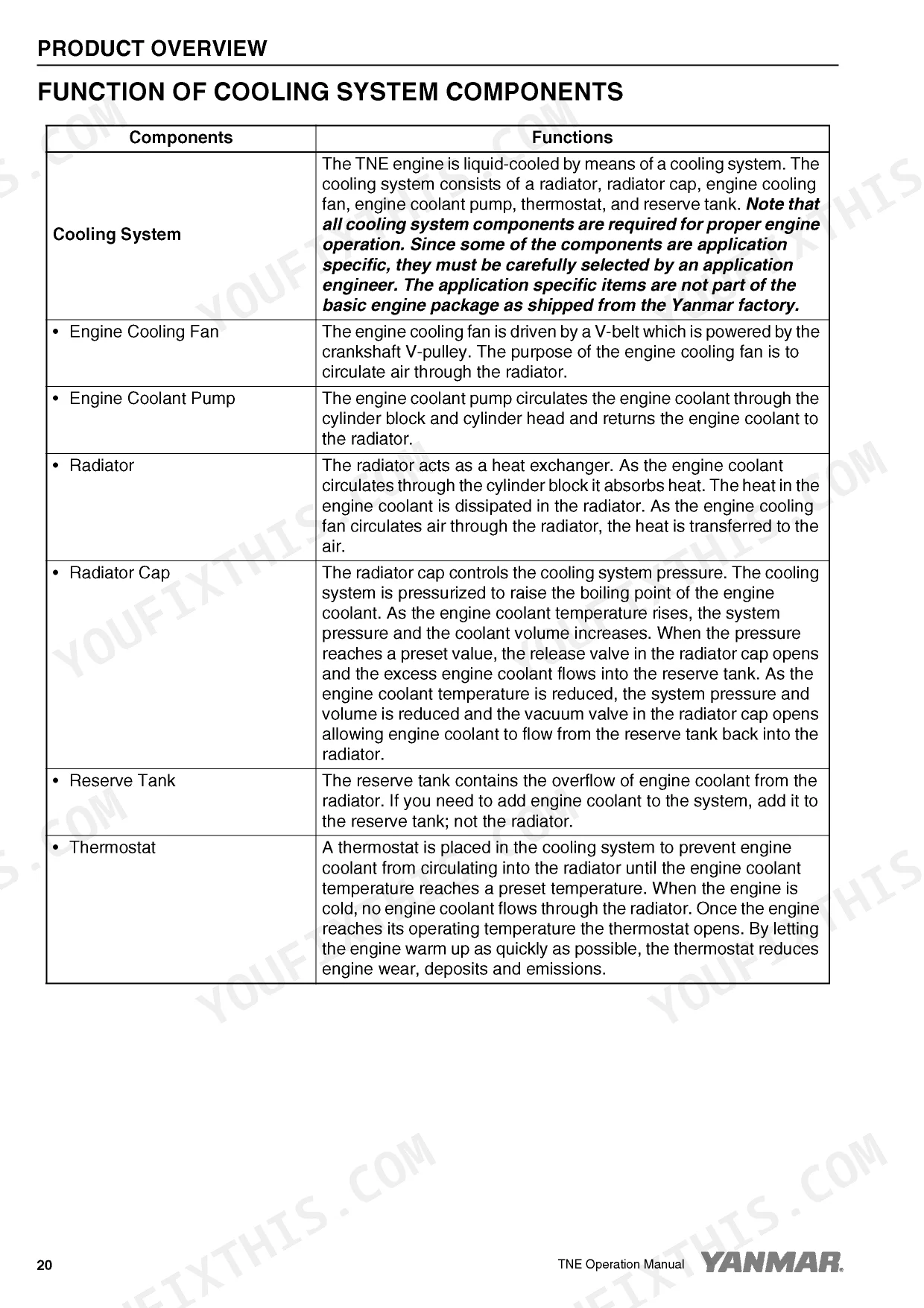

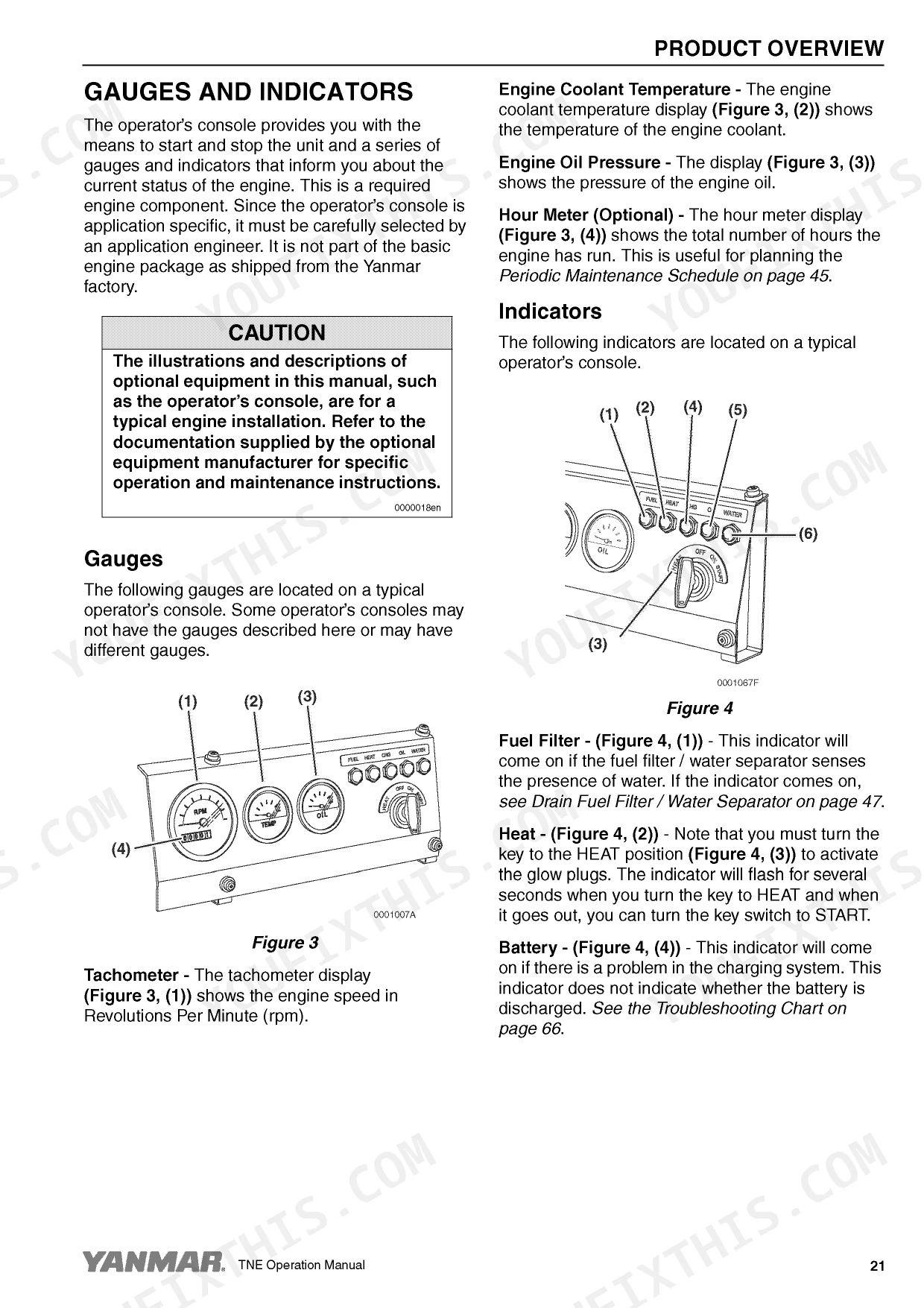

| Product Overview | 32-41 | Yanmar Tne Series Engine Features and Applications, Component Identification, Location of Labels, Epa / Arb Emission Control Regulations - Usa Only |
| Before You Operate | 42-53 | Diesel Fuel (Specifications, Filling the Fuel Tank, Priming the Fuel System), Engine Oil (Specifications, Viscosity, Checking Engine Oil, Adding Engine Oil, Capacity) |
| Engine Operation | 54-59 | Starting Engine, Checking the Engine During Operation, Battery Switch, Adjust Engine Speed, Shutting Down the Engine |
| Periodic Maintenance | 60-81 | Precautions, Standard Torque Chart, Periodic Maintenance Schedule, Periodic Maintenance Procedures |
| Troubleshooting | 82-85 | Troubleshooting Chart, Troubleshooting Information |
| Long Term Storage | 86-87 | Before You Place the Engine in Long Term Storage, Returning the Engine to Service |
| Specifications | 88-94 | General, Principal Engine Specifications |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel filter / water separator cup retaining ring torque | 11-15 ft lbs (15-20 N•m, 1.5-2.0 kgf•m) | p. 75 |
| Engine oil filter tightening instruction | Tighten an additional 3/4 of a turn using the filter wrench | p. 72 |

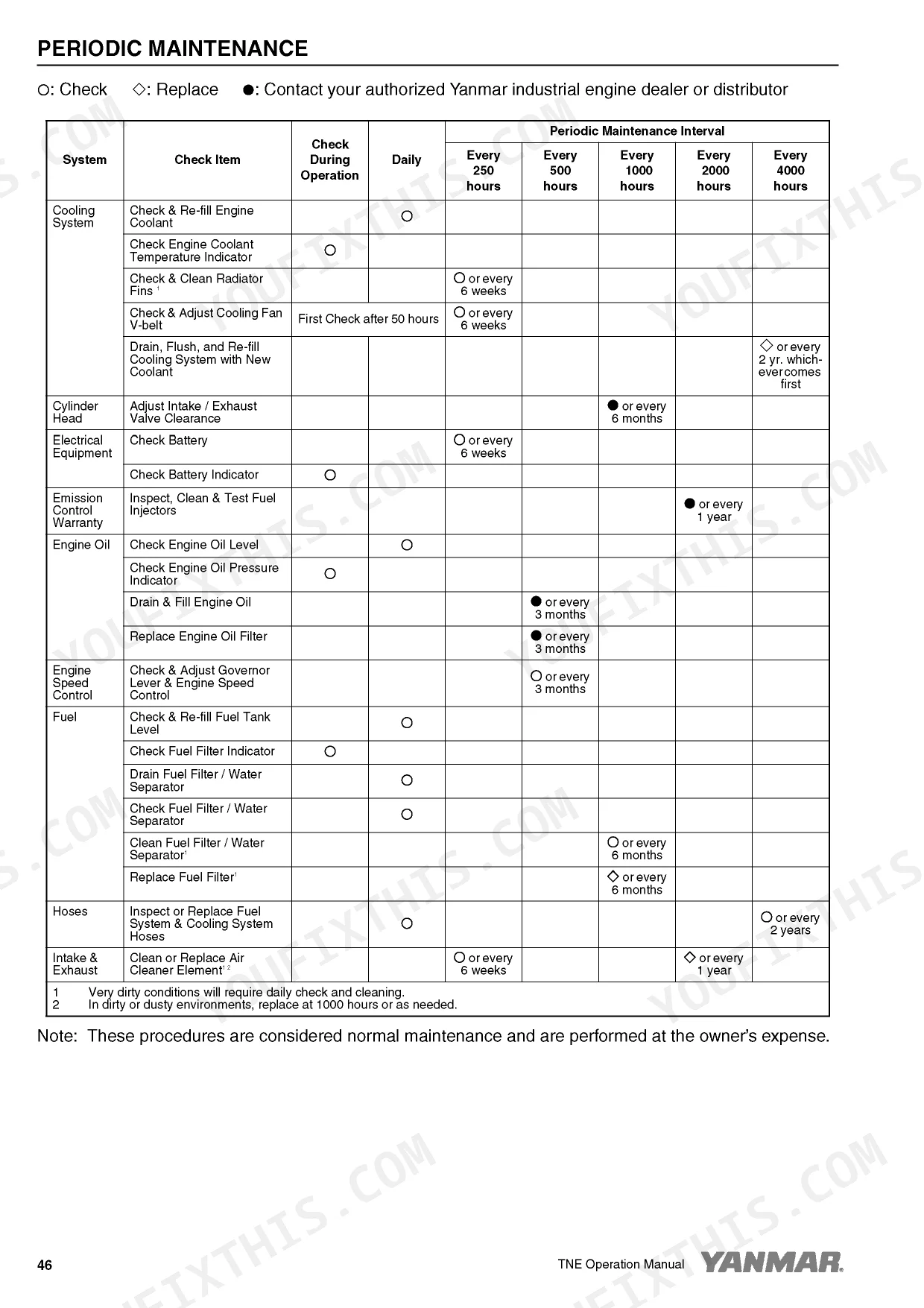

| Air cleaner element replacement interval | Every 2000 hours | p. 79 |
| Compressed air pressure for cleaning air cleaner element | 42-71 psi (0.29–0.49 MPa, 3.0-5.0 kgf/cm²) | p. 70 |
| Radiator cap tightening instruction | Press down and turn the cap clockwise about 1/3 of a turn | p. 50 |
| Rubberized fuel hoses replacement interval | Every two years or every 2000 hours of engine operation, whichever comes first | p. 44 |
| Fuel injectors inspection, cleaning, and testing interval (EPA / ARB requirement) | Every 2000 hours | p. 79 |
| Engine Oil Pressure (normal operating speeds) | 42-57 psi | p. 90 |
| Engine Oil Pressure (idle) | 18.5 psi | p. 90 |
| 4TNE92 EPA Tier2 | ||
| Maximum Exhaust Gas Restriction (4TNE92 EPA Tier2) | 1.85 psi | p. 61 |
| 4TNE94L EPA Tier2 | ||
| Maximum Exhaust Gas Restriction (4TNE94L EPA Tier2) | 3.84 psi | p. 61 |
| 4TNE92, 4TNE98 EPA Tier3 | ||
| Maximum Exhaust Gas Restriction (4TNE92, 4TNE98 EPA Tier3) | 8.53 psi | p. 61 |
Yanmar 4TNE92, 4TNE94L, 4TNE98 Common Problems This Manual Covers
Yanmar 4TNE92 engine cranks but does not start or starts after prolonged bleeding p. 66
Inspect the fuel system for air leaks on page 66. Replace rubberized fuel hoses every two years or every 2000 hours of engine operation, whichever comes first. Install the fuel filter cup and tighten the retaining ring to a torque of 11-15 ft lbs.
Manual Section: Engine No-Start ConditionsOil pressure warning light illuminates on dashboard or abnormal engine noise at operating speeds p. 66
Check the engine oil level and verify normal operating pressure is between 42-57 psi as listed on page 90. Replace the engine oil filter if clogged. Apply clean oil to the new filter gasket, install manually until seated, and tighten an additional 3/4 of a turn using the filter wrench.
Manual Section: Engine Oil Pressure Indicator IssuesEngine overheats under load, coolant level drops, or warning light indicates rising temperature p. 66

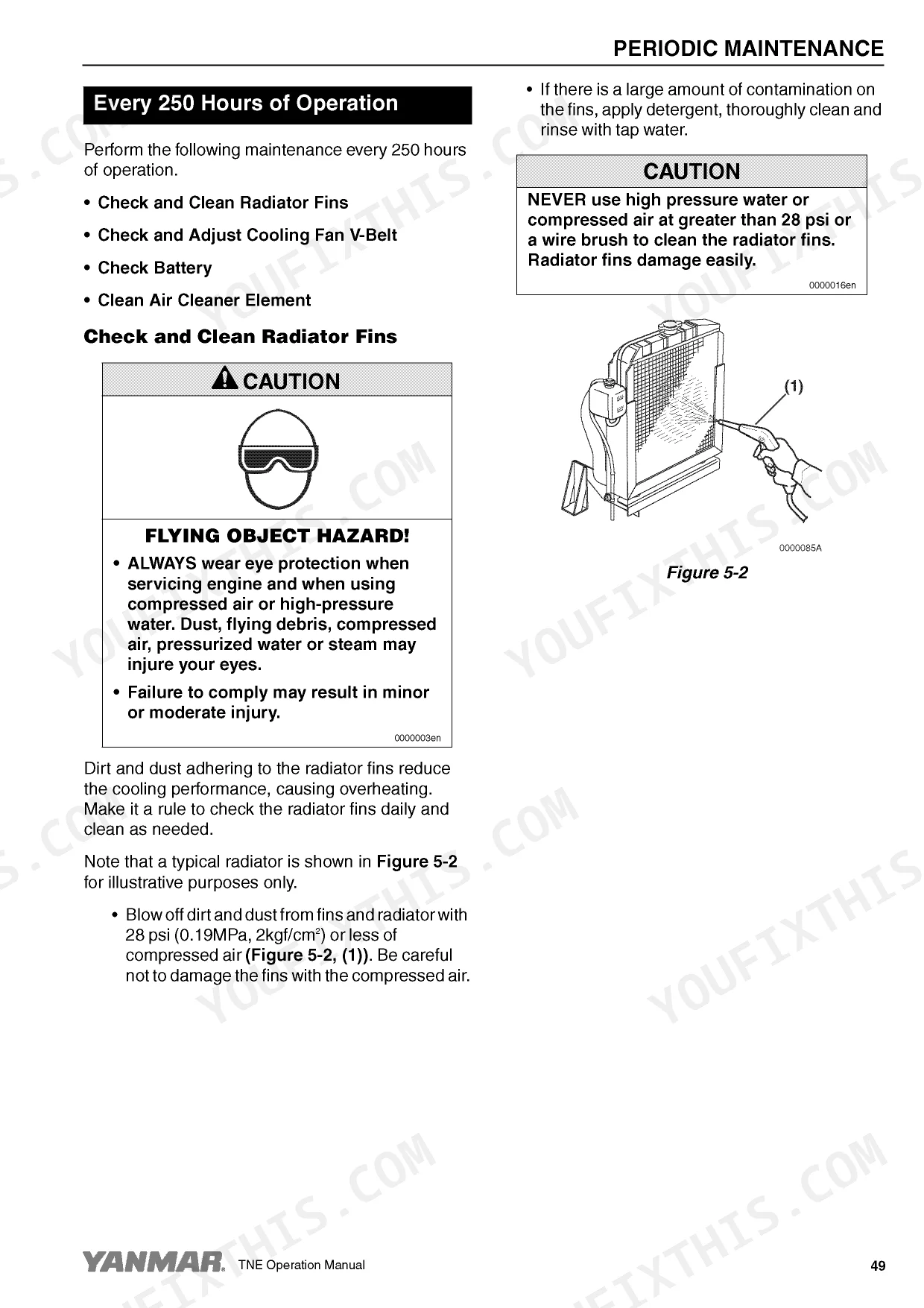

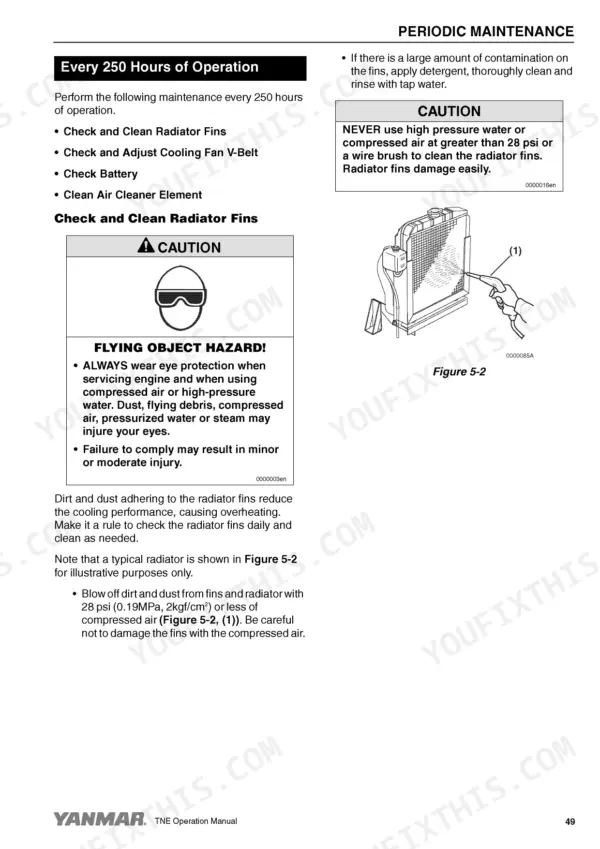

Inspect the radiator fins for dirt buildup and check for leaking hoses. Verify the coolant level in the reserve tank. Reinstall the radiator cap securely by aligning the tabs, pressing down, and turning the cap clockwise about 1/3 of a turn as detailed on page 50.
Manual Section: Engine Coolant Indicator IssuesExcessive black exhaust smoke under heavy load or engine loses power at operating speed p. 67
Inspect the air cleaner element for clogs causing black smoke on page 67. Blow air through the element from the inside out using 42-71 psi compressed air to remove particulates. Replace the air cleaner element entirely if it has reached the replacement interval of every 2000 hours.
Manual Section: Exhaust Smoke DiagnosticsFrequently Asked Questions
How do I bleed fuel on the Yanmar 4TNE92 engine family after a no-start?

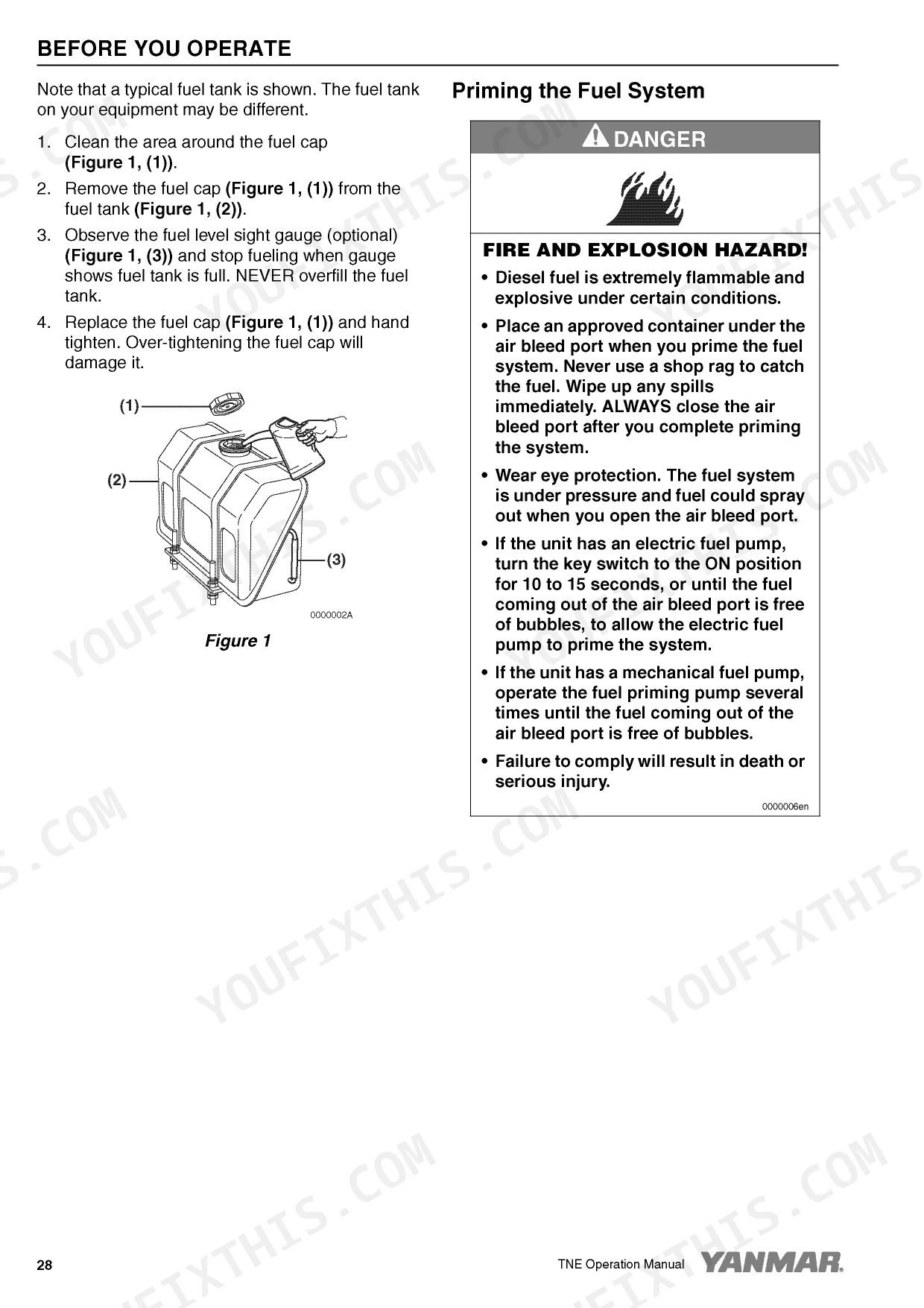

To prime the fuel system on engines with an electric fuel pump, turn the key to the ON position for 10 to 15 seconds until fuel coming out of the air bleed port is free of bubbles. For mechanical fuel pumps, operate the fuel priming pump several times until the fuel coming out of the air bleed port is free of bubbles. Always place an approved container under the air bleed port and wear eye protection.
What are the oil and fuel filter part numbers for the Yanmar 4TNE industrial engine?
Oil filter (replace every 500 hours or 3 months): part number 129150-35153. Main fuel filter (replace every 1000 hours or 6 months): part number 129901-55850. In-line fuel filter: part number 129901-55860. These apply to the 4TNE92, 4TNE94L, and 4TNE98 engines.
How do you fix a Yanmar 4TNE engine that cranks but does not start or starts only after prolonged bleeding?
Inspect the fuel system for air leaks on page 66. Replace rubberized fuel hoses every two years or every 2000 hours of engine operation, whichever comes first. Install the fuel filter cup and tighten the retaining ring to a torque of 11-15 ft lbs.
What is the air cleaner element replacement interval for the Yanmar 4TNE industrial engine?
The air cleaner element should be inspected periodically and replaced at the 2000-hour interval. Clean with compressed air at 42-71 psi. Refer to the periodic maintenance schedule on page 63 for the full list of service intervals.
Is this Yanmar 4TNE92 / 4TNE94L / 4TNE98 Operator Manual a digital download?
This is a 95-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you are under the hood. No shipping, no waiting.
Can I print sections of this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
