Operating a light tower safely requires the right factory information, and this 95-page Yanmar LB446H, LFRLB446H0 operator manual pdf (OEM #LFRLB446H0) walks you through the complete setup, operation, and maintenance of your equipment. Open the file to find step-by-step startup procedures, pre-operation checklists, and complete service schedules to keep your site illuminated. You get clear instructions on mast height adjustments, grounding protocols, and a full troubleshooting section covering both the projector and the generator. Confirm your engine oil capacity is topped off at exactly 0.8 L, and verify your battery electrolyte level sits 10 to 12 mm above the pole plate before firing up the unit. A dark job site brings work to a grinding halt. Grab this bookmarked file on your phone, find your daily service checks, and flip the switch with confidence.
What's Inside This Yanmar LB446H, LFRLB446H0 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 1-3 | Introduction, Safety Information, Table of Contents |
| Introduction | 3 | Safe and Efficient Use, Reading Manual, Safety Precautions, Serious Accidents |
| Informations De sécurité | 4 | Safe Use, Reading Instructions, Personal Injury, Material Damage, Danger, Warning, Important Signals |
| Précautions De Base | 8-9 | Reading Manual, Stopping Generator, Appropriate Clothing, Protective Equipment, Alcohol Use, Fuel and Oil Handling |
| Précautions D'utilisation | 10-14 | Workplace Safety, Fire Prevention, Adequate Ventilation, Installation Precautions, Tire Pressure, Mast Height Adjustment, Electrical Lines, Electric Shock |
| Précautions D'entretien | 15-16 | Appropriate Tools, Unauthorized Persons, refueling/oil Filling, Lamp Handling, Battery Cable Disconnection, Lifting Generator, Avoiding Injuries, Waste Disposal |
| Emplacement Des éTiquettes D'avertissement | 17-20 | Safety Messages, Label Replacement, Ordering New Labels, Warning Labels, Exhaust Gas, Burn, Flammable Substances, Emergency Stop |
| Specifications | 23-24 | Projector Model, Generator Model, Lamp Type, Luminous Intensity, Mast Height, Dimensions, Weight, Engine Specifications |

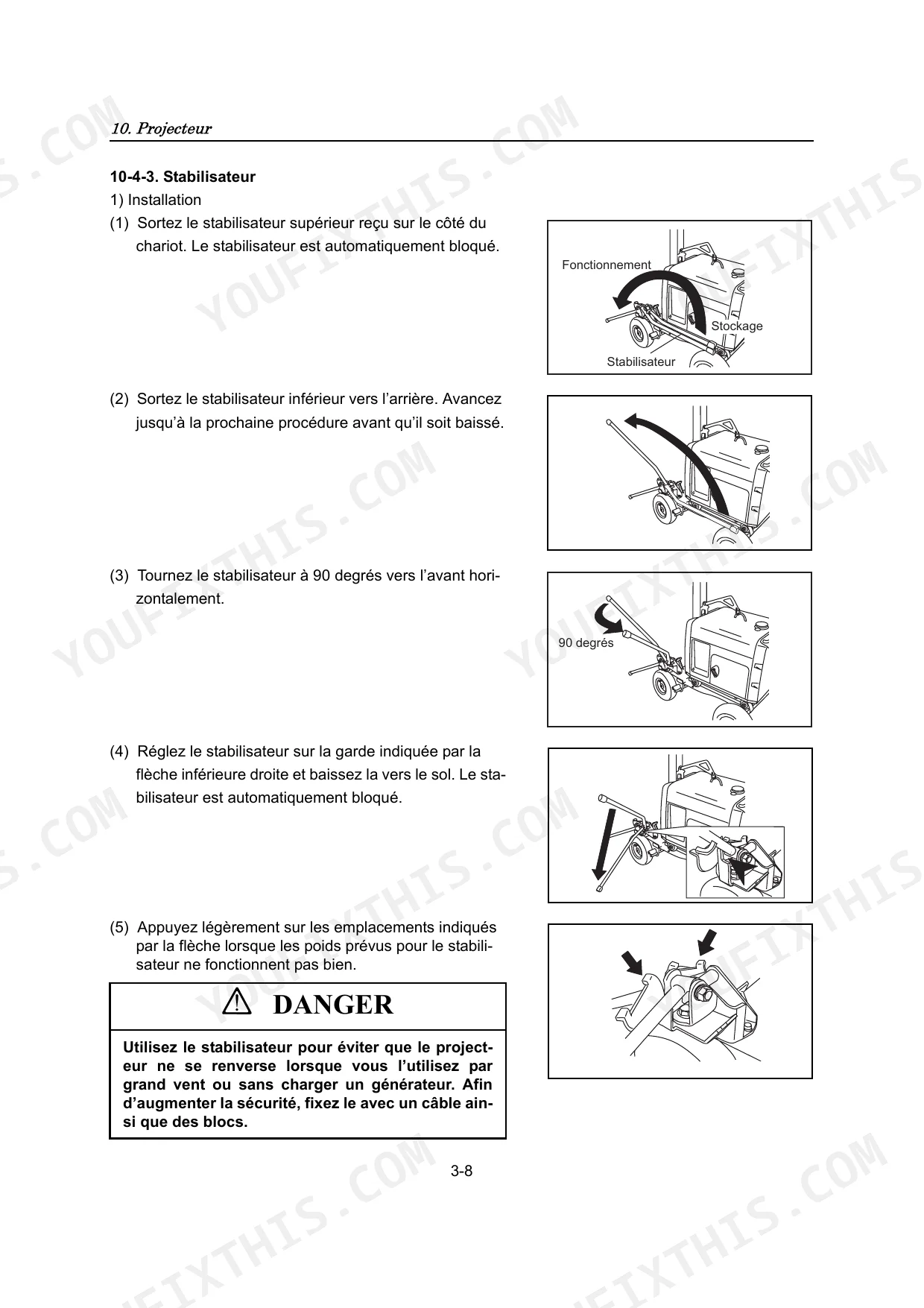

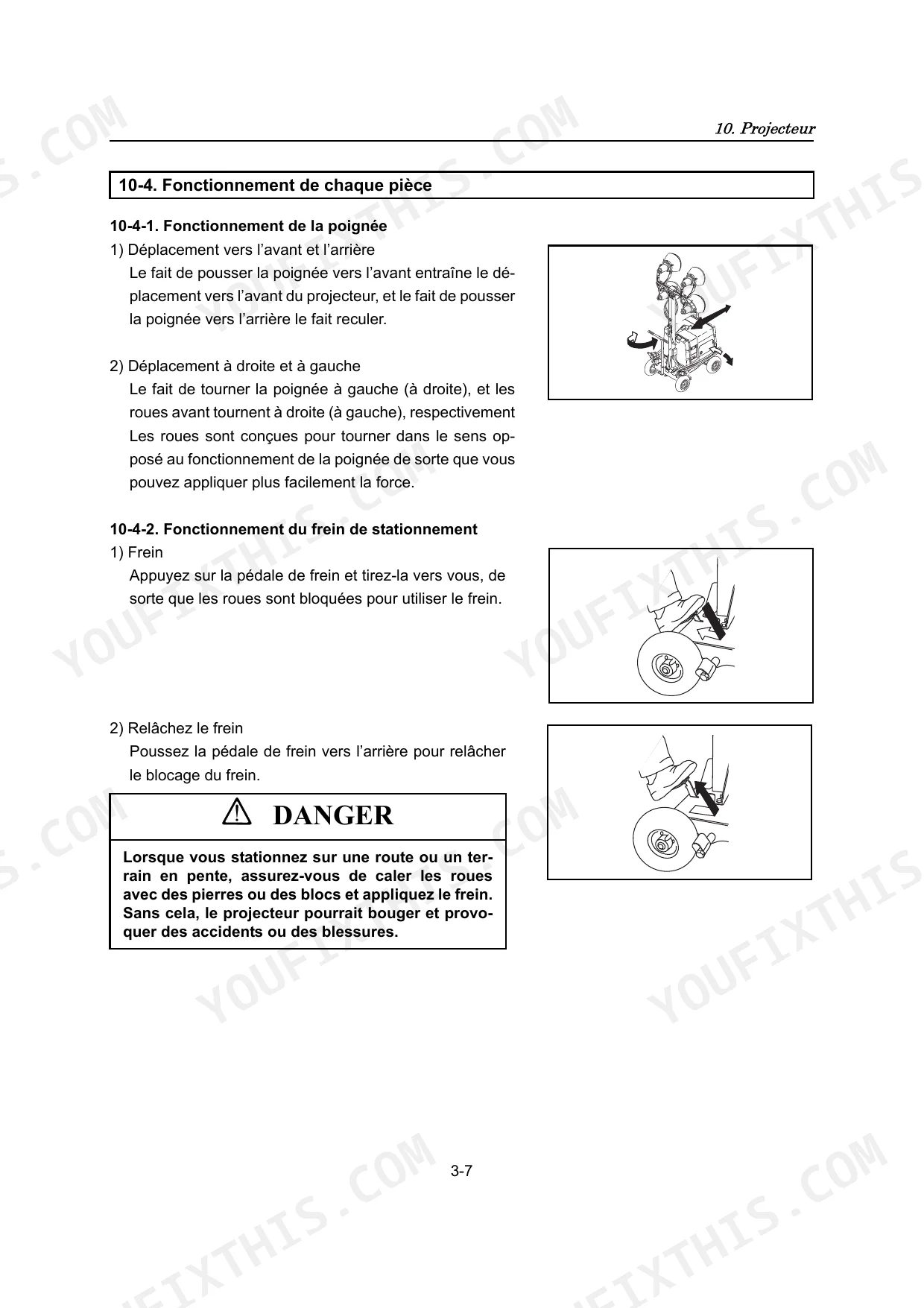

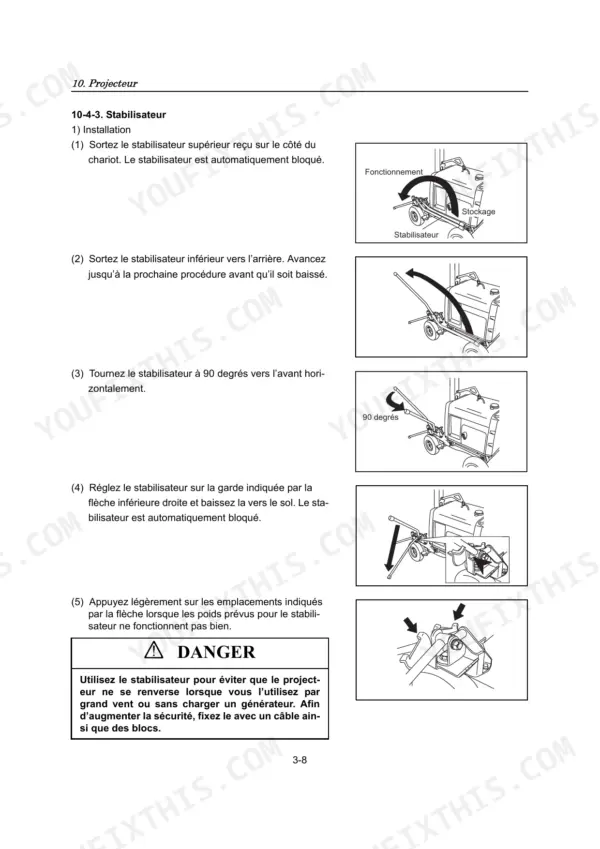

| Fonctionnement (Projecteur) | 27-39 | General View, Generator Loading, Lamp Replacement, Handle Operation, Parking Brake, Stabilizer, Lighting Unit Operation |
| Fonctionnement (Générateur) | 40-63 | General View, Intended Uses, Generator Characteristics, Operating Conditions, Model Description, Parts Names, Control Panel, Battery Handling |
| Entretien (Projecteur) | 65-66 | Projecteur (Contrôles Périodiques, Entretien Et Stockage, Problèmes), Générateur (Précautions Pour Le Contrôle, Liste Des Contrôles Périodiques, Contrôle Périodique) |
| Entretien (Générateur) | 68-76 | Control Precautions, Periodic Checks List, Oil Change, Filter Cleaning, Battery Electrolyte Check, Insulation Resistance, Fuel Filter Cleaning, Electrical Connections |
| Schema Electrique | 83 | Wiring Diagram, Color Coding, Starter Switch Operation |
| Commande Des Pieces De Rechange Et Appel De Service | 85 | Ordering Parts, Service Calls, Model Name, Serial Number, Hour Meter, Identification Plates |

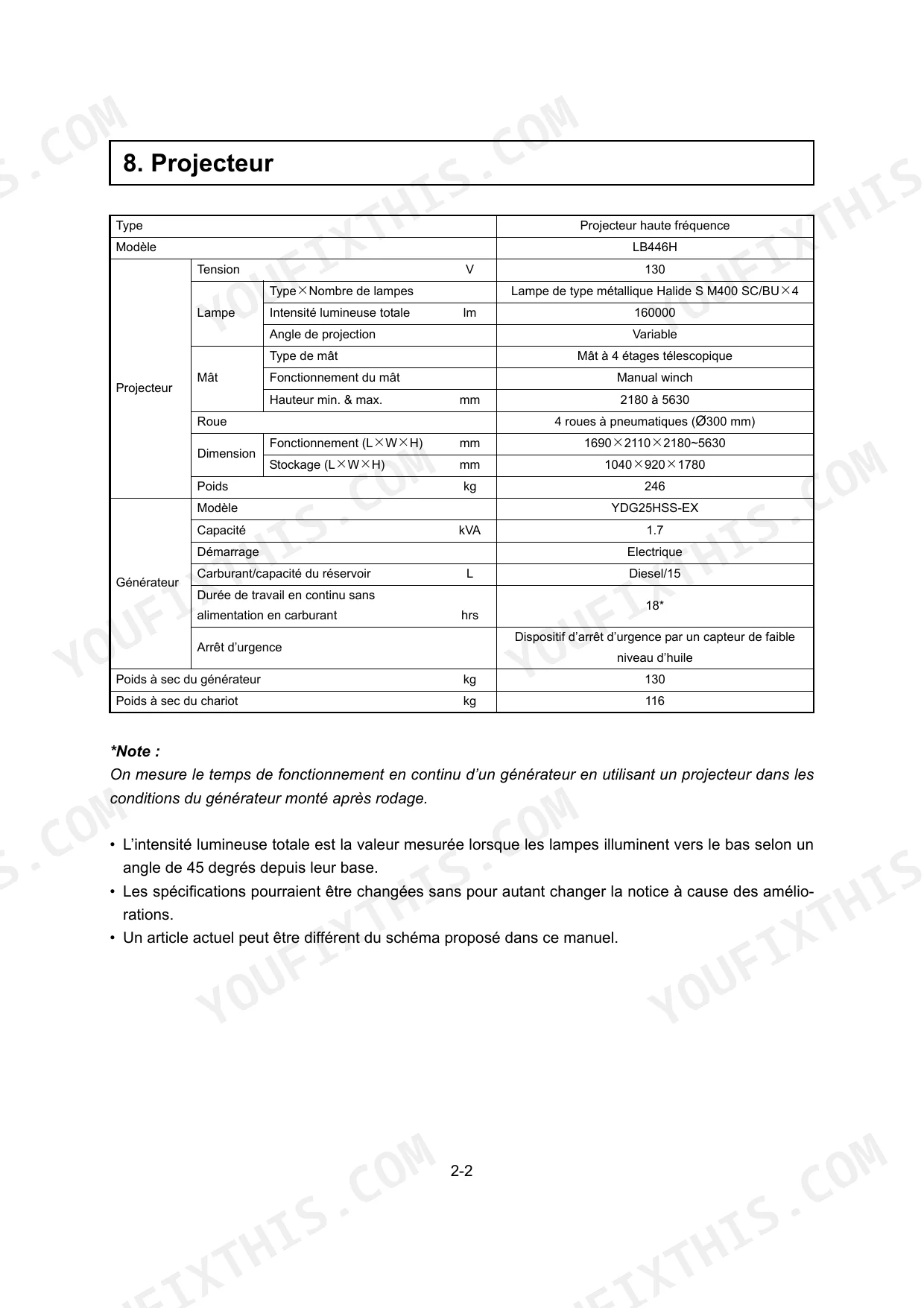

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| LB446H | ||
| Lamp type | Halide S M400 SC/BU x 4 | p. 23 |
| All Models | ||
| Lamp part number | 1-3010006-10 | p. 31 |
| Electrolyte level (lower limit) | 10 to 12 mm above pole plate | p. 49 |
| Fuel filter part number | 183293-55320 | p. 75 |
| Projector Voltage | 130 V | p. 23 |
| Projector Frequency | 540 Hz | p. 24 |
| Projector Luminous Intensity | 160000 lm | p. 23 |
| Projector Mast Height (min) | 2180 mm | p. 23 |
| Projector Mast Height (max) | 5630 mm | p. 23 |
| Generator Capacity | 1.7 kVA | p. 23 |
| YDG25HSS-EX | ||
| Engine oil capacity (upper limit) | 0.8 L | p. 24 |
| Engine oil capacity (lower limit) | 0.55 L | p. 24 |
Yanmar LB446H, LFRLB446H0 Common Problems This Manual Covers
Yanmar LB446H engine cranks but will not start or starts and immediately dies. p. 75
Check the fuel tank and verify it contains up to 15 L of clean diesel. Inspect the fuel filter (part number 183293-55320) on page 75 for clogs. Drain any water from the separator and prime the fuel system before attempting another start.
Manual Section: Entretien (Générateur)One or more projector lamps fail to strike or light dimly when activated.
Verify the main breaker is engaged and the projector voltage reads exactly 130 V. Review the troubleshooting steps for unlit bulbs. If a bulb is burnt out, replace it with part number 1-3010006-10 as shown on page 31.
Manual Section: Troubleshooting ProceduresLight tower sways excessively in high winds or leans poorly on uneven ground. p. 11
Measure the tire pressure and adjust it to exactly 2.0 to 2.5 kgf/cm² as directed on page 11 for proper stability. Verify the mast height does not exceed the 5630 mm maximum limit listed on page 23 before fully deploying the outriggers.
Manual Section: Précautions D'utilisationStarter clicks repeatedly but engine turns over too slowly to fire in cold weather. p. 49
Inspect the battery cells on page 49 and verify the electrolyte level sits exactly 10 to 12 mm above the pole plate. Top off with distilled water if low. Clean the terminal posts and tighten the cable clamps to ensure a solid electrical connection.
Manual Section: Fonctionnement (Générateur)Frequently Asked Questions
What are the torque specifications for YANMAR LB446H?
The manual provides standard torque specifications for bolts with a '7' on their head (resistance classification: 7T). For example, an M6x1.0 bolt requires 10.8 ± 1.0 N•m (1.1 ± 0.1 kgf•m), while an M16x1.5 bolt requires 226 ± 9.8 N•m (23.0 ± 2.0 kgf•m). For bolts not listed, apply 60% of the standard torque, and for aluminum parts, apply 80% of the standard torque.
What fault indicators does the YANMAR LB446H show?
The YANMAR LB446H generator is equipped with a protection device that automatically stops the engine in case of problems. If the oil pressure is low, the engine will automatically stop, and the oil warning light (Témoin d'huile) will illuminate. Additionally, the DC current circuit for engine control has a 20A fuse to prevent electrical shorts and fire.
How do I troubleshoot a YANMAR LB446H?

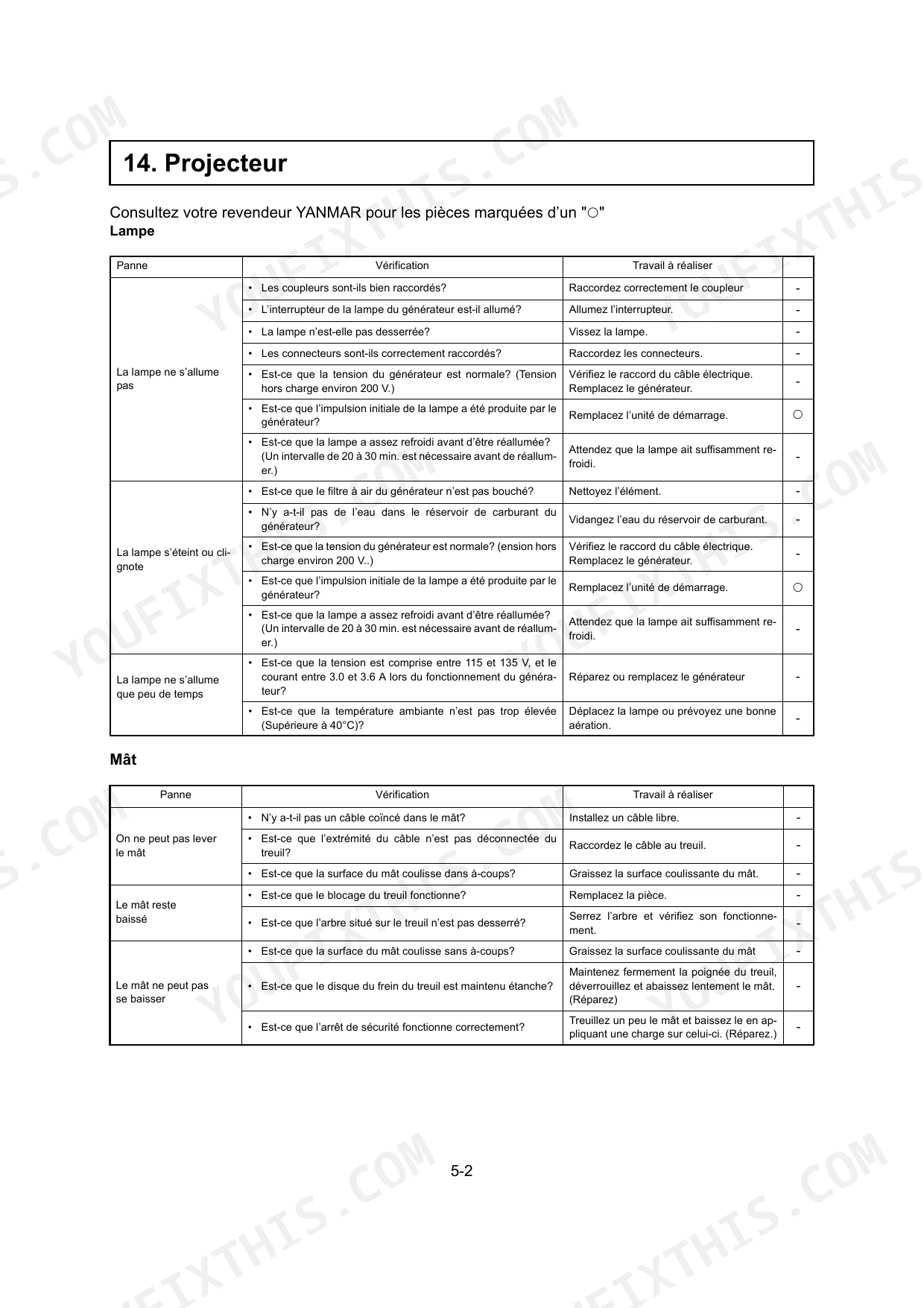

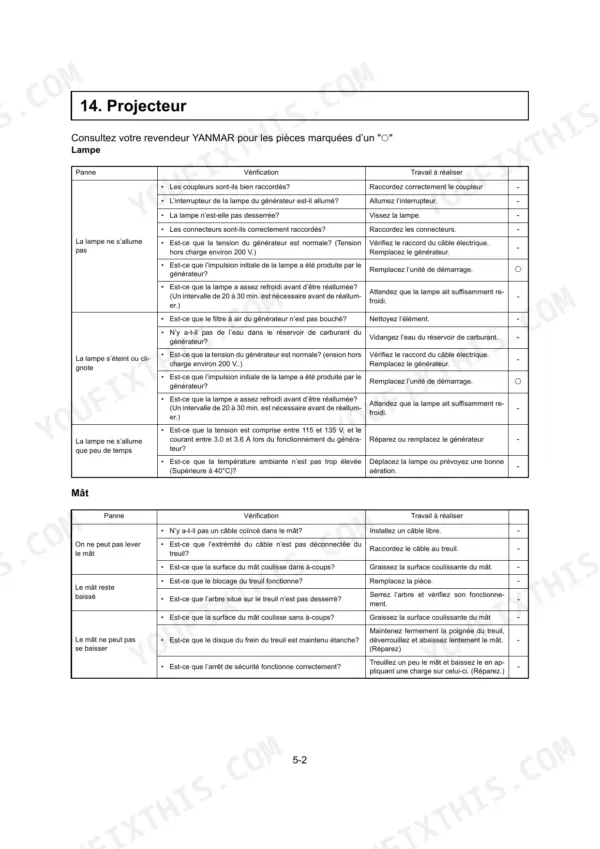

To troubleshoot the YANMAR LB446H, refer to the dedicated 'PANNES' (Troubleshooting) sections in the manual. For issues related to the projector, consult Section 14 on page 78. For generator-specific problems, refer to Section 15, which spans pages 79 to 81, detailing various problems, their causes, and the necessary corrective actions.
How do I service or maintain a YANMAR LB446H?

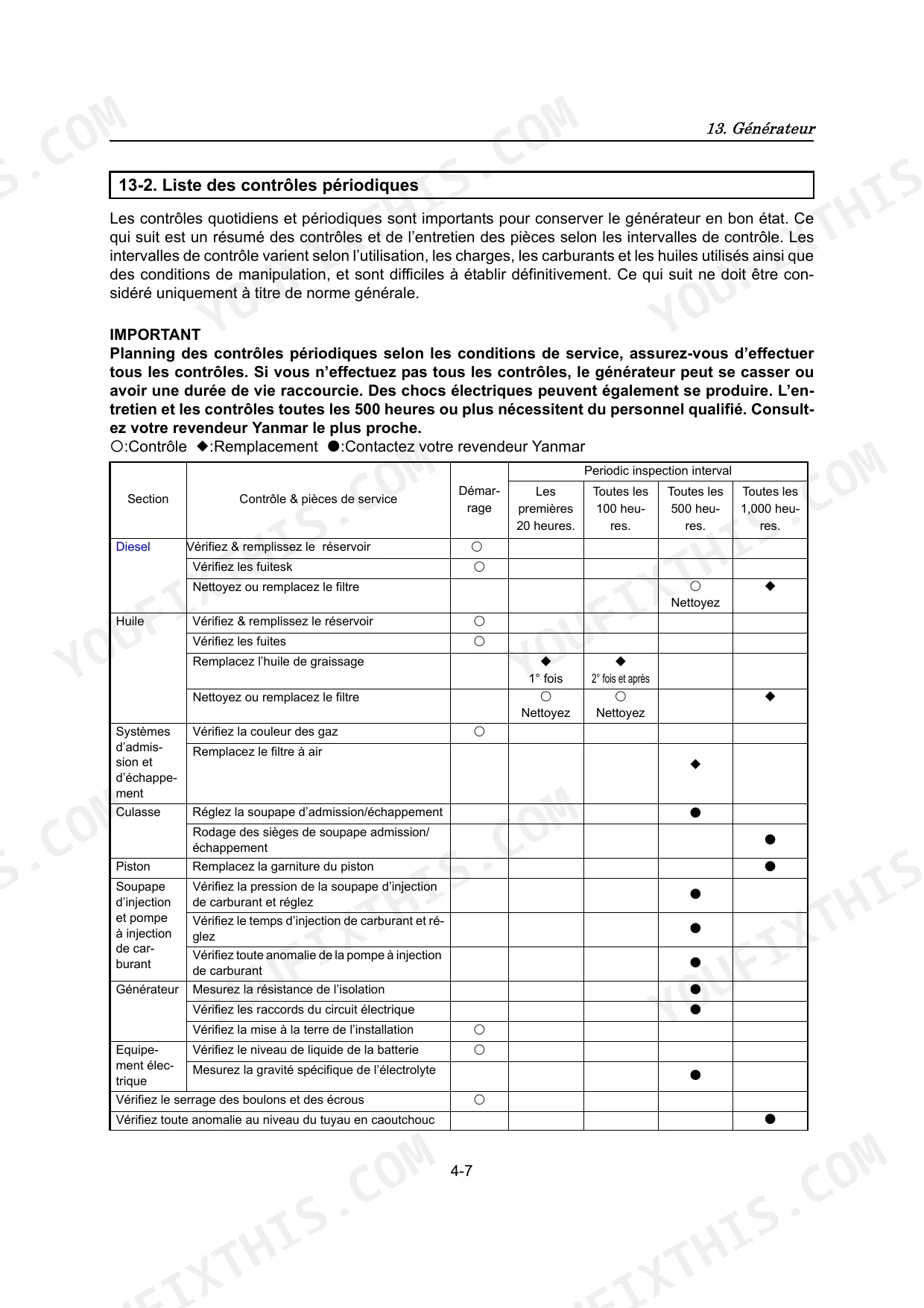

For service and maintenance of the YANMAR LB446H, consult the 'ENTRETIEN' (Maintenance) sections in the manual. Specifically, refer to Section 12, 'Projecteur', on pages 65-66 for periodic checks, maintenance, and storage related to the projector. For the generator, detailed procedures for periodic controls and maintenance are provided in Section 13, 'Générateur', on pages 68-76.
What are the replacement specifications for the lamp/bulb?
The replacement lamp for the YANMAR LB446H projector must be an original YANMAR lamp to ensure proper performance. The specified lamp type is 'Halide S M400 SC/BU', and its part number is 1-3010006-10. Using other types of lamps may result in altered lighting or reduced performance.
What format is this manual in?
This is a 95-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
