What's Inside This Yanmar C50R-3C Parts Manual

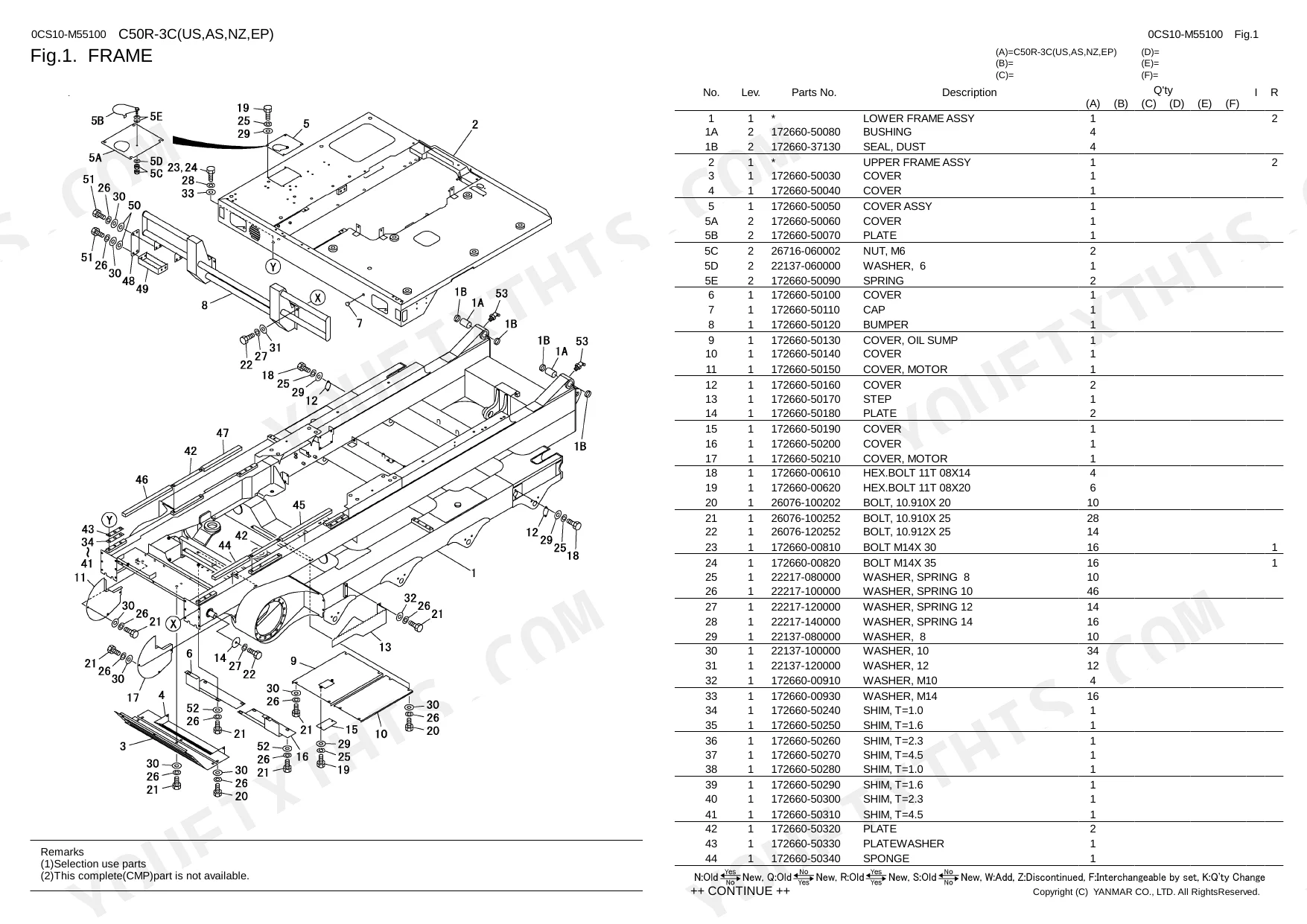

| System | Pages | Key Topics |
|---|---|---|
| Reference Materials | 2-5 | Preface, Parts Catalog History, Model Name |
| Frame | 9-10 | Bushing, Dust Seal, Cover, Plate, Spring, Cap, Bumper, Oil Sump Cover |
| Frame(Turning) | 11-12 | Cover, Plate, Spring, Cap, Bumper, Oil Sump Cover, Motor Cover, Step |
| Crawler Belt | 13 | - |
| Carrier Roller | 14 | Roller Shell, Shaft, Collar, Plate, Seal Cover, Seal, Ring, Hex.bolt 11T 10X14 |
| Truck Roller | 15 | Track Roller Assy, Track Roller Shell, Shaft, Plate, Spacer, Bracket Assy, Bushing, Dust Seal |
| Idler | 16 | Idler Assy, Idler Shell, Shaft, Seal Cover, Flat Bar, Plate, Taper Roller Bearing, Floating Seal |
| Truck Adgusta | 17 | Hawk, Boss, Crawler Cylinder, Pin |
| Travel Device | 18 | Sprocket, Travel Assy Motor, Hex.bolt 11T 16X35, Nipple, Elbow, Union |
| Turning Bearing | 19 | Swing Bearing Assy, Seal, Hex.bolt 11T 16X85, Bolt |
| Swivel Joint | 20 | Stopper, Hose Adapter, Tee, Elbow, Union, Swivel Joint Assy |
| Turning Frame | 21 | Swing Frame, Bushing, Dust Seal, Cover, Plate, Pipe |
| Turning Device | 22 | Hex.bolt 11T 16X50, Elbow, Union, Swing Motor Assy |
| Travel Lever | 23-24 | Seat Mount Assy, Plate a, Valve Mount Assy, Plate B, Cover, Link, Link S, Shaft |
| Travel Lever Piping | 25 | Mid. Press Hose, Tie-Lap, Protector, Plate |
| Dump & Turning Lever | 26 | Lever Bracket, 20X25 Bush, Arm, Lever, Dump Lever Assy, Lever Shaft, Lock Arm, Lock Lever |

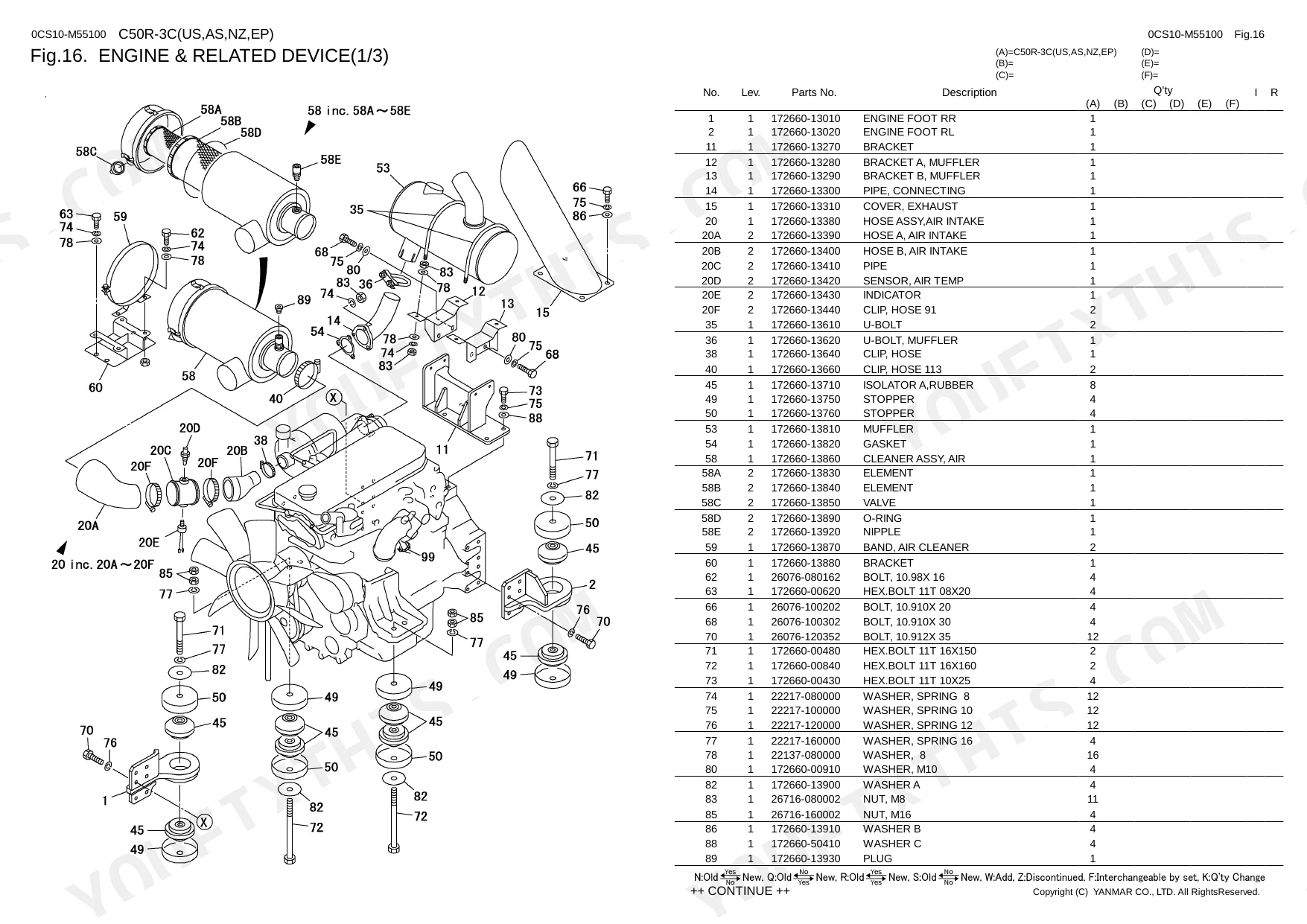

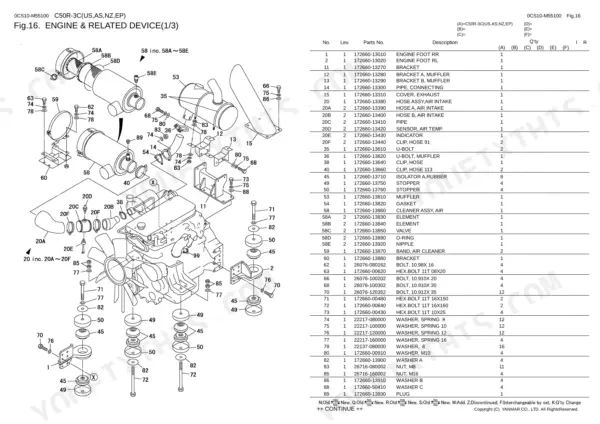

| Engine & Related Device(1/3) | 27-28 | Engine Foot Rr, Engine Foot Rl, Bracket, Muffler Bracket a, Muffler Bracket B, Connecting Pipe, Exhaust Cover, Air Intake Hose Assy |
| Engine & Related Device(2/3) | 29 | Air Intake Pipe, Bracket, Pipe Assy, Grommet, Intake Hose, Air Intake Hose C, Radiator Upper Hose, Radiator Hose |
| Engine & Related Device(3/3) | 30 | Radiator Bracket R, Bracket R, Radiator Bracket L, Bracket L, Shroud Assy, Seal, Trim, Sash Rubber |
| Control Box | 31-32 | Cover, Push-Button Switch, Pilot Box Assy, Resistor Assy, Urethane, Main Relay, Starter Switch Assy, Vinyl Hose |

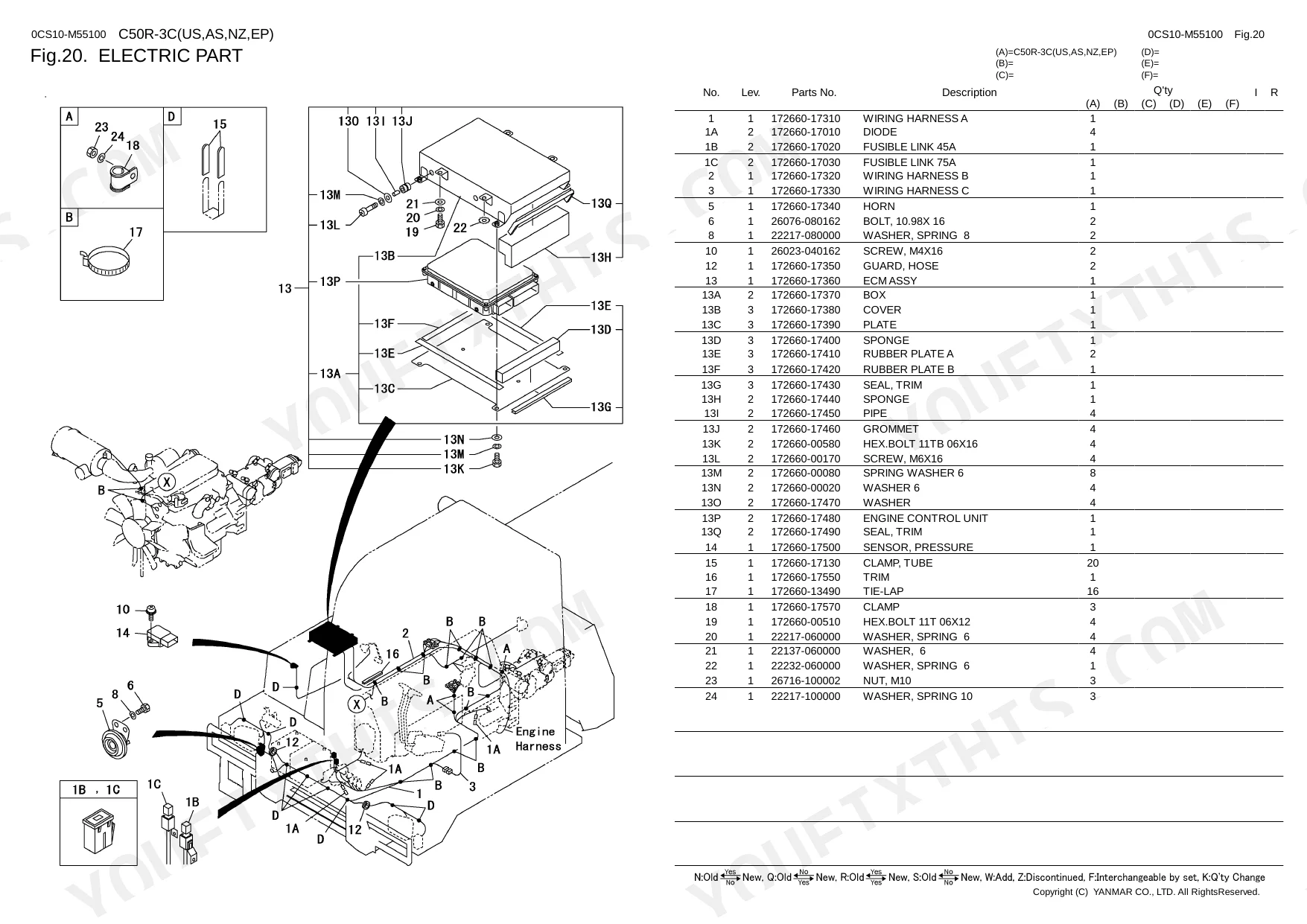

| Electric Part | 33 | Wiring Harness a, Diode, Fusible Link 45A, Wiring Harness B, Wiring Harness C, Horn, Hose Guard, Ecm Assy |
| Battery | 34-35 | Bracket a, Bracket B, Starter Cable, Terminal Cap, Corrugated Tube, Battery Cable, Terminal Cover |
| Vessel Center Lamp | 36 | Bracket a, Bracket B, Switch, Hex.bolt 11T 08X20, Tie-Lap, Ca Relay, Pilot Lamp, Wiring Harness |
| Vessel Sensor | 37 | Plate, Switch Assy, Hex.bolt 11T 08X20, Washer |
| Vessel Sensor(Turning) | 38 | Plate, Switch Assy, Hex.bolt 11T 08X20, Wiring Harness |
| Travel Alarm | 39 | 24V Buzzer, Hex.bolt 11T 06X16, Washer |
| Head Light | 40 | - |
| Back Light | 41 | Plate a, Plate B, Wiring Harness a, Working Lamp, Bulb, Rubber Packing, Hex.bolt 11T 08X12, Tie-Lap |
| Turn Signal Lamp | 42 | - |
| Wind Washer | 43 | Bracket, Nozzle, Grommet, Tie-Lap, Decal B, Wire Harness |
| Back Buzzer | 44 | 24V Buzzer, Hex.bolt 11T 06X16, Washer |
| Grease Piping | 45 | High Pressure Hose, Adapter, Elbow, Grease PT1 Nipple |
| Valve | 46-47 | Cont. Std Valve Assy, Elbow, Control Valve, Solenoid Valve Assy, Union, Plate a, Hex.bolt 11T 06X16, Tee Joint a |
| Valve(Turning) | 48-49 | Cont. Swi Valve Assy, Tee Joint a, Plunger, Elbow, Control Swing Valve, Solenoid Valve Assy, Union, Plate a |

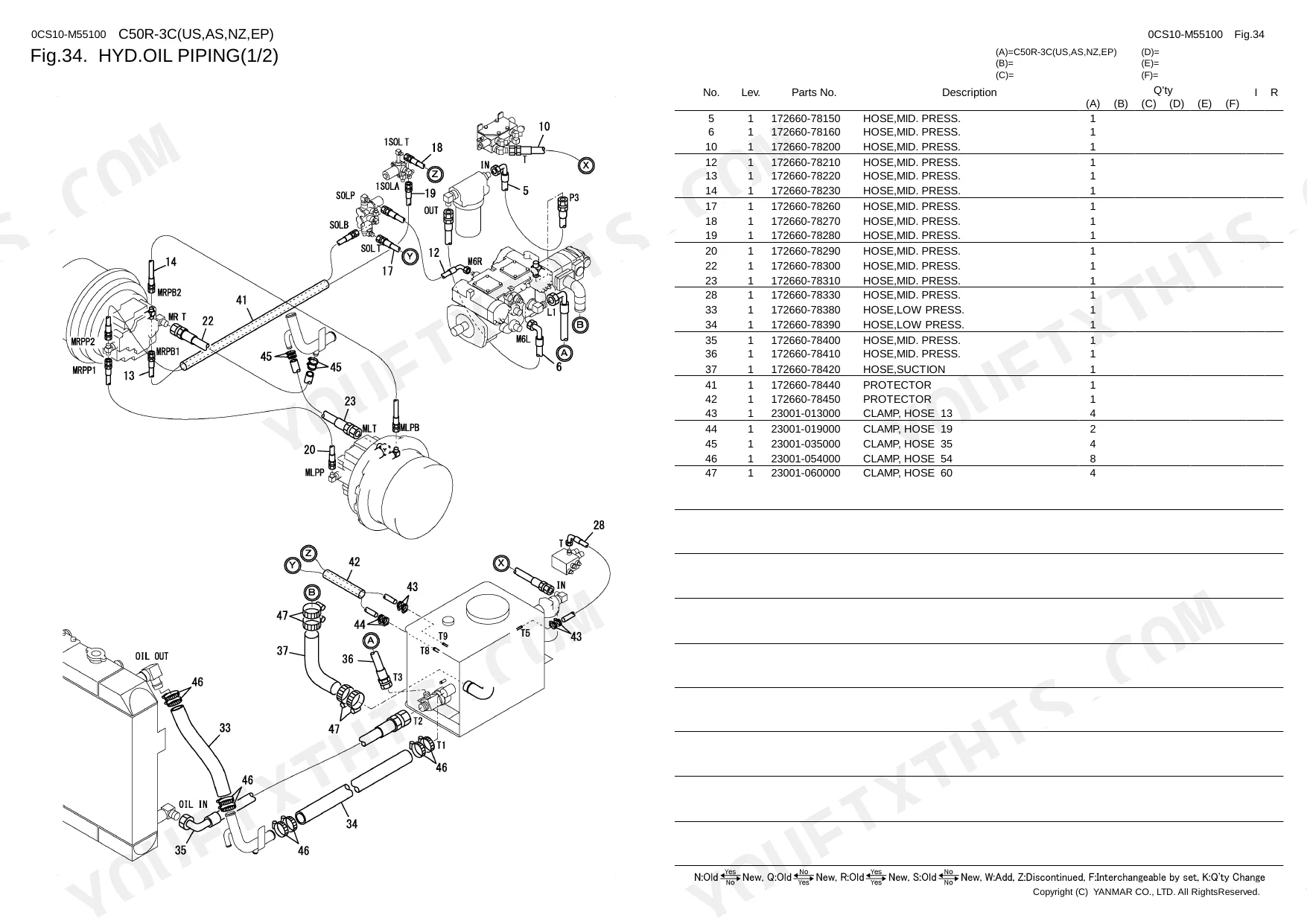

| Hyd.Oil Piping(1/2) | 50 | Mid. Press Hose, Low Press Hose, Suction Hose, Protector |
| Hyd.Oil Piping(2/2) | 51 | High Press Hose, Protector, Mid. Press Hose, Elbow |
| Hyd.Oil Piping(1/2)(Turning) | 52 | Mid. Press Hose, Low Press Hose, Suction Hose, Protector |
| Hyd.Oil Piping(2/2)(Turning) | 53 | High Press Hose, Protector, Mid. Press Hose |
| Turning Dump Piping | 54 | High Press Hose, Mid. Press Hose, Hose Guard, Plate, Hex.bolt 11T 08X20, Protector, Tie-Lap |
| Pump Driving | 55 | Engine Housing, Coupling Assy, Coupling Boss, Flange, Elbow, Adaptor Union a, Bushing, HST Pump |
| Hyd.Oil Tank | 56 | Reservoir Tank, Cover, Hex.bolt 11T 10X16, Tee, P Packing, Check Valve, Suction Strainer, Breather |
| Hyd.Oil Tank(Turning) | 57 | Reservoir Tank, Cover, Hex.bolt 11T 10X16, Elbow, Hose Adapter, Tee, P Packing, Check Valve |
| Fuel Oil Tank | 58-59 | Fuel Tank, Fuel Tank S, Bracket, Fuel Sender, Packing, Tank Cap, Tank Screen, Elbow |
| Cover(1/4) | 60-61 | Cover Assy, Front Assy S Cover, Sash Rubber, Side Assy S Cover, RH S Cover Assy, Acoustic Absorbent, Cover Assy S, Insulator |
| Cover(2/4) | 62-63 | Bonnet Assy, Bonnet Assy S, Acoustic Absorbent, Handle, Lock, Hex.bolt 11T 05X14, Plate, Cleaner Cover Assy |
| Cover(3/4)(Turning) | 64 | Guard Assy, Acoustic Absorbent, Cover Assy, Pump Cover, Hex.bolt 11T 10X16, Sash Rubber, Seal, Grommet |
| Cover(4/4)(Side Cover Lift) | 65 | Cover Assy, Side Assy S Cover, Side LH S Cover, Insulator, Plate, Plate S, Seal, Sash Rubber |
| Balustrade | 66 | Handrail, Side Handrail, U-Bolt, Bolt |
| Rearview Mirror | 67 | Mirror Stay, Holder, Rear View Mirror, Spring, Grease M6F Nipple, Collar |
| Floor | 68 | Floor Plate, Floor Mat a, Rubber Sponge, Floor Mat, Spacer, Rubber, Cover, Non Slip Sheet |
| Seat(1/2) | 69 | Operator Seat, Hex.bolt 11T 08X20, Stopper, Washer |
| Seat(2/2) | 70 | Operator Seat, Slide Rail a Assy, Spring Plate Assy, Rubber Boots, Angle Assy, Link Assy, Damper Assy, Adjuster Assy |

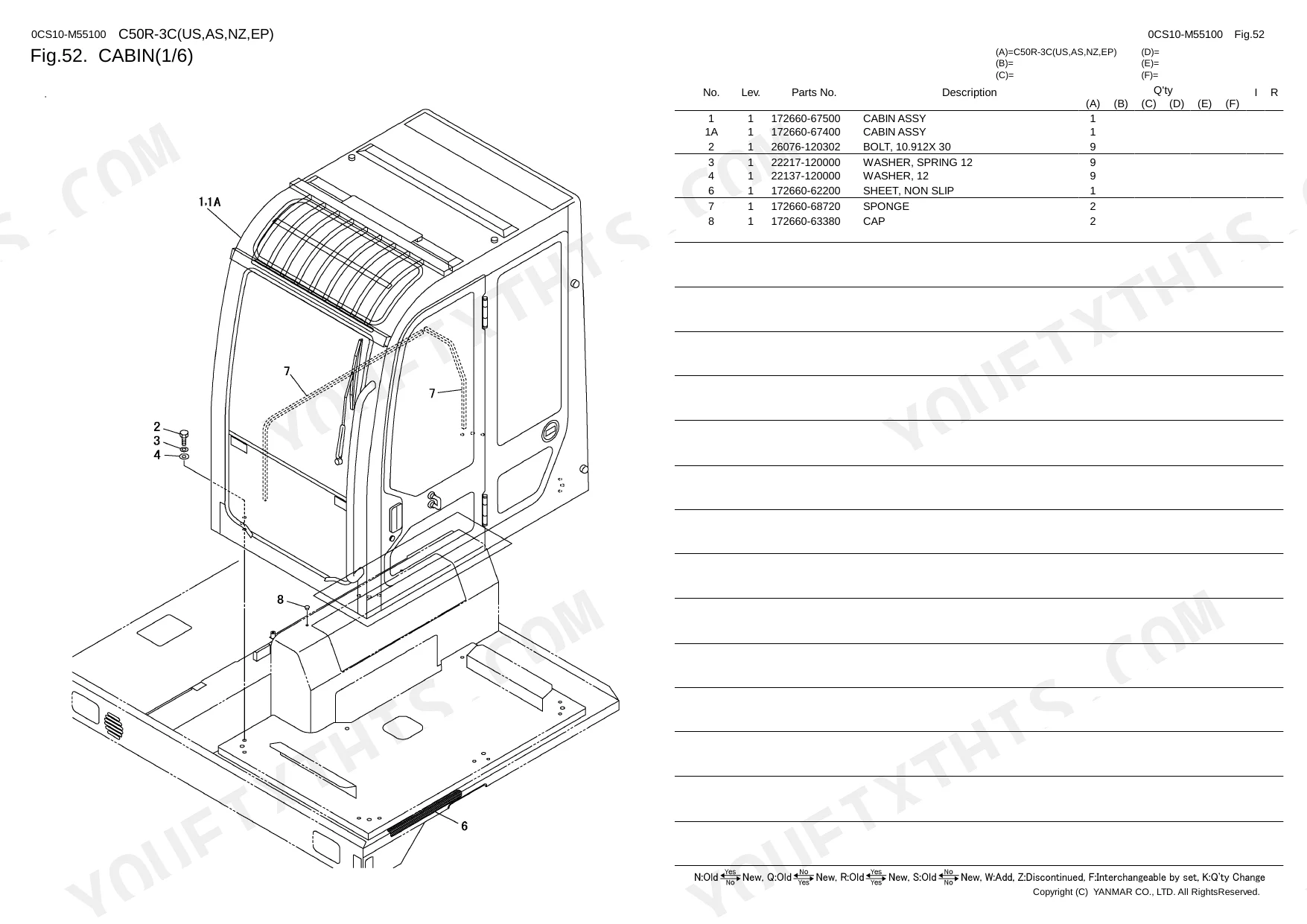

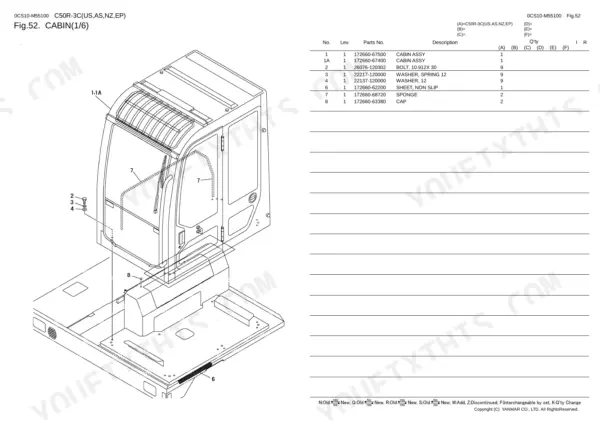

| Cabin(1/6) | 71 | Cabin Assy, Non Slip Sheet, Sponge, Cap |
| Cabin(2/6) | 72 | Cabin, Sash Assy, Door Assy, Guard, Glass, Lock, Weather Strip, Retainer |
| Cabin(3/6) | 73-74 | Wire Harness, Stopper, Plate, Cover, Seal, Spring, Striker, Grommet |
| Cabin(4/6)(Sun Visor) | 75 | Sunvisor, Plate, Screw, Washer |
| Cabin(5/6)(Front Sash) | 76 | Sash Assy, Glass, Seal, Plate, Roller, Plate LH, Plate RH, Grommet |
| Cabin(6/6)(Door) | 77 | Door Assy, Glass, Cover, Plate, Rod, Control Assy, Collar, Seal |
| Canopy | 78 | Canopy Frame, Handrail, Hold Bar, Bar S, Plate, Room Mirror, Pivot, Hex.bolt 11T 06X12 |
| Heater | 79-80 | Heater Assy, Cover Assy, Urethane, Heater Bracket, Heater Cover Assy, Damper Assy, Seal, Bracket a |
| Defroster | 81 | Duct, Louver a, Louver B, Defroster Hose, Cuffs |

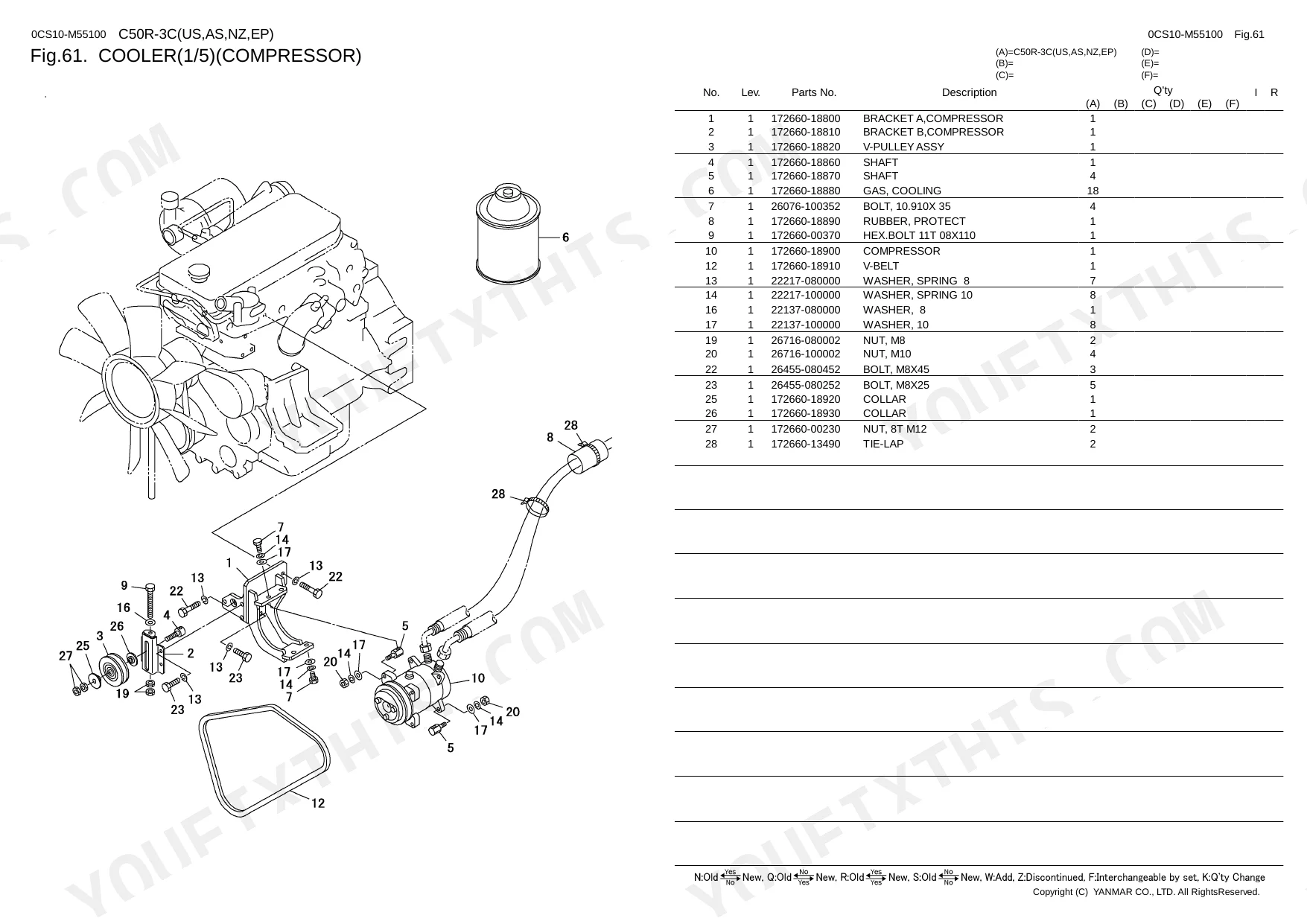

| Cooler(1/5)(Compressor) | 82 | Compressor Bracket a, Compressor Bracket B, V-Pulley Assy, Shaft, Cooling Gas, Protect Rubber, Hex.bolt 11T 08X110, Compressor |
| Cooler(2/5)(Condenser) | 83 | Condenser Bracket a, Condenser Bracket B, Collar, Bracket Assy, Air-Con Hose a, Air-Con Hose B, Air-Con Hose C, Condenser |
| Cooler(3/5)(Cooler Unit:1) | 84-85 | Air Conditioner, Defroster, Sponge, Angle, Insulator, Air-Con Unit Bracket, Cover, Air-Con Hose B |
| Cooler(4/5)(Cooler Unit:2) | 86 | Air Conditioner, Cover Assy, Evaporator Assy, Heater Core Assy, Knob, Fan Moter, Thermostat, Water Valve |
| Cooler(5/5)(Cooler Bracket) | 87 | Bracket a, Bracket B, Hex.bolt 11T 12X20, Bolt |
| Vessel | 88 | Scoop-End Vessel, Scoop-End Vessel S, Cushion, Lock LH, Lock RH, Plate, Ring, Elbow |
| Vessel(Reinforce Type) | 89 | Scoop-End Vessel, Scoop-End Vessel S, Cushion, Lock LH, Lock RH, Plate, Ring, Elbow |
| Vessel(Turning) | 90 | Scoop-End Vessel, Scoop-End Vessel S, Lock, Cushion, Pipe, Plate, High Press Hose, Collar |
| Dump Body | 91-92 | Dump Body S, Handle, Handle S, Gate, Side Gate S, Rear Gate S, Cushion |
| Rear Link | 93 | Lever, Spring Assy, 20X20 Bush, Lever Shaft, Plate, Yoke, Seal, Grease M6F Nipple |
| Open and Close Lever | 94 | - |
| Label(1/2) | 95-96 | Model Decal, Brand Decal, Emblem Assy S, Yanmar S Label, Spec. Us Decal, Oil & Water Decal, Control Decal, Warning Dump Decal |
| Label(2/2) | 97-98 | Model Decal, Brand Decal, Emblem Assy S, Yanmar S Label, Spec. Us Decal, Oil & Water Decal, Control Decal, Warning Dump Decal |
| 103.(73A)Safety Label(Canopy) | 99 | Safety Usp Label Kit, No Traction Decal, Care Manual Decal, Label, Warning Step P Decal |
| 104.(73B)Safety Label(Cabin) | 100 | Safety Usc Label Kit, No Traction Decal, Care Manual Decal, Label |
| 105.(73C)Label(Canada)(1/2) | 101 | Canada Kit W Label, Dump Lock Label, Slope Label, Seat Reverse Label, Neutral Label, Alert Label, Seat Reverse C Label, Swing Area Label |
| 106.(73D)Label(Canada)(2/2) | 102 | Canada Kit Label, Dump Lock Label, Slope Label, Seat Reverse Label, Neutral Label, Alert Label, Seat Reverse C Label, Swing Area Label |
| 107.(73E)Safety Label(Canada)(Canopy) | 103 | Dump Lock Label, Slope Label, Neutral Label, Alert Label, Seat Reverse C Label, Swing Area Label, Seat Belt Label, Access Label |
| 108.(73F)Safety Label(Canada)(Cabin) | 104 | Dump Lock Label, Slope Label, Neutral Label, Alert Label, Seat Reverse C Label, Swing Area Label, Seat Belt Label, Access Label |
| Tool | 105 | Tool Kit, 10X12 Spanner, Wrench, Spanner, Tool Bag, Grease Pump, Filter Wrench, Warning Us Tag |
| Painted Color | 106 | - |
| Painted Color(Turning) | 107 | - |
| Control Valve(1-Range) | 108 | Control Valve, Tie Rod, Inlet Housing, No. Block Assy, Plate, Relief Valve Assy |
| Control Valve(2-Range) | 109 | Control Swing Valve, Tie Rod, Inlet Housing, No. Block Assy, Plate, Relief Valve Assy |
| Inlet Housing(1-Range) | 110 | Inlet Housing, Seal Plate, O-Ring, Washer |
| Inlet Housing(2-Range) | 111 | Inlet Housing, Cap, Filter, O-Ring |
| Blok(1)(1,2-Range) | 112 | No. Block Assy, Dust Seal, Seal Plate, Spring Seat, Spring, Cap, Plunger |
| Blok(2) | 113 | No. Block Assy, Dust Seal, Seal Plate, Spring Seat, Spring, Cap, Plunger |
| Remote Control Valve | 114 | Seal Set, Packing, Cover, Grease Cup, Rod, Spring Seat, Piston |
| Auto Tension Valve | 115 | Auto Tenshon Valve, Plunger, Spring, Body, Relief Valve Assy |
| Solenoid Valve(1-Range) | 116 | Solenoid Valve, Spring, Band, Tube, Solenoid |
| Solenoid Valve(2-Range) | 117 | Solenoid Valve, Cover, Spring, Solenoid, Cable, Tube |
| Swivel Selector | 118 | Selector Valve, Seal Set, Thrust Ring, Shaft, Rotor, Cover, Ring |
| Swivel Joint | 119 | Swivel Joint Assy, Seal Set, Dust Seal, Slipper Seal, Backup Ring, Swivel Joint Hub, Shaft, Swivel Flange |
| Dump Cylinder | 120 | Dump Cylinder Assy, Seal Set, Oil Seal, Packing, Back Up T3G85 Ring, Gasket, Tube Assy, Bush |
| Dump Cylinder(Turning) | 121 | Dump Cylinder, Seal Set, Piston Packing, Dust Seal, Backup Ring, Rod Packing, Tube Assy, Bushing |
| Truck Shoe Cylinder | 122 | Crawler Cylinder, Seal Set, Rod Packing, Backup Ring, Dust Seal, Piston Packing, Tube Assy, Piston Rod |

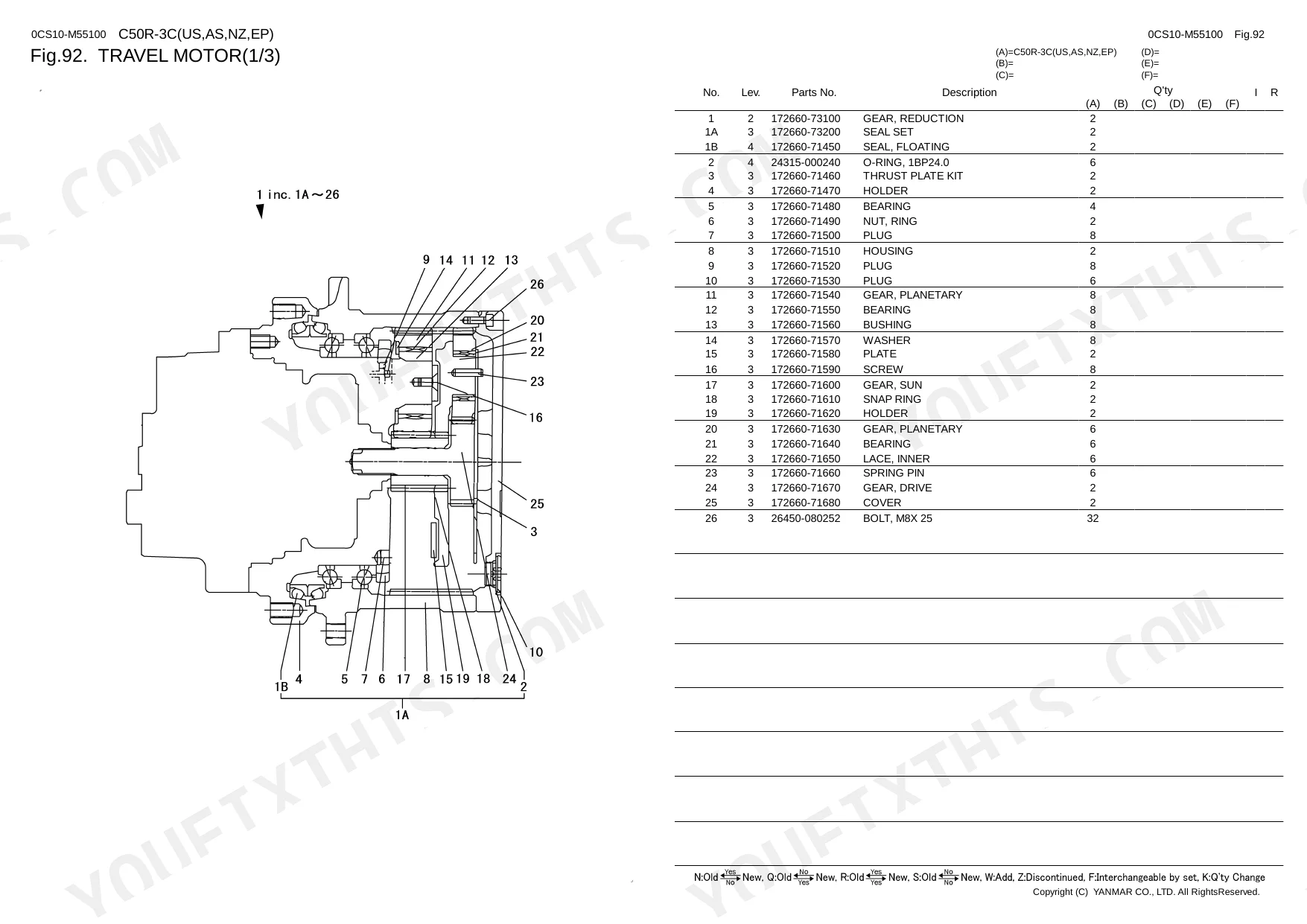

| Travel Motor(1/3) | 123 | Reduction Gear, Seal Set, Floating Seal, Thrust Plate Kit, Holder, Bearing, Housing, Planetary Gear |
| Travel Motor(2/3) | 124 | Seal Set, Oil Seal, Back Up T2P15 Ring, Backup Ring, P Packing, Shaft, Bearing, Swash Plate |
| Travel Motor(3/3) | 125 | Spring Seat, Spring, Flange, Valve Assy, Seal Set, Back Up T2P15 Ring, Backup Ring, Poppet |
| Turning Motor(1/2) | 126 | Reduction Gear Assy, Seal Set, Housing Assy, Thrust Plate a, Holder, Inner Lace, Bearing, Gear |
| Turning Motor(2/2) | 127 | Hydraulic Oil Motor, Seal Set, Cylinder Block Kit, Case, Shaft, Thrust Plate, Collar, Spring |
| Hyd.Oil Pump(1/5) | 128 | Cylinder Block Kit, Swash Plate, Bearing Assy, Gasket, Cover Assy, Plate |
| 129 | Back-Up Ring, Piston Assy, Cover, Gasket |
