Looking for the exact factory teardown procedures for your crawler carrier? This 573-page Yanmar C50R-3C Service Manual PDF breaks down every pump, motor, and track assembly to keep your equipment moving. Inside, you get complete hydraulic schematics covering fluid routing, detailed electrical circuit diagrams, and a massive HST troubleshooting section to pinpoint drive issues fast. Open to page after page of step-by-step rebuilding instructions with clear exploded views for your gear pump, travel motor, swing wagon, and control valves. Swap the hydraulic oil tank line filter every 500 hours, bleed the HST system correctly the first time, and lock down your carrier roller drain bolt to exactly 40.5 ft-lbf (55 N-m). A broken machine burns through your daily profit margin. Grab this smartly bookmarked download, pull it up on your shop tablet, and get those tracks turning again.
What's Inside This Yanmar C50R-3C Manual
| System | Pages | Key Topics |
|---|---|---|
| General Cautions for Maintenance Work | 7-20 | Correct Work, Safety Precautions, Preparations, Cautions for Disassembly and Reassembly, Cautions for Removal and Installation of Hydraulic Equipment |

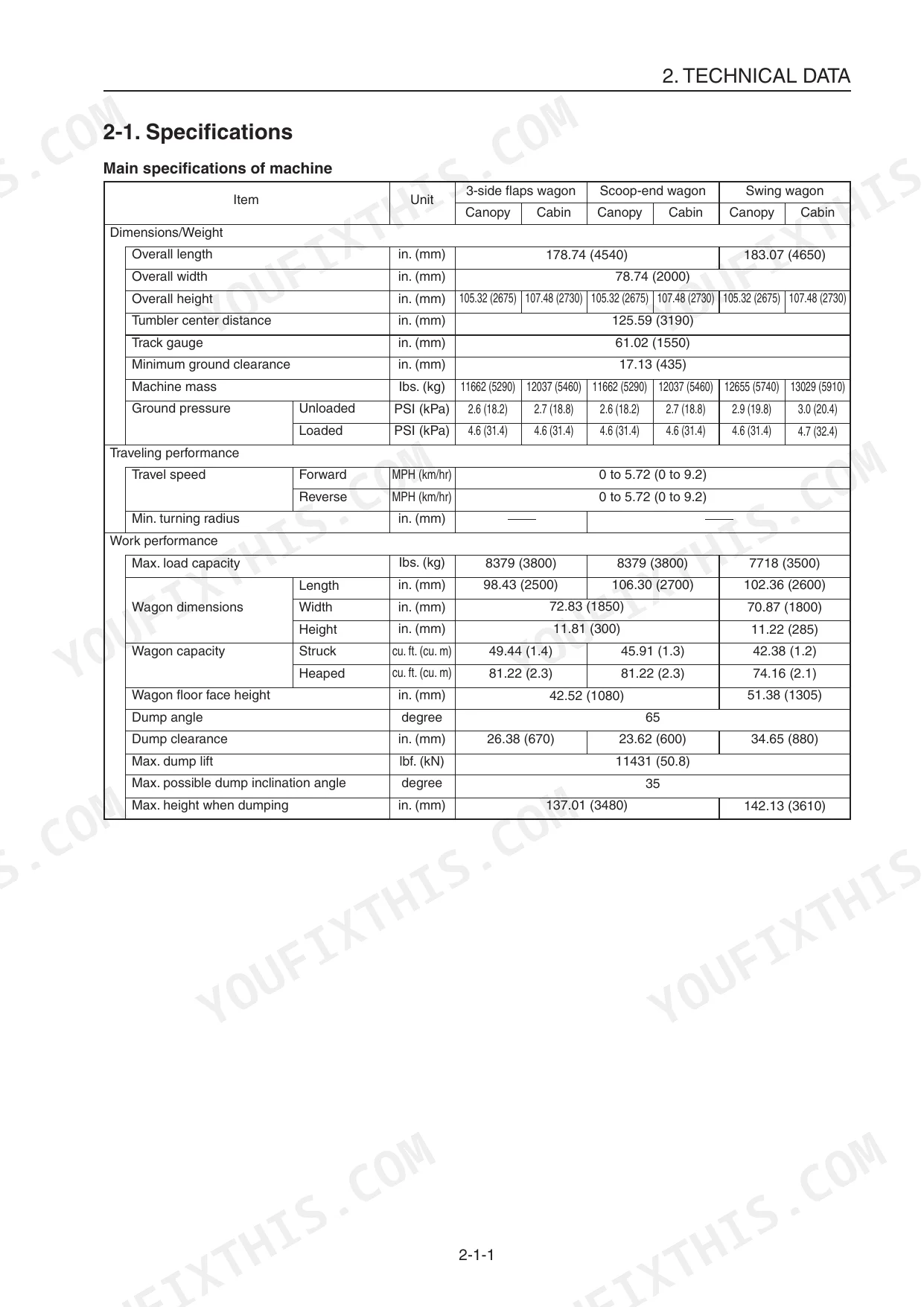

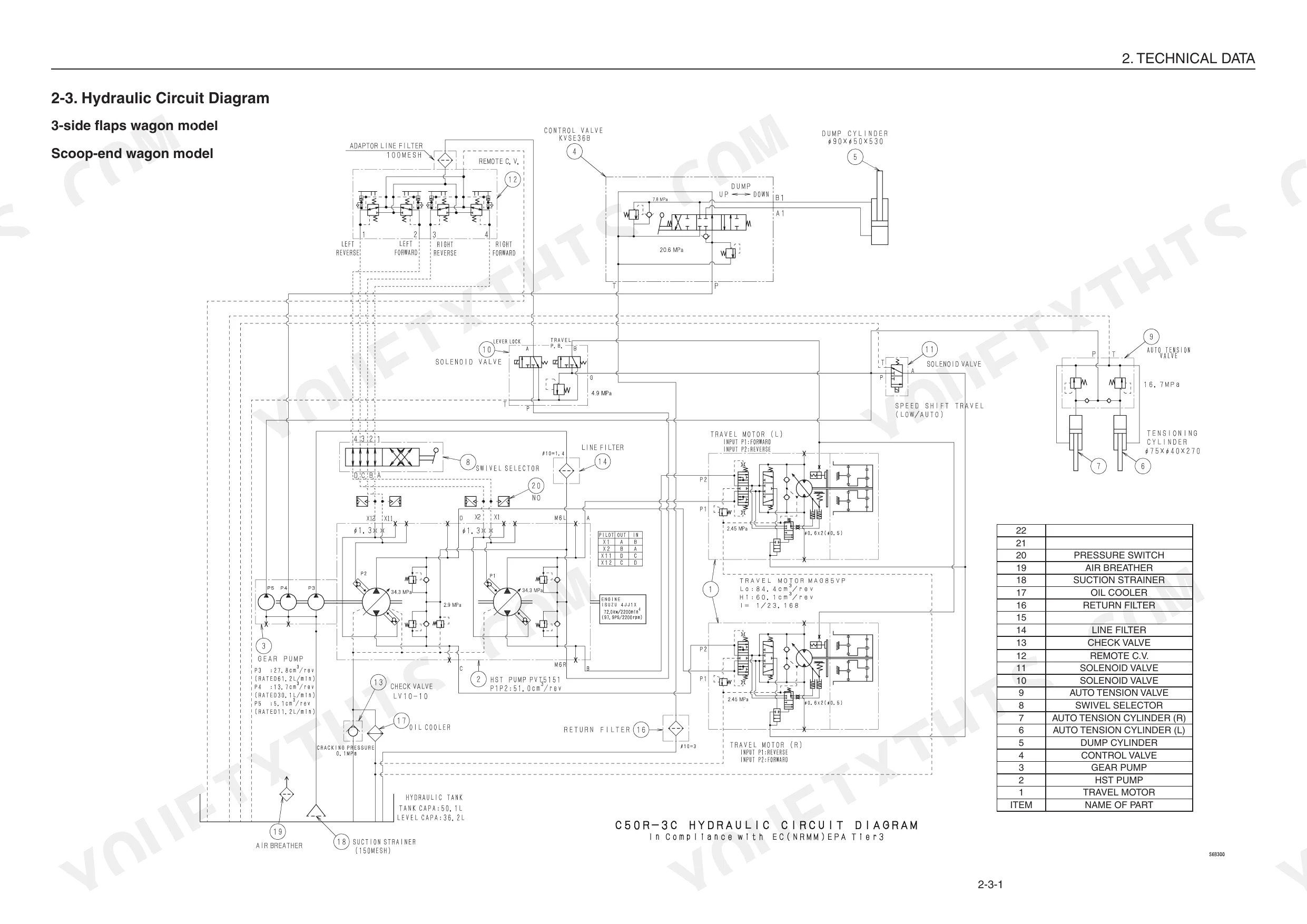

| Technical Data | 21-36 | Outside Drawing, Hydraulic Circuit Diagram, E Lectrical Circuit Diagram, Main Parts Mass Chart |
| Servicing Standards | 37-52 | Servicing Standards for Parts of Undercarriage, Control Equipment, Hydraulic Equipment, Working Equipment, Tightening Torque Table |
| Engine Servicing Procedure | 53-54 | - |
| Structure and Operating Principles | 55-66 | Components and Names, Power Transmission Mechanism, Electrical Equipment of the Machine, Explanation of Starting and Stopping Engine Circuit |

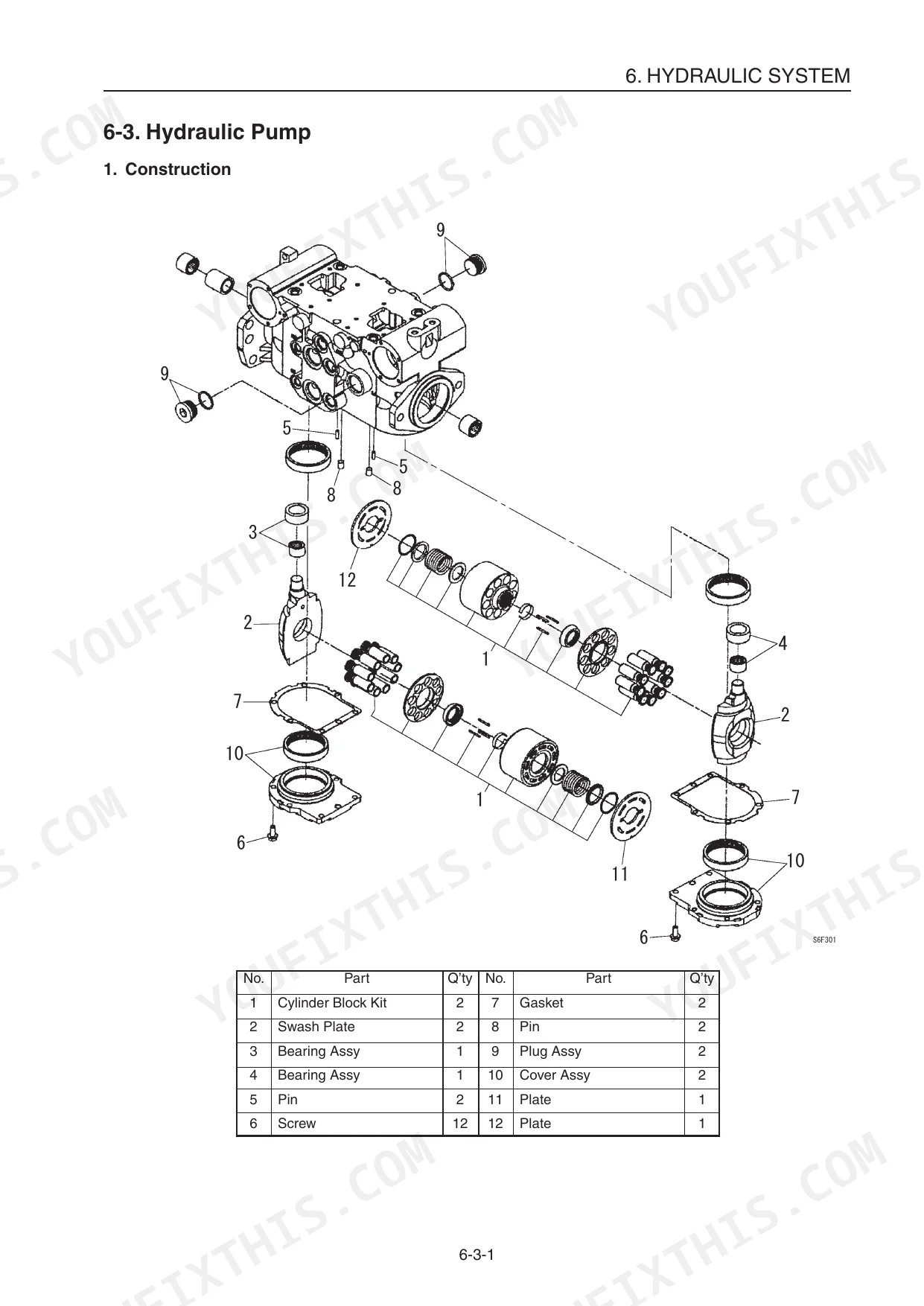

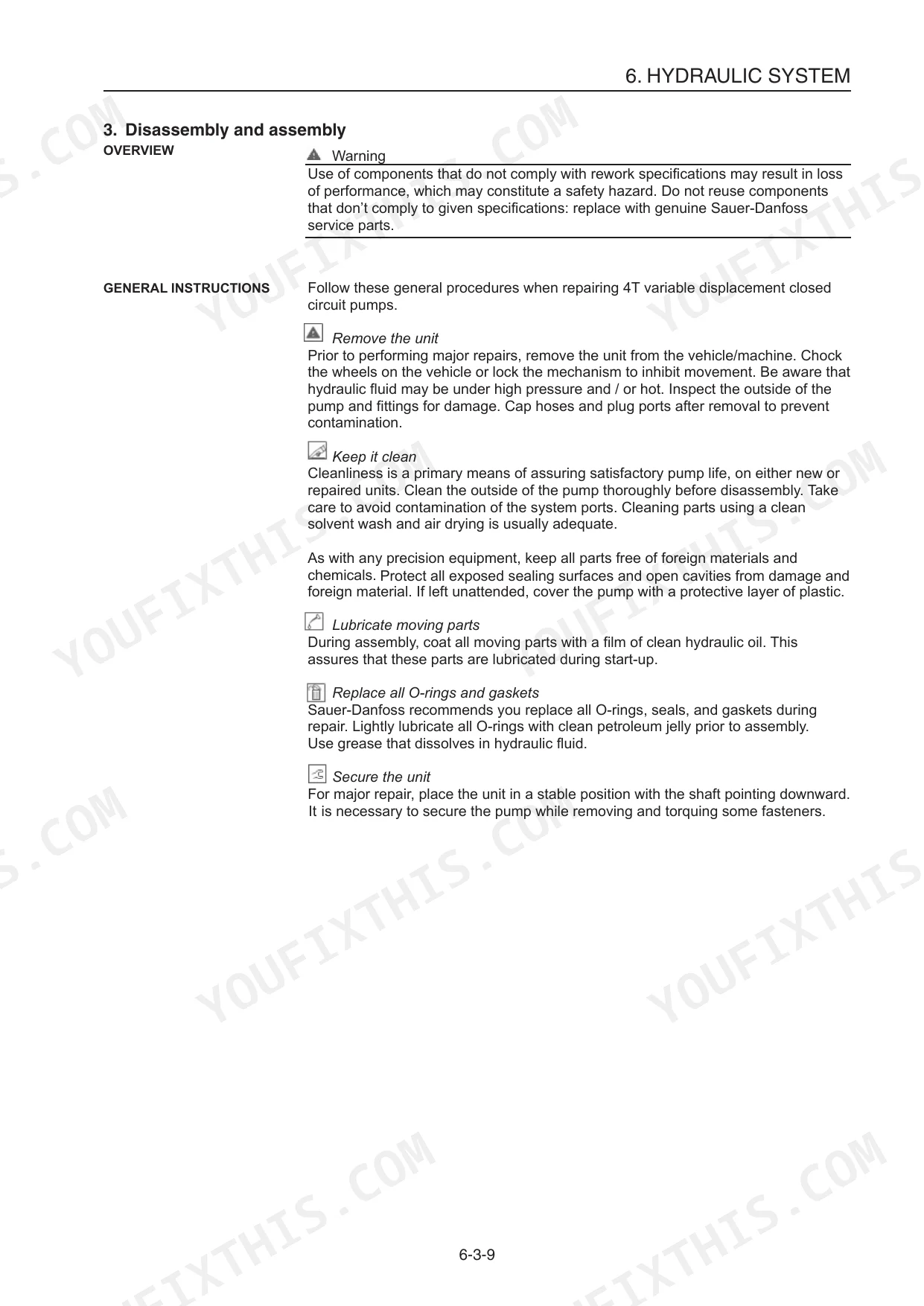

| Hydraulic System | 67-234 | Outline, Hydraulic Pump, Gear Pump, Travel Motor, Swing Motor, Control Valve, Remote Control Valve, Swivel Selector |
| Service Procedures for Individual Components | 235-301 | Engine Related Components, Electrical Equipments, Undercarriage, Control System, Hydraulic System, Riggings, Swing Wagon |

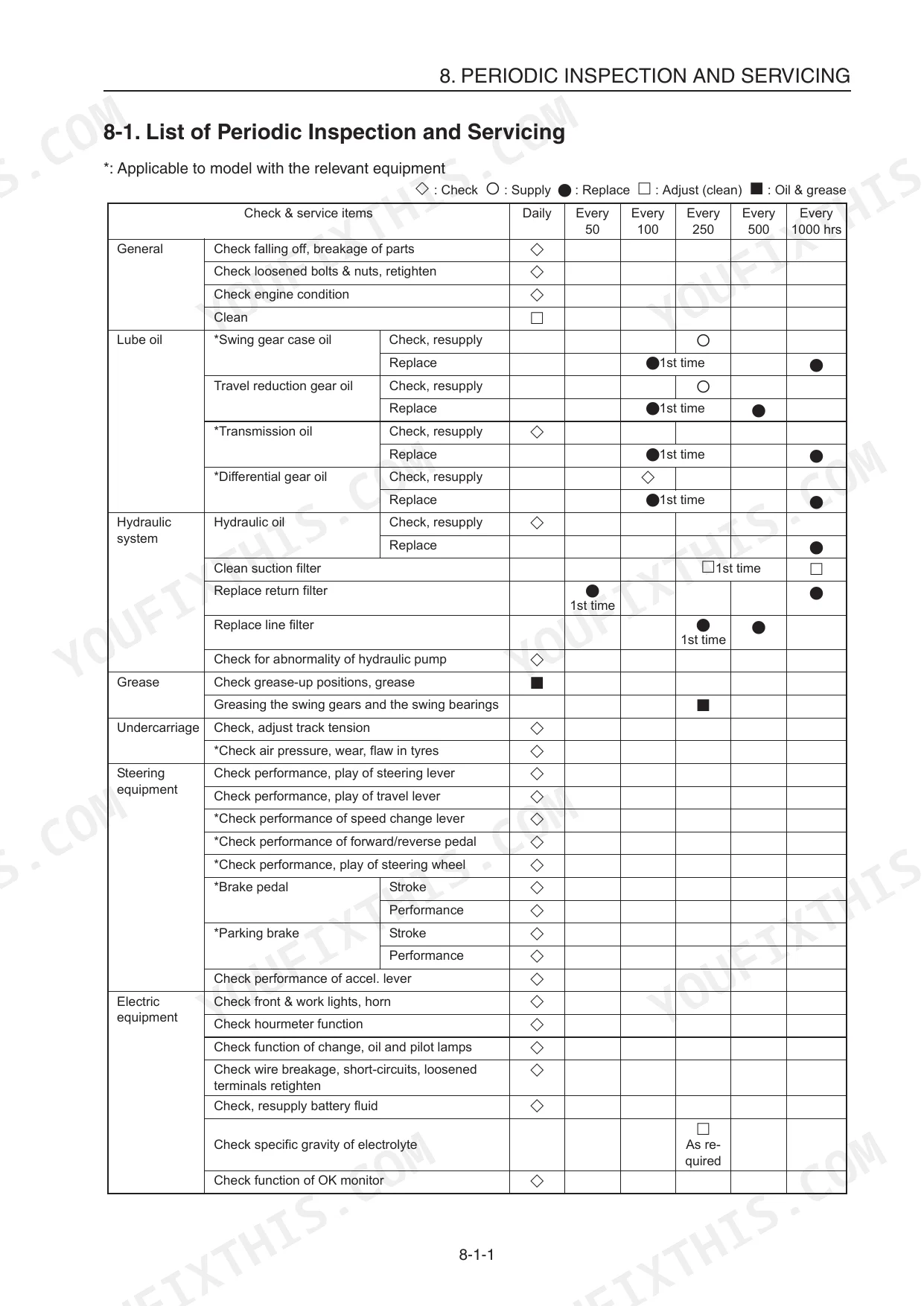

| Periodic Inspection and Servicing | 302-305 | List of Periodic Inspection and Servicing |
| Fuel, Lube Oil and Grease Recommended | 306-309 | Fuel, Lube Oil and Grease Recommended |

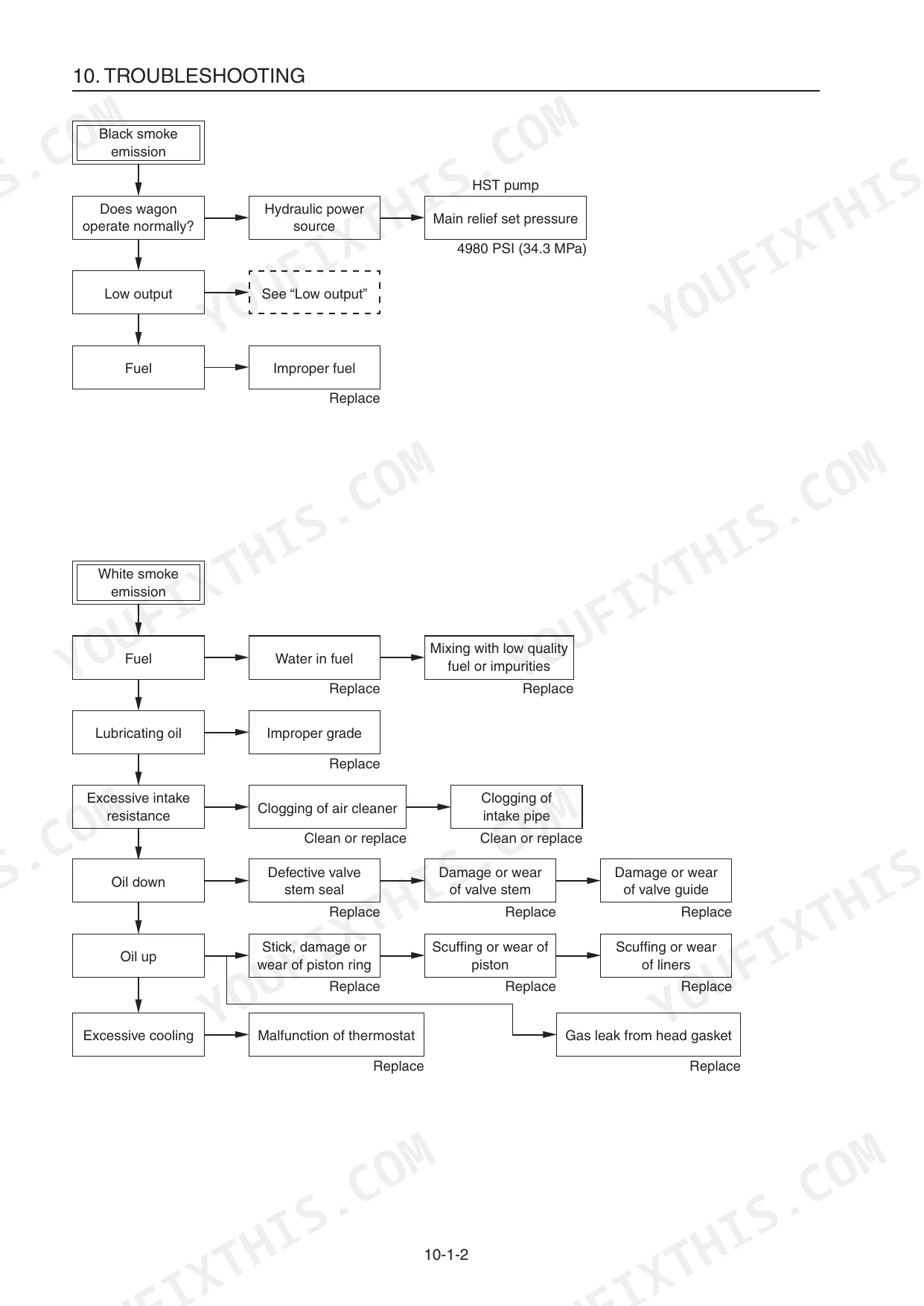

| Troubleshooting | 310-323 | HST Troubleshooting |
| Option | 324-331 | Air Conditioner |
| Engine Workshop Manual (Isuzu 4JJ1X) | 332-573 | General Information, Engine |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

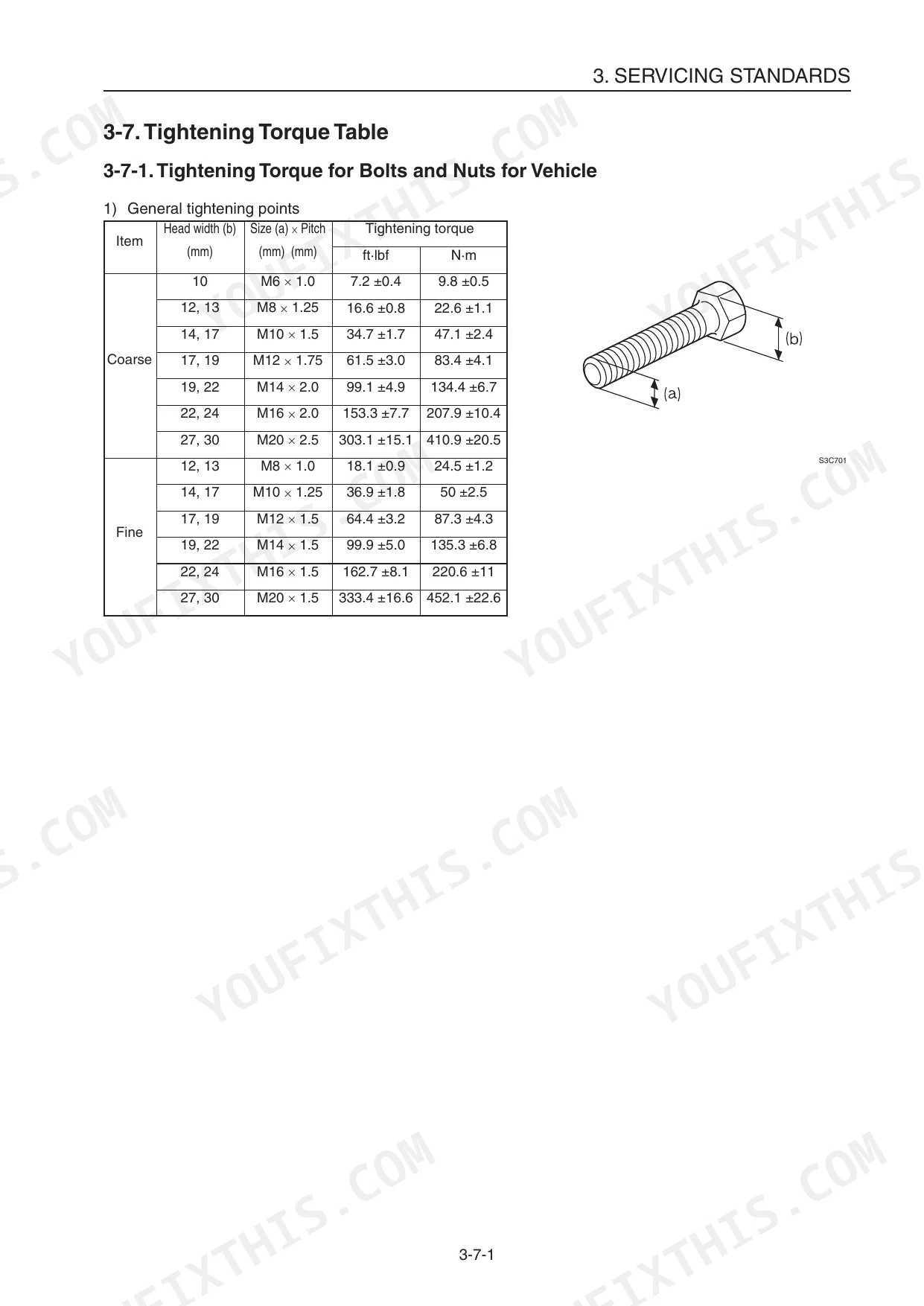

| General tightening points (Coarse) M6 × 1.0 | 7.2 ±0.4 ft·lbf (9.8 ±0.5 N·m) | p. 46 |
| General tightening points (Fine) M8 × 1.0 | 18.1 ±0.9 ft·lbf (24.5 ±1.2 N·m) | p. 46 |
| Hydraulic oil tank line filter replacement interval | Every 500 hrs. (After first 250 hrs.) | p. 39 |
| Hydraulic oil tank return filter replacement interval | Every 1000 hrs. (After first 50 hrs.) | p. 39 |
| Tightening torque for metal fitting on hydraulic piping | Specified tightening torque (general guidance, no single value) | p. 16 |
| Tightening torque for HST pump bolts (M10x25-P1.5) | 36.9 ft·lbf (50 N·m) | p. 253 |
| Track roller & shaft (A) allowable limit | ø10.24 (260) in. (mm) | p. 42 |
| Sprocket (A) allowable limit | 1.46 (37) in. (mm) | p. 43 |
| Oil seal (Travel Motor) inspection standard | Replace | p. 155 |
| Air cleaner replacement interval | Every 1000 hrs. (After first 50 hrs.) | p. 39 |
| Pre-fuel filter replacement interval | Every 500 hrs. | p. 39 |
| Main fuel filter replacement interval | Every 500 hrs. | p. 39 |
Yanmar C50R-3C Common Problems This Manual Covers
Yanmar C50R-3C crawler carrier track drive sluggish response and machine will not travel in a straight line p. 310
Check HST operation using the procedures on page 310. Inspect the HST pump installation bolts and verify they are torqued to 188.8 ft·lbf as noted on page 255. Drain the carrier roller if necessary and torque the drain bolt to 40.5 ft·lbf.
Manual Section: HST TroubleshootingHydraulic dump and swing functions feel slow or weak under load with intermittent stalling p. 39
Verify main hydraulic pressure reaches 4980 PSI as specified on page 39. Inspect the hydraulic pump and test for max working pressure of 5075 PSI according to page 24. Replace clogged filters and ensure fluid levels are correct before tearing into the control valve.
Manual Section: Hydraulic Pump (Gear Pump) TroubleshootingEngine coolant temperature spikes during heavy operation and triggers the high temp warning alarm p. 313
Inspect the cooling system capacity and verify the radiator holds 14.8 Qts. of coolant as listed on page 308. Test the overheat sensor switch operation and replace it if it fails to actuate at exactly 221°F (105°C) according to the specifications on page 245.
Manual Section: Engine General TroubleshootingAbnormal grinding noise from the undercarriage during travel and one side fails to rotate smoothly p. 42
Measure the track roller and shaft diameter against the allowable limit of ø10.24 (260) in. (mm) found on page 42. Inspect the sprocket teeth for severe wear past the 1.46 (37) in. (mm) limit shown on page 43. Replace worn components immediately.
Manual Section: Travel Motor TroubleshootingFrequently Asked Questions
What are the torque specifications for the Yanmar C50R-3C track roller nuts?
The tightening torque for the nuts installing the track roller is 217 to 238.7 ft·lbf (294 to 324 N·m). This specification is found in the general tightening points for bolts and nuts for the vehicle.
How do I release air from the hydraulic system on a Yanmar C50R-3C?
To release air from the HST system, disconnect the solenoid valve harness for the parking brake, remove the air release plug from the HST pump, fill with hydraulic oil, and then loosen air release plugs on the remote piping. Start the engine, operate the travel lever, and tighten the plugs when oil overflows. For hydraulic cylinders, refer to section '1-5. Cautions for Removal and Installation of Hydraulic Equipment'.
What is the torque specification for the engine head bolts on a Yanmar C50R-3C?
The tightening torque for the engine head bolts involves a multi-step process: first, tighten to 70 N·m (7.1 kg·m/51 lb ft) twice, then turn an additional 60° twice. This procedure is detailed in the Isuzu 4JJ1X Workshop Manual.
What is the recommended replacement interval for hydraulic oil tank return filters?
The filter element (O-ring) for the hydraulic oil tank return filter should be replaced every 1000 hours. However, the first replacement should occur after 50 hours of operation.
How quickly can I access this manual after buying?
This is a 573-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Can I find wiring schematics in this Yanmar C50R-3C manual?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
Document Quality
This document is a mixed-format PDF. The primary YANMAR service manual section is a native digital PDF, offering crisp, fully searchable and selectable text. The embedded ISUZU engine workshop manual, however, is a scanned document with an OCR layer, meaning its text is generally searchable but appears slightly less sharp, with some minor recognition errors possible. Diagrams and illustrations in the YANMAR section are vector-based and remain clear at any zoom, while those in the ISUZU section are raster images that will pixelate when magnified, though labels are readable. Pages in the YANMAR section are clean, but the scanned ISUZU section exhibits some light background discoloration, minor skewing, and occasional small marks typical of a scanned physical book. You will also find several blank pages throughout the document, especially separating sections and within the scanned manual.
