Put a dial gage on the crank of a stripped 4TNE98 and the endplay figure means nothing without the factory limit next to it. This Yanmar service manual, publication HINSHI-H8013-R1, is where those limits live: 208 pages in English covering the 4TNE94, 4TNE98 and 4TNE106, including the turbocharged 4TNE106T, whatever the engine happens to be bolted into.
The Engine Body chapter walks the full teardown: cylinder head, gear train and camshaft, crankshaft, valve seat correction and piston pin bushing replacement. Inspection and Adjustment covers valve clearance, fan belt tension and fuel injection timing, and separate chapters handle the injection pump and governor, lubrication, cooling, and the starting motor and alternator for both engine families. The 4TNE106T gets its own turbocharger chapter with service standards and reassembly procedure.
Before anything goes back together, the Service Standards chapter gives the wear limits and main bolt torques, so you order and measure once, not twice.
What's Inside This Yanmar 4TNE Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Yanmar Service Manual | 1-15 | - |

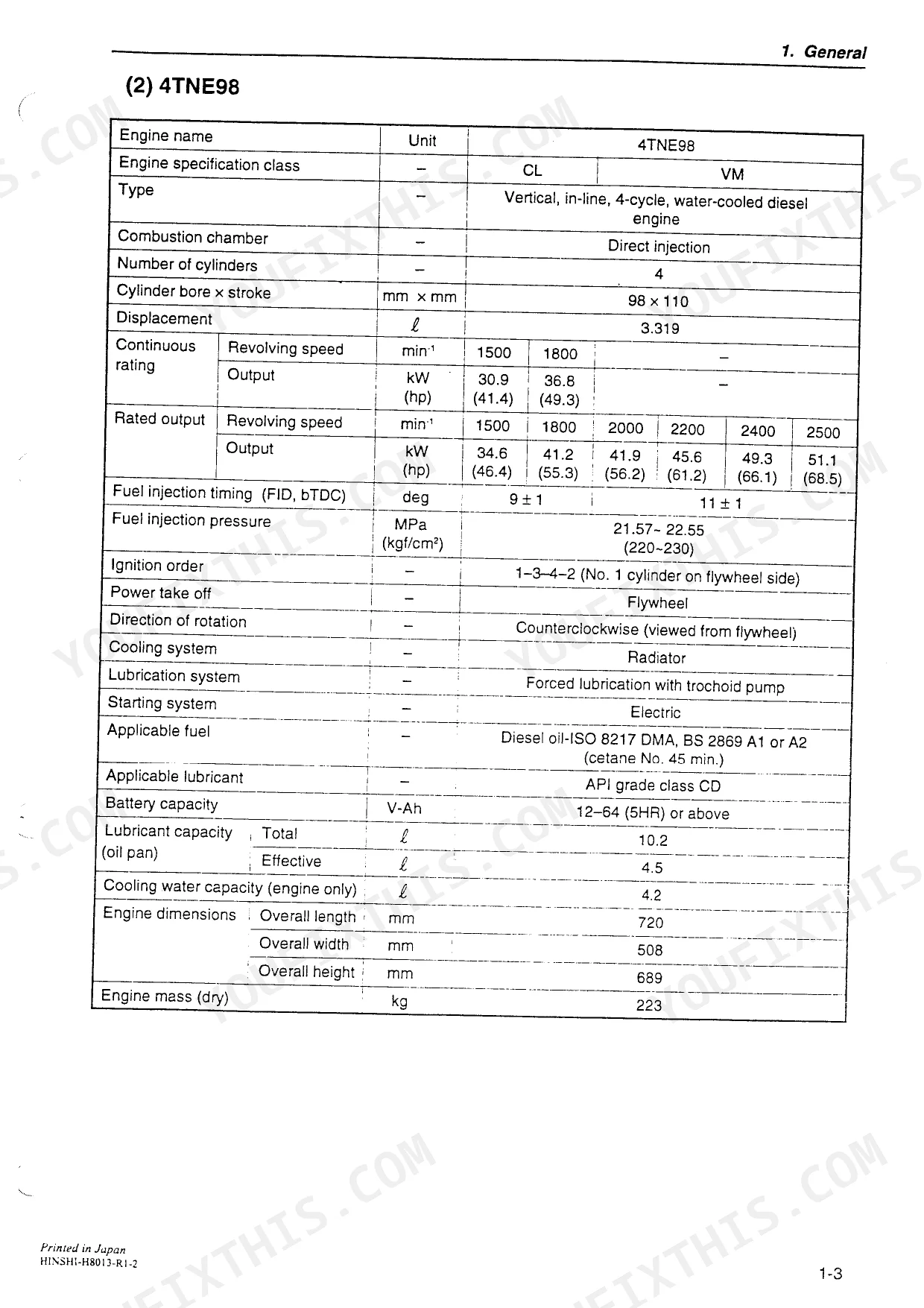

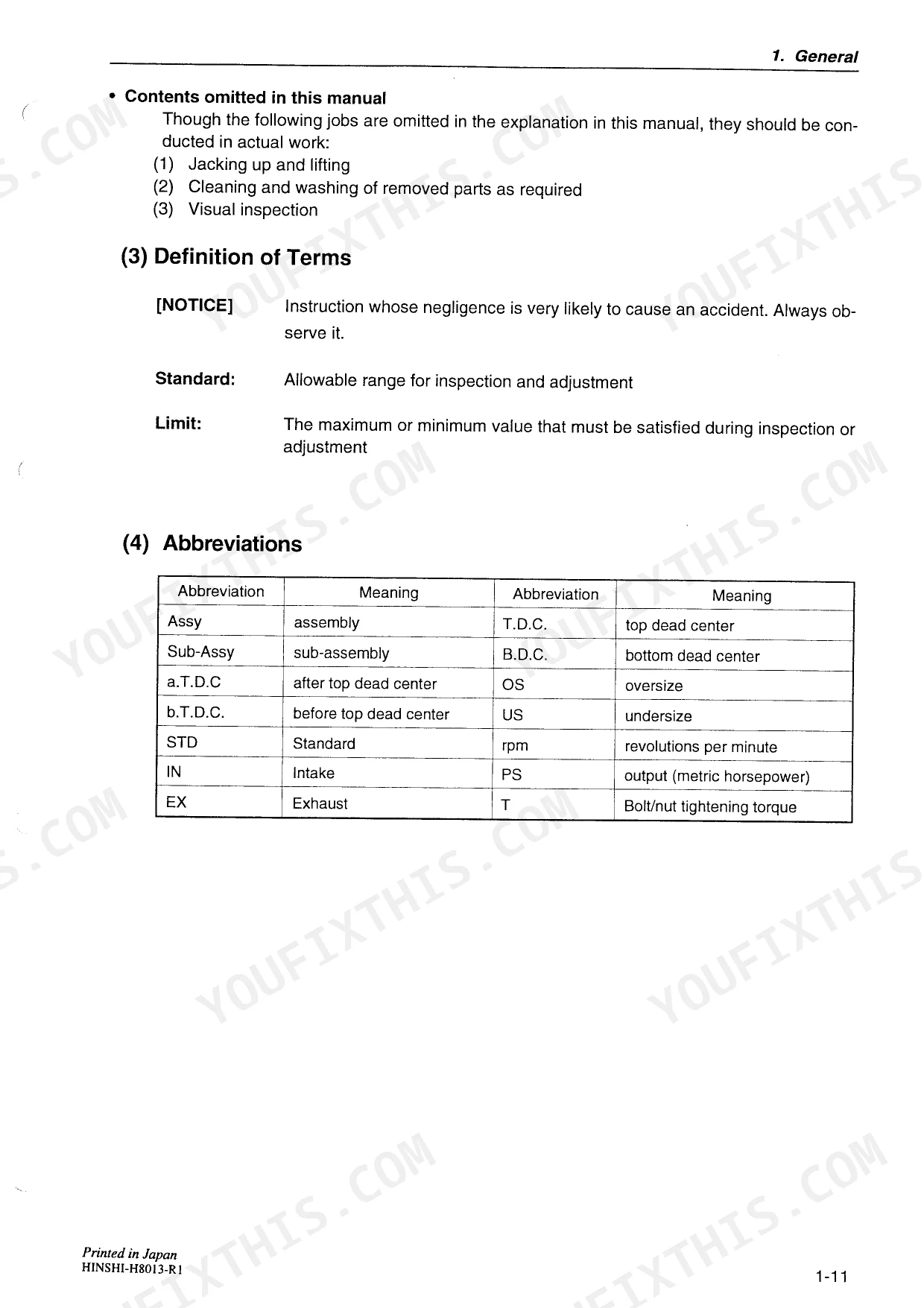

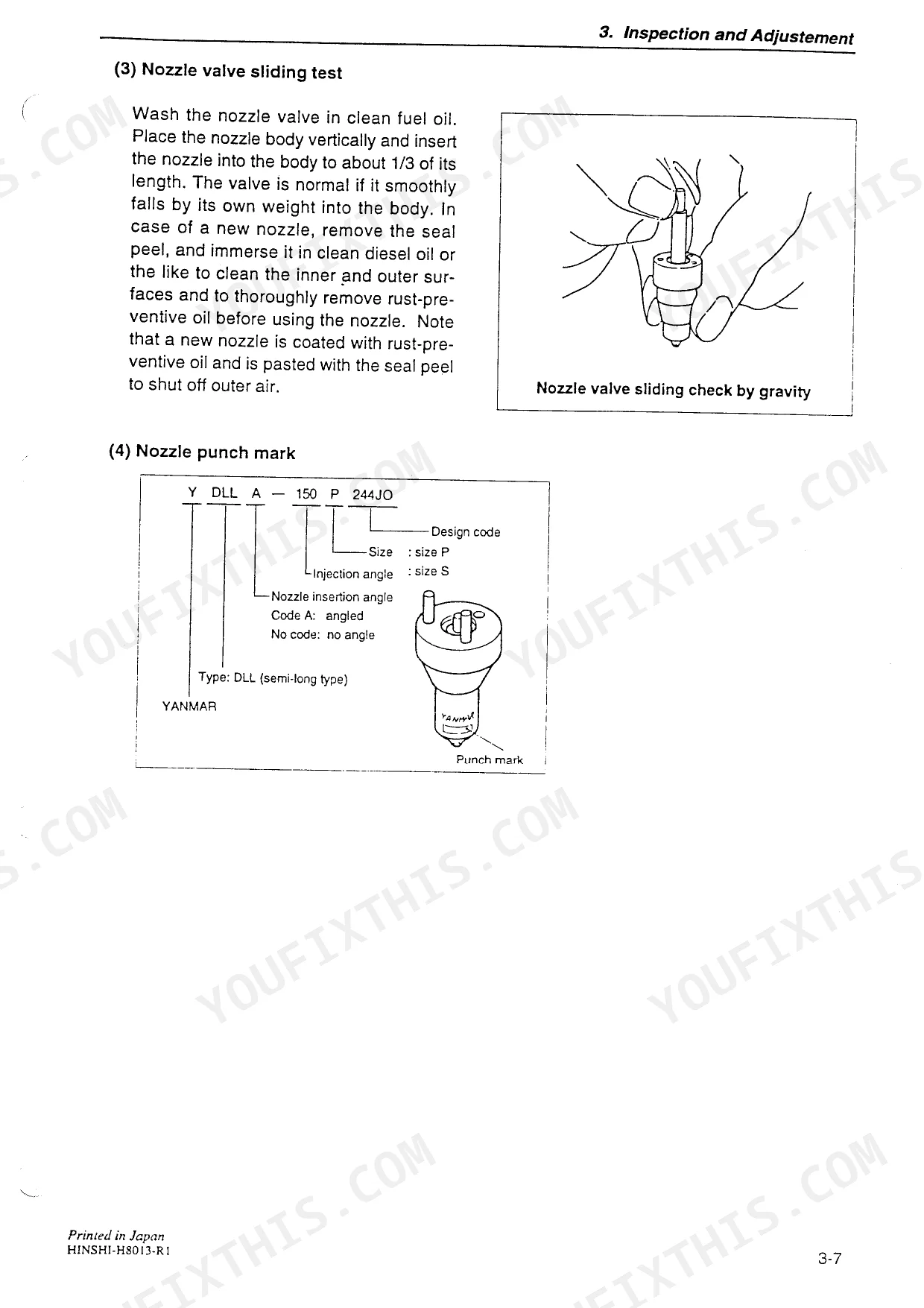

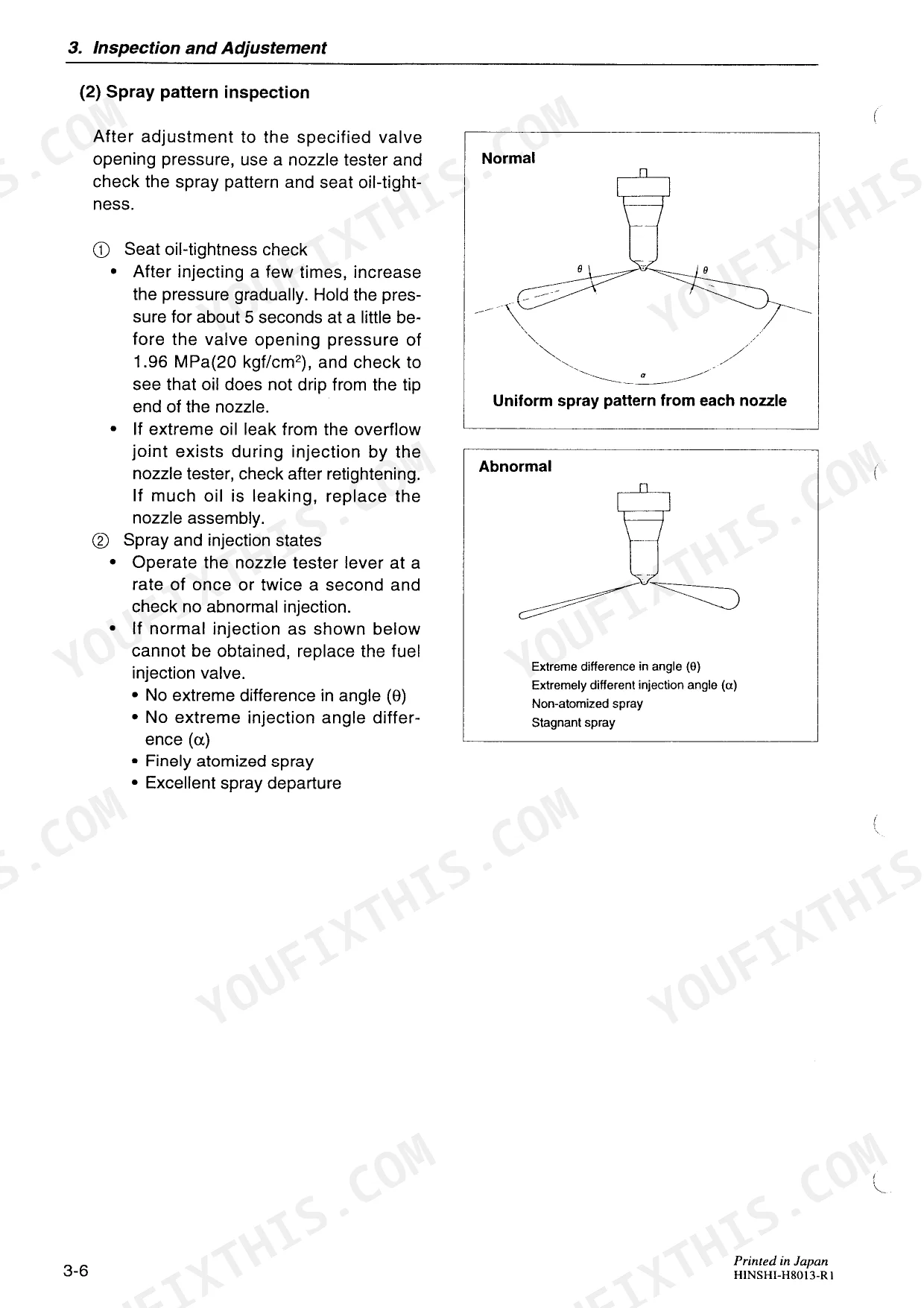

| General | 16-33 | Engine Nomenclature, Specifications, Fuel Oil, Lubricating Oil and Cooling Water, Engine External Views, Structural Description, Tightening Torques |
| Troubleshooting | 34-42 | Quick Reference Table for Troubleshooting, Compression Pressure Measurement Method, Standard Compression Pressure, Engine Speed and Compression Pressure |
| Inspection and Adjustment | 43-60 | Oil Inspection, Cooling Water Inspection, Fan Belt Tension Inspection and Adjustment, Adjusting the Valve Clearance, Fuel Injection Timing Inspection and Adjustment |
| Engine Body | 61-92 | Cylinder Head, Gear Train and Camshaft, Cylinder Block, Valve Seat Correction, Piston Pin Bushing Replacement, Crankshaft |
| Lubrication System | 93-96 | Lubrication System Diagram, Trochoid Pump Components, Disassembly, Parts Inspection and Measurement |
| Cooling System | 97-100 | Cooling Water System, Cooling Water Pump Components, Disassembly, Servicing Points |
| Fuel Injection Pump / Governor | 101-112 | Fuel Injection Pump, Fuel System Diagram, Fuel Injection Valve, Fuel Feed Pump, Governor, Special Service Tools |
| Turbocharger | 113-132 | Structure and Functions, Service Standards, Periodic Inspection Procedure, Disassembly Procedure, Washing and Inspection Procedure, Reassembly Procedure |

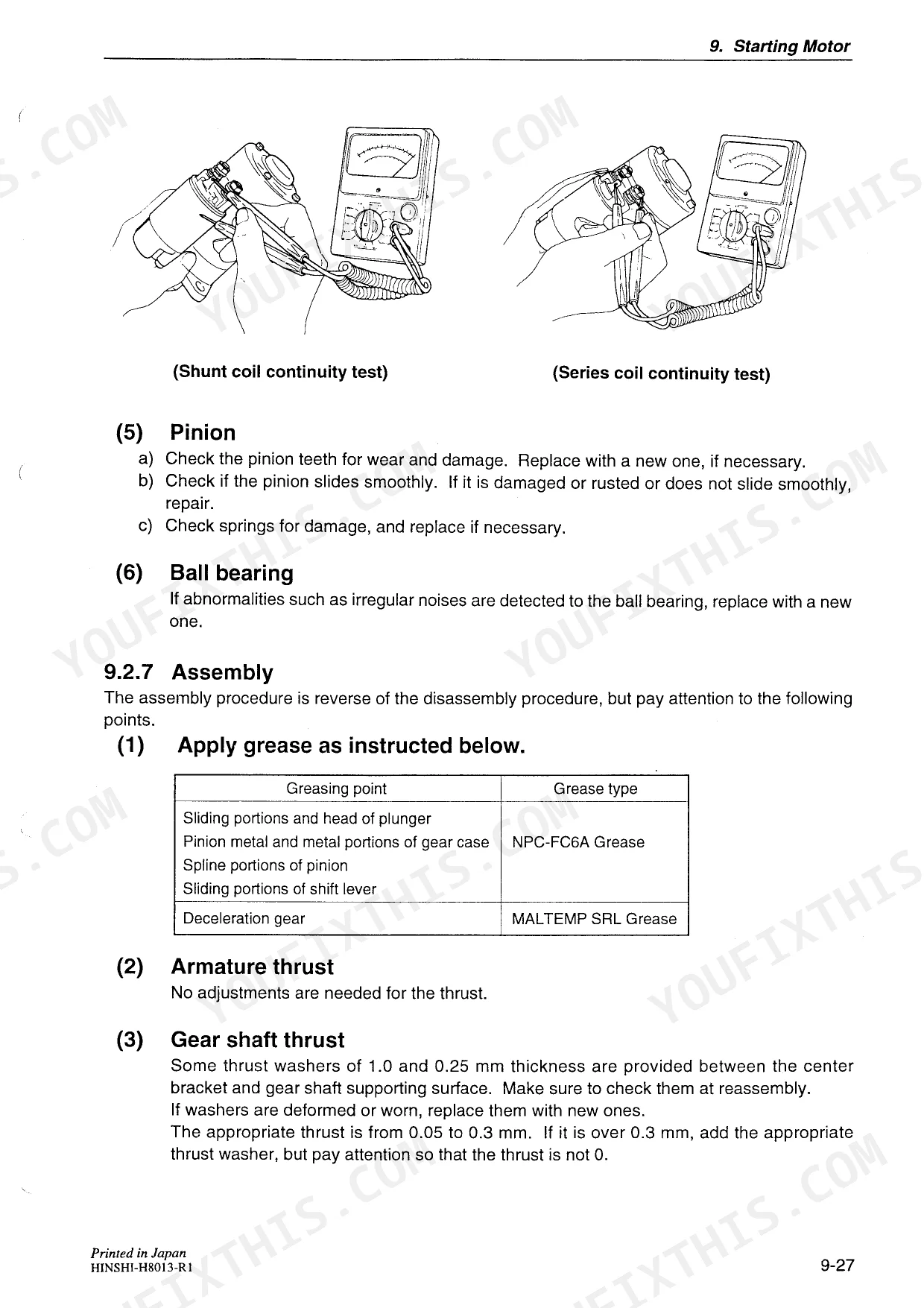

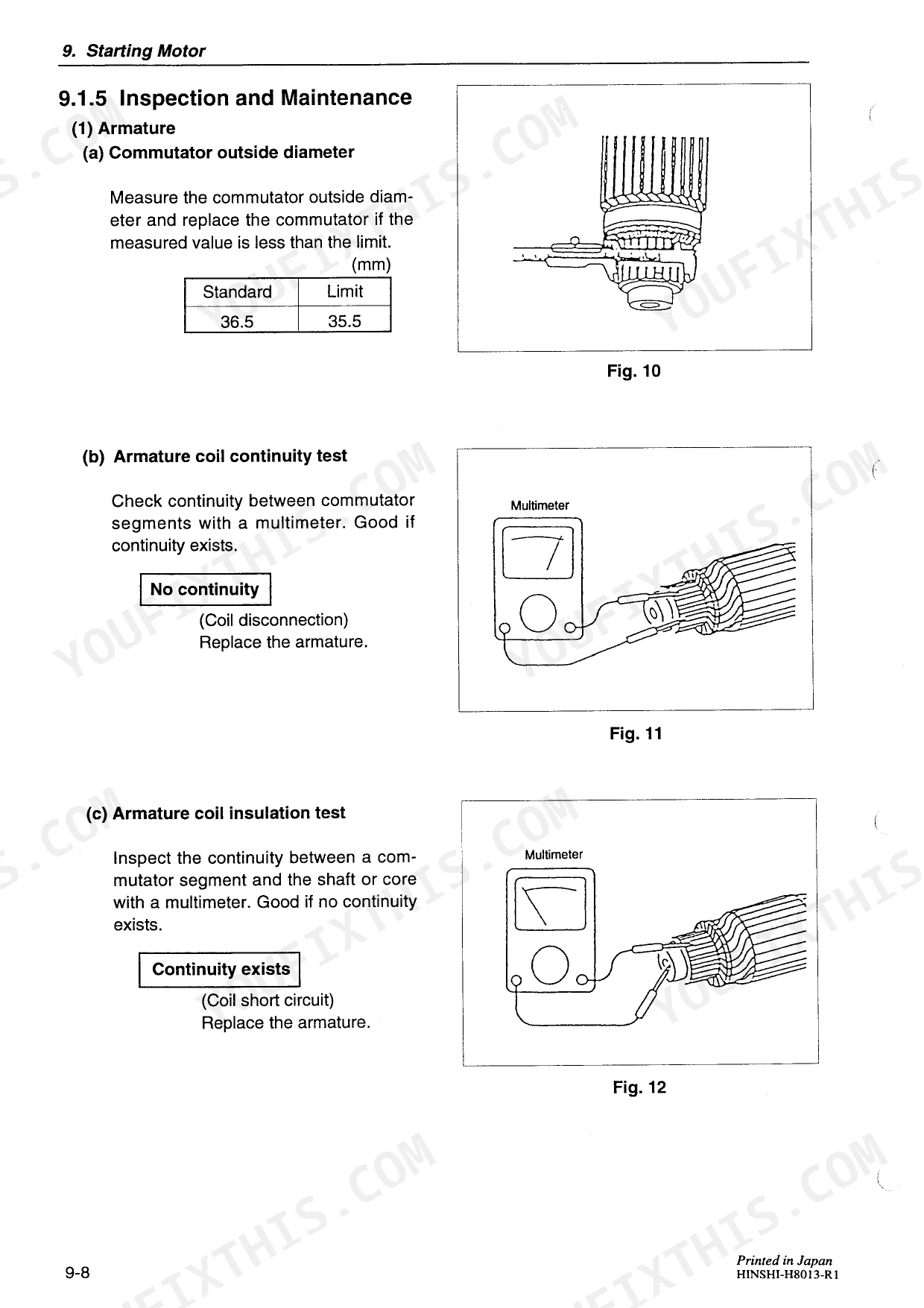

| Starting Motor | 133-164 | Starting Motor Disassembly, Magnetic Switch, Brush and Holder, Performance Test |

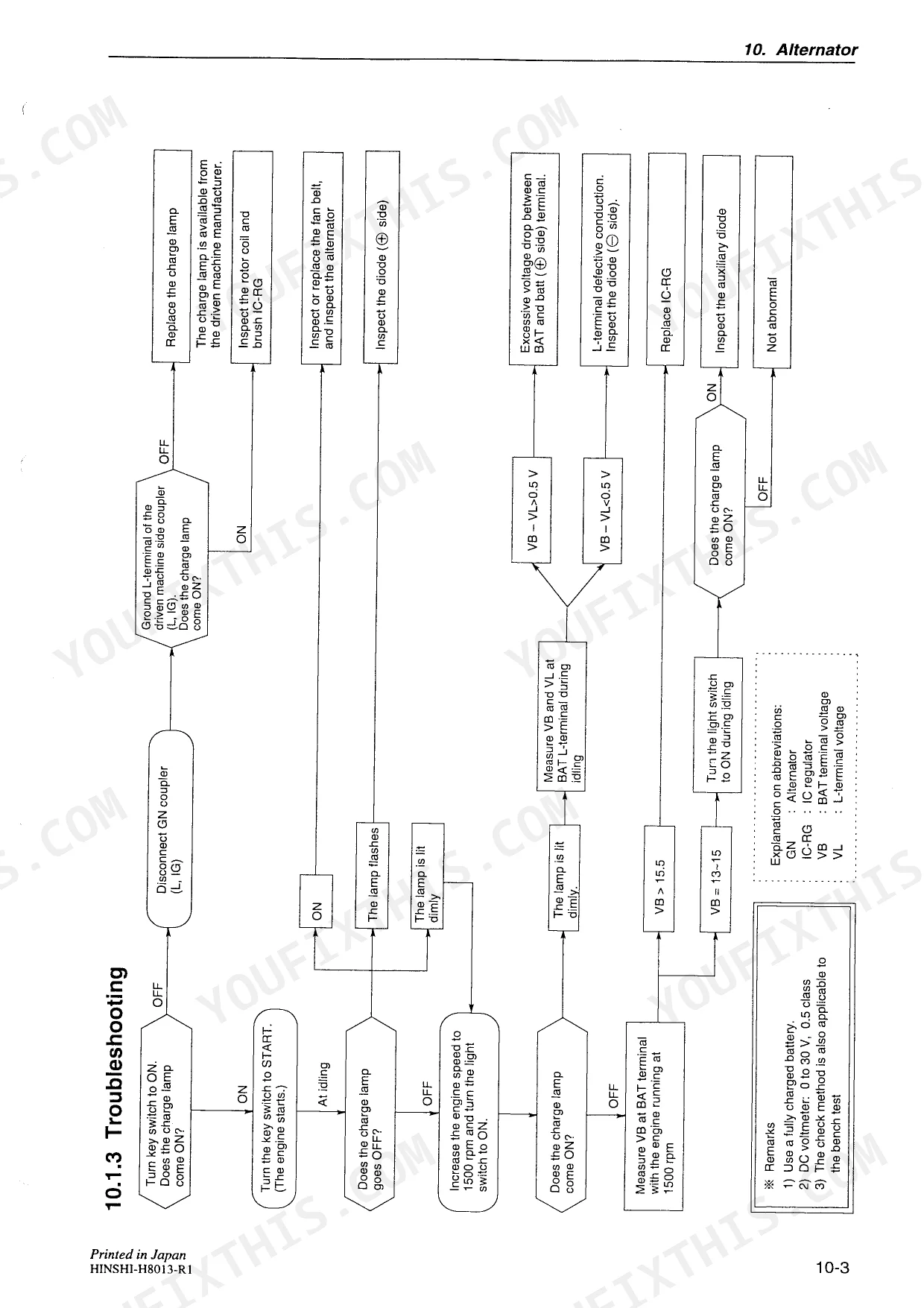

| Alternator | 165-188 | Alternator Disassembly, Rectifier, Brush, Ic Regulator, Output Inspection |
| Special Service Tools | 189-196 | Valve Guide Tool, Flex-Hone, Piston Insertion Tool, Dial Gage, Micrometer, Torque Wrench |
| Service Standards | 197-208 | Engine Tuning, Engine Body, Lubricating Oil System (Trochoid Pump), Tightening Torques |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Nozzle case nut tightening torque | 39.2 to 44.1 Nm (4 to 4.5 kgf•m) | p. 48 |
| Fuel injection valve pressure inspection interval | Every 500 hours | p. 59 |
| Radiator cap pressure | 0.9±0.15 kgf/cm² | p. 45 |
| Fuel pump drive gear set nut tightening torque | 83.4-93.2 Nm (8.5-9.5 kgf•m) | p. 208 |
| Fuel Injection Pressure | 21.57-22.55 MPa | p. 20 |
| 4TNE94+98 | ||
| Thermostat valve opening temperature, 4TNE94+98 | 71-85 °C | p. 49 |
| Cylinder Head Bolt Torque | 102.9-112.7 Nm | p. 204 |
| 4TNE106(T) | ||
| Thermostat valve opening temperature, 4TNE106(T) | 82-95 °C | p. 49 |
Yanmar 4TNE Series Common Problems This Manual Covers
Hard starting after the engine sits
Air in the fuel lines, a clogged filter or worn injection components will leave a 4TNE cranking without firing, especially after storage or fuel system work. The fuel chapter covers the injection pump, feed pump, injection valve and governor so you can work through the system in order instead of swapping parts.
Manual Section: 7. Fuel Injection Pump / Governor p. 101Low power and smoke under load
When one of these engines goes soft and smokes, the first real answer is a compression test, not a guess. The Troubleshooting chapter gives the quick reference table, the compression pressure measurement method and the standard pressure against engine speed to judge the result.
Manual Section: 2. Troubleshooting p. 34Overheating and coolant loss
A stuck thermostat, tired water pump or neglected cooling circuit will cook an industrial diesel long before a gauge gets attention. The Cooling System chapter diagrams the water circuit and covers water pump disassembly, inspection and servicing points.
Manual Section: 6. Cooling System p. 97Low oil pressure warning or knock
A worn trochoid pump or excessive bearing clearance shows up first as low pressure at idle, then as bearing noise. The Lubrication System chapter gives the system diagram plus trochoid pump disassembly, parts inspection and measurement so you can measure the pump before condemning the bottom end.
Manual Section: 5. Lubrication System p. 93Noisy valvetrain from clearance drift
Valve lash opens up with hours and the top end starts to clatter, with power and starting suffering right behind it. The Inspection and Adjustment chapter gives the valve clearance procedure alongside injection timing and belt tension checks for a proper tune.
Manual Section: 3. Inspection and Adjustment p. 43Turbo smoke and oil consumption on 4TNE106T
Oil in the intake, boost loss or a rising smoke level on the turbocharged 106T usually traces to seal wear, shaft play or a restricted oil drain. The Turbocharger chapter covers structure, service standards, periodic inspection, disassembly, washing and inspection, and reassembly.
Manual Section: 8. Turbocharger p. 113Worn bores and bearings at rebuild
Once the engine is apart, everything comes down to measurement: journals, bores, valve seats and bushings against factory limits. The Engine Body chapter covers the cylinder head, cylinder block, crankshaft, valve seat correction and piston pin bushing replacement in full.
Manual Section: 4. Engine Body p. 61Frequently Asked Questions
Which Yanmar engines does this service manual cover?
It covers the Yanmar 4TNE94, 4TNE98 and 4TNE106 industrial diesel engines, including the turbocharged 4TNE106T. It is the factory service manual, publication HINSHI-H8013-R1, 208 pages in English. Where procedures differ between the 4TNE94/98 and the 4TNE106(T), the manual gives each version separately.
Does it include the cylinder head torque sequence and main torque specs?
Yes. The Service Standards chapter lists tightening torques for main bolts and nuts, and the cylinder head bolts go on in two steps rather than one: 49 to 58.8 Nm (5 to 6 kgf-m) first, then 102.9 to 112.7 Nm (10.5 to 11.5 kgf-m) final on the 4TNE94 and 4TNE98 (page 64). Engine tuning values and trochoid pump standards for reassembly are in the same chapter. p. 197
Can I set valve clearance and injection timing with this manual?
Yes. The Inspection and Adjustment chapter gives the valve clearance adjustment procedure with standard clearances for each engine model, plus fuel injection timing inspection and adjustment, fan belt tension, and oil and cooling water checks. p. 43
Is the turbocharger on the 4TNE106T covered?
Yes. A dedicated Turbocharger chapter for the 4TNE106T covers structure and function, service standards, periodic inspection, disassembly, washing and inspection, and reassembly, so the turbo can be inspected and rebuilt to spec rather than replaced on guesswork. p. 113
What format is this manual in?
This is a 208-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this Service Manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
