Before a TNV crankshaft goes back between its main caps, you need the side gap limit, the bearing clearances, and the torque sequence, and the 287 pages of Yanmar publication M9961-02E050 put all of them within reach of the bench. This factory document covers the 3TNV82A, 3TNV84, 3TNV84(T), 3TNV88, 4TNV84, 4TNV84(T), 4TNV88, 4TNV94L, 4TNV98(T) and 4TNV106(T) industrial diesels, whatever equipment your engine came out of.
Guessing is expensive on these engines. Reuse a warped head or set nozzle pressure by feel and you pay for it with a second teardown. The manual replaces the guesswork with measured limits: compression-based troubleshooting, cylinder head distortion checks, trochoid pump measurement, injection pump and governor procedures.
As a PDF download, you go straight from symptom to section: Troubleshooting starts at page 71, full disassembly at page 77, and the service standards live in the back.
What's Inside This Yanmar 3TNV / 4TNV Series Manual
| System | Pages | Key Topics |
|---|---|---|

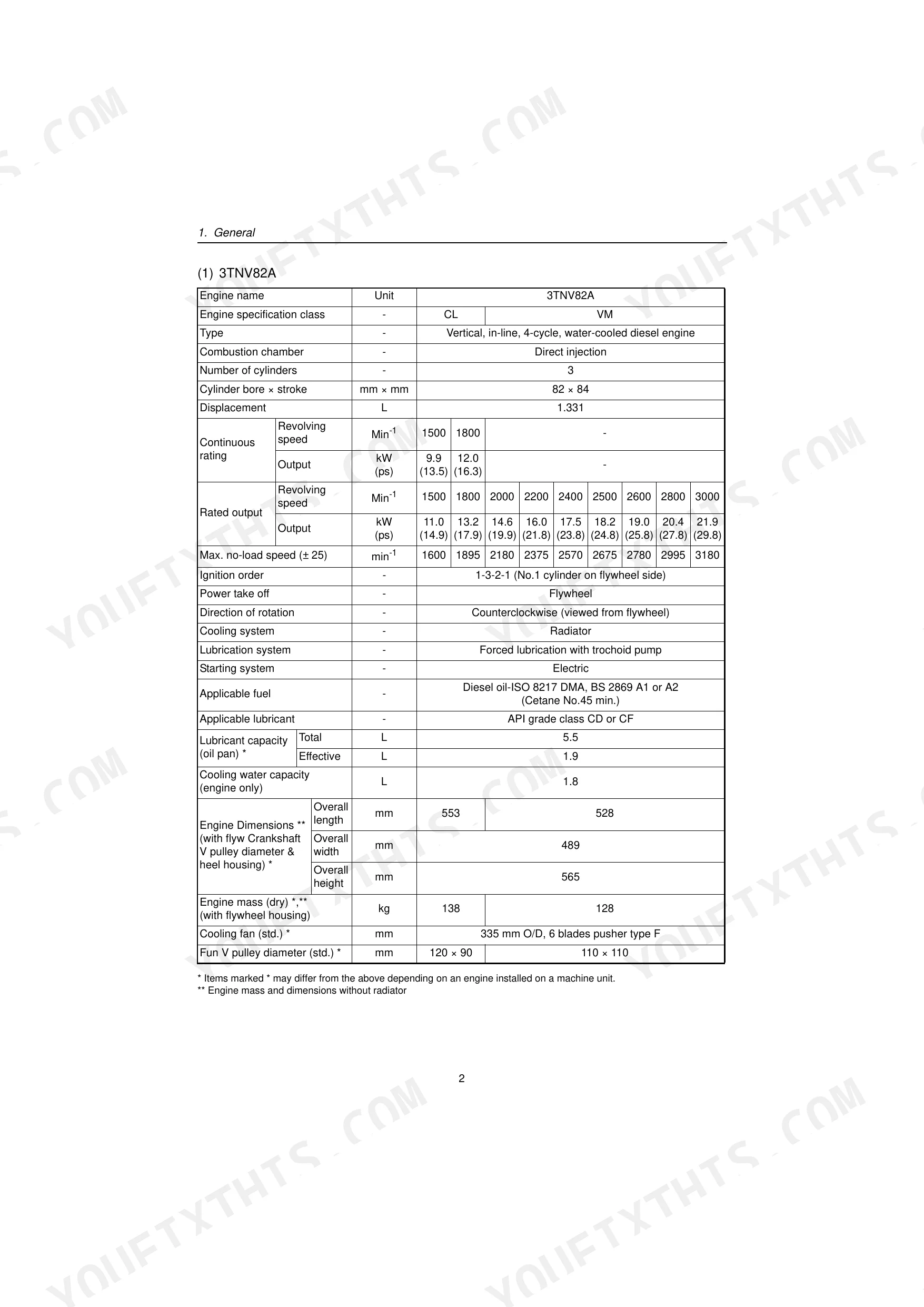

| General | 17-38 | Engine Nomenclature, Specifications, Fuel Oil, Lubricating Oil and Cooling Water, Engine External Views, Structural Description |
| Inspection and Adjustment | 39-70 | Periodic Maintenance Schedule |

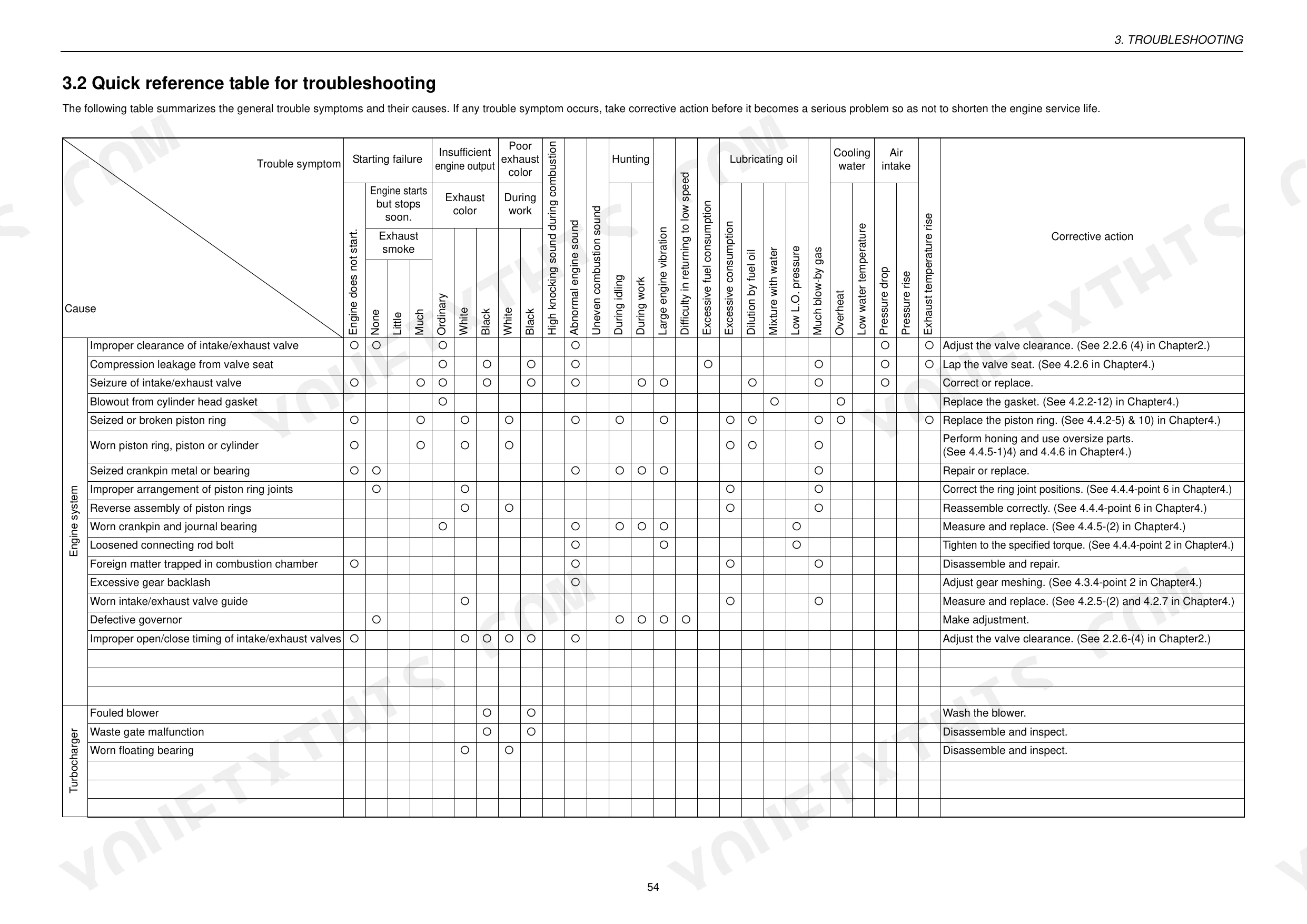

| Troubleshooting | 71-76 | Preparation Before Troubleshooting, Quick Reference Table for Troubleshooting, Troubleshooting by Measuring Compression Pressure |

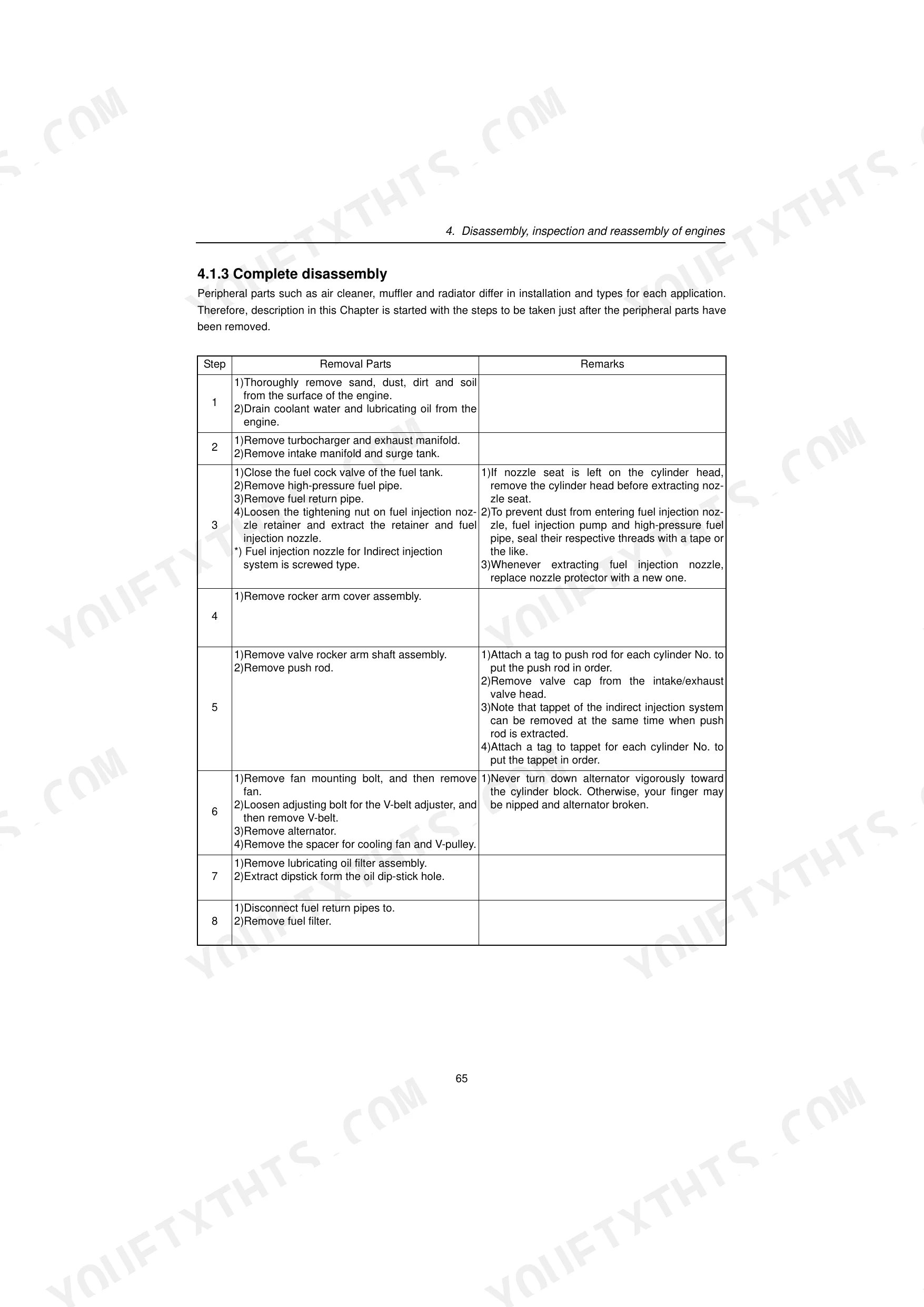

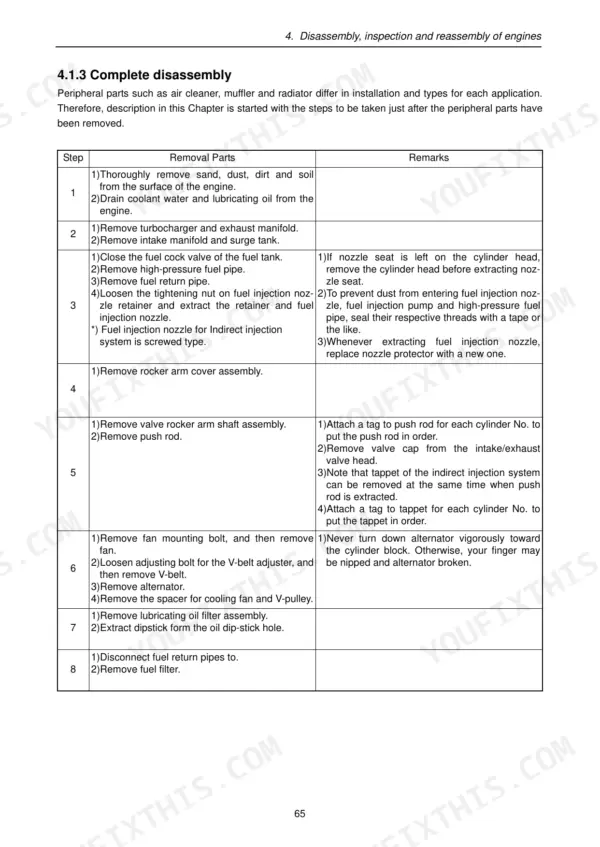

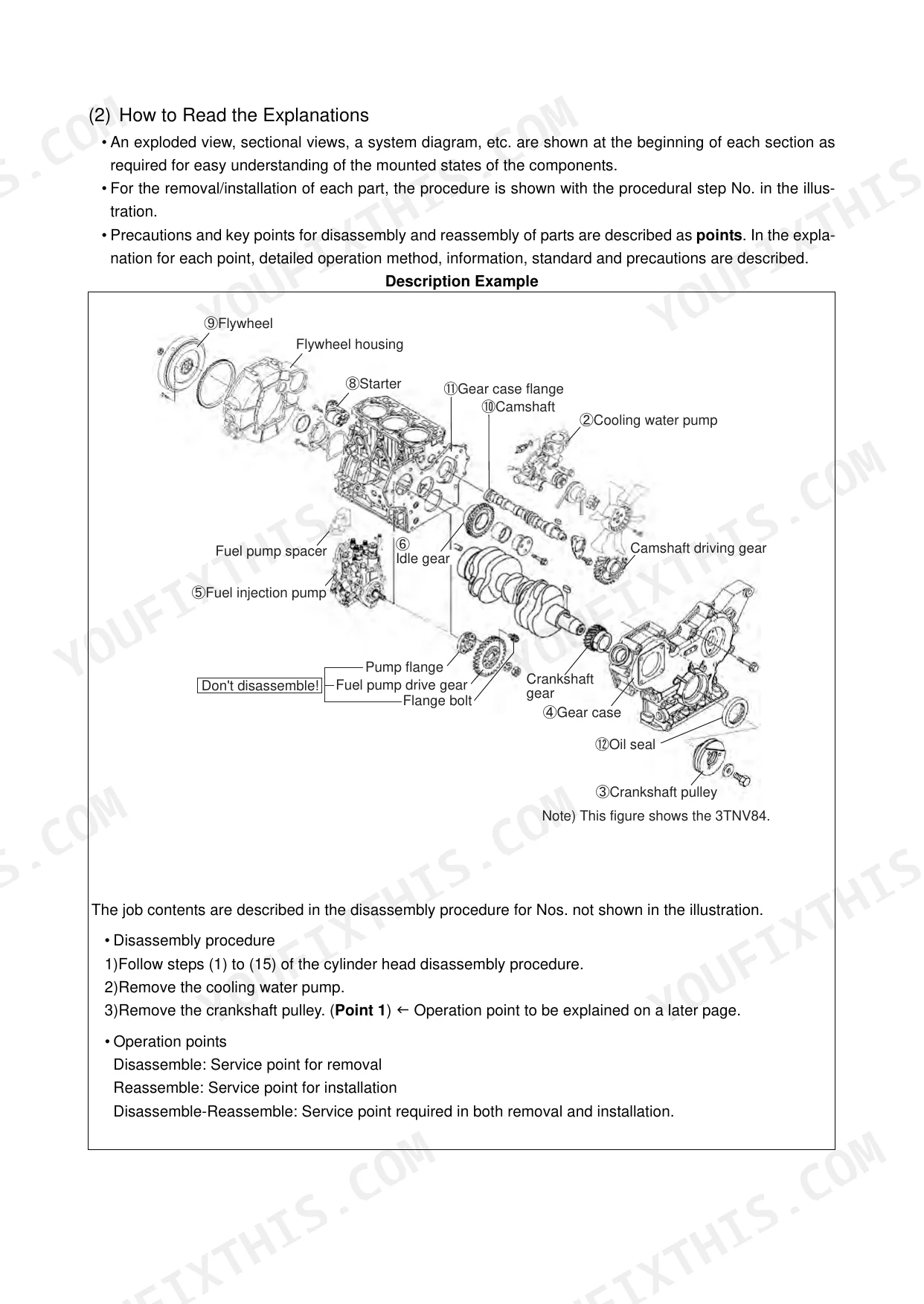

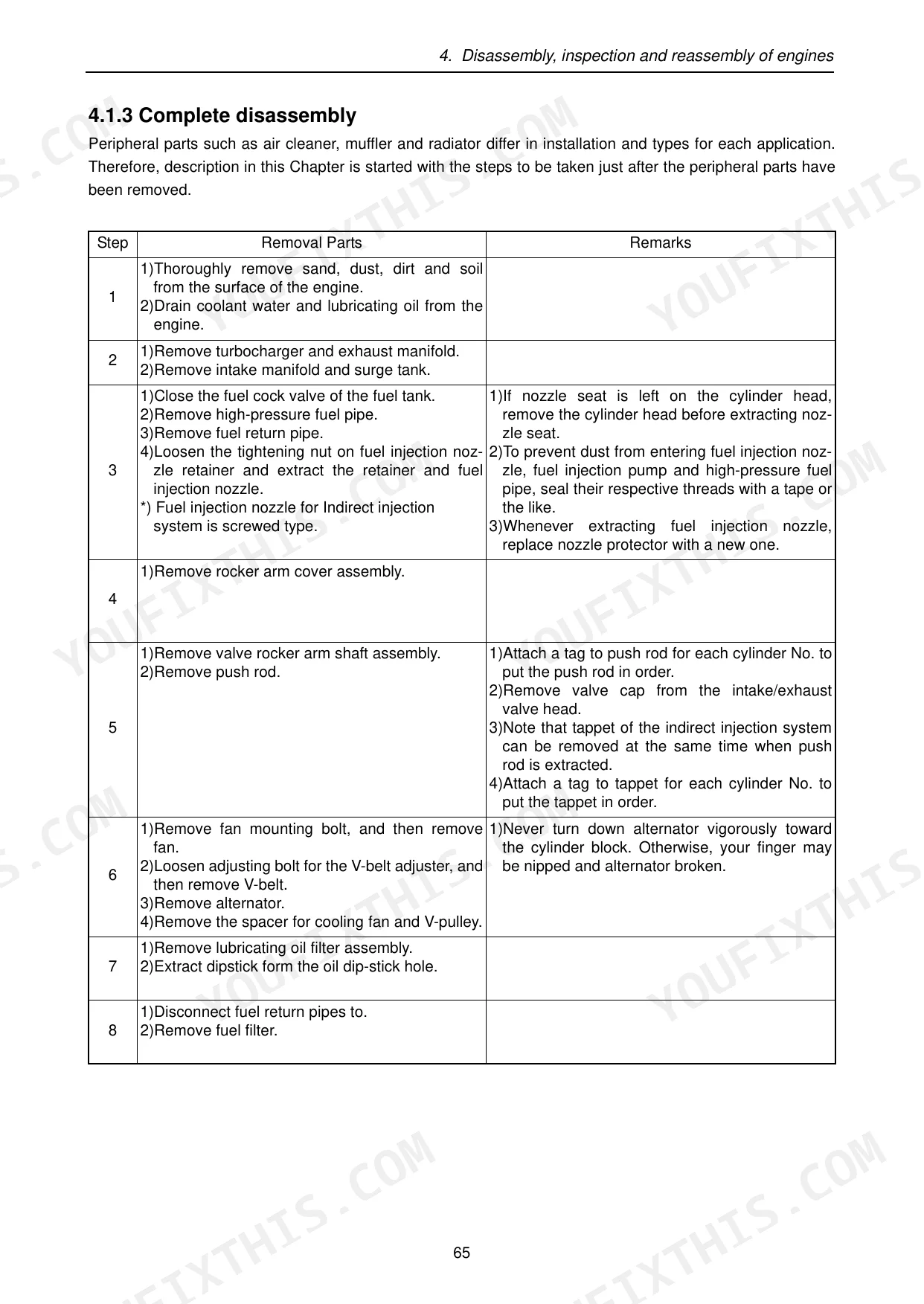

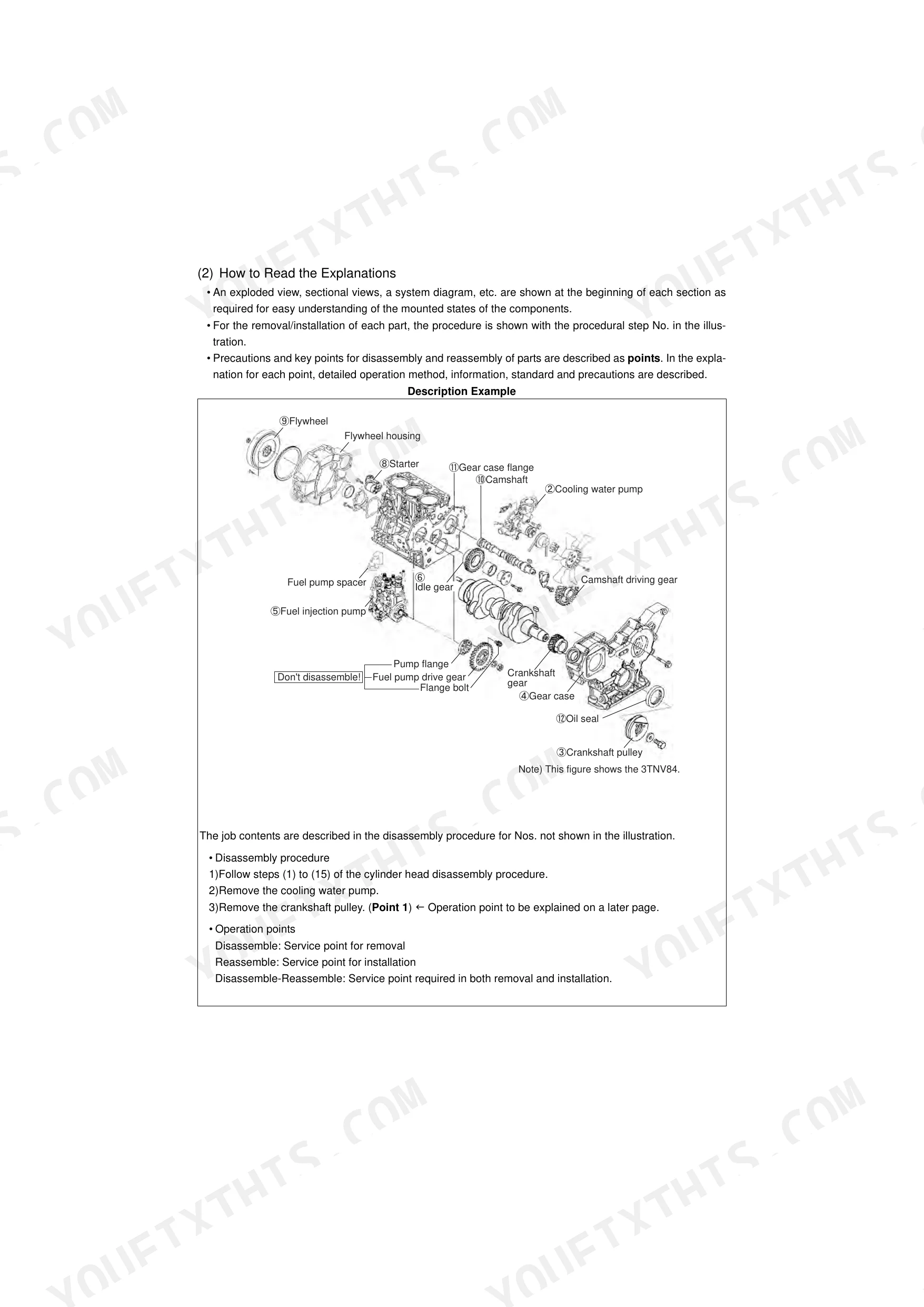

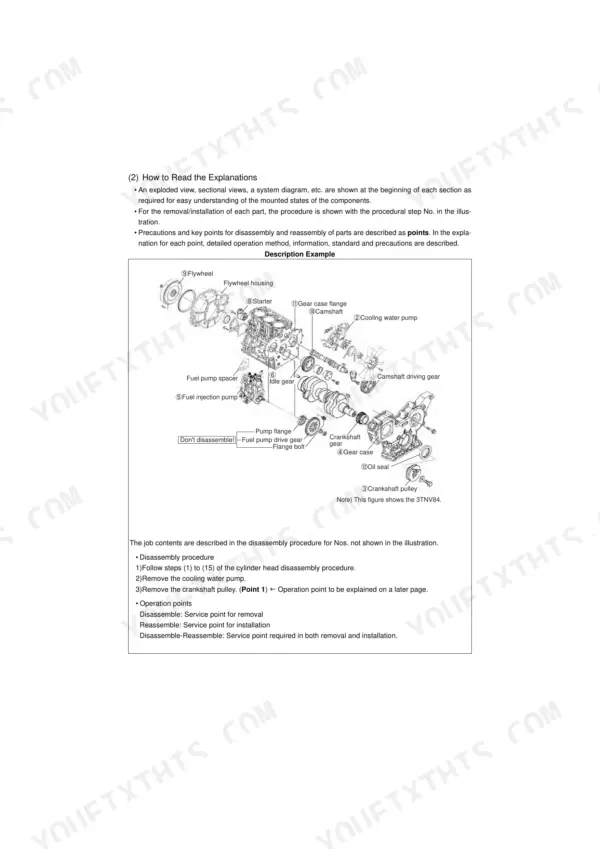

| Disassembly, Inspection and Reassembly of Engines | 77-125 | Complete Disassembly and Reassembly (Introduction, Special Service Tools, Precautions Before and During Reassembly, Operation), Cylinder Head: Disassembly |

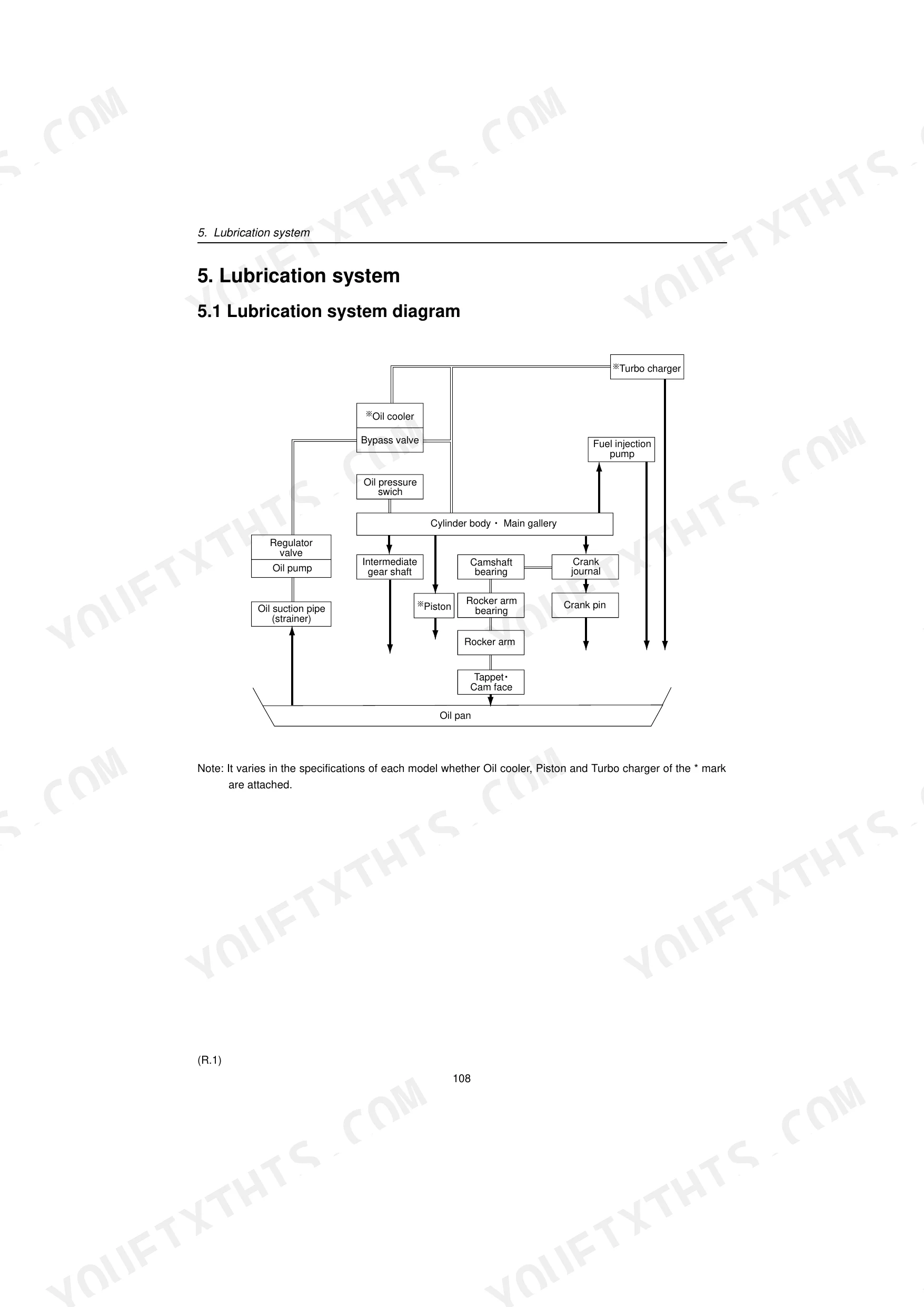

| Lubrication System | 126-131 | Lubrication System Diagram, Trochoid Pump Components, Disassembly, Servicing Points, Parts Inspection and Measurement (Trochoid Pump Inspection and Measurement) |
| Cooling System | 132-133 | Cooling Water System, Cooling Water Pump Components, Disassembly, Servicing Points |

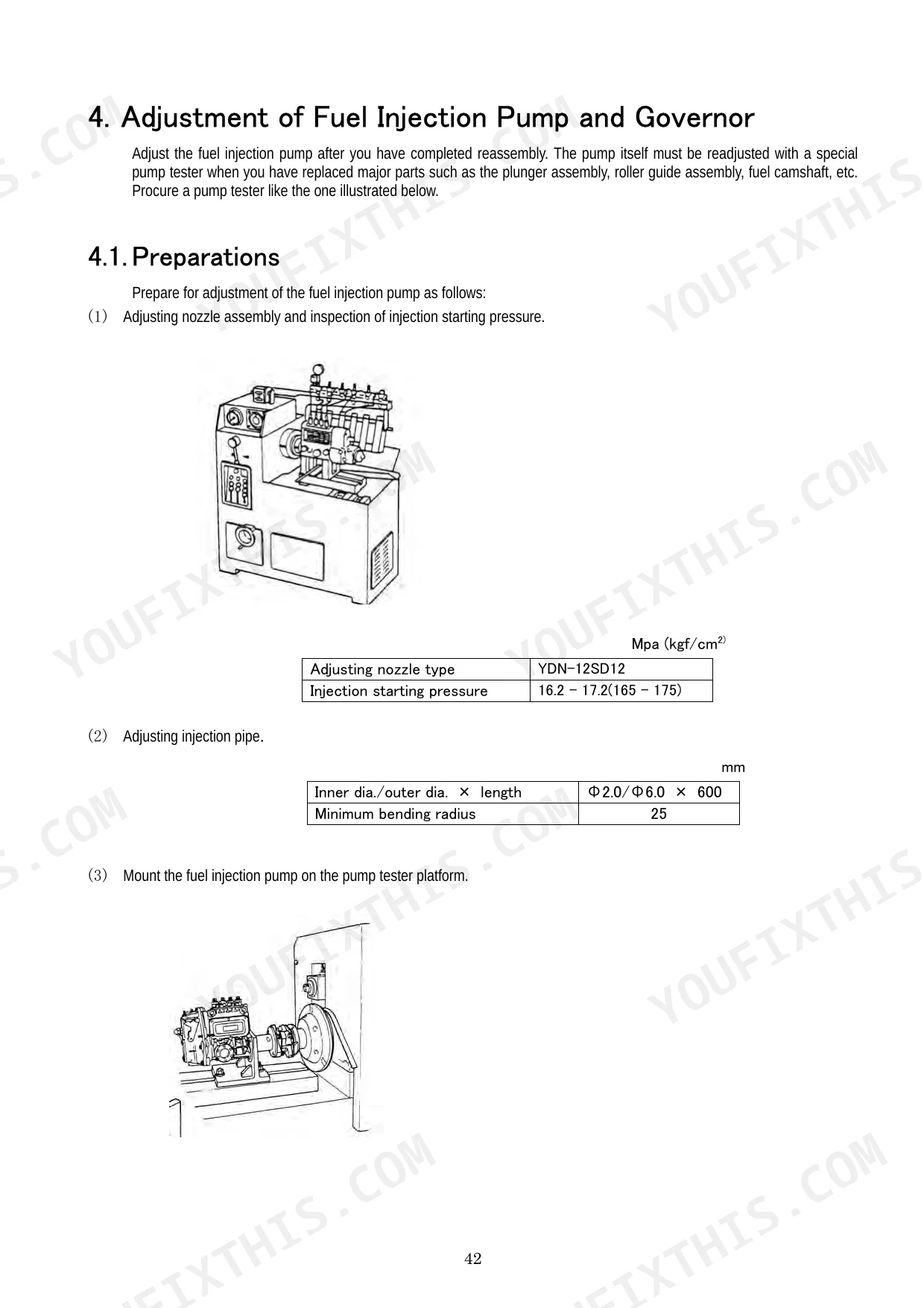

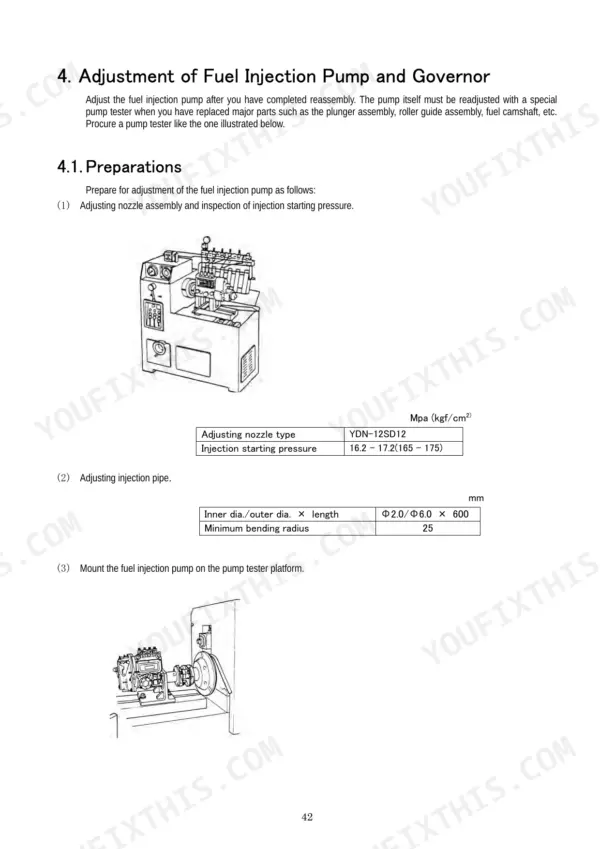

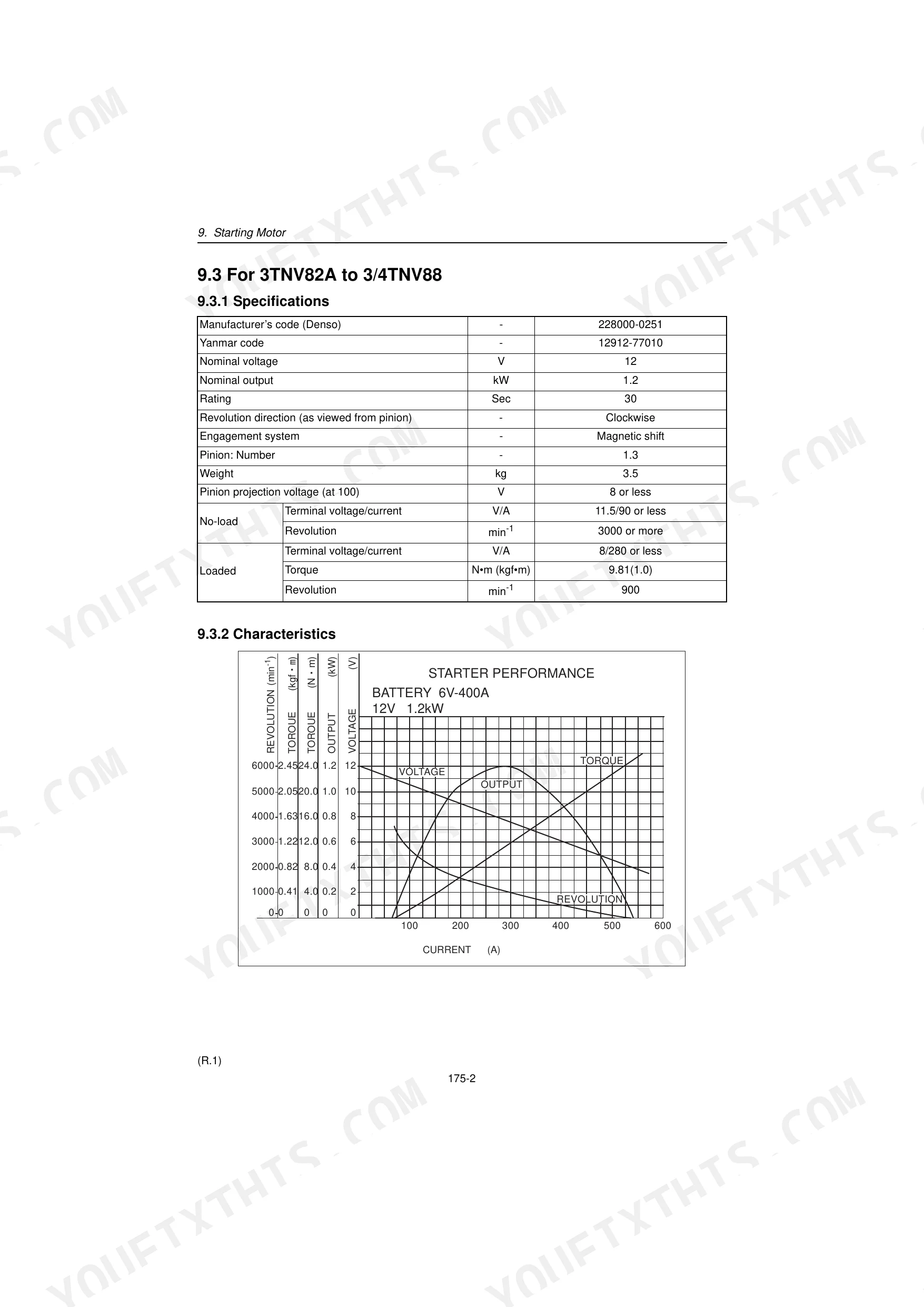

| Fuel Injection Pump / Governor | 134-162 | Introduction, Fuel Injection Pump (Fuel System Diagram, External View and Components, Disassembly Procedure, Assembly Procedure, Servicing Points) |
| Names of Parts and Disassembly Procedure | 163-166 | Nut M8, Rear Cover, Armature, Magnetic Switch, Gear Case, Pinion Shaft |
| Inspection and Maintenance | 167-178 | Check Before Daily Operation, Inspection After Initial 50 Hours Operation, Inspection Every 50 Hours, Inspection Every 250 Hours or 3 Months, Inspection Every 500 Hours or 6 Months |
| Disassembly Procedure | 179-287 | Alternator, Electric Wiring, Service Standards |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel filter element replacement interval | Every 250 hours or 3 months | p. 39 |
| Air cleaner element replacement interval | Every 250 hours or 3 months | p. 39 |
| Lube oil filter replacement interval (1st time) | Initial 50 hours | p. 42 |
| Lube oil filter replacement interval (2nd time and thereafter) | Every 250 hours or 3 months | p. 39 |
| Fuel pipe and coolant water pipe replacement interval | Every 1000 hours or one year (at least every 2 years) | p. 55 |
| Radiator cap opening pressure | 0.09 ± 0.015 MPa (0.9 ± 0.15 kgf/cm2) | p. 69 |
| Coolant water pipe and fuel pipe replacement interval | Every 1000 hours or one year (at least every 2 years) | p. 55 |
| 3TNV82A to 4TNV106 (T) | ||
| Fuel filter element tightening torque | 20 to 24 N•m (2.0 to 2.4 kgf•m) | p. 53 |
| 3TNV82A to TNV88 | ||
| Fuel injection nozzle pressure (CL) | 19.6-20.6 MPa (200-210 kgf/cm2) | p. 60 |
| Fuel injection nozzle pressure (VM) | 21.6-22.6 MPa (220-230 kgf/cm2) | p. 60 |
| 4TNV94L/98 | ||
| Starter motor nominal output | 2.3 kW | p. 160 |
Yanmar 3TNV / 4TNV Series Common Problems This Manual Covers
Hard starting after sitting
Air working past aged fuel lines or a tired feed system makes a TNV crank long and fire late. The fuel system diagram, injection pump disassembly and assembly procedures, and servicing points are all covered here.
Manual Section: Fuel Injection Pump / Governor p. 134Low compression, blow-by, oil use
Worn rings, seats, or valves show up first as weak cranking compression and smoke. The manual walks you through troubleshooting by measuring compression pressure so you know which cylinder is down before you pull the head.
Manual Section: Troubleshooting p. 71Low oil pressure or bearing knock
A worn trochoid pump quietly starves the crank until a bearing lets go. This section gives the pump components, disassembly steps, and the inspection and measurement checks that tell you whether the pump is still serviceable.
Manual Section: Lubrication System p. 126Coolant loss and overheating
A weeping cooling water pump or neglected coolant circuit will cook any of these engines. The cooling water system layout, pump components, disassembly steps, and servicing points are covered here.
Manual Section: Cooling System p. 132Warped head or blown head gasket
Overheat a TNV once and the head can distort past its limit; bolting it back down without checking just repeats the failure. This section covers cylinder head disassembly, inspection, and the reassembly and torque procedure.
Manual Section: Disassembly, Inspection and Reassembly of Engines p. 77Aged fuel and coolant hoses
Rubber fuel and coolant water pipes harden with hours and age, causing air leaks, drain-back, and hard starts. The periodic maintenance schedule sets the replacement interval so you change them before they strand the engine.
Manual Section: Inspection and Adjustment p. 39Frequently Asked Questions
Which Yanmar engines does this service manual cover?
It covers ten TNV-series industrial diesels: 3TNV82A, 3TNV84, 3TNV84(T), 3TNV88, 4TNV84, 4TNV84(T), 4TNV88, 4TNV94L, 4TNV98(T), and 4TNV106(T). It is the engine service manual, publication M9961-02E050, regardless of what equipment the engine is installed in.
Does it include cylinder head torque and inspection limits?
Yes. The Disassembly, Inspection and Reassembly of Engines section gives the head bolt tightening sequence and torques (for example, 188.0 to 197.8 Nm on the second step for the 4TNV106(T)) plus the 0.15 mm combustion surface distortion limit and crankshaft side gap limit of 0.28 mm. p. 77
What is the standard valve clearance for a Yanmar 3TNV / 4TNV Series industrial diesel engine?
The Inspection and Adjustment section lists 0.15 to 0.25 mm standard valve clearance for the 3TNV82A through 4TNV98 models, along with the full periodic maintenance schedule from daily checks out to 2000-hour service. p. 39
Are filter part numbers and service intervals included?
Yes. The Inspection and Adjustment section lists fuel and lube oil filter element part numbers (such as 129150-35151 for 3TNV82A through 4TNV98(T) engines), the 250-hour replacement intervals, and filter tightening torques of 20 to 24 Nm. p. 39
How quickly can I access this manual after buying?
This is a 287-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this Service Manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
