Need the factory operating guidelines for your Yanmar industrial diesel engine? This 48-page Yanmar 4tne98 operation manual pdf covers every startup procedure and maintenance schedule for the 4TNE94, 4TNE106, and 4TNE106T variants. Inside, you get a full breakdown of the control equipment alongside step-by-step preparation guidelines for fuel, lube oil, and cooling water. Open up the maintenance and inspection section to find exact service intervals spanning from the initial 50-hour break-in to the heavy 2000-hour servicing, plus clear troubleshooting steps to resolve alarm faults. Verify that your 4TNE106 has a 12V-88Ah or greater battery capacity, then torque the direct injection fuel filter to exactly 1.2 to 1.6 kgf-m before cranking. Prevent costly downtime caused by missed service intervals. Download this bookmarked digital file, jump straight to the periodic inspection chart, and keep your engine running hard.
What's Inside This Yanmar 4TNE94–4TNE106T Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3 | - |
| For Your Safety | 5-7 | Warning Symbols, Safety Precautions |

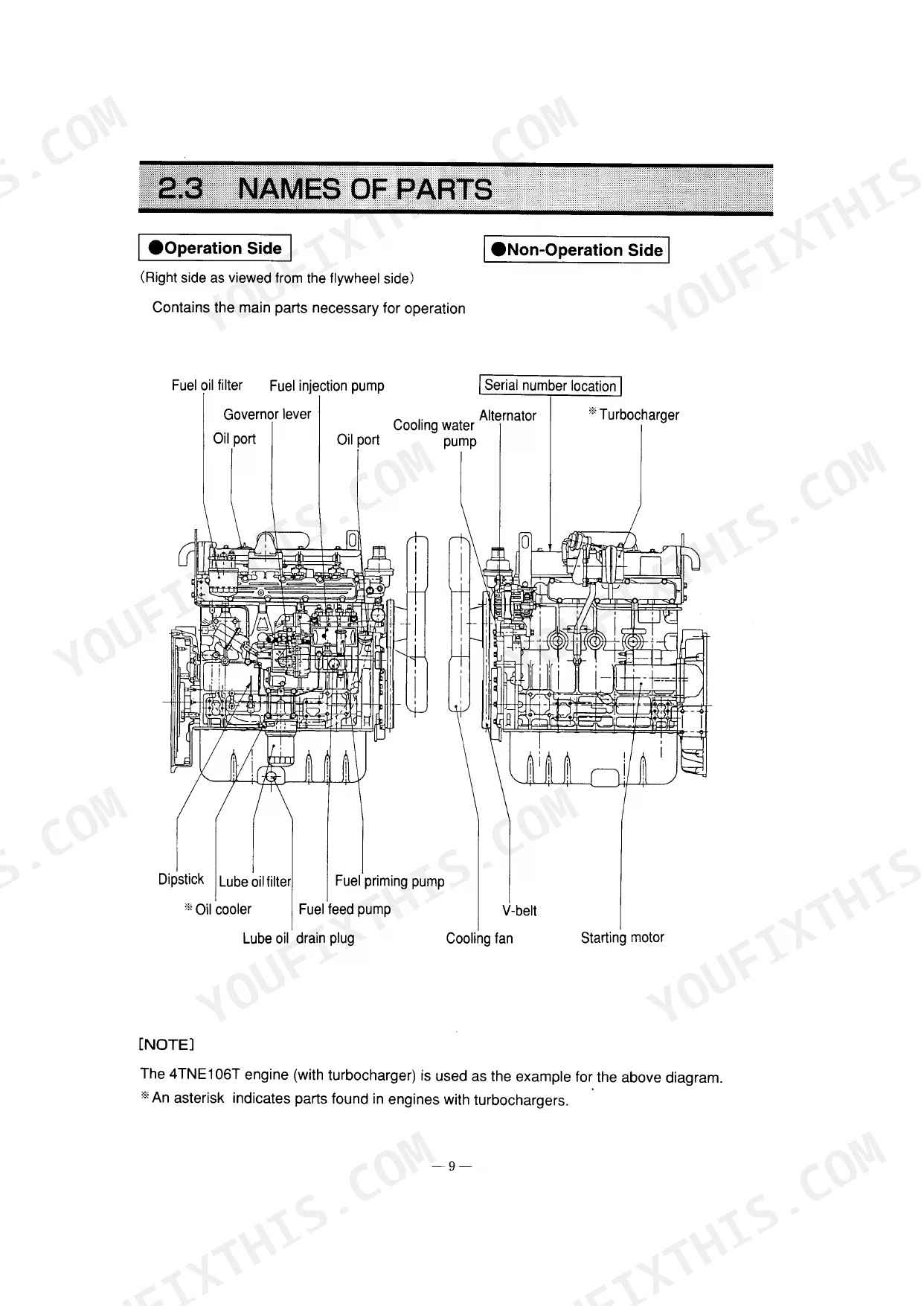

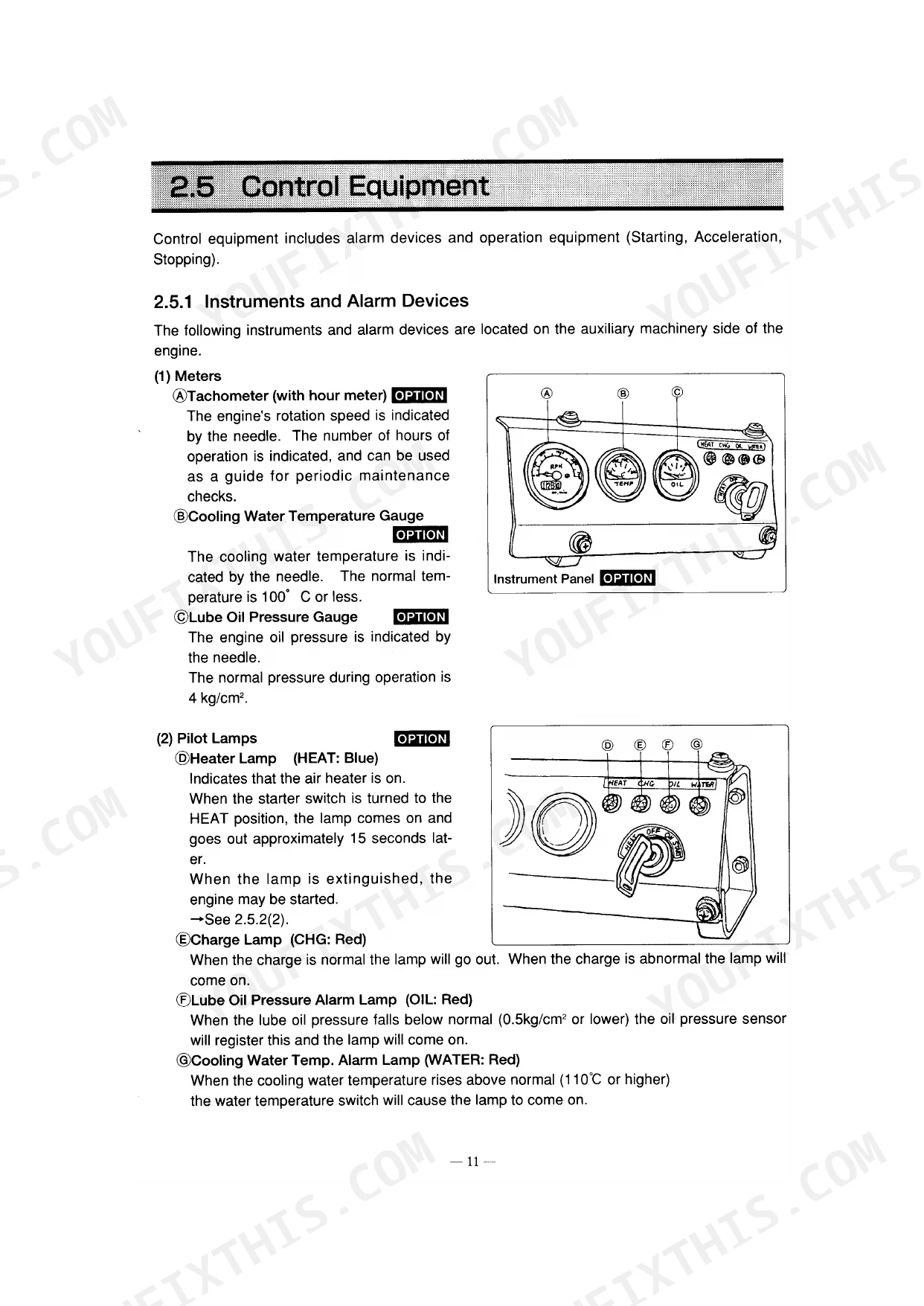

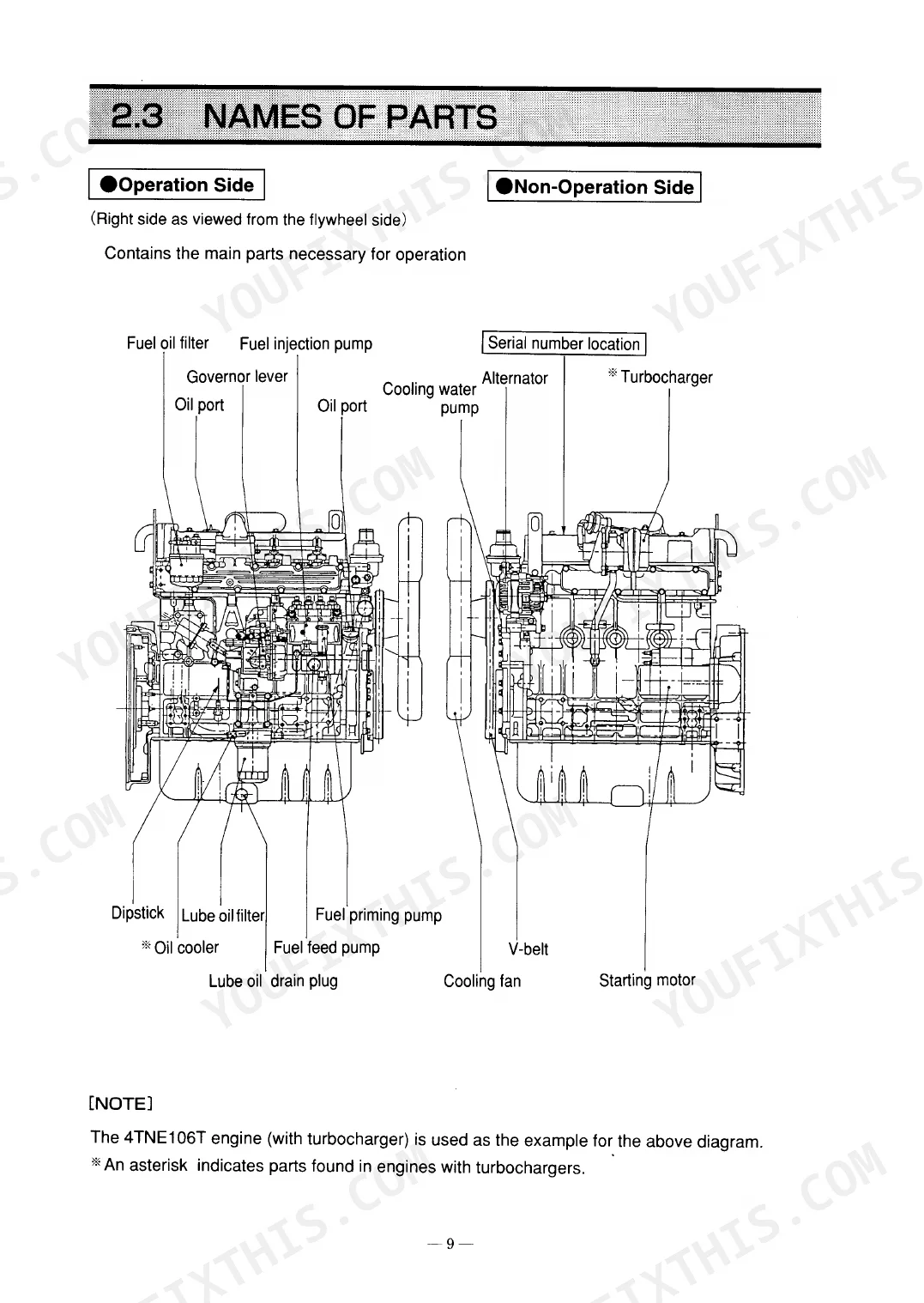

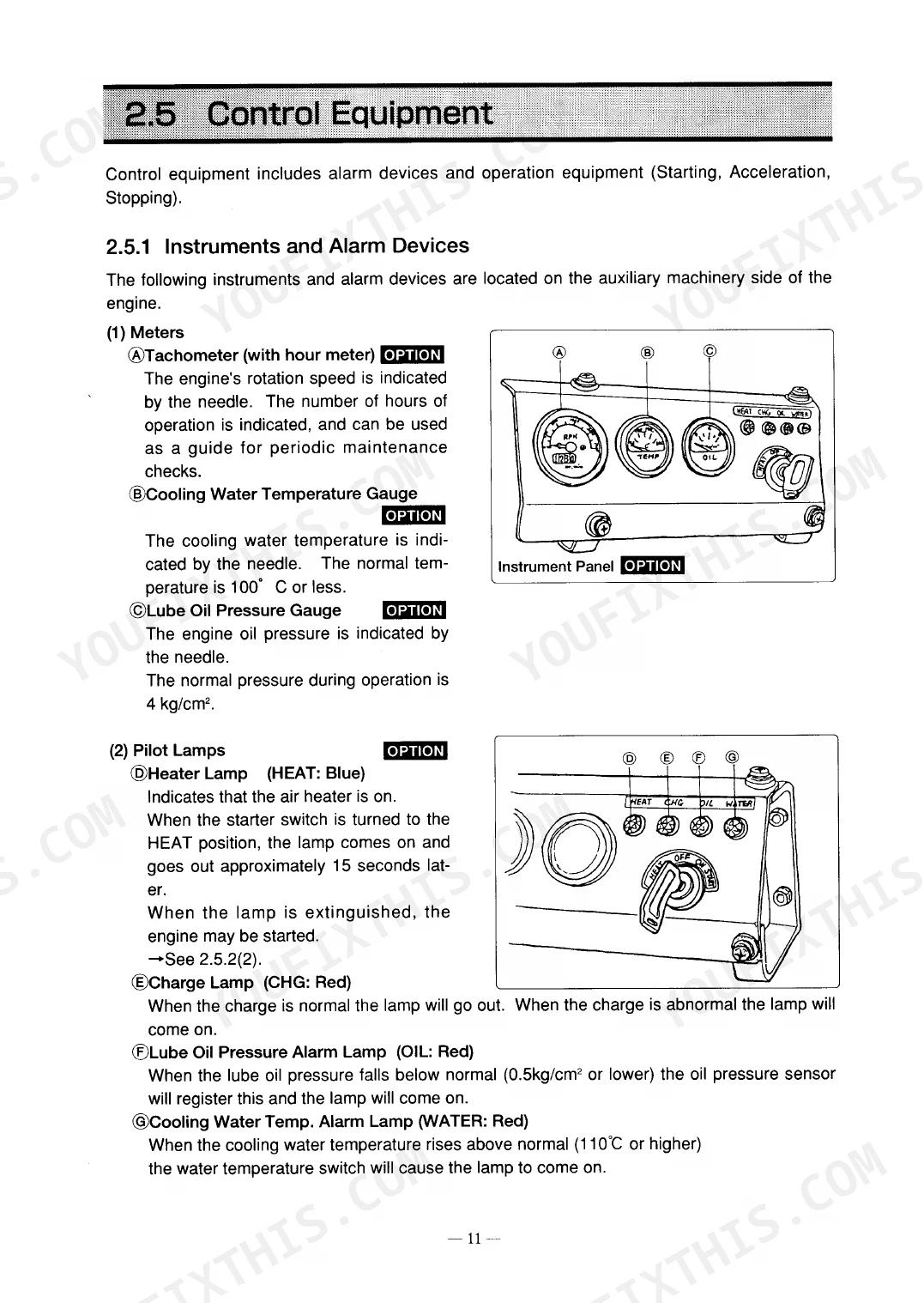

| Outline of Engine | 8-17 | Use & Driving System, Engine Specifications, Names of Parts, Major Servicing Parts, Control Equipment (Instruments and Alarm Devices, Operation Equipment) |
| Preparation for Starting | 18-25 | Fuel Oil, Lube Oil and Cooling Water, Supplying with Fuel, Supplying Engine Lube Oil, Supplying Cooling Water, Cranking |
| How to Operate | 26-34 | Inspection Before Starting, Checking the Alarm Devices, Starting, Adjusting the Engine Speed, Cautions During Operation, Stopping the Engine |

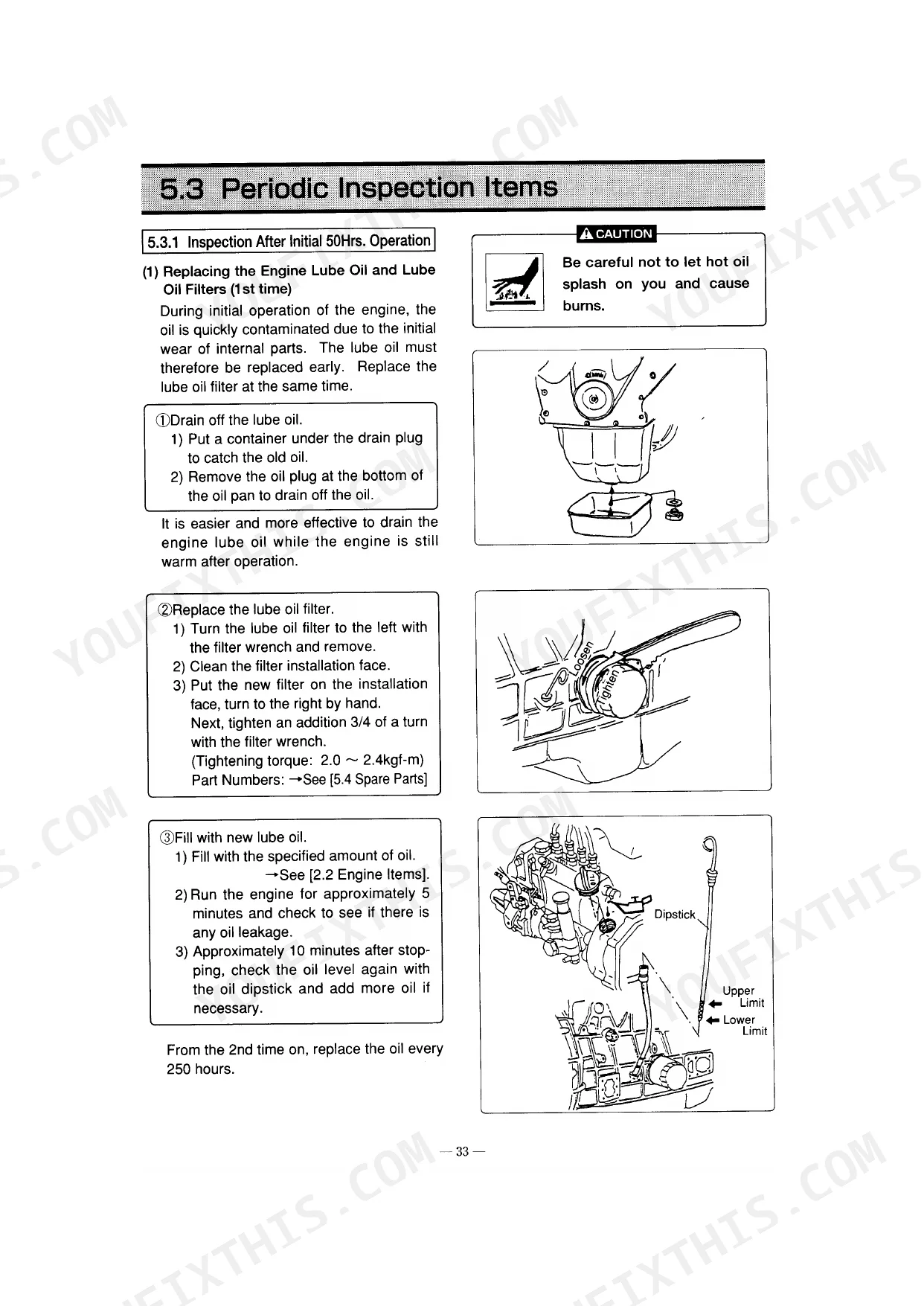

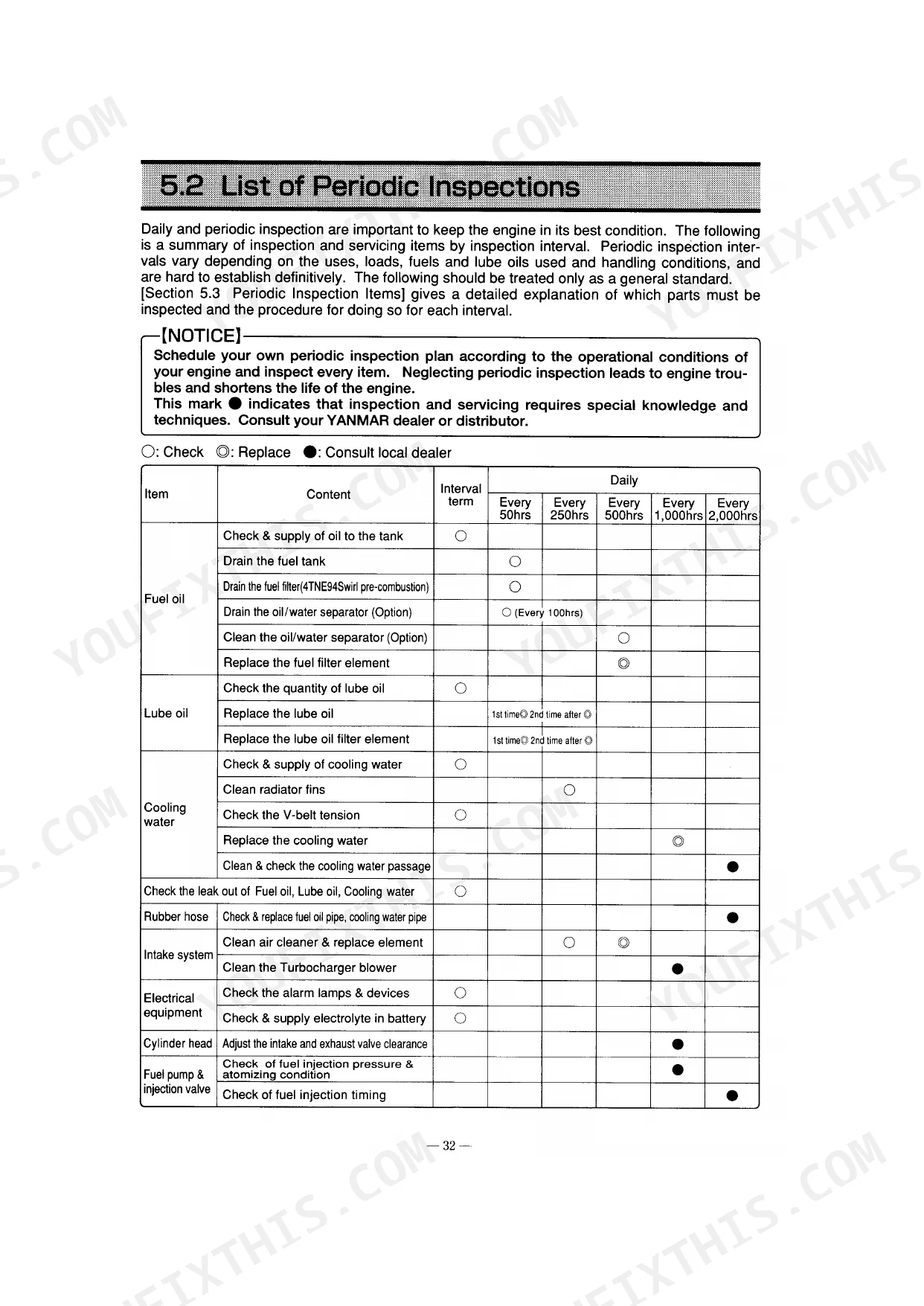

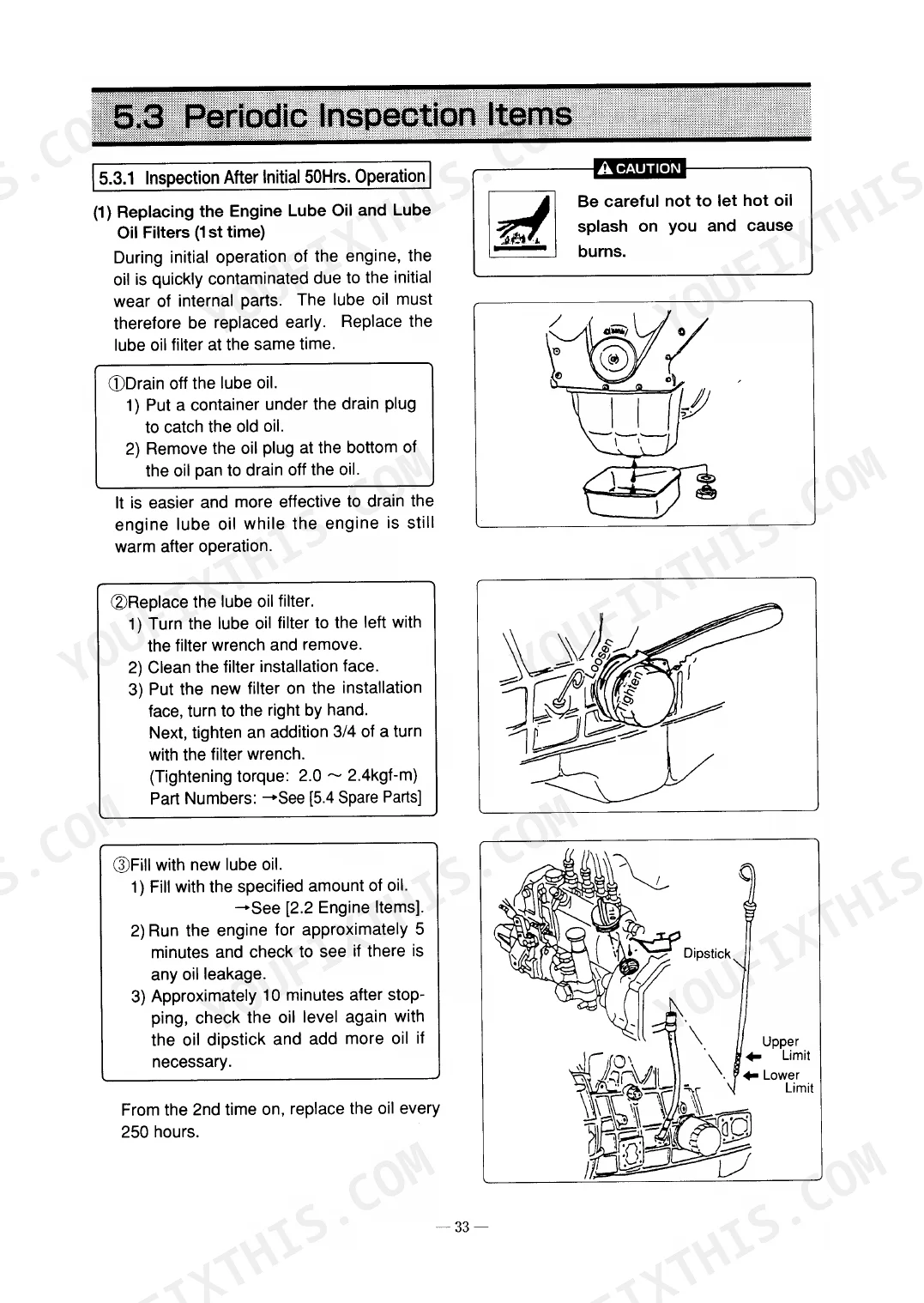

| Maintenance & Inspection | 35-44 | List of Periodic Inspections, Periodic Inspection Items (After Initial 50 Hrs. Operation, Every 50 Hours, Every 250 Hours, Every 500 Hrs., Every 1000 Hrs., Every 2000 Hrs.) |

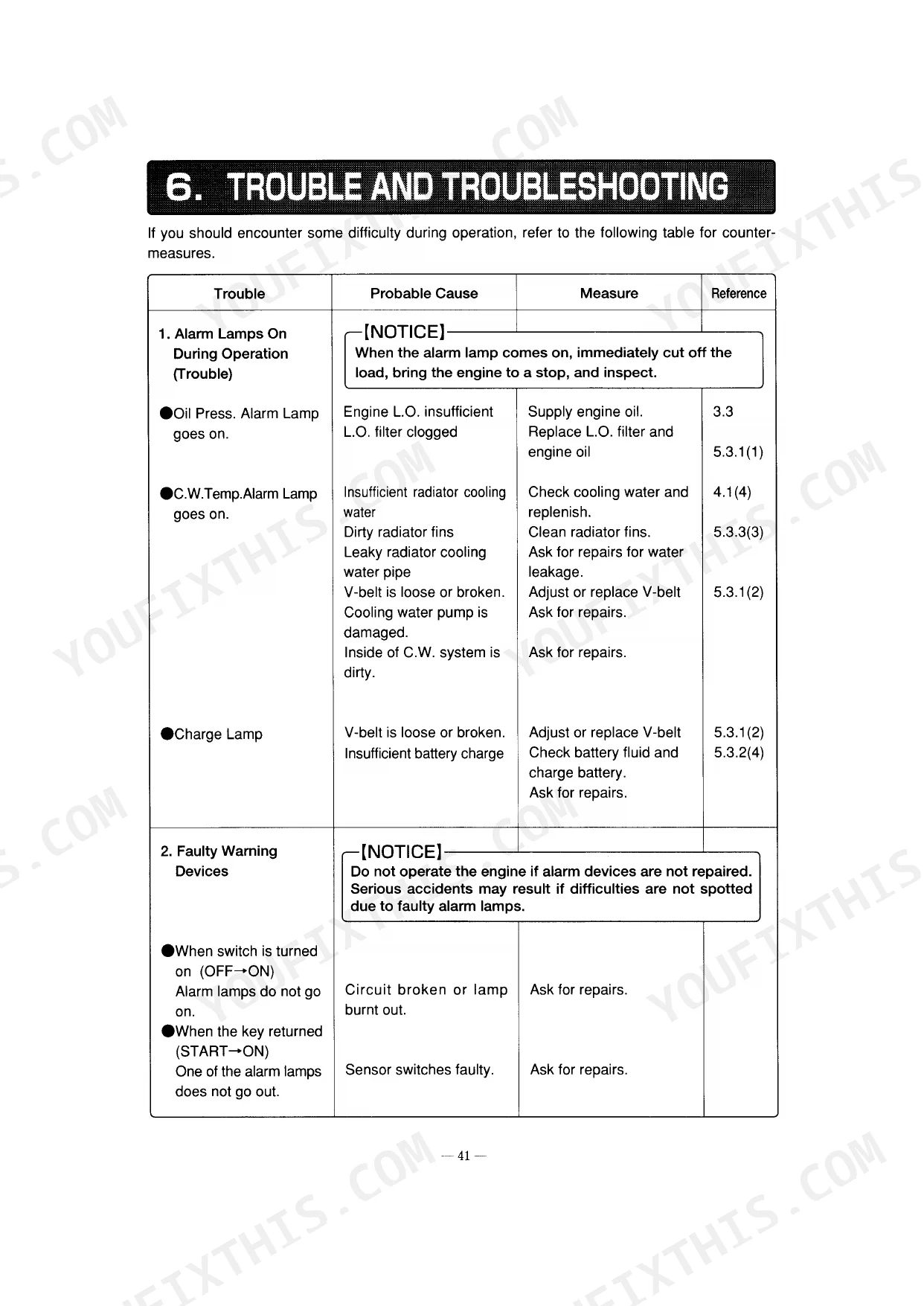

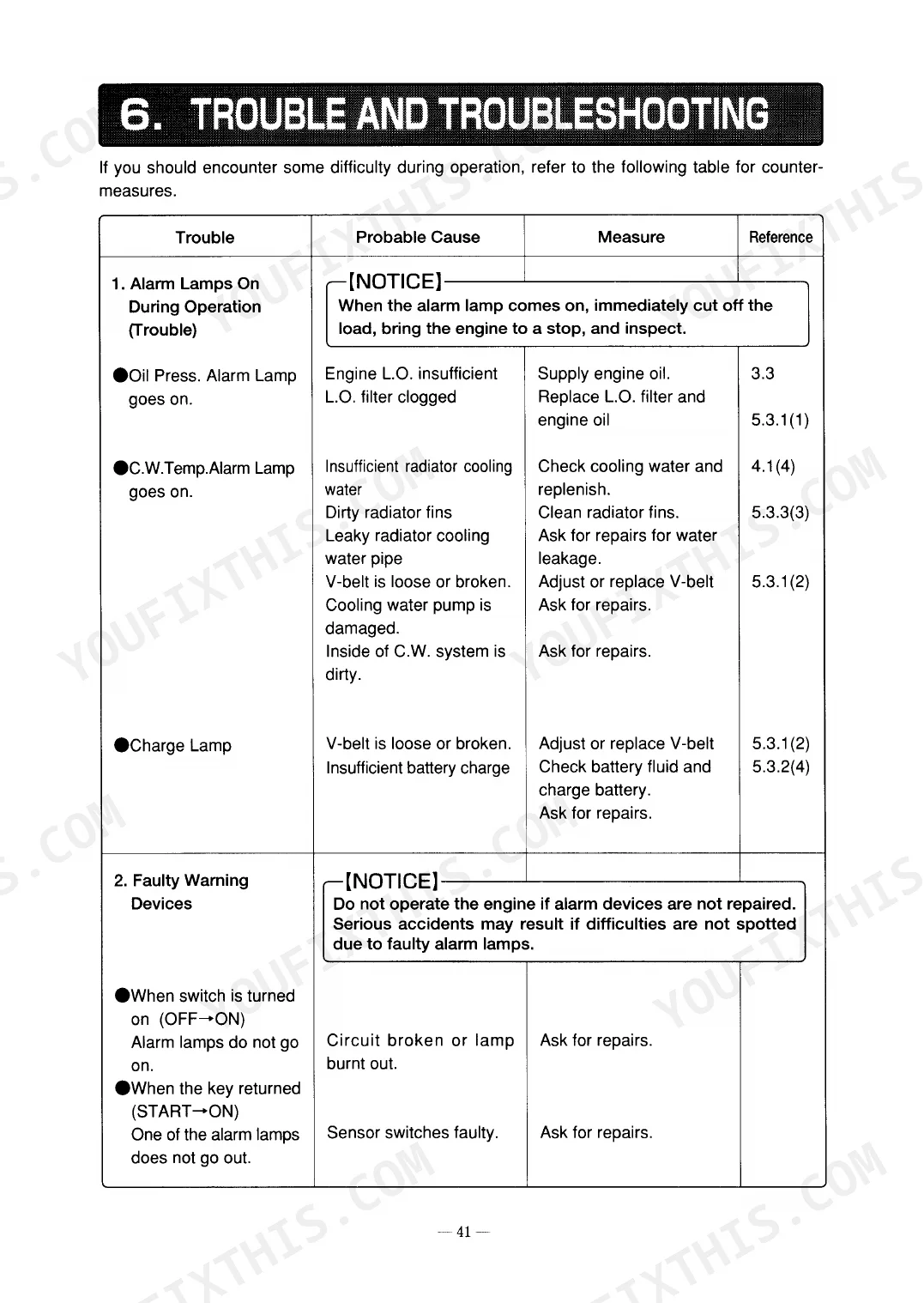

| Trouble and Troubleshooting | 45-47 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel filter tightening torque (Direct injection) | 1.2 to 1.6 kgf-m | p. 41 |

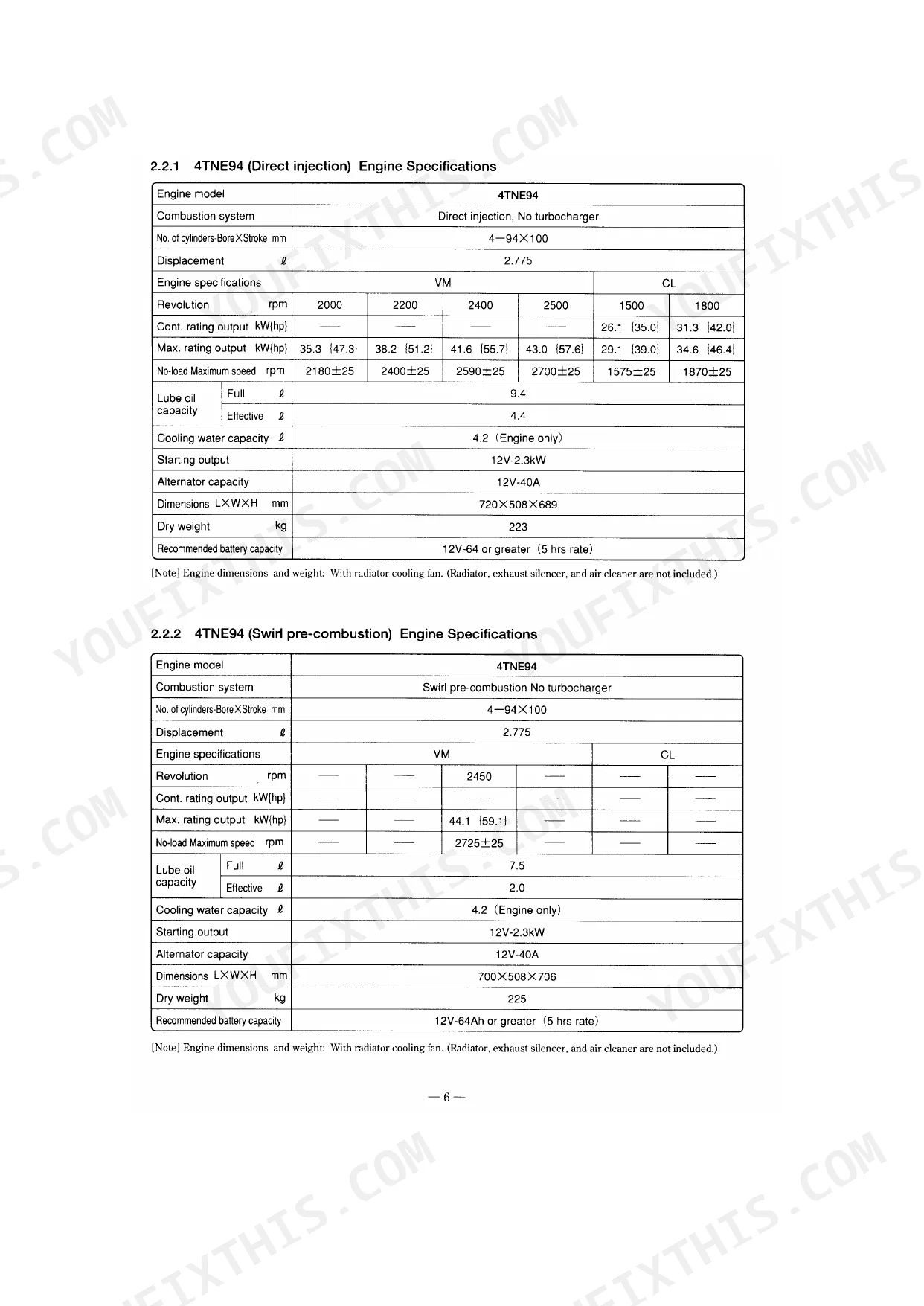

| Number of cylinders | 4 | p. 1 |
| 4TNE94 (Swirl pre-combustion) | ||
| Fuel filter tightening torque (Swirl pre-combustion) | 1.4 kgf-m | p. 42 |
| 4TNE94 | ||
| Recommended battery capacity (4TNE94) | 12V-64Ah or greater | p. 10 |
| 4TNE106 | ||
| Recommended battery capacity (4TNE106) | 12V-88Ah or greater | p. 11 |
Yanmar 4TNE94–4TNE106T Series Common Problems This Manual Covers
Yanmar 4TNE94 engine turns over slowly in cold weather or will not start after storage
Inspect the starting circuit. Verify the battery meets the minimum 12V-64Ah capacity requirement listed on page 10. Bleed air from the fuel lines. When installing a new direct injection fuel filter, torque it to 1.2 to 1.6 kgf-m as detailed on page 41.
Manual Section: Starting FailuresCoolant temperature rises rapidly under load with progressive power loss or severe overheating p. 45
Test the cooling system components. Measure the fan V-belt give. Adjust the tension until the depression measures exactly 10~15 mm as specified on page 38. Check the radiator fins for debris and clean them with compressed air. Refill the cooling water and purge air from the system.
Manual Section: Alarm Lamps On During Operation (Trouble)Oil pressure warning lamp illuminates continuously during operation with abnormal knocking noise p. 45
Drain the crankcase and inspect for metal debris. Replace the lube oil filter. Refill the 4TNE106 model with exactly 12.5 l of fresh oil as directed on page 11. Test the oil pump pressure valve for sticking. Verify the alarm lamp goes out after restarting the equipment.
Manual Section: Alarm Lamps On During Operation (Trouble)Rough running with poor combustion and thick white smoke from the exhaust
Remove the fuel injectors and inspect the nozzles for heavy carbon clogging. Clean or replace the affected nozzles. Install a new direct injection fuel filter and tighten it to 1.2 to 1.6 kgf-m according to page 41. Verify the intake valve seats for excessive wear or leakage.
Manual Section: Abnormal Exhaust ColorFrequently Asked Questions
How do I reset the YANMAR 4TNE94/4TNE98/4TNE106/4TNE106T fuel system after running out of diesel?
To bleed the fuel system after running out of diesel, first check the fuel tank and replenish if insufficient. Then, open the cocks of the oil/water separator and fuel filter, loosen the air bleeding bolt at the top of the oil/water separator by turning it 2-3 times with a screwdriver. Continue sending fuel with the fuel feeding pump until the fuel coming out of the air bleeding hole is clear and not mixed with bubbles, then tighten the air bleeding bolt.
What are the replacement specifications for fuel filter?
The fuel filter element replacement interval is every 500 hours. The part code for direct injection models (4TNE94, 4TNE98) is 119000-55600, and for 4TNE106 and 4TNE106T it is 119005-35100. For 4TNE94 swirl pre-combustion models, the part code is 129901-55850.
What is the engine lube oil capacity for the YANMAR 4TNE94 (Direct injection) engine?
For the YANMAR 4TNE94 (Direct injection) engine, the full lube oil capacity is 9.4 liters, with an effective capacity of 4.4 liters. It is important to fill the oil to the upper limit on the dipstick gauge.
What is the cooling water capacity for the YANMAR 4TNE94 engine?
The cooling water capacity for the YANMAR 4TNE94 engine is 4.2 liters (Engine only). It is important to fill the cooling water slowly into the fresh water tank until it overflows from the filler port, and to the upper limit in the subtank.
How do I check and adjust the V-belt tension for the cooling fan?
To check the V-belt tension, press down on the middle of the belt with your index finger; the give should measure about 10-15 mm. To adjust, loosen the set bolt and move the alternator. Replace the belt if it is damaged.
Is this manual a digital download?
You get a 48-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this Yanmar 4TNE94, 4TNE98, 4TNE106, 4TNE106T?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Document Quality
This document is a scanned copy of an original manual, featuring an OCR layer that allows you to search and copy the full text content. The text quality is generally crisp and readable, though some original scanned elements may appear slightly less sharp. Diagrams and illustrations are raster images, meaning they may lose some clarity when significantly zoomed, but their labels remain legible. Pages are mostly clean, with only minor scan artifacts and occasional slight skewing present. All pages contain content, with no notable blank or filler pages.
