Looking to rebuild your Yanmar industrial diesel engine? This 180-page Yanmar 4TNE94 / 4TNE98 / 4TNE106 / 4TNE106T service manual PDF (OEM #HINSHI-H8013-R1) breaks down every internal component for all four variants. Open it up to find full exploded views of the cylinder block, complete fuel injection pump breakdowns, and a dedicated troubleshooting section for quick diagnostics. You get step-by-step tear-down procedures for the entire engine body, cooling system, and turbocharger assembly. Set the standard valve clearance to 0.15-0.25 mm on the 4TNE94/98, or 0.25-0.35 mm on the 4TNE106/106T, and verify the fuel injection pressure hits exactly 21.57 to 22.55 MPa before turning it over. Stop hunting for reliable engine data. This bookmarked download jumps straight to the right chapter so you can get the motor running today.
What's Inside This Yanmar 4TNE94, 4TNE98, 4TNE106, 4TNE106T Manual
| System | Pages | Key Topics |
|---|---|---|
| For Safe Servicing | 4 | Service Shop, Working Wear, Tools, Genuine Parts, Oil and Grease, Bolt and Nut Tightening Torques |
| Precautions for Safe Servicing | 5-10 | Service Shop, Working Wear, Tools to Be Used, Use of Genuine Parts, Oil and Grease, Bolt and Nut Tightening Torques, Electrical Parts, Waste Treatment |

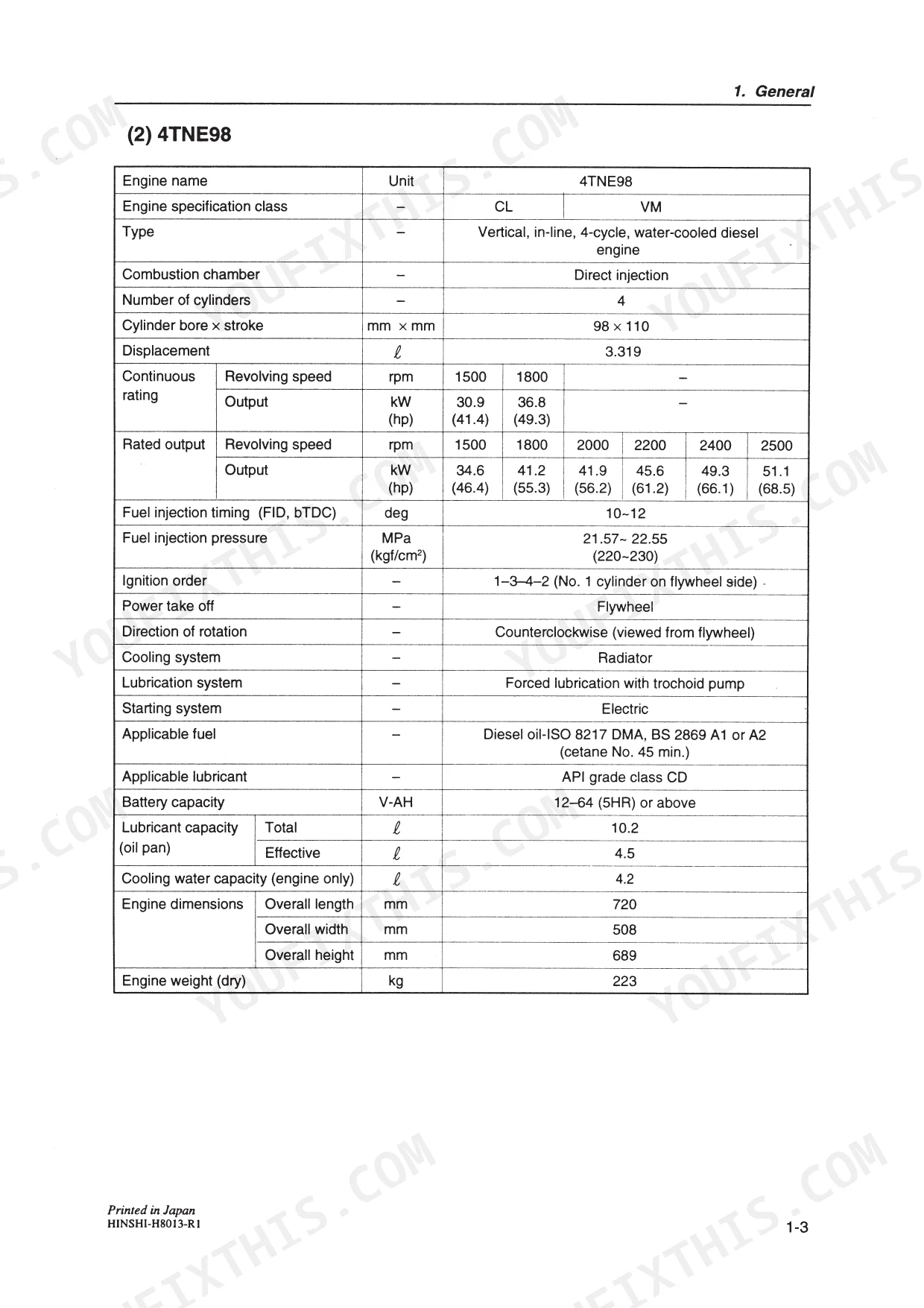

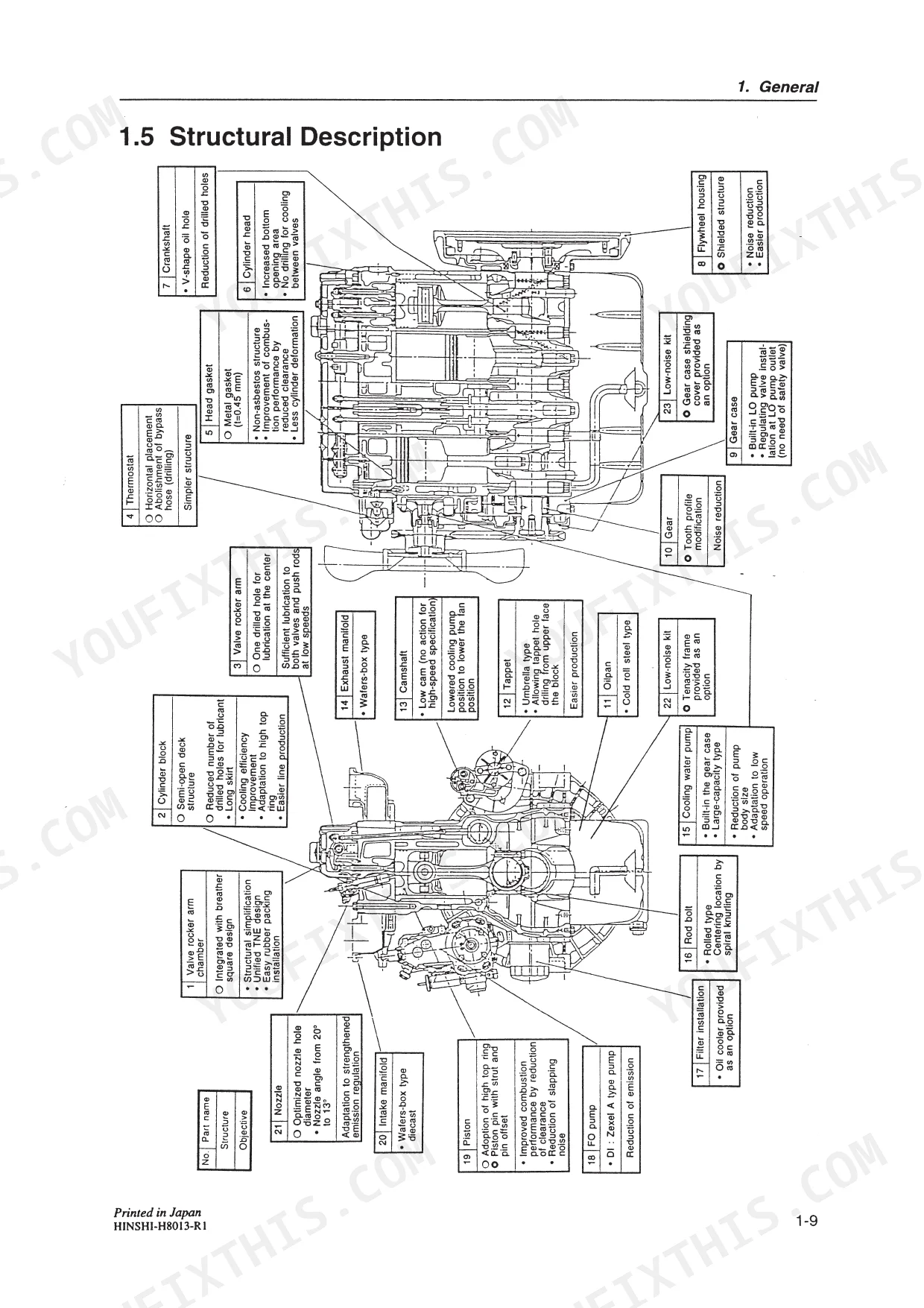

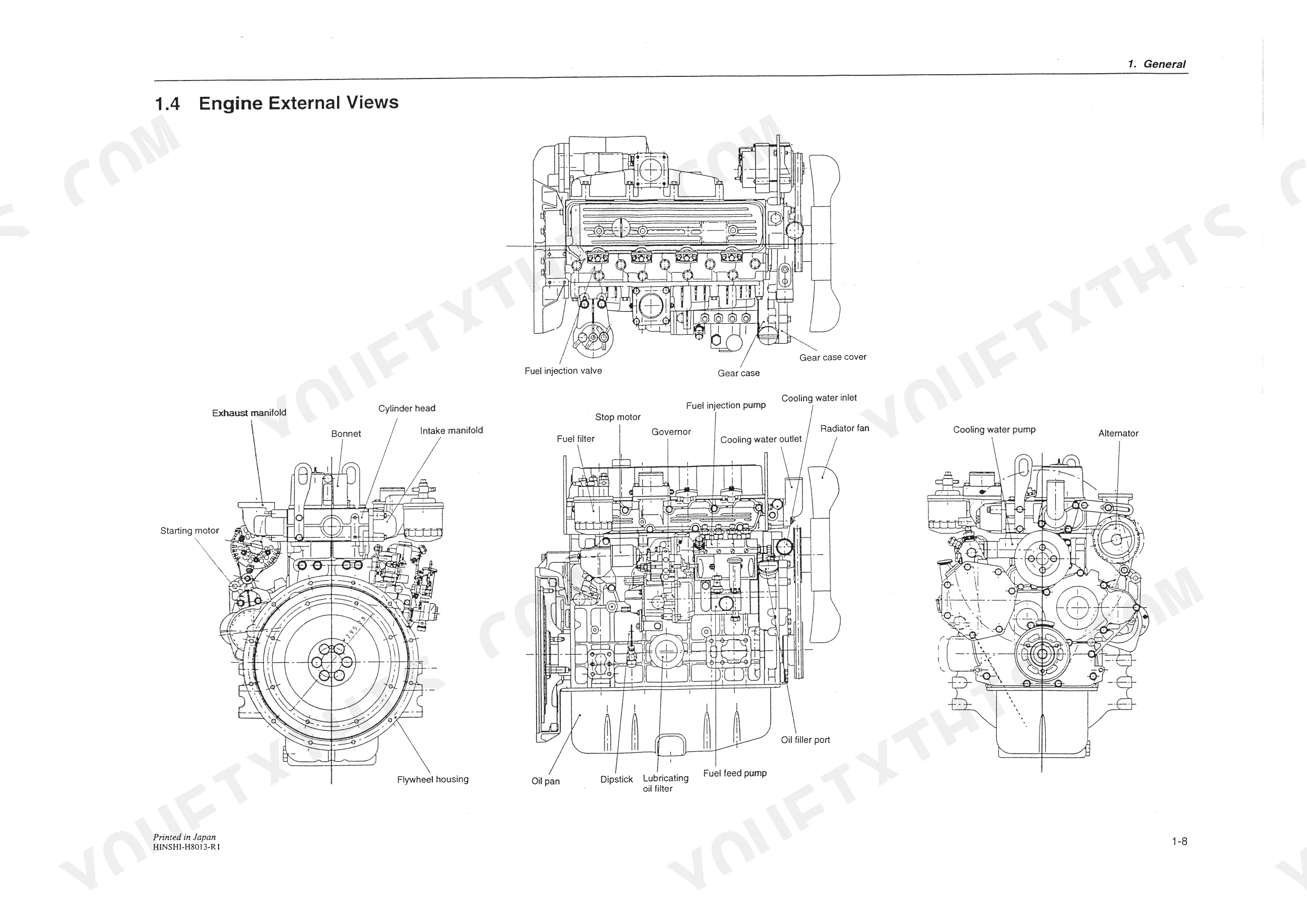

| General | 11-24 | Engine Nomenclature, Specifications, Fuel Oil, Lubricating Oil and Cooling Water, Engine External Views, Structural Description |

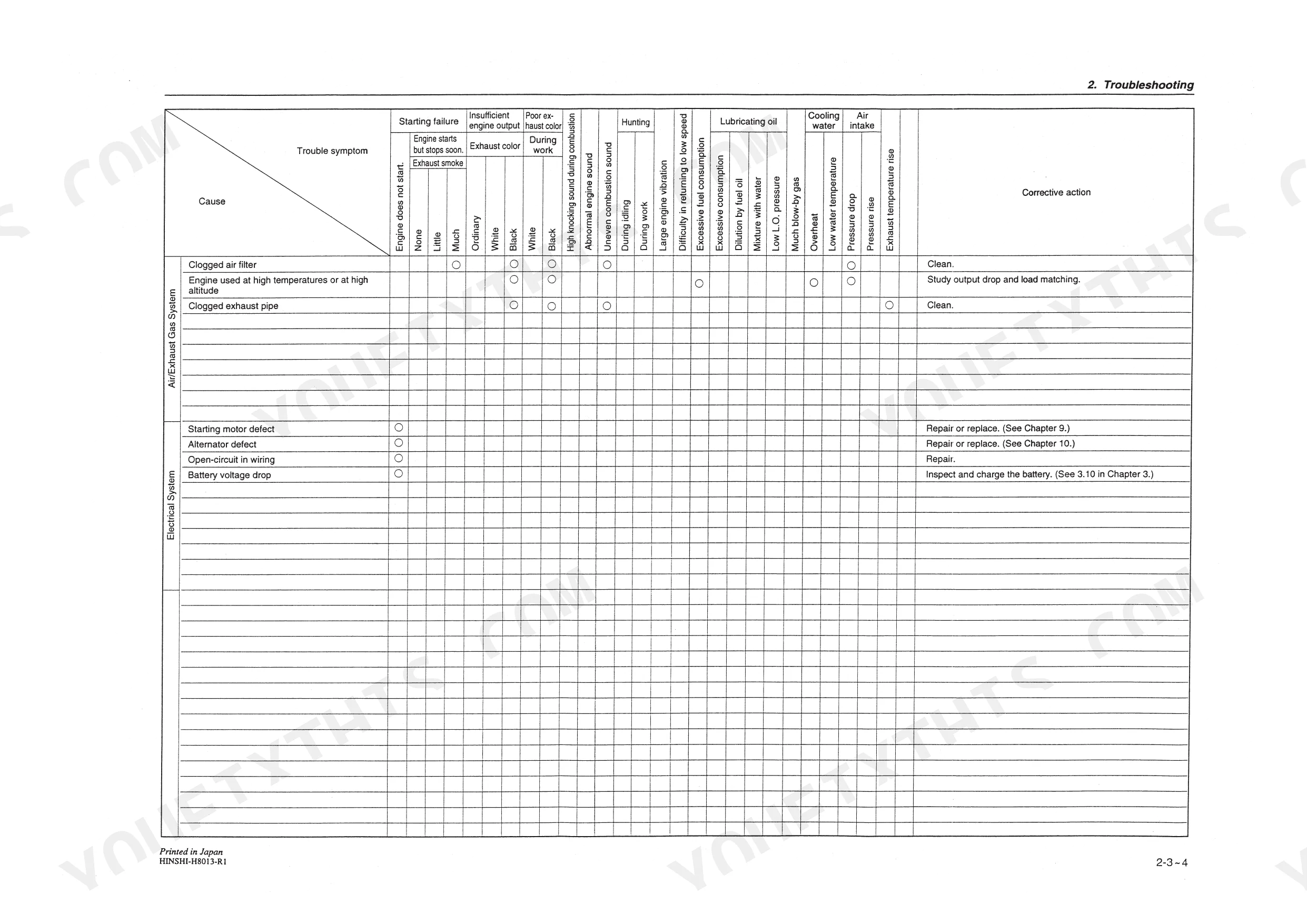

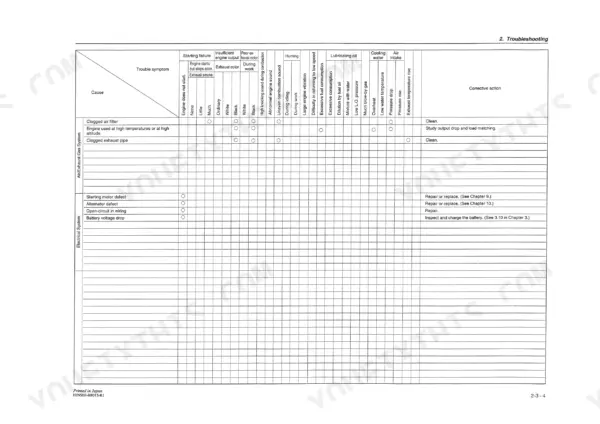

| Troubleshooting | 25-28 | Quick Reference Table for Troubleshooting |

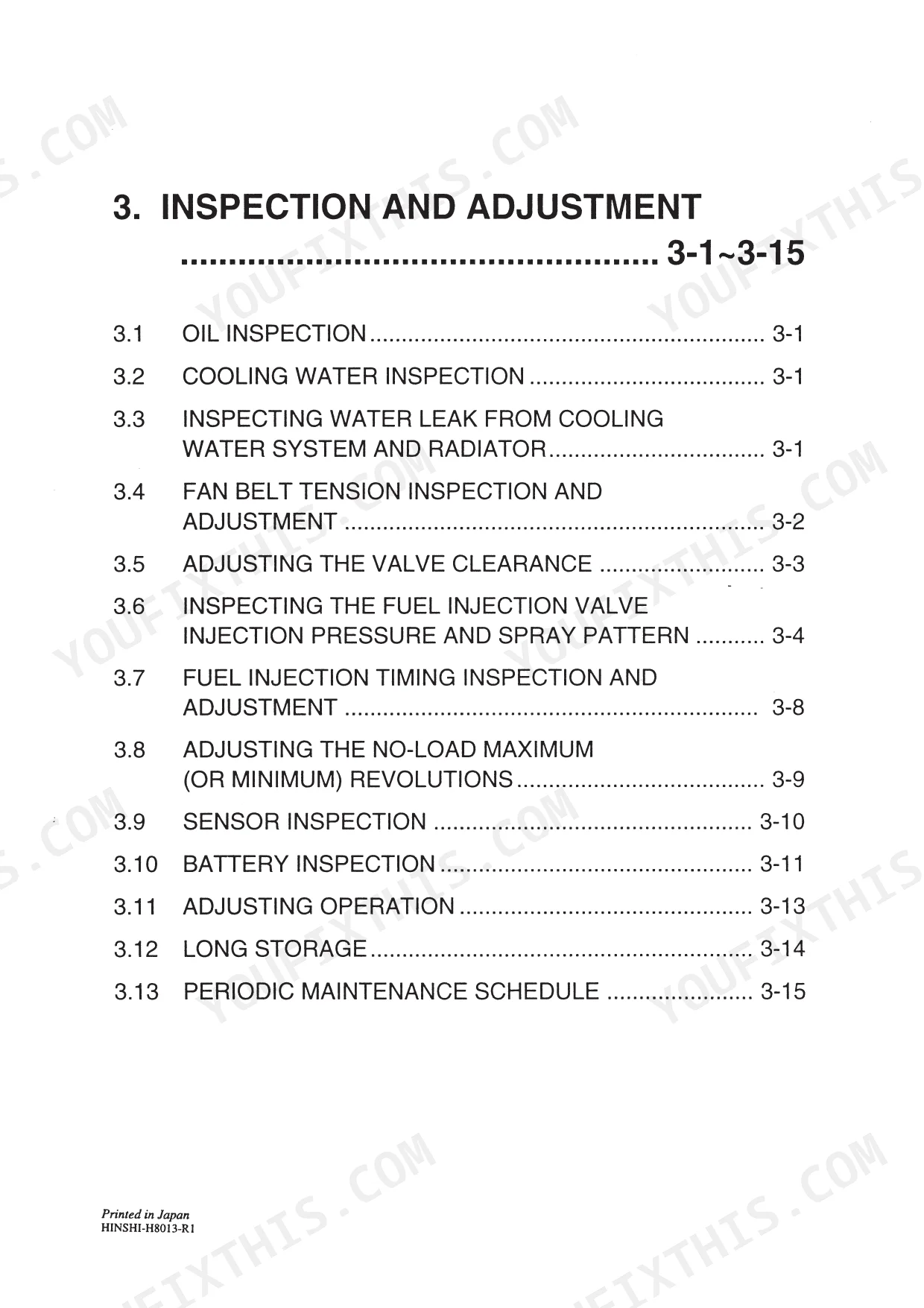

| Inspection and Adjustment | 29-43 | Inspecting the Fuel Injection Valve Injection Pressure and Spray Pattern |

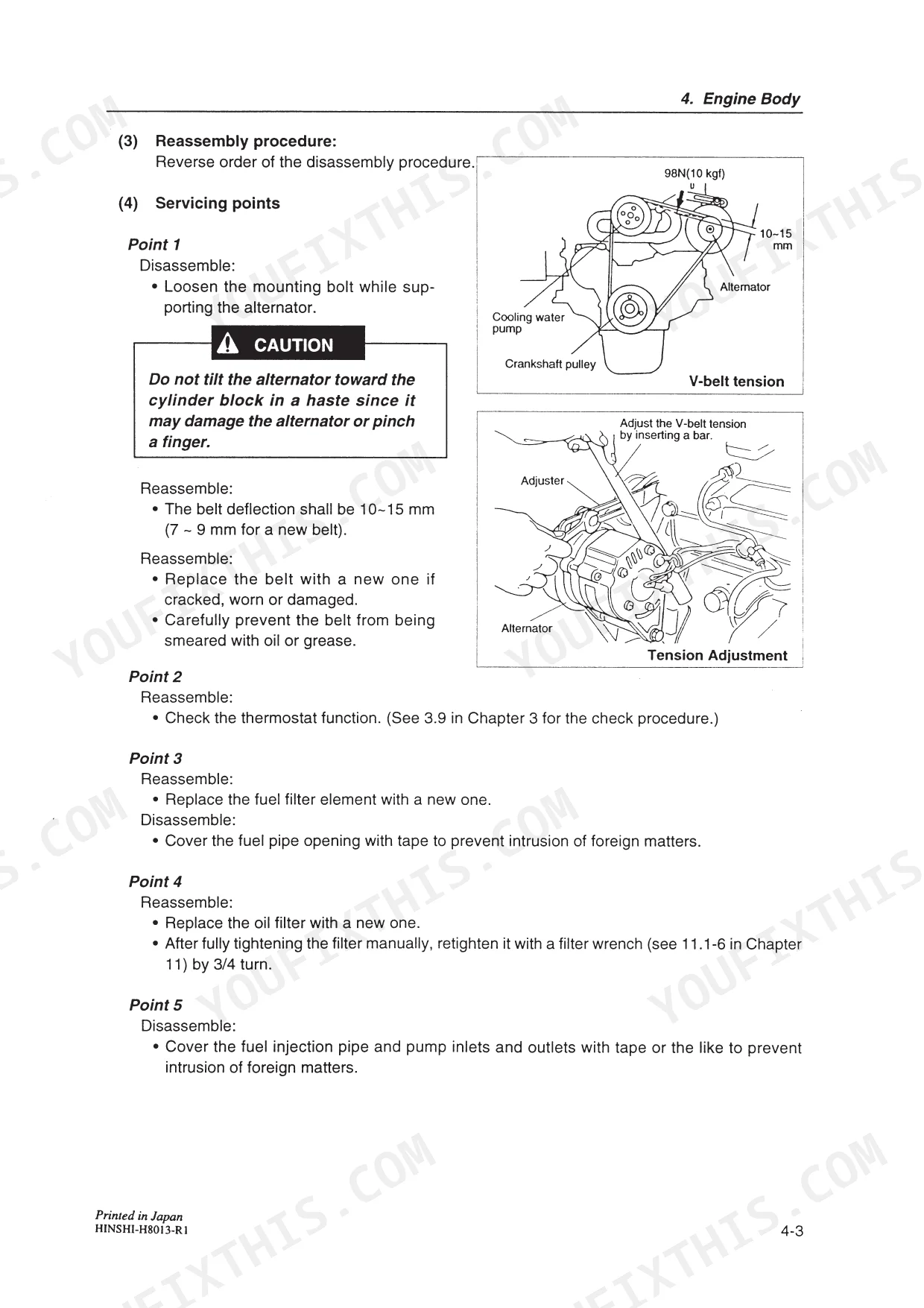

| Engine Body | 44-73 | Cylinder Head, Gear Train and Camshaft, Cylinder Block |
| Lubrication System | 74-76 | Lubrication System Diagram, Trochoid Pump Components, Disassembly, Servicing Points, Parts Inspection and Measurement |
| Cooling System | 77-79 | Cooling Water System, Cooling Water Pump Components, Disassembly, Servicing Points |
| Fuel Injection System/Governor | 80-88 | Fuel Injection Pump |
| Turbocharger (for 4TNE106T) | 89-106 | Structure and Functions, Periodic Inspection Procedure, Washing and Inspection Procedure |
| Starting Motor | 107-135 | For 4TNE94/98, For 4Tne106(T) |
| Alternator | 136-156 | For 4TNE94/98, For 4Tne106(T) |
| Special Service Tools | 157-161 | Special Tools, Measuring Instruments, Valve Guide Tool, Connecting Rod Bushing Replacer, Dial Gage, Torque Wrench |
| Service Standards | 162-180 | Tightening Torques for Main Bolts and Nuts |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 4TNE106, 4TNE106T | ||
| Standard valve clearance | 0.25~0.35 mm | p. 33 |
| All Models | ||
| Air cleaner cleaning interval | Every 250 hours | p. 43 |
| Fuel injection pressure (Standard) | 21.57~22.55 MPa (220~230 kgf/cm²) | p. 34 |
| Nozzle case nut tightening torque | 39.2 to 44.1 Nm (4 to 4.5 kgf·m) | p. 35 |
| Fuel Injection Pressure | 21.57-22.55 MPa | p. 34 |
| 4TNE94, 4TNE98 | ||
| Standard Valve Clearance | 0.15-0.25 mm | p. 33 |
| Fuel Injection Timing | 10-12 degrees bTDC | p. 38 |
| Thermostat Valve Opening Temperature | 71-85 °C | p. 40 |
Yanmar 4TNE94, 4TNE98, 4TNE106, 4TNE106T Common Problems This Manual Covers
Yanmar 4TNE94 cranks but will not start, or starts only briefly and dies with excessive white smoke. p. 34
Check fuel injection spray patterns following the procedures on page 34. Verify the fuel injection pressure reaches the standard 21.57-22.55 MPa. Replace any faulty injectors and torque the new nozzle case nut to 39.2-44.1 Nm as detailed on page 35. Re-bleed the fuel lines before attempting another start.
Manual Section: Inspection and AdjustmentCoolant temperature gauge spikes rapidly during continuous operation or system boils over under heavy load. p. 40
Drain the cooling system and remove the thermostat housing. Test the thermostat in a heated water bath to confirm the valve opening temperature is exactly 71-85 °C as specified on page 40. Inspect the water pump impeller for cavitation wear before refilling the block.
Manual Section: Inspection and AdjustmentExcessive black exhaust smoke under load combined with a noticeable drop in overall engine power. p. 43
Inspect the air intake system for restrictions. Remove and clean the primary air filter element, adhering to the mandatory service interval of every 250 hours found on page 43. If the element is heavily soiled or damaged, replace it immediately to restore proper airflow and combustion efficiency.
Manual Section: Inspection and AdjustmentNoticeable top end ticking noise, rough idle, and poor compression cylinder sealing across the engine block. p. 33
Remove the valve cover and inspect the valvetrain for excessive wear. Adjust the intake and exhaust valves while the engine is cold. Set the standard valve clearance to 0.25-0.35 mm using a feeler gauge, referencing the procedures outlined on page 33.
Manual Section: Inspection and AdjustmentFrequently Asked Questions
What are the torque specs for the cylinder head, main bearing, and connecting rod on a Yanmar 4TNE engine?
For the cylinder head, the tightening torque for 4TNE94-98 (M11 x 1.25) is 102.9 to 112.7 Nm (10.5 to 11.5 kgf-m), and for 4TNE106(T) (M13 x 1.5) it is 181.4 to 191.2 Nm (18.5 to 19.5 kgf-m). Connecting rod bolts for 4TNE94-98 (M10 x 1.0) require 53.9 to 58.8 Nm (5.5 to 6.0 kgf-m), and for 4TNE106(T) (M11 x 1.0) it is 78.5 to 83.4 Nm (8.0 to 8.5 kgf-m). Main bearing cap set bolts for 4TNE94-98 (M11 x 1.25) are 107.9 to 117.7 Nm (11.0 to 12.0 kgf-m), and for 4TNE106(T) (M14 x 1.5) they are 186.3 to 205.9 Nm (19 to 21 kgf-m).
What is the valve clearance specification for Yanmar 4TNE engines?
The standard valve clearance for Yanmar 4TNE94 and 4TNE98 engines is 0.15 to 0.25 mm. For 4TNE106 and 4TNE106T engines, the standard valve clearance is 0.25 to 0.35 mm. These specifications are crucial for proper engine operation and should be maintained during adjustment.
How often should the fuel filter be replaced?
The fuel filter element should be replaced every 250 hours as part of the periodic maintenance schedule. Additionally, the water separator (if equipped) should be cleaned every 100 hours to ensure optimal fuel system performance.
How often should the lube oil filter be replaced?
The lube oil filter should be replaced every 250 hours according to the periodic maintenance schedule. Regular replacement ensures the lubrication system functions correctly and helps maintain engine longevity.
