Protect your 2006 marine engines from preventable failures. This 128-page Yanmar 4BY, 6BY operator manual PDF details the exact daily checks, starting procedures, and periodic maintenance schedules for the entire BY series. Open to complete component identification charts so you know exactly what every alarm indicator means before leaving the dock. You get strict factory maintenance intervals, fluid specifications for diesel and power steering, and a full troubleshooting section covering everything from engine knocks to unexpected exhaust color. Inspect the seawater pump belt every 50 hours or monthly, and torque critical fasteners to 25 N·m to prevent vibration issues. Don't risk a breakdown offshore. Download this bookmarked file straight to your tablet, find the right fluid specs, and get underway.
What's Inside This Yanmar 4BY, 6BY Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 8-9 | Record of Ownership |

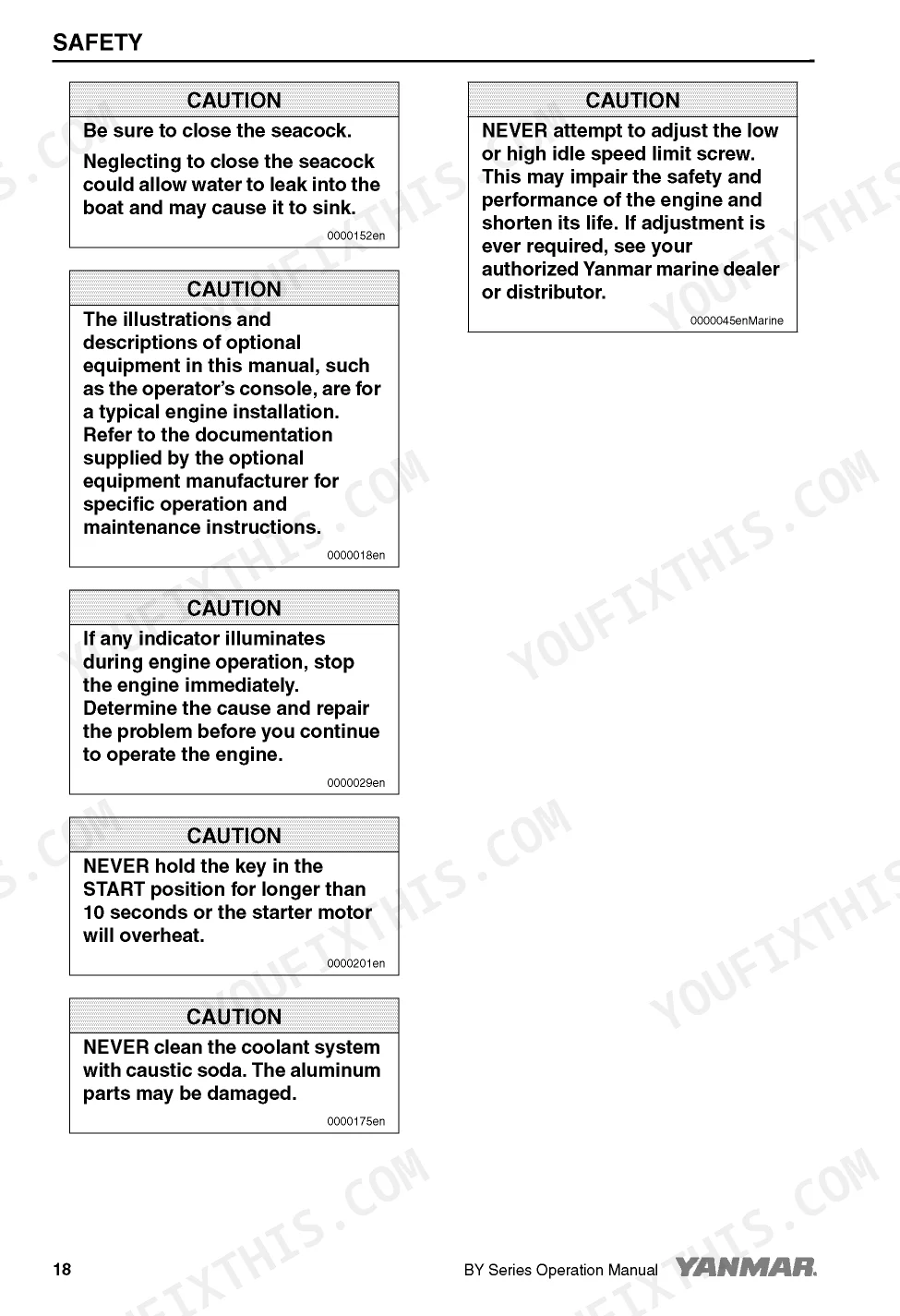

| Safety | 10-29 | During Operation and Maintenance |
| Product Overview | 30-39 | Yanmar BY-Series Features and Applications, Component Identification, Location of Label and Nameplates, Function of Major Components, Fuses and Relays, Engine Cover |

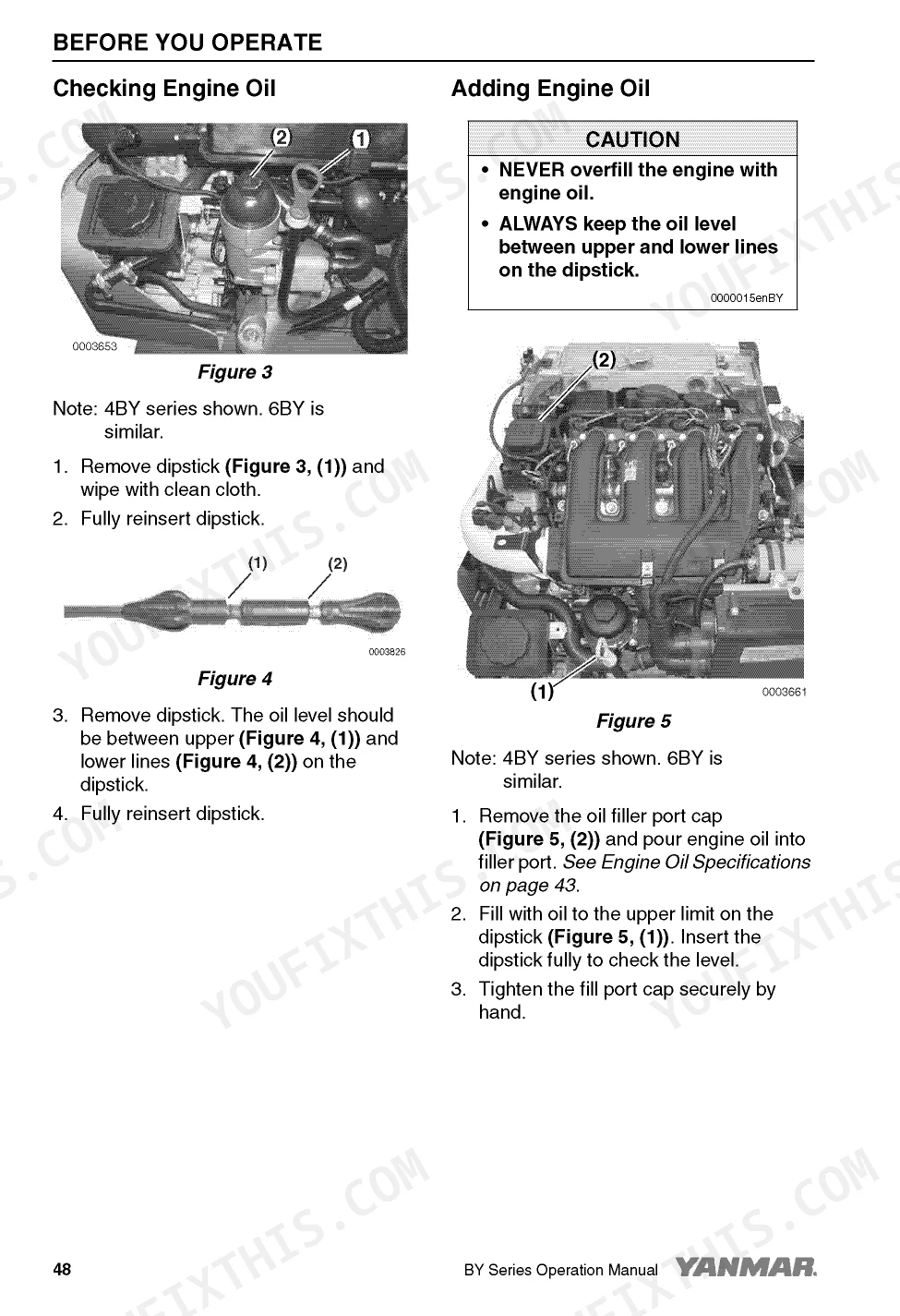

| Before You Operate | 40-61 | Diesel Fuel, Engine Oil, Marine Gear or Stern Drive Oil, Engine Coolant, Power Steering Fluid Specifications, Daily Checks |
| Engine Operation | 62-69 | Starting the Engine, Shutting Down the Engine, Checking the Engine After Operation |

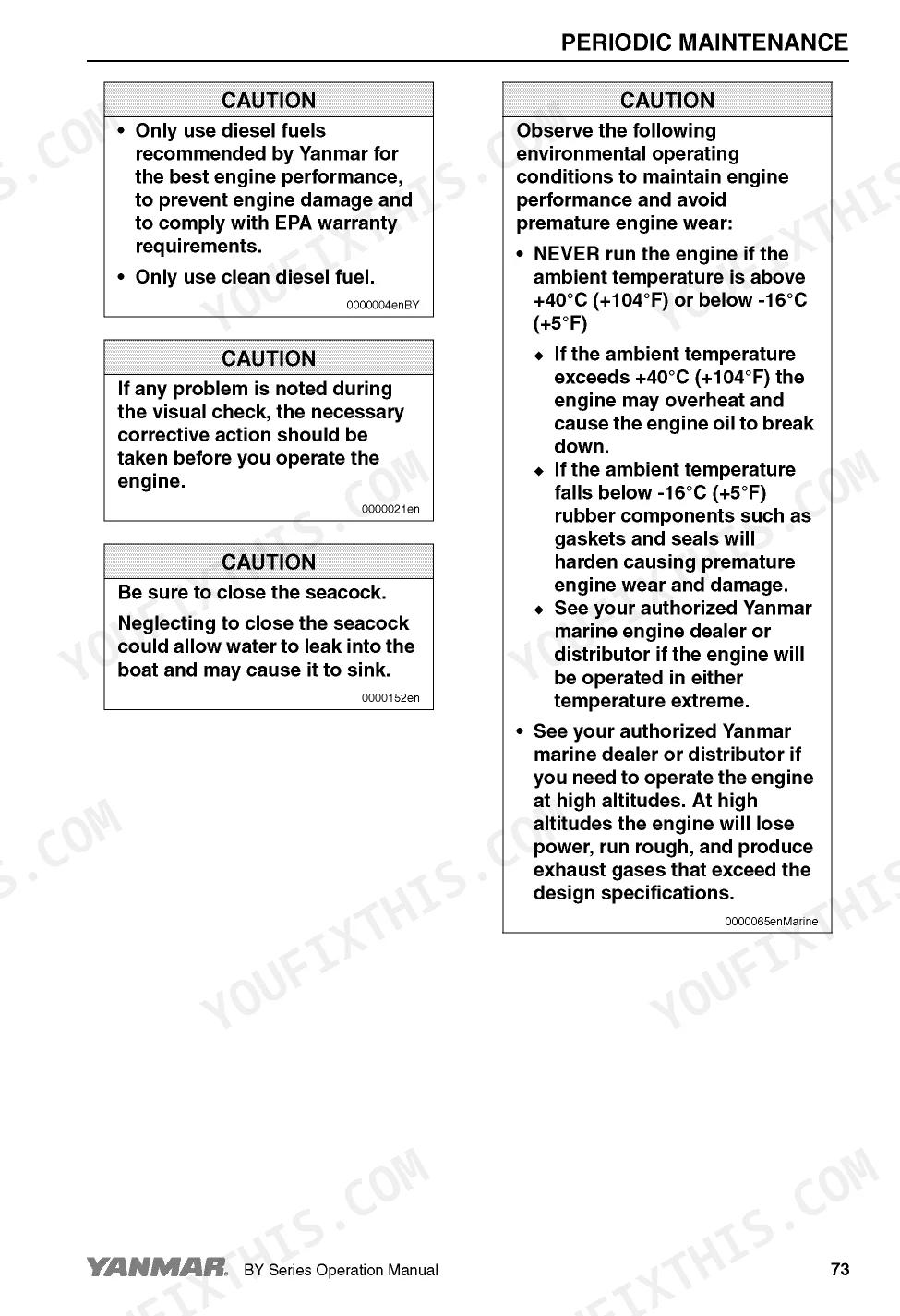

| Periodic Maintenance | 70-103 | After Initial 50 Hours of Operation (Change the Engine Oil and Replace the Engine Oil Filter, Check Shift Cable Adjustment, Adjust Propeller Shaft Alignment) |

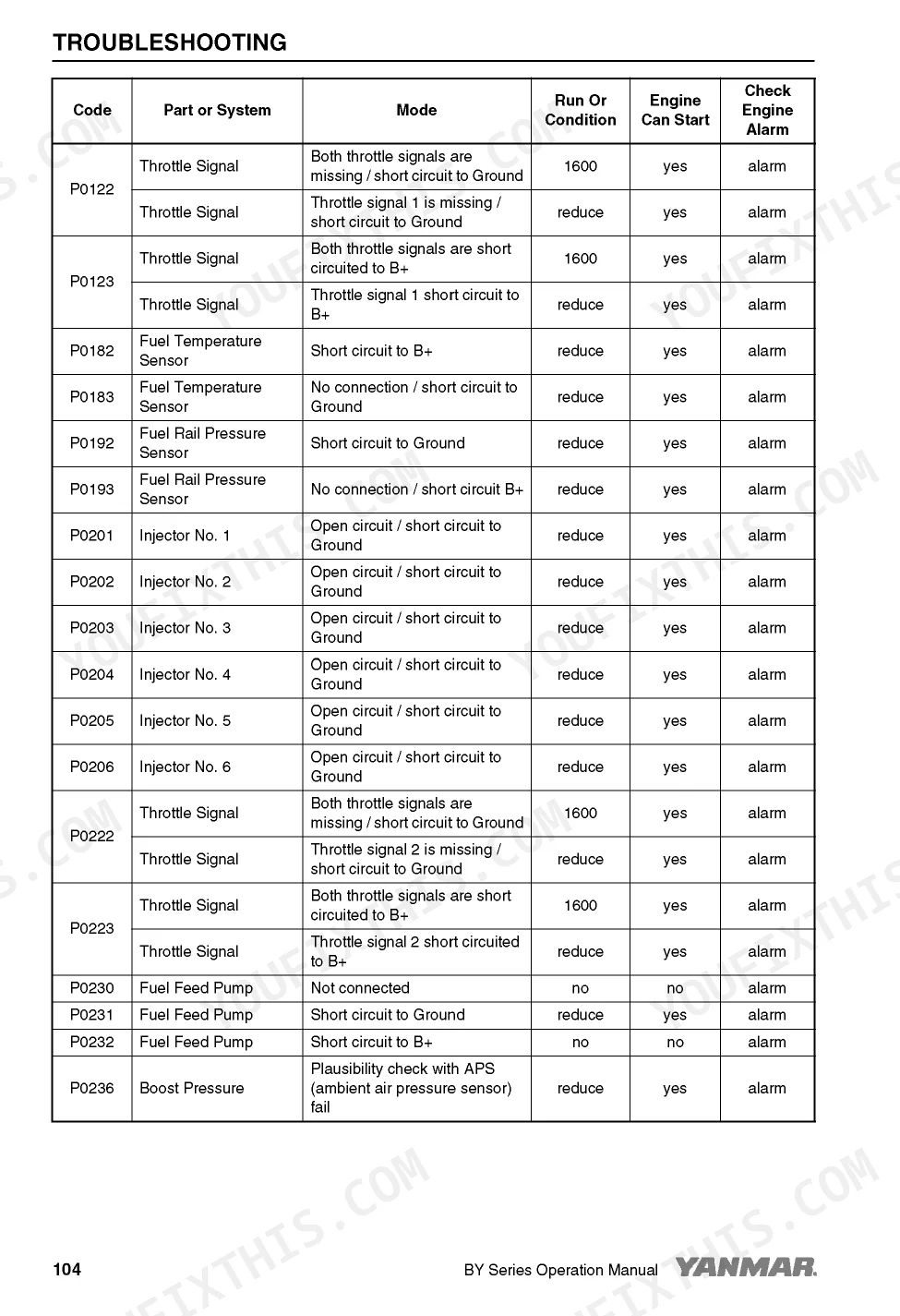

| Troubleshooting | 104-113 | Starting Trouble, Exhaust Color, Vibration - Drive Disengaged, Vibration - Drive Engaged, Engine Knocks, Low Power Output, Engine Overheat, Engine Runs Cold |
| Long-Term Storage | 114-117 | Prepare Engine for Long-Term Storage |
| Specifications | 118-121 | Engine Specifications |
| Epa Warranty Usa Only | 122-127 | Yanmar Co., Ltd. Limited Emission Control System Warranty - Usa Only |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Inspection/Replacement Interval | Every 50 hours or monthly whichever comes first | p. 87 |
| Cleaning/Replacement Interval | Every 250 hours or one year whichever comes first | p. 87 |
| Torque | 25 N·m (18 ft-lb) | p. 93 |
Yanmar 4BY, 6BY Common Problems This Manual Covers

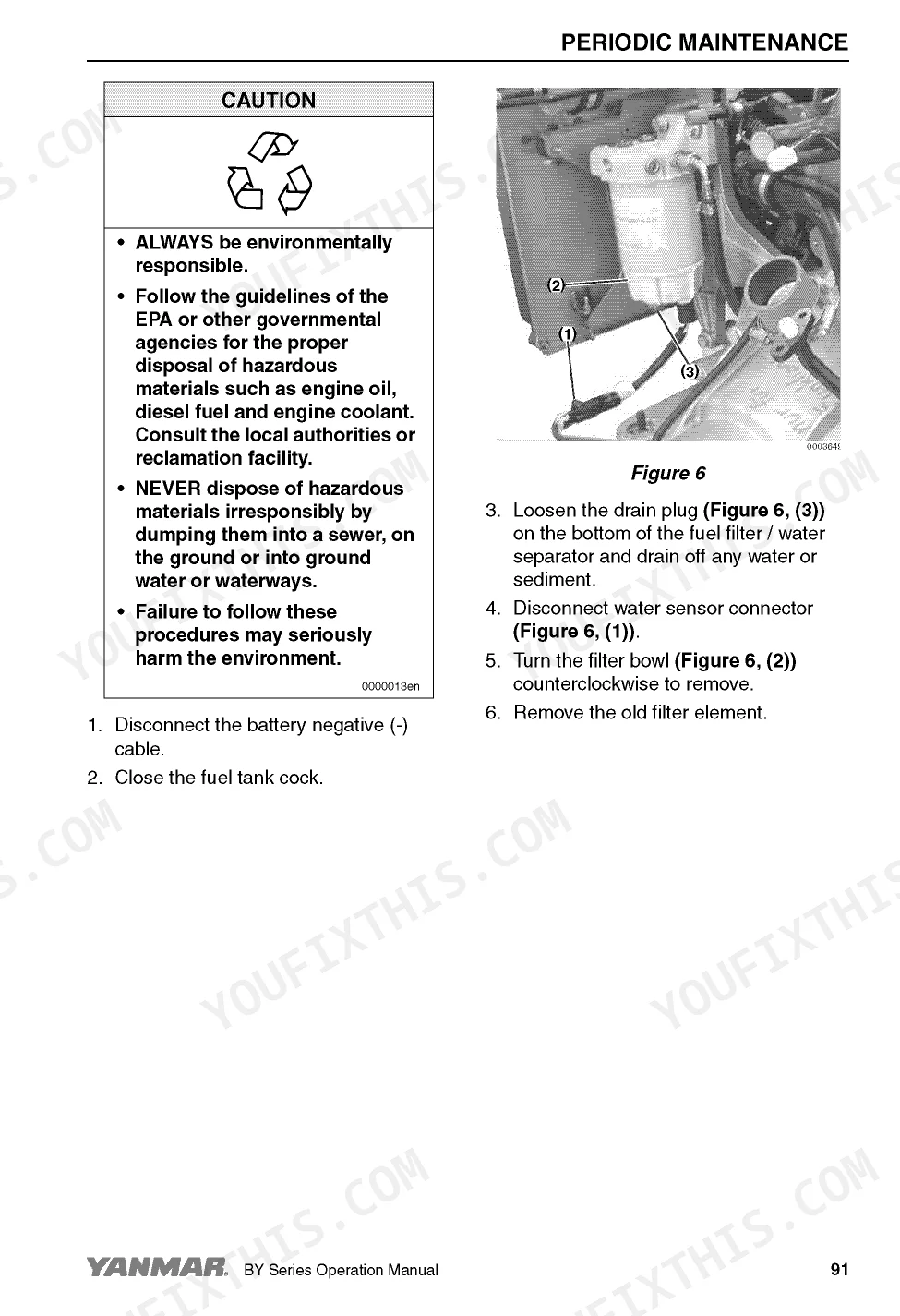

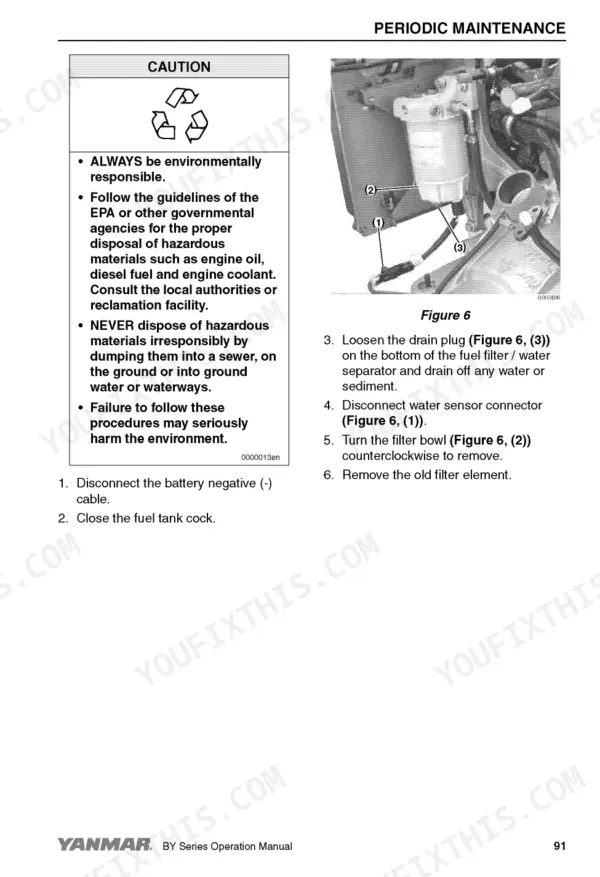

Yanmar 4BY and 6BY engine cranks but will not start after changing the fuel filter element. p. 98
Inspect the fuel system for trapped air. Review the starting trouble procedures on page 98. Do not hold the key in START longer than 10 seconds. Verify the fuel pre-filter element was replaced at the correct 250 hours or one year interval before bleeding the system.
Manual Section: TroubleshootingEngine temperature rises rapidly and seawater flow is completely lost during normal cruise operation. p. 87
Check the seawater pump belt for wear or slipping. Inspect the cooling water hoses and replace them every 250 hours or one year as specified on page 87. Verify the seawater pump capacity reaches 140 L/min at 4000 engine rpm to ensure adequate cooling flow.
Manual Section: Periodic MaintenanceLow oil pressure warning light flashes on the dashboard and audible alarm sounds during operation. p. 112
Shut down the engine immediately. Check the lube oil pressure at 4000 rpm to confirm it is within the 3.8 to 6.0 bar range on page 112. Verify the oil level is correct and inspect the oil pressure sensor connector for loose wires or corrosion.
Manual Section: TroubleshootingSeawater leaks from the heat exchanger housing near the sacrificial zinc anode plugs. p. 93
Drain the cooling system and remove the leaking zinc anodes for inspection. Clean the sealing surfaces thoroughly. Install the new zinc anodes and tighten them to a torque of 25 N·m (18 ft-lb) as instructed on page 93. Fill the system and check for leaks.
Manual Section: Periodic MaintenanceFrequently Asked Questions
How do I reset the alarm on a YANMAR BY series engine?
The manual does not provide an explicit alarm reset procedure. It states that the warning alarm will sound until the fault code is checked and corrected. Under other conditions, the alarm may be canceled if the engine is turned off and then restarted.
What does the YANMAR 4BY error code P0001 mean?
The error code P0001 for a YANMAR 4BY engine indicates an issue with the Fuel Metering Unit, specifically that it is "Not connected". This information is found in the Diagnostic Trouble Code Table on page 103.
What are the torque specifications for M6 hexagon bolts on a YANMAR BY series engine?
For M6 hexagon bolts and nuts with a 8.8 or 9 grade (lubricated), the tightening torque is 9.5 N·m (84 in.-lb). For a 10.9 or 10 grade, it's 13 N·m (115 in.-lb), and for a 12.9 or 12 grade, it's 16 N·m (138 in.-lb).
What is the recommended service interval for replacing the fuel pre-filter element on a YANMAR BY series engine?
The fuel pre-filter element should be replaced every 250 hours of operation or once a year, whichever comes first. The detailed procedure for replacement is described on page 89.
What is the recommended engine oil capacity for the YANMAR 4BY engine?
The recommended engine oil capacity for the YANMAR 4BY engine is 8.0 L (8.5 qt). This capacity includes oil in the oil pan, channels, coolers, and filters, as detailed in the specifications.
How quickly can I access this manual after buying?
A 128-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
