Every marine mechanic knows the value of proper daily checks, and this 60-page Yanmar 6lpa-dtp operator manual pdf (OEM #49961-205771) spells out the exact factory protocols for the 6LPA-DTZP, 6LPA-STP, and 6LPA-STZP marine diesel engines. Inside, you get full piping diagrams for fuel and cooling systems, complete dashboard control panel layouts, and a strict periodic maintenance schedule. Open the troubleshooting charts to quickly diagnose alarms, or reference the electrical wiring diagrams covering B-Type and C/D-Type control setups. Confirm your low idling speed sits at 750 ± 25 rpm and swap the fuel filter element exactly every 250 hours to keep your vessel running smoothly. Guessing at maintenance intervals leaves you stranded on the water. Grab this bookmarked PDF, jump straight to the spec you need, and confidently fire up the engine.
What's Inside This Yanmar 6LPA Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| For Safe Operation | 6-9 | Warning Symbols, Safety Precautions, Location of Product Safety Labels |

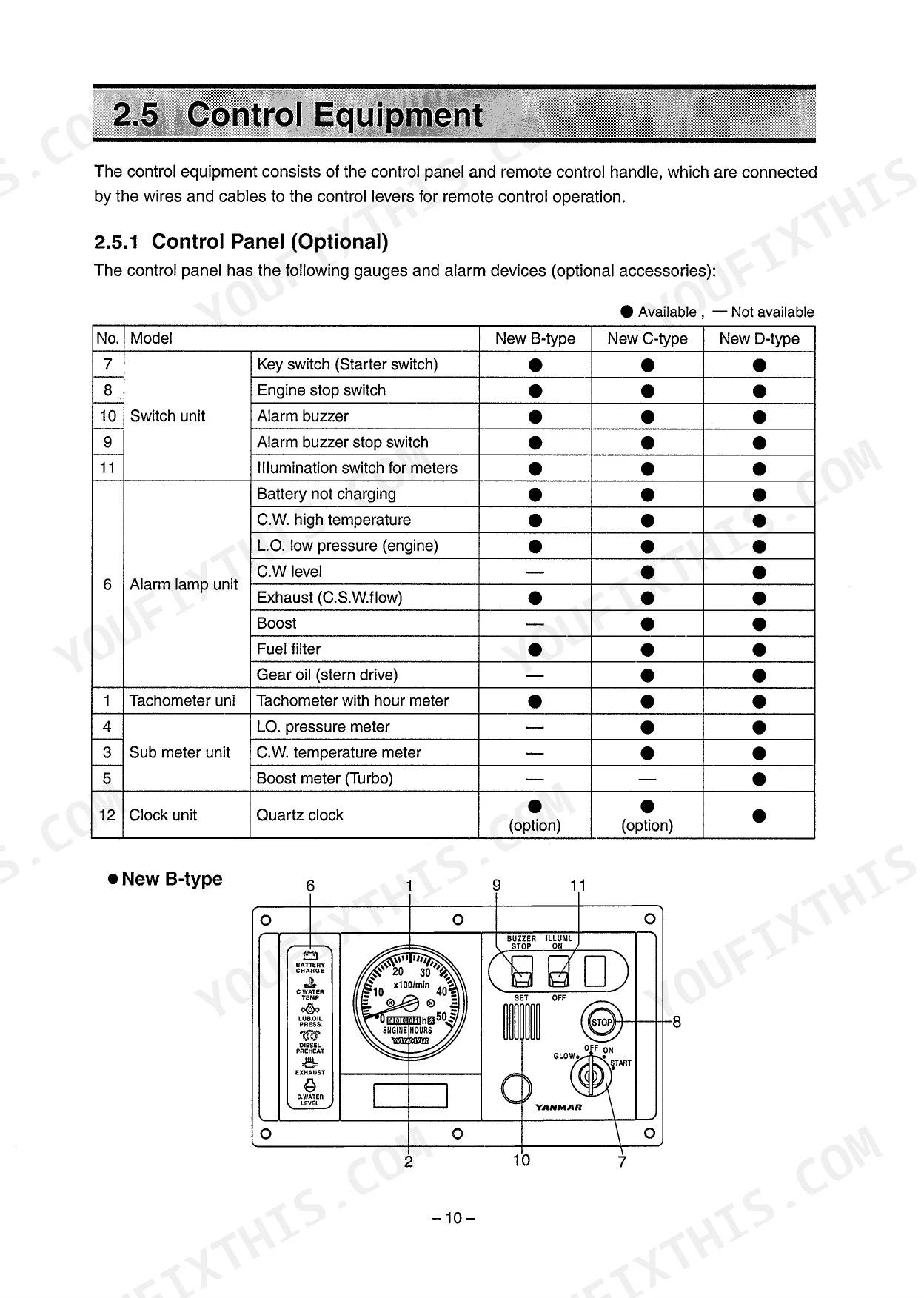

| Explanation of Product | 10-21 | Use & Driving System, Engine Specifications, Names of Parts, Major Servicing Parts, Control Equipment (Control Panel, Remote Control Handle) |
| Before Operation | 22-29 | Fuel Oil, Lube Oil and Cooling Water, Supplying Fuel (Filling the Fuel Tank, Bleeding the Fuel System), Supplying Engine Lube Oil, Supplying Marine Drive Oil |

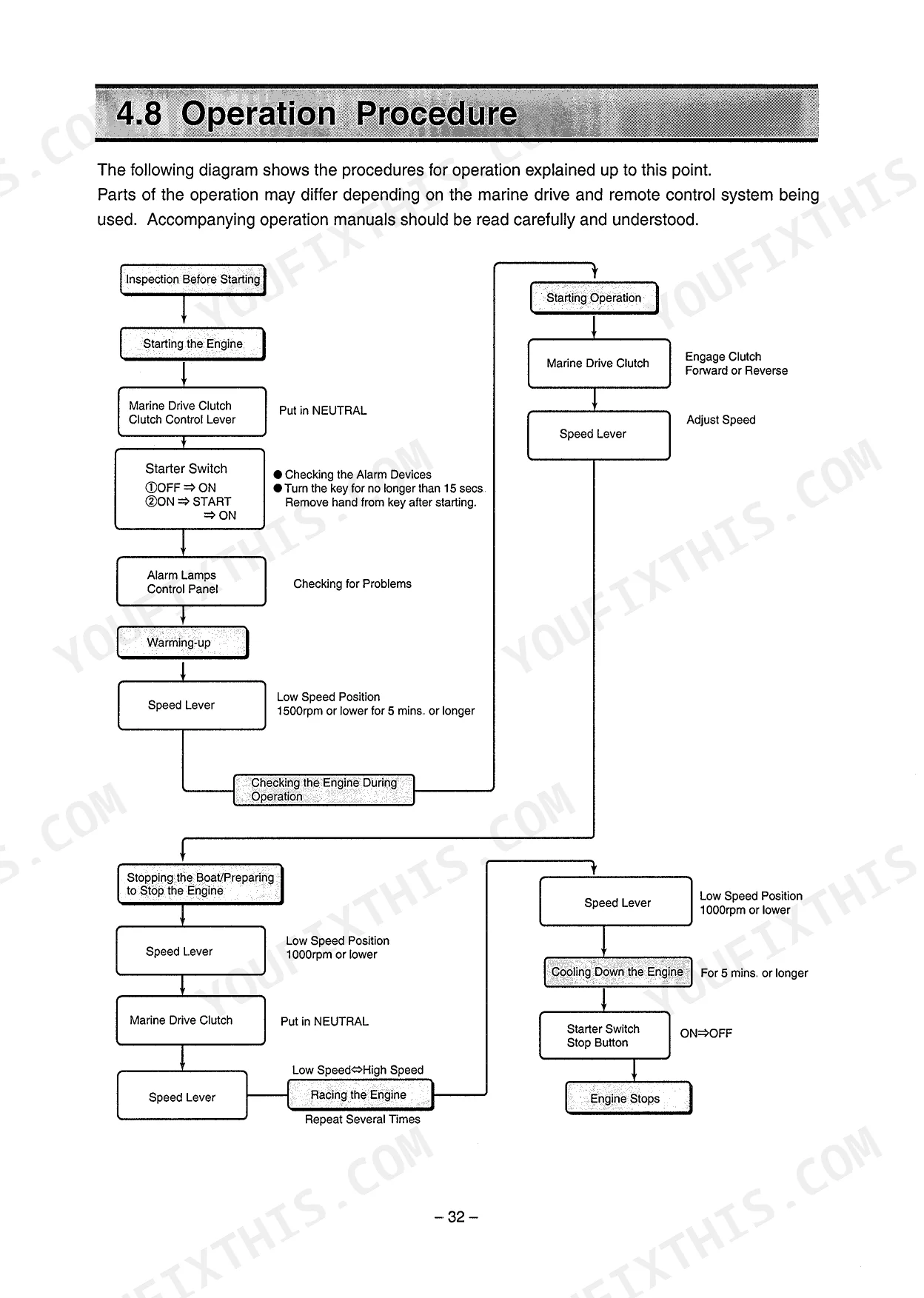

| How to Operate | 30-39 | Inspection Before Starting, Checking the Control Panel and Alarm Devices |

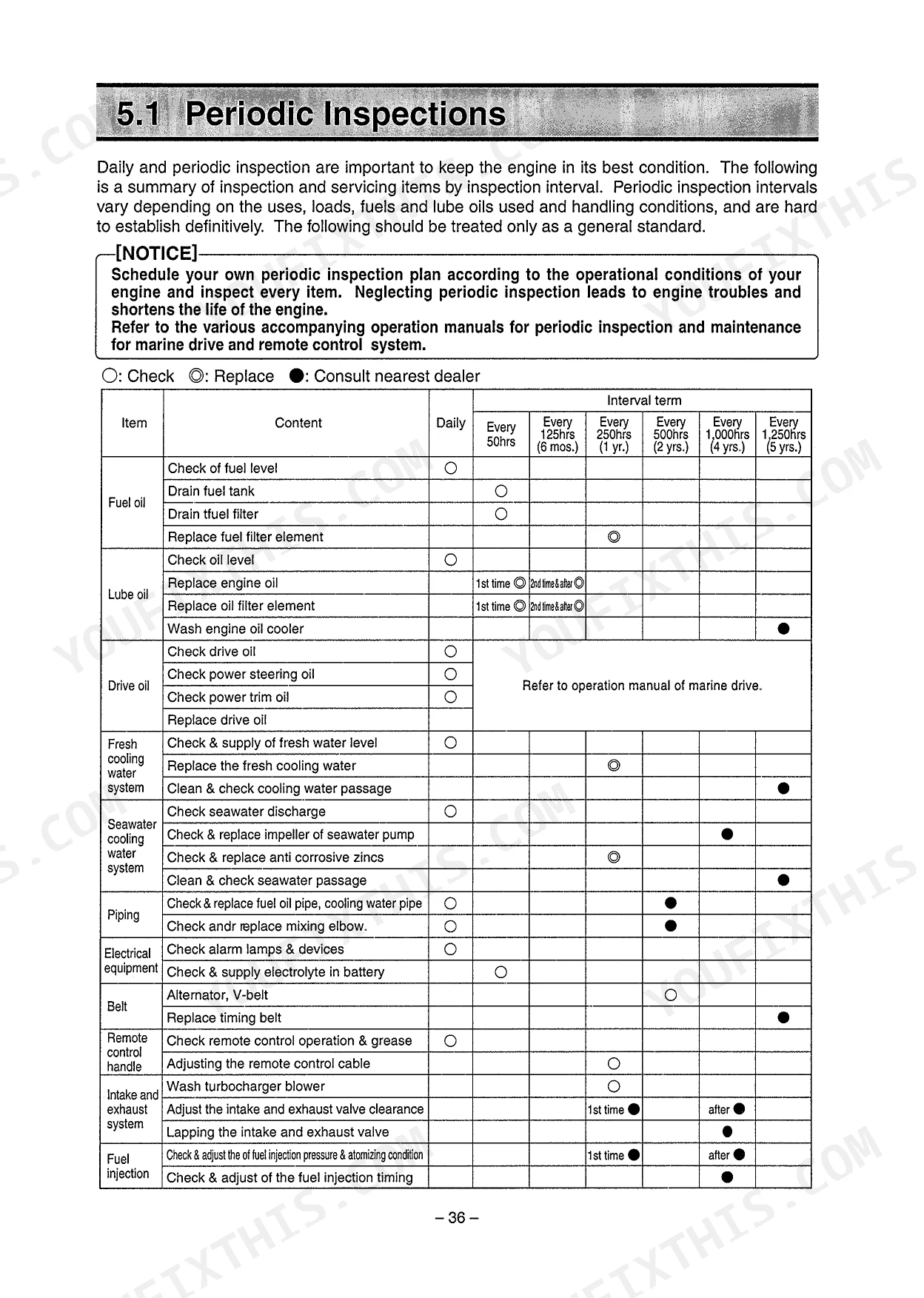

| Maintenance & Inspection | 40-51 | List of Periodic Inspections |
| Trouble and Troubleshooting | 52-54 | Simple Problems and the Appropriate Countermeasures, Consulting Your Yanmar Dealer or Distributor |

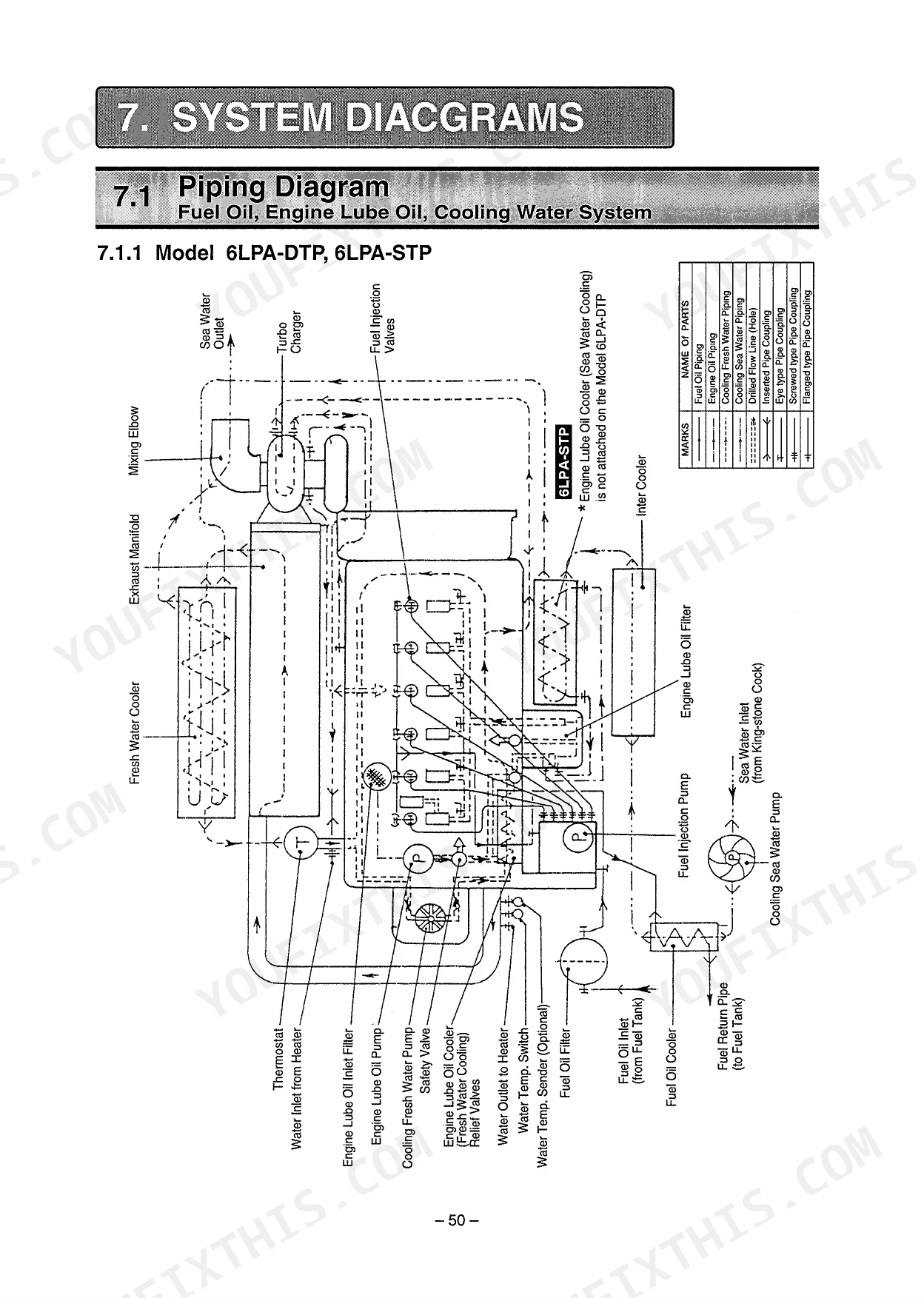

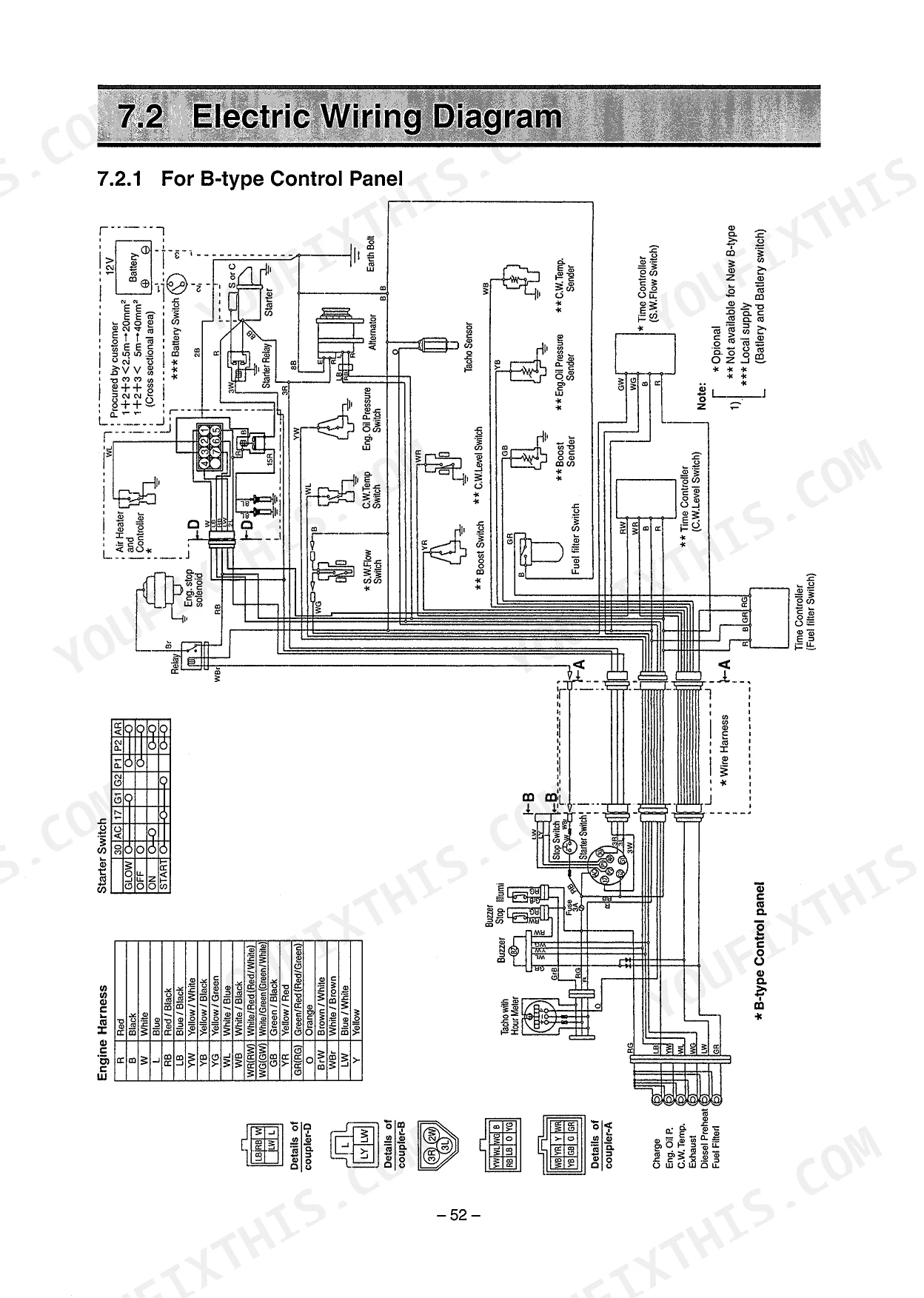

| System Diagrams | 55-60 | Piping Diagram (Model: 6Lpa-Dtp, 6Lpa-Stp, 6Lpa-Dtzp, 6Lpa-Stzp), Electric Wiring Diagram (B-Type Control Panel, C/D-Type X B-Type Control Panel, C/D-Type X C-Type Control Panel) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Seawater impeller replacement interval | every 2000 hrs. | p. 50 |
| Fuel filter element replacement interval | Every 250 Hrs. or 1 yr. | p. 41 |
| No. of cylinders | 6 | p. 11 |
| High idling speed | 4200 ± 25 rpm | p. 11 |
| Low idling speed | 750 ± 25 rpm | p. 11 |
| Recommended battery capacity | 12V x 120Ah | p. 11 |
| Cetane fuel number | 45 or greater | p. 22 |
Yanmar 6LPA Series Common Problems This Manual Covers
Yanmar 6LPA-DTP marine diesel engine shuts down unexpectedly after 10 to 50 hours of operation with high coolant temperature p. 52
Check the troubleshooting procedures on page 52 if the cooling water temperature alarm sounds. Inspect the seawater system for flow restrictions. Replace the rubber seawater impeller every 2000 hrs as directed on page 50. Clear any blockages from the intake grate to restore proper water flow.
Manual Section: Trouble and TroubleshootingExcessive black exhaust smoke emitted from exhaust at high RPM under normal operating loads p. 52
Inspect the air intake and fuel systems for restrictions. Verify the engine reaches the correct high idling speed of 4200 ± 25 rpm without load, using the specifications on page 11. Replace the fuel filter element every 250 Hrs. or 1 yr. according to the maintenance schedule on page 41.
Manual Section: Trouble and TroubleshootingStarter motor turns over slowly or fails to crank the engine completely in cold weather conditions p. 52
Test the electrical system following the wiring diagram on page 57. Verify the installed batteries meet the recommended capacity of 12V x 120Ah as listed on page 11. Clean all terminal connections and ensure the alternator drive belt is properly tensioned to charge the starting system.
Manual Section: Trouble and TroubleshootingComplete loss of power at high RPM despite full throttle input at the remote control handle p. 22
Drain and bleed the fuel system to remove trapped air. Verify you are using diesel fuel with a cetane number of 45 or greater, as outlined in the before operation instructions on page 22. Replace the primary and secondary fuel filters if the element is clogged.
Manual Section: Before OperationFrequently Asked Questions
How to reset Yanmar 6LPA-DTP engine error codes?
The manual describes that when the engine starts up and the key switch is returned to the ON position, the warning buzzer stops sounding and all warning lamps go off. This indicates normal operation of the alarm devices. If alarm devices do not work normally after this, contact your dealer.
What are the torque specs for cylinder head bolts on Yanmar 6LPA-STP?
The manual provides general tightening torque for standard bolts based on their diameter and pitch, but does not specify torque for cylinder head bolts. For bolts with a "7" on the head (JIS strength classification: 7T), the torque ranges from 10.8±1.0 N·m for M6×1.0 to 226±9.8 N·m for M16×1.5. For specific components like cylinder head bolts, it is recommended to consult your dealer or distributor.
What are the replacement specifications for Seawater impeller (rubber)?
The seawater pump impeller should be replaced periodically every 2000 hours, or when its blades are cracked, nicked, marred, or worn. The periodic inspection list also indicates a check and replacement interval of every 1000 hours or 4 years.
What are the replacement specifications for Fuel filter (primary and secondary)?
The fuel filter element should be replaced every 250 hours or 1 year. The part number for the fuel filter is X5186100664. When installing a new filter, manually tighten it by 3/4 turn, with a tightening torque of 14.7~19.6 N·m (1.5~2.0 kgf·m).
How will I receive this Yanmar 6LPA-DTP & variants Operator Manual?
Immediate download of the complete 60-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print specific sections of this manual?
No copy protection at all. The PDF is DRM-free, so print whatever sections you need to take to the shop. Standard letter or A4 paper works.

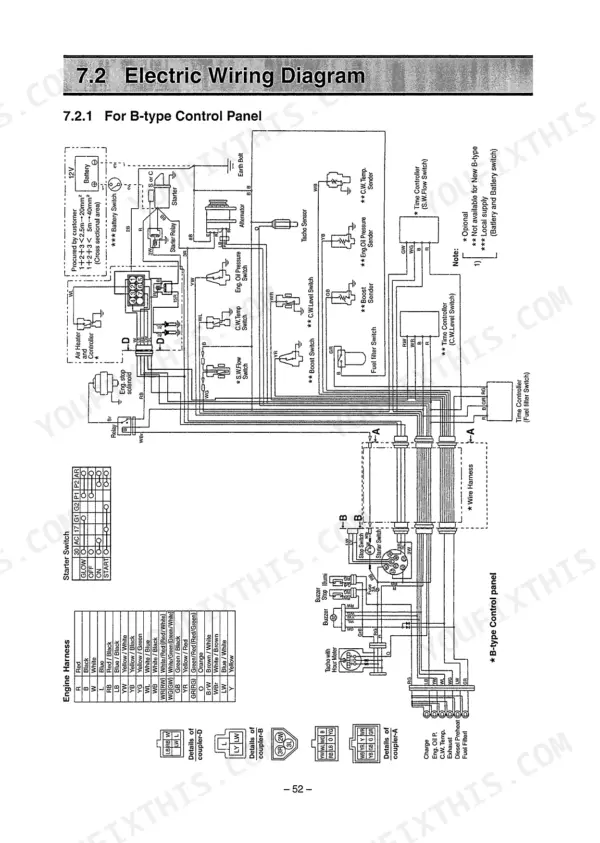

Does this Yanmar 6LPA-DTP & variants manual include wiring diagrams?
A wiring diagram for the Yanmar 6LPA-DTP & variants electrical system is included.
Document Quality
This document is a scanned PDF, but it includes an OCR layer, allowing you to search and copy the full text. The text quality is crisp and highly readable throughout. Diagrams and illustrations are raster images, meaning they are clear at normal viewing but may show pixelation if zoomed in significantly; however, their labels remain legible. Pages are generally clean with minimal scan artifacts, though page 1 has a large black rectangle obscuring part of the right side. All numbered pages contain content.
