Need the exact factory numbers for your marine diesel? This 247-page Yanmar 6LP-DTE service manual pdf (OEM #HINSHI-H10-001-2) breaks down the complete engine overhaul process for the 6LP-DTE, 6LP-DTZE(1), 6LPA-DTP, 6LPA-DTZP, and 6LP-STE variants. Inside, you get detailed wiring diagrams for the instrument panels, step-by-step cylinder block rebuild procedures, and clear exploded views of every major component. Open up the troubleshooting charts to quickly diagnose hard starts, sudden stops, or poor exhaust gas color. Verify the thermostat valve opening temperature hits 68 to 72 °C before locking down the fuel filter to a maximum of 19.61 N·m. Stop tearing down engines blind. Grab this bookmarked download, pull it up on your shop tablet, and get that vessel back on the water.
What's Inside This Yanmar 6LP / 6LPA Series Manual
| System | Pages | Key Topics |
|---|---|---|
| For Safe Operation | 20-25 | Warning Symbols, Precautions for Safe Servicing, Product Safety Label Locations |

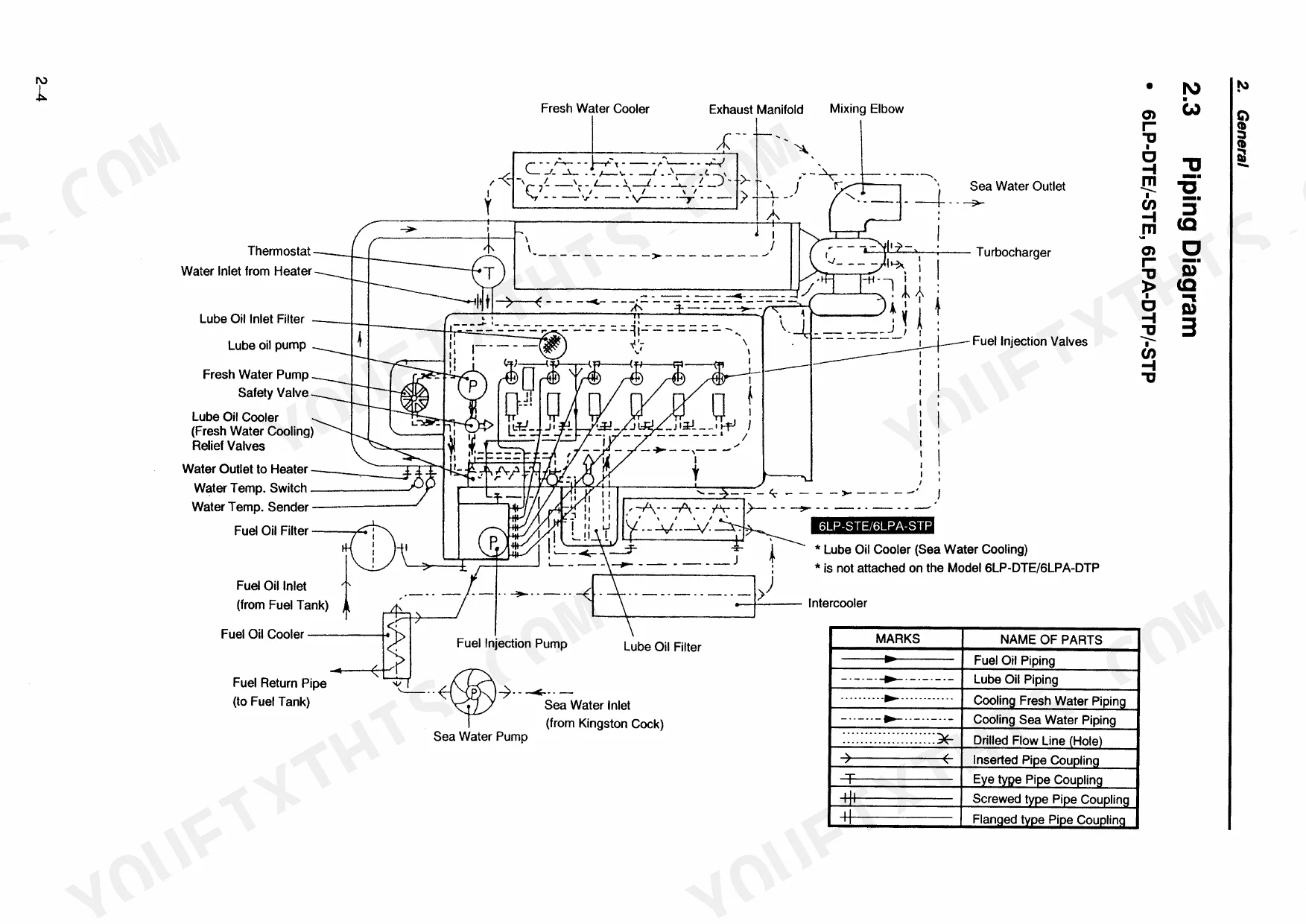

| General | 26-43 | Specifications, External Views, Piping Diagram, Performance Curves, Front PTO Output, Fuel Oil, Lube Oil, Cooling Water, Senders and Warning Switches |
| Cylinder Head & Cylinder Block | 44-90 | Cylinder Head, Cylinder Block, Disassembly, Inspection, Reassembly |
| Timing Gear & Valve Train | 91-118 | Timing Belt, Timing Gear, Valve Clearance Inspection and Adjustment, Injection Timing Adjustment, Service Specifications |
| Turbocharger | 119-140 | Turbine, Blower, Bearing, Seal Ring, Turbine Shaft, Thrust Bushing, Oil Thrower, Floating Bearing |
| Fuel System | 141-171 | Fuel Filter Replacement, Fuel Injection Nozzle, Fuel Injection Pump, Fuel System Service Specifications |

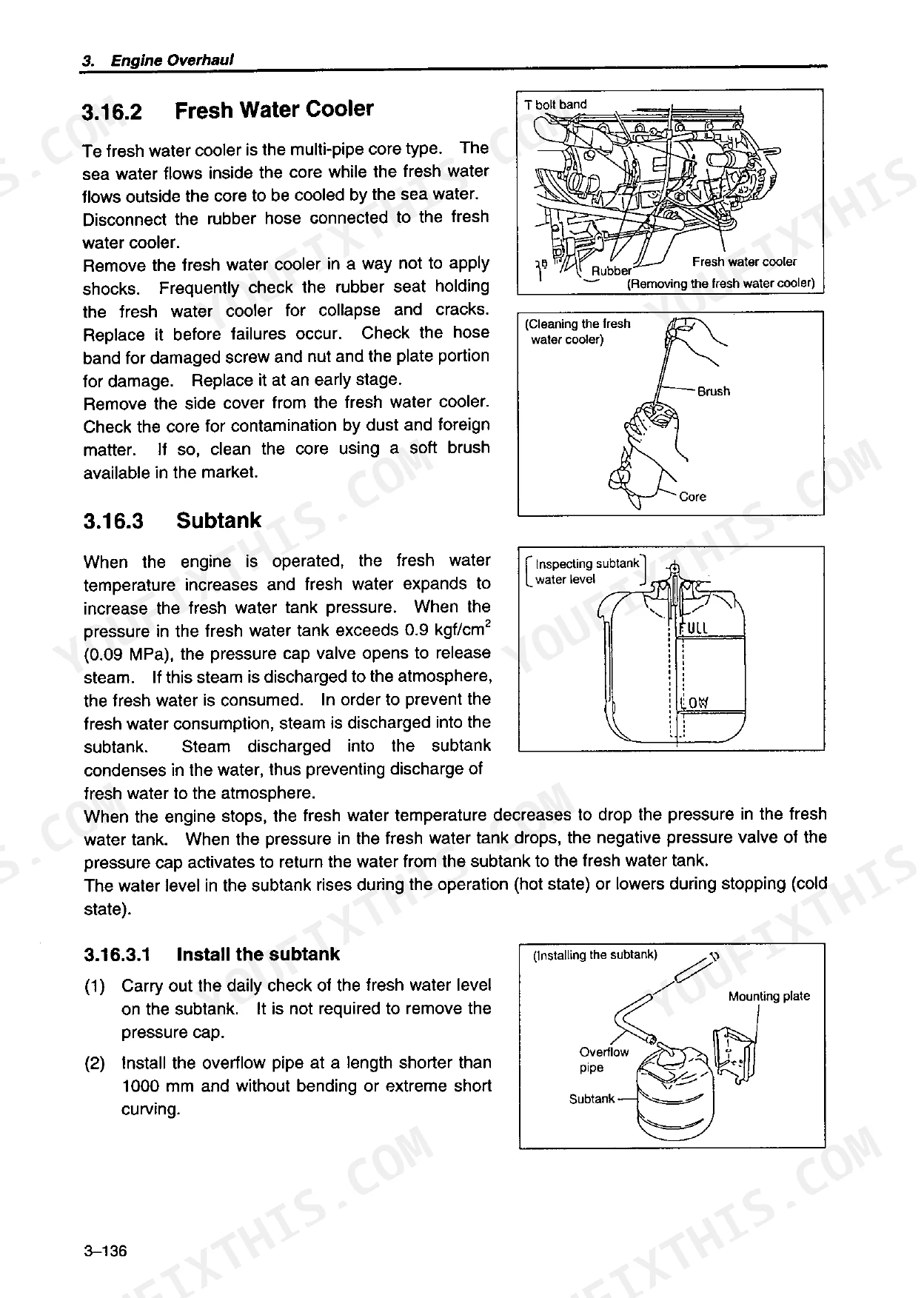

| Cooling System | 172-180 | Fresh Water Pump, Sea Water Pump, Thermostat, Cooling System Components |
| Lubrication System | 181-194 | Lubrication, Oil Pump, Oil Cooler, Piston Cooling Oil Nozzle, Service Specifications |

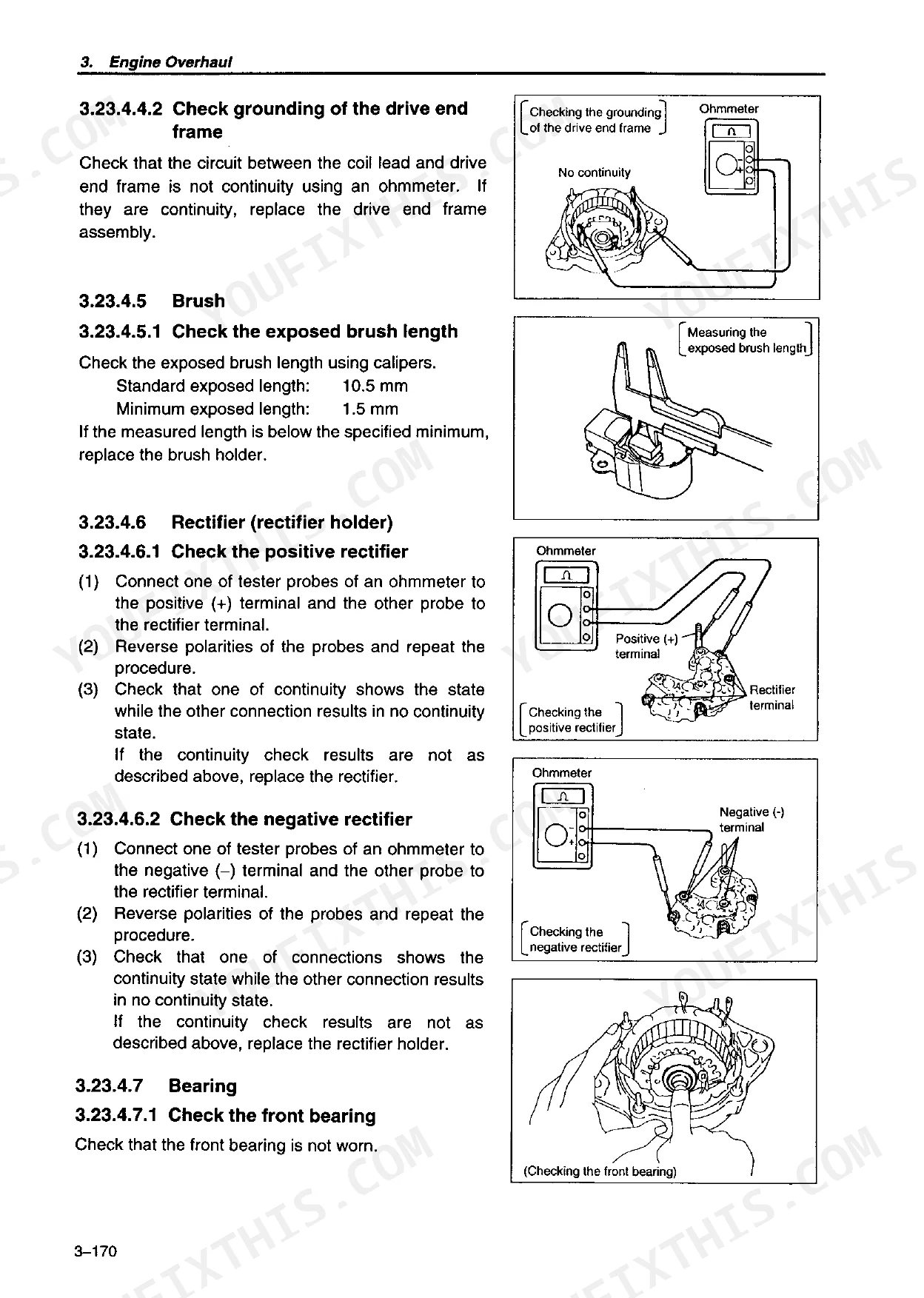

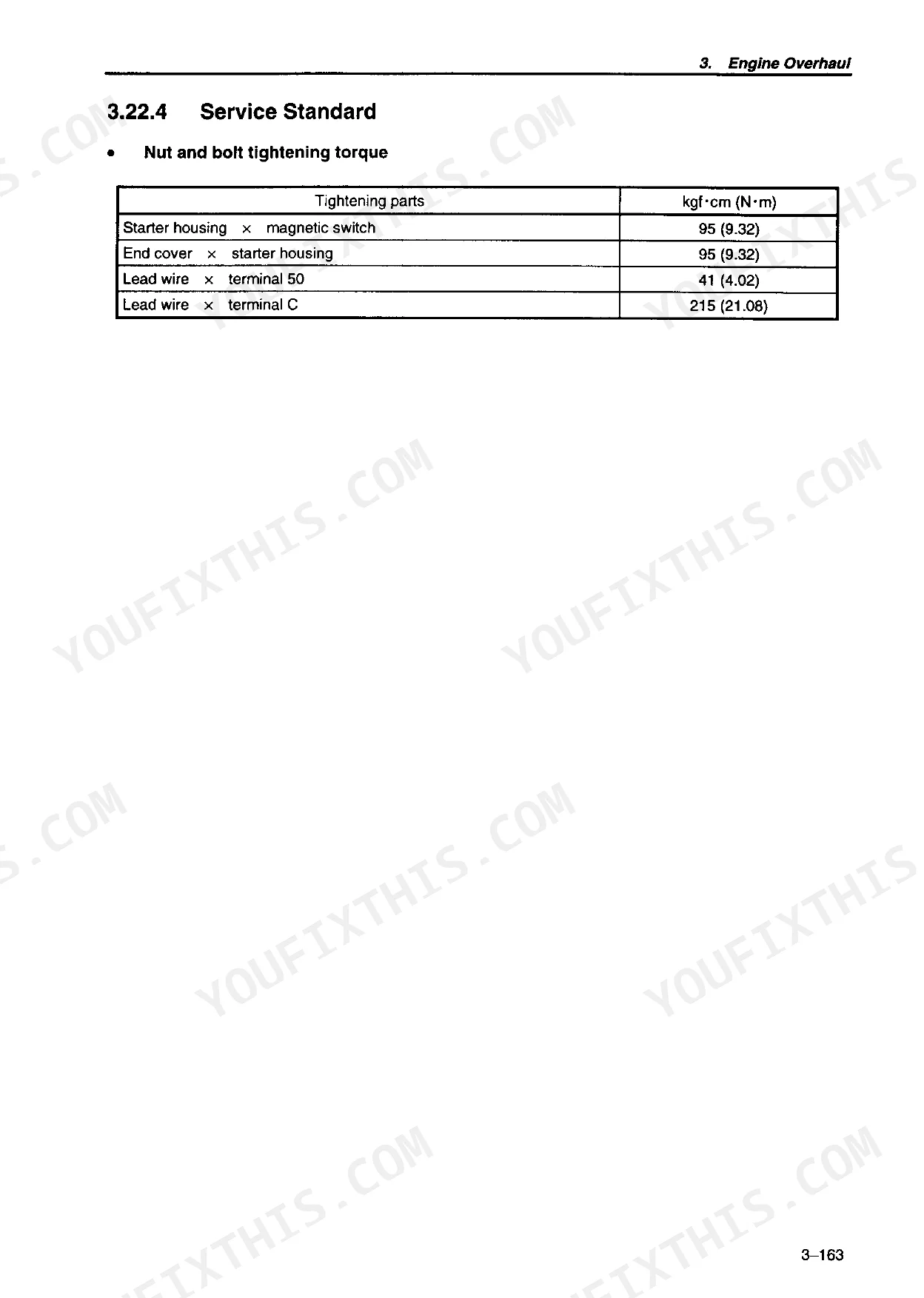

| Starter & Charging System | 195-219 | Starter, Charging System, Crankshaft Bearing Selecting Table |

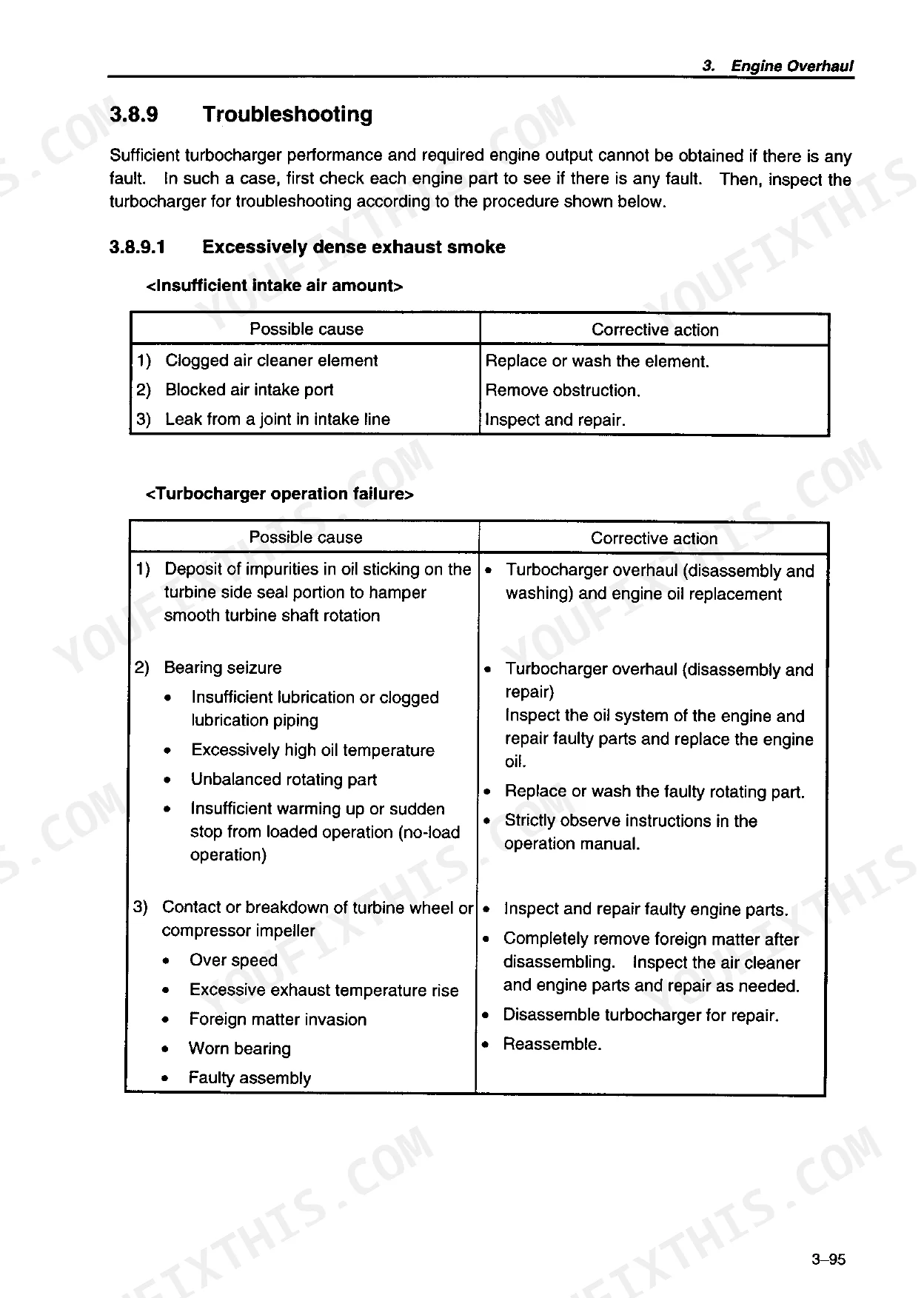

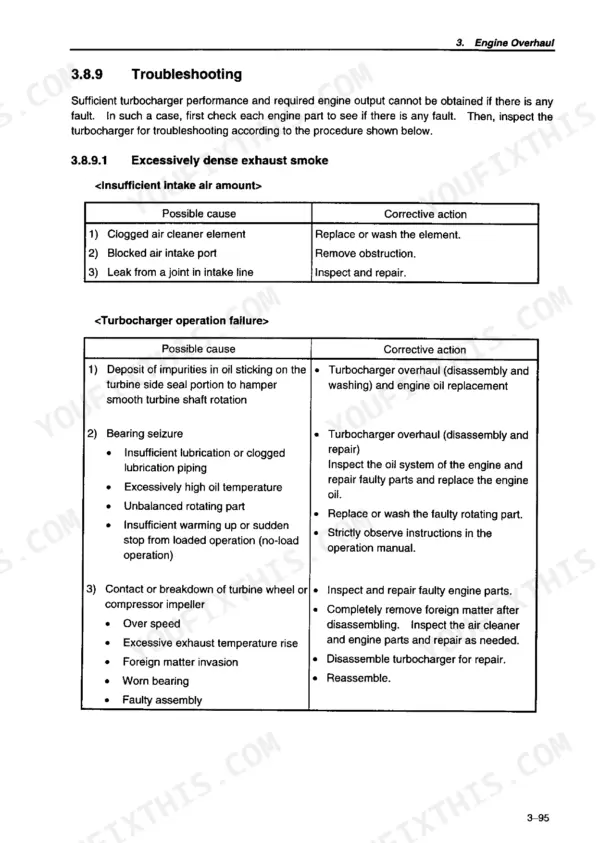

| Troubleshooting | 220-228 | Hard Starting, Unsmooth Running, Sudden Engine Stop, Poor Exhaust Gas Color, Insufficient Output, Knocking, Turbocharger Trouble |
| Instrument Panel (Optional) | 229-231 | B-Type Panel, C-Type Panel, D-Type Panel |

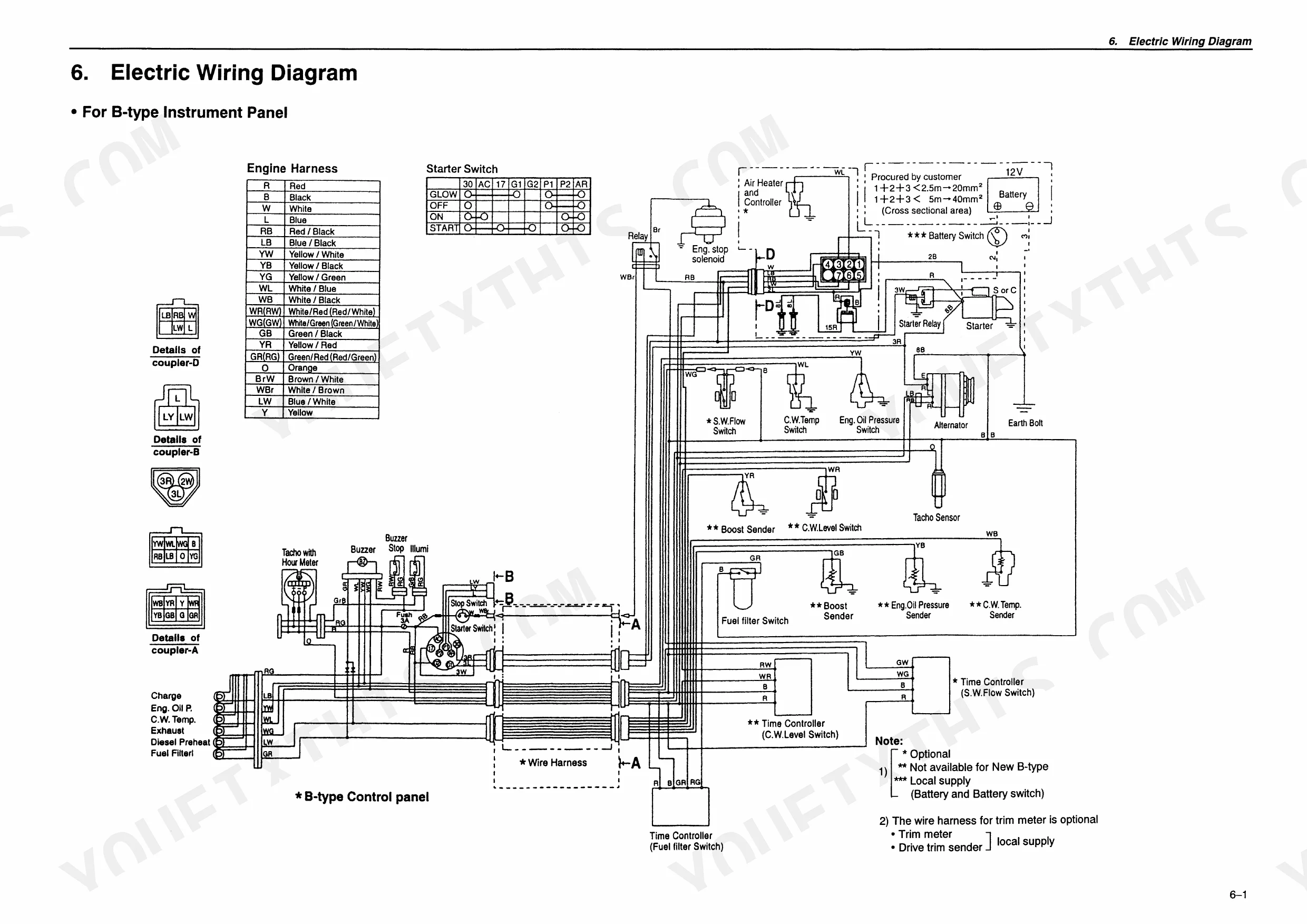

| Electric Wiring Diagram | 232-234 | Engine Harness, Starter Switch, Air Heater and Controller, Battery, Starter, Alternator, Tacho Sensor |
| Tools | 235-245 | Special Tools, Recommended Tools, Equipment, Service Special Materials |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel filter tightening torque | 150 to 200 kgf·cm (14.71 to 19.61 N·m) | p. 142 |
| Thermostat valve opening temperature | 68 to 72 °C | p. 177 |
| Thermostat valve lift | 10 mm or more at 90 °C | p. 177 |
| Oil cooler to oil cooler cover tightening torque | 160 kgf·cm (15.69 N·m) | p. 190 |
| Oil cooler and cover assembly tightening torque | 200 kgf·cm (19.61 N·m) | p. 190 |
| Engine Displacement | 4.163 L | p. 26 |
| Number of Cylinders | 6 | p. 1 |
| Fuel Injection Timing | FID 13.5 ±1 BTDC | p. 114 |
| Low Idling Speed | 700±25 rpm | p. 114 |
| Head Bolt Thread Diameter (Standard) | 10.800 to 11.000 mm | p. 116 |
| 6LP-DTE series | ||
| Valve Clearance (Intake) | 0.15 to 0.25 mm | p. 114 |
| 6LP-STE series | ||
| Valve Clearance (Intake) | 0.17 to 0.23 mm | p. 114 |
Yanmar 6LP / 6LPA Series Common Problems This Manual Covers
Yanmar 6LP marine engine cranks but will not start or dies immediately after bleeding the fuel system. p. 142

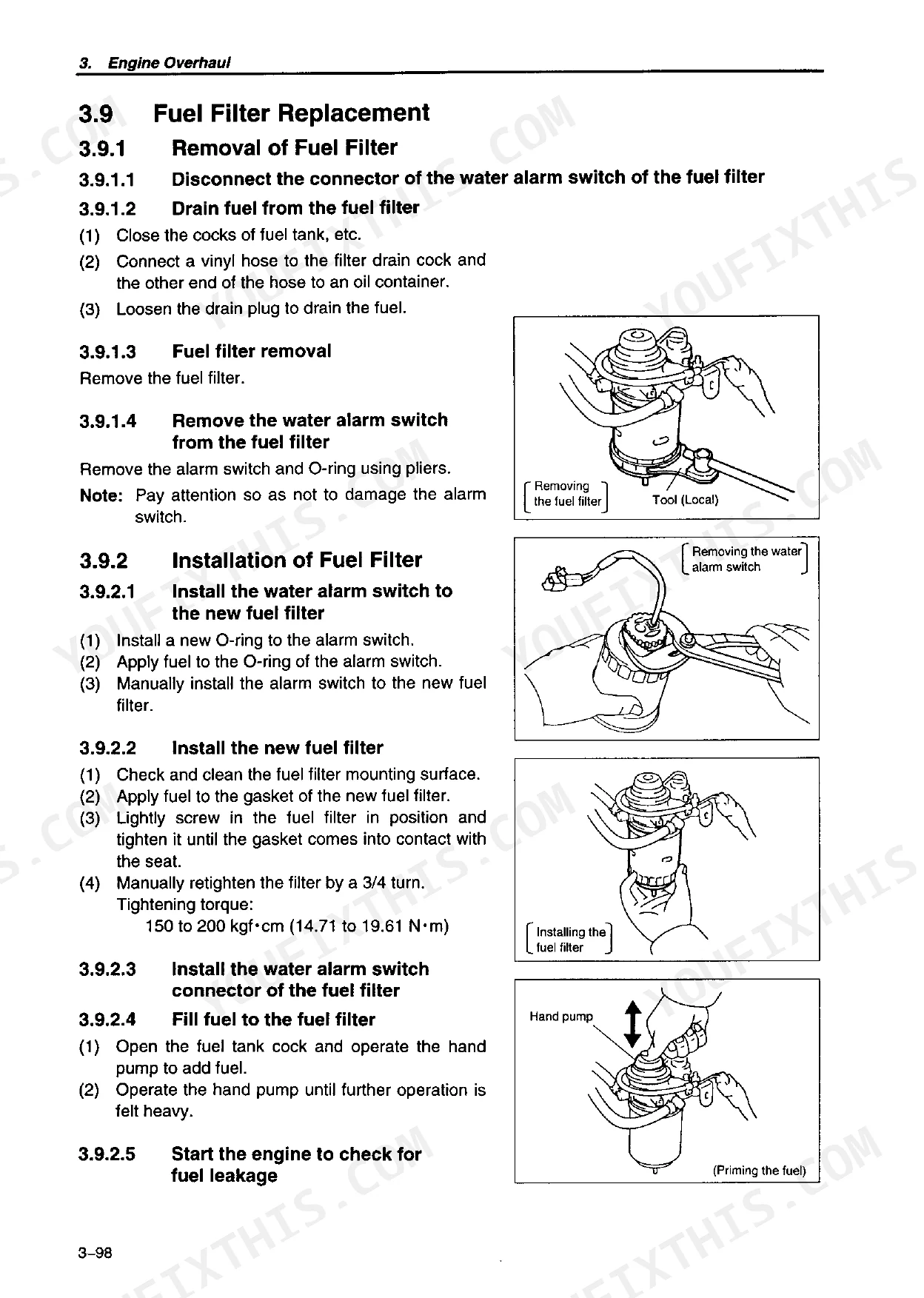

Inspect the fuel delivery system for air leaks. Check the fuel filter elements and replace if clogged. When installing the new filter, torque it to 150 to 200 kgf·cm (14.71 to 19.61 N·m) as specified on page 142. Bleed the system thoroughly before attempting to crank.
Manual Section: Does not Start or Difficult to StartRepeated high coolant temperature alarms and overheating under heavy load during normal operation. p. 177
Drain the coolant and remove the thermostat housing. Test the thermostat in a pan of heated water. Verify the valve opening temperature is between 68 to 72 °C. Check page 177 to confirm the valve lift reaches 10 mm or more at 90 °C. Replace if defective.
Manual Section: Other MalfunctionsAbnormal mechanical knocking noise and rough running accompanied by white smoke from the exhaust. p. 168
Remove the fuel injection nozzles and test them on a pop tester. For DTE series engines, verify the nozzle opening pressure is 250 to 260 kgf/cm² (24.52 to 25.50 MPa) as detailed on page 168. Adjust or replace the nozzles if the spray pattern is poor.
Manual Section: KnockingSudden drop in lubrication oil pressure or visible oil leaking around the cooler assembly. p. 190
Inspect the oil cooler housing and seals for damage. Replace the O-rings if flattened or cracked. Reinstall the assembly and tighten the oil cooler to the cover using 160 kgf·cm (15.69 N·m) of torque. Reference page 190 for the correct tightening sequence and assembly alignment.
Manual Section: Other MalfunctionsPoor acceleration and insufficient output under load with no obvious turbocharger or fuel restriction. p. 114
Check the intake valve clearance while the engine is cold. For STE series models, adjust the clearance to exactly 0.17 to 0.23 mm. Refer to page 114 and verify the fuel injection timing is set to FID 13.5 ±1 BTDC. Retest the engine under load.
Manual Section: Insufficient OutputFrequently Asked Questions
What is the torque spec for cylinder head bolts on a YANMAR 6LP-DTE engine?
For the YANMAR 6LP-DTE engine, the cylinder head bolts should be tightened to a torque of 700 kgf·cm (68.65 N·m). The tightening process involves gradually tightening the 26 cylinder head bolts uniformly in three steps, following the specified order shown in the illustration on page 69.
What is the torque spec for injector or rocker arm bolts on a YANMAR 6LPA-STP engine?
For the YANMAR 6LPA-STP engine, the fuel injection nozzle mounting bolts should be tightened to 255 kgf·cm (25.01 N·m). The manual does not provide a specific torque specification for individual rocker arm bolts.
What is the lube oil capacity for the YANMAR 6LP-DTE marine diesel engine?
The lube oil capacity for the YANMAR 6LP-DTE marine diesel engine is 10.0 liters of engine oil. This specification is found in the general specifications section of the manual.
What are the standard valve clearances for the YANMAR 6LP-DTE marine diesel engine?
For the YANMAR 6LP-DTE marine diesel engine, the standard valve clearance for the intake is 0.15 to 0.25 mm, and for the exhaust, it is 0.35 to 0.45 mm. These values are critical for proper engine operation and are listed in the engine adjusting standards.
Is this Service Manual a digital download?
A 247-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are electrical wiring diagrams included in this Yanmar 6LP-DTE & variants?
Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the Yanmar 6LP-DTE & variants.
Document Quality

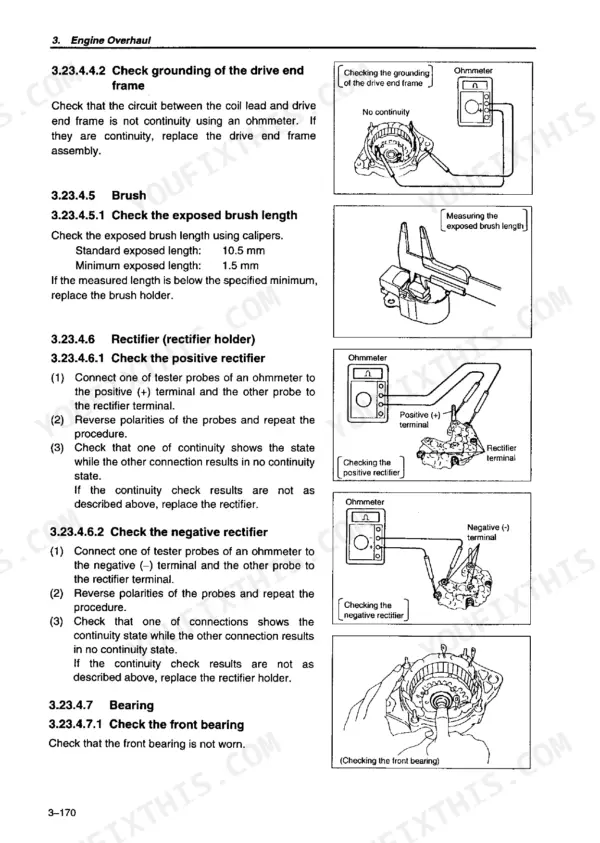

This document is a scanned PDF, not a native digital file, but it includes an OCR text layer, so you can search and copy text throughout the manual. The text quality is consistently crisp and easy to read on all pages. Diagrams and illustrations are clear raster images, and their labels are readable. All pages are clean, free from scan artifacts, stains, or skewed content, and there are no notable blank or filler pages.
