Need the exact operating protocols for your 2006-2007 Yanmar JH4 series marine engine? This 142-page Yanmar 4JH4-TE Operator Manual PDF (OEM #0AJH4-G00102) details the complete daily maintenance and dashboard indicator checks for the 3JH4E, 4JH4AE, 4JH4-TE, and 4JH4-HTE models. Inside, you get a full breakdown of safety warnings, fluid capacities, and step-by-step starting procedures. Open up the periodic maintenance schedule to find precise service intervals paired with clear wiring diagrams for your instrument panel. Swap the seawater pump impeller every 1000 hours and torque the fuel filter on your 3JH4E to exactly 20 to 24 N-m. Don't risk burning up a motor on the water because you missed a basic service check. Grab this bookmarked download, save it to your phone or tablet, and keep your boat running strong.
What's Inside This Yanmar 3JH4E, 4JH4AE, 4JH4-TE, 4JH4-HTE Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 7-8 | Record of Ownership |
| Safety | 9-18 | Safety Precautions (Before You Operate, During Operation and Maintenance), Location of Safety Decals |
| Product Overview | 19-32 | Yanmar JH4 Features and Applications, New Engine Break-In |

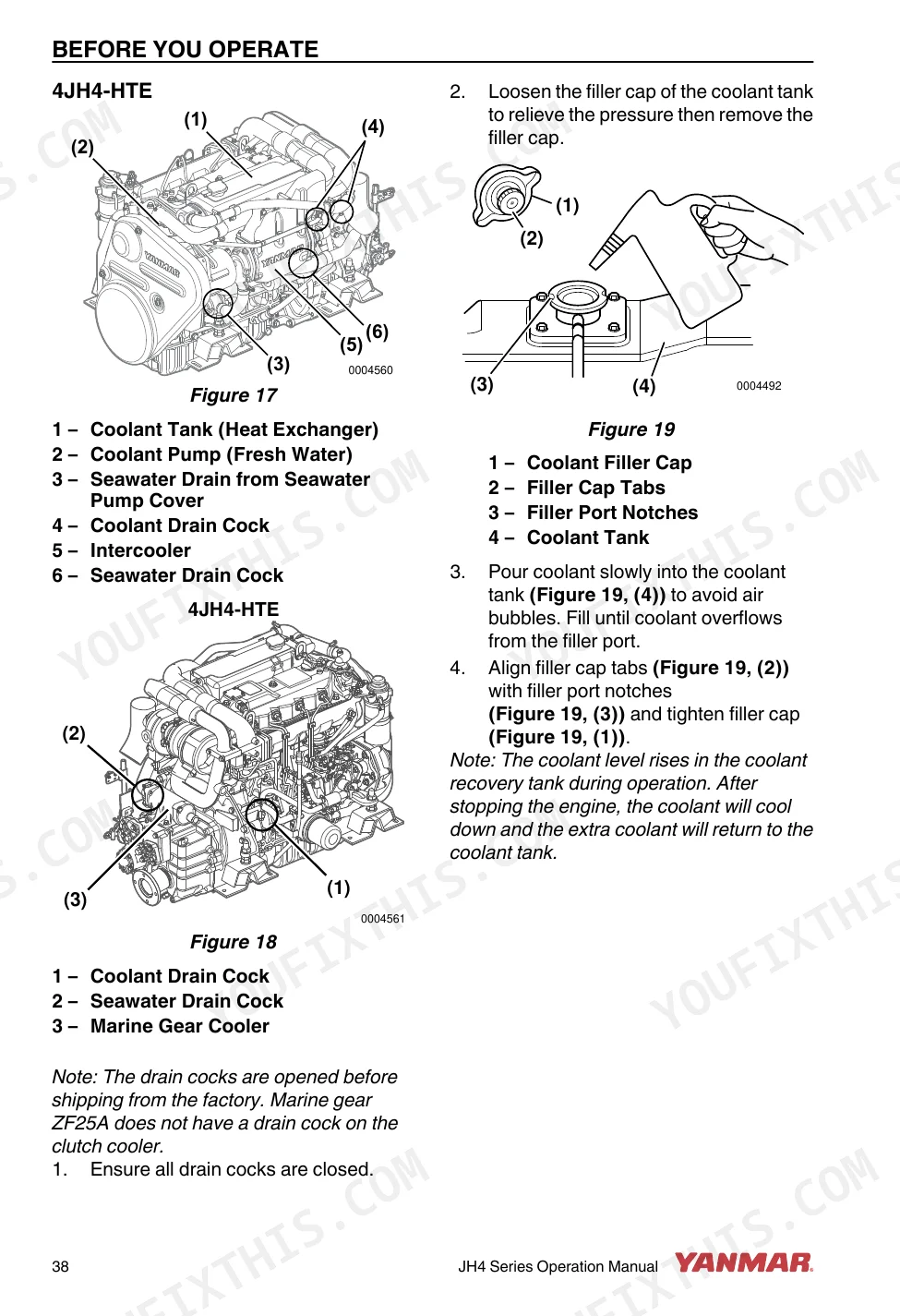

| Before You Operate | 33-48 | Diesel Fuel (Specifications), Filling the Fuel Tank, Bleeding the Fuel System, Engine Oil (Specifications, Viscosity, Checking the Engine Oil, Adding Engine Oil) |
| Engine Operation | 49-56 | Starting the Engine (Restarting After Starting Failure, Starting at Low Temperatures, After the Engine Has Started) |

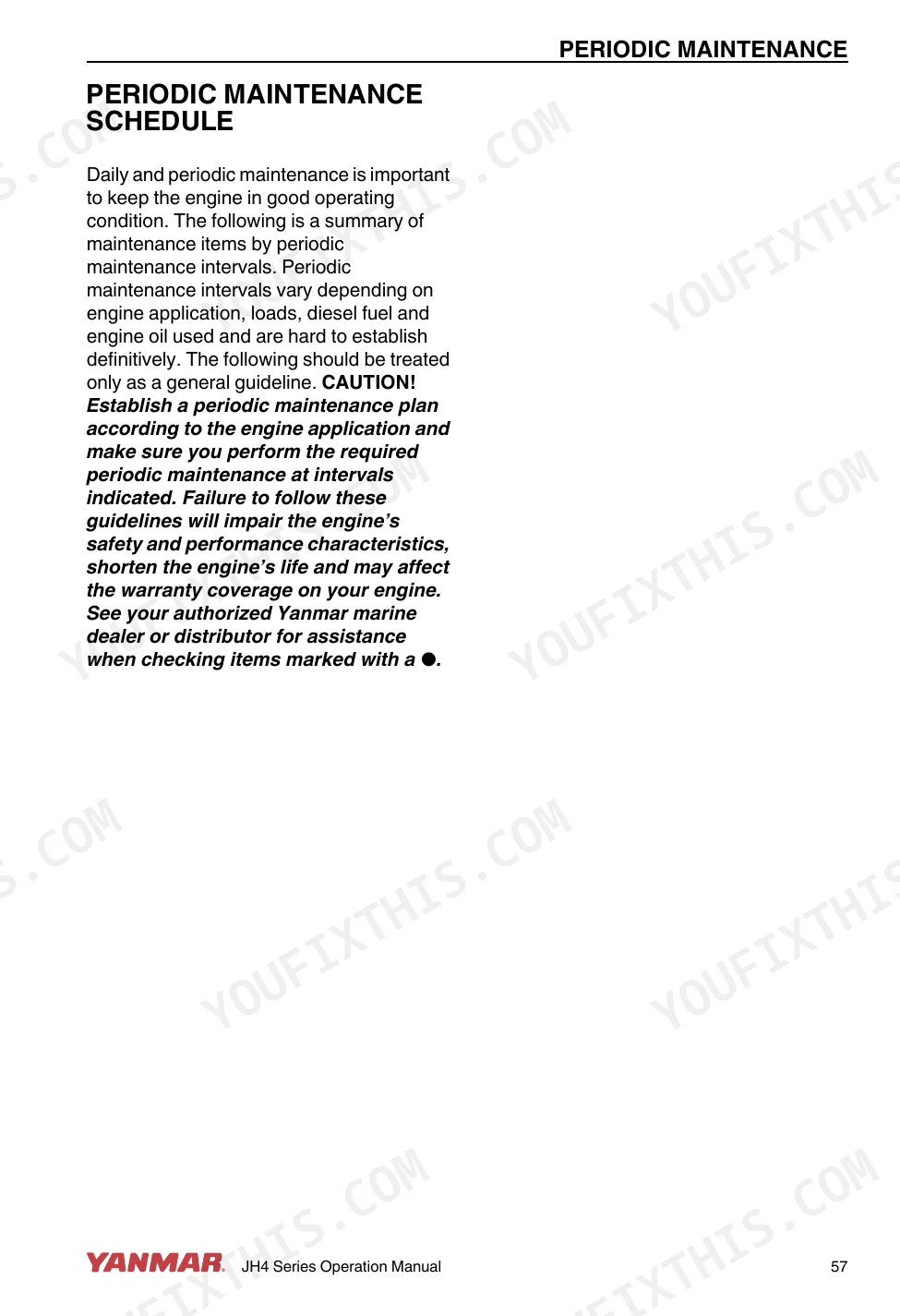

| Periodic Maintenance | 57-82 | Safety Precautions |
| Troubleshooting | 83-88 | Troubleshooting After Starting, Troubleshooting Chart, Troubleshooting Information |
| Long-Term Storage | 89-92 | Prepare Engine for Long-Term Storage, Drain Seawater Cooling System |
| Specifications | 93-106 | Principal Engine Specifications (3JH4E Engine Specifications, 3JH4E Marine Gear Specifications, 4JH4AE Engine Specifications, 4JH4AE Marine Gear or Sail Drive Specifications, 4JH4-Te Engine Specifications, 4JH4-Hte Engine Specifications) |

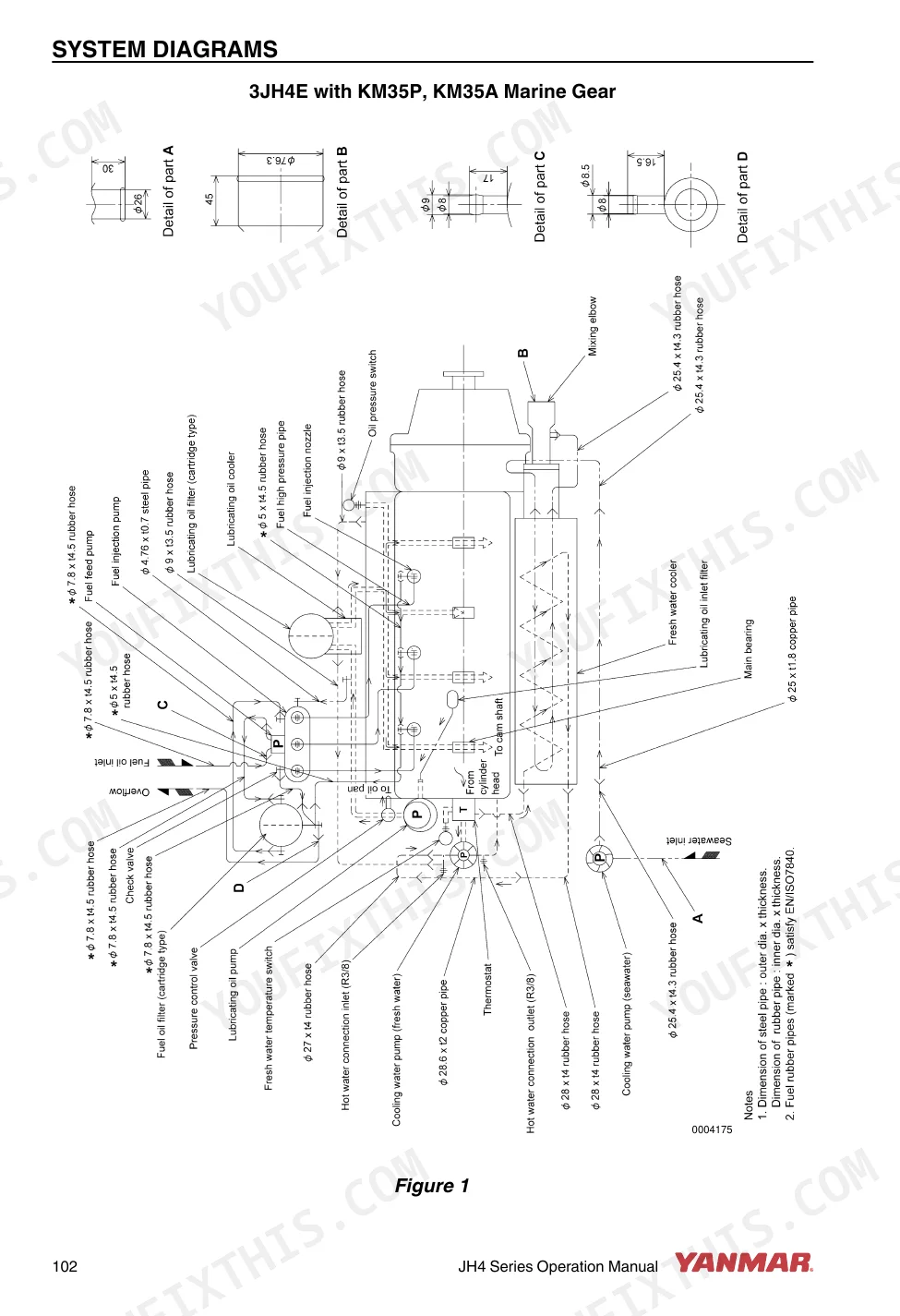

| System Diagrams | 107-134 | Piping Diagrams, Wiring Diagrams |
| Epa Warranty Usa Only | 135-138 | Yanmar Co. |
| Emission System Warranty | 139-142 | Non-Road Emission System Warranty (Yanmar Co., Ltd. Limited Emission Control System Warranty - Usa Only) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Cylinder head bolt torque | Not specified for cylinder head bolts; general bolt torque values are provided based on diameter and pitch, with instructions to apply 60% torque to bolts not listed and 80% torque when tightened to aluminum alloy. | p. 60 |
| Seawater pump impeller replacement interval | every 1000 hours | p. 64 |
| Intake / Exhaust Valve Clearance | Consult authorized Yanmar marine dealer or distributor for adjustment | p. 69 |
| Alternator V-belt deflection | 8 - 10 mm (approximately 3/8 in.) | p. 68 |
| Maximum allowable coolant temperature | 95˚C (203˚F) or higher | p. 30 |
| Engine Oil SAE Viscosity | 10W30, 15W40 | p. 38 |
| 3JH4E, 4JH4AE | ||
| Fuel filter tightening torque (3JH4E / 4JH4AE) | 20 - 24 N·m (14.75 - 17.7 ft-lb) | p. 68 |
| 4JH4-TE, 4JH4-HTE | ||
| Fuel filter tightening torque (4JH4-TE / 4JH4-HTE) | 11.8 - 15.6 N·m (104.4 - 138.1 in.-lb) | p. 74 |
| 3JH4E | ||
| Effective oil capacity (3JH4E KM35P) | 1.1 L (1.2 qt) | p. 94 |
| Effective oil capacity (3JH4E KM35A, SD40/SD50) | 1.2 L (1.3 qt) | p. 94 |
| 3JH4E, 4JH4-TE, 4JH4-HTE | ||
| Engine Oil API Service Category | CD or higher | p. 38 |
| 4JH4AE | ||
| Engine Oil API Service Category | CH-4 only | p. 38 |
Yanmar 3JH4E, 4JH4AE, 4JH4-TE, 4JH4-HTE Common Problems This Manual Covers
Yanmar JH4 series coolant high temperature alarm sounding and engine running hot under load p. 85
Inspect the seawater system and check for a blocked pickup. Verify the maximum allowable coolant temperature is below 95˚C (203˚F) on page 30. Replace the seawater pump impeller every 1000 hours as instructed on page 64. Clean the heat exchanger and strainer.
Manual Section: Coolant High Temperature AlarmAbnormal exhaust color showing heavy black smoke and engine cannot gain RPM when advancing throttle p. 87
Reduce throttle immediately to correct engine overload condition. Inspect the intake silencer for dirt restriction. Drain the fuel tank and fill with fresh diesel meeting a minimum fuel Cetane number of 45 or higher as specified on page 34. Check propeller matching.
Manual Section: Abnormal Exhaust Color: Black smokeEngine consuming excessive oil and producing white exhaust smoke with runaway high RPM p. 85
Check the engine oil level and drain excess fluid to prevent oil from entering the combustion chamber. Fill the 4JH4-HTE to the effective oil capacity of 2.4 L (2.5 qt) found on page 104. Inspect the crankcase breather system for blockages.
Manual Section: Troubleshooting ChartStarter turns over but engine does not start or runs poorly after routine maintenance p. 86
Bleed the fuel system to remove trapped air. Inspect the drive belts and adjust the alternator V-belt deflection to 8 - 10 mm (3/8 in.) as shown on page 68. Verify the fuel filter is properly secured and fuel lines are tight.
Manual Section: Starting Failures: Starter turns but engine does not startFrequently Asked Questions
How do I reset the alarm on a YANMAR 3JH4E / 4JH4AE / 4JH4-TE / 4JH4-HTE engine?
The manual indicates that if an alarm sounds during operation, the engine speed should be lowered immediately, warning lamps checked, and the engine stopped for repairs. Under normal starting conditions, the alarm sounds briefly when the key is turned to ON and then stops once the engine has started and indicators go out. There is no explicit "reset" procedure for an alarm indicating a problem during operation, other than addressing the underlying issue.
What does the YANMAR engine error code mean for low oil pressure or high coolant temperature?

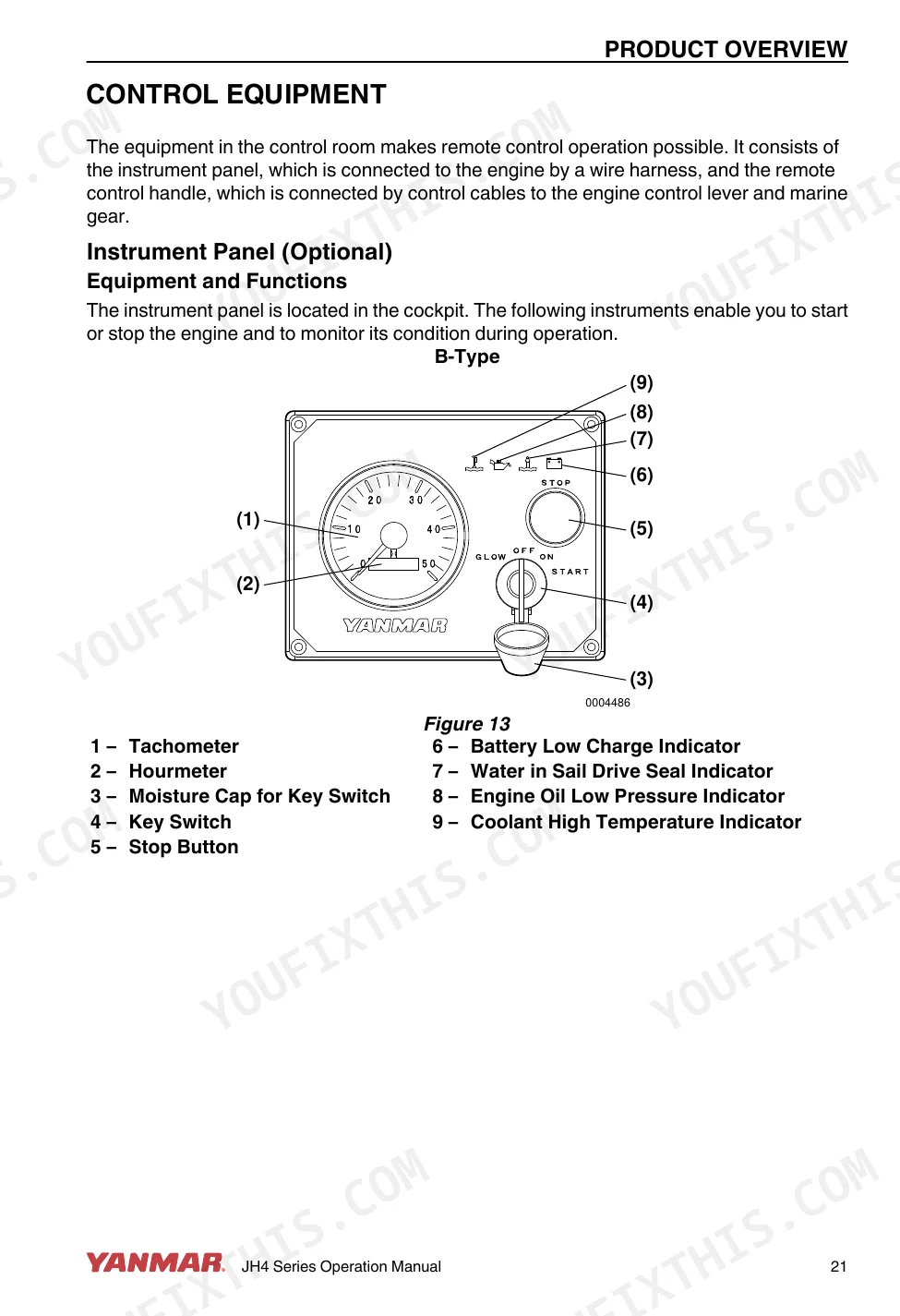

For low oil pressure, the engine oil low pressure indicator will light and an alarm will sound when the oil pressure falls below normal. For high coolant temperature, the coolant high temperature indicator will light and an alarm will sound when the coolant temperature reaches 95˚C (203˚F) or higher. In both cases, operation should be stopped immediately to prevent engine damage, and the respective systems should be checked.
How do I bleed the fuel system on a YANMAR 4JH4-TE?
To bleed the fuel system on a YANMAR 4JH4-TE, first check the fuel level and open the fuel cock. Then, loosen the air bleed screw (Figure 7, (2)) 2-3 turns and push the priming pump (Figure 7, (1)) up and down until a solid stream of fuel with no air bubbles flows. Finally, tighten the air bleed screw.
What are the replacement specifications for raw water pump impeller / raw water pump components?
The seawater pump impeller must be replaced periodically every 1000 hours, even if no damage is found. Special service tools like Puller A (Part No. 129671-92110) or Puller B (Part No. 129671-92100) are used for removal.
How will I receive this Yanmar 3JH4E & variants Operator Manual?
This is a 142-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.

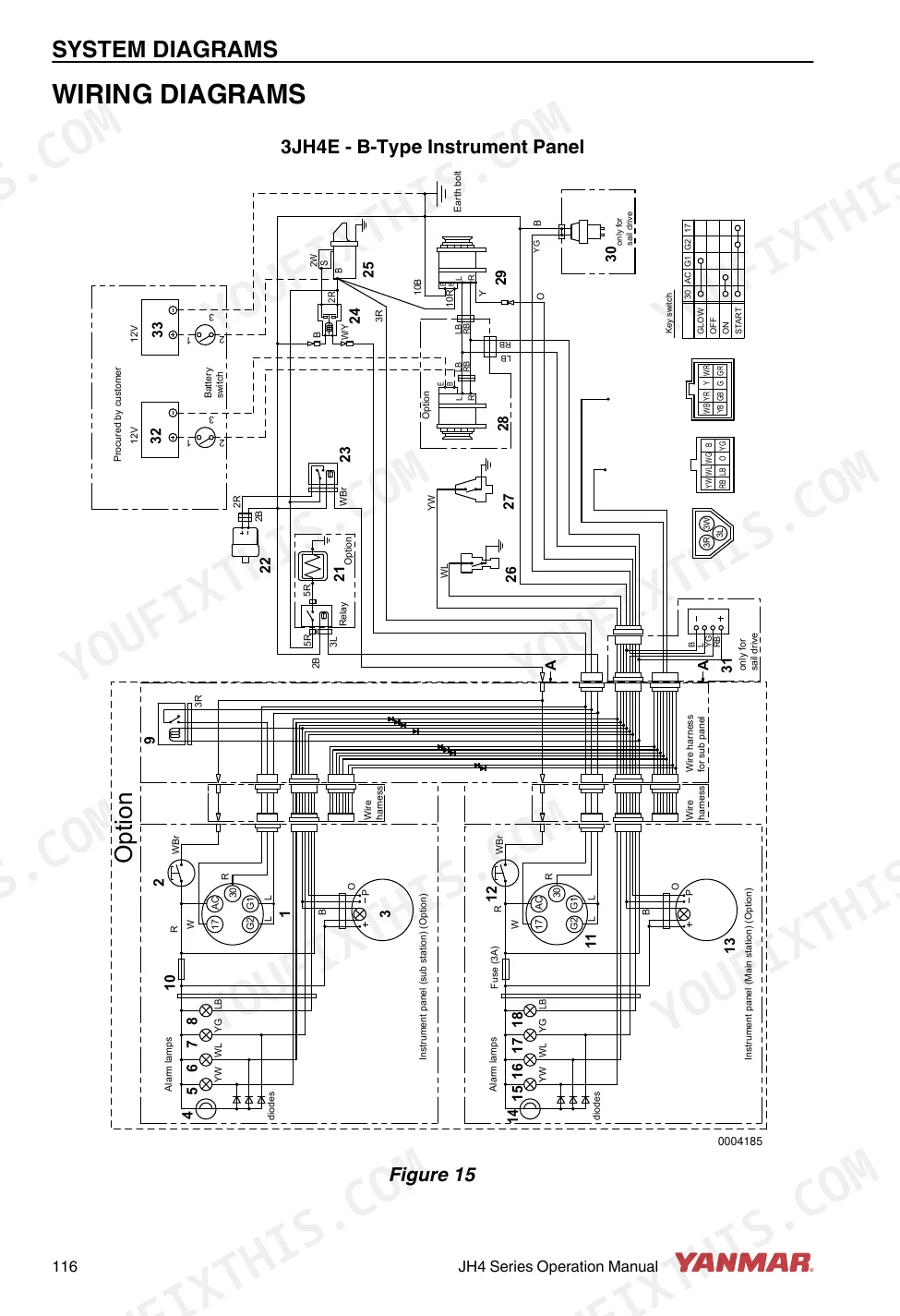

Does this Yanmar 3JH4E & variants Operator Manual have electrical diagrams?
A wiring diagram for the Yanmar 3JH4E & variants electrical system is included.
Document Quality
This document is mostly a native digital PDF, so you can search and copy text throughout most of the manual. The text is consistently crisp and easy to read on all pages. Diagrams and illustrations are clear line art with readable labels, maintaining sharpness when zoomed in. Pages are clean with no scan artifacts, stains, or skewed content. Please note that the final page, the Declaration of Conformity, is a scanned image, but an OCR layer is present for searchability. There are also several "This Page Intentionally Left Blank" filler pages included.
