Tracking down an electrical gremlin on your TNV Series industrial engine? This 234-page Yanmar 3TNV88-U troubleshooting manual PDF (OEM #0DTNV-G00600) covers full diagnostic procedures for the 3TNV82A, 3TNV84, 4TNV88, 4TNV98, and 4TNV106 variants. Inside, you get complete electrical wiring diagrams, detailed failure indicator flashing patterns, and an extensive list of Diagnostic Trouble Codes. Open the file to find step-by-step factor analysis for 2G-Type Eco-Governor speed fluctuations, black smoke conditions, and stalling issues. Verify your standard compression pressure is hitting 483 - 513 psi on the 3TNV88, and check the accelerator sensor resistance to confirm it reads exactly 5 ± 1.5 kΩ before tearing into the harness. Throwing parts at a stalling engine burns time and cash. Download the bookmarked file to your tablet, search for the exact failure code, and get the motor running today.
What's Inside This Yanmar 3TNV82A–4TNV106T (TNV Series) Manual
| System | Pages | Key Topics |
|---|---|---|

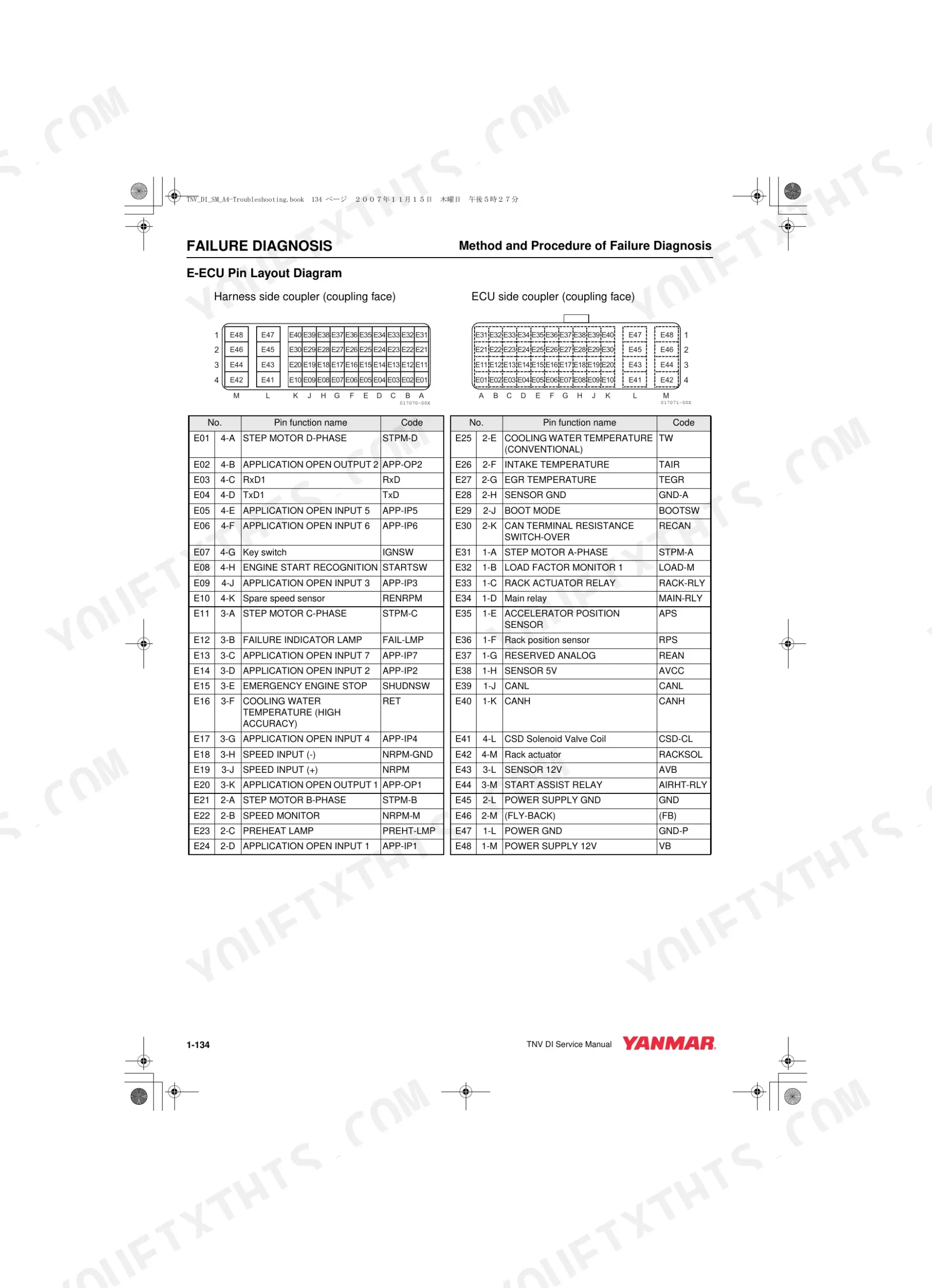

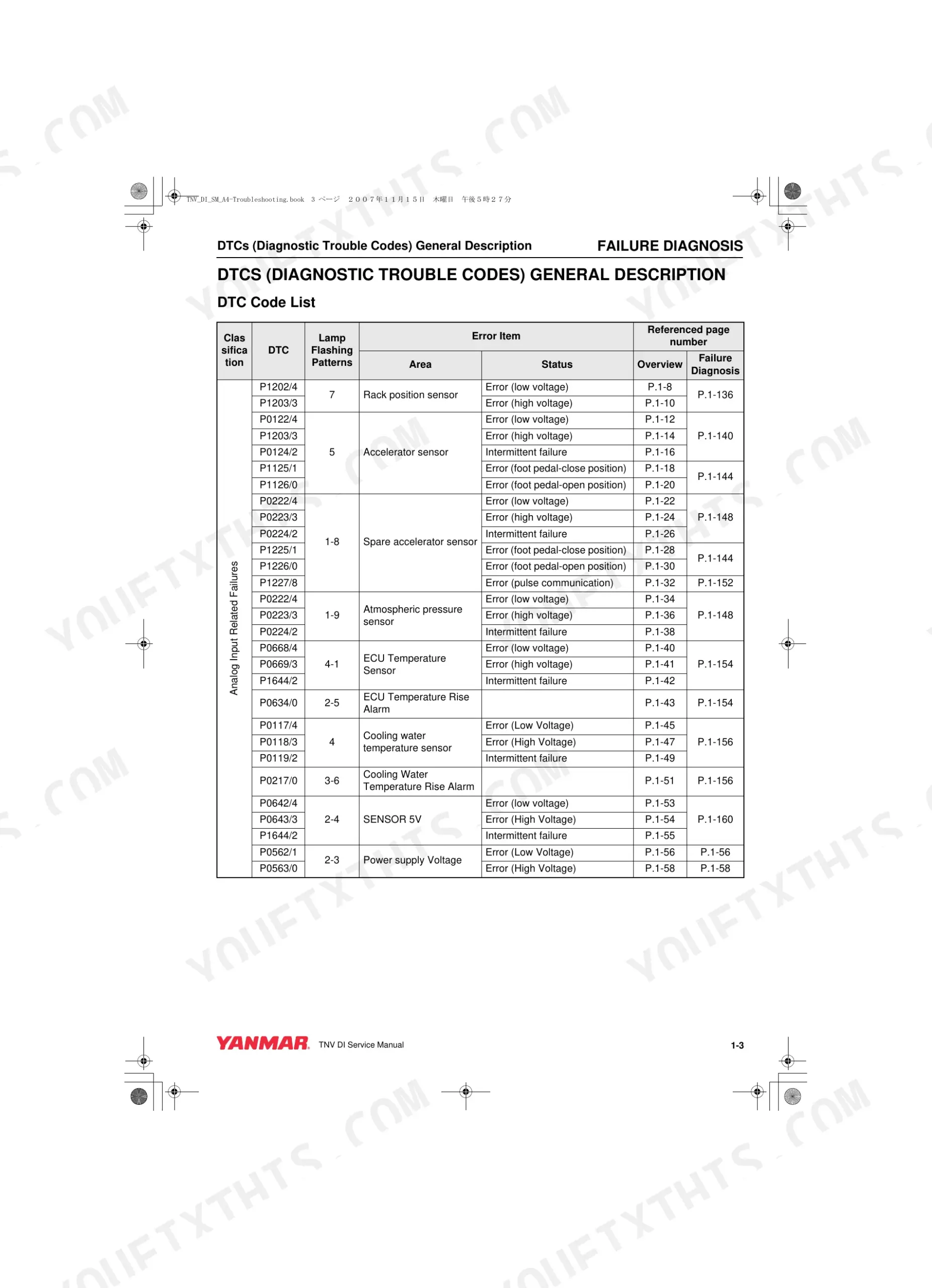

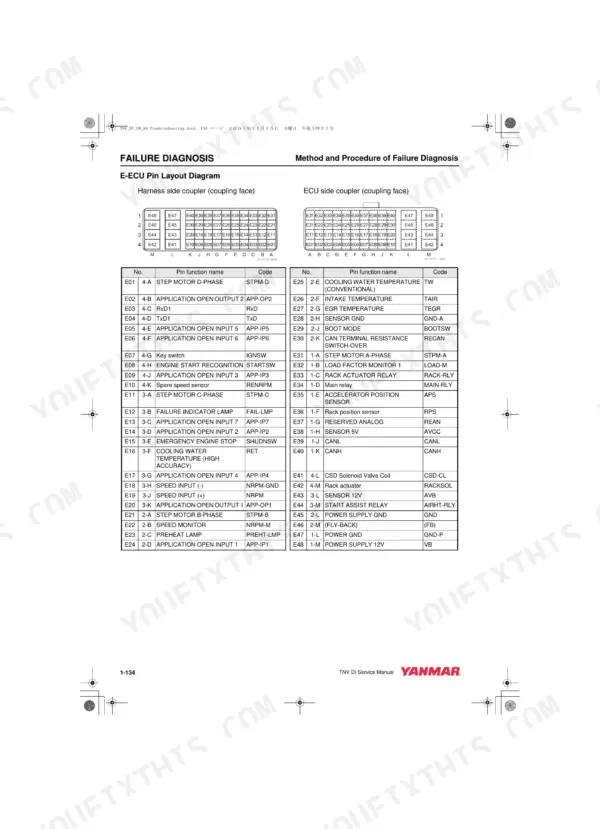

| DTCs (Diagnostic Trouble Codes) General Description | 5-134 | Dtc Code List, Description Items, Analog Input Related Failures, Pulse Sensor Related Failures, Contact Output Related Failures, Contact Input Related Failures, Actuators Etc |
| Method and Procedure of Failure Diagnosis | 135-209 | Description Items, Analog Input Related Failures, Pulse Sensor Related Failures, Contact Output Related Failures, Contact Input Related Failures, Actuator Related Failures |

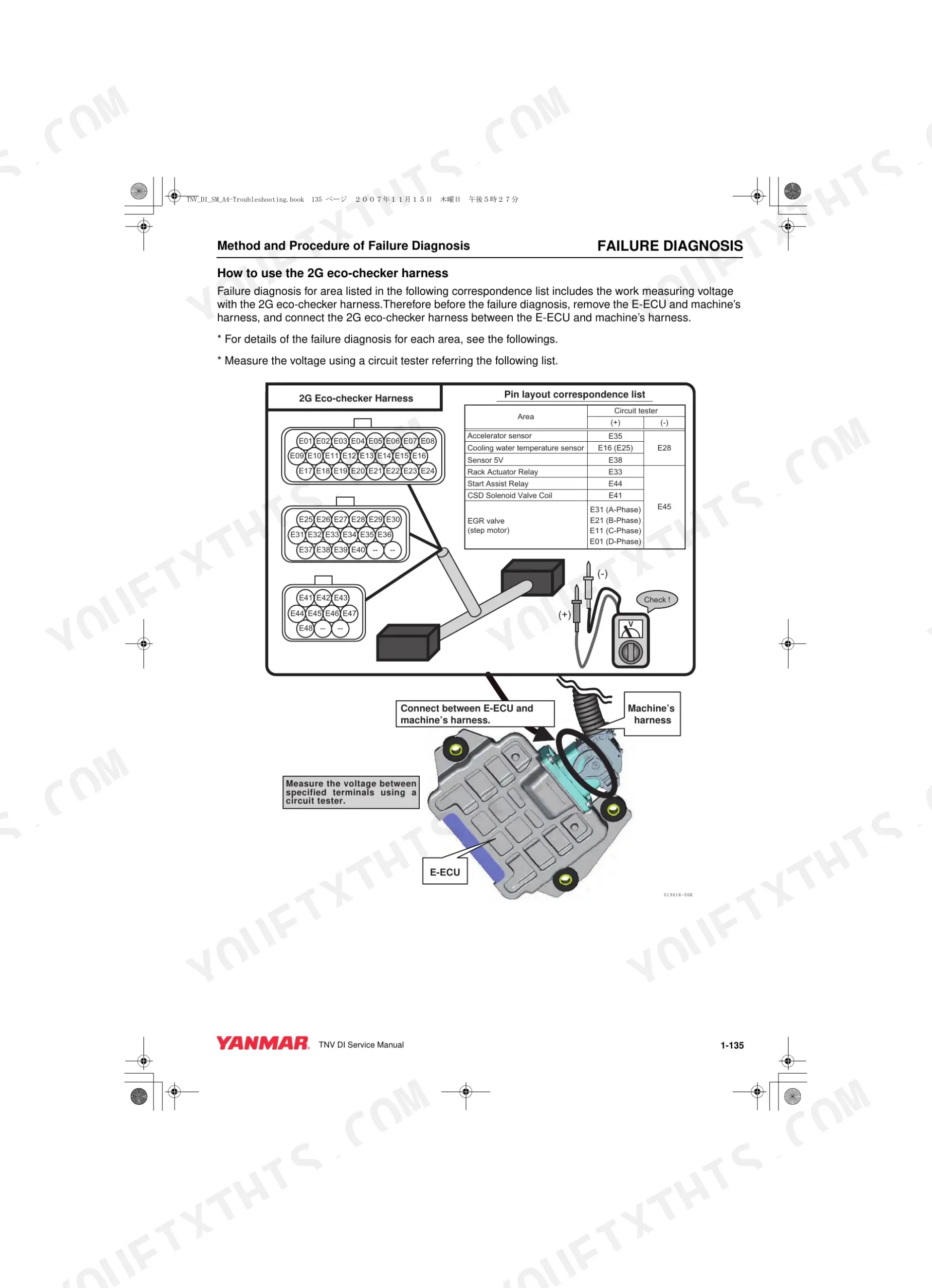

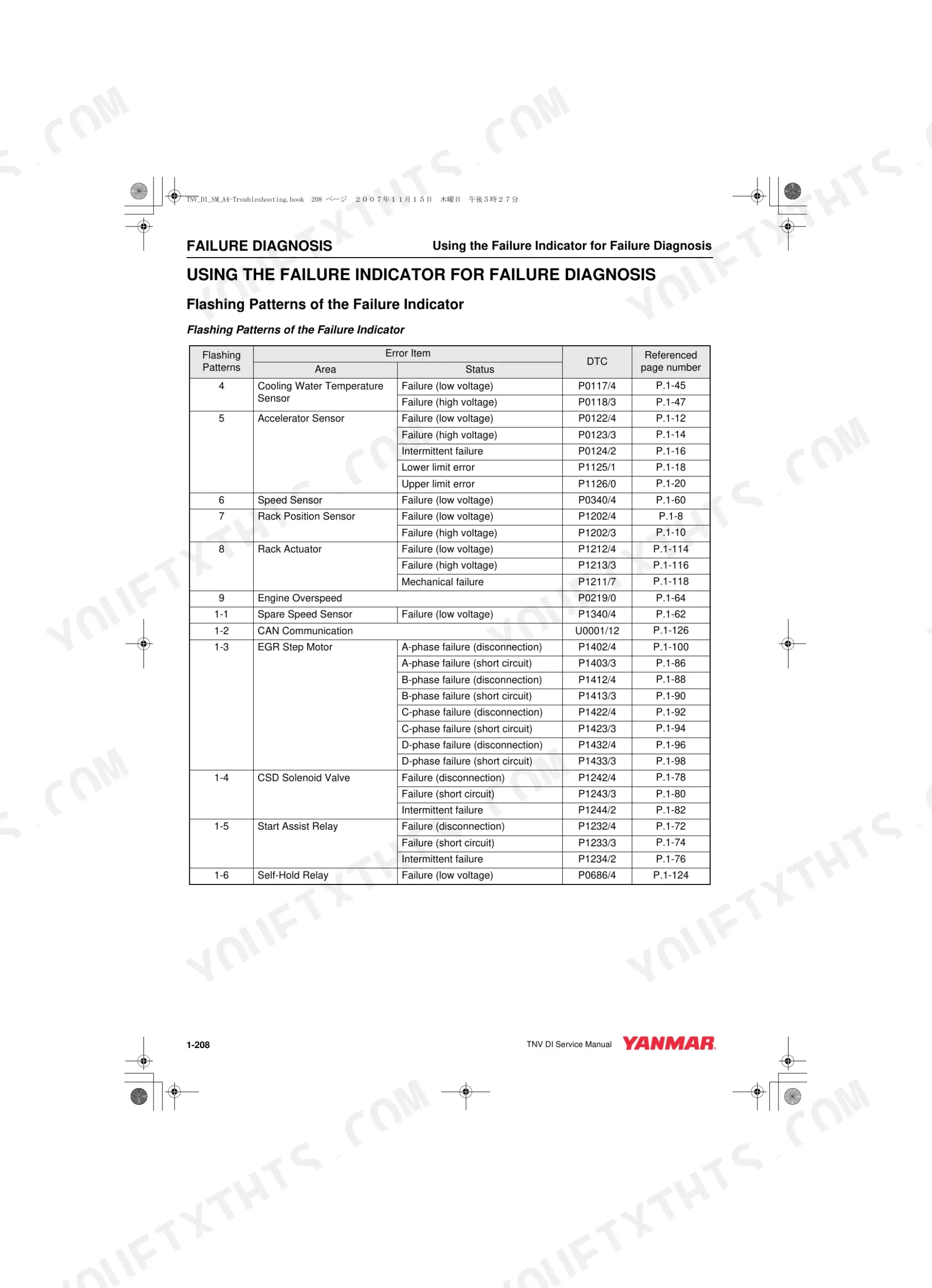

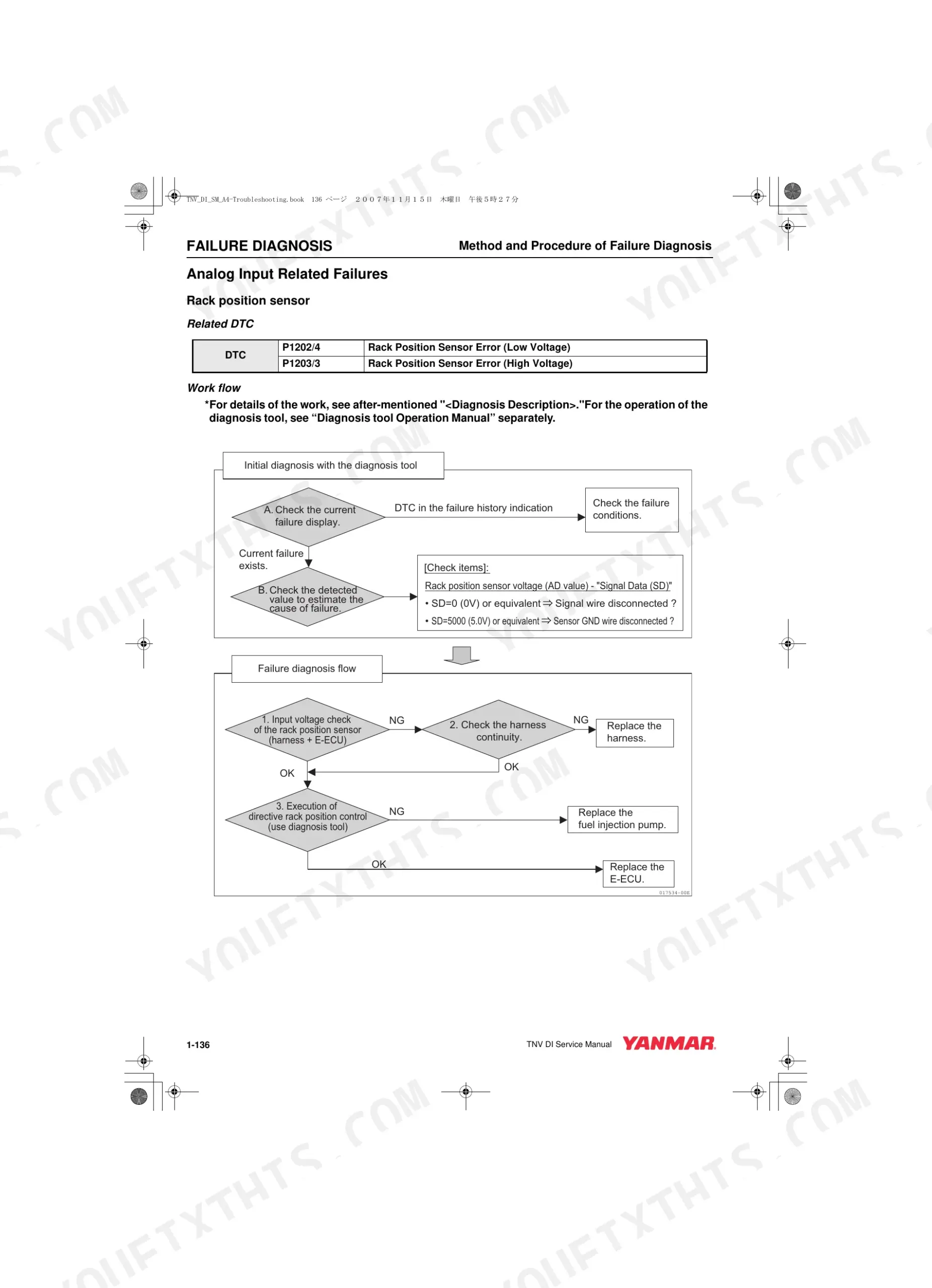

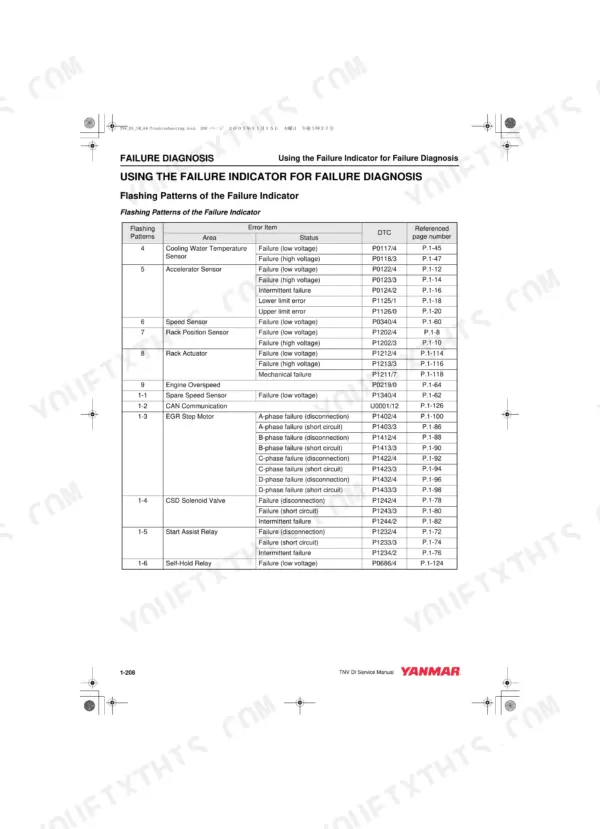

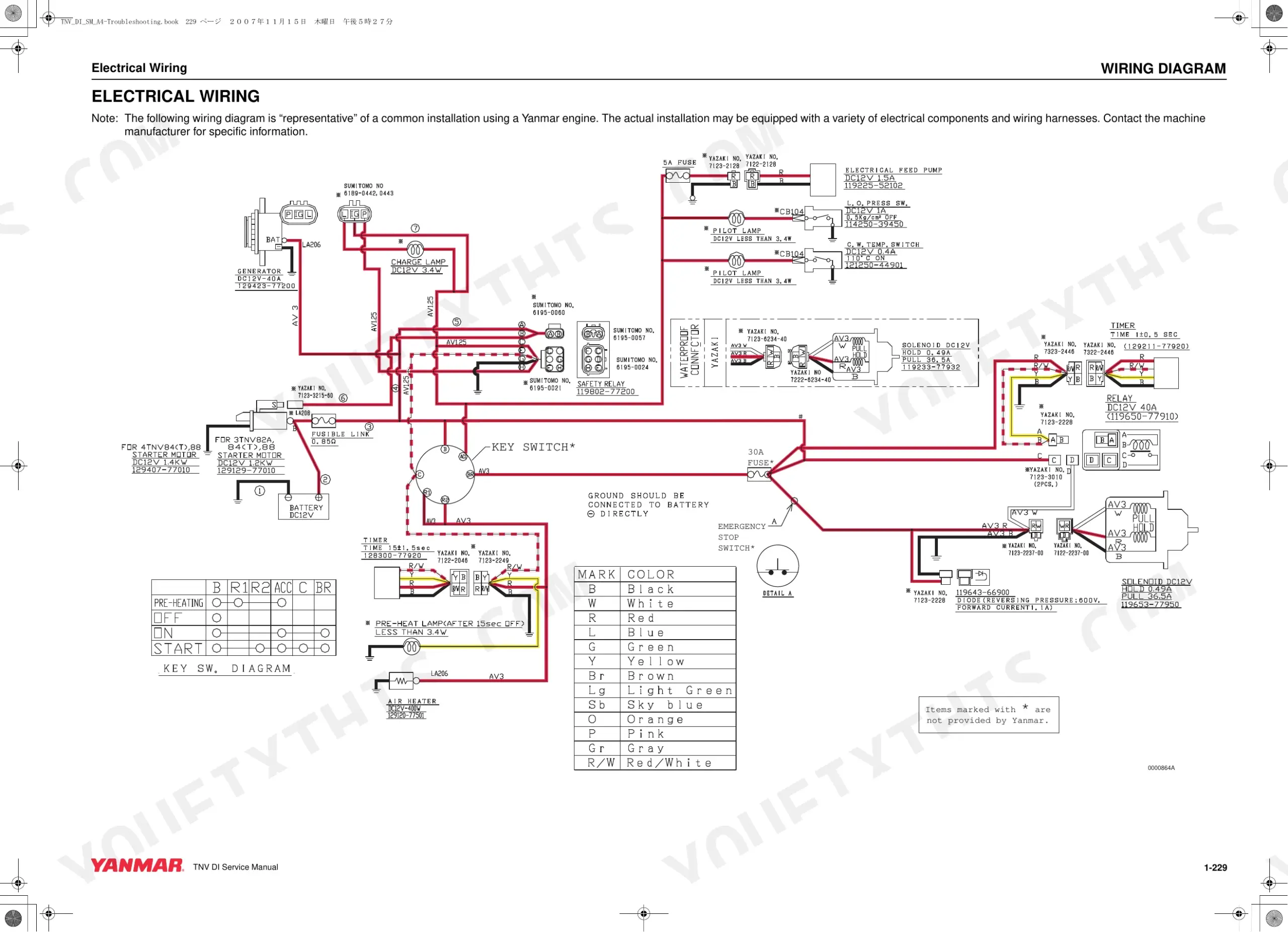

| Using the Failure Indicator for Failure Diagnosis | 210-211 | Flashing Patterns of the Failure Indicator |
| Factor Analysis | 212-219 | 2G-Type Eco-Governor Speed-Fluctuation Factor Analysis, 2G-Type Eco-Governor Engine (Stalling/Start-Up Inability Factor Analysis, 2G-Type Eco-Governor Black Smoke Factor Analysis) |
| Special Service Tools | 220 | Compression Gauge Kit, Adapter for Direct Injection 2-Valve Cylinder Head, Adapter for Direct Injection 4-Valve Cylinder Head for 4TNV94L/98/98T |
| Troubleshooting by Measuring Compression Pressure | 221-223 | Compression Pressure Measurement Method |
| Quick Reference Table for Troubleshooting | 224-230 | Air Cleaner Element, Valve Clearance, Valve Timing, Cylinder Head Gasket, Intake / Exhaust Valve, Piston Ring |
| Electrical Wiring | 231-234 | Key Switch, Fuses, Battery, ECU, Sensors, Actuators |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 3TNV82A | ||
| Standard Compression Pressure | 443 - 473 psi | p. 223 |
| 3TNV84, 4TNV84 | ||
| Standard Compression Pressure | 455 - 485 psi | p. 223 |
| 3TNV84T, 4TNV84T | ||
| Standard Compression Pressure | 411 - 441 psi | p. 223 |
| 3TNV88, 4TNV88, 4TNV94L, 4TNV98, 4TNV98T, 4TNV106, 4TNV106T | ||
| Standard Compression Pressure | 483 - 513 psi | p. 223 |
| All Models | ||
| Accelerator Sensor Resistance (Sensor A - C) | 5 ± 1.5 kΩ | p. 144 |
| CSD Solenoid Valve Coil Resistance (400W) | 8 Ω | p. 182 |
| EGR Step Motor Coil Resistance (A-Phase) | 15 ± 2 Ω | p. 187 |
| Speed Sensor Resistance (Sensors A - B) | 500 ± 100 Ω | p. 168 |
| Battery Voltage (Normal Condition) | 10 to 16 V | p. 171 |
Yanmar 3TNV82A–4TNV106T (TNV Series) Common Problems This Manual Covers
Yanmar 3TNV82A hard starting or no-start conditions, especially after long storage or air and fuel system work p. 223
Measure engine compression pressure using the specialized gauge kit. Verify the reading matches the standard compression pressure of 443 to 473 psi as listed on page 223. Inspect the cylinder head gasket, intake valves, and piston rings if the pressure drops below standard.
Manual Section: Troubleshooting by Measuring Compression PressureEngine shuts down, derates, or logs diagnostic trouble codes with rough running after load changes p. 144
Test the accelerator sensor circuit for wiring defects or intermittent failures. Measure the accelerator sensor resistance across terminals A and C as outlined on page 144. Verify the reading is 5 ± 1.5 kΩ. Replace the sensor assembly if the resistance falls outside the acceptable range.
Manual Section: Method and Procedure of Failure DiagnosisEngine stalling or start-up inability accompanied by speed sensor errors and battery voltage descent p. 168
Inspect the speed sensor for physical damage or loose connections. Measure the resistance between sensors A and B to ensure it reads 500 ± 100 Ω as specified on page 168. Check the main battery voltage to confirm it maintains 10 to 16 V under normal conditions.
Manual Section: Method and Procedure of Failure DiagnosisExcessive black smoke, power loss, and high exhaust temperatures during heavy machine operation p. 187
Check the EGR valve step motor for phase failures or short circuits. Test the A-Phase coil resistance as shown on page 187. Verify the reading is exactly 15 ± 2 Ω. Clean the air cleaner element and verify correct valve clearance if the electrical components pass.
Manual Section: Method and Procedure of Failure DiagnosisFrequently Asked Questions
How do you fix yanmar 3TNV82A hard starting or no-start conditions, especially after long storage or air and fuel system work?
Measure engine compression pressure using the specialized gauge kit. Verify the reading matches the standard compression pressure of 443 to 473 psi as listed on page 223. Inspect the cylinder head gasket, intake valves, and piston rings if the pressure drops below standard.
How do you fix engine shuts down, derates, or logs diagnostic trouble codes with rough running after load changes?
Test the accelerator sensor circuit for wiring defects or intermittent failures. Measure the accelerator sensor resistance across terminals A and C as outlined on page 144. Verify the reading is 5 ± 1.5 kΩ. Replace the sensor assembly if the resistance falls outside the acceptable range.
How do you fix engine stalling or start-up inability accompanied by speed sensor errors and battery voltage descent?
Inspect the speed sensor for physical damage or loose connections. Measure the resistance between sensors A and B to ensure it reads 500 ± 100 Ω as specified on page 168. Check the main battery voltage to confirm it maintains 10 to 16 V under normal conditions.
How do you fix excessive black smoke, power loss, and high exhaust temperatures during heavy machine operation?
Check the EGR valve step motor for phase failures or short circuits. Test the A-Phase coil resistance as shown on page 187. Verify the reading is exactly 15 ± 2 Ω. Clean the air cleaner element and verify correct valve clearance if the electrical components pass.
How quickly can I access this manual after buying?
This is a 234-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this manual?
No restrictions apply. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Can I find wiring schematics in this Yanmar 3TNV82A & variants manual?
Included. The Yanmar 3TNV82A & variants Troubleshooting Manual provides a wiring diagram for the electrical system.
