Every single component on your 2004-2006 Yanmar Vio35-3 crawler back-hoe excavator (including the Vio35-3B and Vio35F-3 C variants) is mapped out in this 229-page parts catalog (OEM #0CK10-M40002EN). You get crystal-clear exploded views of the entire machine, from the quick hitch assembly to the complete turning motor. Open this Yanmar Vio35-3 parts manual PDF to find exact OEM part numbers, hardware sizes, and component cross-references for every single system. Look up the exact 300mm crawler shoe assemblies or verify you need a 12V 20W bulb for the canopy lamp before ordering replacements. Waiting on the wrong parts kills your uptime. Grab this bookmarked digital file, find the correct numbers fast, and keep your excavator digging.
What's Inside This Yanmar ViO35-3 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Reference Materials | 2-5 | - |
| Label(Cabin : Jp) | 11-12 | Oil & Water Label, Grease Label, Grease Feed Label, Label, Rear Label, Fan Label, Oiling Label, Caution Label |
| Label(Canopy : Jp) | 13-14 | Oil & Water Label, Grease Label, Grease Feed Label, Label, Rear Label, Fan Label, Oiling Label, Caution Label |
| Label(Quick Hitch : Jp) | 15 | Vio Label Set, Label, Lock Label, Collar Label |
| Label(Crane : Jp) | 16 | Label |
| Label(Forestry : Jp) | 17 | VIO35- Label Set, Label, Brand Label, Operation Lavel, Front Label, Seat Belt Label, ROPS Label |
| Label(Cabin : Ex) | 18-19 | Label, Oil & Water Label, Rear Label, Grease Label, Fuse Us Label, Ventilation Label, PTO Label, Accelerator Label |
| Label(Canopy : Ex) | 20-21 | Front Label, Label, Oil & Water Label, Rear Label, Grease Label, Fuse Us Label, PTO Label, Accelerator Label |
| Safety Label(Cabin : Jp) | 22 | Label, Fan Label, Caution Label, Battery Label, Belt Label, Caution Tag Assy, Loading Label, Warning Label |
| Safety Label(Canopy : Jp) | 23 | Label, Fan Label, Caution Label, Battery Label, Belt Label, Caution Tag Assy, Loading Label, Warning Label |
| Safety Label(Quick Hitch : Jp) | 24 | Label, Pin, Plug |
| Safety Label(Crane : Jp) | 25 | - |
| Safety Label(Forestry : Jp) | 26 | Label, Seat Belt Label, ROPS Label |
| Safety Label(Cabin : Ex) | 27 | Caution Tag Assy, Caution N Tag Assy, Finger Us Label, Sand Us Label, Warning Hitch Label, Manual Us Label, Manual Us N Label, Slope Us Label |
| Safety Label(Canopy : Ex) | 28 | Caution Tag Assy, Caution N Tag Assy, Finger Us Label, Sand Us Label, Warning Hitch Label, Manual Us Label, Manual Us N Label, Slope Us Label |
| Accessory | 29 | Manual Bag, Collar Label, Manual Case, Collar Kit, Sponge |

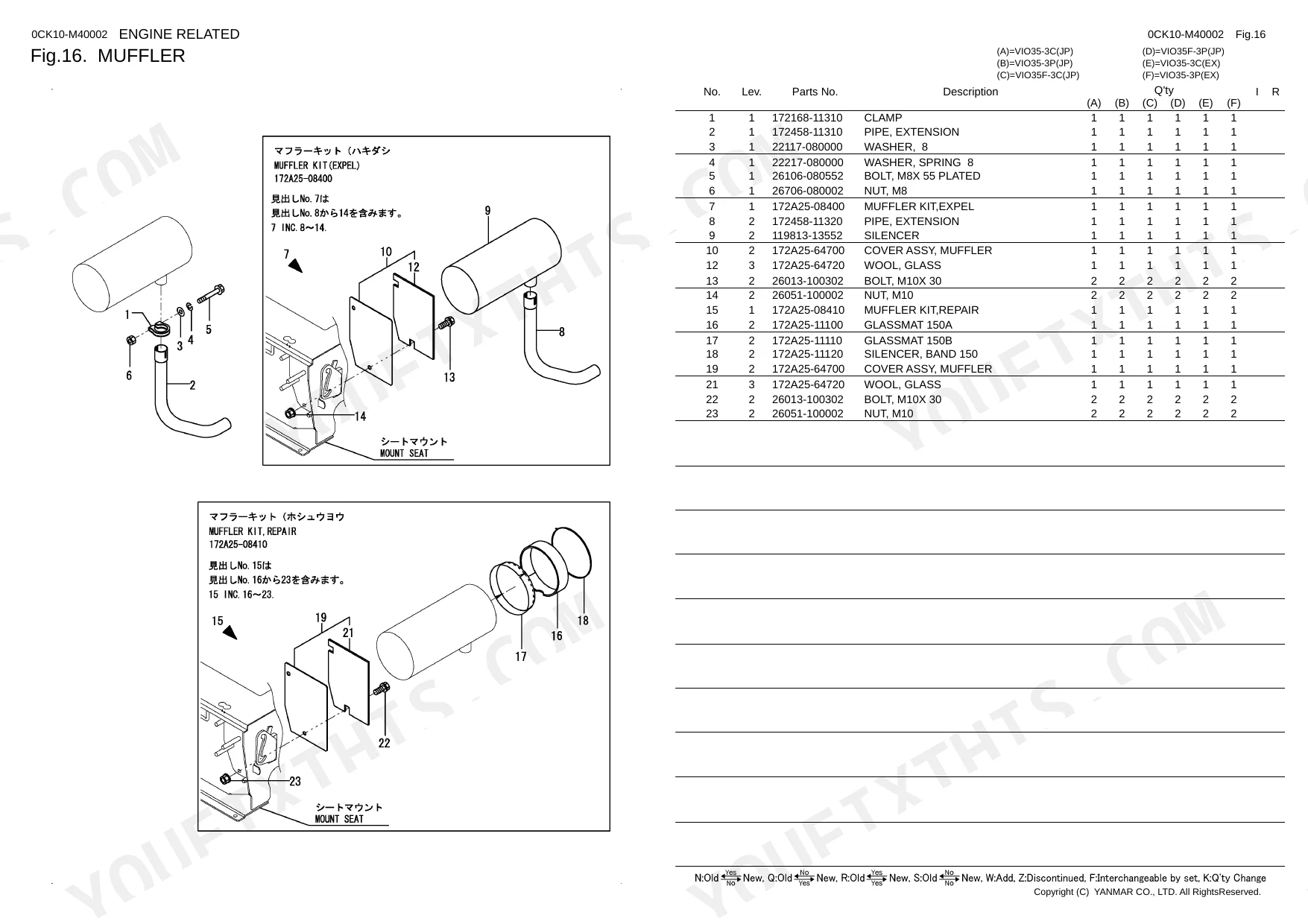

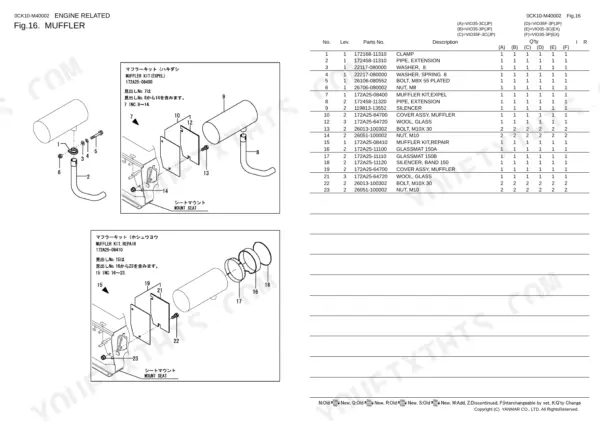

| Muffler | 30 | Extension Pipe, Silencer, Clamp, Washer |
| Air Cleaner | 31 | Air Cleaner Assy, Cover Assy, Element, Unloader Valve, Elbow, Air Intake Hose, Air Cle Bracket Assy |
| Accelerator | 32 | Accelerator Lever, Grip W, Wire Bracket, Cable Joint, Accelerator Cable |
| Engine Mount | 33 | Shock Absorber, L Plate, En Br Bracket, Engine Bracket, Engine Stopper, Spring Seat, Spring N Seat |
| Radiator Mount | 34 | Seal Rubber, Sponge Seal, Weight Seal, Washer |
| Radiator & Sub-Tank | 35 | Filler Assy, -Way Cock Assy, Body, Radiator Assy, Radiator Cap, Water Pipe, Hose, Wire Net |
| Fuel Tank | 36 | Fuel Tank Assy, Fuel Gauge Assy, Float, Gasket, Fuel Cap, Cap, Sponge, Fuel Gauge Hose |
| Fuel Line | 37 | Fuel Hose, Hose, Fuel Oil Hose, Band, Fuel Feed Pump Assy, Water Separator Assy, Water N Separator Assy, Retaining Ring |
| Battery | 38 | Harness C, Battery Clamp Assy, Washer |
| Electric Part(Wiring) | 39 | Band, Band K, Slow Blow Huse, Housing, Puller, Cover, B 5A Fuse, Boom Lamp Harness |
| Electric Part(Wiring : Crane Spec.) | 40 | Fusible Link, Band, Corrugated Tube, Tube |
| Electric Part(Wiring : Forestry Spec.) | 41 | Harness, A Harness, C Harness, Band |
| Electric Part(Equipment) | 42 | Safety Start Switch, Horn, Grommet, Safety Relay, Glow Relay Assy, Timer |
| Electric Part(Equipment : Indicator Box) | 43 | Starter Switch Assy, Cord Assy, Cover, Indicator Box, Light Switch Assy, Packing, Gauge Assy, Hour Meter Assy |
| Electric Part(Equipment : Indicator Box)(Immobilizer Spec.) | 44 | Starter Switch Assy, Cord Assy, Cover, Timer Bracket, Light Switch Assy, Monitor Panel Assy, Packing, Gauge Assy |
| Electric Part(Equipment : Switch Box) | 45 | Switch Box, Label, Switch Assy, Indicater Lamp, Packing, Bracket, Case, Cord |
| Electric Part(Equipment : Crane 1) | 46 | Bracket Assy, Rubber, Level Gauge, Crane Panel Assy, Crane R Panel, Panel W Sheet, Panel Z Sheet, Grommet |
| Electric Part(Equipment : Crane 2) | 47 | Sensor, Bolt, Nut |
| Work Lamp & Canopy Lamp | 48 | Work Lamp, Bulb, Lamp 150X95, Lamp Stay |
| Heater | 49 | Band, Joint, Hose Clip, Heater Frame, Heater Duct Assy, Connector, Defroster Hose Assy |
| Heater(A/C Spec.) | 50 | Band, Joint, Connector, Heater Joint, Heater Valve Assy, Pipe Joint, Grille, Heater Hose Assy |
| Air Conditioner(Engine Related) | 51 | Compressor Assy, Tension Pulley, Plate, Boss, Adjuster Assy, Bracket Comp, Pulley Bracket, Pulley |
| Air Conditioner(Condenser Related) | 52 | Mount, Bracket, Condenser Assy, Seal, Sponge Seal, Connector, Fan Motor Assy, B Shu Bracket Assy |
| Air Conditioner(Cabin Related, 1) | 53 | Radiator Mount, Battery Clamp Rod, Hose Cover Assy, Trim, Sponge Seal, Unit, Air Conditioner, Fan Duct Assy |
| Air Conditioner(Cabin Related, 2) | 54 | Label, Collar, Heater Hose Assy, Plate R Assy, Seal Rubber, Trim, Sponge, Bracket G |
| Air Conditioner(Piping) | 55 | Band, Harness Assy, Diode, Drain Hose, Pressure Switch, Hose, Drain Joint, Clip Cod- |

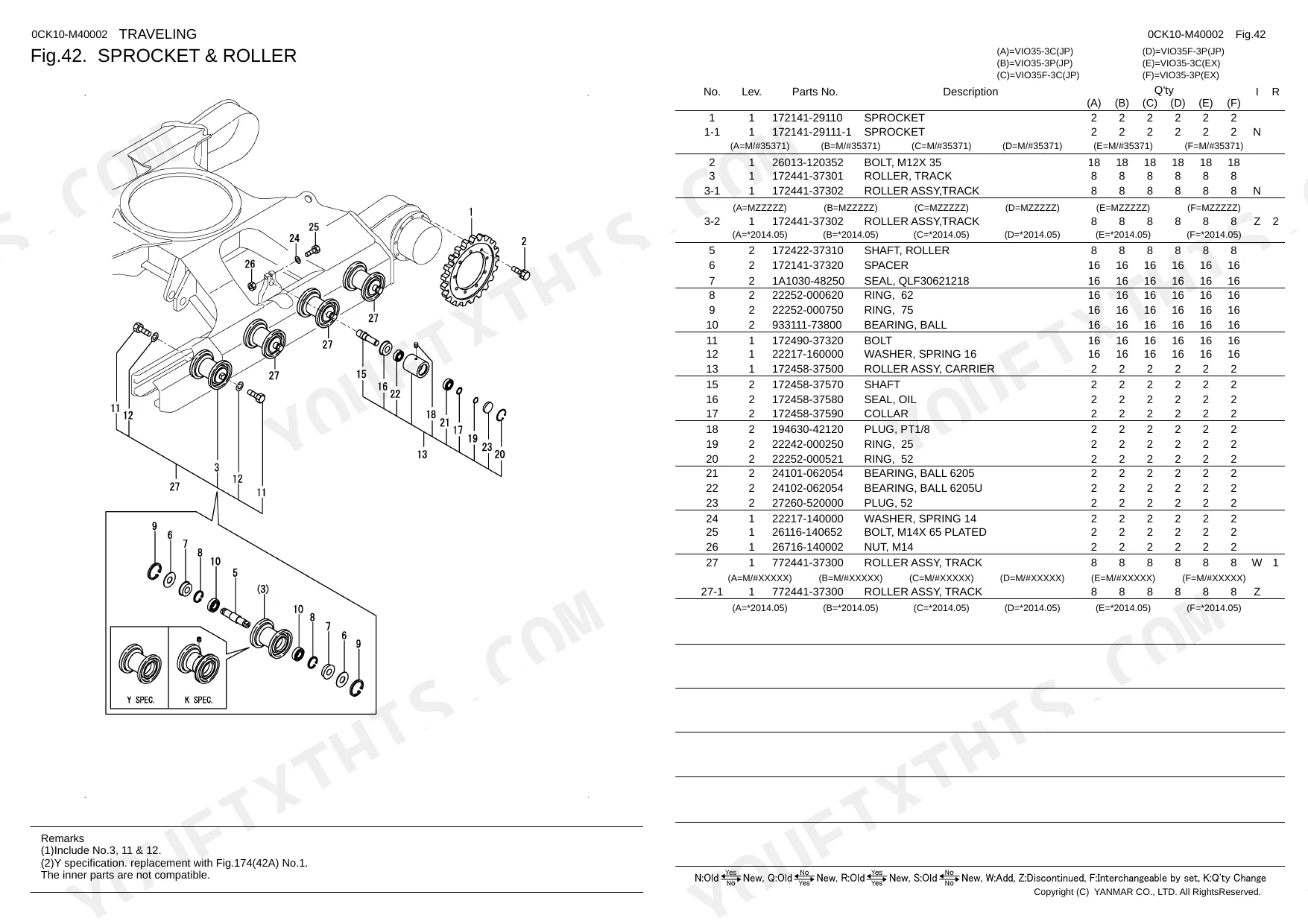

| Sprocket & Roller | 56 | Sprocket, Sprocket N, Track Roller, Track N Roller Assy, Track Z Roller Assy, Roller Shaft, Spacer, QLF30621218 Seal |
| 174.(42A)Track Roller(K Spec.) | 57 | Spacer, Oil QLF30621218 Seal, Ring, Ball |
| Idler & Adjust | 58-59 | Rubber Idler Assy, Idler Assy, N Idler, Bush, Floating Seal, Idler Shaft Assy, Idler N Shaft Assy, Seal Cover |
| Crawler | 60 | Track Shoe Assy, Shew 300L Plate, Track Link, Truck Bush, Shew 300R Plate, Rubber Crawler, Master Track Assy |
| Control Equipment(Lock Lever & Stand)(Right) | 61 | Bush, Boots Plate R, Grip, Spring, Plate, Lever R, Shaft Assy, Safety Start Switch |
| Control Equipment(Lock Lever & Stand)(Left) | 62 | Grip, Hose Guide, Lever Stand, Bush, 25X15 Bush, Spring, Gas Spring, Boots Plate L |
| Control Equipment(Travel Lever & Link Stand) | 63 | Boot, Truck Lever, Bush, Drive Grip, Truck Bracket Assy, Grease PT1 Nipple, Grease C Nipple, Link Stand Assy |
| Control Equipment(Operation Lever ) | 64 | Lever Boot P, Lever R, Lever L, Hinge, Spring, Knob Assy, Cap, 5X18X35 Knob |
| Control Equipment(Operation Lever : Forestry Spec.) | 65 | Lever Boot P, Lever G, Switch Knob, Band, Lever R, Lever L Cmp, Knob Assy |
| Control Equipment(Blade Lever) | 66 | Blade Lever, Shaft Assy, Blade Grip, Blade Cable |
| Control Equipment(Swing Pedal) | 67 | Swing Link, Bush, Pedal Link, Pedal Shaft, Grease PT1 Nipple, Grease B Nipple, Swing Pedal, Pedal Cover |
| Control Equipment(Low-High Pedal) | 68 | Return Spring, Lo-Hi Pedal, Pedal Bracket, Bush, Pedal Pad |
| Control Equipment(P.T.O.Pedal:Std. & Forestry Electrical Spec.) | 69 | Lock Label, Spring, PTO Link Assy, Bush, Pedal a, Bush 12X12, Pedal B, Plate |
| Control Equipment(P.T.O.Pedal: Forestry Mechanical Spec.) | 70 | Spring, PTO Pedal, Pedal Cover, Shaft, Cover Pad, Lock Plate, Pedal Boots |
| Control Equipment(P.T.O.Link:Std. & Forestry Electrical Spec.) | 71 | Rod, Spool Rod, PTO Link Assy, Bush, PTO Bracket, Elbow, Grease C Nipple |
| Control Equipment(P.T.O.Link: Forestry Mechanical Spec.) | 72 | Rod, Spool Rod, Pedal Shaft, PTO Link a, Bush, Link B Assy, PTO Bracket, Elbow |
| Control Valve Plate | 73 | Valve Plate, Multi Bracket, Bolt |
| Turning Frame & Canopy Mount | 74-75 | Weight Assy Z, Seal B, Counter Seal, Bracket Assy, Grommet, Bush 70X75, Dust Seal, Seal |
| Track Frame & Turning Bearing | 76 | Lower Frame, Lower N Frame, Frame Cover, Guard L Plate, Guard R Plate, Turning Bearing, Seal Set, Swing Seal |
| Turning Pinion & Turning Bearig(Forestry Spec.) | 77 | Bearing Retainer, Pinion 13T, Needle Bearing, Ring, Inner Ring, Turning Bearing, Seal Set |
| Cover(Frame) | 78 | Cover, Frame Cover, Sponge, Travel Cover, Valve Cover, Pump Cover, Fuel Cover, Plate G |
| Cover(Around Control) | 79 | Electric Cover, Grommet, Multi Cover, Multi N Cover, Seal Rubber, Sponge, Sponge N, Multi Cover Seal |
| Cover(Cabin) | 80 | Tree Clip, Bonnet Grip, Duct Cover Assy, Seal Rubber, Trim, Cab Bonnet L, Stopper, Sponge Seal |
| Cover(Canopy) | 81 | CAN Bonnet, Seal Rubber, Cover Assy, Handrail, Clip, Tree Clip |
| Cover(Boom) | 82 | - |
| Cover(Crane) | 83 | Sensor Case Assy, Case Assy F, Sensor Case Cover, Sensor F Cover |
| Step & Floor Mat | 84 | Step, Sub Plate, Floor a Mat, Floor Mat Hook, Sponge, Floor Mat C, Floor B Mat, Floor B-PTO Mat |
| Step & Floor Mat(Forestry Spec.) | 85 | Step, Sub Plate, Sponge, Floor a Mat, Floor Mat C, Floor Mat B, Floor B-PTO Mat, Floor Mat |
| Instrument Panel | 86 | Instrument Panel Asy, Panel Cover, Instrument Panel L |
| Seat & Seat Mount(Cabin & Forestry Mechanical Spec.) | 87-88 | Sheet, Seat Kit N, Seat Z Track Assy, Fr Seat Back Z Board, Spring, Lock Handle, Sponge, Seal Rubber |
| Seat & Seat Mount(Canopy) | 89-90 | Sheet, Seat Kit N, Seat Z Track Assy, Fr Seat Back Z Board, Spring, Pump Bracket, Lock Handle, Sponge |
| Seat & Seat Mount(Cabin:Crane Spec.) | 91-92 | Sheet, Seat Kit N, Fr Seat Back Z Board, Seat Z Track Assy, Spring, Lock Handle, Sponge, Seal Rubber |
| Seat & Seat Mount(Canopy:Crane Spec.) | 93-94 | Sheet, Seat Kit N, Seat Z Track Assy, Fr Seat Back Z Board, Spring, Pump Bracket, Lock Handle, Sponge |
| Seat & Seat Mount(Cabin:Forestry Electrical Spec.) | 95-96 | Sheet, Seat Kit N, Fr Seat Back Z Board, Seat Z Track Assy, Spring, Lock Handle, Sponge, Seal Rubber |
| Seat & Seat Mount(Canopy:Forestry Electrical Spec.) | 97-98 | Sheet, Seat Kit N, Fr Seat Back Z Board, Seat Z Track Assy, Spring, Pump Bracket, Lock Handle, Seal |
| 99-100 | Sheet, Seat Kit N, Fr Seat Back Z Board, Seat Z Track Assy, Spring, Pump Bracket, Lock Handle, Seal |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuse, B 5A | 5A | p. 39 |
| Fuse, B 15A | 15A | p. 39 |
| Fuse, B 30A | 30A | p. 39 |
| Bulb, 12V 20W | 12V 20W | p. 46 |
| Crawler width | 300 | p. 60 |
| Pinion teeth | 13T | p. 77 |
| O-RING, 1AP16.0 | 1AP16.0 | p. 35 |
| Pipe, 7X 130 | 7X 130 | p. 35 |
| Clip, Hose 12 | 12 | p. 35 |
| Clamp, Hose 41 | 41 | p. 35 |
| O-RING, 1AG65.0 | 1AG65.0 | p. 37 |
| Pipe, 5X 500 | 5X 500 | p. 37 |
Yanmar ViO35-3 Common Problems This Manual Covers
Yanmar Vio35-3 engine running hot with visible coolant leaking from the radiator hoses p. 35
Check the exploded view on page 35 to identify the correct cooling system parts. Locate the damaged components in the radiator mount diagram. Order replacement hose clamp size 41 and the exact 1AP16.0 O-ring to seal the sub-tank connections properly before returning the machine to service.
Manual Section: Radiator & Sub-TankElectrical display suddenly goes dark and the safety start switch will not engage p. 39
Inspect the wiring harness diagram on page 39 to locate the main fuse block. Trace the faulty circuit from the safety start switch. Verify the blown circuit and order the correct replacement B 30A or B 15A fuse to restore system power directly from the catalog.
Manual Section: Electric Part(Wiring)Uneven track power or one track responds poorly during heavy turning operations p. 60
Review the track assembly components on page 60 to find the specific replacement links and pins. Check the exploded diagram to identify the correct shoe assembly part number. Match the replacement shoe to the standard 300 crawler width specification to ensure proper fitment and track tension.
Manual Section: CrawlerFuel dripping from the undercarriage near the main tank and water separator p. 37
Examine the fuel line components on page 37 to identify the faulty routing connections. Cross-reference the diagram to find the exact part number for the replacement 5X 500 pipe. Order a new 1AG65.0 O-ring to replace the damaged seal and stop the fuel drip completely.
Manual Section: Fuel LineSwing function feels extremely weak and makes a grinding noise during operation p. 77
Inspect the turning bearing assembly on page 77 to locate the damaged swing drive components. Use the exploded parts breakdown to find the correct part number for the 13T pinion gear. Order the matching needle bearings and seal set to fully rebuild the weak turning motor.
Manual Section: Turning Pinion & Turning Bearig(Forestry Spec.)Frequently Asked Questions
What are the replacement specifications for hydraulic hoses?
The manual lists various hydraulic hoses with their respective part numbers. For example, Fig. 123, HYD.OIL PIPING(TANK - PUMP - VALVE), lists HOSE with part numbers 172458-78091, 172458-78100, 172A25-78110, 172A25-78120, and 172A25-78130. However, detailed replacement specifications beyond the part number are not provided in this parts catalog.
What are the replacement specifications for fittings and clamps?
The manual provides part numbers for various fittings and clamps. For instance, Fig. 123, HYD.OIL PIPING(TANK - PUMP - VALVE), lists CLAMP, HOSE 60 with part number 23001-060000. It also lists CONNECTORS with part numbers like 172458-76170 and 172645-76570. However, detailed replacement specifications or torque values for these components are not specified in this parts catalog.
How do you fix yanmar Vio35-3 engine running hot with visible coolant leaking from the radiator hoses?
Check the exploded view on page 35 to identify the correct cooling system parts. Locate the damaged components in the radiator mount diagram. Order replacement hose clamp size 41 and the exact 1AP16.0 O-ring to seal the sub-tank connections properly before returning the machine to service.
How do you fix electrical display suddenly goes dark and the safety start switch will not engage?
Inspect the wiring harness diagram on page 39 to locate the main fuse block. Trace the faulty circuit from the safety start switch. Verify the blown circuit and order the correct replacement B 30A or B 15A fuse to restore system power directly from the catalog.
What do I get after purchasing this Yanmar Vio35-3 manual?
Instant PDF download. You get the full 229-page searchable Parts Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
