Tracking down the right components for your Engine is straightforward with this 94-page 4tne98-tbw, tb175w parts catalog pdf. Open up to highly detailed exploded views breaking down the entire cylinder block, gear housing, and fuel injection pump assemblies. You get factory part numbers, hardware sizes, and complete component identification for everything from the camshaft driving gear to the starting motor armature. Inside, you will find page after page of diagrams showing exact placement for every seal, o-ring, and bearing. Verify you are ordering the correct 0.9 KG/cm^2 radiator cap before putting the cooling water system back together. Stop wasting days waiting on the wrong gaskets to arrive from the dealer. Download the manual, pull up the bookmarked sections on your tablet right in the shop, and order the exact parts your engine rebuild requires.
What's Inside This Yanmar 4TNE98-TBW, 4TNV98-XTBW Parts Manual
| System | Pages | Key Topics |
|---|---|---|

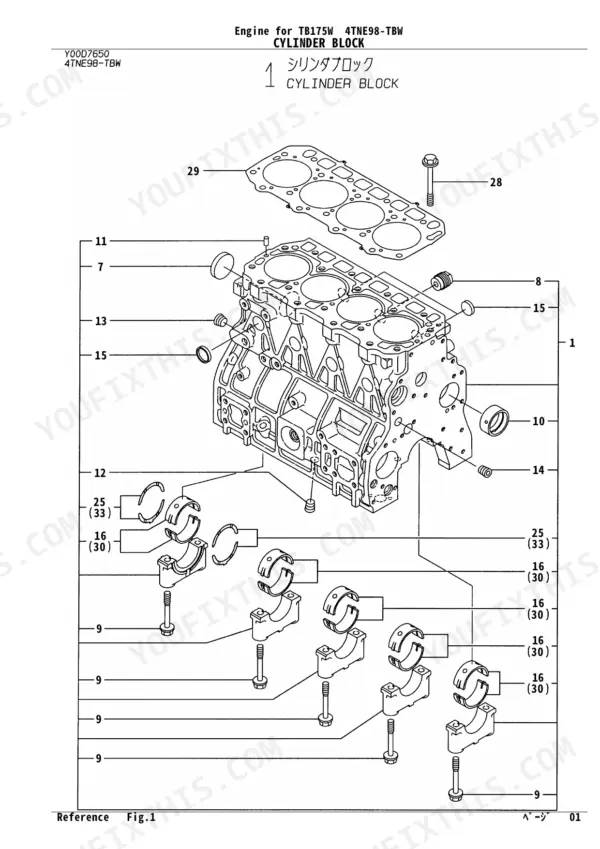

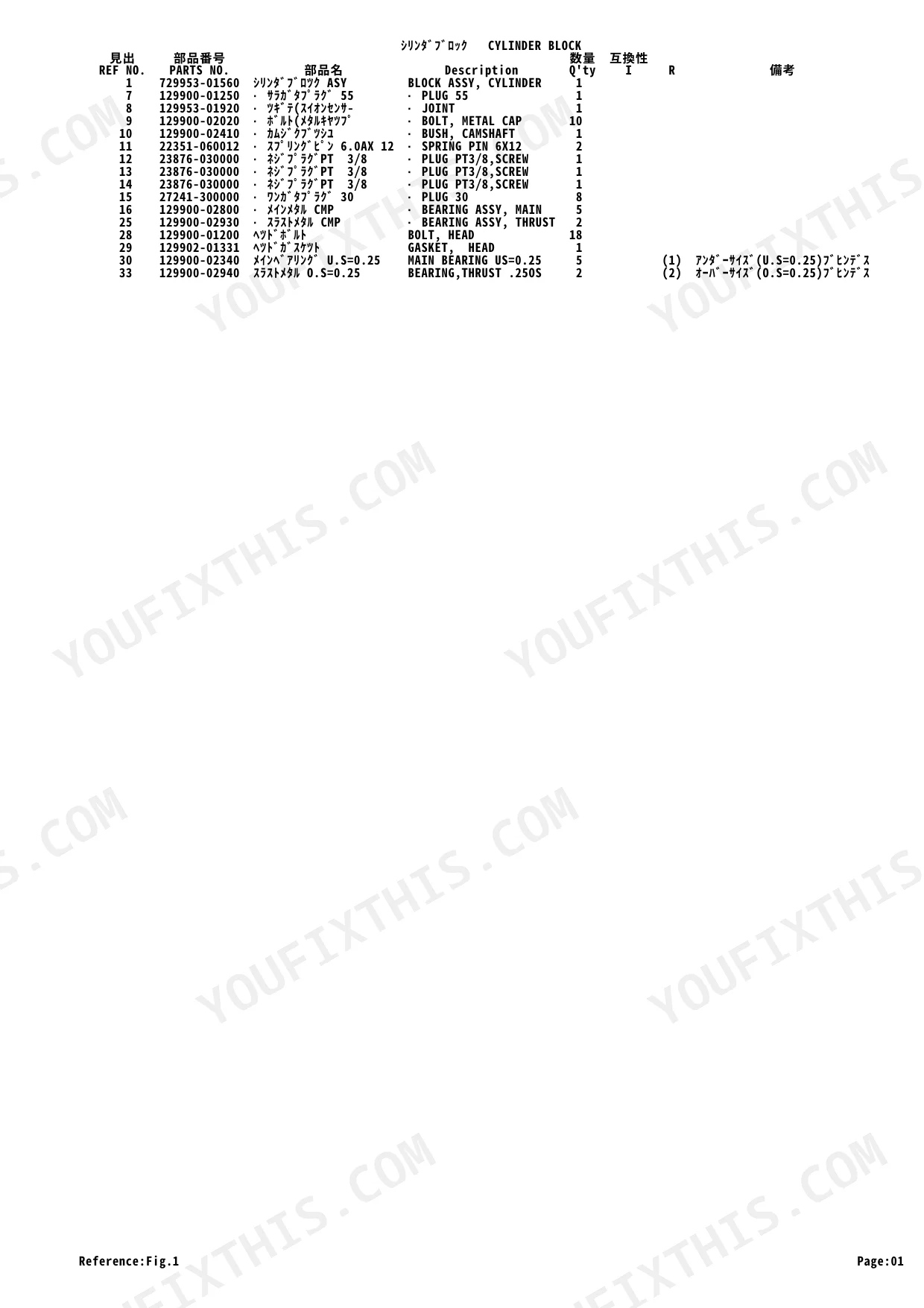

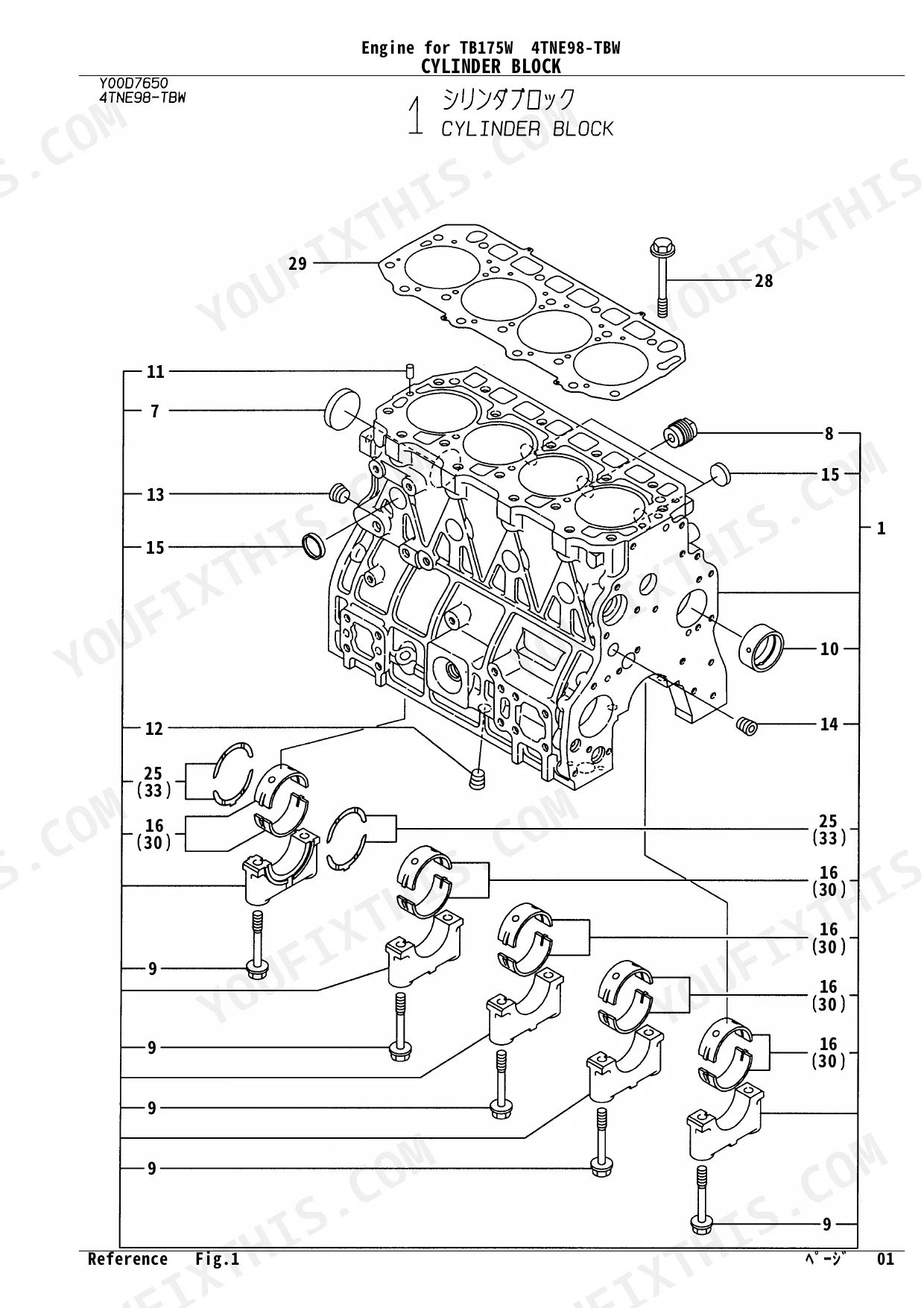

| Cylinder Block | 5-6 | Block Assy, Plug, Bolt, Bush, Bearing Assy, Gasket |
| Gear Housing | 7-8 | Housing Assy, Seal, Ball Bearing, Pump Assy, O-Ring, Gasket |
| Flywheel Housing & Oil Sump | 9-10 | Housing, Flywheel, Oil Sump, Drain Plug, Seal, Gasket |
| Cylinder Head & Bonnet | 11-12 | Head Assy, Valve, Valve Stem Seal, Rocker Arm, Bonnet Assy, Gasket |
| Suction Manifold & Air Cleaner | 13-14 | Manifold, Gasket, Heater, Air Cleaner, Element, Clamp |
| Exhaust Manifold & Silencer | 15-16 | Manifold, Gasket, Bolt, Nut, Silencer, Clamp |
| Camshaft & Driving Gear | 17-18 | Camshaft Assy, Tappet, Push Rod, Gear, Idler Shaft, Bush |

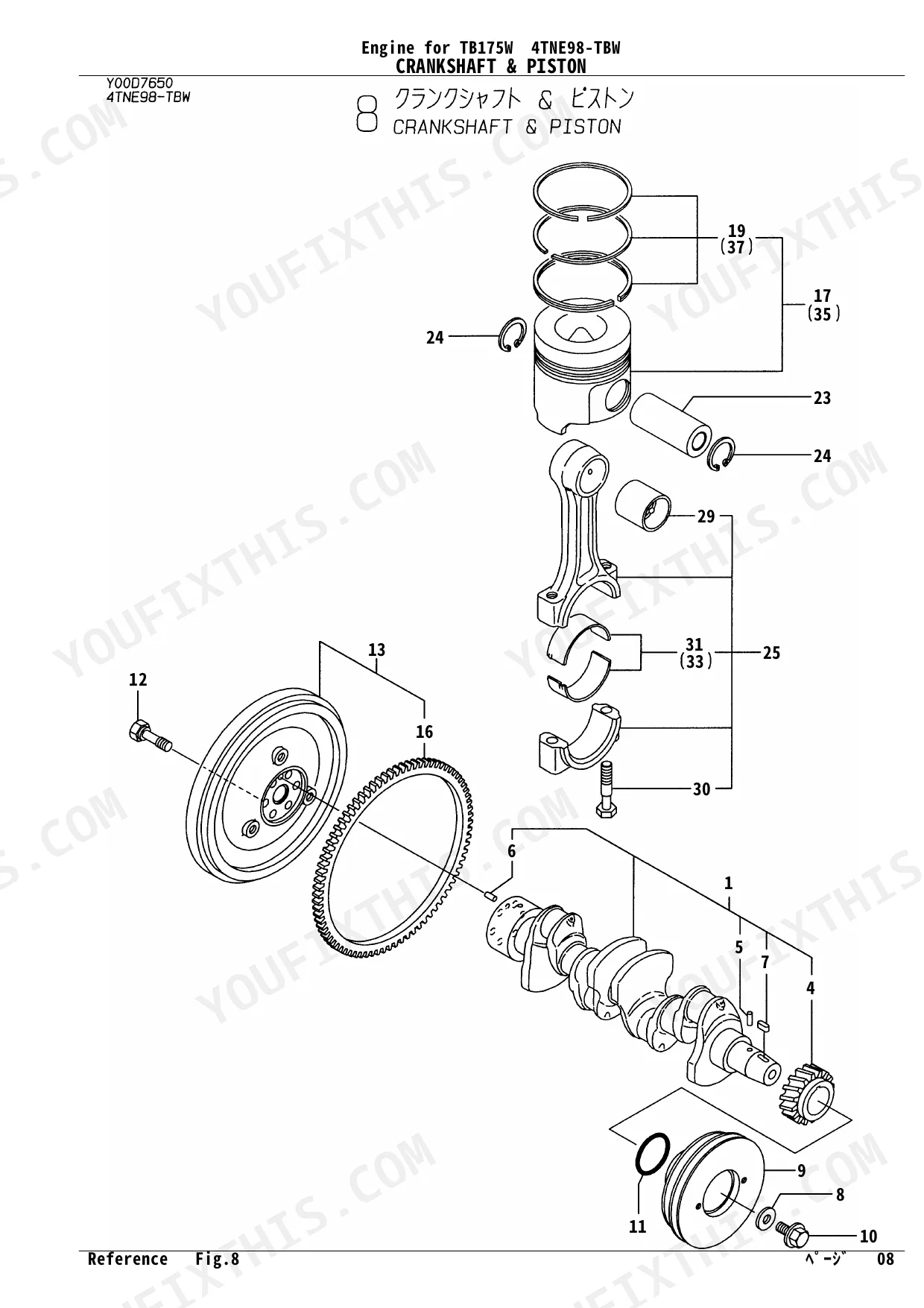

| Crankshaft & Piston | 19-20 | Crankshaft, Piston, Connecting Rod, Flywheel, Bearing, Seal |

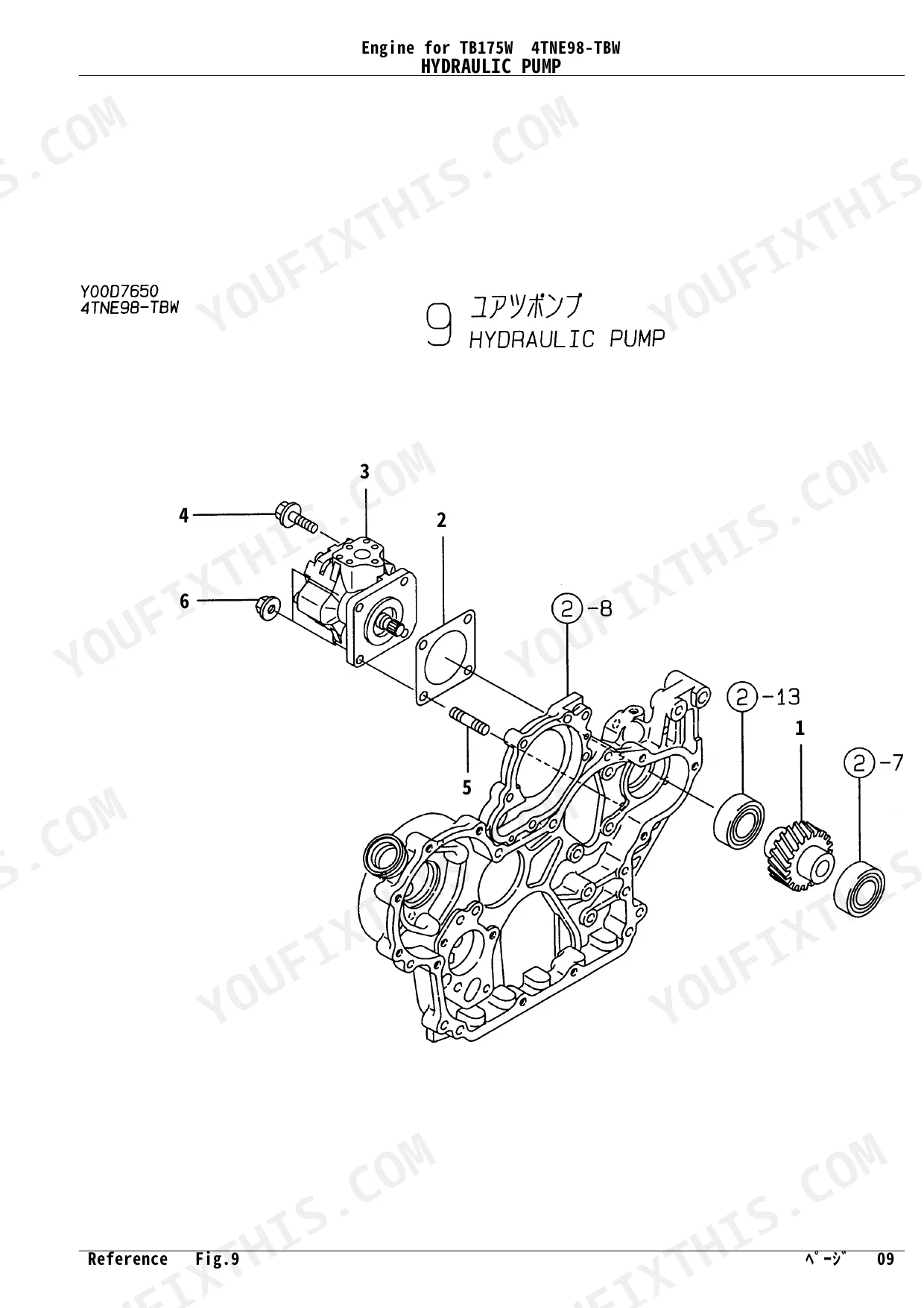

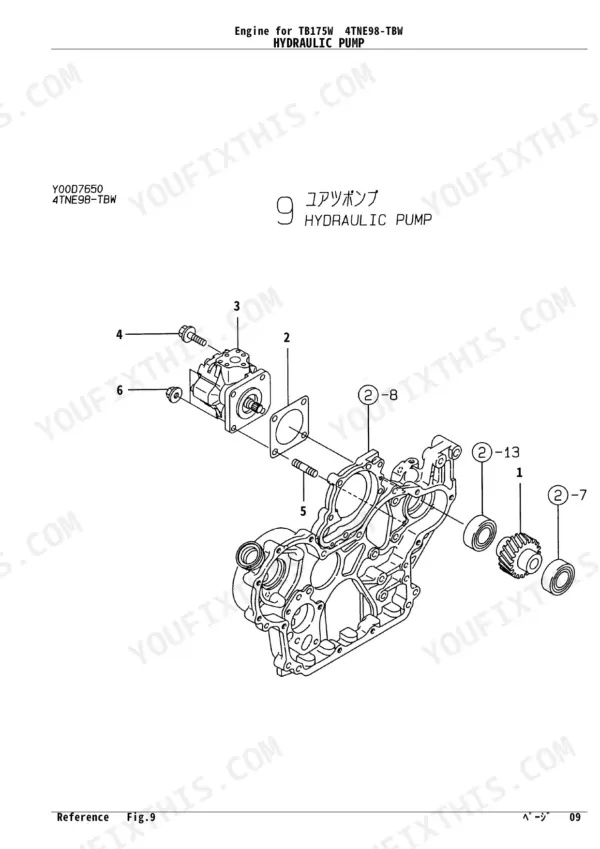

| Hydraulic Pump | 21-22 | Gear, Gasket, Pump Assy, Bolt, Stud, Nut |
| Oil Cooler | 23-24 | Cooler, Bracket, Joint, Pipe, Clamp, O-Ring |
| Lub.Oil System | 25-26 | Dipstic, Adapter, Filter, Braket, Pipe, Seal Washer |

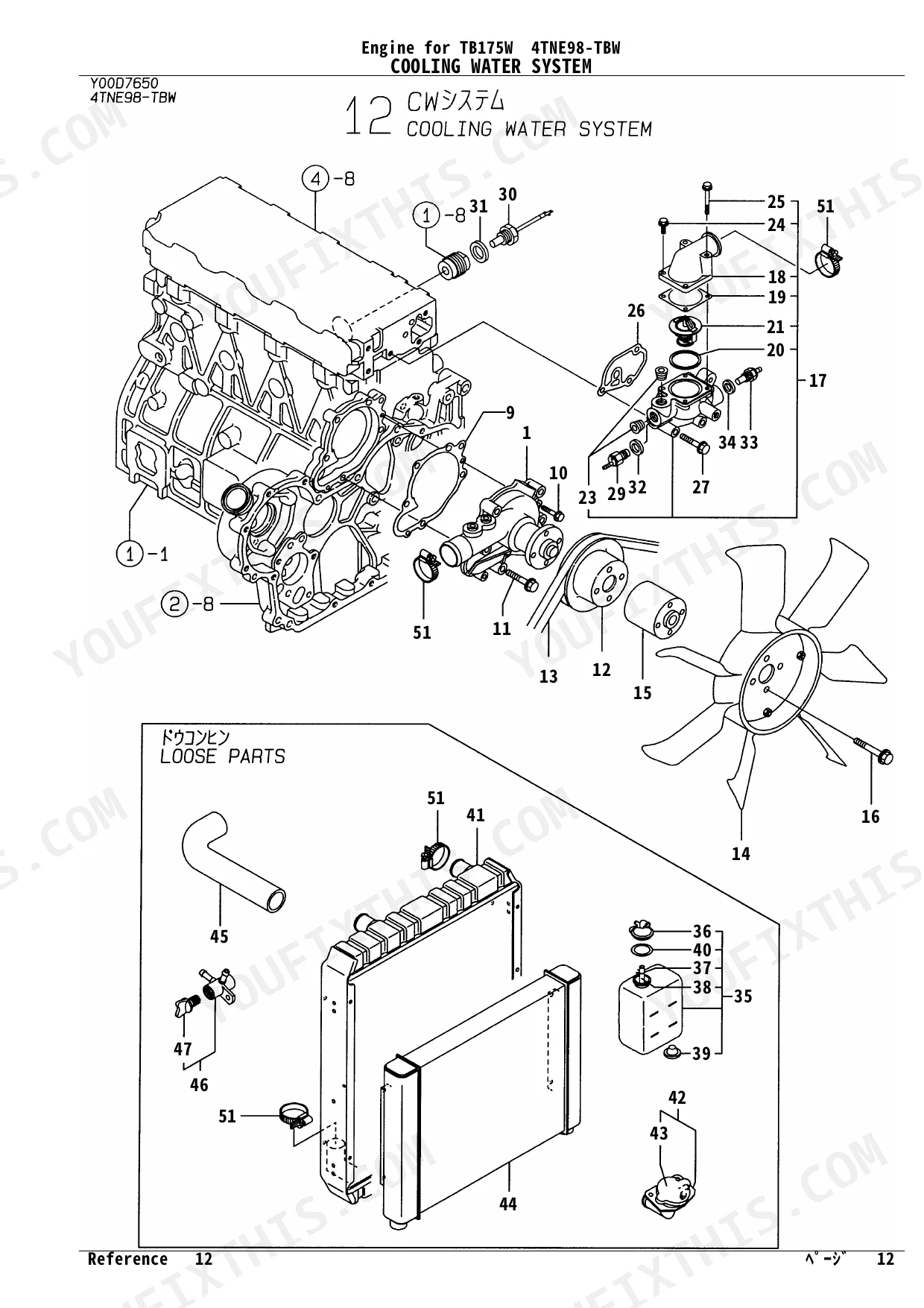

| Cooling Water System | 27-28 | Pump, V-Belt, Fan, Thermostat, Switch, Subtank |

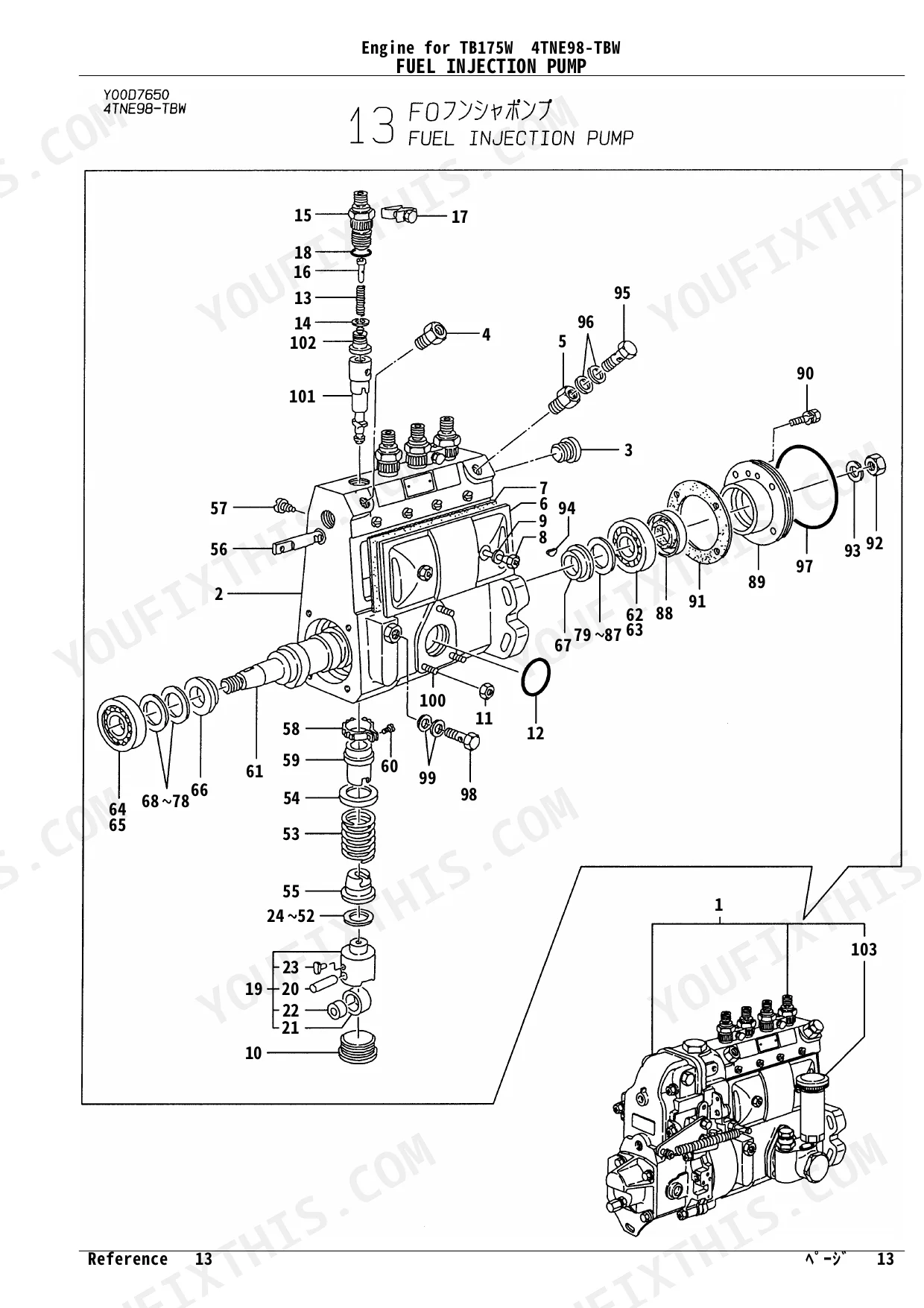

| Fuel Injection Pump | 29-32 | Flanged Housing, Plug, Spring, Tappet, Camshaft, Bearing |
| Governor | 33-34 | Flanged Housing, Adaptor, Flywaight Assy, Sleeve, Lever, Solenoid |
| Feed Pump | 35-36 | Pump Assy, Housing, Piston, Spring, Valve, Priming Pump |
| Fuel Injection Valve | 37-38 | Valve, Nozzle, Holder, Spring, Shim Pack, Pipe Assy |
| Fuel Line | 39-40 | Filter, Pipe, Clamp, Joint, Pump, Valve |

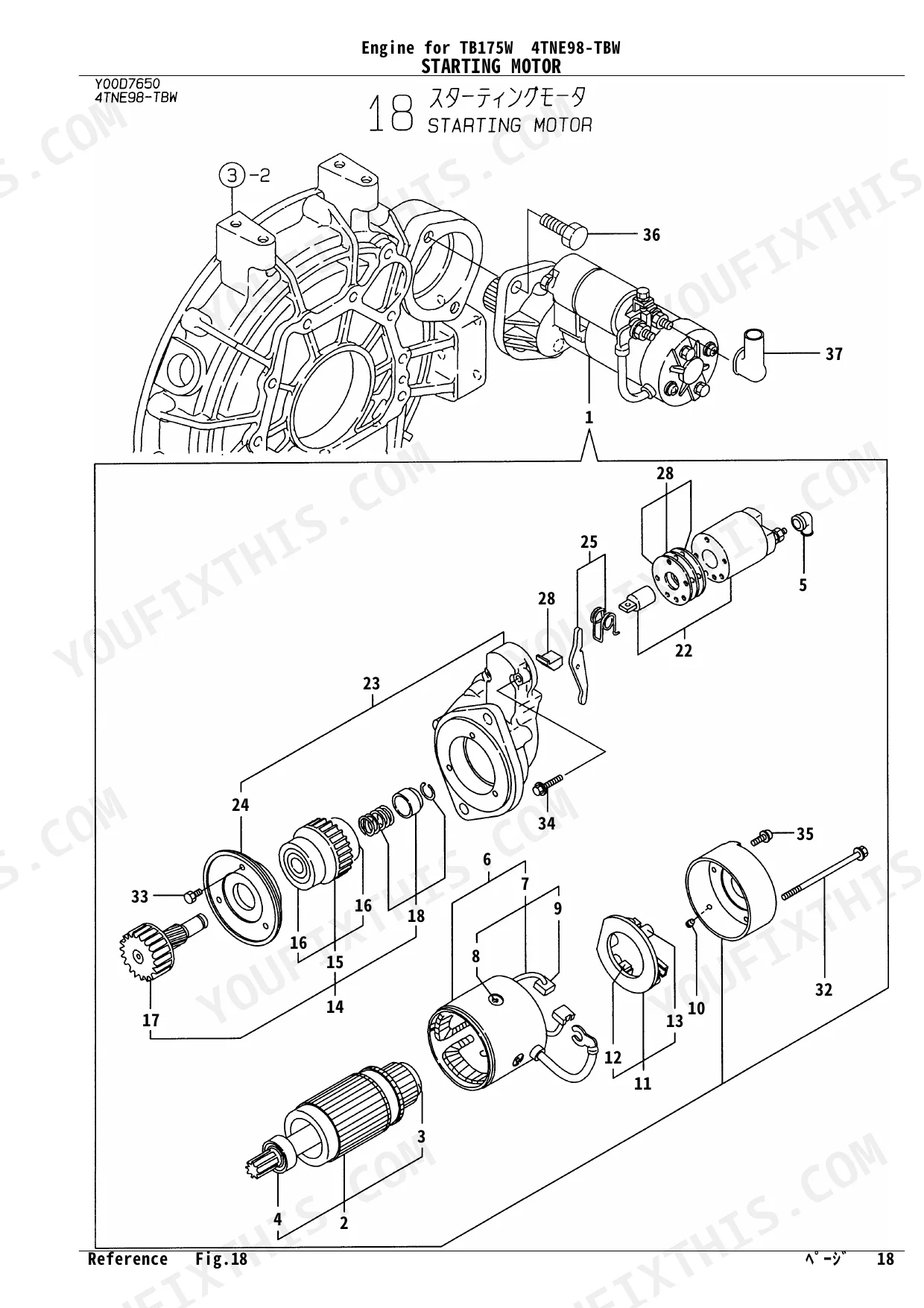

| Starting Motor | 41-42 | Armature, Bearing, Brush, Pinion, Clutch, Switch |
| Generator | 43-44 | Alternator, Rotor, Stator, Bearing, Brush, Pulley |
| Tool & Gasket Set | 45-74 | Gasket, Seal, O-Ring, Packing, Wrench, Driver |
| Radiator | 75-76 | Subtank, Cap, Clamp, Gasket, Pipe |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Radiator Cap Pressure | 0.9 KG/cm^2 | p. 75 |
Yanmar 4TNE98-TBW, 4TNV98-XTBW Common Problems This Manual Covers
Need the correct radiator cap and subtank part numbers for a Yanmar 4TNE98-TBW engine overheating p. 75
Inspect the radiator exploded view on page 75. Locate the cap assembly rated for 0.9 KG/cm^2 and the related subtank components. Match the exact part numbers to your specific serial number block. Order the correct replacements and verify the clamp quantities before reassembling the cooling system.
Manual Section: RadiatorCan't identify the right fuel filter and pipe clamp part numbers after overnight fuel drain-back p. 39
Review the fuel line parts breakdown on page 39. Find the exact fuel filter element and pipe clamps required to fix the air leak. Verify you order at least 2 replacement hose clamps to ensure a tight seal on the new lines before priming the system.
Manual Section: Fuel LineMissing the correct complete gasket set part numbers for a major engine rebuild and reseal p. 46
Open the tool and gasket set index on page 46. Cross-reference the master gasket kit part numbers with the model compatibility chart on page 52. Ensure the ordered kit includes all 15 required O-rings and copper washers for a complete reseal before tearing down the block.
Manual Section: Tool & Gasket SetUnsure which starting motor pinion and clutch replacement parts match the current flywheel ring gear p. 41
Examine the starting motor component list on page 41. Identify the 12-volt armature, pinion gear, and clutch assembly part numbers. Compare these digits against your original starter tag. Order the exact matching components to avoid fitment issues during installation on the flywheel housing.
Manual Section: Starting MotorFrequently Asked Questions
What are the replacement specifications for Fuel filter?
For the 4TNE98-TBW engine, the fuel filter replacement part is identified by PARTS NO. 119000-55601, described as "FILTER, FUEL". This part is listed in the FUEL LINE section of the catalog.
What are the replacement specifications for Oil filter?
For the 4TNE98-TBW engine, the oil filter replacement part is identified by PARTS NO. 129150-35152, described as "FILTER 80X80L". This part is listed in the LUB.OIL SYSTEM section of the catalog.
How do you fix need the correct radiator cap and subtank part numbers for a 4TNE98-TBW engine overheating?
Inspect the radiator exploded view on page 75. Locate the cap assembly rated for 0.9 KG/cm^2 and the related subtank components. Match the exact part numbers to your specific serial number block. Order the correct replacements and verify the clamp quantities before reassembling the cooling system.
How do you fix can't identify the right fuel filter and pipe clamp part numbers after overnight fuel drain-back?
Review the fuel line parts breakdown on page 39. Find the exact fuel filter element and pipe clamps required to fix the air leak. Verify you order at least 2 replacement hose clamps to ensure a tight seal on the new lines before priming the system.
What format is this 4TNE98-TBW, TB175W manual in?
This is a 94-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this 4TNE98-TBW, TB175W?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
