Every one of the 252 pages in this Yanmar ViO35-2 Parts Catalog (OEM #0CK10-M37503EN) is dedicated to mapping out the exact factory components for your ViO35-2 Series crawler excavator — covering all four variants: ViO35-2C (cabin), ViO35-2P (canopy), ViO35F-2C (forestry cabin), and ViO35F-2P (forestry canopy). Open to incredibly detailed exploded views showing the complete track frame, boom assembly, hydraulic pump breakdown, and air conditioner system. You get crisp line-art diagrams paired directly with numbered parts lists and OEM part numbers, covering everything from the turning bearing and crawler shoes to electric wiring harnesses, fuel line assemblies, and optional forestry grapple components. Every section is indexed to specific page ranges so you can find the right exploded view fast.
What's Inside This Yanmar ViO35-2 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Reference Materials | 2-5 | Parts Catalog History, Model Name, Last Update |

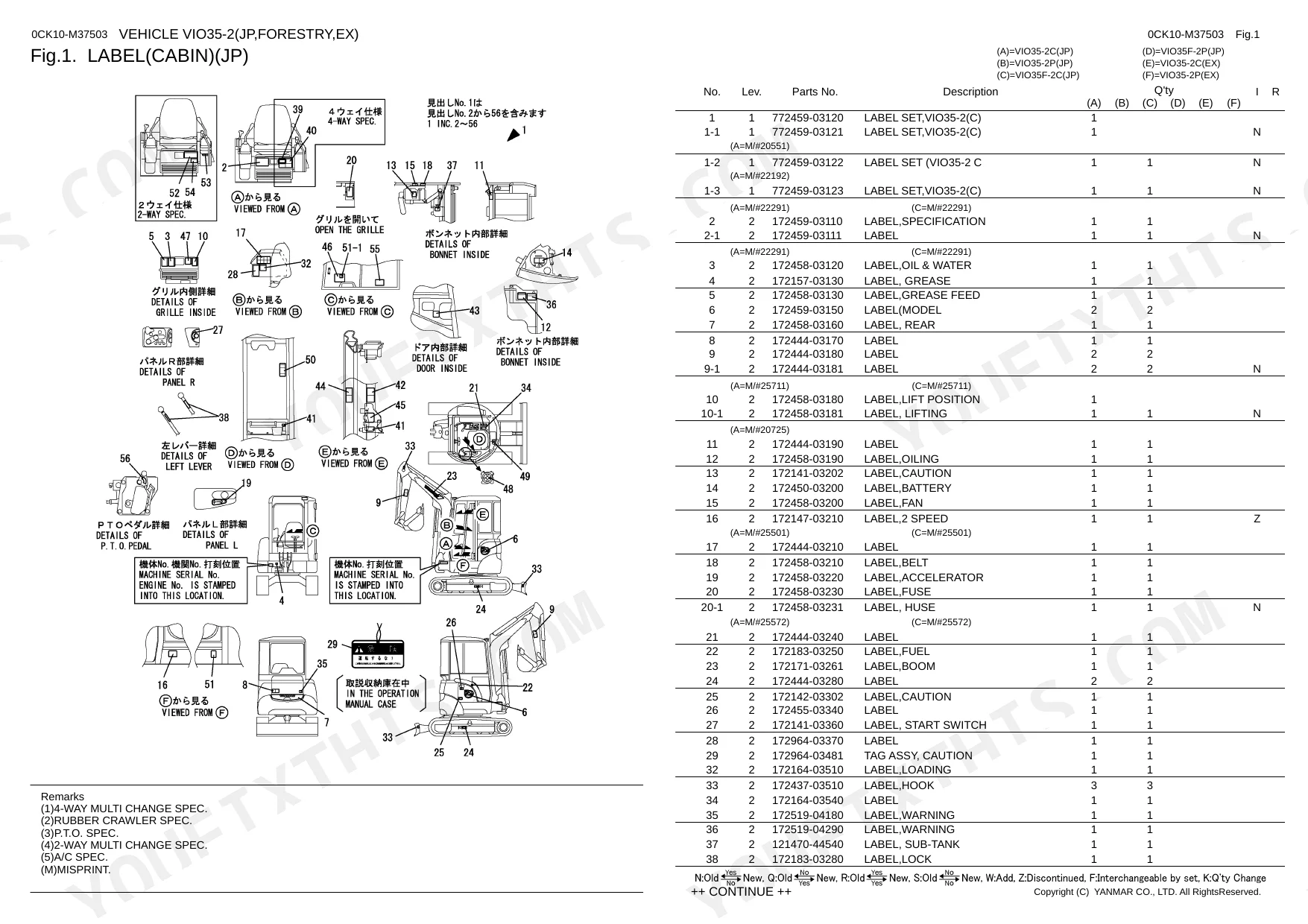

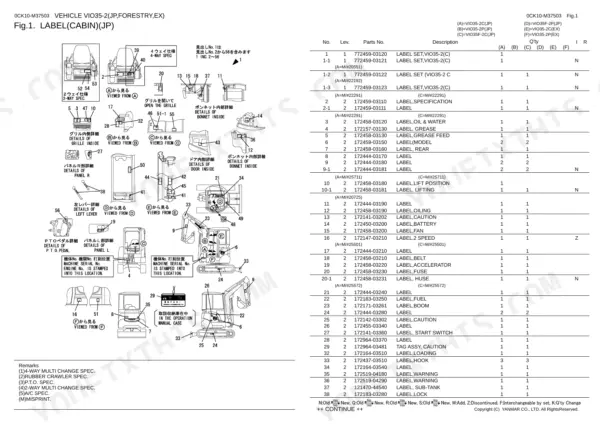

| Label(Cabin)(Jp) | 10-11 | Set, Specification Label, Oil & Water Label, Grease Feed Label, Caution Label, Warning Label |
| Label(Canopy)(Jp) | 12-13 | Set, Specification Label, Oil & Water Label, Grease Feed Label, Caution Label, Warning Label |
| Label(Rops Canopy)(Jp) | 14-15 | Set, Specification Label, Oil & Water Label, Grease Feed Label, Caution Label, ROPS Label |
| Label(Quick Hitch)(Jp) | 16 | Set, Pin Label, Collar Label, Plug Label |
| Label(Forestry)(Jp) | 17 | Set, Brand Label, Warning Label |
| Label(Cabin)(Ex) | 18-19 | Set, Sub-Tank Label, Oil & Water Label, Fuse Label, P.T.O. Label, hyd.oil Tank Label |
| Label(Canopy)(Ex) | 20-21 | Set, Front Label, Oil & Water Label, Fuse Label, P.T.O. Label, hyd.oil Tank Label |
| Safety Label(Cabin)(Jp) | 22 | - |
| Safety Label(Canopy)(Jp) | 23 | - |
| Safety Label(Rops Canopy)(Jp) | 24 | - |
| Safety Lable(Quick Hitch)(Jp) | 25 | - |
| Safety Label(Forestry)(Jp) | 26 | - |
| Safety Label(Cabin)(Ex) | 27 | - |
| Safety Label(Canopy)(Ex) | 28 | - |
| Suction Pipe & Exhaust Pipe | 30 | Clamp, Pipe, Extension, Cleaner Assy, Air, Element |
| Accelerator | 31 | Lever, Cable, Joint, Clamp, Pin |
| One-Touch Decel(Optional) | 32 | Decelerate Kit, Cable, Accelerator, Shaft Assy, Link, Solenoid |

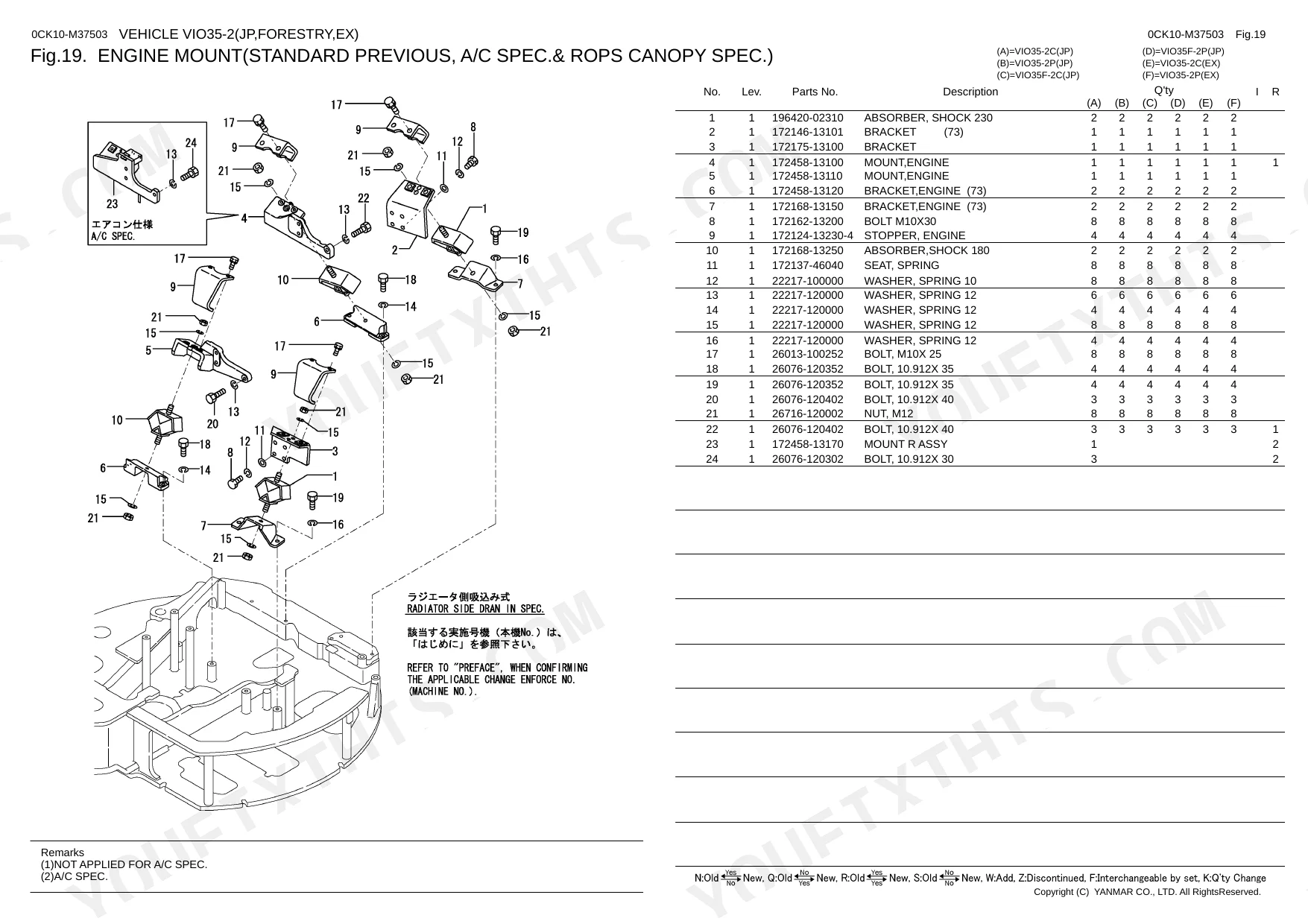

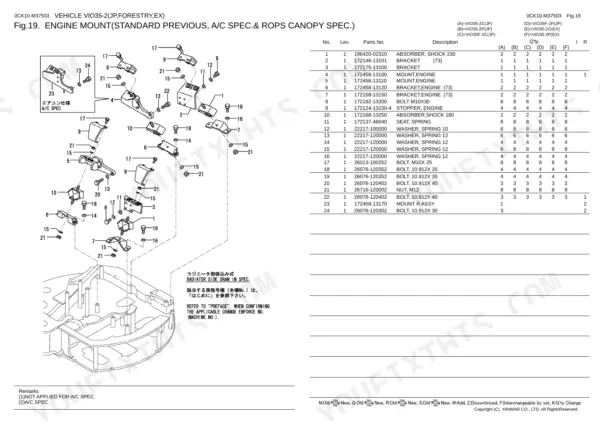

| Engine Mount(Standard Previous, A/C Spec.& ROPS Canopy Spec.) | 33 | Absorber, Shock, Bracket, Mount, Engine, Stopper |
| Engine Mount(Standard New) | 34 | Absorber, Shock, Mount, Engine, Plate, Bracket |
| Radiator Mount(Standard Previous: 1 & A/C Spec.) | 35 | Mount Assy, Radiator, Seal, Rubber, Cover Assy, Trim |
| Radiator Mount(Standard Previous: 2) | 36 | Mount Assy, Radiator, Seal, Duct Assy, Rubber, Clamp |
| Radiator Mount(Standard New) | 37 | Duct Assy, Radiator, Rubber, Seal, Weight, Mount |
| Radiator,Oil Cooler & Sub-Tank(Standard Previosu: 1 & A/C Spec.) | 38-39 | Filler Assy, Radiator Assy, Oil Cooler, Sub-Tank, Shroud Assy, Seal |
| Radiator,Oil Cooler & Sub-Tank(Standard Previous: 2) | 40 | Filler Assy, Radiator Assy, Oil Cooler, Sub-Tank, Shroud Assy, Seal |
| Radiator,Oil Cooler & Sub-Tank(Standard New) | 41 | Filler Assy, Radiator Assy, Oil Cooler, Sub-Tank, Shroud Assy, Seal |
| Fuel Tank | 42 | Assy, Fuel Gauge, Fuel Cap, Fuel Filter, Fuel Sump, Step Assy |
| Fuel Line | 43 | Fuel Hose, Fuel Oil Hose, Fuel Pump Assy, Water Separator, Valve, Clip |
| Battery | 44 | Cord, Clamp Assy, Clamp Rod, Harness |
| Electric Part(Wiring)(Previous) | 45 | Wiring Harness, Fuse, Diode, Boom Lamp Harness, Canopy Lamp Harness, Engine Earth Cord |
| Electric Part(Wiring)(New) | 46 | Wiring Harness, Fuse, Diode, Boom Lamp Harness, Canopy Lamp Harness, Engine Earth Cord |
| Electric Part(Wiring)(Forestry Spec.) | 47 | Harness, Band, Clamp, Diode, Huse |
| Electric Part(Equipment)(Cabin) | 48-49 | Switch Assy, Starter, Fuse, Meter Assy, Hour, Relay, Horn |
| Electric Part(Equipment)(A/C Spec.) | 50-51 | Switch Assy, Starter, Fuse, Box, INDICATOR(A/C), Meter Assy, Hour, Relay |
| Electric Part(Equipment)(Canopy) | 52-53 | Switch Assy, Starter, Fuse, Box, INDICATOR(CANOPY), Meter Assy, Hour, Relay |
| Electric Part(Equipment)(Quick Hitch Spec.) | 54 | Box, Switch, Screw, Plug, Collar |
| Electric Part(Equipment)(Forestry Spec.) | 55 | Stay, Relay, Switch, Box Assy, Screw, Pluge |
| Work Lamp | 56 | - |
| Canopy Lamp | 57 | Lamp, Bulb, Stay, Washer, Nut |
| Heater(Cabin) | 58-59 | Frame, Duct Assy, Valve Assy, Hose Assy, Grille |
| Heater(A/C Spec.) | 60 | Valve Assy, Joint, Pipe, Grille, Hose Assy |
| Heater(Canopy)(Optional) | 61 | Duct, Hose Assy, Valve Assy, Grille, Cover |
| Radio(Optional) | 62 | Kit, Bracket Assy, Plate L Assy, Cover, Antenna, Mount |
| Air Conditioner(Engine Related) | 63 | Compressor Assy, Pulley, Adjuster Assy, Bracket, V-Belt, Bearing |
| Air Conditioner(Condenser Related) | 64 | Condenser, Bracket, Hose, Drier, Mount, Grommet |
| Air Conditioner(Cabin Related) | 65-66 | Conditioner, Duct Assy, Bracket, Cable, Panel, Valve |
| Air Conditioner(Piping) | 67 | Hose, Clamp, Harness, Diode, Joint, Washer |
| Sprocket & Roller | 68 | Sprocket, Roller Assy, Track, Shaft, Roller, Bearing, Ball, Seal |
| Idler & Adjust | 69-70 | Idler Assy, Bush, Seal, Floating, Shaft Assy, Idler, Piston Assy, Adjust |
| Crawler | 71 | Shoe Assy, Track, Plate, Shew, Link, Bush, Truck |
| Control Equipment(Lock Lever & Stand)(Right) | 72 | Stand, Lever, Bush, Seat, Sponge, Lever R |
| Control Equipment(Lock Lever & Stand)(Left) | 73 | Grip, Guide, Hose, Stand, Lever, Bush, Plate L, Boots |
| Control Equipment(Travel Lever & Link Stand) | 74 | Boots, Lever L, Track, Bush, Grip, Drive, Bracket, Truck |
| Control Equipment(Operation Lever) | 75 | Boot P, Lever, Lever R, Lever L, Hinge, Knob Assy, Band |
| Control Equipment(Operation Lever)(Forestry Spec.) | 76 | Boot P, Lever, Lever G, Knob, Switch, Nut, Lock, Band |
| Control Equipment(Blade Lever) | 77 | Lever, Blade, Shaft Assy, Grip, O-Ring, Cable |
| Control Equipment(Swing Pedal) | 78 | Link, Swing, Bush, Shaft, Pedal, O-Ring, Nipple, Grease |
| Control Equipment(Low-High Pedal) | 79 | Spring, Pedal, Bracket, Bush, O-Ring, Bolt |
| Control Equipment(P.T.O. Pedal)(Electlical Spec.) | 80 | Label, Lock, Spring, Link B Assy, P.T.O., Bush, Pedal |
| Control Equipment(P.T.O. Pedal)(Forestry: Mechanivcal Spec.) | 81 | Spring, Pedal, P.T.O, Cover, Plate, Lock, Boots, Bolt |
| Control Equipment(P.T.O. Link)(Electrical Spec.) | 82 | Nut, Joint, Ball, Rod, Link Assy, PTO |
| Control Equipment(P.T.O. Link)(Forestry: Mechanical Spec.) | 83 | Nut, Joint, Ball, Rod, Shaft, Pedal |
| Control Valve Plate | 84 | Cushion, Plate Assy, Valve, Ring, Bolt, Bracket Assy, Bracket, Multi |
| Valve Plate(Forestry Spec.) | 85 | - |
| Turning Frame(Previous) | 86 | - |
| Turning Frame(New) | 87 | - |

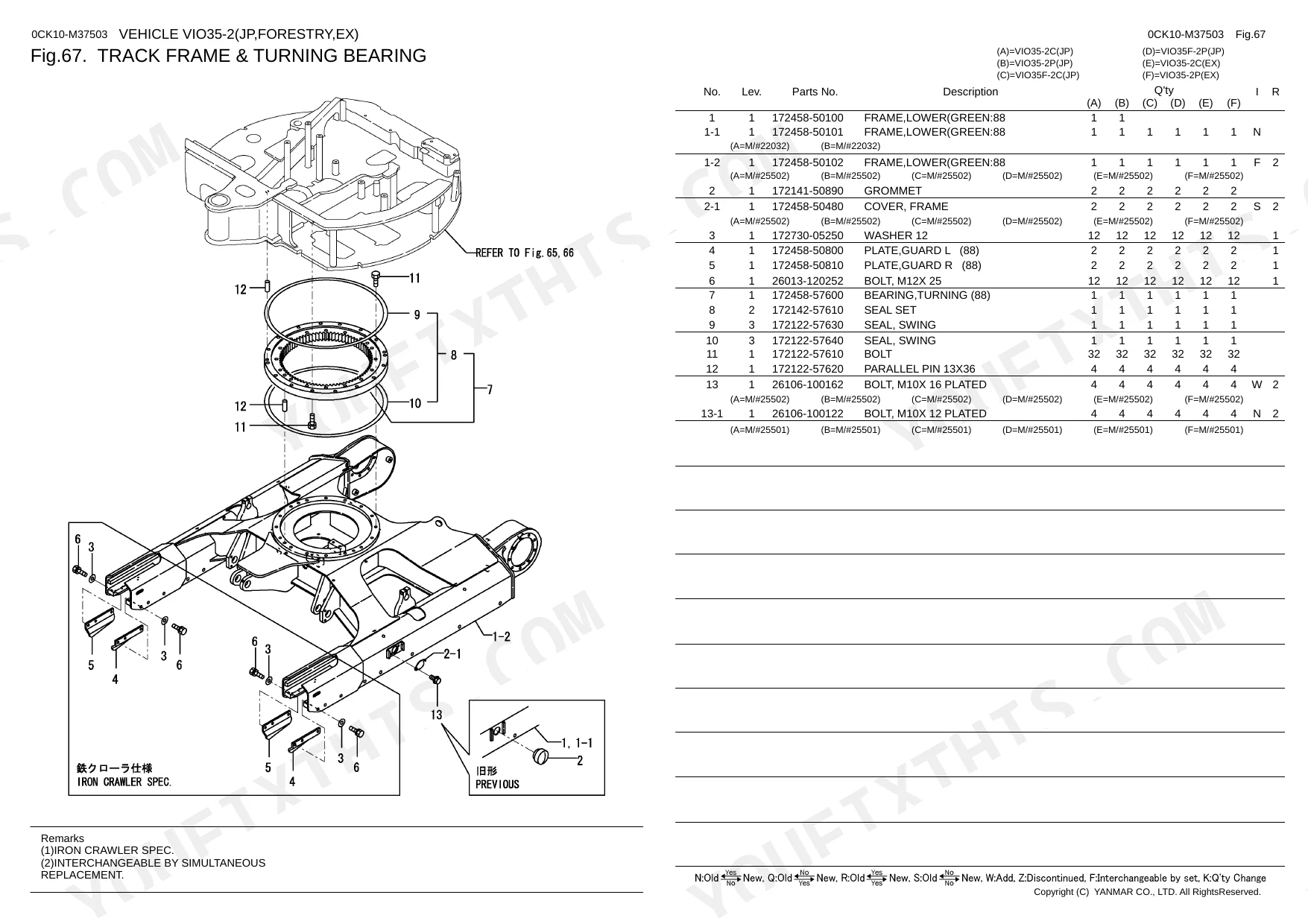

| Track Frame & Turning Bearing | 88 | - |
| Turning Pinion & Turning Bearing(Forestry Spec.) | 89 | - |
| Cover(Frame) | 90-91 | - |
| Cover(Frame)(Forestry Spec.) | 92 | - |
| Cover(Around Control) | 93-94 | - |
| Cover(Cabin) | 95-96 | Clip, Rubber, Seal, Trim, Bonnet |
| Cover(Canopy) | 97 | Bonnet, Rubber, Seal, Trim, Handrail |
| Cover(Boom) | 98 | Boom, Bolt |
| Step | 99 | Plate, Mat, Seal, Hook, Washer |
| Setp(Forestry Spec.) | 100 | Step, Plate, Mat, Hook, Washer, Bolt |
| Instrument Panel | 101 | Bolt, Cover |
| Seat & Seat Mount(Cabin) | 102-103 | Seat, Mount, Plate, Seal, Rubber, Washer |
| Seat & Seat Mount(A/C Spec.) | 104-105 | Seat, Mount, Plate, Seal, Rubber, Washer |
| Seat & Seat Mount(Standard Canopy Spec.) | 106-107 | Handle, Lock, Plate, Seat (GRAY:73), Mount, Seal, Rubber |
| Seat & Seat Mount(Rops Canopy & Forestry: Mechanivcal Spec.) | 108-109 | Handle, Lock, Seat Belt, Bracket, Pump, Rubber, Seal, Grille Assy |
| Seat & Seat Mount(Cabin,Forestry Spec.) | 110-111 | Belt, Seat, Handle, Lock, Mount, Seat (GRAY:73), Rubber, Seal |
| Seat & Seat Mount(Canopy,Forestry: Electrical Spec.) | 112-113 | Belt, Seat, Handle, Lock, Bracket, Pump, Rubber, Seal |
| Bonnet(1) | 114-115 | Rod, Stopper, Bracket a Assy, Lock, Shaft, Cover, (GREEN:96) |
| Bonnet(2)(Previous) | 116-117 | Clip, Catch C7-2, Plate, Key (GREEN:96), R (GREEN:96), Hinge, R (96), Plate Assy |
| Bonnet(2)(New) | 118 | Plate, Key (GREEN:96), R Assy (96), Hinge, B (97), Plate Assy, Stopper, Bracket |

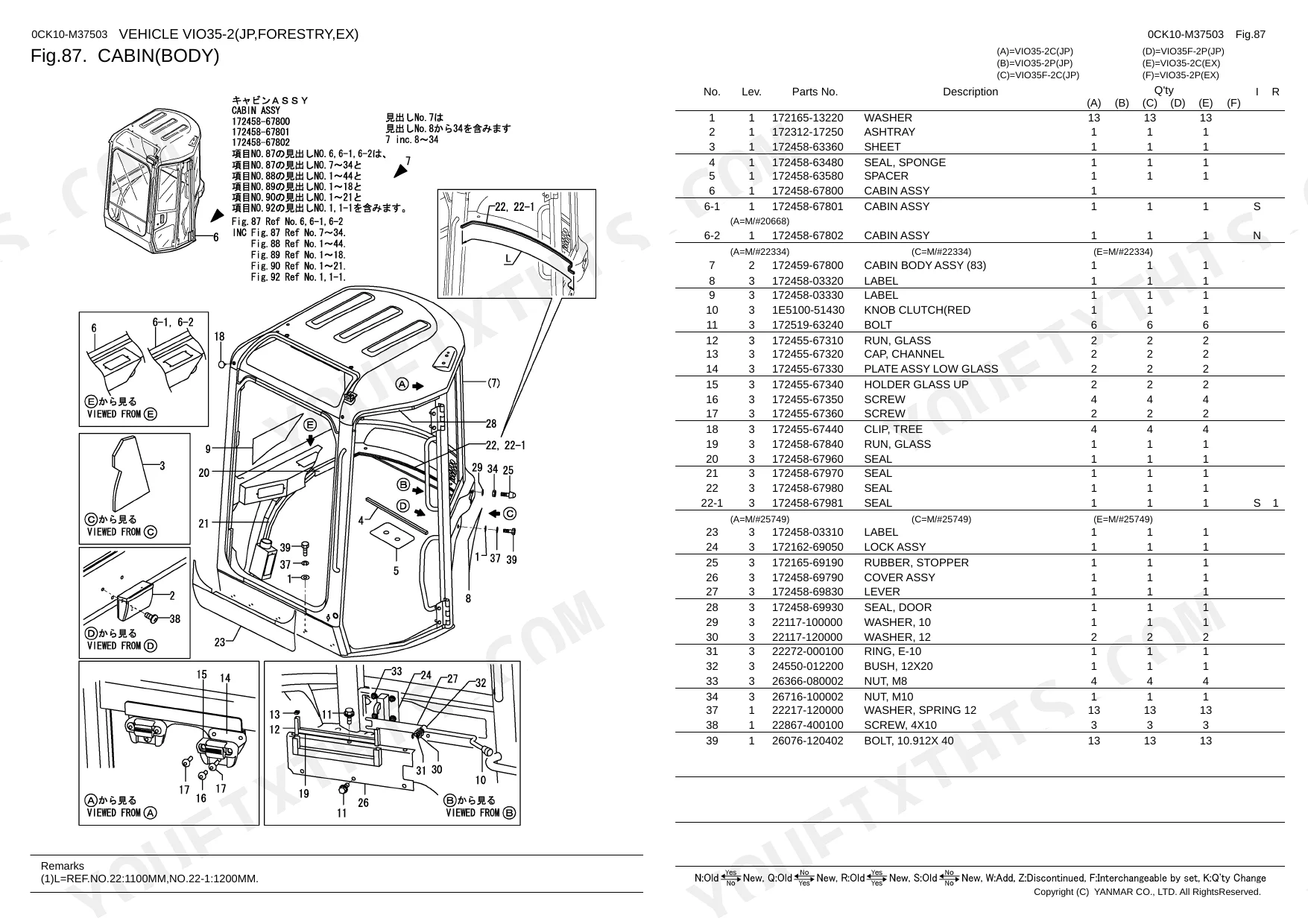

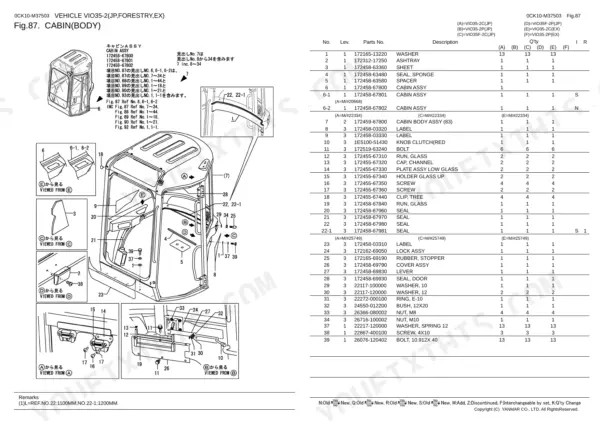

| Cabin(Body) | 119 | Sash Assy, Body Assy (83), Knob CLUTCH(RED, Run, Glass, Lock Assy, Rubber, Stopper |
| Cabin(Glass) | 120-121 | Sash Assy, Hd Washer, Bolt, Screw, Seal, Glass, Handle |
| Cabin(Accessory) | 122 | Plate, Screw, Trim, Rubber, Spacer, Inner Roof, Sunroof, Glass |
| Cabin(Electric Part) | 123 | Wire Harness, Wiper Motor, Arm, Wiper Blade, Working Lamp, Room Lamp, Bolt, Nut |
| Cabin(Forestry Spec.) | 124 | Assy, Label, Guard, Seat, Nut, Washer, Bolt |
| Cabin Door(Front) | 125 | Door Assy, Hd Washer, Key Assy, Lock Assy, Glass, Handle Assy |
| Cabin Door(Rear) | 126 | Door Assy, Trim Assy, Frame Assy, Glass, Hinge, Gasket, Screw |
| Canopy(Rops) | 127 | Assy, Washer, Spring, Bolt, Nut |
| Canopy(Standard) | 128 | Roof Assy, Pole, Washer, Spring, Bolt, Nut |
| Canopy(Forestry Spec.) | 129 | Assy, Guard Assy, Washer, Cap, Bolt, Nut |
| Hyd.Oil Pump & Joint(Standard Spec.) | 130-131 | Pump Assy, Plate, Swash, Pin, Bearing, O-Ring |
| Hyd.Oil Pump & Joint(Quick Hitch Spec.) | 132-133 | Pump Q Assy, Plate, Swash, Pin, Bearing, Valve, Solenoid |
| Boom Cylinder(Cabin & ROPS Canopy Spec.) | 134 | Cylinder Assy, Boom, Seal Set, Head, Tube, Piston, Plunger |
| 100.Boom Cylinder(Standard Canopy Spec.) | 135 | Cylinder Assy, Boom, Seal Set, Head, Tube, Piston, Plunger |
| 101.Arm Cylinder | 136 | Cylinder, Arm, Seal Set, Head, Piston, O-Ring, Tube |
| 102.Bucket Cylinder(Standard Spec.) | 137 | Cylinder Assy, Seal Set, Head, Bush, Piston, Nipple |
| 103.Bucket Cylinder(Quick Hitch Spec.) | 138 | Cylinder Assy, Seal Set, Piston, Nut, Head, Bush |
| 104.Swing Cylinder | 139 | Cylinder Assy, Swing, Seal Set, Head, Tube, Rod Assy |
| 105.Blade Cylinder | 140 | Cylinder Assy, Blade, Seal Set, Head, Tube Assy, Rod Assy |
| 106.Hitch Cylinder | 141 | Cylinder Assy, Hitch, Seal Set, Head, Tube, Rod Assy |
| 107.Grapple Cylinder | 142 | Cylinder, Grapple, Tube Assy, Seal, Dust, Rod Assy, Piston 75, Head 75 40 W/BUSH |
| 108.Travel Motor | 143-144 | Motor Assy, Travel, Block Kit, Cylinder, Gear, Reduction, Seal, Floating |
| 109.Turning Motor(A) | 145 | Motor Assy, Swing, Relife Valve, Seal Kit, Ring, Buck Up, O-Ring, Bolt |
| 177.(109A)Turning Motor(B) | 146-147 | Motor Assy, Turning, Gear Assy, Reduction, Housing Assy, Seal, Oil |
| 110.Turning Motor(Grapple)(Forestry Spec.)(Painted Color : Blue) | 148 | Motor Assy, Turning, Body Assy, Drive, Shaft, Output, Check Valve Assy |
| 176.(110A)Turning Motor(Grapple : Forestry)(Painted Color : Black) | 149 | Motor Assy, Housing, Drive, Shaft Output, Bearing, Seal Set |
| 111.Swivel Joint | 150 | Joint Assy, Shaft Assy, Hub, Flange, Spacer, Seal Set |
| 112.Swivel Joint(Grapple)(Forestry Spec.) | 151 | Joint Assy, Shaft Assy, Hub Assy, Flange, Spacer, Seal |

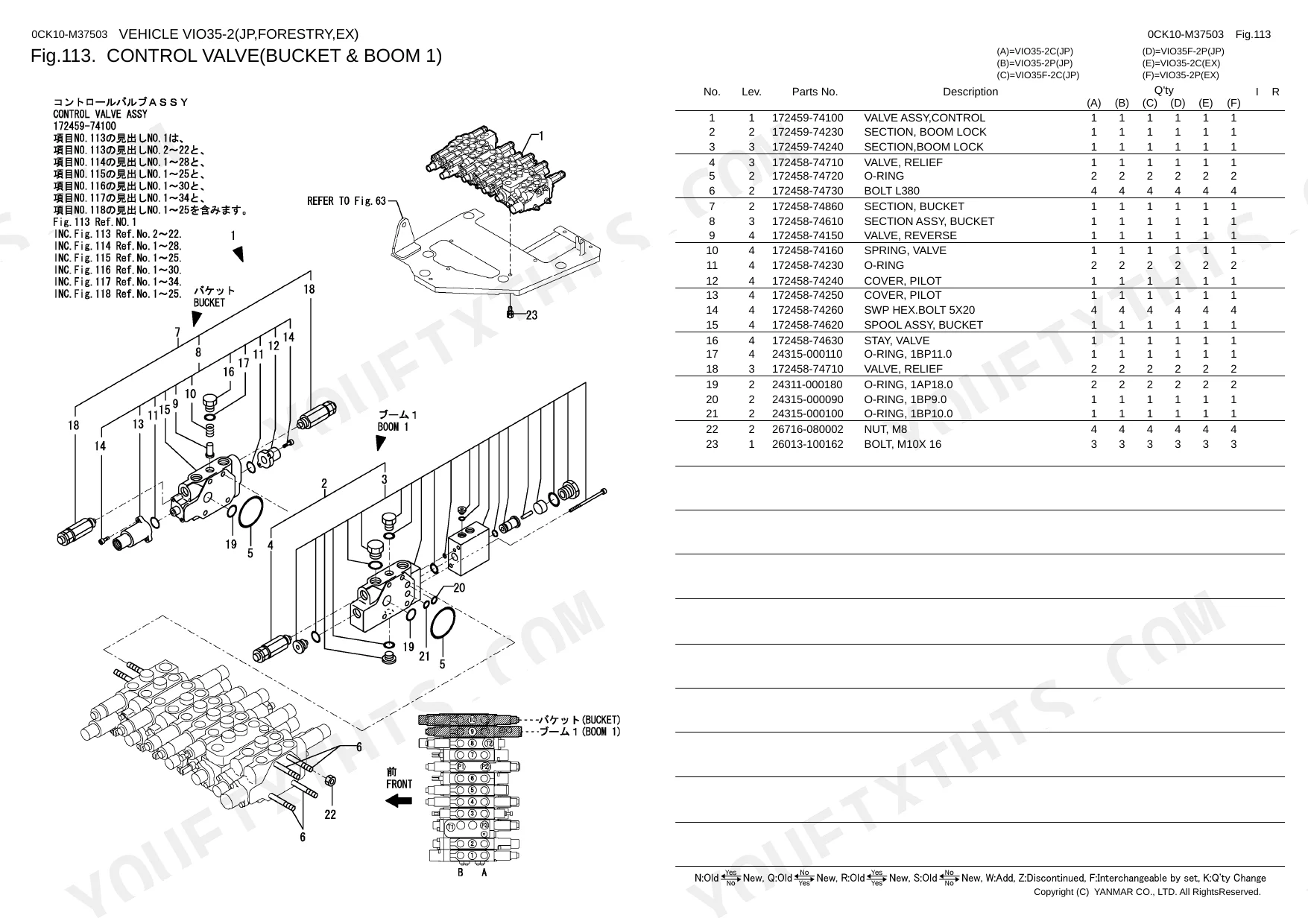

| 113.Control Valve(Bucket & Boom 1) | 152 | Valve Assy, Boom Lock, Relief Valve, Bucket Section, Spool Assy, Pilot Cover |
| 114.Control Valve(Boom 2 & Travel: Right) | 153 | Boom Section, Blade Section, Reverse Valve, Spool Assy, Pilot Cover, Travel Section |
| 115.Control Valve(P Port & Travel: Left) | 154 | Travel Section, Dust Wiper, Spring Valve, Reverse Valve, Spool Assy, Pilot Cover |
| 116.Control Valve(Swing & Arm) | 155 | Arm Section, Swing Section, Relief Valve, Reverse Valve, Spool Assy, Pilot Cover |
| 117.Control Valve(P.T.O. & T/P Port) | 156 | Confluence Section, Spool Assy, Pilot Cover, Reverse Valve, Throttle, PTO Section |
| 118.Control Valve(Turning & Blade) | 157 | Section, Spool Assy, Valve, Spring, O-Ring, Cover |
| 119.Low-High Valve(Forestry Spec.) | 158 | Valve, Spring, Solenoid, O-Ring, Washer, Bolt |
| 120.Valve(Forestry: Electrical Spec.) | 159 | Plate, Bracket, Relife Valve, Joint, Valve, Check Valve |
| 121.Valve(Forestry: Mechanical Spec.) | 160 | Plate, Bracket, Valve, Bolt |
| 122.Remote Control Valve(Standard: to M/#25500,4-Way Spec.) | 161 | Valve Assy, Spring, Seal Set, O-Ring, Bellows, Plate |
| 123.Remote Control Valve(Standard: From M/#25501,2-Way Spec.) | 162 | REMO-CON.VALVE, Spring, Bellows, Sleeve, Plate, O-Ring |
| 124.Rotary Valve(4-Way Spec.) | 163 | Valve, Cover, Spring, Plate, Bolt, Dust Seal |
| 125.Hyd.Oil Tank(Std. to 25500) | 164 | Tank Assy, Filter Assy, Element, Valve Assy, Filter, Rubber Plate |
| 126.Hyd.Oil Tank(Std. From M25501) | 165 | Tank Assy, Reservoir, Filter Assy, Return, Element, Filter, Valve Assy, Bypass |
| 127.Hyd.Oil Tank(A/C Spec.) | 166 | Tank Assy, Reservoir, Filter Assy, Return, Element, Filter, Valve Assy, Bypass |
| 128.Hyd.Oil Piping(Tank - Pump - Valve) | 167 | Flange, Connector, Tube Assy, Suction, O-Ring, Hose, Clamp |
| 129.Hyd.Oil Piping(Pump, Valve - Turning Motor) | 168 | Adapter, Connector, Joint Assy, O-Ring, Hose, Grommet |
| 130.Hyd.Oil Piping(Valve - Swivel, Swing) | 169 | Adapter, Connector, Joint Assy, O-Ring, Hose, Band |
| 131.Hyd.Oil Piping(Valve - Swivel, Swing)(Forestry: Mechanical Spec.) | 170 | Adapter, Connector, Joint Assy, O-Ring, Hose, Band |
| 132.Hyd.Oil Piping(Return) | 171-172 | Elbow, O-Ring, Connector, Tee, Block, Drain, Hose |
| 133.Hyd.Oil Piping(P.T.O.,Frame End) | 173 | Connector, Joint, Swivel, Joint Assy, PTO, Tube Assy, Hose, Adapter |
| 134.Hyd.Oil Piping(Track Frame) | 174 | Adapter, O-Ring, Connector Assy, Grommet, Hose, Joint |
| 135.Hyd.Oil Piping(Boom) | 175 | Adapter, Connector Assy, O-Ring, Hose, Nut, Clip |
| 136.Hyd.Oil Piping(P.T.O.,Arm End) | 176 | Adapter, Plug, Bolt, Tube, Spacer Assy, Hose |
| 137.Hyd.Oil Piping(Quick Hitch) | 177 | Elbow, O-Ring, Connector Assy, Plate, Hose, Tube |
| 138.Hyd.Oil Piping(Grapple,1)(Forestry: Electrical Spec.) | 178 | Collar, Connector, O-Ring, Adapter, Tube Assy, Hose |
| 139.Hyd.Oil Piping(Grapple,2)(Forestry: Electrical Spec.) | 179 | Joint, Seal Set, Connector, Plate, Tube, Hose |
| 140.Hyd.Oil Piping(Grapple,3)(Forestry: Electrical Spec.) | 180-181 | Adapter, Connector, Stop Valve, Coupler, Joint, Hose |
| 141.Hyd.Oil Piping(Grapple,1)(Forestry: Mechanical Spec.) | 182 | Collar, Connector, O-Ring, Adapter, Tube Assy, Hose |
| 142.Hyd.Oil Piping(Grapple,2)(Forestry: Mechanical Spec.) | 183 | Joint, Swivel, Seal Set, Tube, Bolt, Hose |
| 143.Hyd.Oil Piping(Grapple,3)(Forestry: Mechanical Spec.) | 184 | Adapter, Connector, Coupler, Joint, Bolt, Hose |
| 144.Hyd.Oil Piping(Winch)(Forestry Spec.) | 185 | Adapter, Connector, O-Ring, Clamp, Tube, Hose |
| 145.Control Piping(Pump - Valve - Return) | 186 | Adapter, Connector, O-Ring, Hose, Clamp |
| 146.Control Piping(Remote Control V. - Control V.: Standard Spec.) | 187 | Adapter, Connector Assy, O-Ring, Hose, Clamp, Band |
| 147.Control Piping(Remote Control V. - 4-Way Multi V.: Multi Change) | 188 | Adapter, Connector Assy, O-Ring, Hose, Clamp, Band |
| 148.Control Piping(4-Way Multi V. - Control V.: Multi Change Spec.) | 189 | Adapter, Connector Assy, O-Ring, Connector, Hose |
| 149.Greasing | 190 | Joint, Fitting, Hose, Nipple |
| 150.Boom Bracket | 191 | Shim, Pin, Bush, Bracket, Plate, Washer |

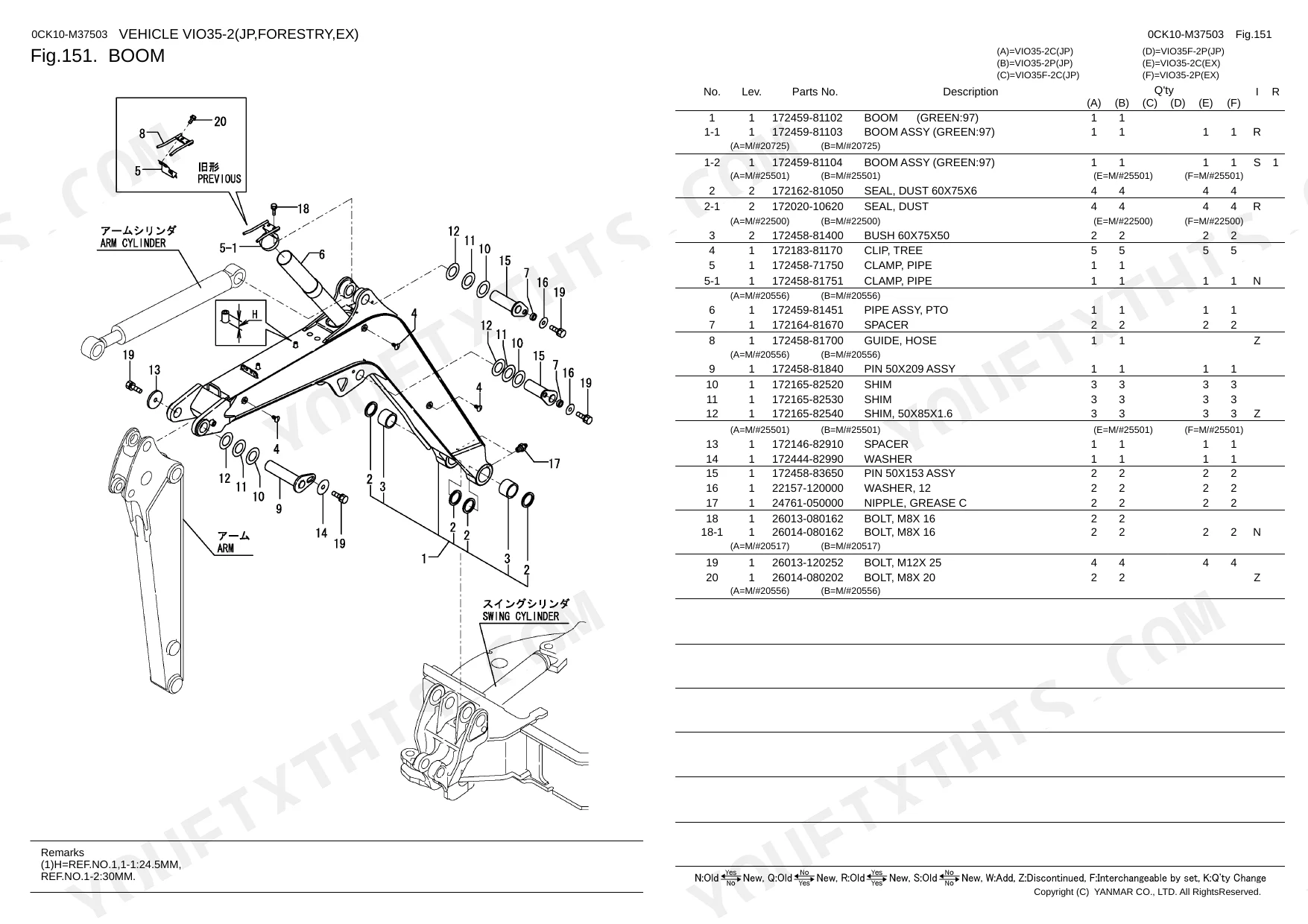

| 151.Boom | 192 | Boom, Seal, Bush, Clip, Pipe, Pin |
| 152.Boom(Forestry Spec.) | 193 | Boom, Seal, Bush, Clip, Pipe, Pin |
| 153.Arm(Standard Spec.) | 194 | Clip, Arm Assy, Seal, Bush, Pin, Shim |
| 154.Arm(Quick Hitch Spec.) | 195 | Clip, O-Ring, Arm Assy, Seal, Bush, Pin |
| 155.Arm(Long Spec.) | 196 | Clip, O-Ring, Arm Assy, Seal, Bush, Pin |
| 156.Arm(Forestry Spec.) | 197 | Clip, Arm Assy, Seal, Bush, O-Ring, Pin |
| 157.Bucket Arm & Link | 198 | Arm, Bucket, Pin Assy, Link, Seal, Bush |
| 158.Quick Hitch | 199-200 | Box, Switch, Pin, Plate, Lock, Shim, Nipple |
| 159.Bucket(S-Type) | 201-202 | Pin Kit, Bucket, Collar, Nipple, Cutter, Tooth Kit |
| 160.Bucket(H-Type)(Attachment) | 203-204 | Pin Kit, Bucket, Collar, Nipple, Cutter, Tooth Kit |
| 161.Turning Table(Forestry: Electrical Spec.) | 205 | Spacer, Shim, Bracket, Cover, Arm Assy, Pin |
| 162.Turning Table(Forestry: Mechanical Spec.) | 206 | Spacer, Shim, Bracket, Cover, Arm Assy, Pin |
| 163.Winch(Forestry Spec.) | 207 | Winch Assy, Protector, Pin, Bracket, Roller, Wire Rope Assy, Hook Assy |
| 174.(163A)Winch(A Main Body Inner Part) | 208-209 | Winch Assy, Spindle, Drum, Gear, Internal, O-Ring, Frame Assy |
| 175.(163B)Winch(A Orbit Motor Inner Part) | 210 | Motor, Orbit, Plug, Ball, Spring, Plate, Valve, Gerotor |
| 164.Blade | 211 | Spacer, Shim, Blade, Bush, Seal, Pin |
| 165.One-Touch Decel Kit(Optional) | 212 | Decelerate Kit, Cable, Shaft Assy, Harness Decel Assy, Solenoid, Reley |
| 166.Radio Kit(Optional) | 213 | Radio Kit, Mount, Bracket Assy, Plate L Assy, Cover, Antenna |
| 167.Travel Alarm Kit(Optional) | 214 | Alarm Kit, Harness, Bracket, Buzzer, Case Assy, Switch |
| 168.4-Way Multi Valve Kit(Optional) | 215 | Multi Kit, Magnet, Bracket, Valve, Cover, Hose |
| 169.2-Way Multi Valve Kit(Optional) | 216 | Valve Kit, Label, Lever Ass, Spring, Shaft, Knob |
| 170.P.T.O. Kit(Standard Arm & Quick Hitch Spec.)(Optional) | 217-219 | PTO Kit, Label, Link Assy, Pedal, Bracket, Hose |
| 171.P.T.O. Kit(Long Arm Spec.)(Optional) | 220-222 | PTO Kit, Label, Spring, Joint, Link Assy, Hose |
| 172.Long Arm Kit(Optional) | 223 | Arm Kit, Long, Check Valve, Hose, Clip, Tree, O-Ring, Spacer |
| 173.Heater Kit(Canopy)(Optional) | 224-225 | Heater Kit |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuse, B | 20A | p. 32 |
| Fuse, Slow Blow | 50A | p. 45 |
| Parallel Pin, diameter x length | 13x36mm | p. 62 |
| Pin, Cotter | 1.6x16mm | p. 74 |
Yanmar ViO35-2 Common Problems This Manual Covers
Yanmar Vio35-2C main electrical system completely dead, need to locate the slow blow fuse part number p. 45
Check the electrical wiring components on page 45 to locate the 50A slow blow fuse within the main harness assembly. Match the exact part number to your specific serial number range in the index before ordering replacement parts to restore main power.
Manual Section: Electric Part(Wiring)(Previous)Missing mounting hardware for the optional radio installation, need the exact parallel pin size and part number p. 62
Inspect the optional radio kit exploded view on page 62. Identify the correct part number for the 13x36mm parallel pin required for the bracket assembly. Verify the total quantity needed in the adjacent parts list to properly secure the mounting plate and cover components.
Manual Section: Radio(Optional)Travel lever linkage feels excessively loose, missing retaining hardware at the main drive bracket connection p. 74
Review the travel lever and link stand diagram on page 74. Locate the specific part numbers for the 1.6x16mm and 2.5x20mm cotter pins used in the drive linkage. Order the correct pins and corresponding bushes to eliminate excess play in the track control assembly.
Manual Section: Control Equipment(Travel Lever & Link Stand)Left side lock lever assembly detaches from the stand due to missing retaining linkage hardware p. 73
Examine the left lock lever and stand assembly diagram on page 73. Find the part number for the required 2.0x20mm cotter pin securing the guide linkage. Cross-check the adjacent parts list for replacement bushings or plates if the stand components show excessive wear.
Manual Section: Control Equipment(Lock Lever & Stand)(Left)Frequently Asked Questions
How do you fix yanmar Vio35 Series main electrical system completely dead, need to locate the slow blow fuse part number?
Check the electrical wiring components on page 45 to locate the 50A slow blow fuse within the main harness assembly. Match the exact part number to your specific serial number range in the index before ordering replacement parts to restore main power.
How do you fix missing mounting hardware for the optional radio installation, need the exact parallel pin size and part number?
Inspect the optional radio kit exploded view on page 62. Identify the correct part number for the 13x36mm parallel pin required for the bracket assembly. Verify the total quantity needed in the adjacent parts list to properly secure the mounting plate and cover components.
How do you fix travel lever linkage feels excessively loose, missing retaining hardware at the main drive bracket connection?
Review the travel lever and link stand diagram on page 74. Locate the specific part numbers for the 1.6x16mm and 2.5x20mm cotter pins used in the drive linkage. Order the correct pins and corresponding bushes to eliminate excess play in the track control assembly.
How do you fix left side lock lever assembly detaches from the stand due to missing retaining linkage hardware?
Examine the left lock lever and stand assembly diagram on page 73. Find the part number for the required 2.0x20mm cotter pin securing the guide linkage. Cross-check the adjacent parts list for replacement bushings or plates if the stand components show excessive wear.
What do I get after purchasing this Yanmar Vio35 Series manual?
A 252-page Parts Catalog in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Am I able to print pages from this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Reviews
There are no reviews yet.
