Torque a cylinder head by feel and you gamble the whole rebuild; Yanmar's figure for the 3TNV88F is 63 to 67 ft-lb on the M10 head bolts, and this service manual is where that number lives. Publication 0BTN4-G00400 covers the Yanmar 3TNV88F industrial diesel across 268 pages, spanning 2012 to 2015 production.
The Engine chapter carries cylinder head, crankshaft and piston, and camshaft and timing gear train specifications for a full teardown. Separate chapters walk the fuel injection pump, engine coolant pump, trochoid oil pump, starter motor, alternator, electronic control harness connections, and electric wiring, and a Failure Diagnosis chapter troubleshoots by measured compression pressure.
It downloads as a PDF you own outright: print the torque tables, keep them at the stand, and put the engine back together to the clearances Yanmar intended.

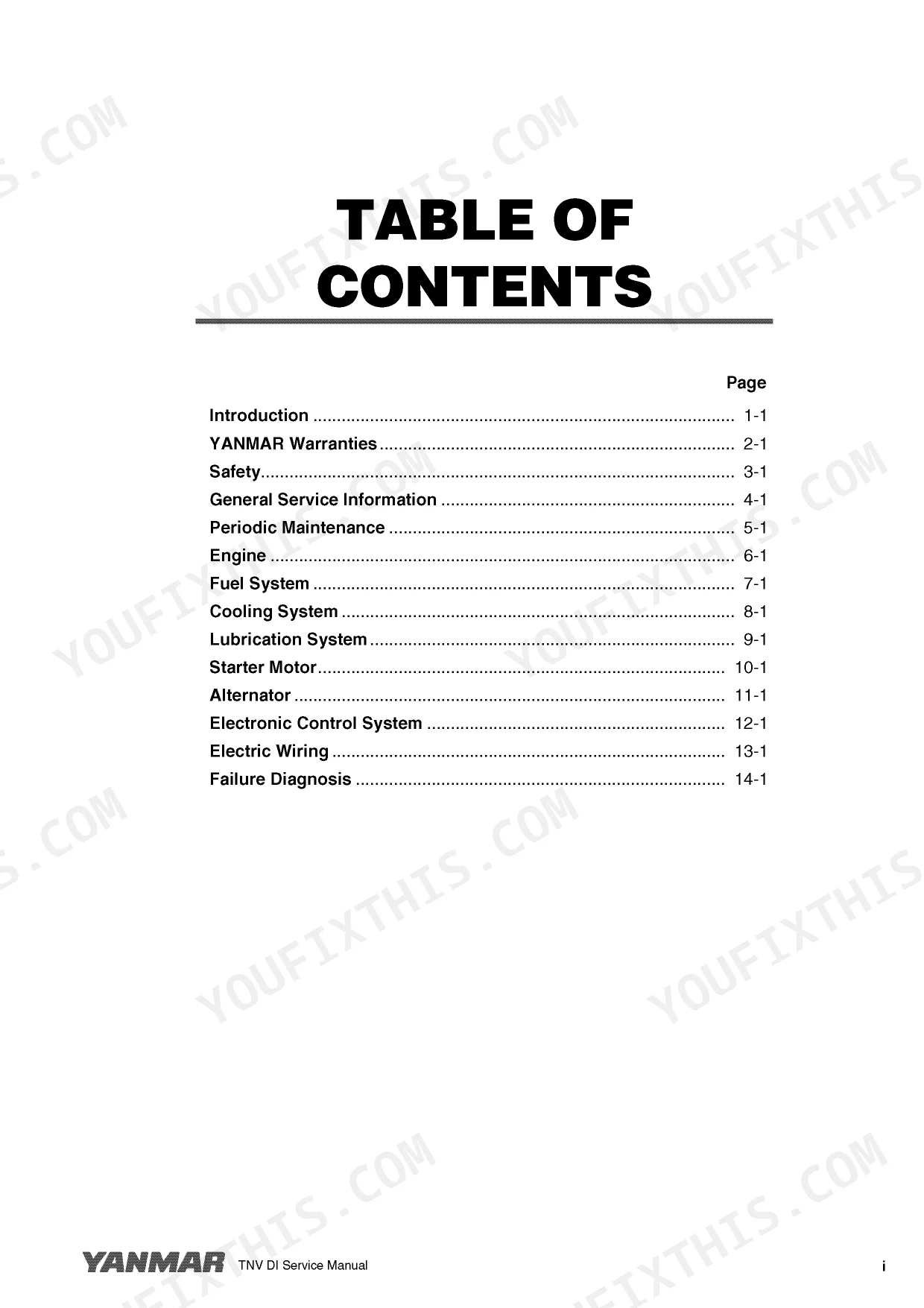

What's Inside This Yanmar 3TNV88F Manual
| System | Pages | Key Topics |
|---|---|---|
| Yanmar Warranties | 7-14 | Yanmar Limited Warranty, Emission System Warranty, Yanmar Co., Ltd. Limited Emission Control System Warranty - Usa Only |
| Safety | 15-32 | - |
| General Service Information | 33-60 | Component Identification, Location of Labels, Emission Control Regulations, Emission Control Labels, Engine Family, Major Engine Components |
| Periodic Maintenance | 61-84 | Before You Begin Servicing, Introduction, Periodic Maintenance Schedule, Periodic Maintenance Procedures |
| Engine | 85-146 | Before You Begin Servicing, Introduction, Cylinder Head Specifications, Camshaft and Timing Gear Train Specifications, Crankshaft and Piston Specifications |
| Fuel System | 147-178 | Before You Begin Servicing, Fuel System Specifications, Special Service Tools, Measuring Instruments, Fuel System Diagram, Fuel System Components, Fuel Injection Pump |
| Cooling System | 179-190 | Before You Begin Servicing, Introduction, Cooling System Diagram, Engine Coolant Pump Components, Engine Coolant System Check, Engine Coolant Pump |
| Lubrication System | 191-200 | Before You Begin Servicing, Introduction, Oil Pump Service Information, Lubrication System Diagram, Checking Engine Oil Pressure, Trochoid Oil Pump |
| Starter Motor | 201-218 | Before You Begin Servicing, Introduction, Starter Motor Information, Starter Motor Specifications, Starter Motor Troubleshooting, Starter Motor Components |
| Alternator | 219-238 | Before You Begin Servicing, Introduction, Dynamo and Alternator Information, Alternator Specifications, Dynamo Specifications, Alternator Troubleshooting, Alternator Components |
| Electronic Control System | 239-244 | Before You Begin Servicing, Introduction, Electronic Control Harness Connections |
| Electric Wiring | 245-252 | Electric Wiring Precautions, Electrical Wire Resistance, Battery Cable Resistance, Electrical Wire Sizes - Voltage Drop, Conversion of Awg to European Standards |
| Failure Diagnosis | 253-268 | Special Service Tools, Troubleshooting by Measuring Compression Pressure, Quick Reference Table for Troubleshooting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cylinder head bolt torque | 63 - 67 ft·lb (85.3 - 91.1 N·m; 8.7 - 9.3 kgf·m) | p. 94 |
| Valve clearance | 0.006 - 0.010 in. (0.15 - 0.25 mm) | p. 88 |
| Applicable fuel filter Part No. Standard | 119802-55801 | p. 78 |
| Applicable fuel filter Part No. Dust proof | 129907-55801 | p. 78 |
| Glow plug torque | 133 - 177 in·lb (15 - 20 N·m; 1.5 - 2.0 kgf·m) | p. 94 |
| Thermostat valve opening temperature (Standard) | 157 °F - 163 °F (70 °C - 73 °C) | p. 56 |
| Thermostat valve opening temperature (Option) | 176 °F - 183 °F (80 °C - 84 °C) | p. 56 |
| Fuel injector retainer bolt torque | 29 ft·lb (39.2 N·m; 4 kgf·m) | p. 151 |
| Maximum air intake restriction | 0.90 PSI (6.23 kPa; 635 mmAq) | p. 77 |
| Engine Oil Pan Capacity (Upper/Lower Limit) | 6.7/3.9 L | p. 49 |
| Engine Coolant Capacity (Engine only) | 2.0 L | p. 51 |
| Intake/Exhaust Valve Clearance | 0.15 - 0.25 mm | p. 56 |
Yanmar 3TNV88F Common Problems This Manual Covers
Hard starting or no start when cold
Air in the fuel lines, a clogged filter, or weak glow plugs will keep a 3TNV88F from lighting on a cold morning. The Fuel System chapter lays out the fuel system diagram, components, and injection pump service so you can chase the fault through the circuit instead of cracking fittings at random.
Manual Section: Fuel System p. 147Overheating and coolant loss
A stuck thermostat or a failing coolant pump cooks this engine fast, and heat damage does not announce itself until bearings and rings are already worn. The Cooling System chapter gives the system diagram, the coolant system check, and coolant pump component service; the standard thermostat opens at 70 to 73 degrees C.
Manual Section: Cooling System p. 179Low or fluctuating oil pressure
Sagging oil pressure means a worn trochoid pump, a stuck relief valve, or bearing clearance opening up. The Lubrication System chapter carries the oil pressure standard for this engine along with the pump and relief-valve service, so measure against the book's figure before condemning anything.
Manual Section: Lubrication System p. 191Starter clicks but will not crank
Before you condemn the starter, the Starter Motor chapter gives a troubleshooting table, full specifications for the starter motor, and a component breakdown for bench testing solenoid and pinion.
Manual Section: Starter Motor p. 201Battery not charging
A flat battery after a day of running points at the alternator or its wiring. The Alternator chapter carries troubleshooting steps, alternator and dynamo specifications, and component service so you can test output before buying parts.
Manual Section: Alternator p. 219Low power and weak compression
Worn rings or leaking valves show up as hard starting and lost power long before smoke gives them away. The Failure Diagnosis chapter walks troubleshooting by measured compression pressure against the 483 to 513 PSI standard at 250 rpm, plus a quick reference troubleshooting table.
Manual Section: Failure Diagnosis p. 253Noisy valvetrain from drifted valve lash
Lash that has closed up burns valves; lash that has opened up clatters and costs power. The Engine chapter gives the adjustment procedure and the 0.006 to 0.010 in (0.15 to 0.25 mm) clearance for both intake and exhaust.
Manual Section: Engine p. 85Frequently Asked Questions
Which engines does this manual cover?
It covers the Yanmar 3TNV88F industrial diesel, 2012 to 2015, as factory service manual publication 0BTN4-G00400. It services the engine itself, so it applies to your 3TNV88F regardless of what equipment it is installed in.
What is the cylinder head bolt torque for the 3TNV88F?
The Engine section specifies 63 to 67 ft-lb (85.3 to 91.1 Nm) for the M10 x 1.25 mm cylinder head bolts, along with the rest of the head service specifications. p. 94
What is the valve lash on a Yanmar 3TNV88F?
Valve clearance is 0.006 to 0.010 in (0.15 to 0.25 mm) for intake and exhaust, and the Engine section includes the adjustment procedure alongside cylinder head specifications. p. 88
Does it include wiring and electrical information?
Yes. The Electronic Control System section covers harness connections, and the Electric Wiring section covers wiring precautions, wire and battery cable resistance, wire sizes and voltage drop, and AWG to European standard conversion. p. 245
What format is this manual in?
Instant PDF download. You get the full 268-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Are there any print restrictions on this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Are electrical wiring diagrams included in this Yanmar 3TNV88F Service Manual?
Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the Yanmar 3TNV88F.
