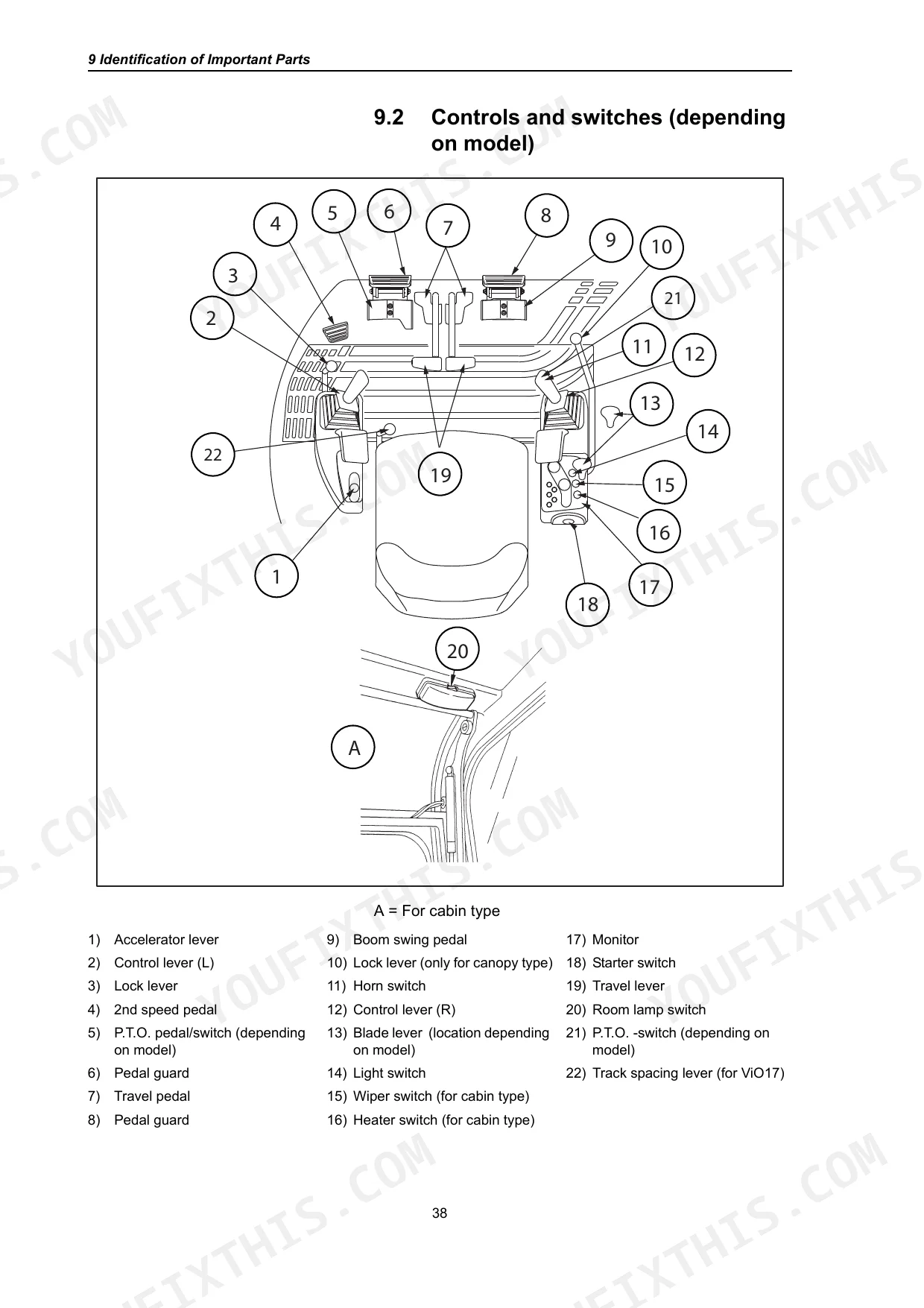

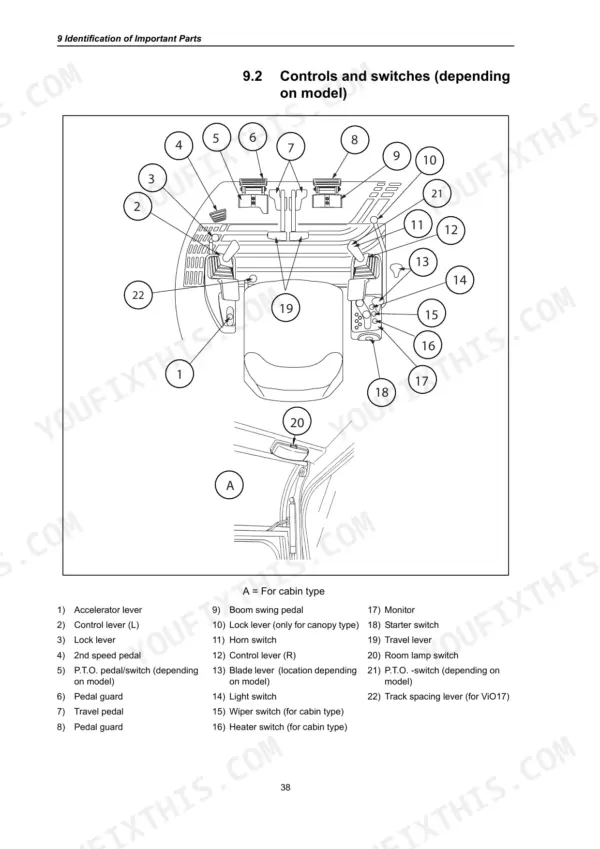

All 160 pages of this Yanmar ViO17–ViO57 Series Operation Manual (OEM #LGBBF0-00017) cover one family of mini excavators: the ViO17 (EP), ViO20-3, ViO25-3, ViO30/35-3, ViO50U, and ViO57U. Inside, hydraulic schematics trace full circuit routing while wiring diagrams cover every electrical path; a detailed controls section breaks down monitor displays, switches, and lever-pedal functions variant by variant. You also get structured troubleshooting separating actual faults from normal operating phenomena, maintenance interval tables, fluid and oil temperature guides, and a standard torque table for bolts and nuts. Replace the main pump outlet hoses (P1, P2, P3) at 4,000 hours or 2 years, and confirm crawler tension at 8–13 mm before you roll. Your machine is down. One click downloads this bookmarked PDF; search any spec, jump any section, and get back to work.
What's Inside This Yanmar ViO17–ViO57 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 7 | Operation and Maintenance Manual, Operating Procedures, Servicing Procedures, Safety Instructions, Product Warranty, Machine Specifications |
| Safety Information | 8-9 | Signal Words, Product Warnings, Safety Signs, Safety Instructions, Machine Design Modifications, Machine Components |
| Product Overview and Regulation | 10 | Intended Uses, Operation License, Lifting |
| Ordering Replacement Parts and Service Call | 11-12 | Location of Machine Serial Number Plate, Location of Engine Serial Number Plate, Location of the Epa Identification Plate, Ordering Replacement Parts and Service Calls |

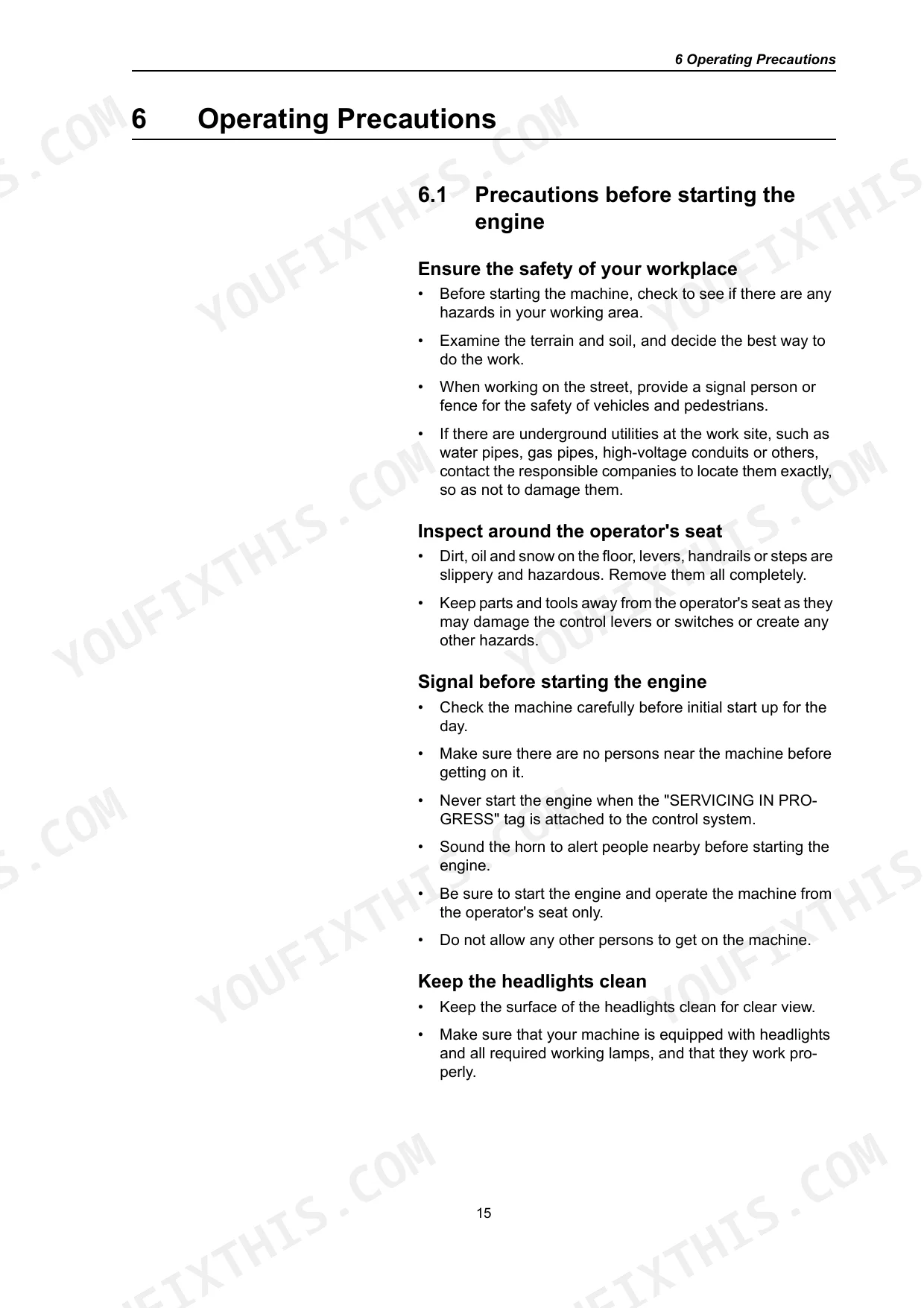

| Safety | 13-38 | Basic Precautions, Operating Precautions, Precautions for Servicing, Safety Messages (Warning Labels) |
| Operation | 39-78 | Identification of Important Parts, Description of operator’s Area, Instructions, Transportation, Long-Term Storage, Troubleshooting |
| Maintenance | 79-94 | Precautions for Servicing, Basic Servicing Practices, Fueling, Oiling and Greasing Based on Temperature Range, Standard Tightening Torque for Bolts and Nuts, Maintenance Table |

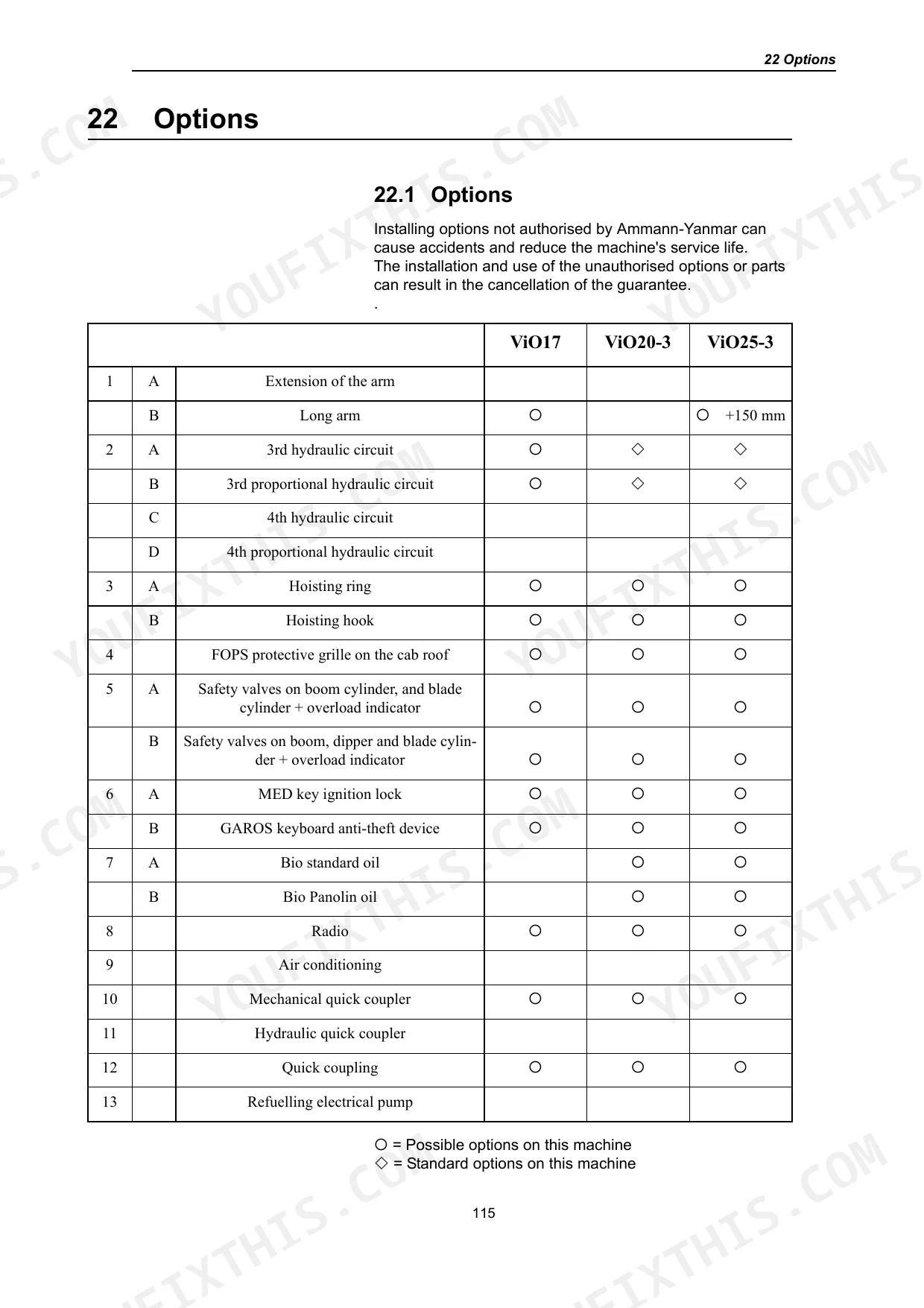

| Specifications | 95-132 | Options |

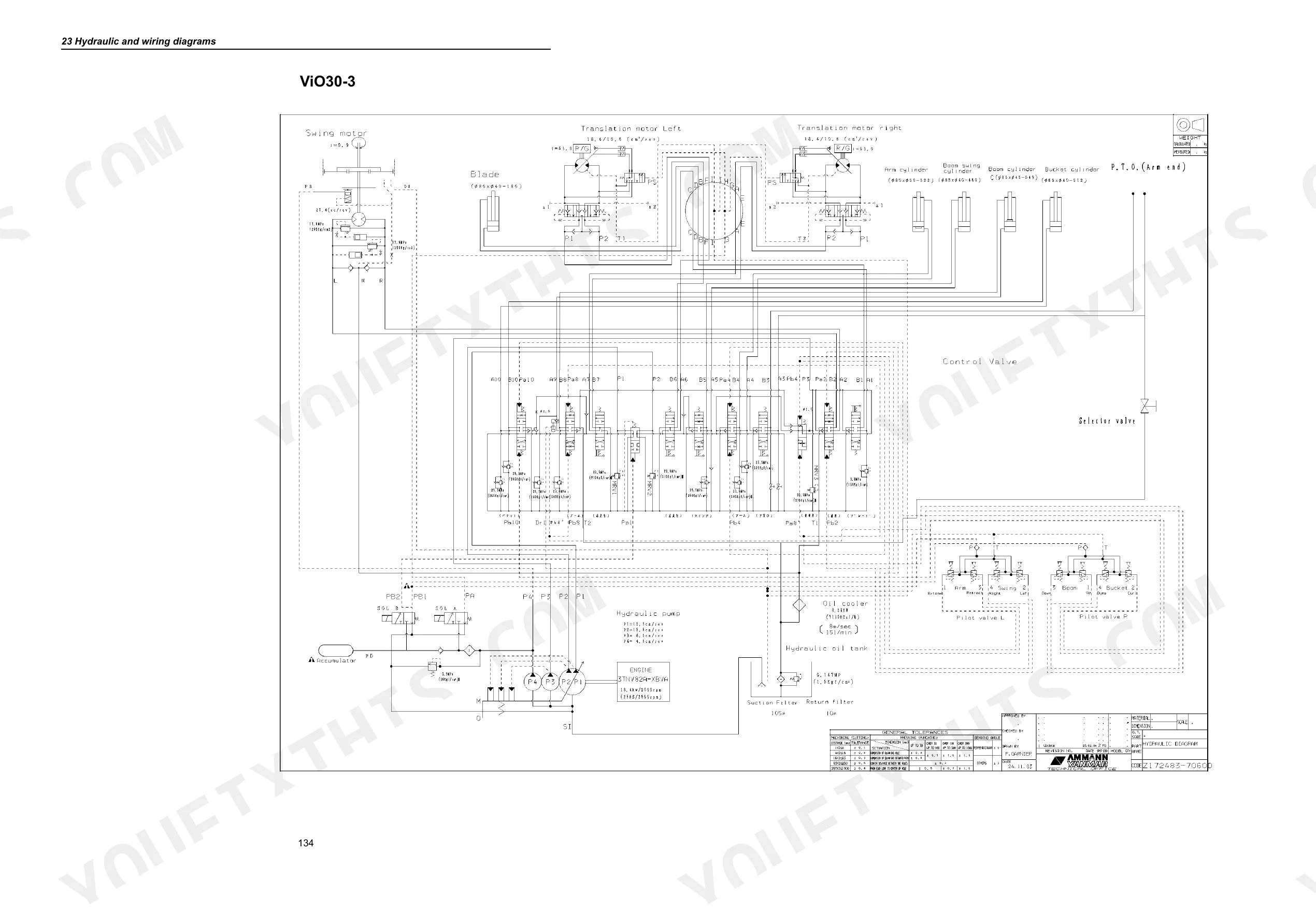

| Hydraulic and Wiring Diagrams | 133-146 | Hydraulic Circuit (Pumps, Control Valves, Cylinders, Motors), Electrical Wiring Layout |
| Notes | 147-160 | - |

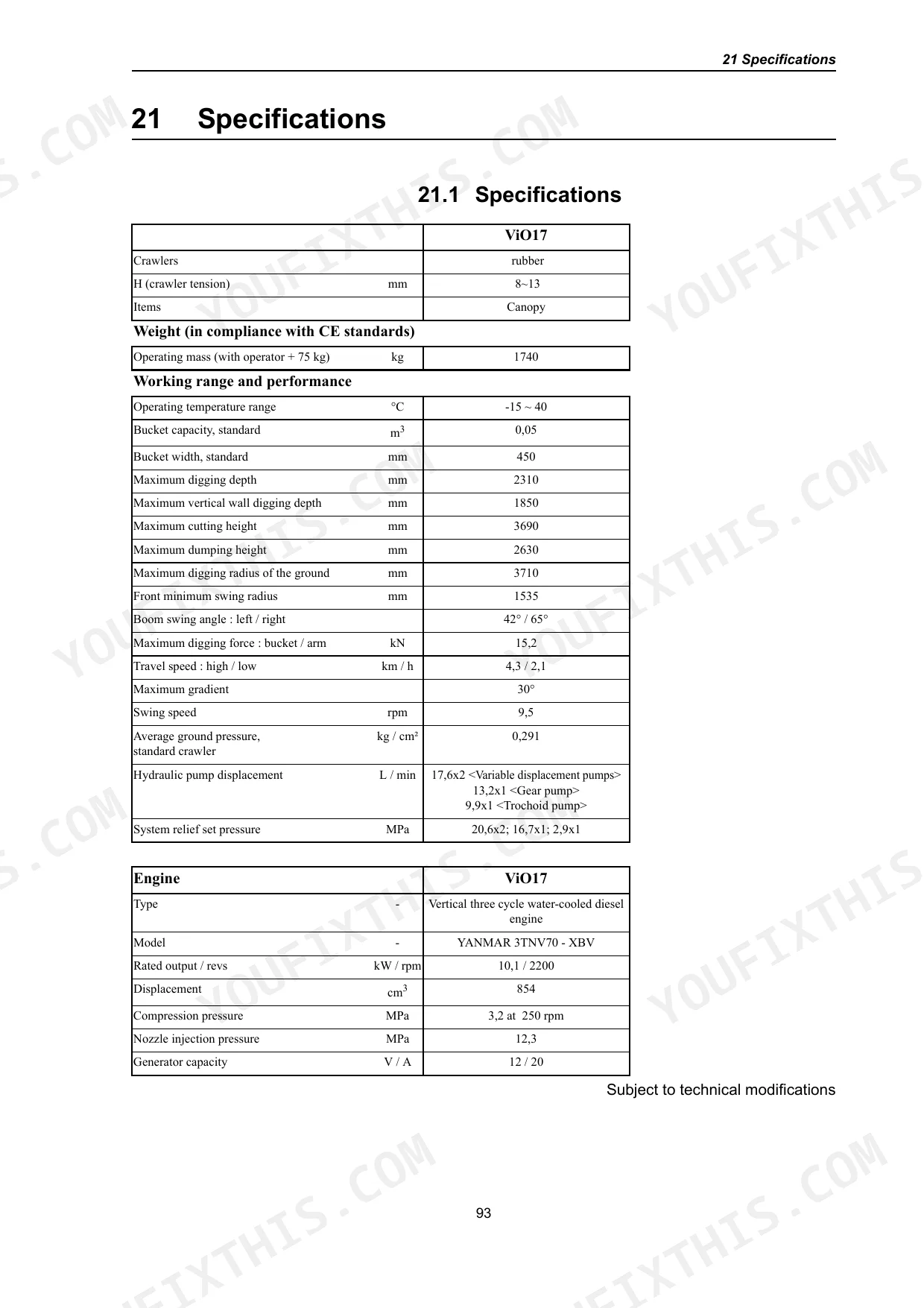

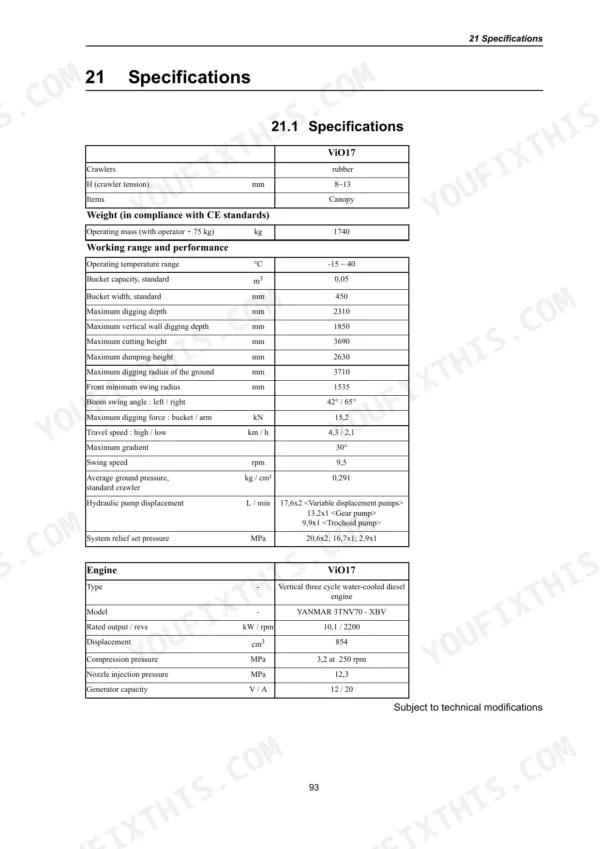

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Replacement interval for Main pump outlet hose (P1, P2, P3) | Earlier of either every 2 years or every 4000 service hours | p. 31 |
| Cooling System Subtank Capacity | 0.4 L | p. 83 |
| ViO17 | ||
| Generator capacity | 12 V / 20 A | p. 97 |
| Crawler tension (H) | 8~13 mm | p. 97 |
| Engine Oil Capacity (with filter) | 3.2 L | p. 97 |
| Hydraulic Oil System Capacity (total) | 16.5 L | p. 83 |
| ViO20-3, ViO25-3 | ||
| Generator capacity | 12 V / 40 A | p. 98 |
| Crawler tension (H) | 8~13 / 105~115 mm (rubber / steel) | p. 98 |
| Hydraulic Oil System Capacity (total) | 26.0 L | p. 83 |
| ViO30-3, ViO35-3, ViO50U, ViO57U | ||
| Engine Oil Capacity (with filter) | 4.4 L | p. 98 |
| ViO30-3, ViO35-3 | ||
| Hydraulic Oil System Capacity (total) | 35.0 L | p. 84 |
| ViO50U, ViO57U | ||
| Hydraulic Oil System Capacity (total) | 38.0 L | p. 84 |
Yanmar ViO17–ViO57 Series Common Problems This Manual Covers
Yanmar ViO mini excavator engine starts but no hydraulic function, boom and bucket won't move p. 30
Check hydraulic oil level and inspect for aeration or foamy oil, which indicates cavitation in the pump. Examine main pump outlet hoses (P1, P2, P3) for leaks, cracks, or interference per the hose inspection checklist on page 30. Mandatory replacement interval for these hoses is the earlier of 4000 service hours or every 2 years (page 31).
Manual Section: Machine Body TroubleshootingEngine won't start, cranks slowly, or starter motor fails to engage in cold weather
Inspect battery terminals for corrosion and check electrolyte level per the electrical troubleshooting procedures. Verify charging system output: on ViO30-3/35-3 the generator is rated 12 V / 40 A (page 99). Clean terminals, tighten all ground connections, then load-test the battery at 12 V before condemning the starter motor.

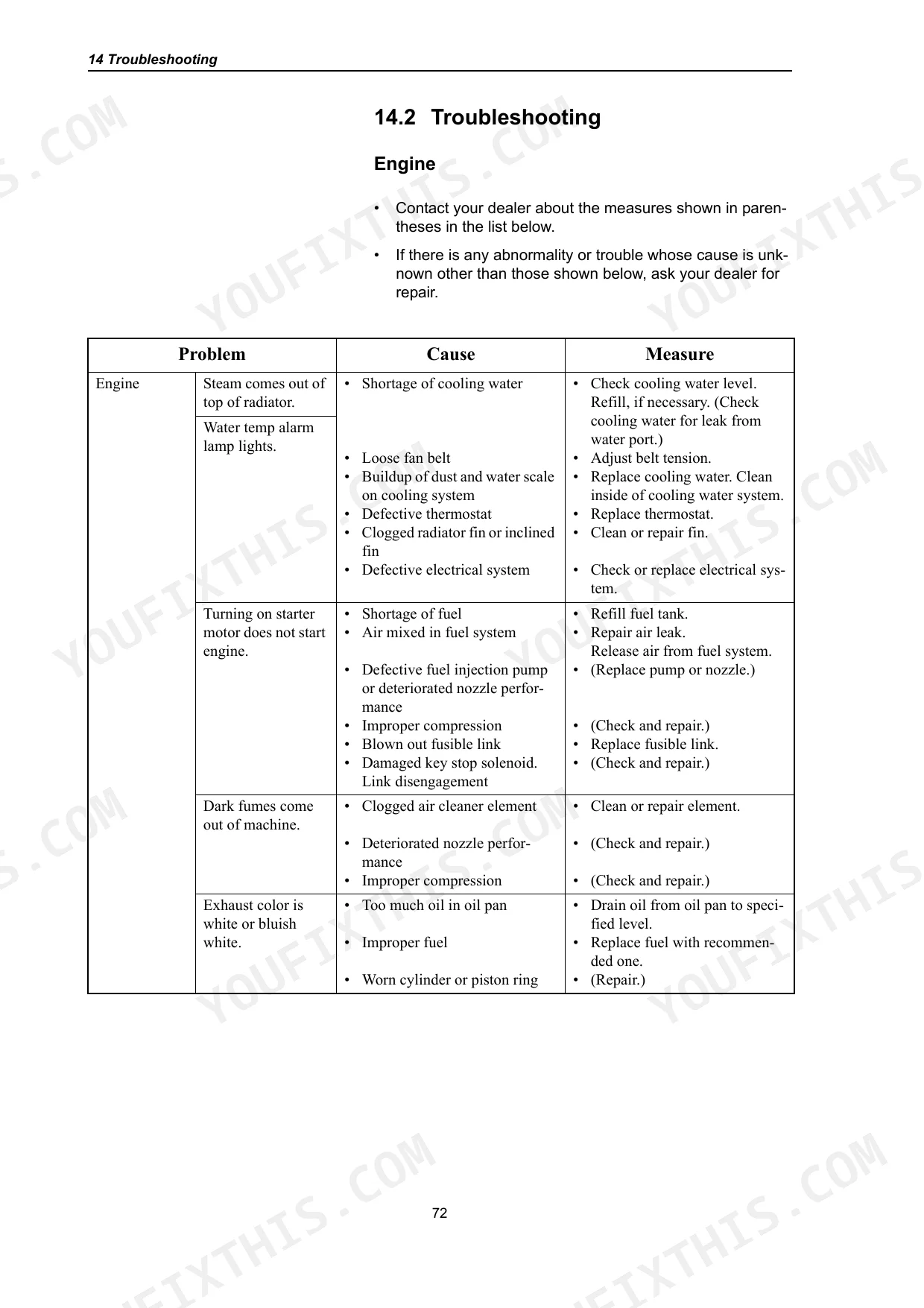

Manual Section: Electrical Equipment TroubleshootingWater temperature alarm triggering, steam coming from radiator, engine losing power under load p. 76
Check coolant level in the subtank; capacity is 0.4 L on all models (page 83). Clean radiator fins with compressed air, blowing from the inside out. If the alarm continues after topping up, follow the engine troubleshooting steps on page 76 to check for a blocked thermostat or damaged water pump seal.
Manual Section: Engine TroubleshootingTrack sagging with excessive play in crawler bushings and pins after high-hour use
Measure the track sag at the midpoint of the bottom span. For ViO30-3/35-3 machines, spec is 8-13 mm on rubber tracks and 105-115 mm on steel tracks. Add or release grease through the tensioner fitting to bring sag into spec. Inspect track pins and bushings for visible wear; replace if play is obvious under operating load.
Manual Section: SpecificationsHydraulic oil leaking from hose connections, visible cracking and oil smell under the machine p. 30
Inspect all hose bodies and clamps for cracks, peeling, torsion, or crushing per page 30. Replace main pump outlet hoses (P1, P2, P3) at the earlier of 4000 service hours or 2 years (page 31). When reinstalling PT fittings at connections, torque 1/8 PT plugs to 9.8 N•m per the torque specification table on page 85.
Manual Section: Fuel and Hydraulic Hose InspectionFrequently Asked Questions
What are the torque specs for the engine mounting bolts on a Yanmar ViO17?
The manual provides a standard tightening torque table for various bolts and nuts, including coarse and fine threads. For example, an M14x1.5 fine thread bolt should be tightened to 127.5 - 147.1 N•m. However, it does not specify torque values specifically for "engine mounting bolts" but notes that fine thread screws are used for the engine.
How do you fix Yanmar ViO mini excavator engine starts but no hydraulic function, boom and bucket won't move?
Check hydraulic oil level and inspect for aeration or foamy oil, which indicates cavitation in the pump. Examine main pump outlet hoses (P1, P2, P3) for leaks, cracks, or interference per the hose inspection checklist on page 30. Mandatory replacement interval for these hoses is the earlier of 4000 service hours or every 2 years (page 31).
How do you fix engine won't start, cranks slowly, or starter motor fails to engage in cold weather?
Inspect battery terminals for corrosion and check electrolyte level per the electrical troubleshooting procedures. Verify charging system output: on ViO30-3/35-3 the generator is rated 12 V / 40 A (page 99). Clean terminals, tighten all ground connections, then load-test the battery at 12 V before condemning the starter motor.
How do you fix water temperature alarm triggering, steam coming from radiator, engine losing power under load?
Check coolant level in the subtank; capacity is 0.4 L on all models (page 83). Clean radiator fins with compressed air, blowing from the inside out. If the alarm continues after topping up, follow the engine troubleshooting steps on page 76 to check for a blocked thermostat or damaged water pump seal.
What do I get after purchasing this Yanmar ViO17–ViO57 Series manual?
A 160-page Operation Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.

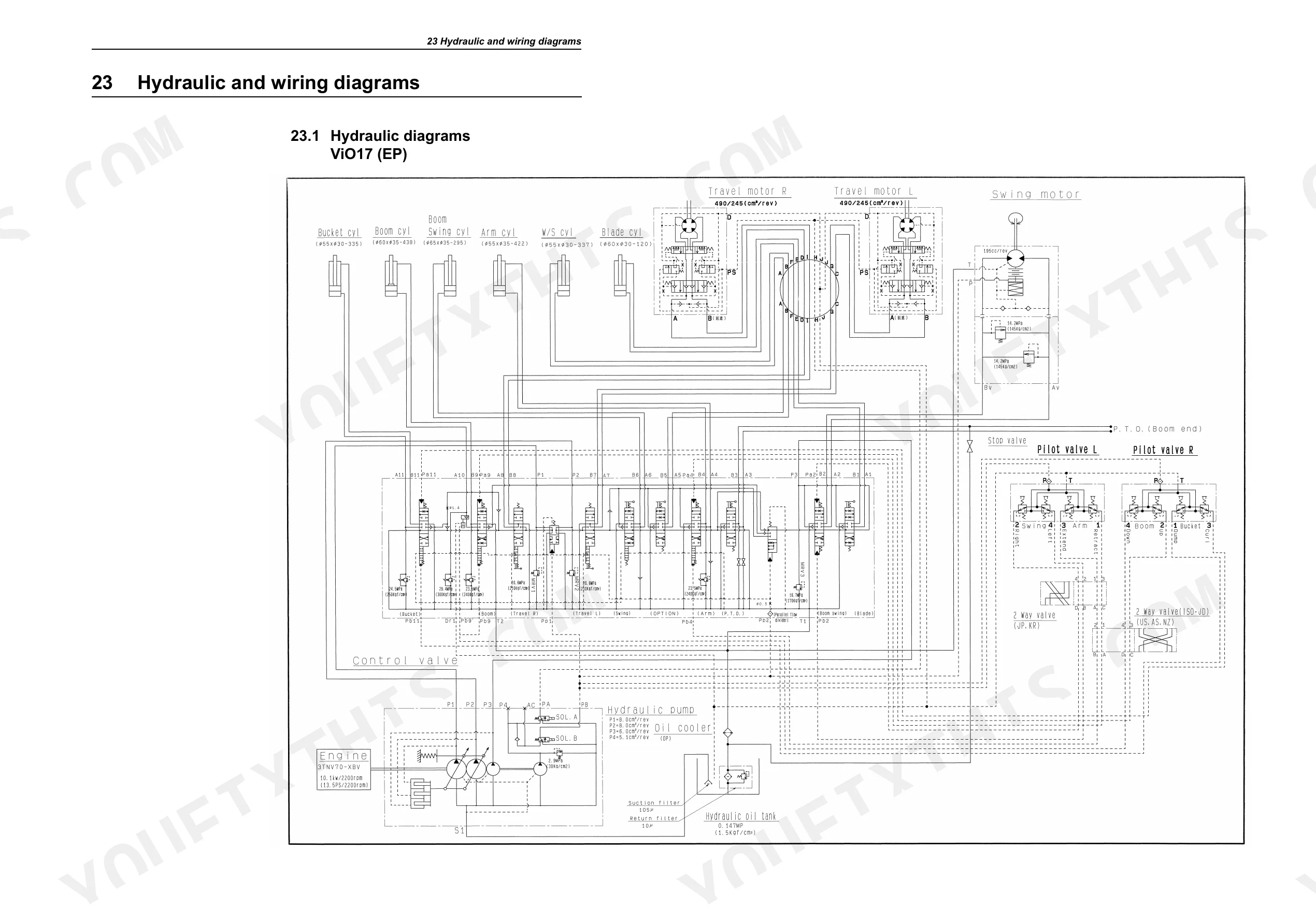

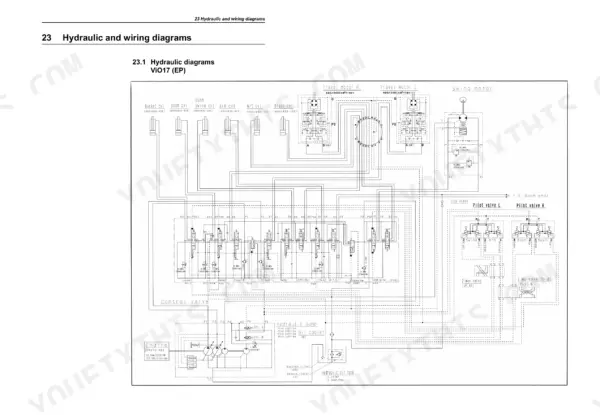

Can I find hydraulic circuit diagrams in this Yanmar ViO17–ViO57 Series?
Included. A hydraulic system diagram shows the main hydraulic layout for the Yanmar ViO17–ViO57 Series.
